Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Tests DS: Air Conditioning Pressure (ACP) Sensor
Tests DS: Air Conditioning Pressure (ACP) Sensor

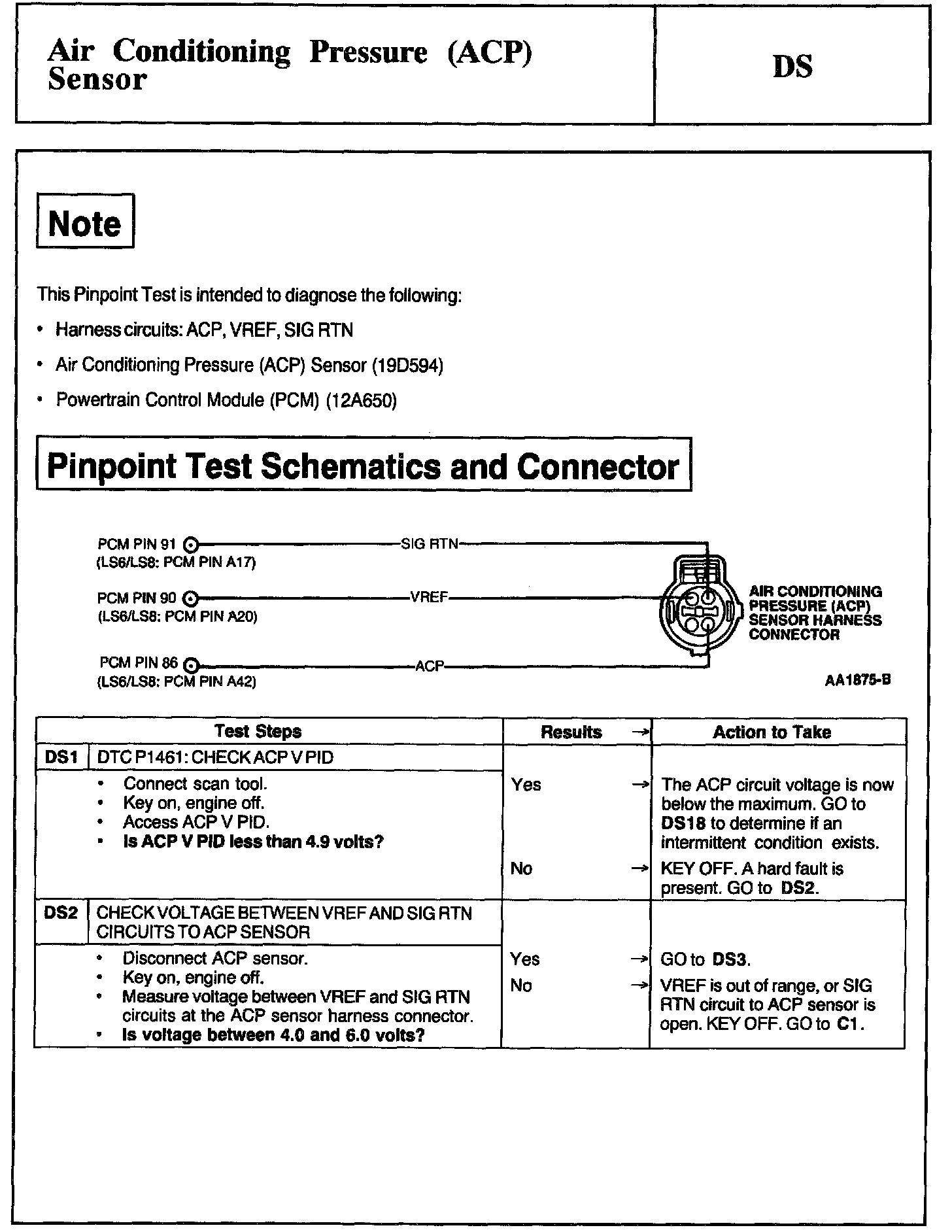

Note, Schematics and Connector and Test DS1 - DS2:

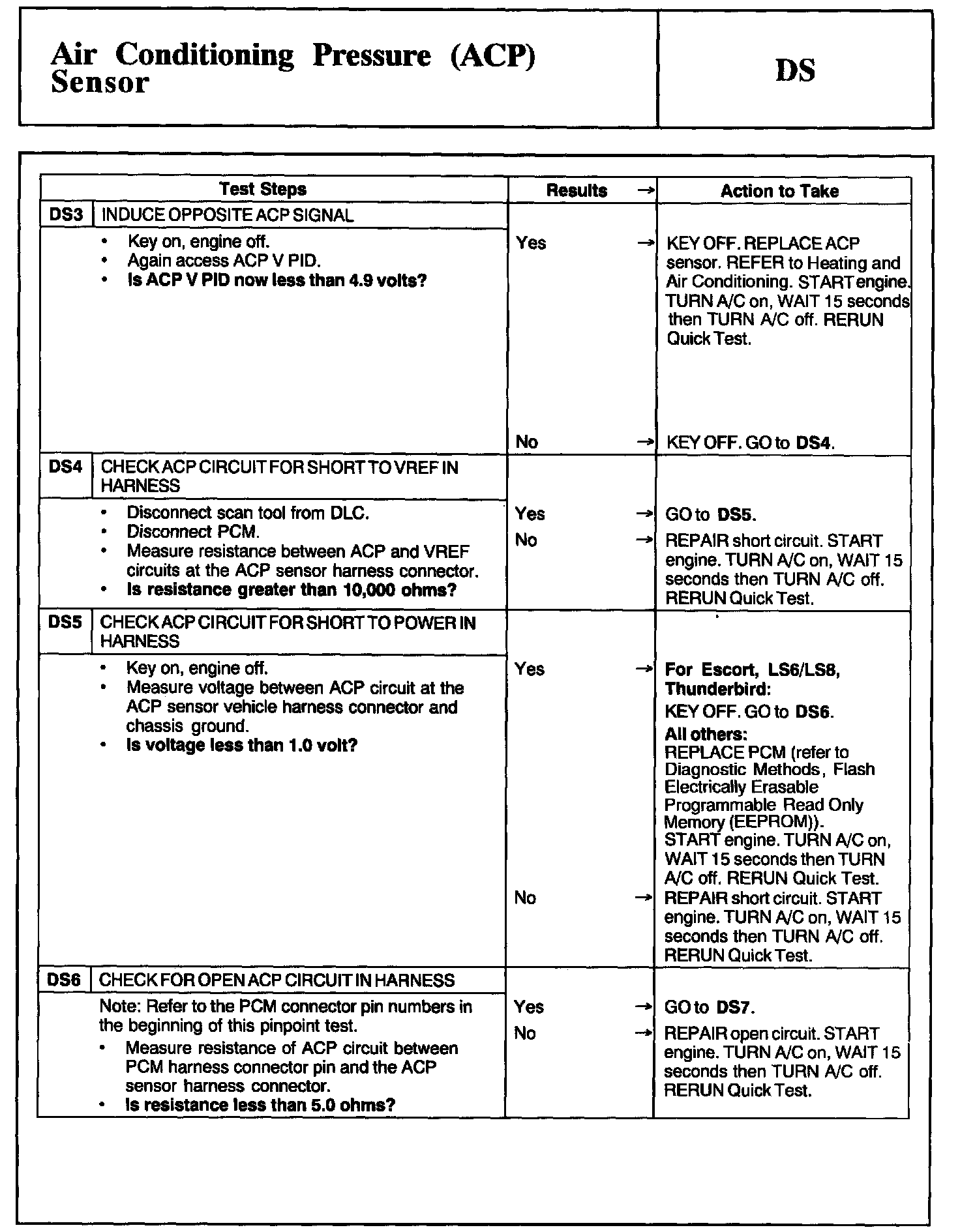

DS3 - DS6:

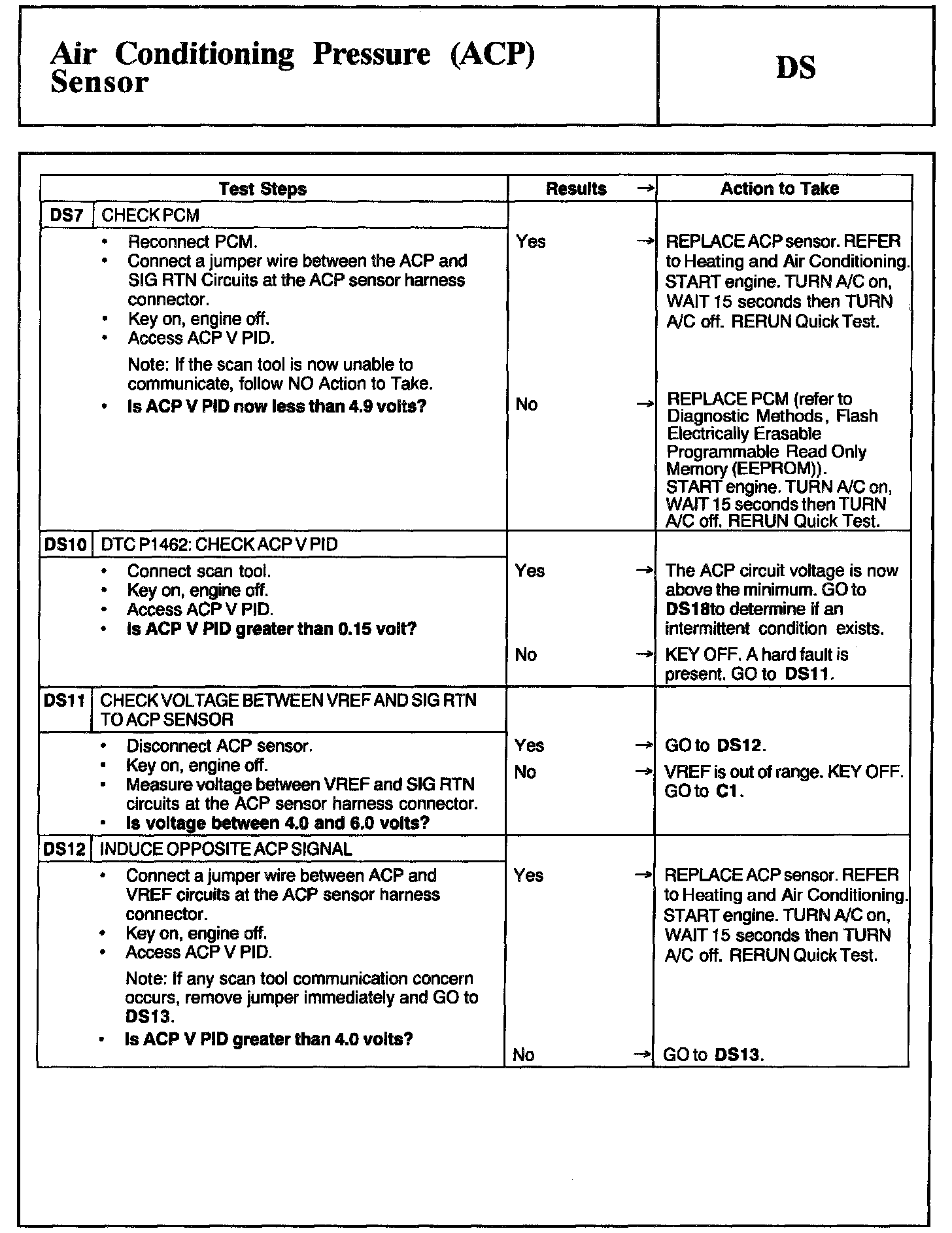

DS7 - DS12:

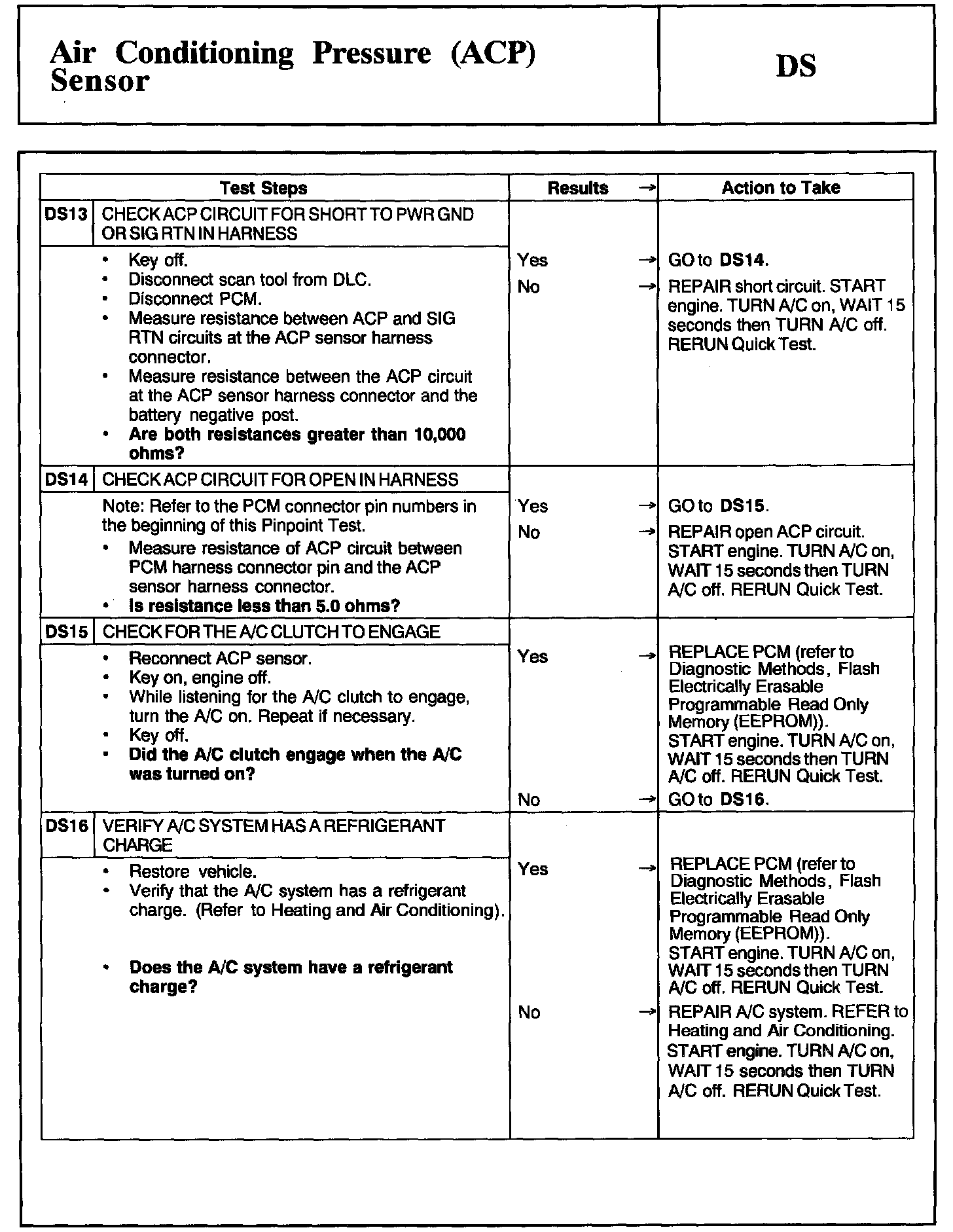

DS13 - DS16:

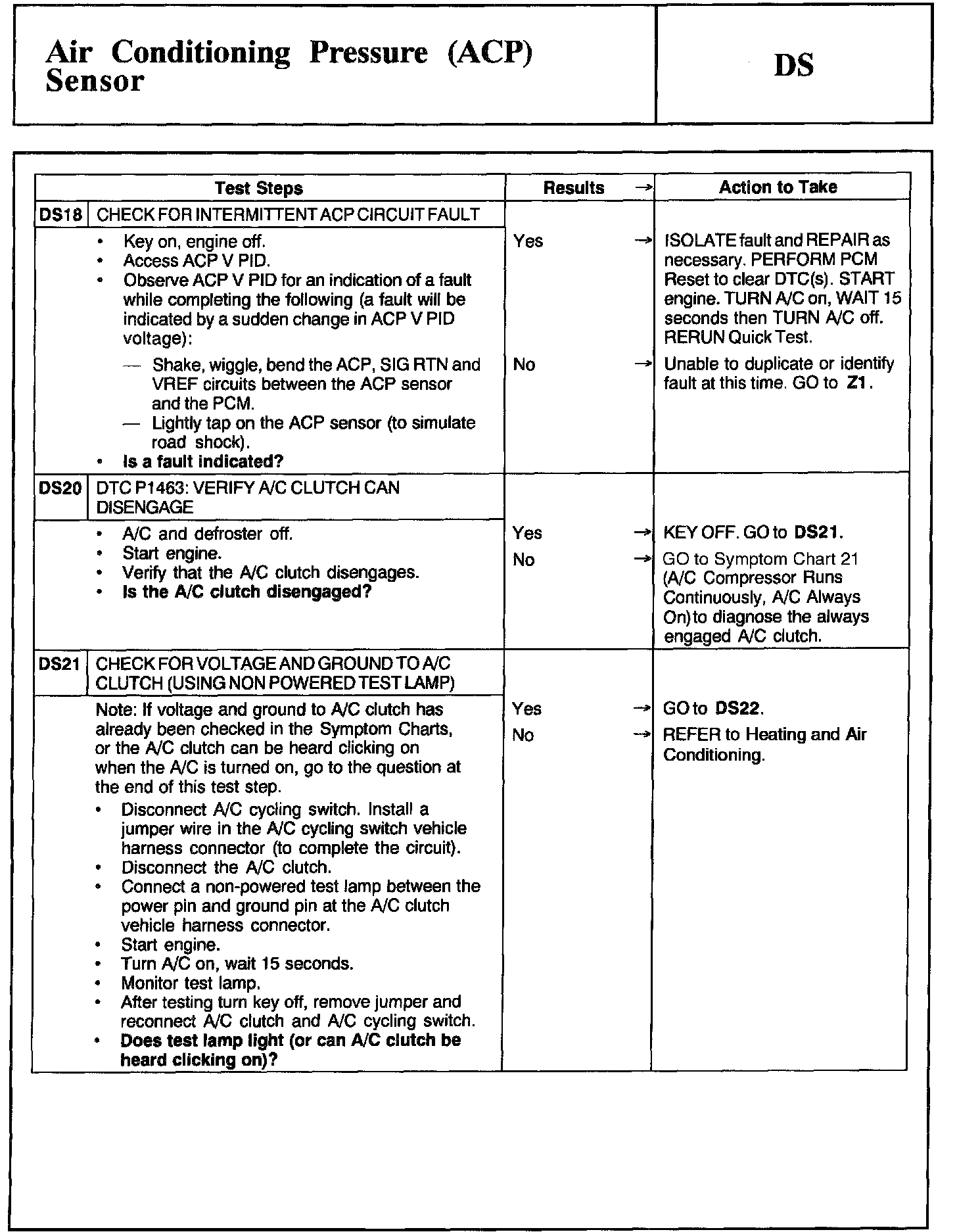

DS18 - DS21:

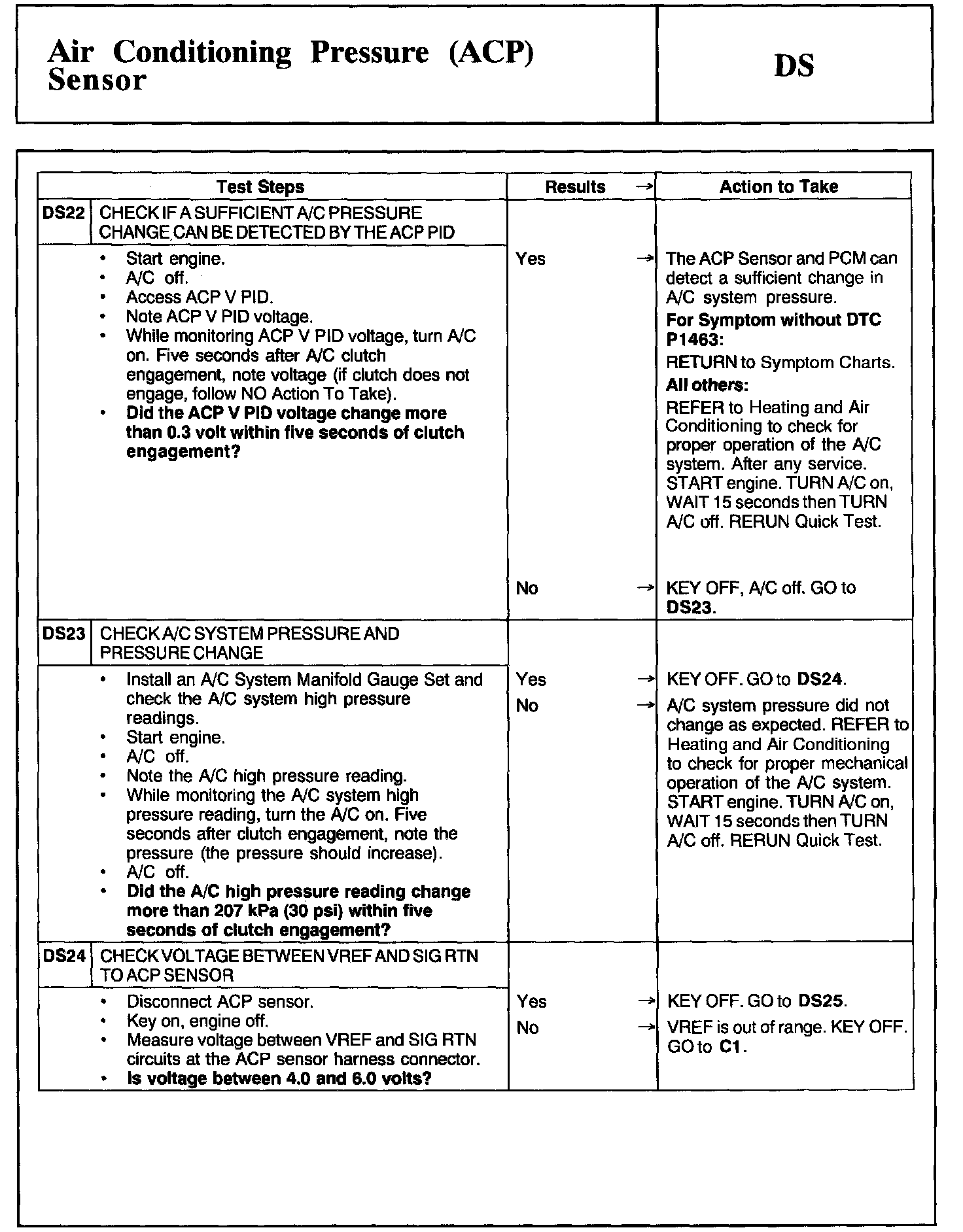

DS22 - DS24:

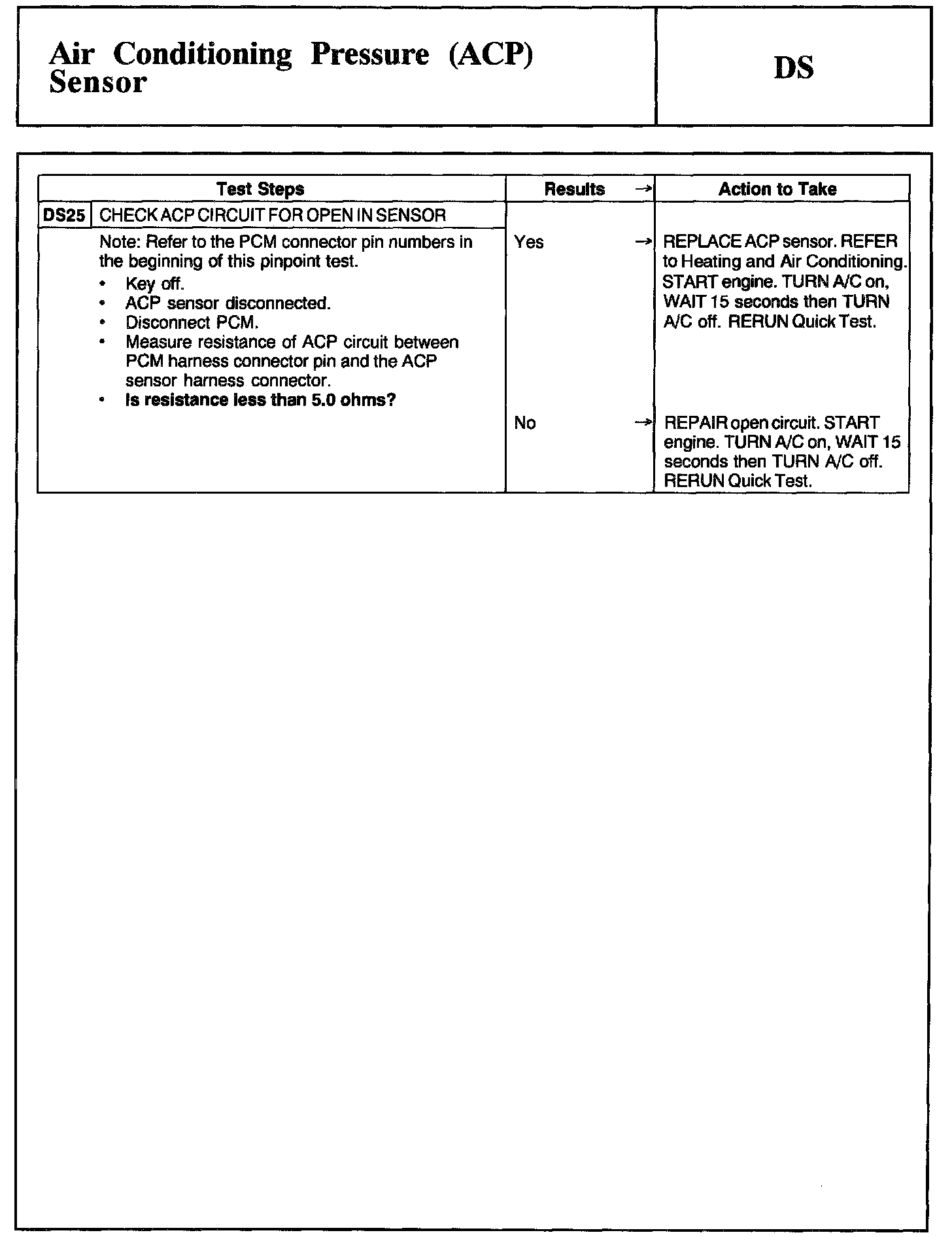

DS25:
