Tests HE: Exhaust Gas Recirculation (EGR) Systems

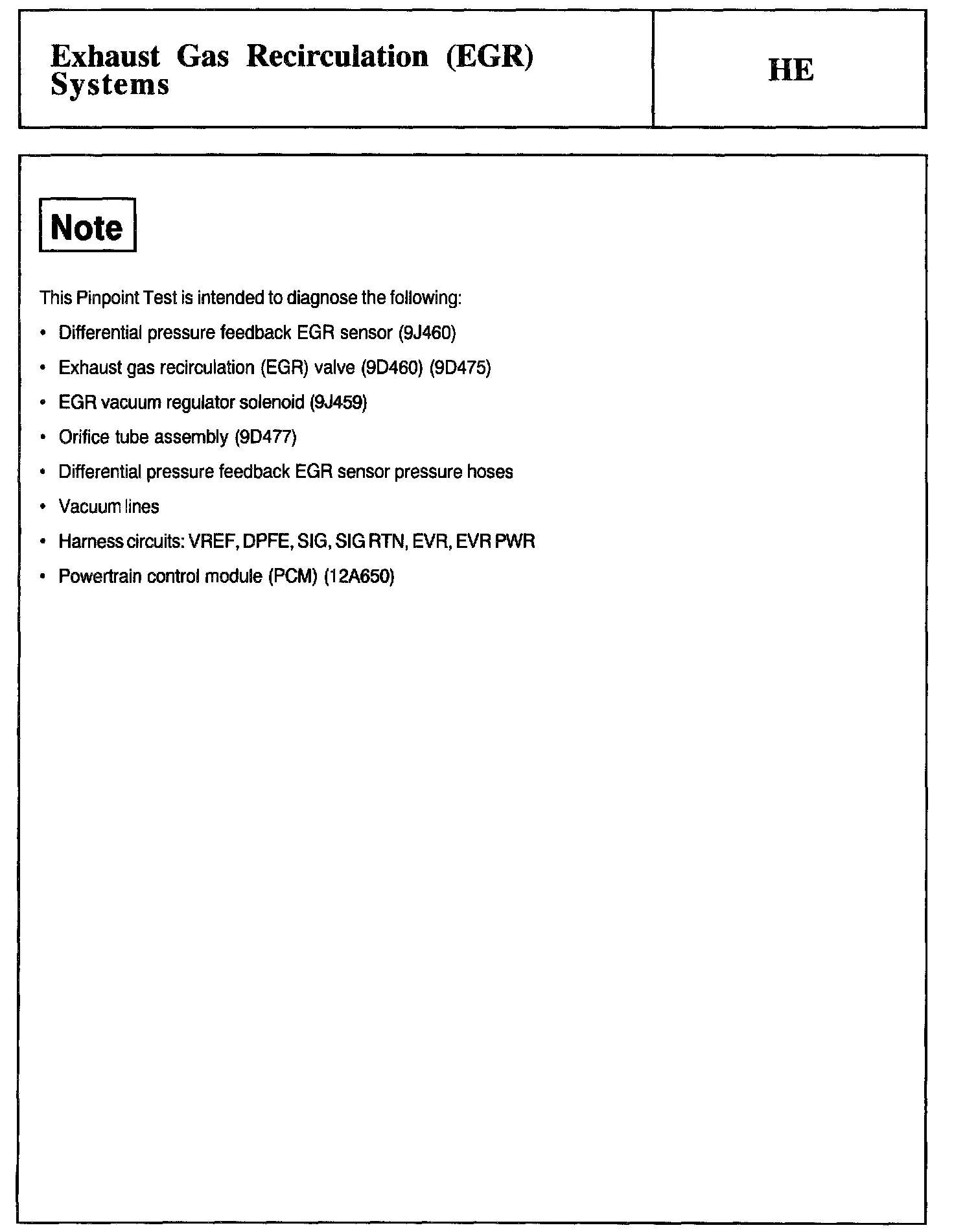

Test Note:

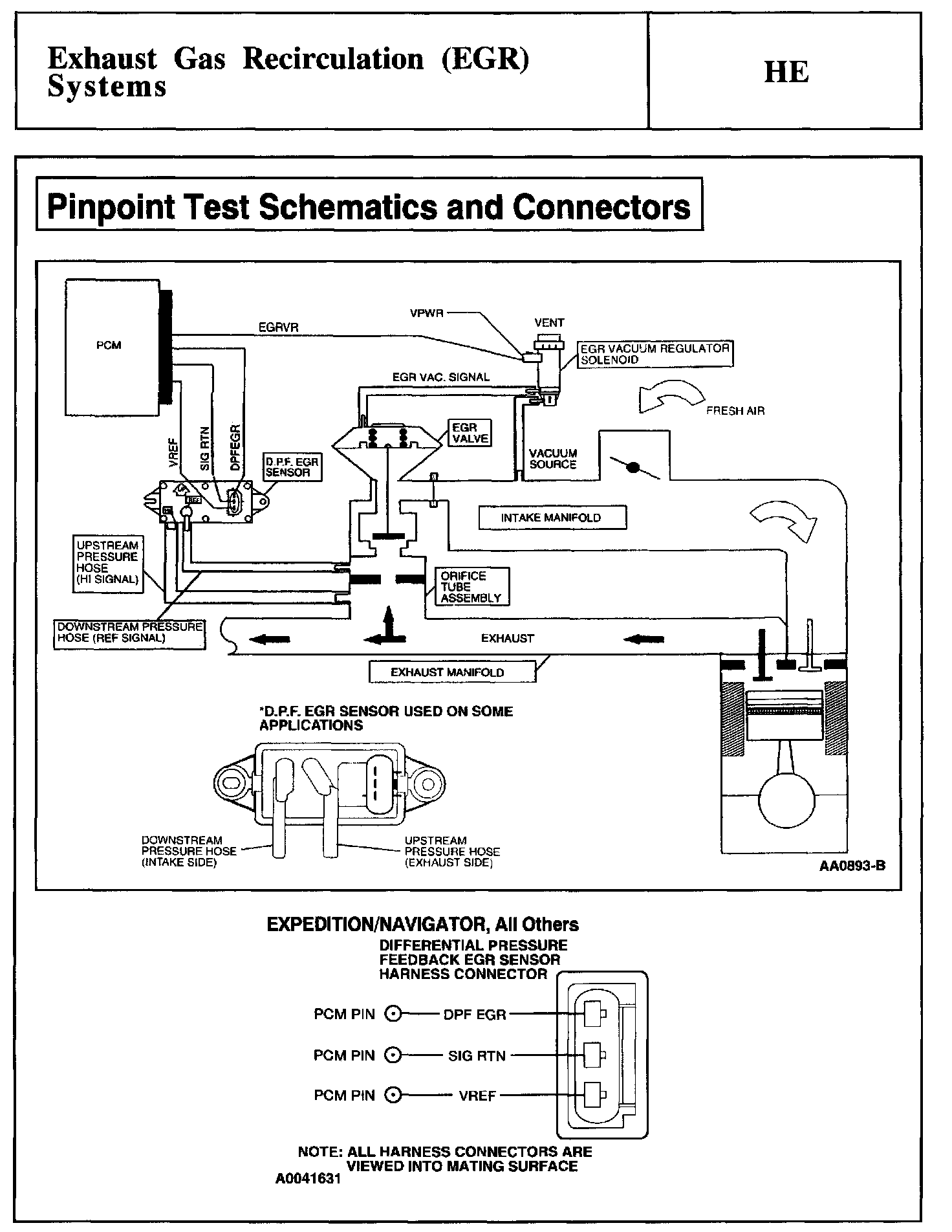

Test Schematic And Connectors:

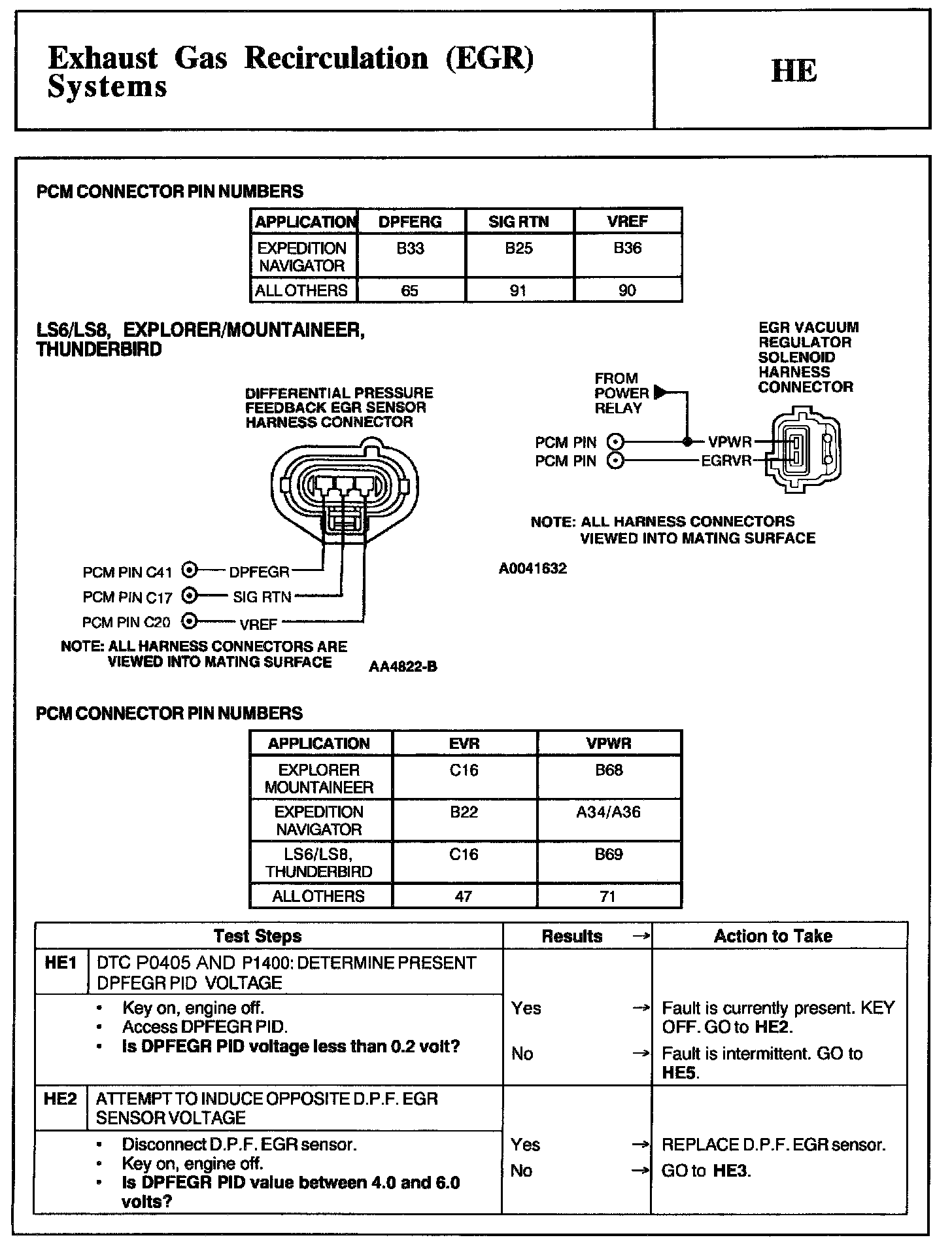

Schematic, Test HE1 - HE2:

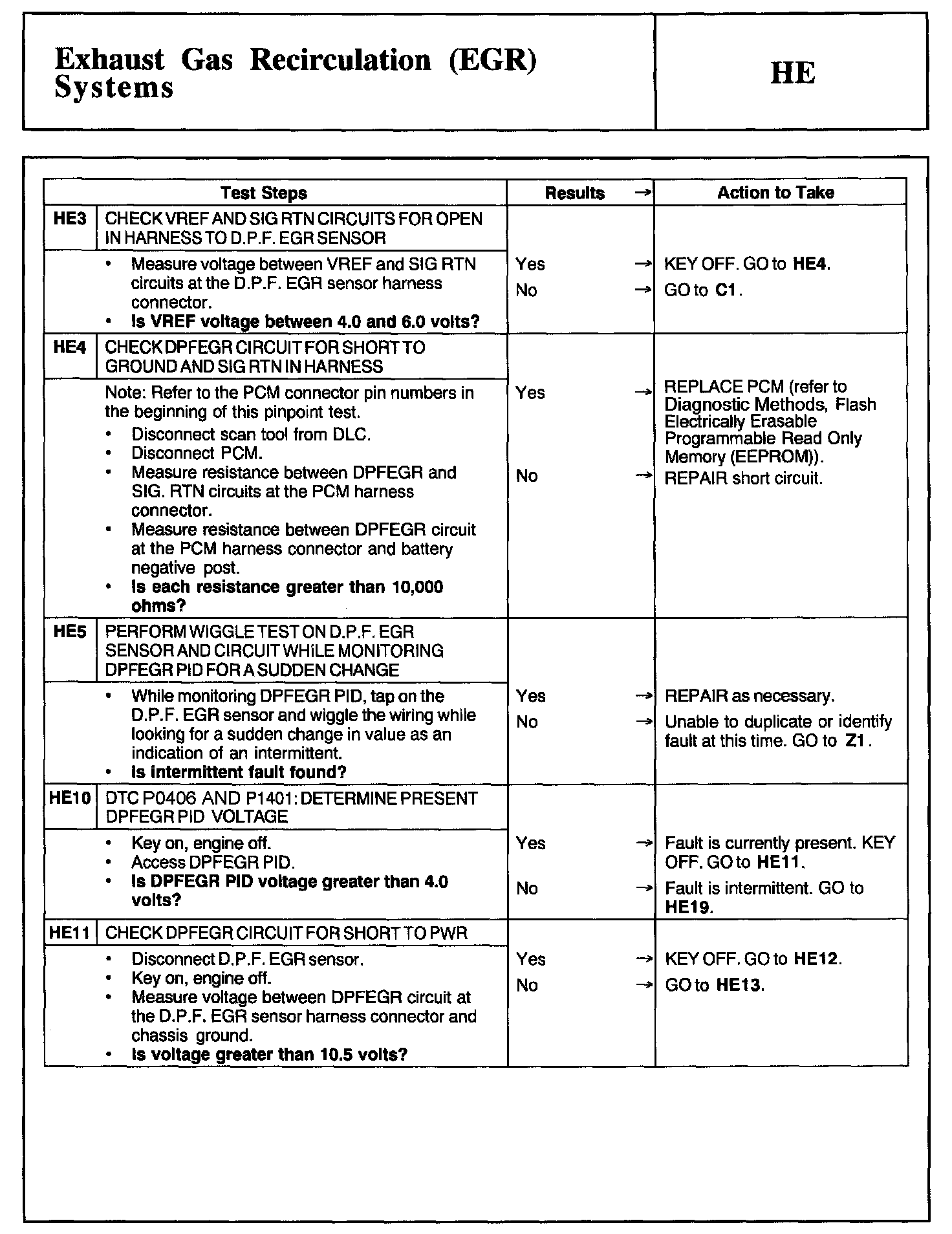

HE3 - HE11:

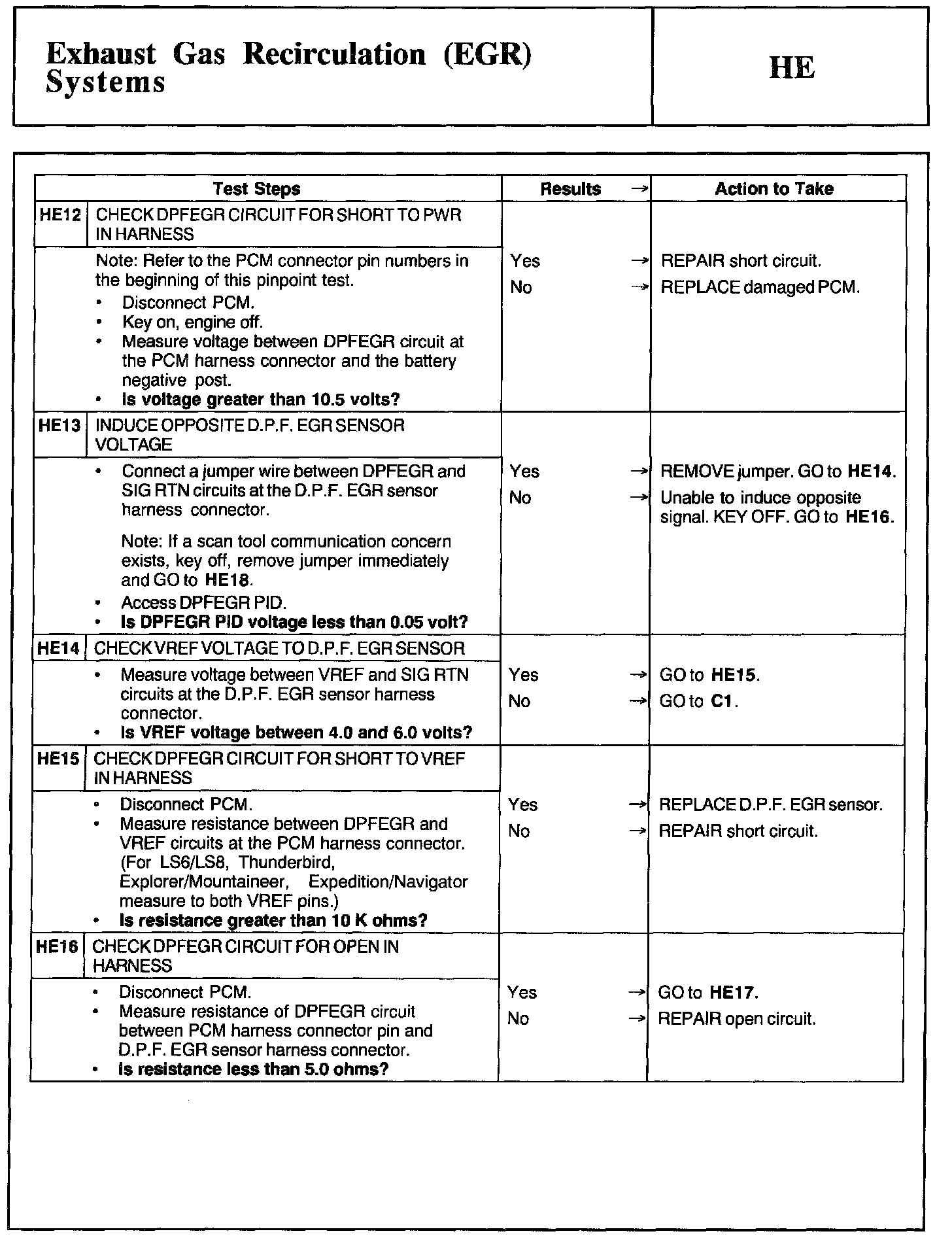

HE12 - HE16:

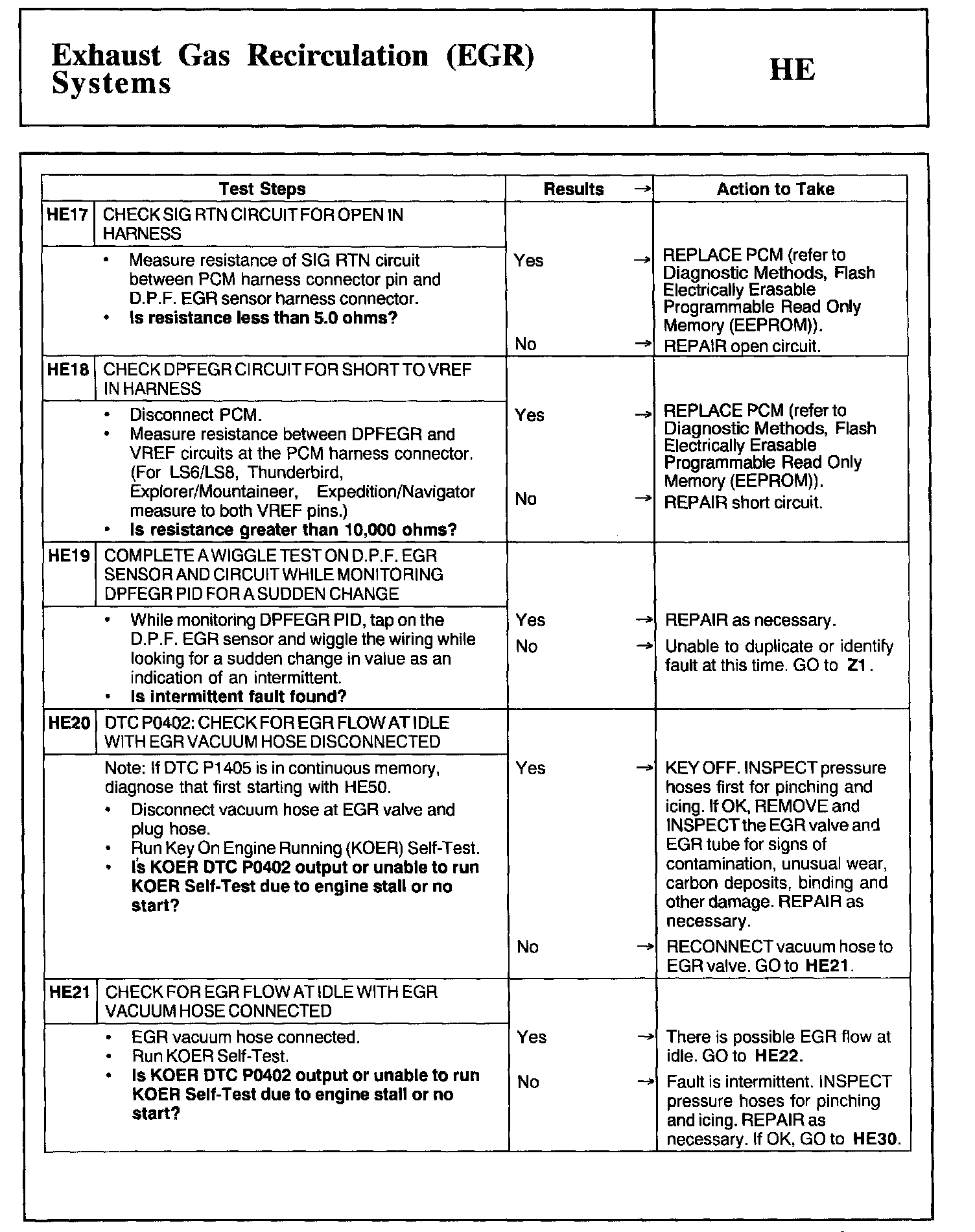

HE17 - HE21:

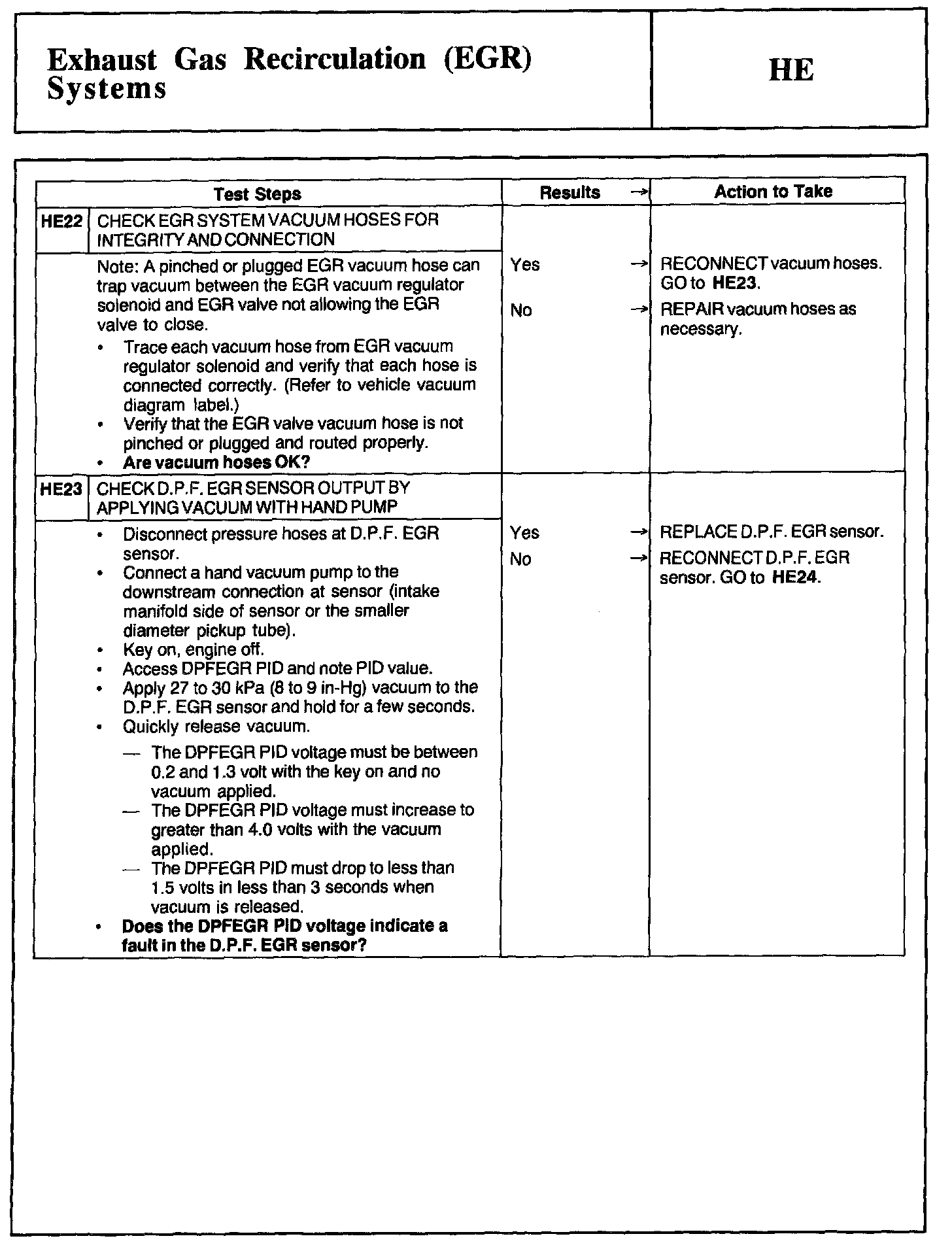

HE22 - HE23:

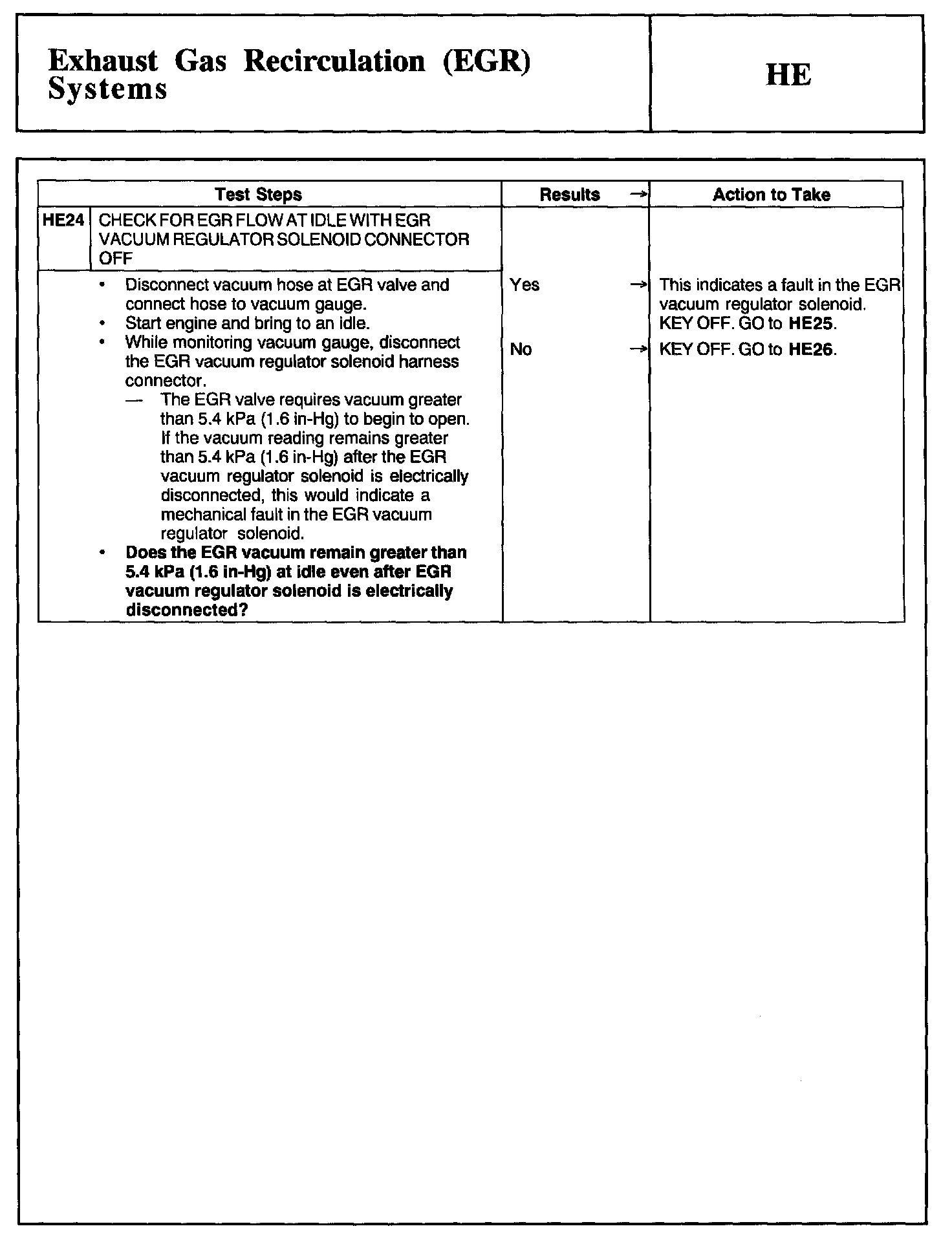

HE24:

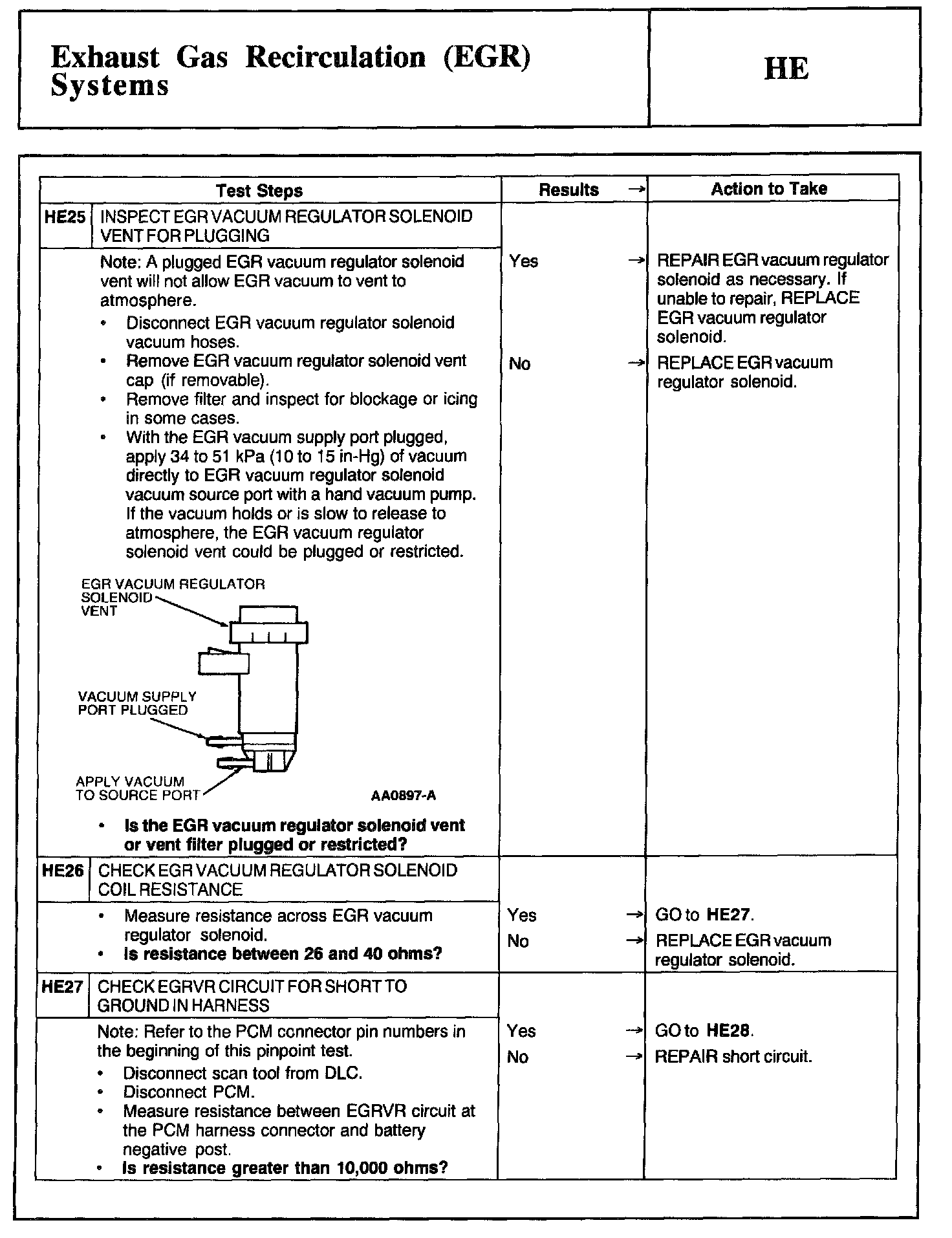

HE25 - HE27:

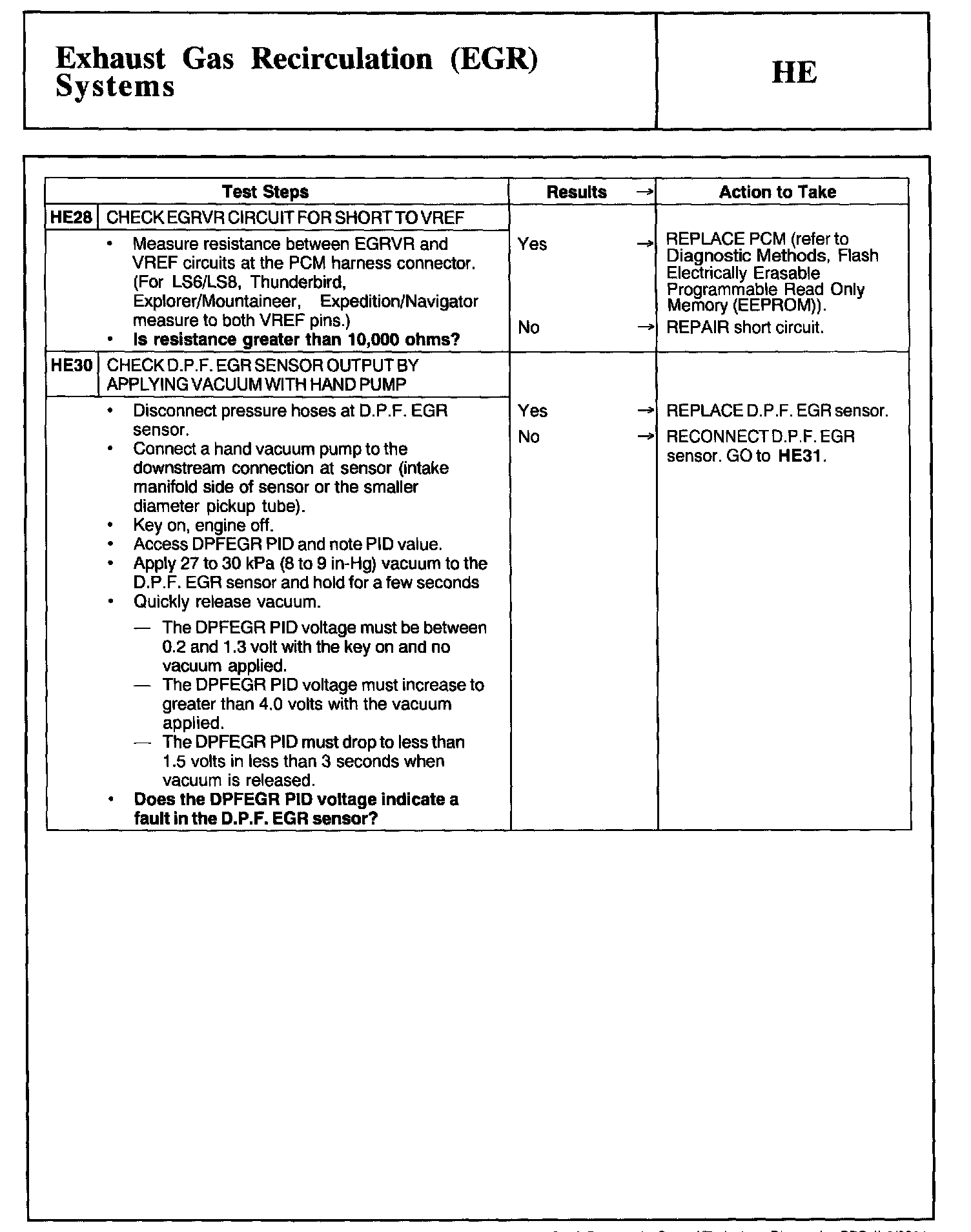

HE28 - HE30:

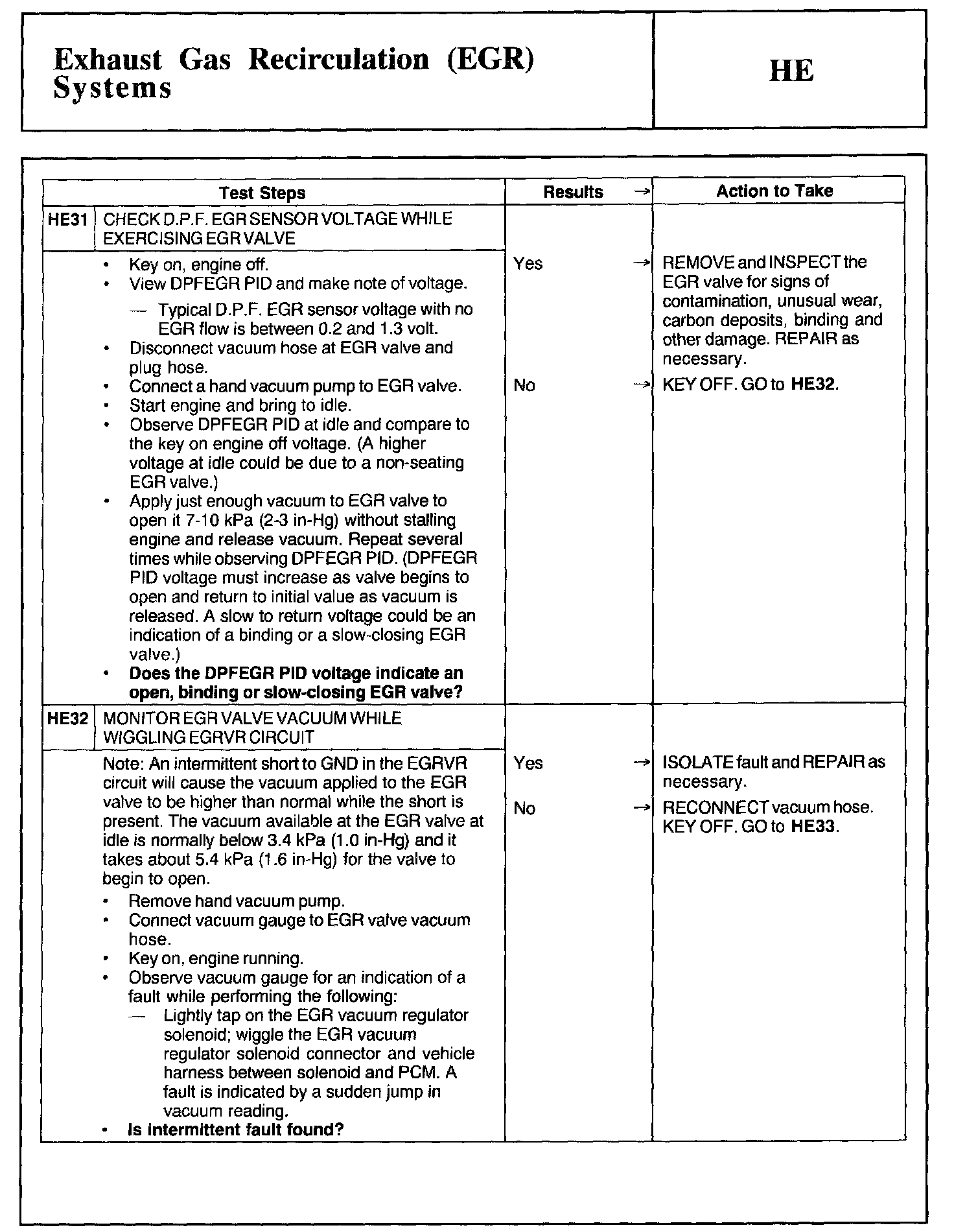

HE31 - HE32:

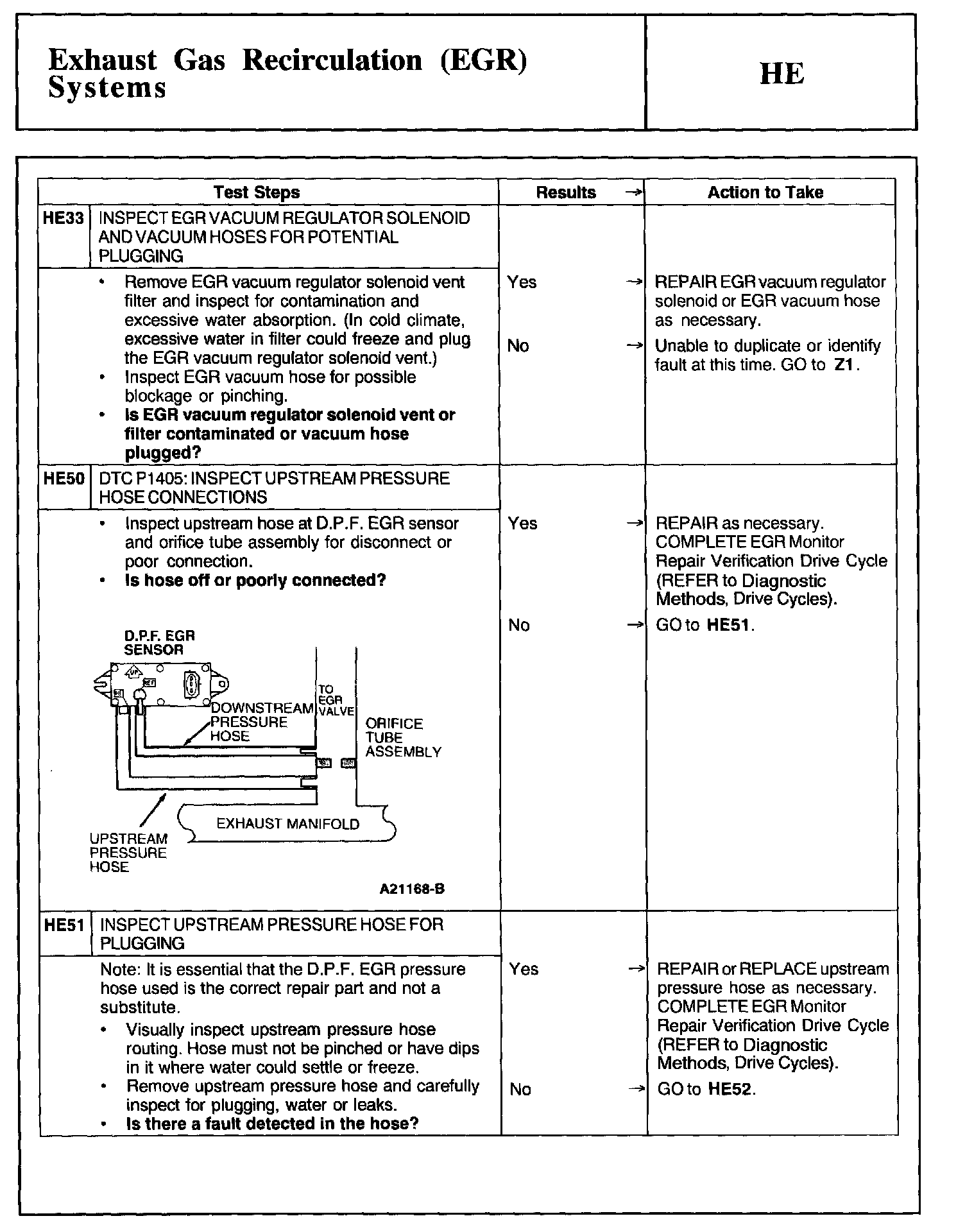

HE33 - HE51:

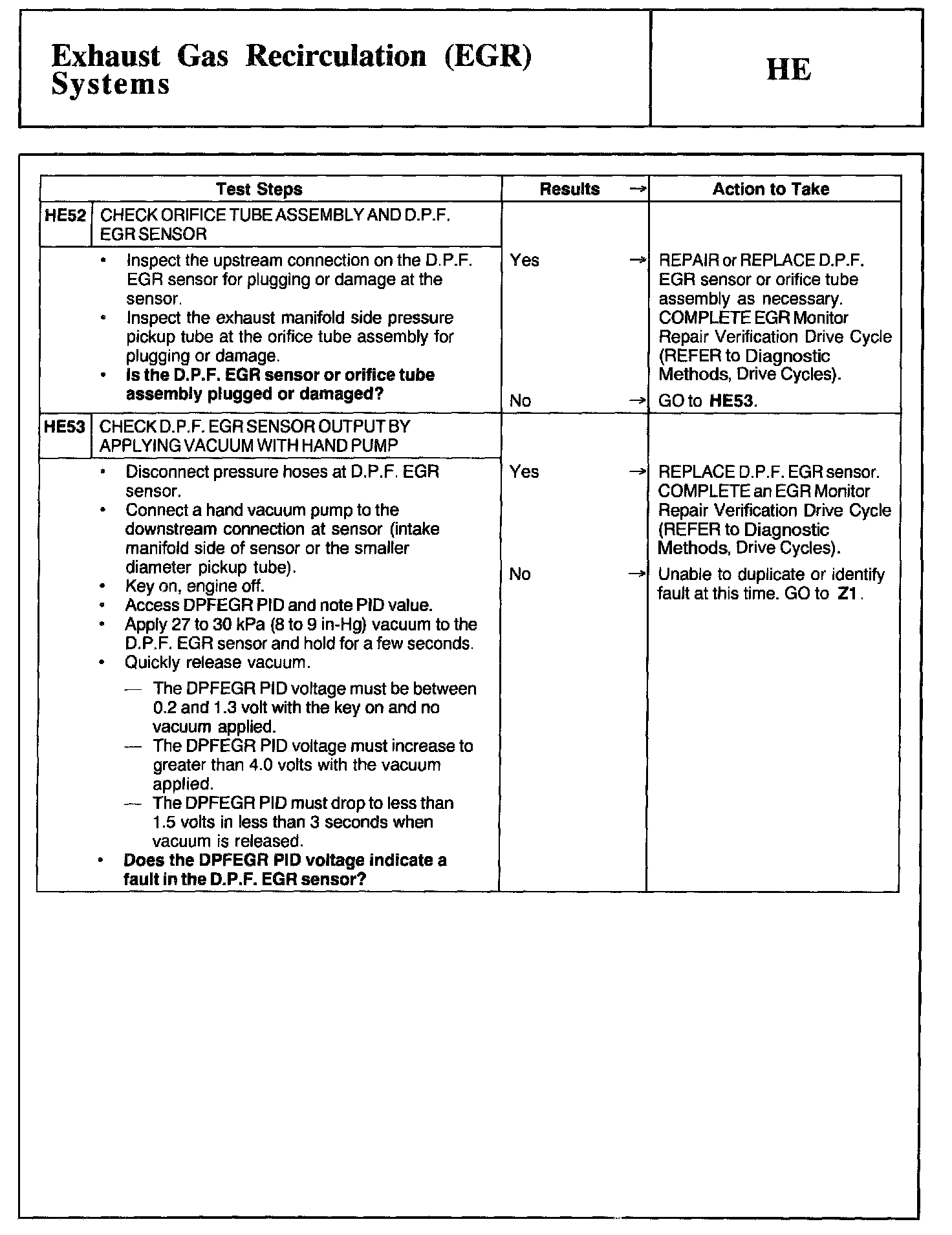

HE52 - HE53:

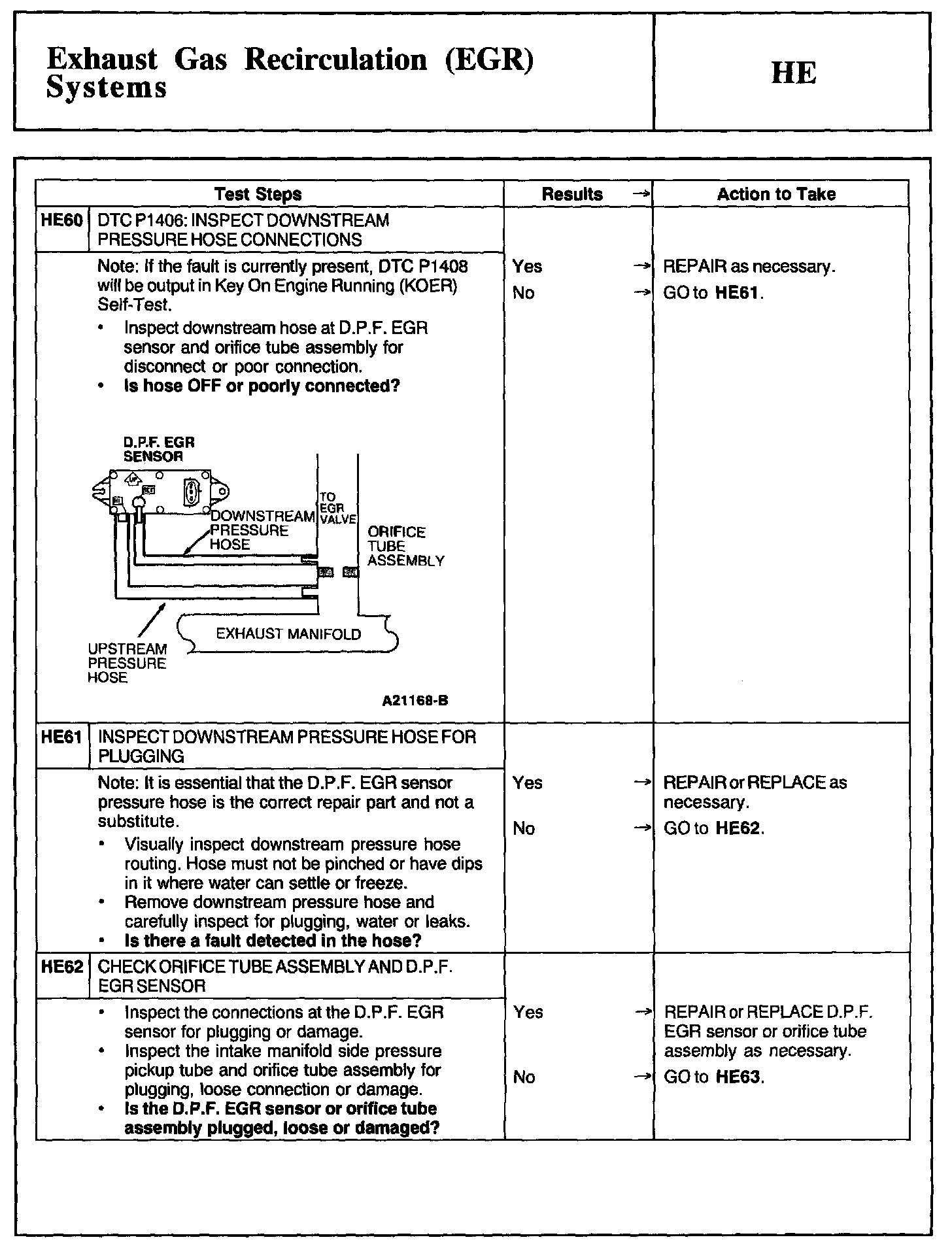

HE60 - HE62:

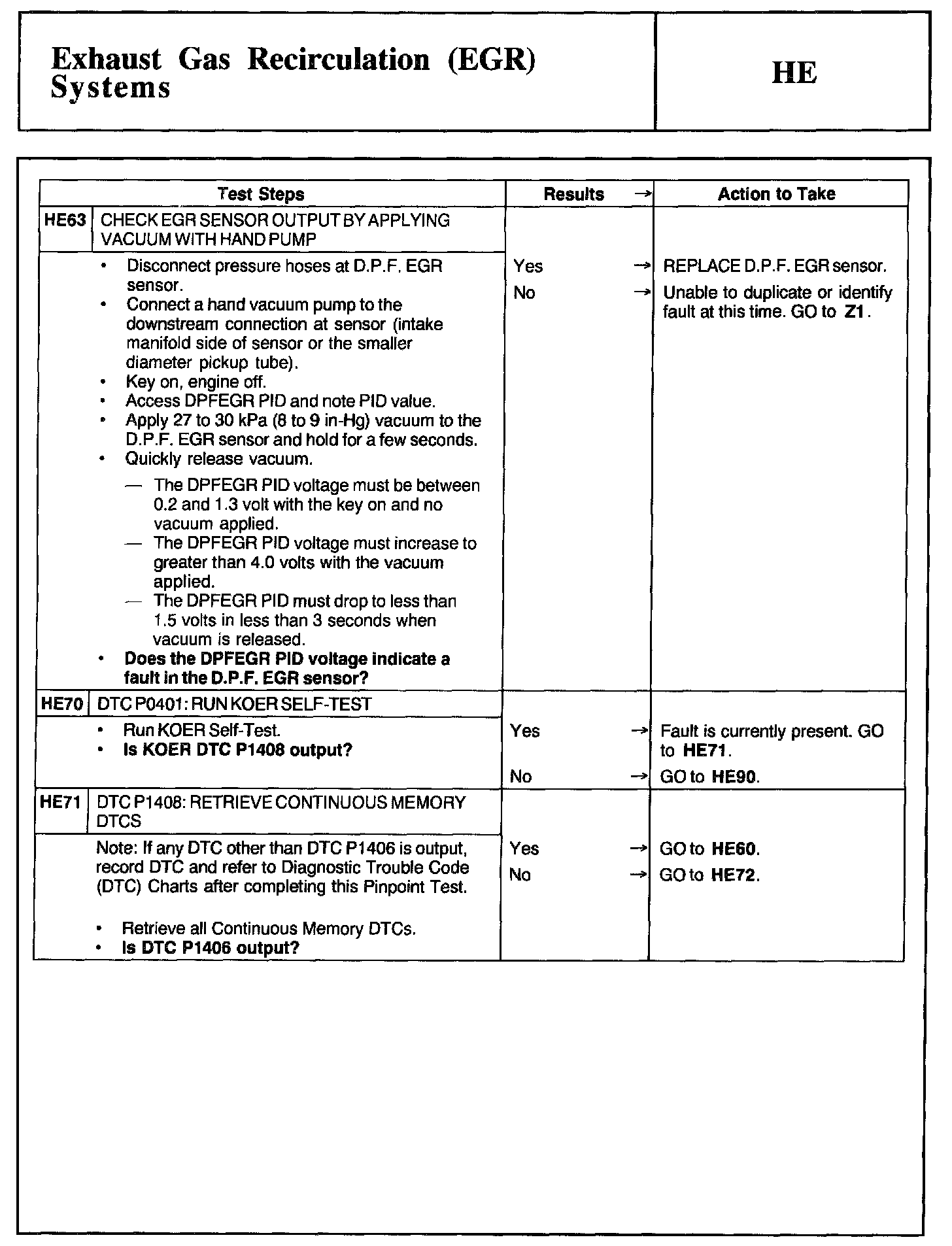

HE63 - HE71:

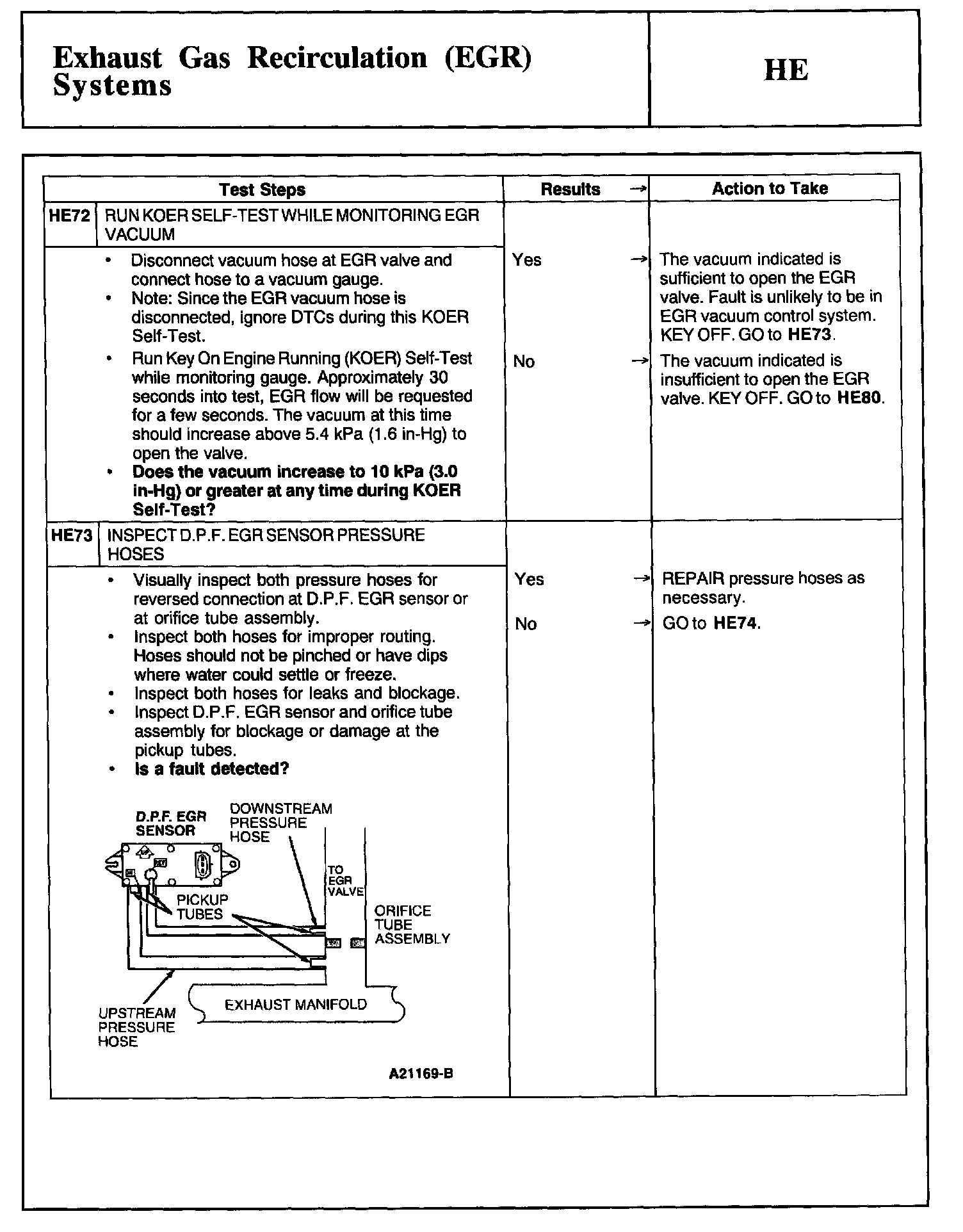

HE72 - HE73:

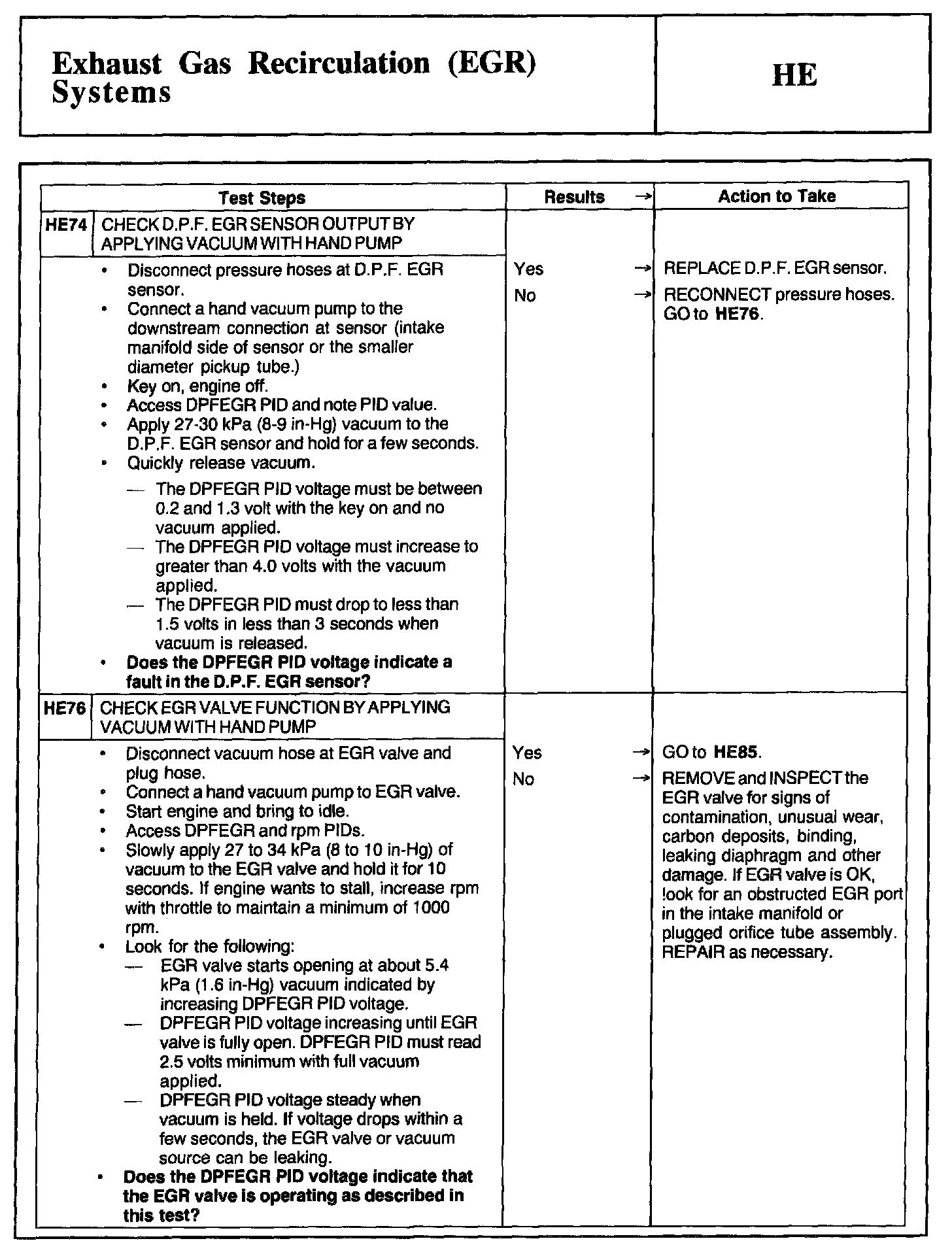

HE74 - HE76:

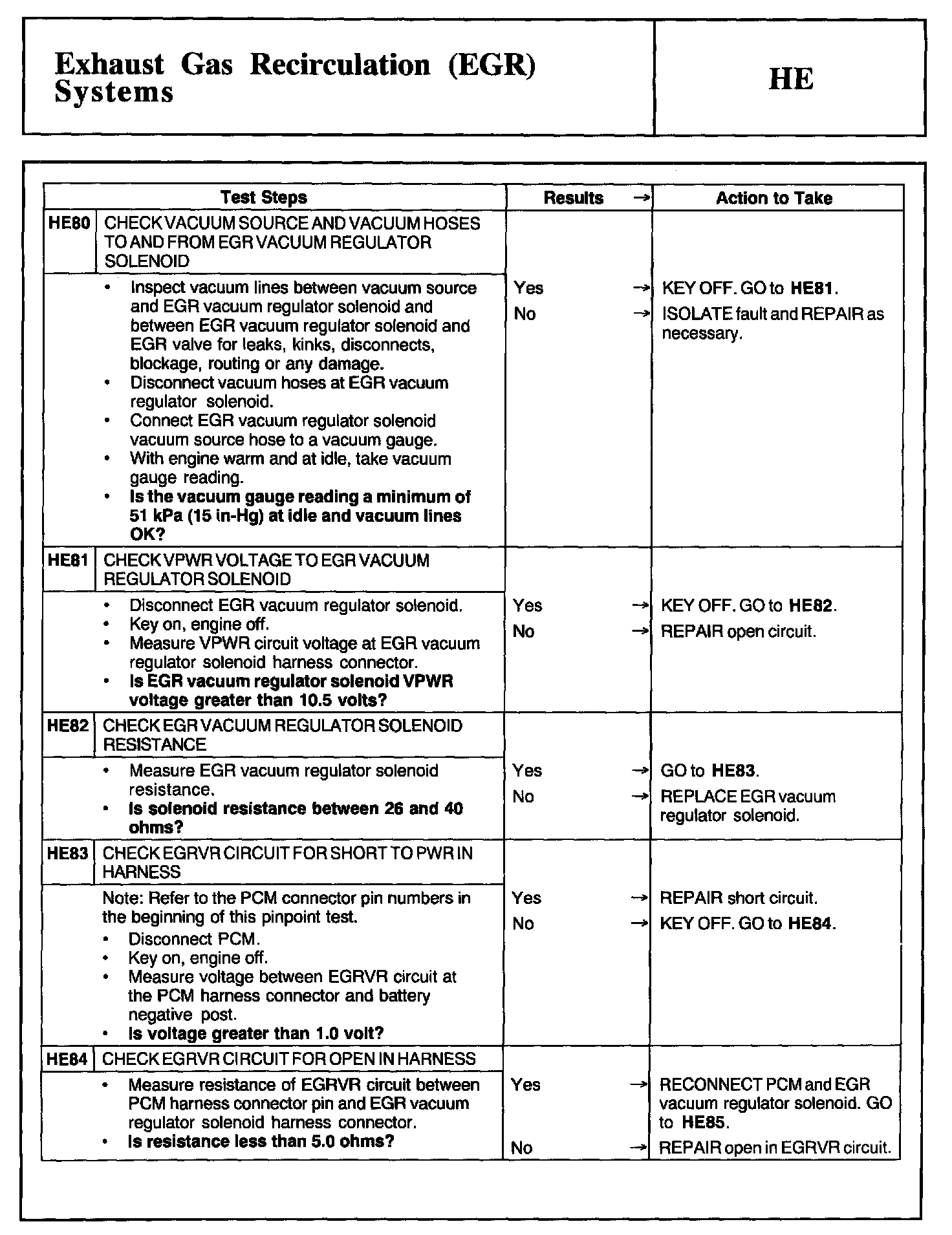

HE80 - HE84:

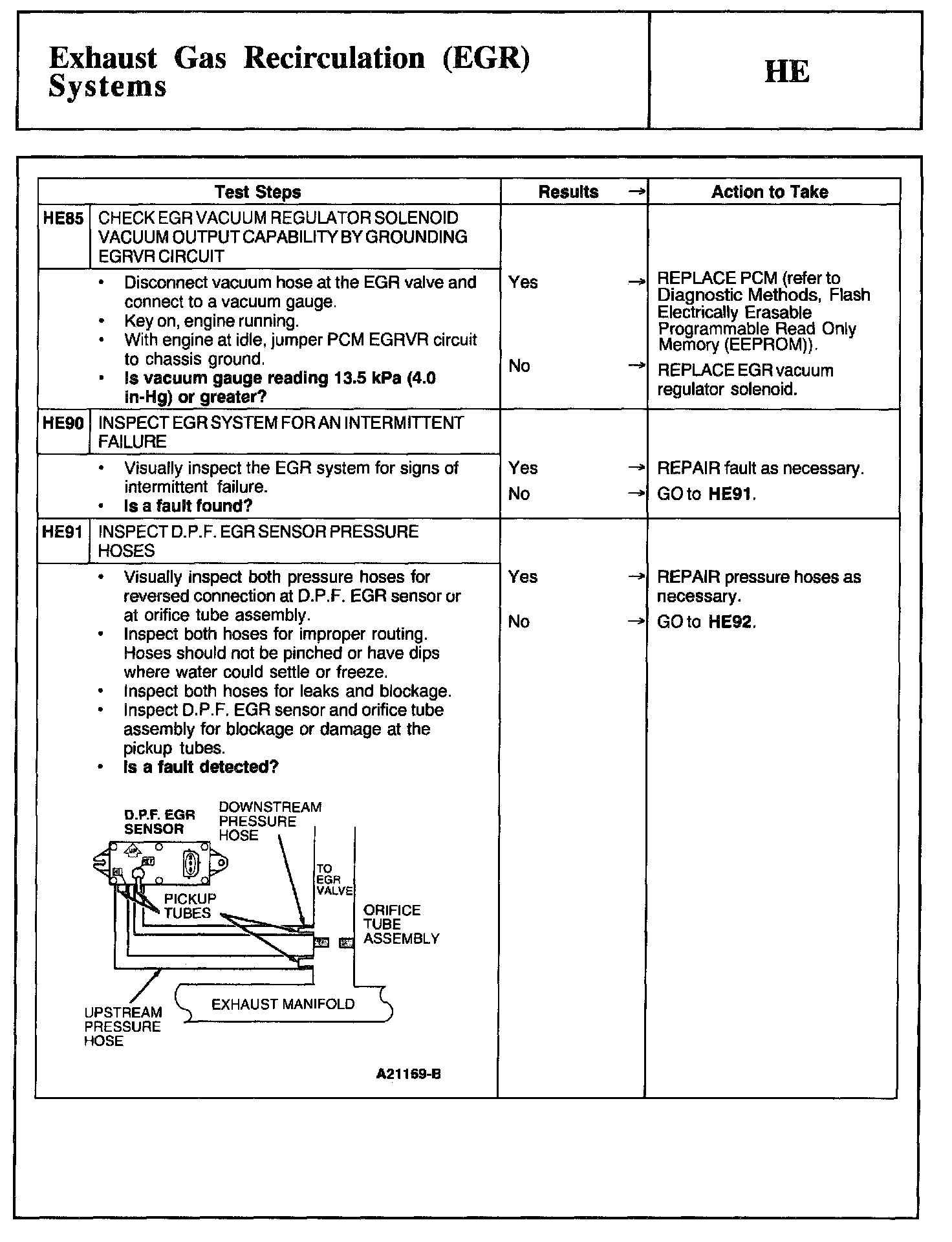

HE85 - HE91:

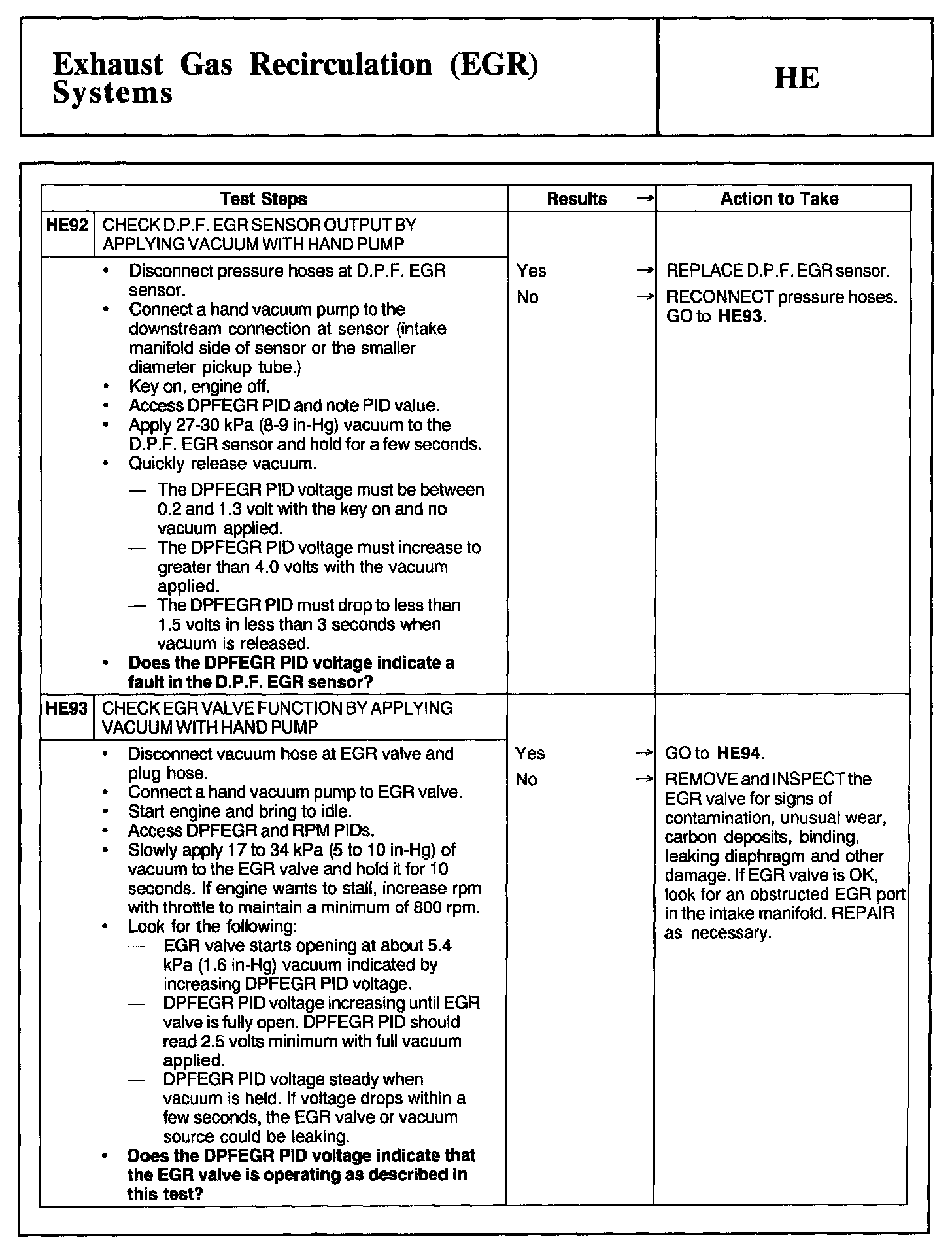

HE92 - HE93:
