Tests HX: Evaporative Emission (EVAP) Monitor and System

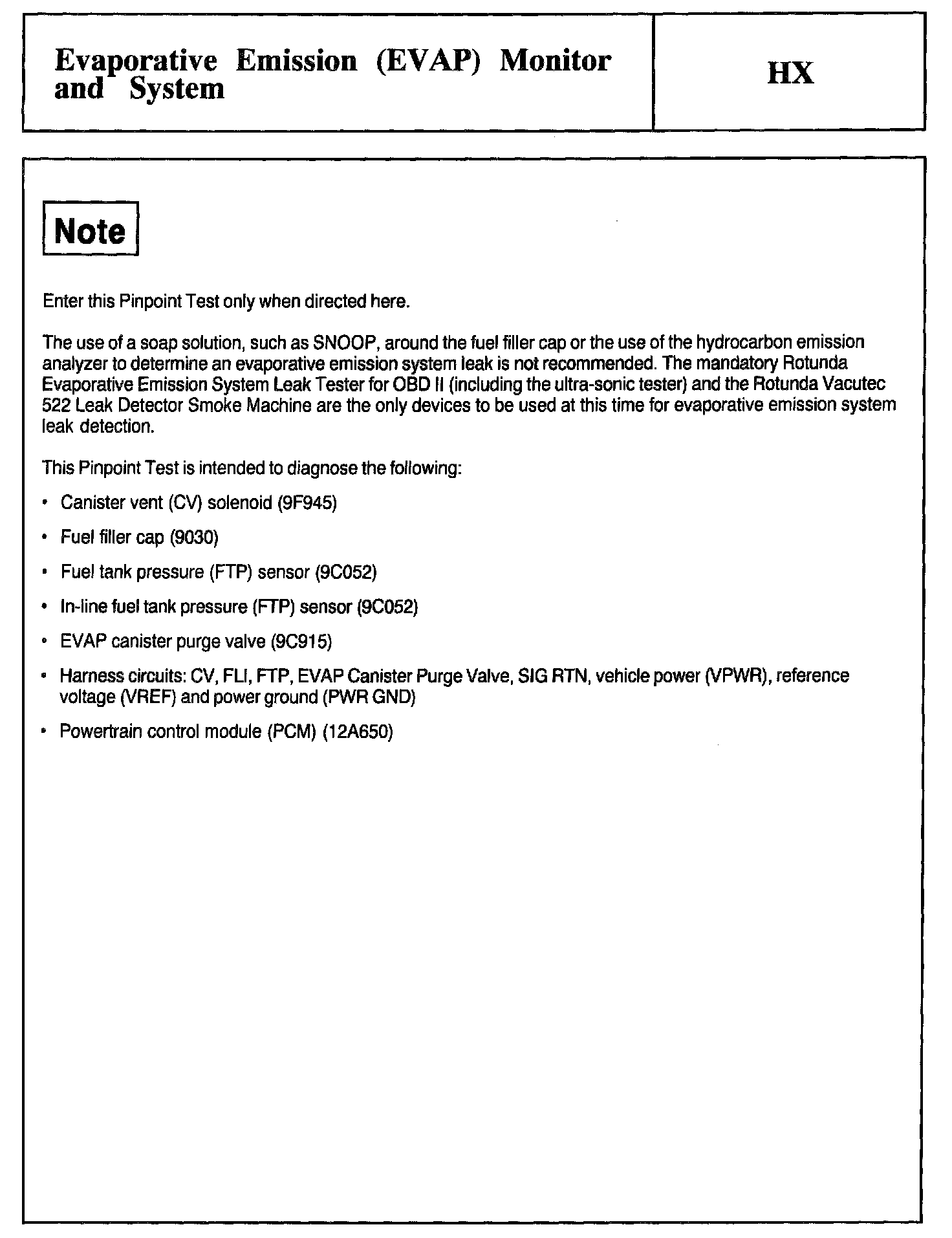

Test Note:

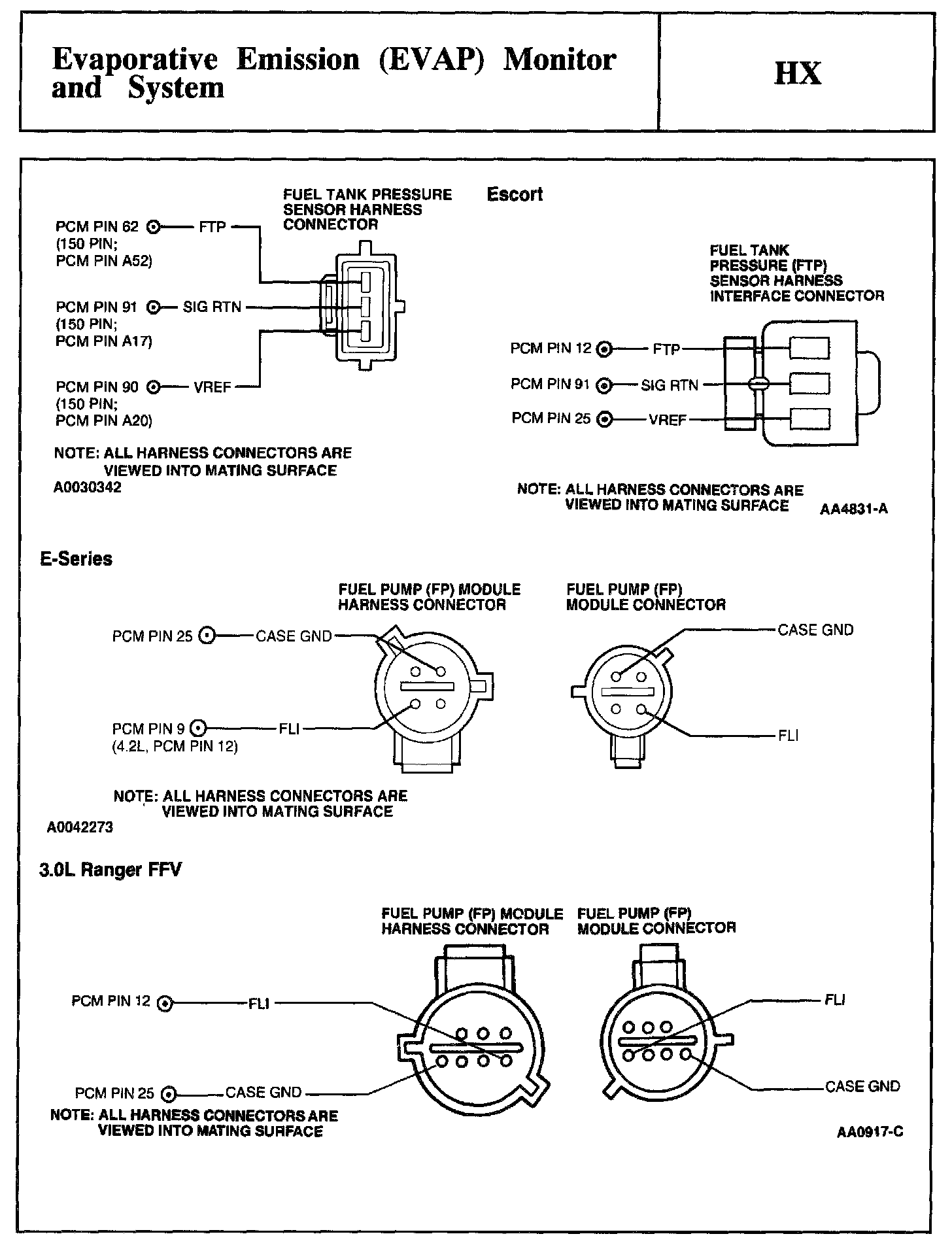

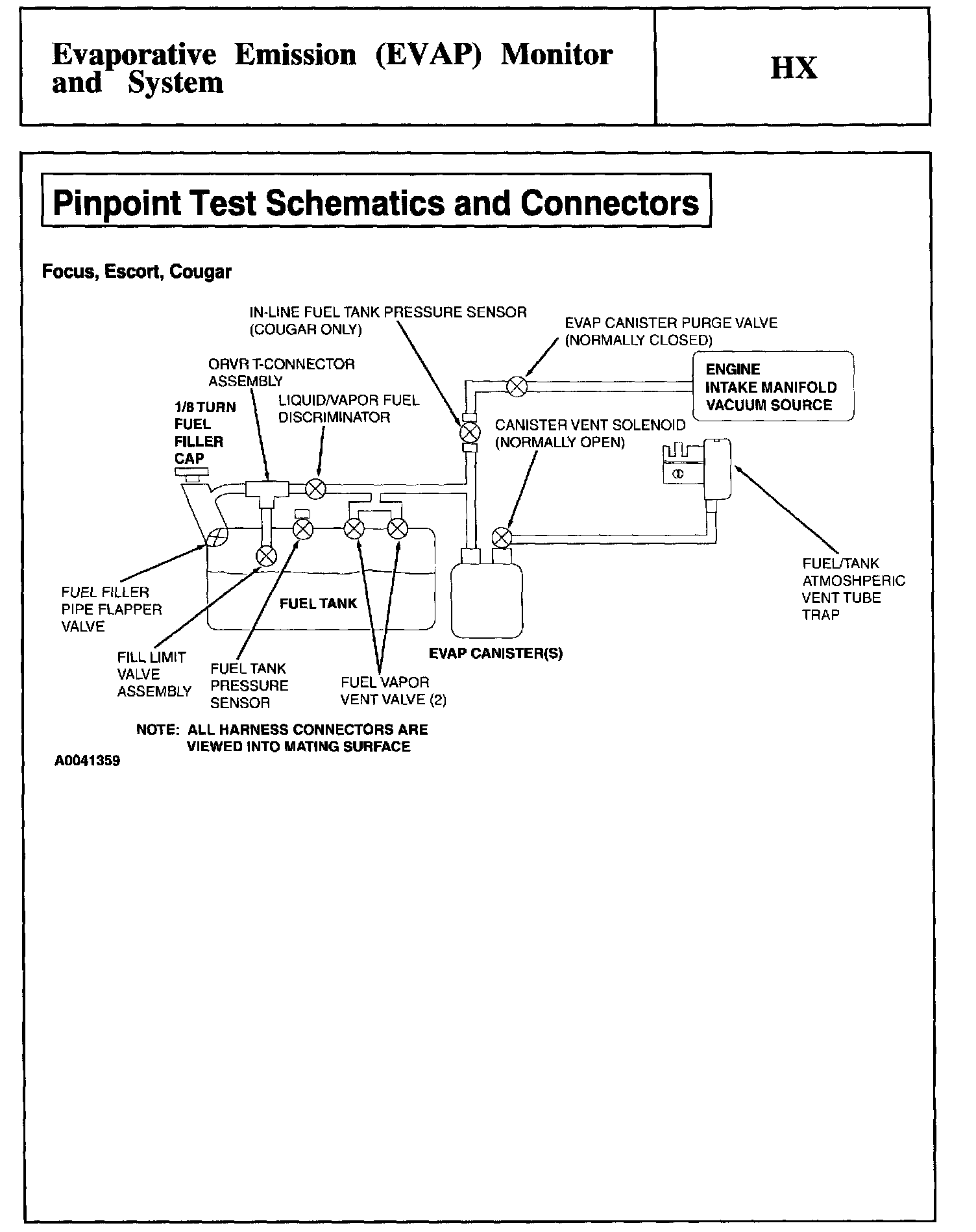

Schematics and Connectors:

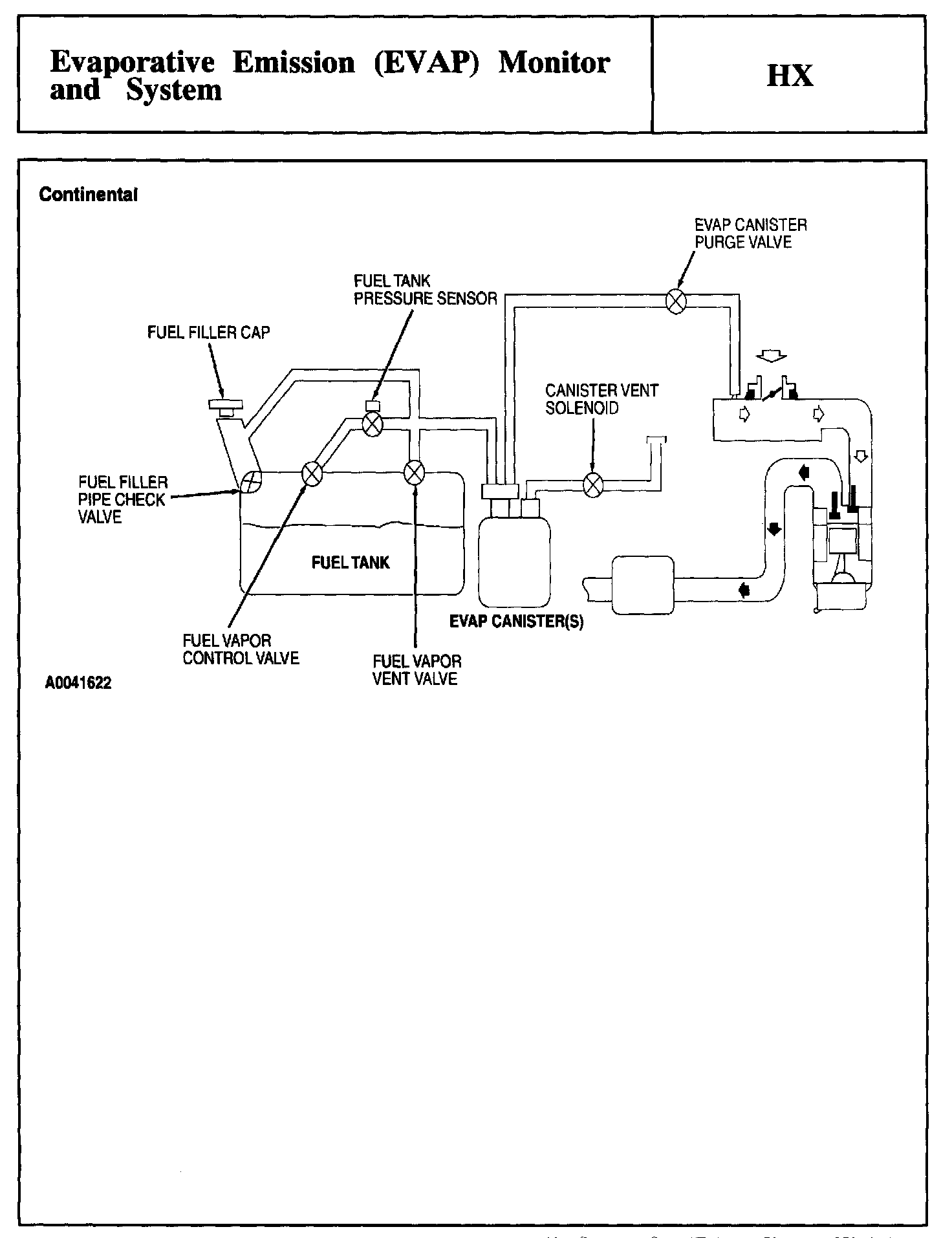

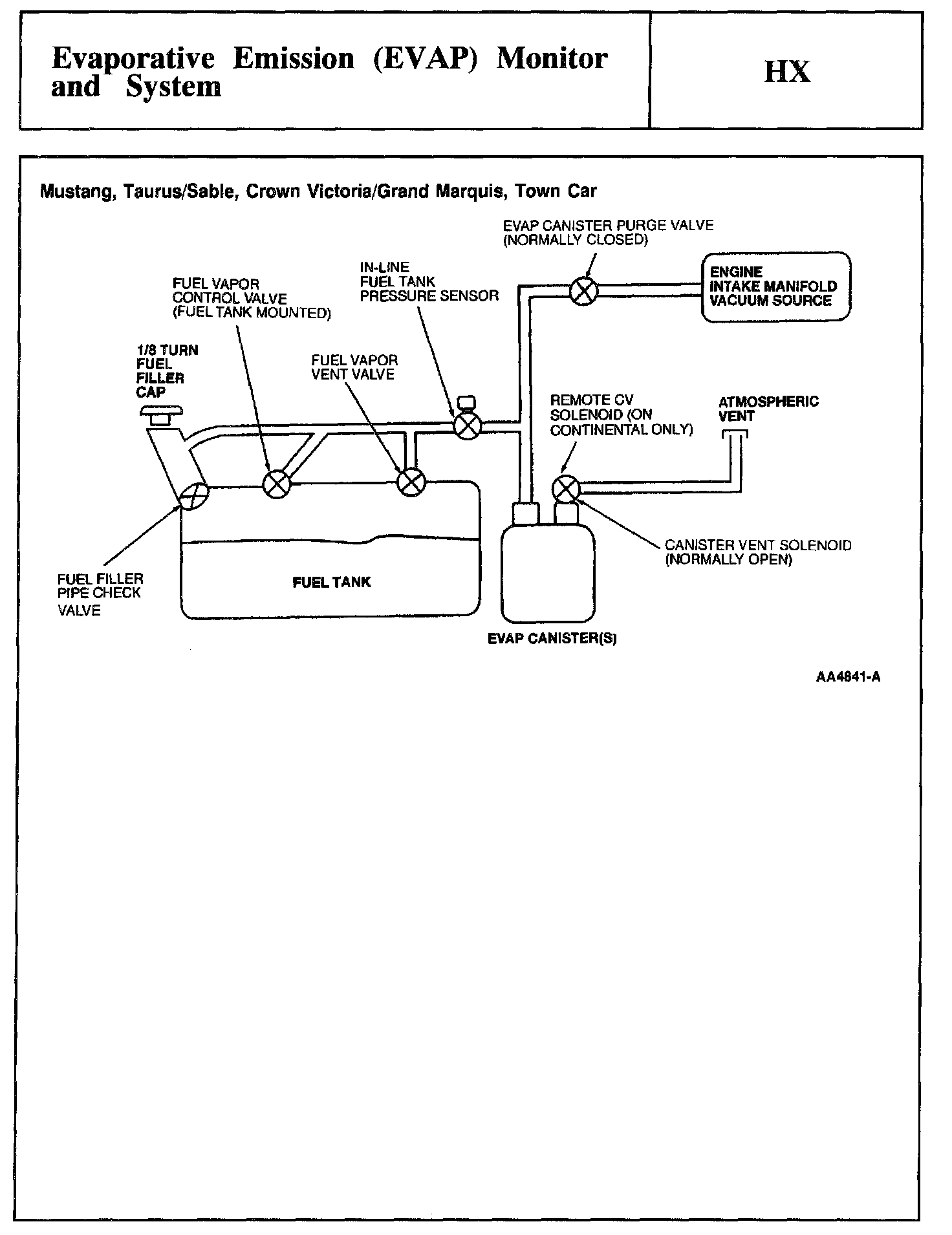

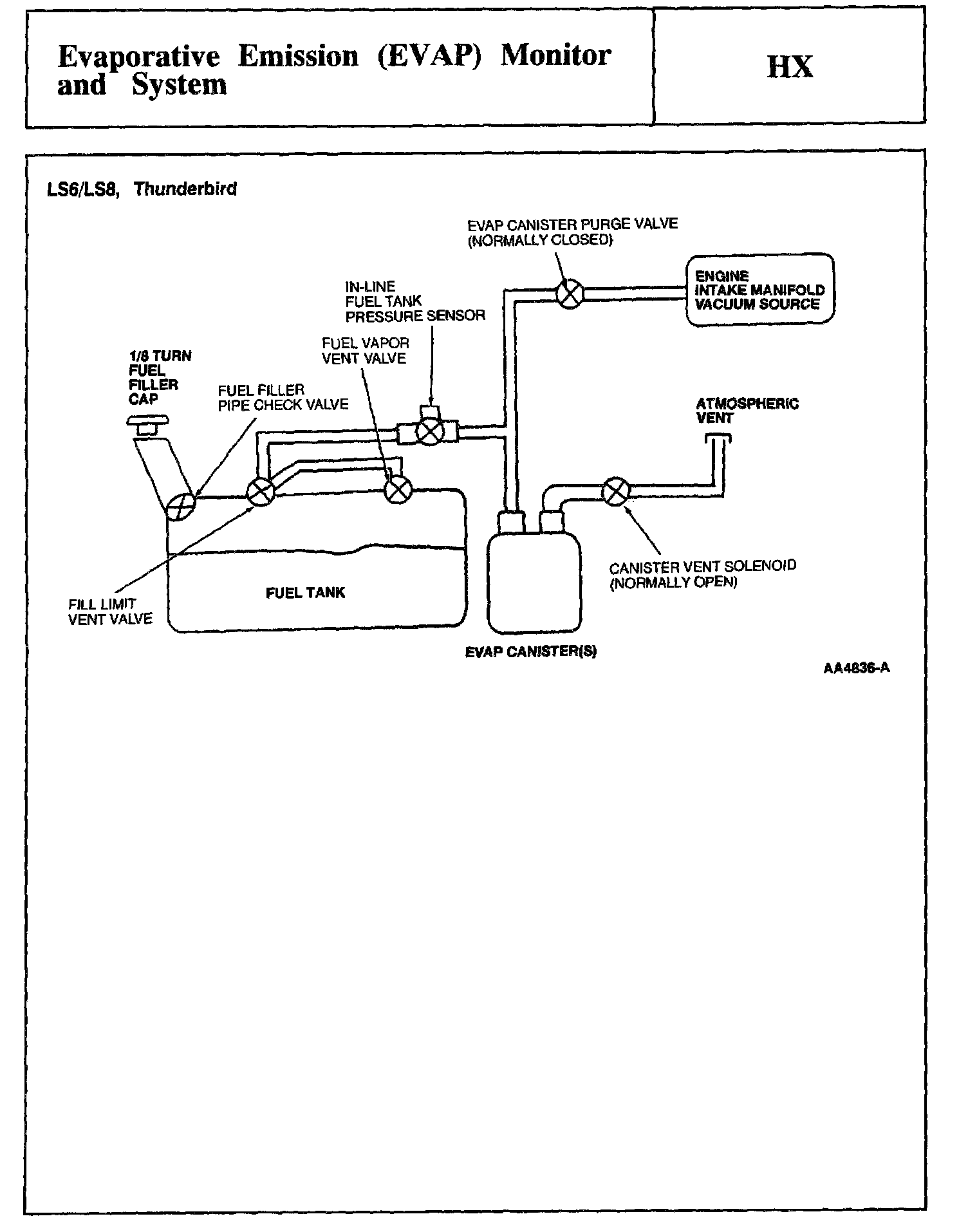

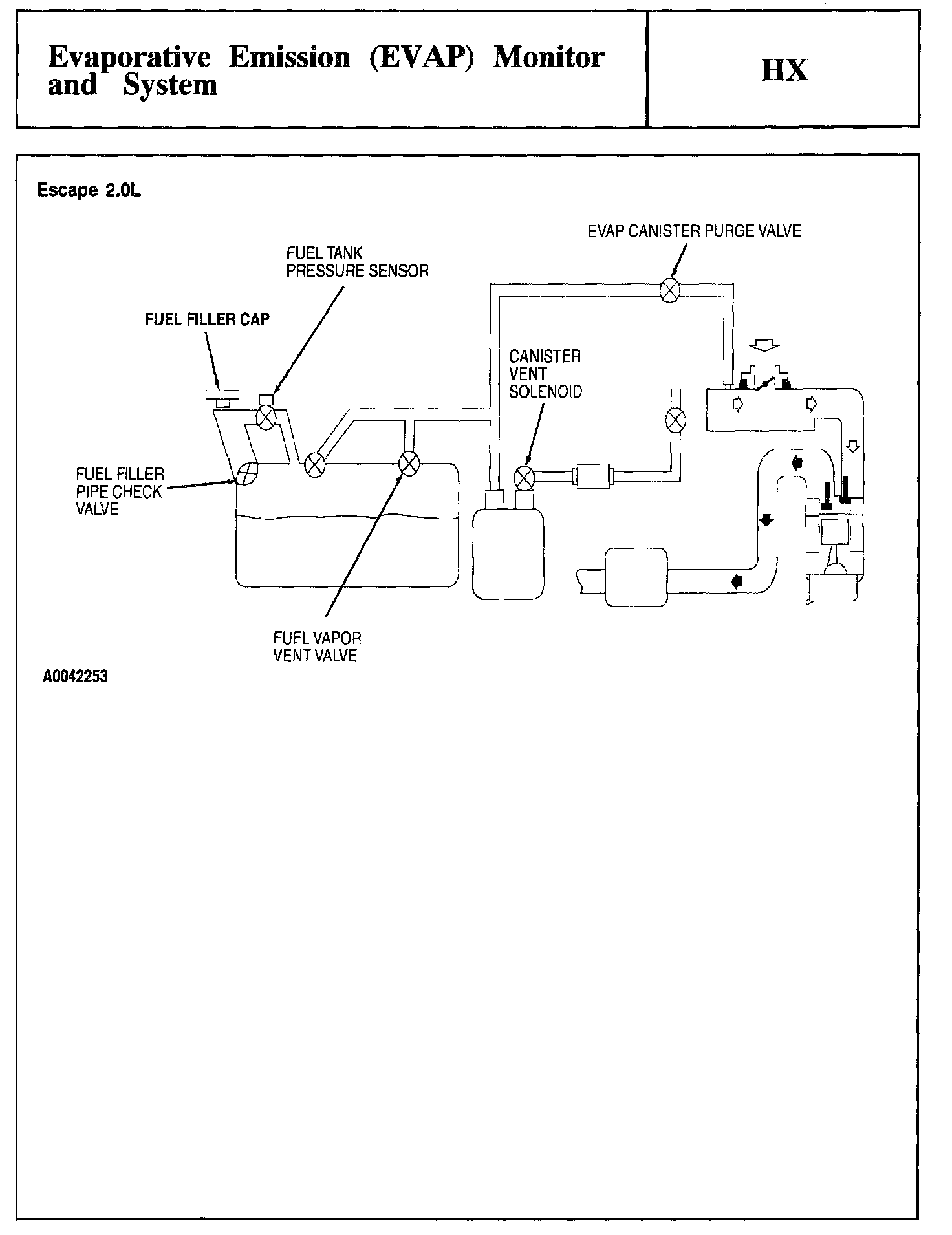

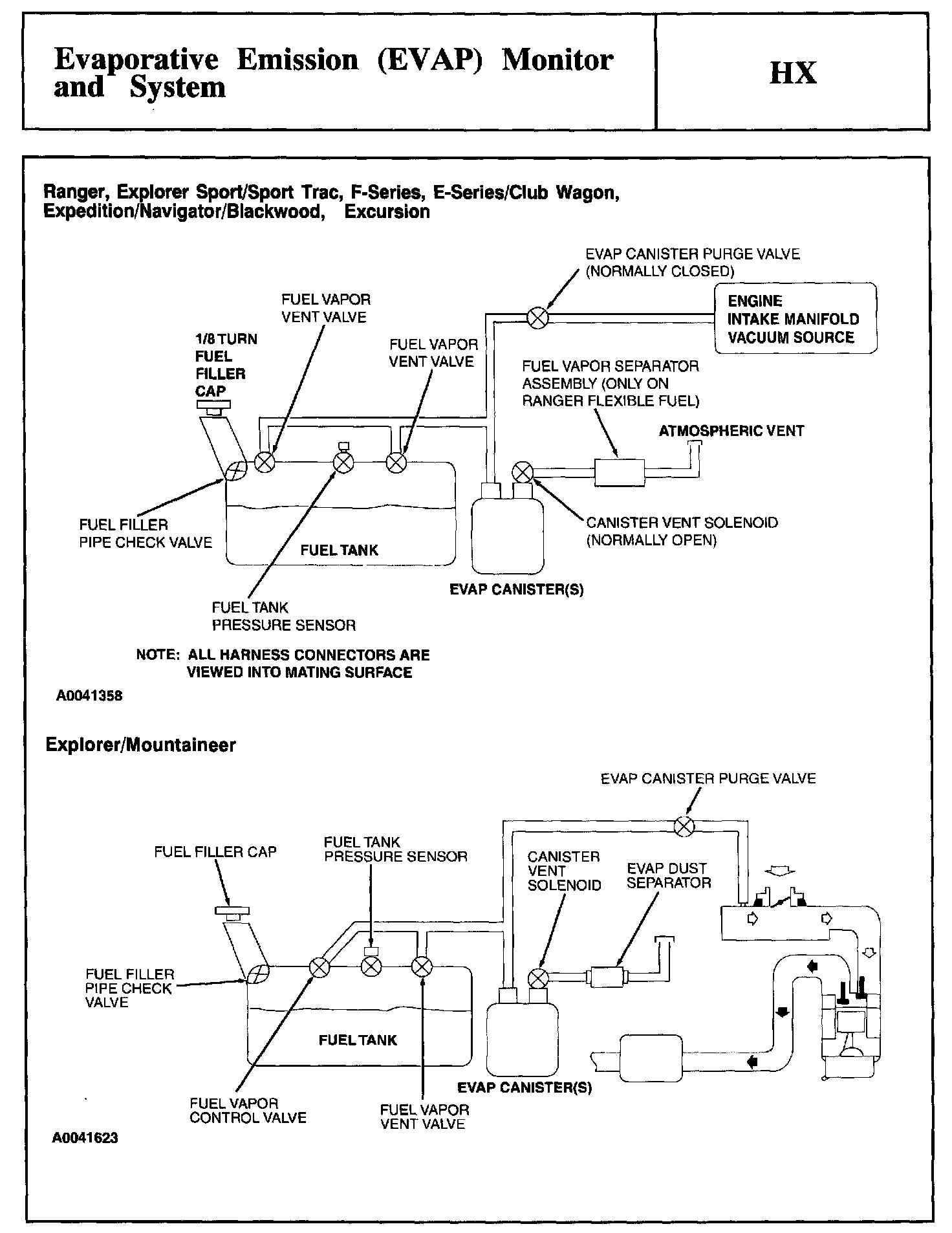

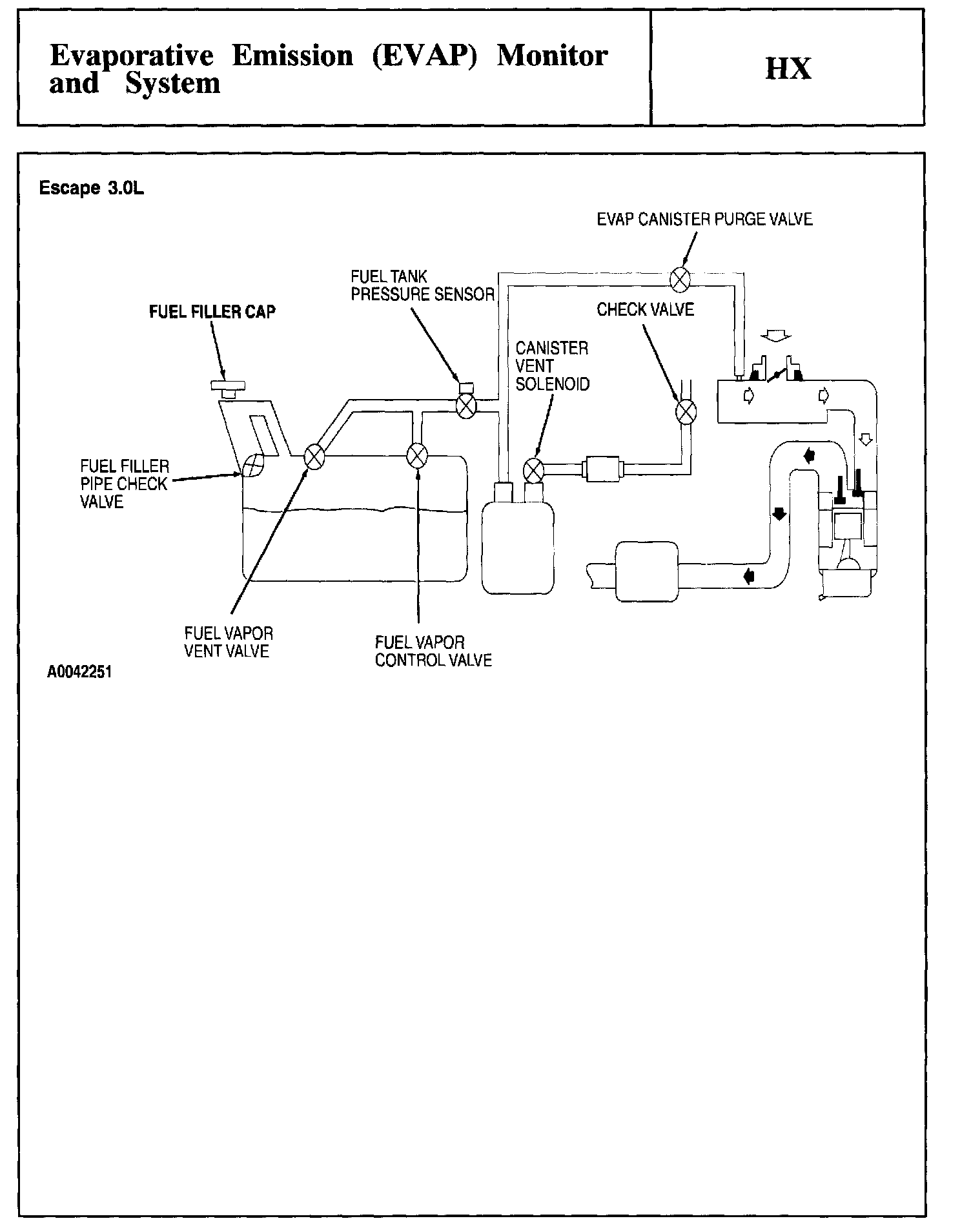

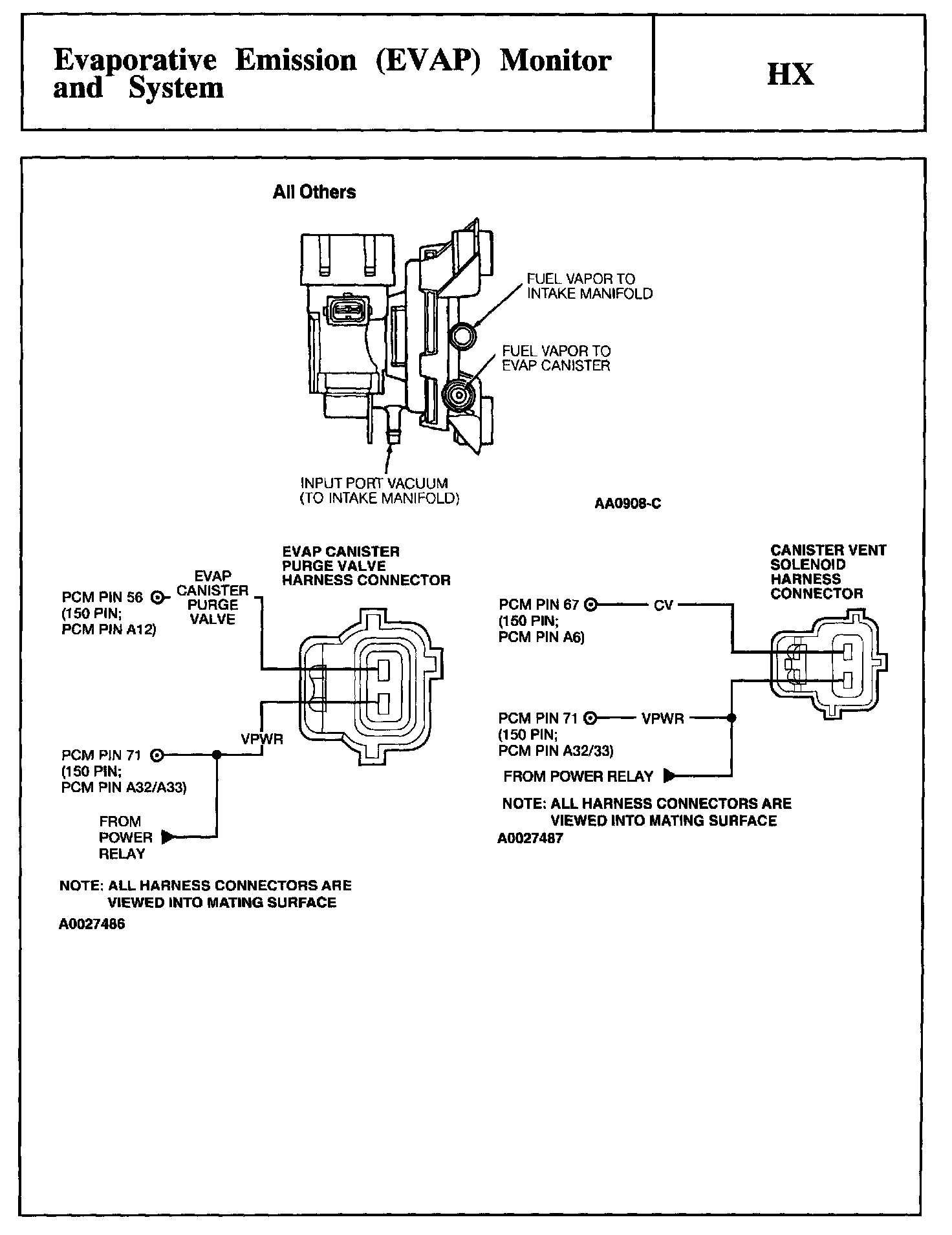

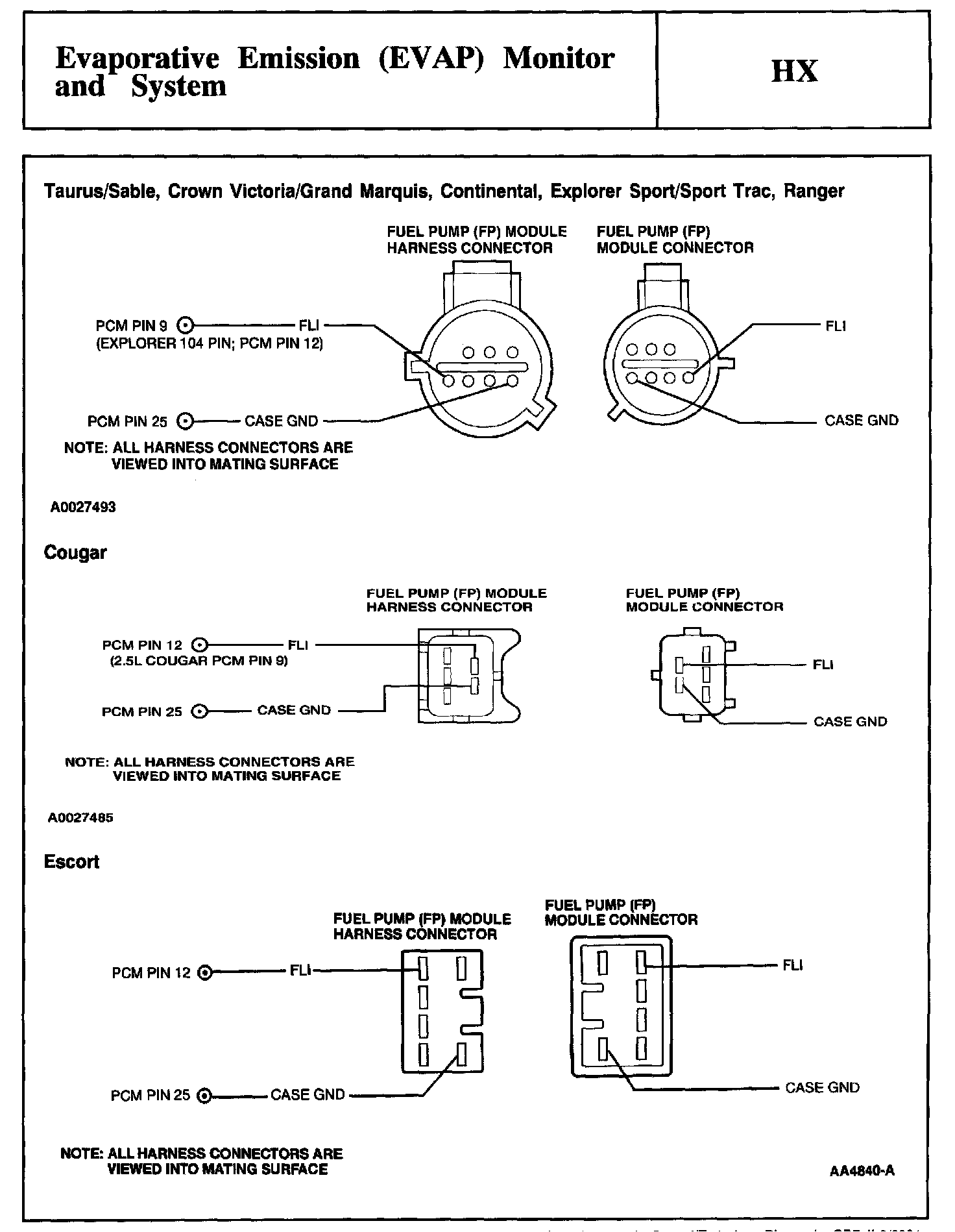

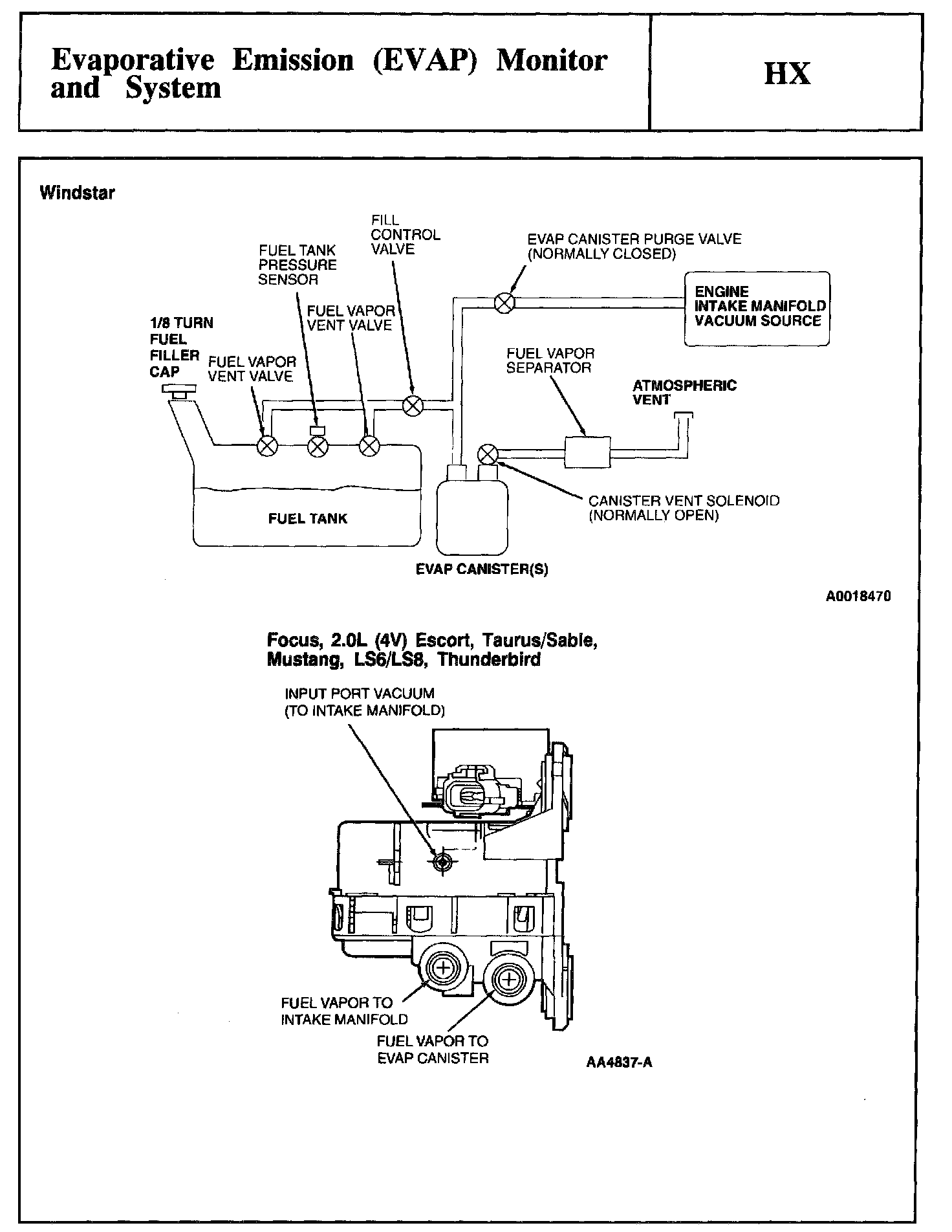

Test Schematic:
Test Schematic:
Test Schematic:
Test Schematic:
Test Schematic:
Test Schematic:
Test Schematic:
Test Schematic:
Test Schematic:
Test Schematic:

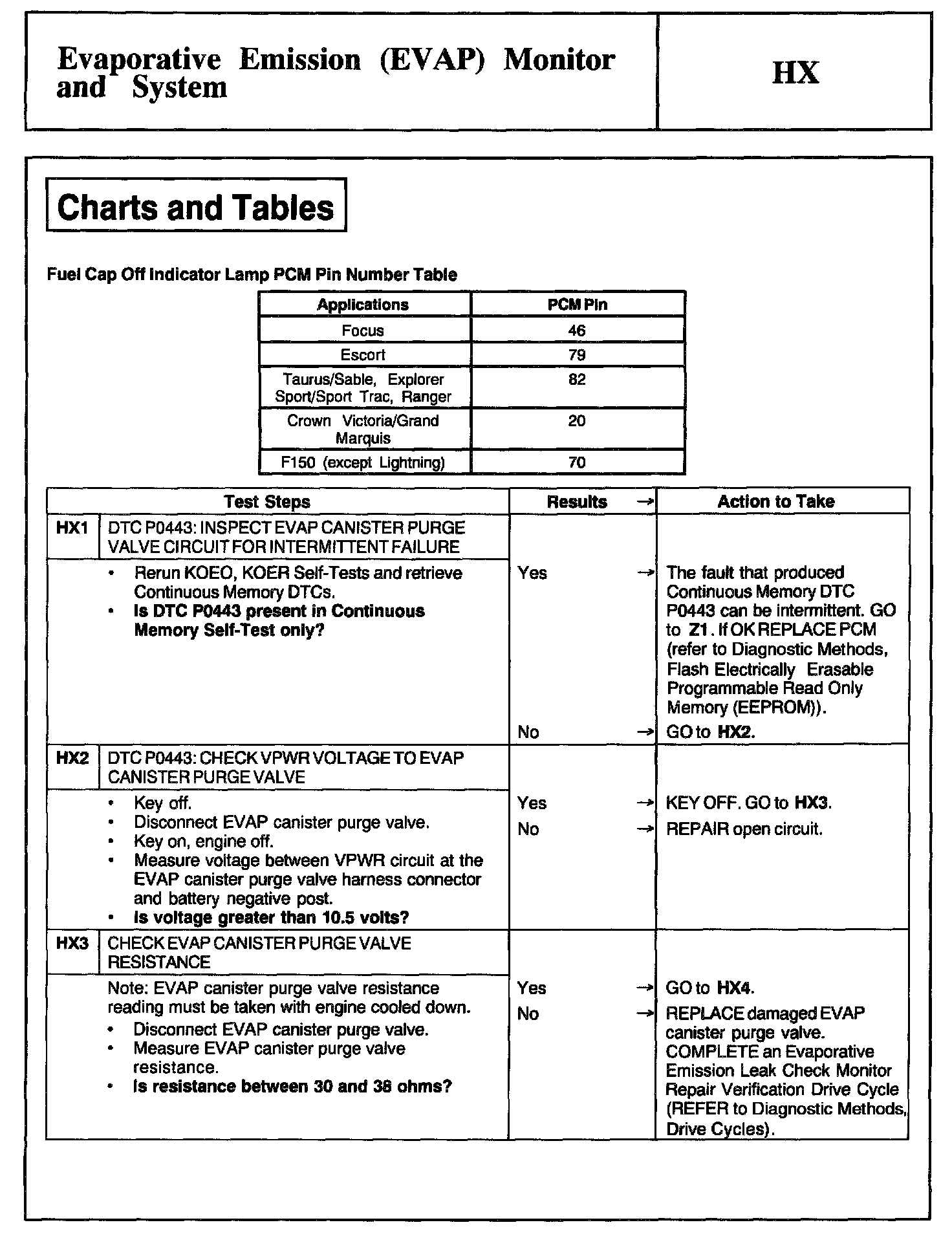

Charts and Tables, Test HX1 - HX3:

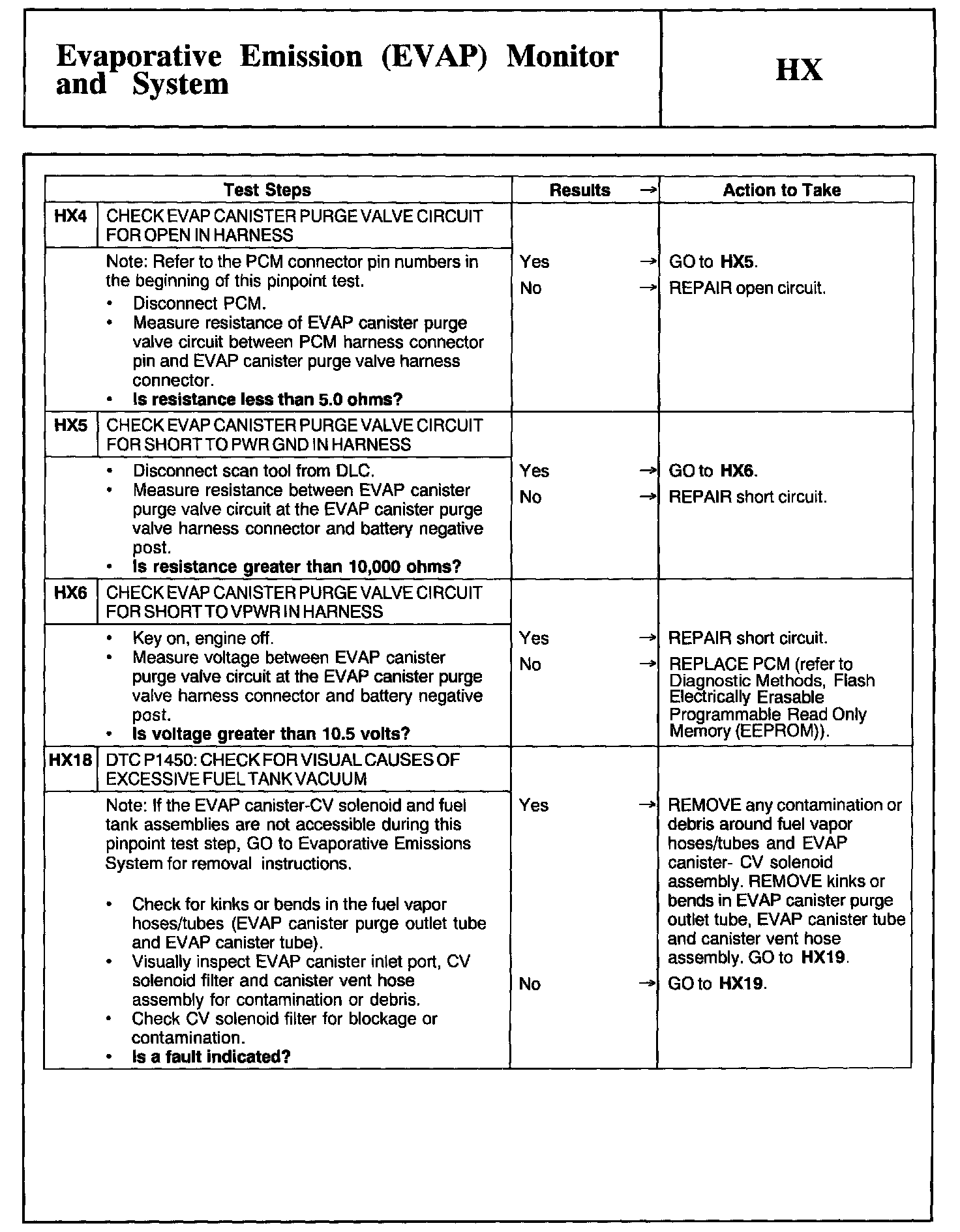

HX4 - HX18:

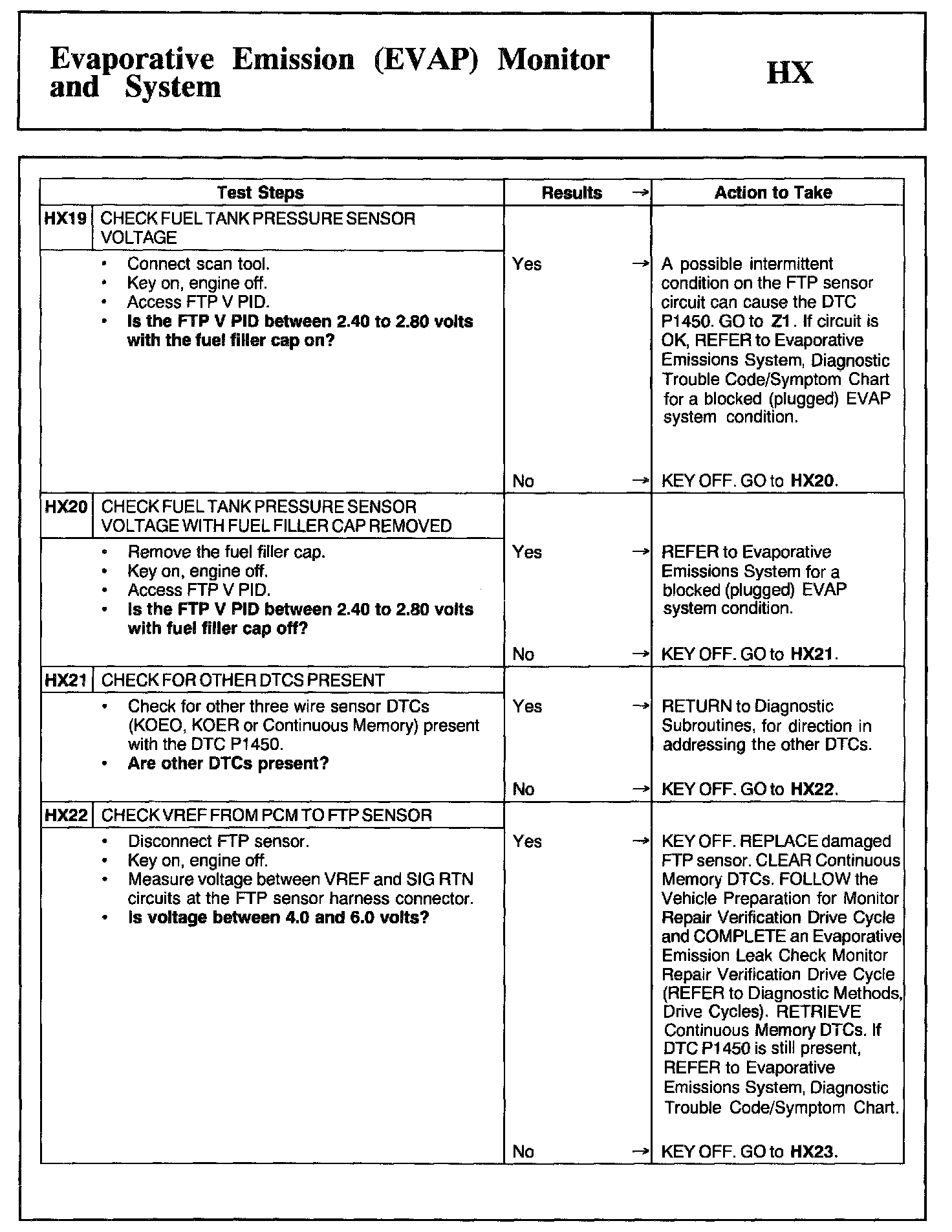

HX19 - HX22:

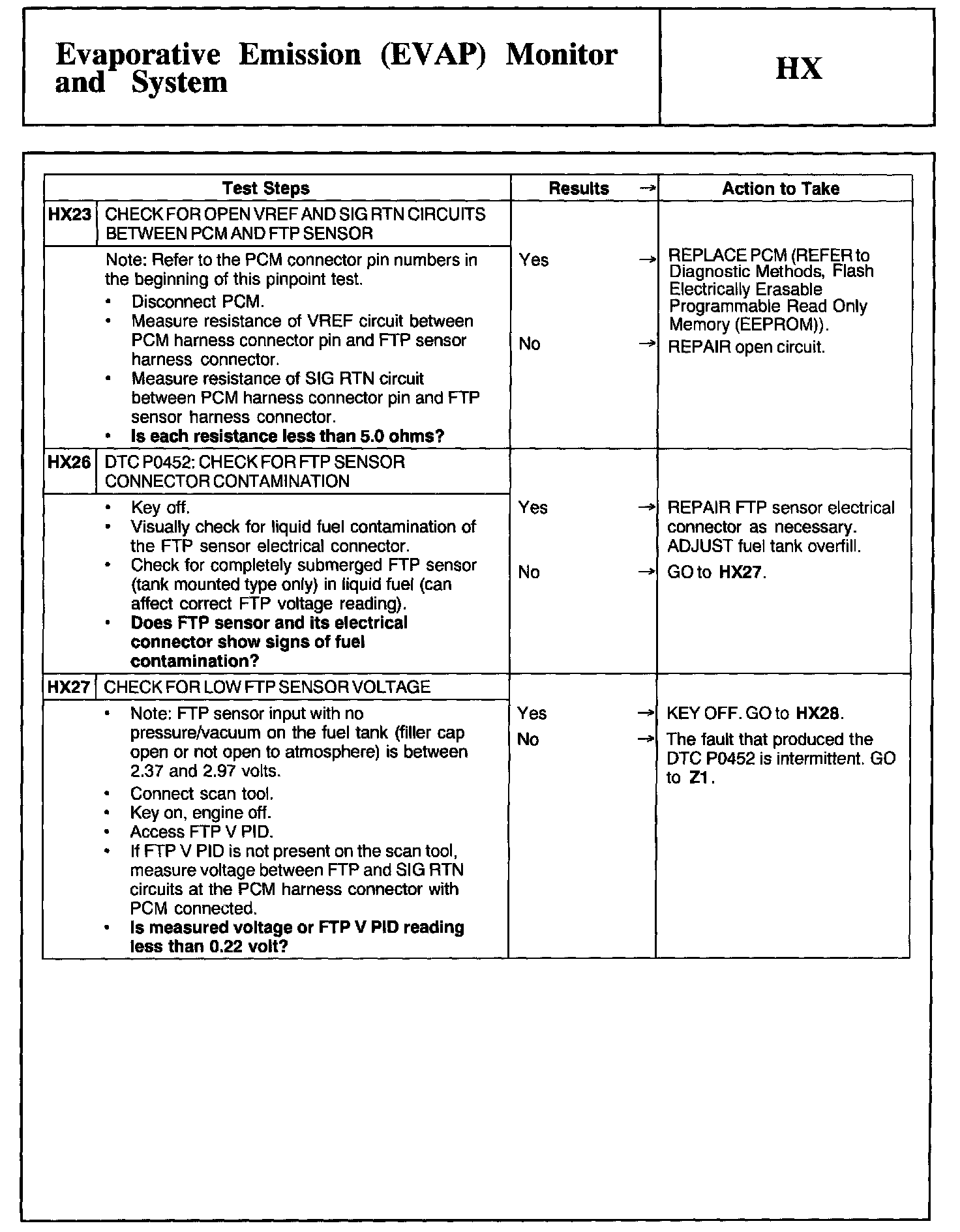

HX23 - HX27:

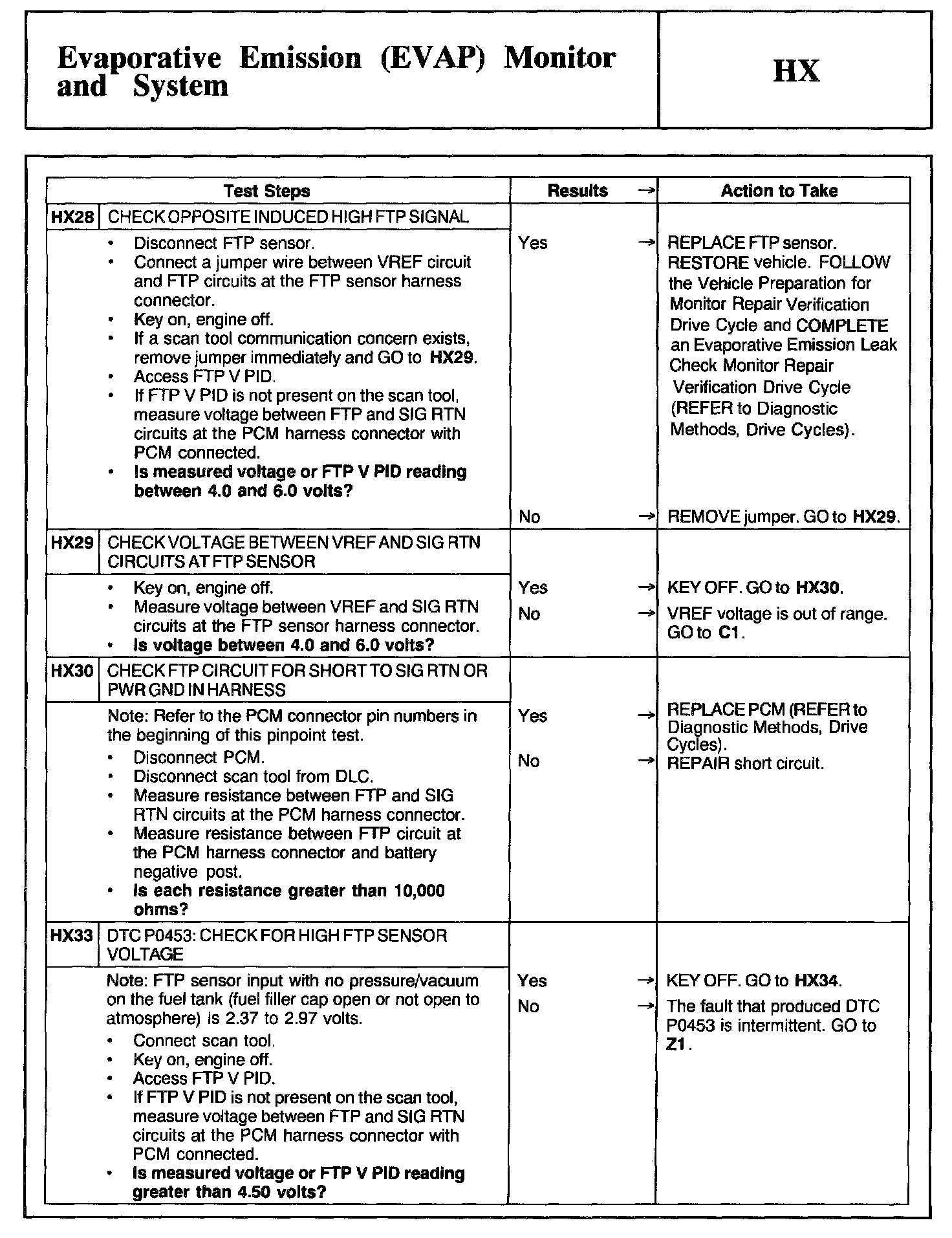

HX28 - HX33:

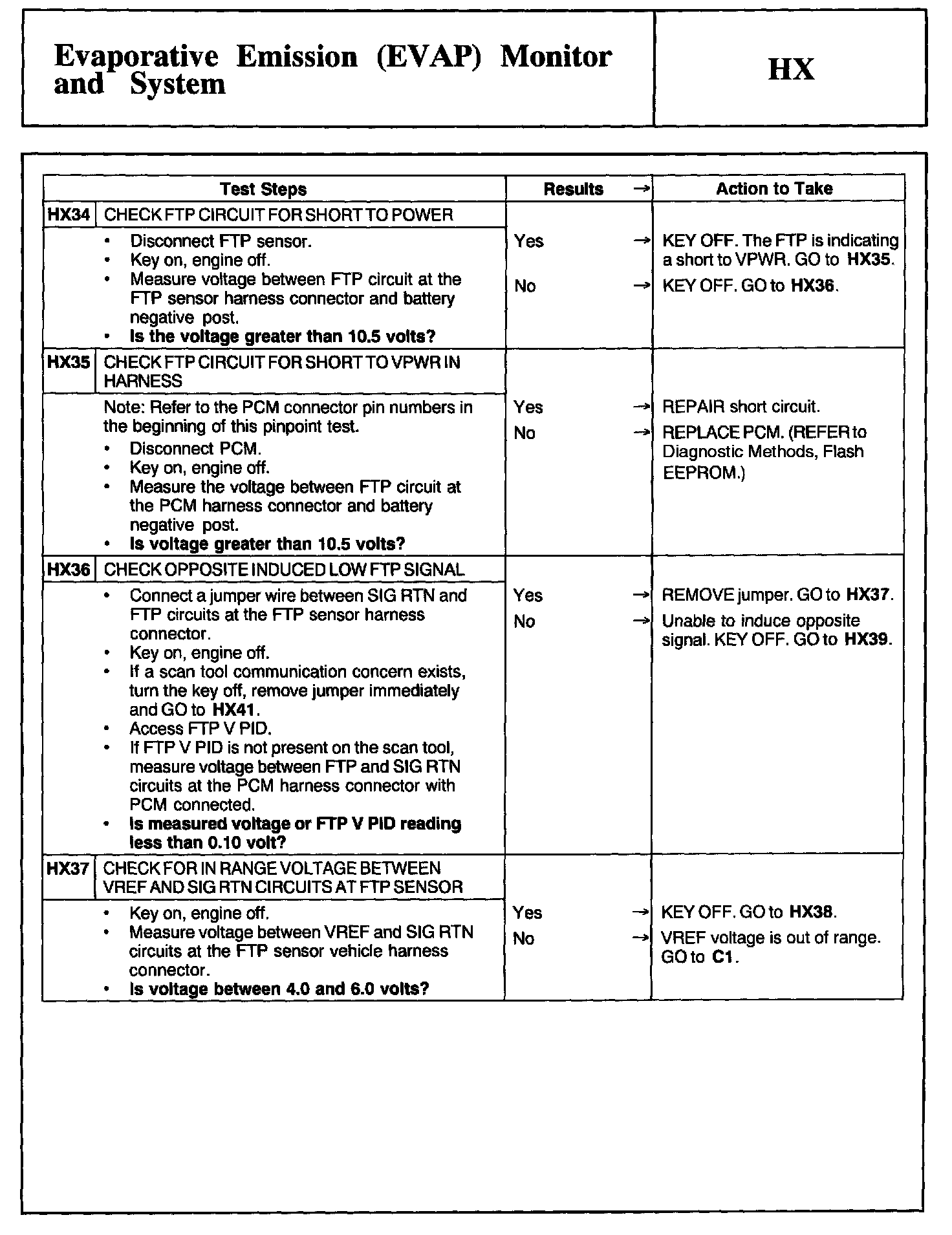

HX34 - HX37:

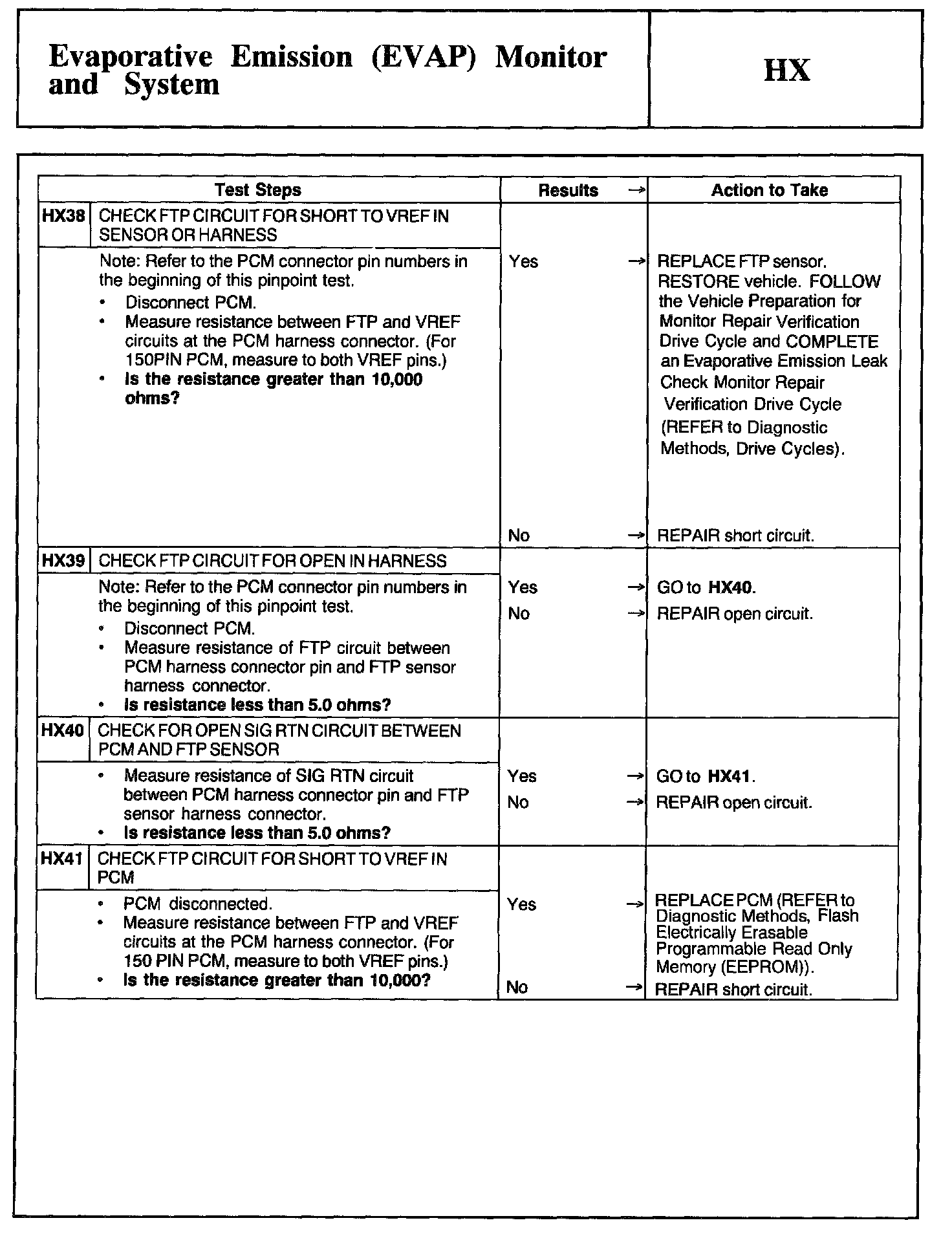

HX38 - HX41:

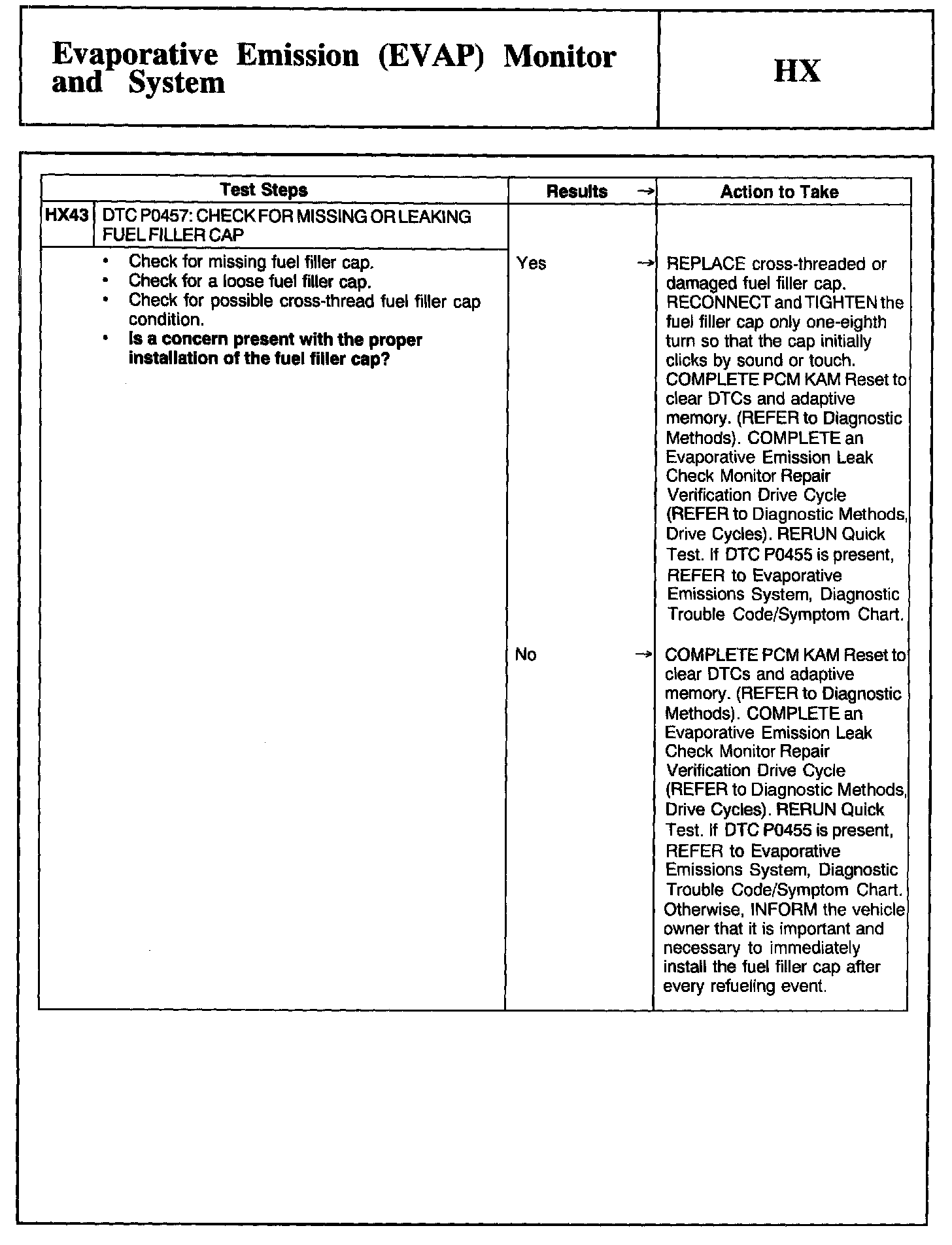

HX43:

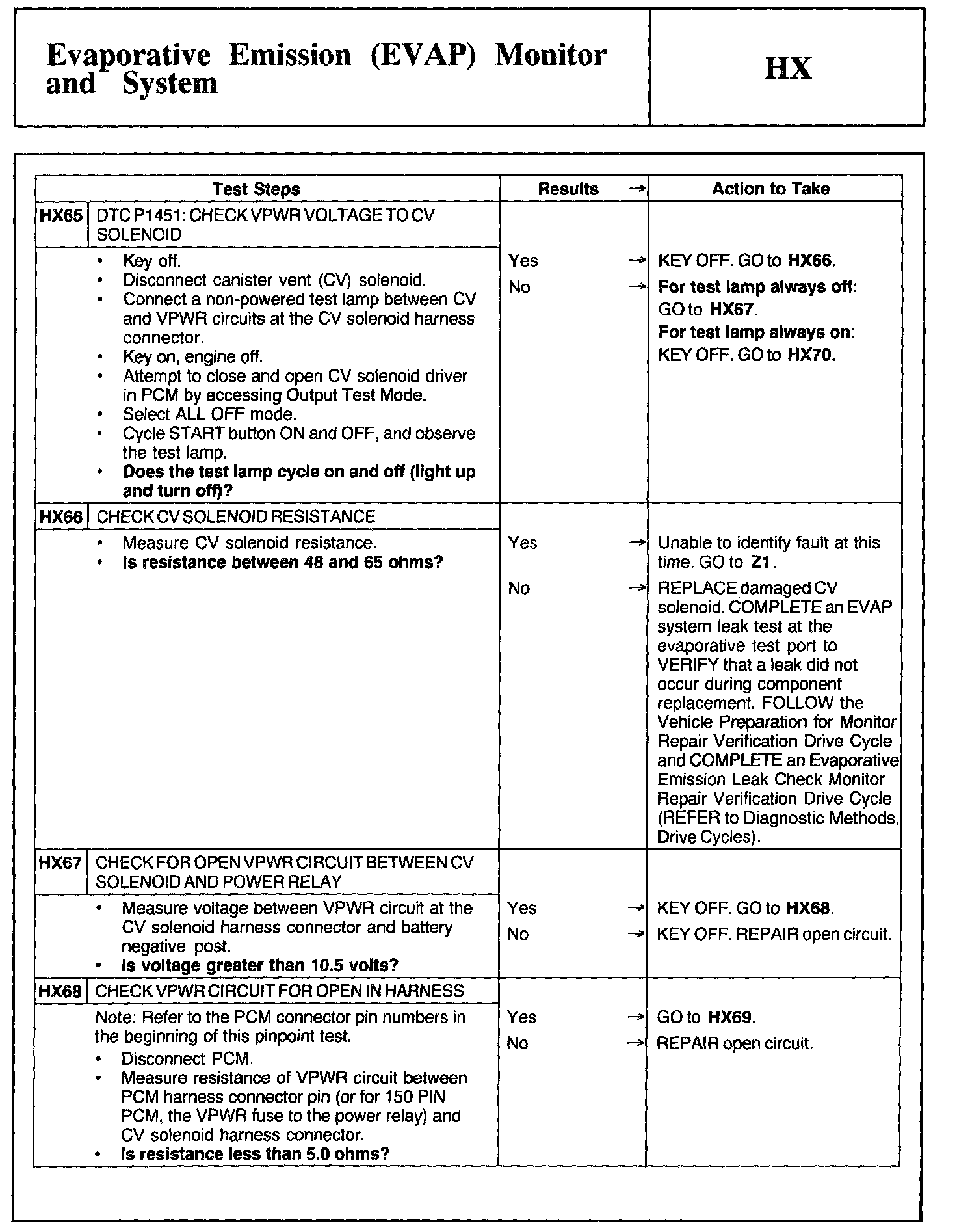

HX65 - HX68:

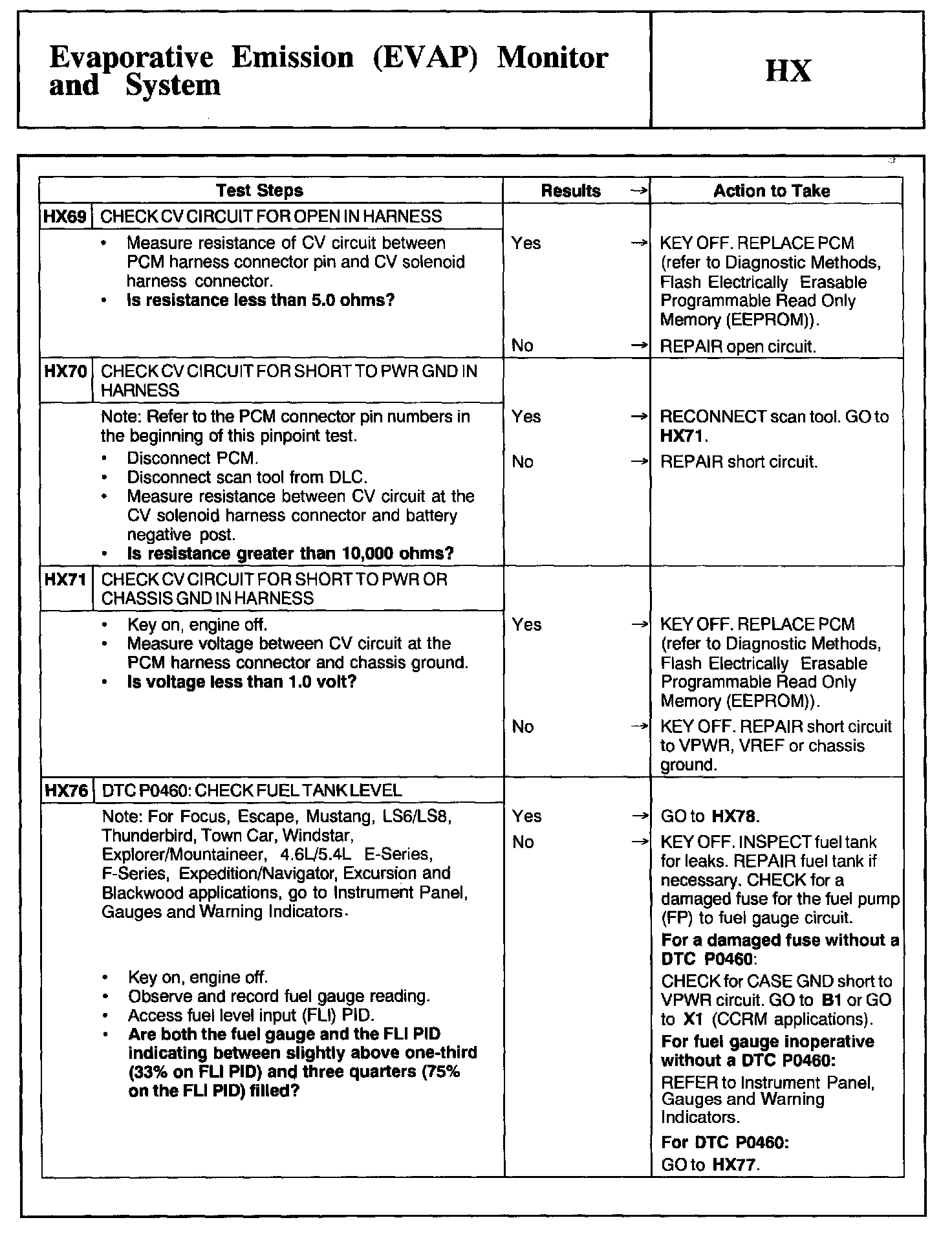

HX69 - HX76:
HX77 - HX81:

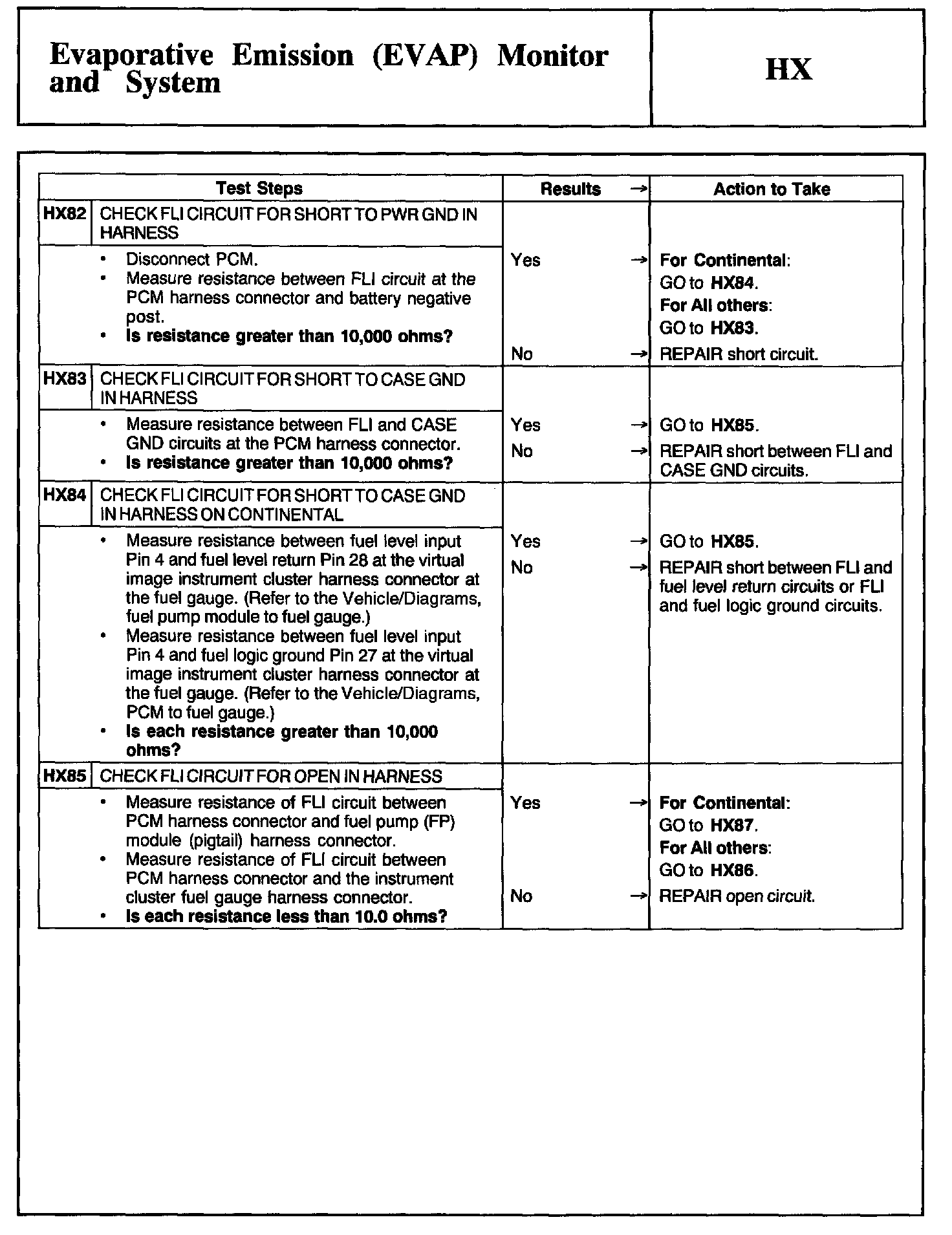

HX82 - HX85:
