Tests JF: Integrated Ignition Coil On Plug Coil A Through J Failure
Tests JF: Integrated Ignition Coil On Plug Coil A Through J Failure

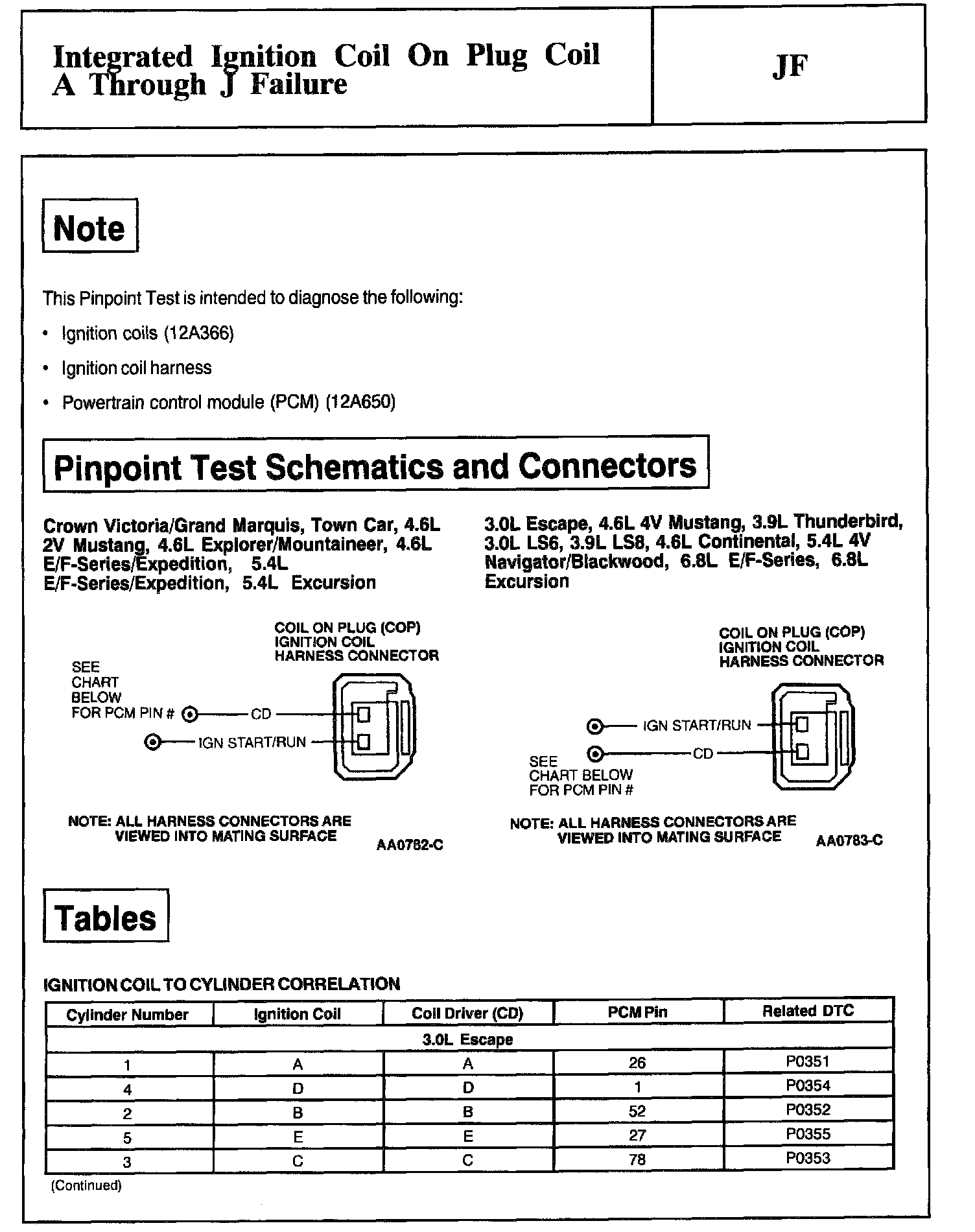

Note, Schematics and Connectors and Correlation Table:

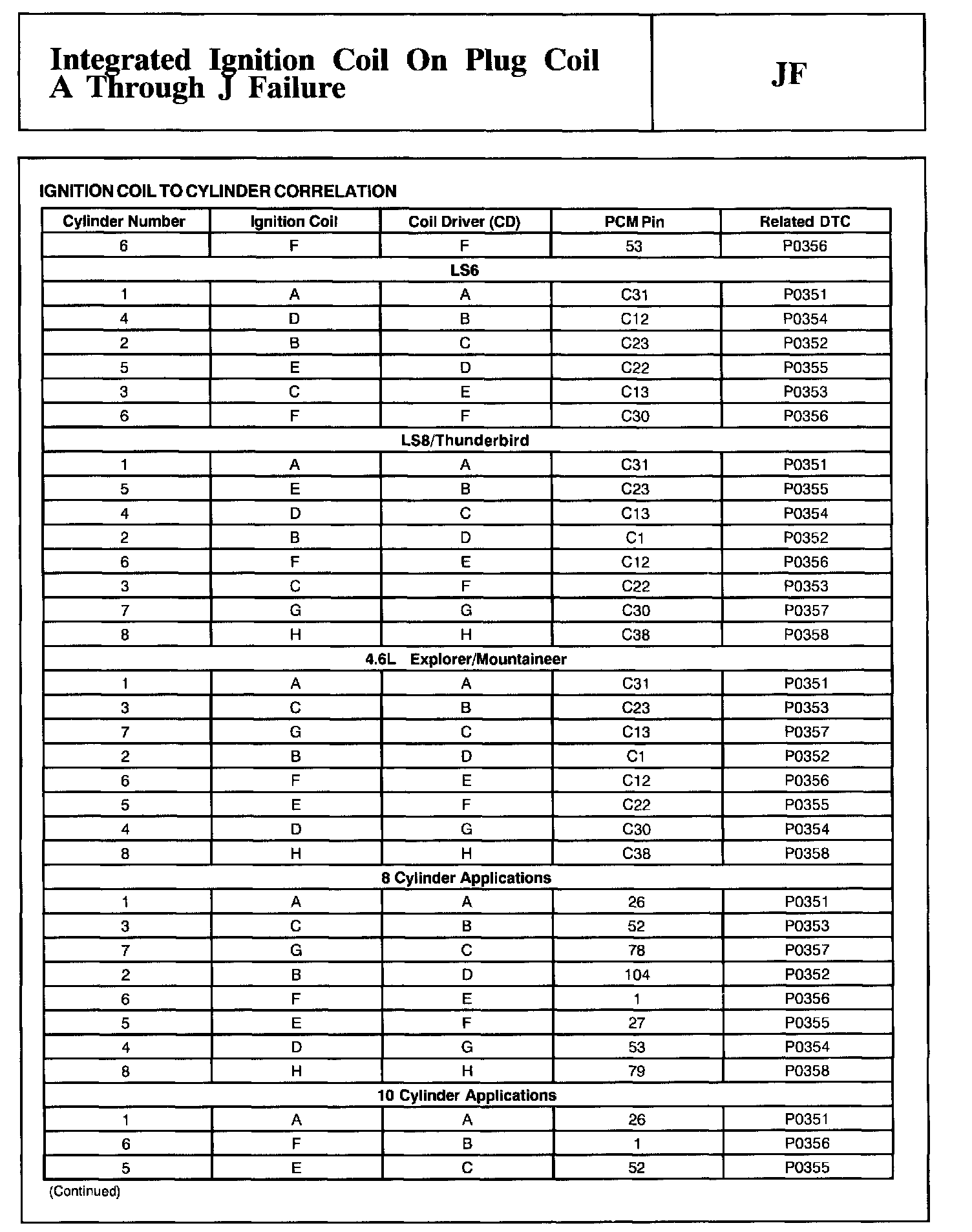

Correlation Table:

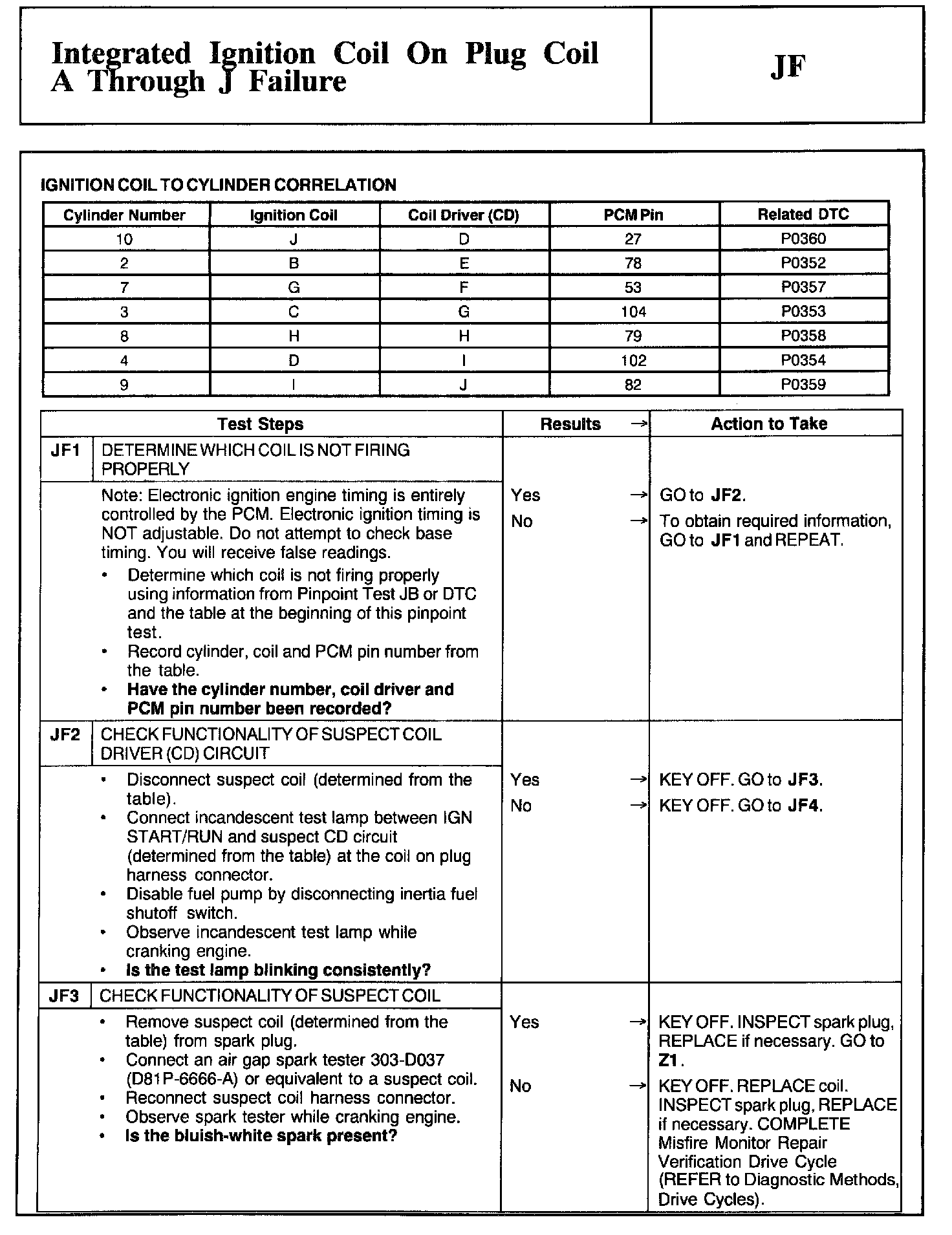

Correlation Table, Test JF1 - JF3:

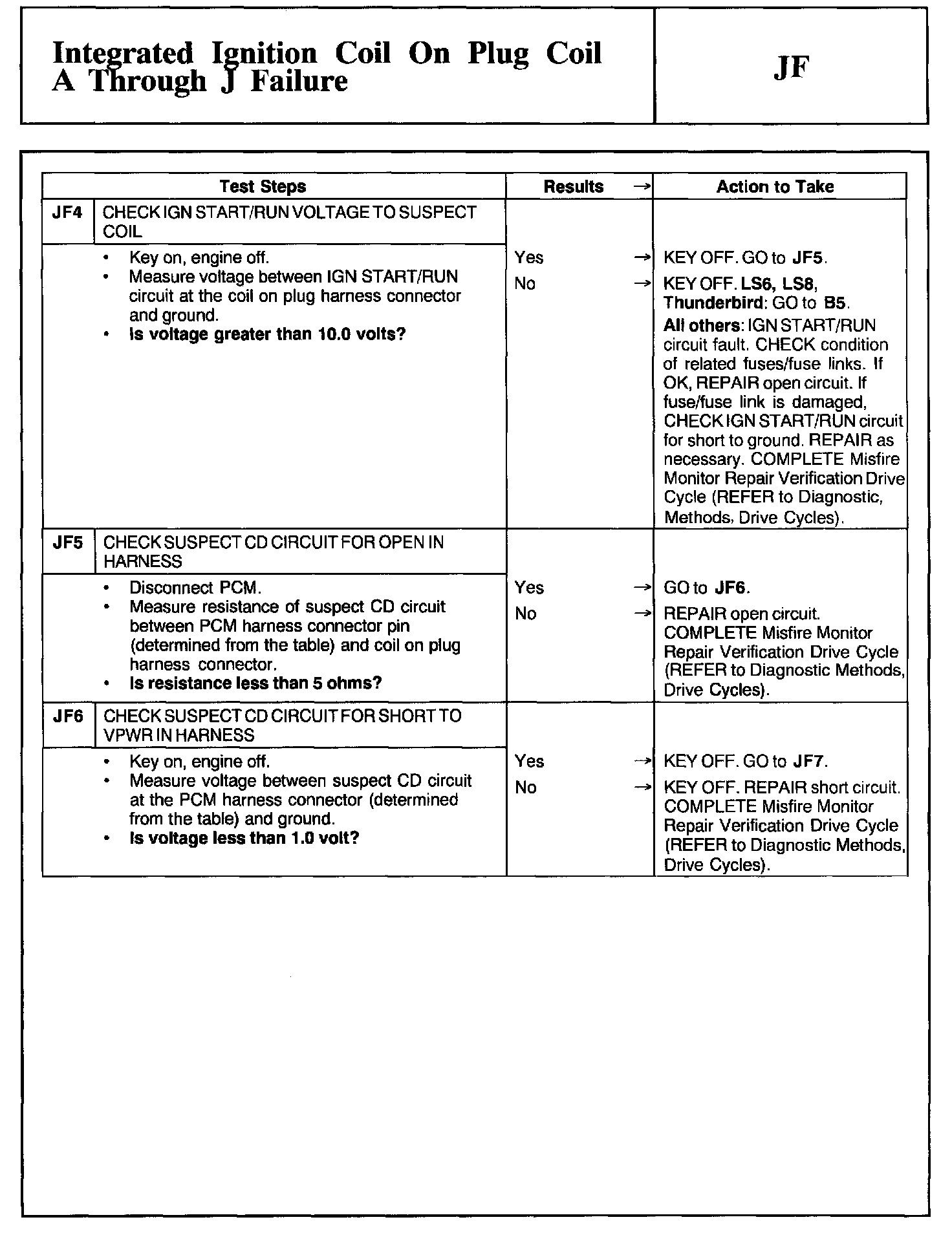

JF4 - JF6:

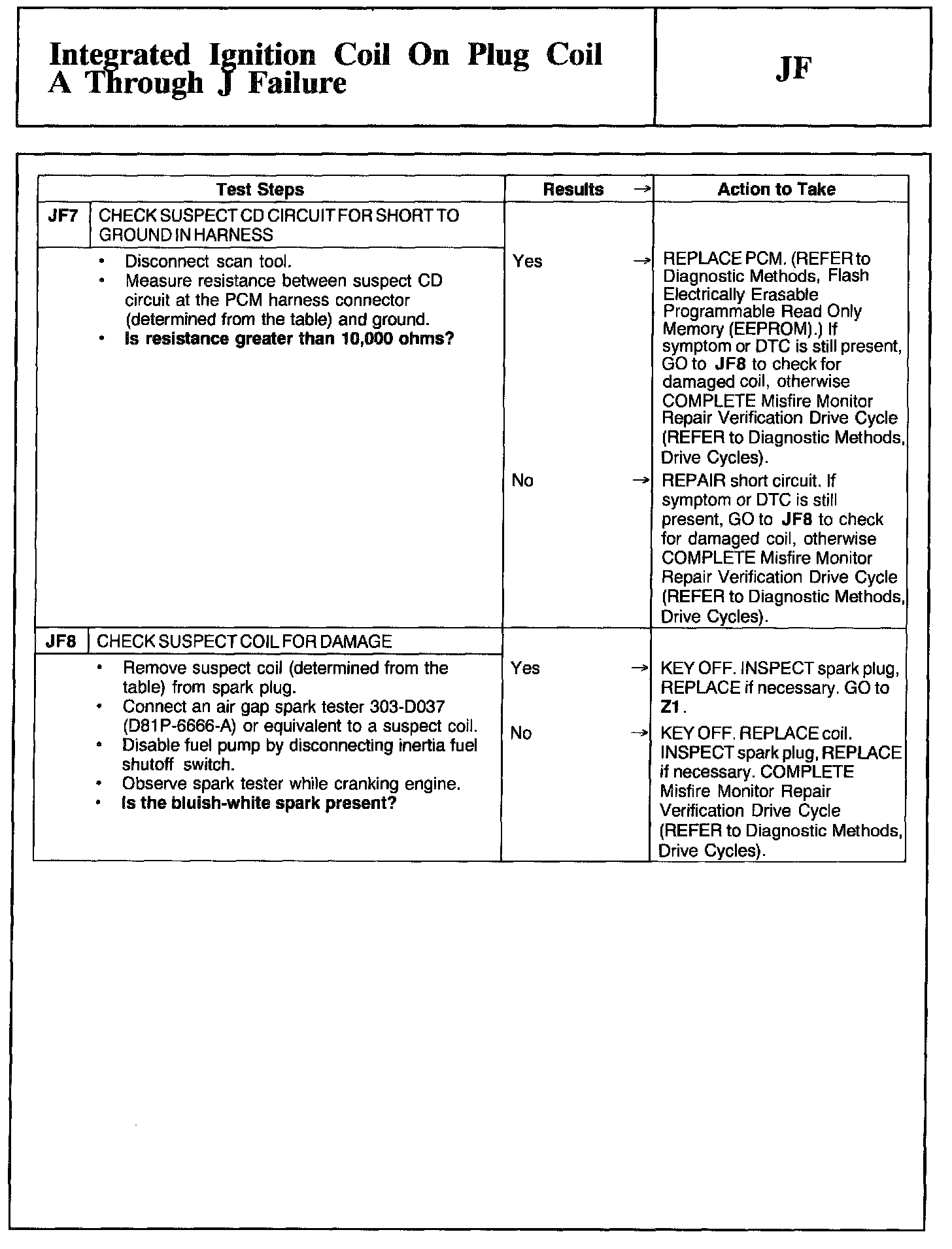

JF7 - JF8:
