Tests KB: Fuel Pump Driver Module (FPDM)

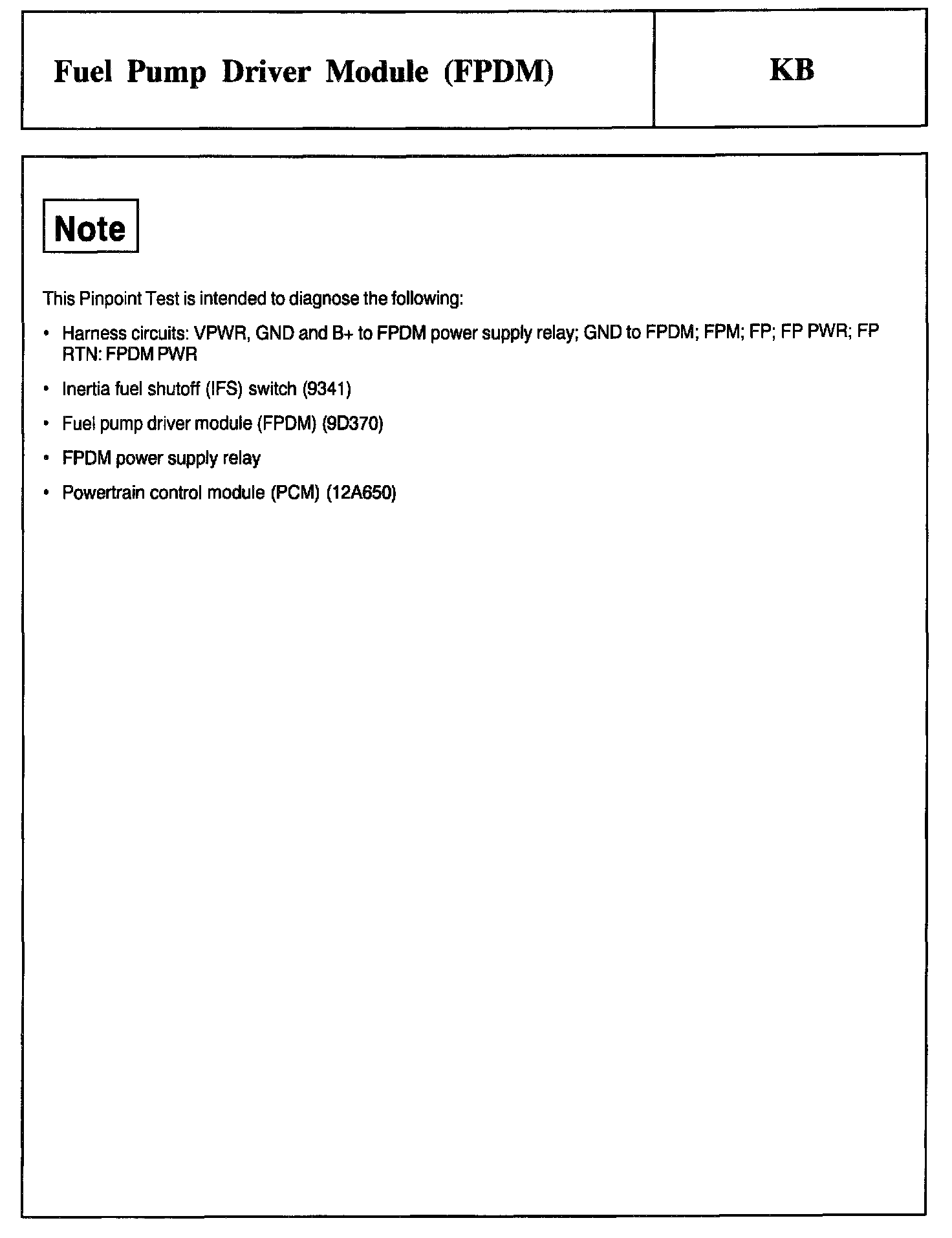

Test Note:
Schematics and Connectors:

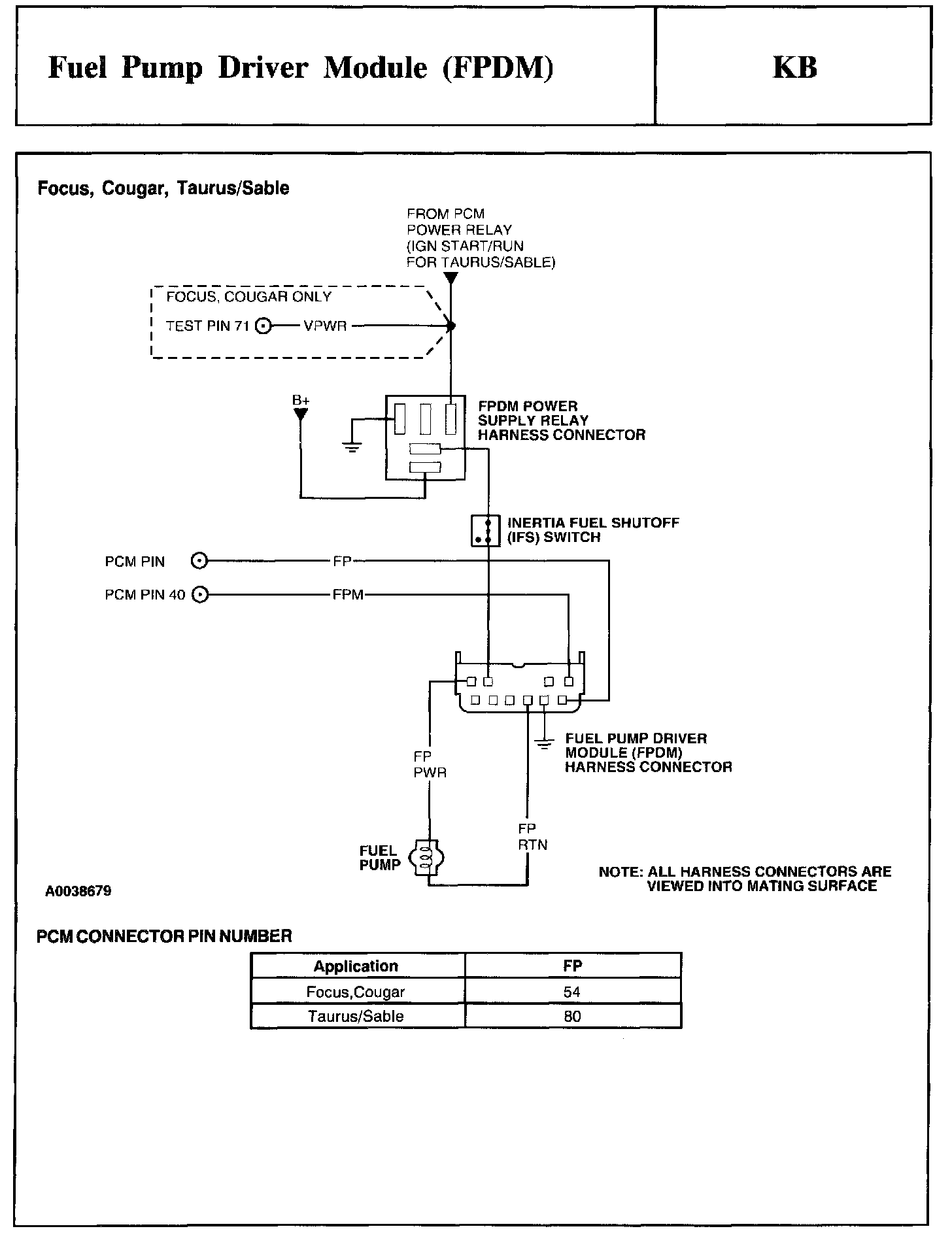

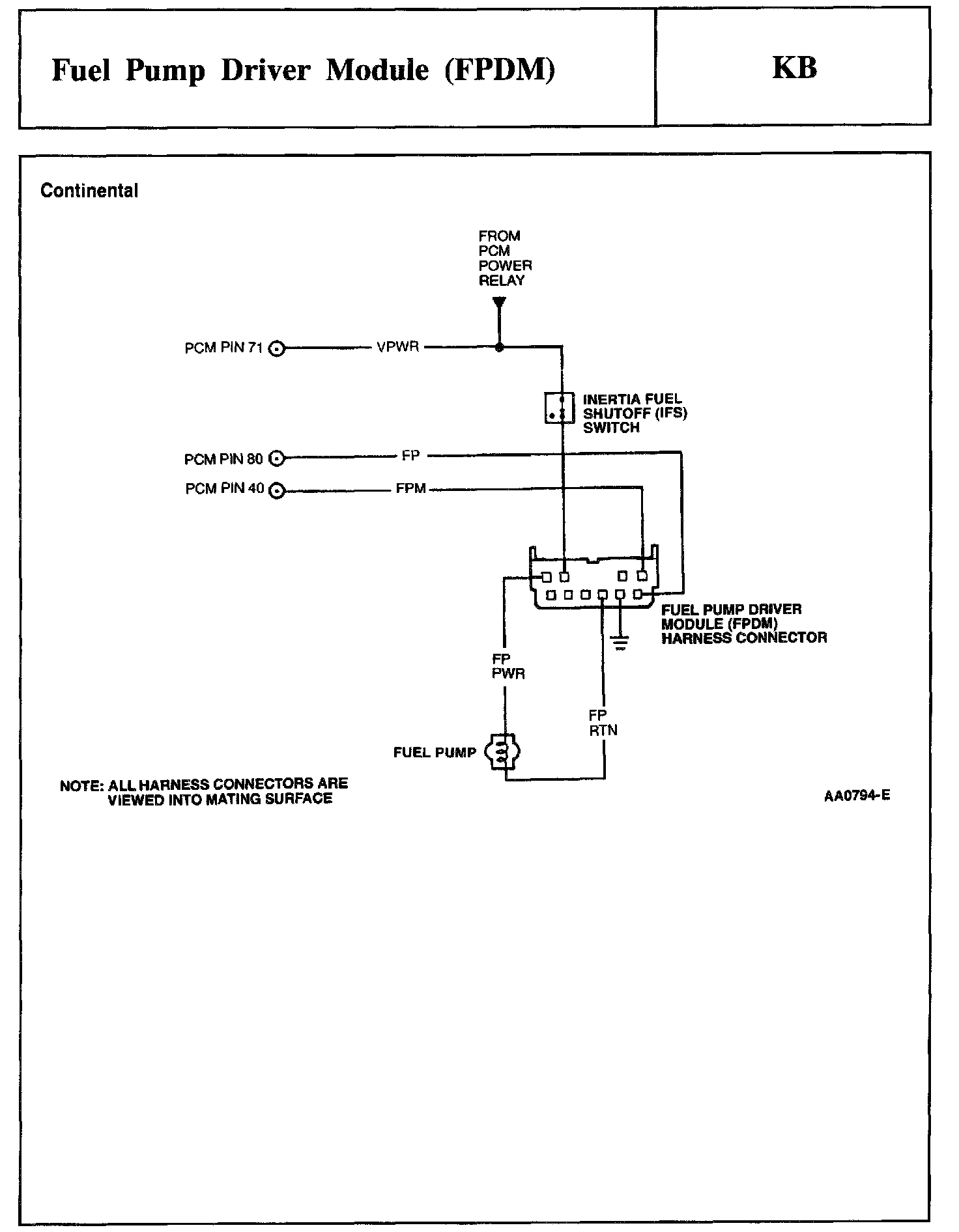

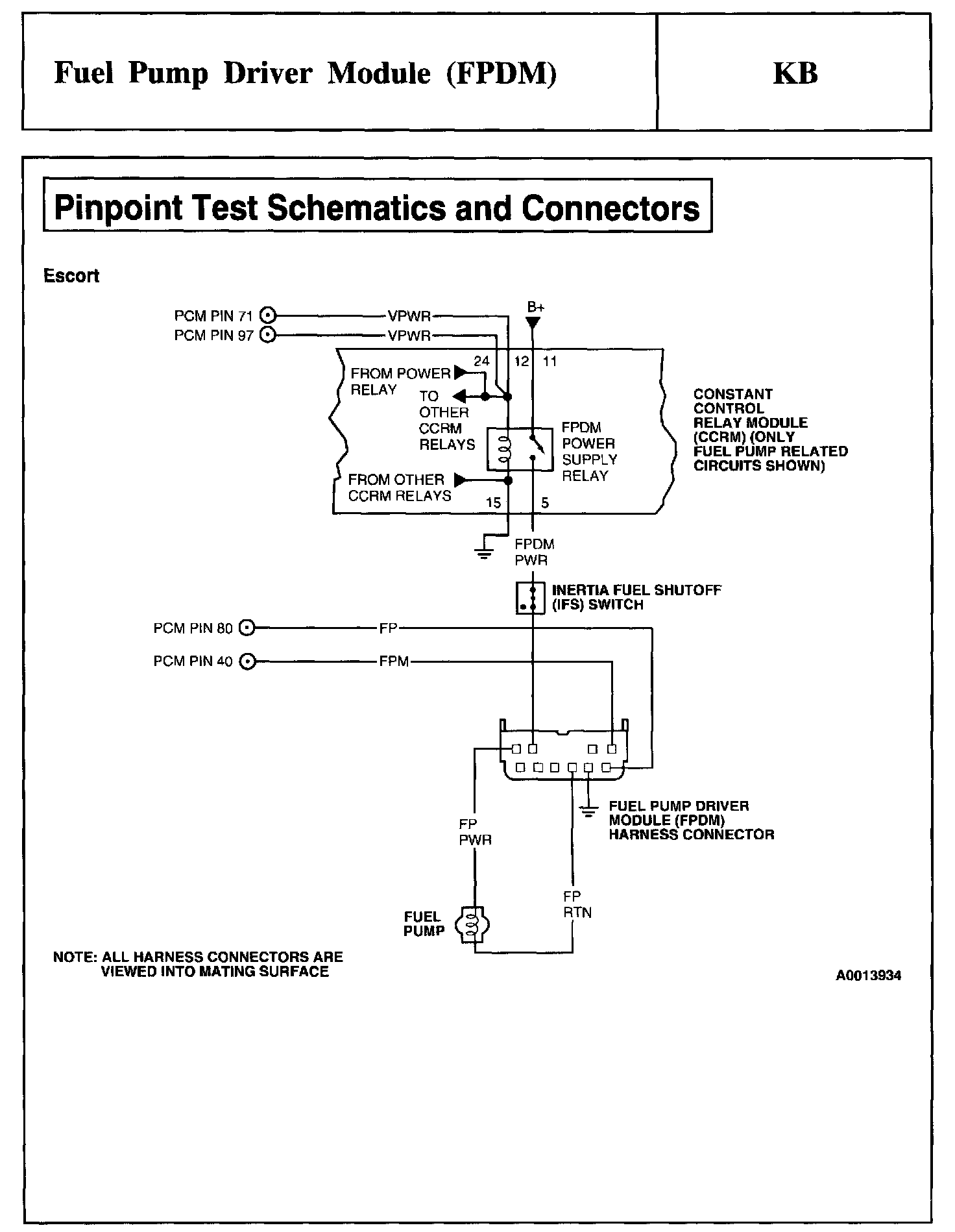

Test Schematic:

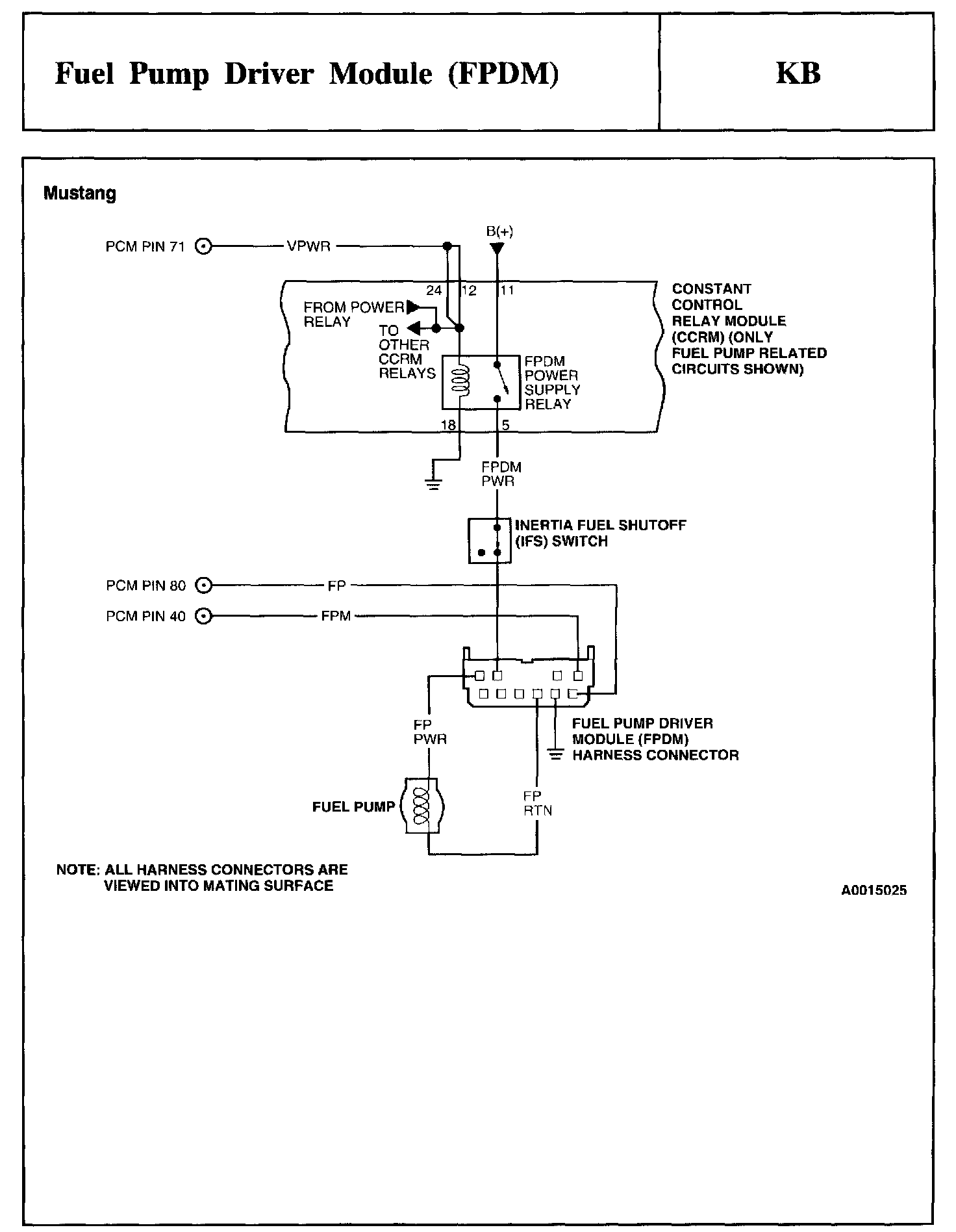

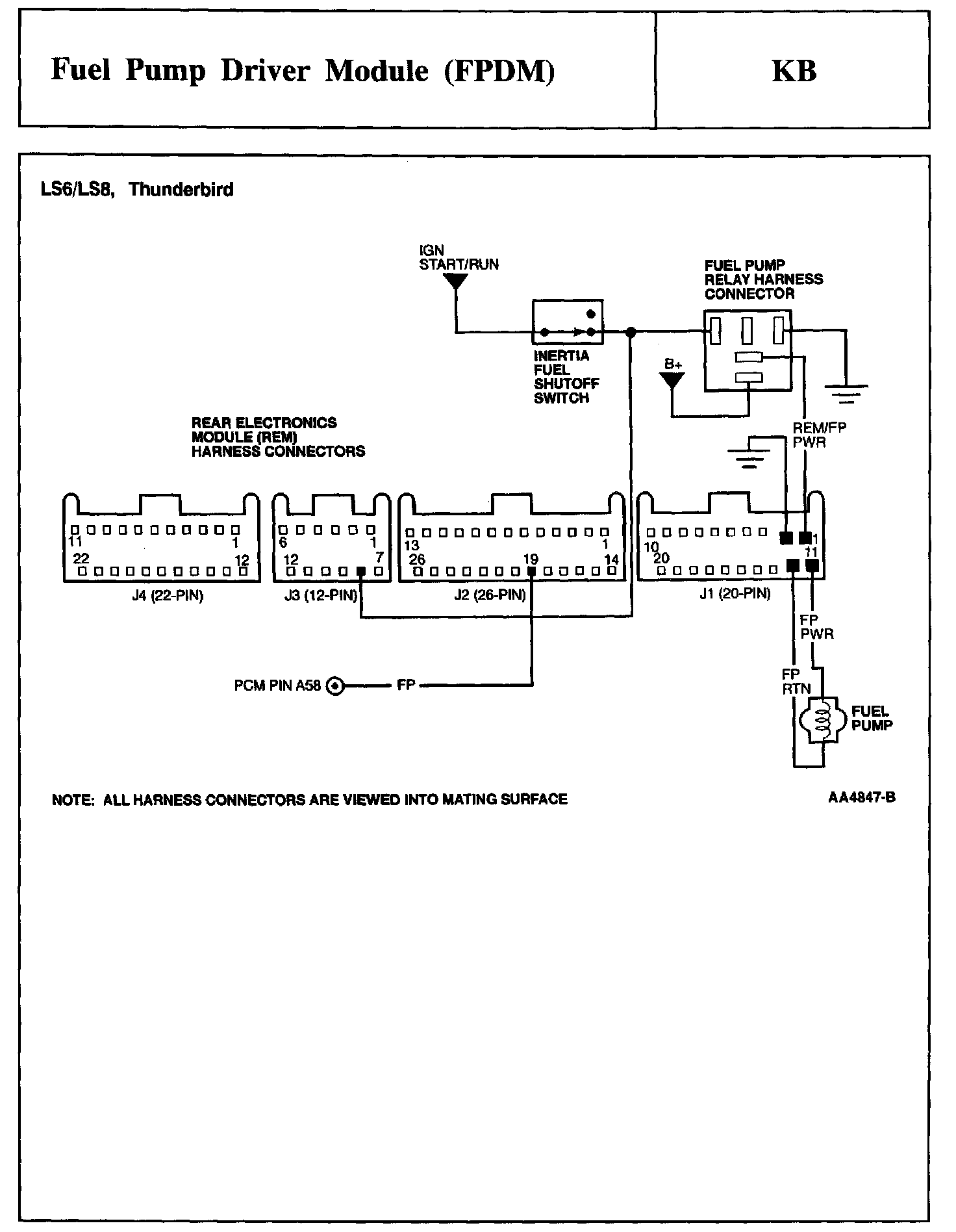

Test Schematic:
Test Schematic:
Test Schematic:

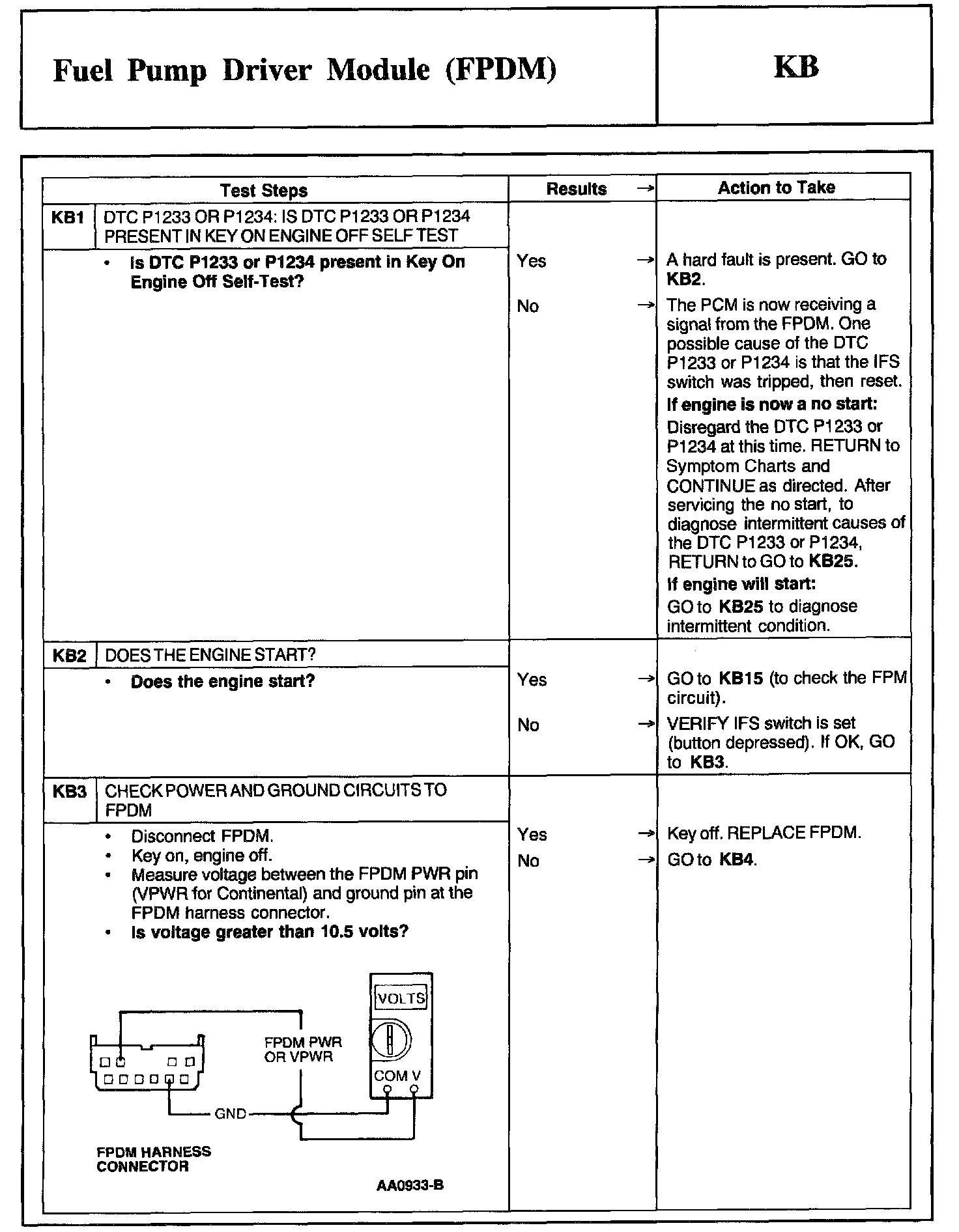

KB1 - KB3:

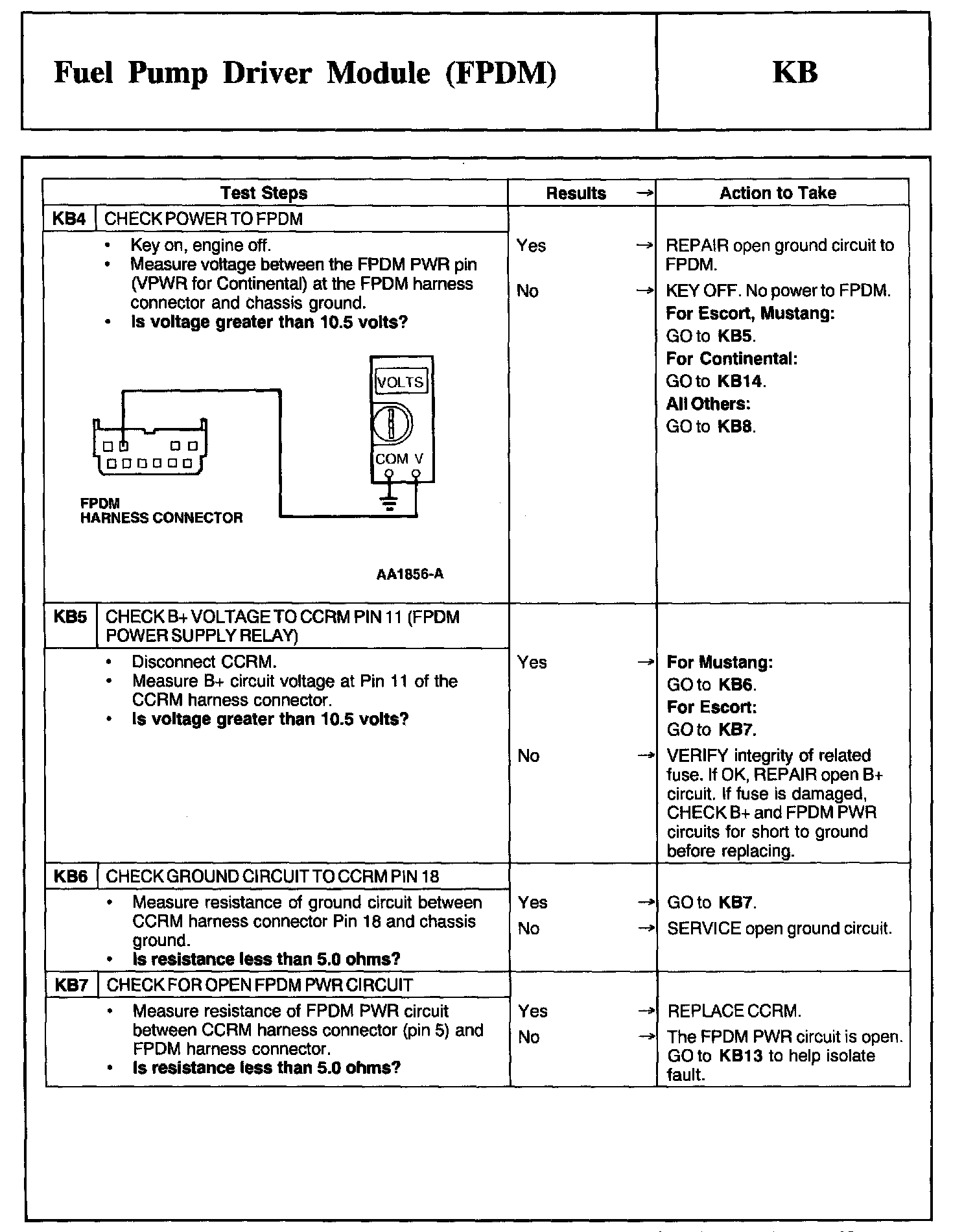

KB4 - KB7:

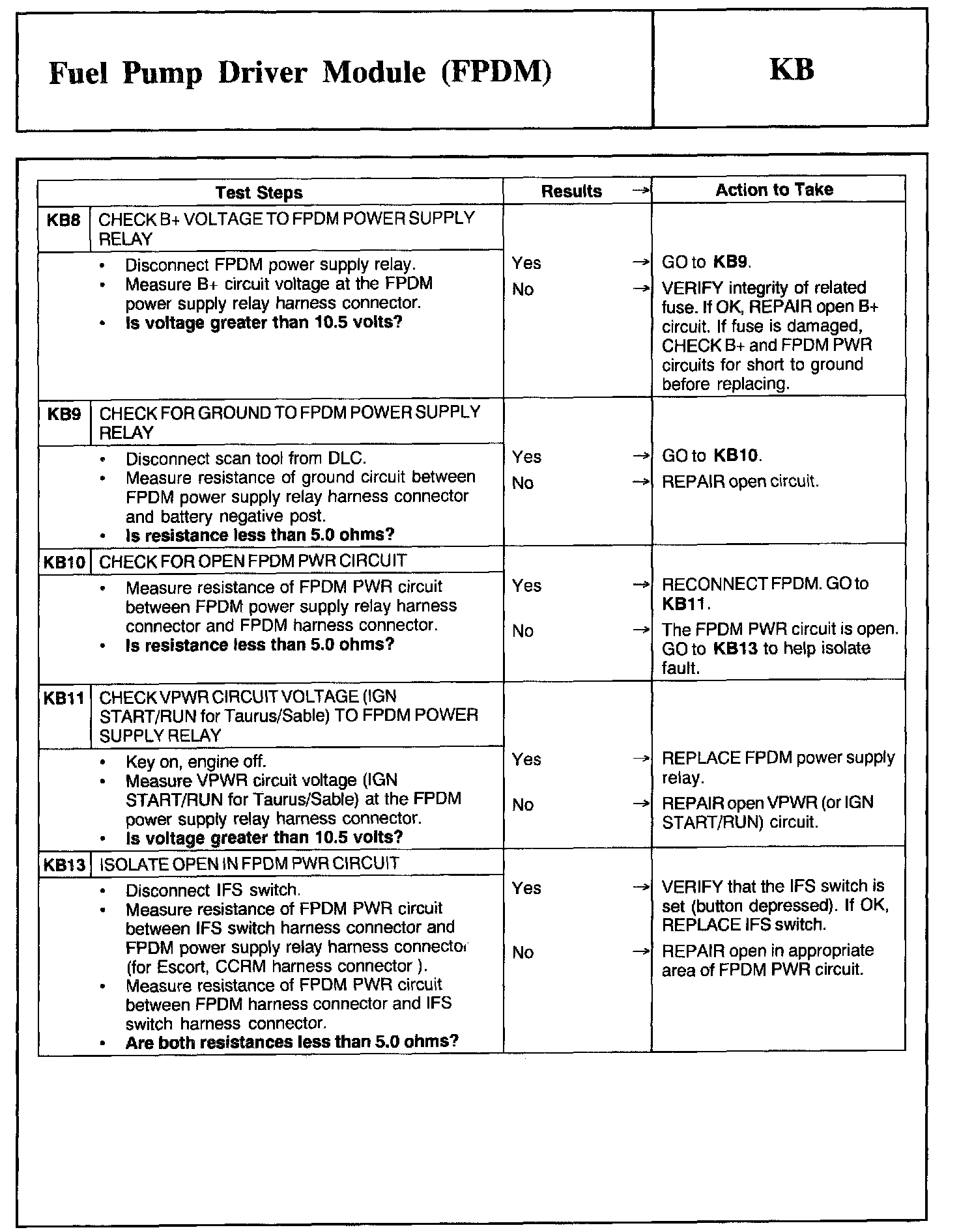

KB8 - KB13:

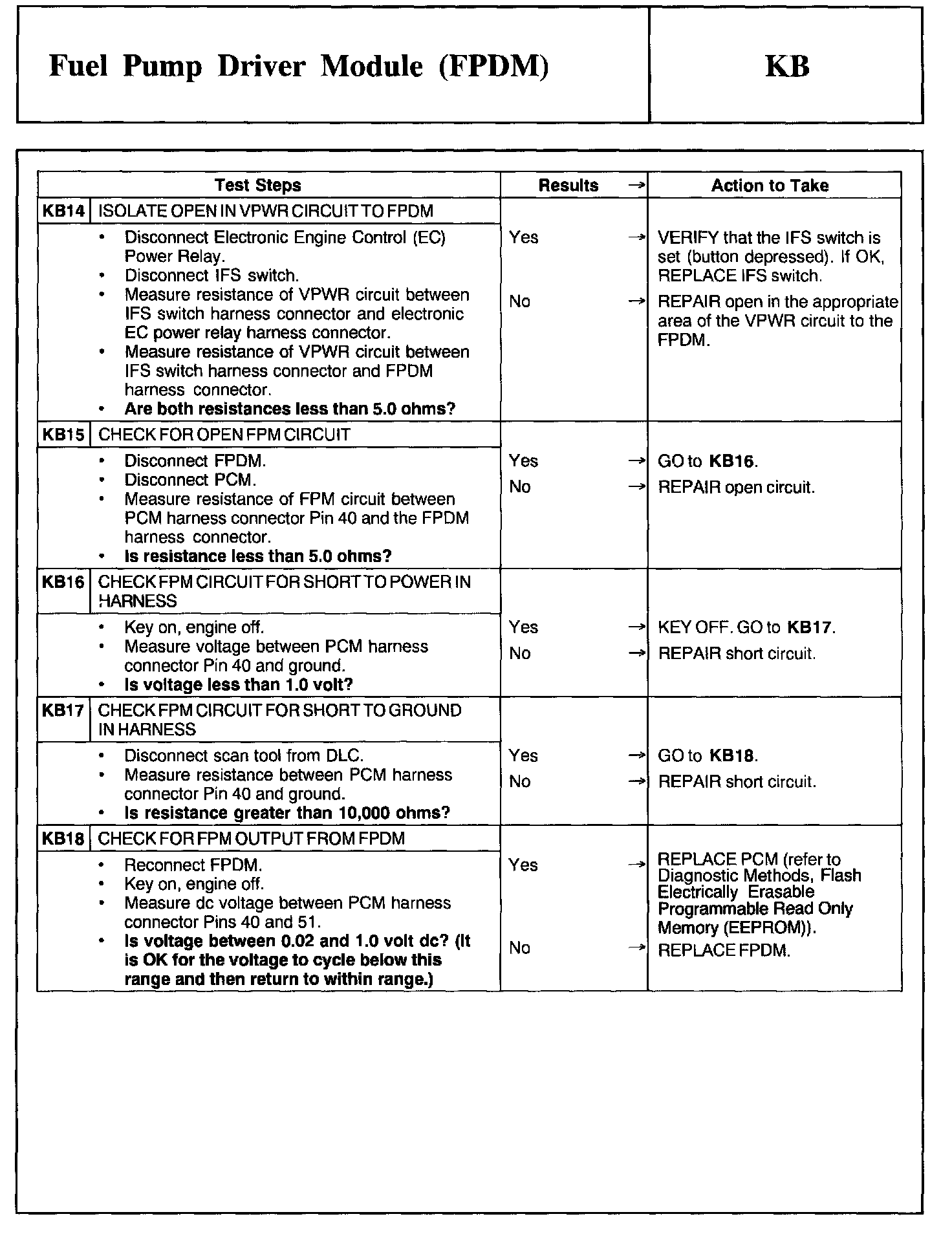

KB14 - KB18:

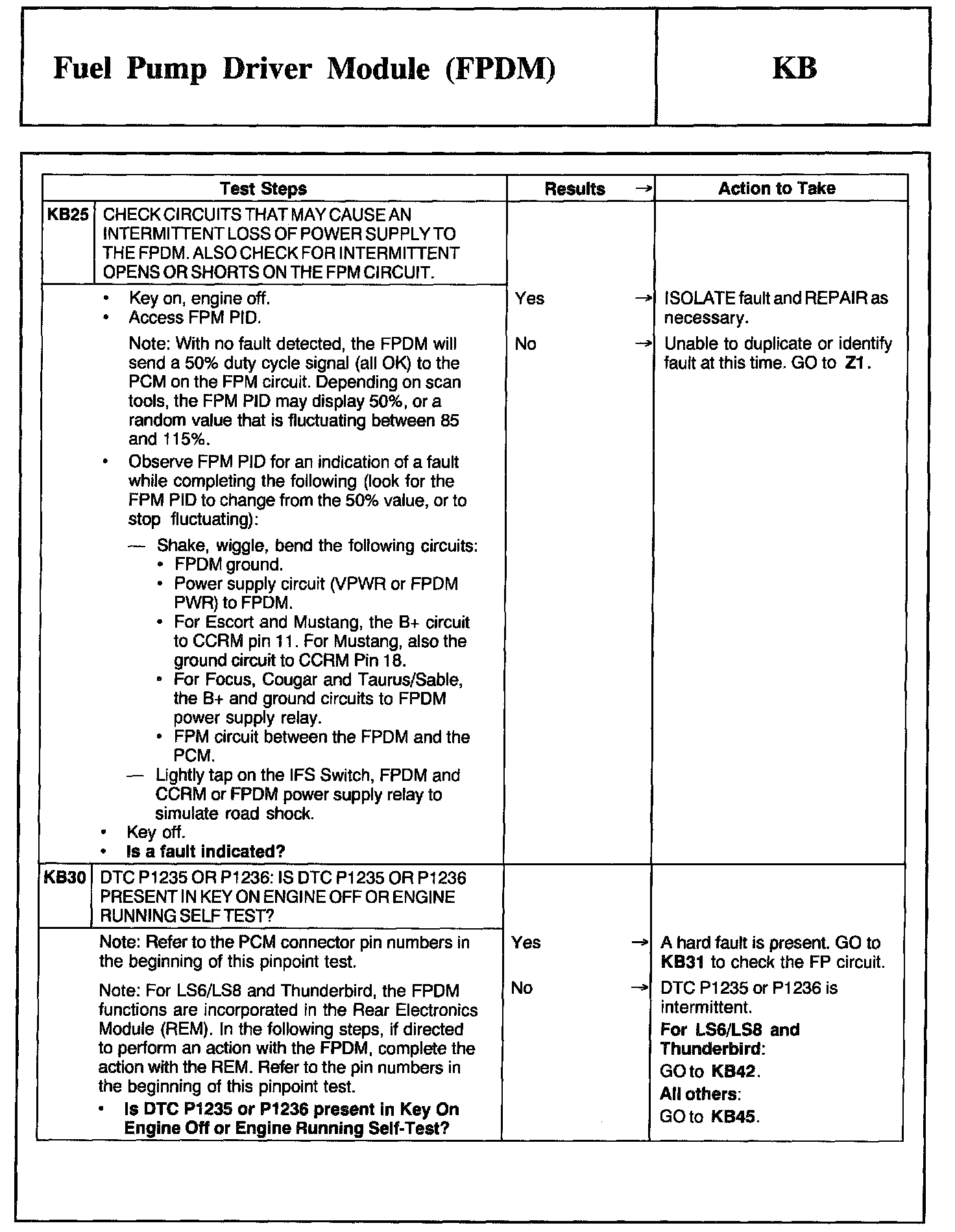

KB25 - KB30:

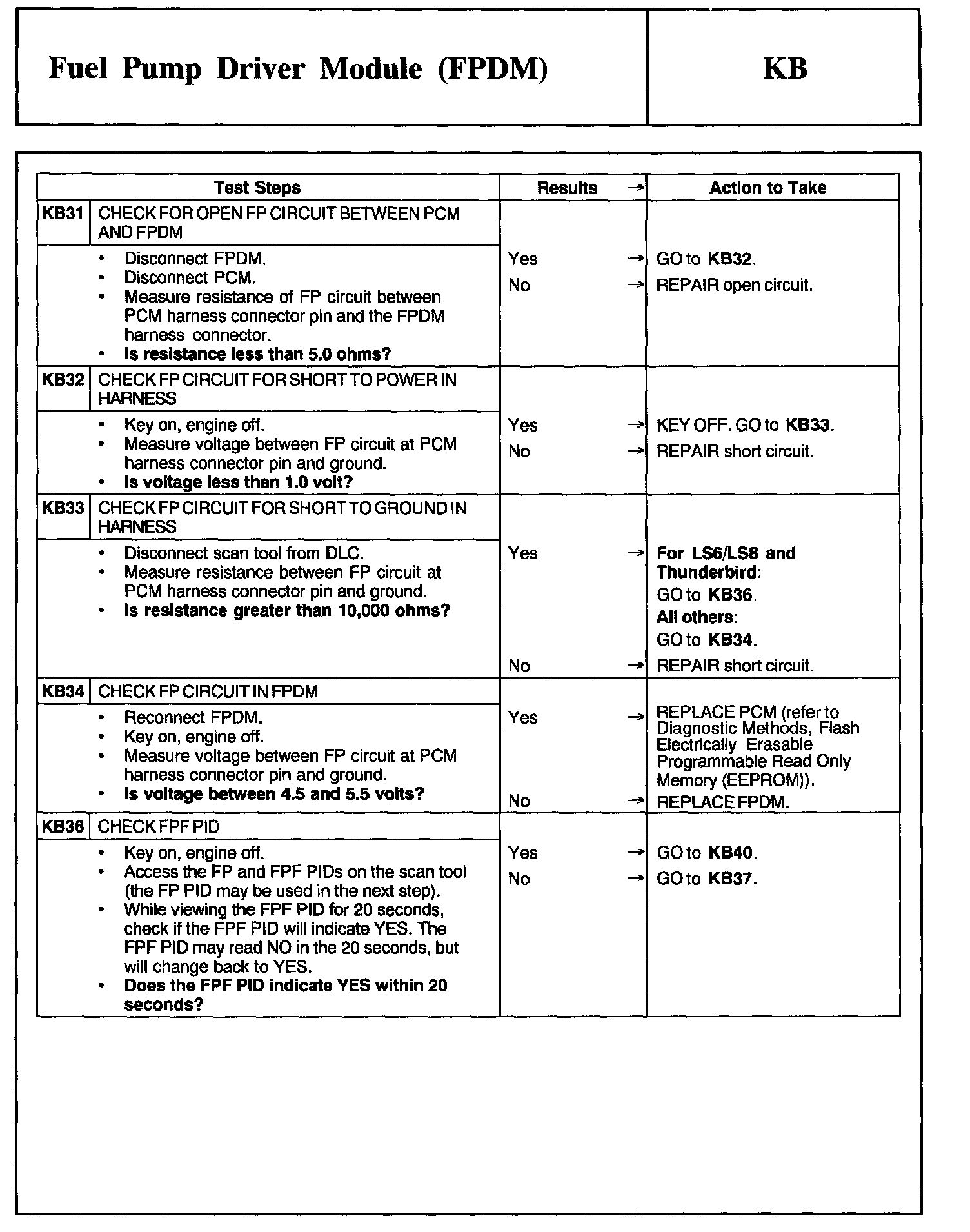

KB31 - KB36:

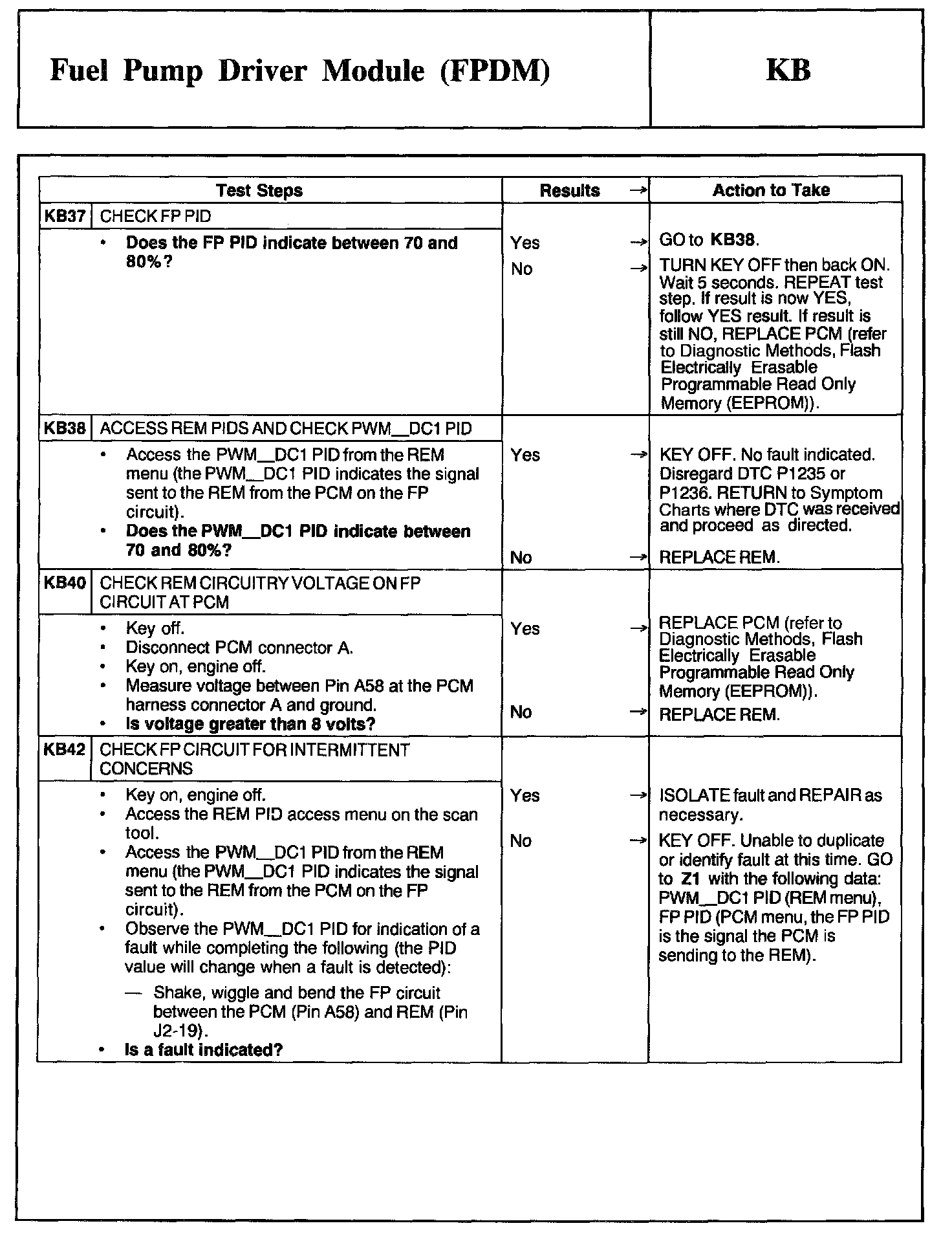

KB37 - KB42:

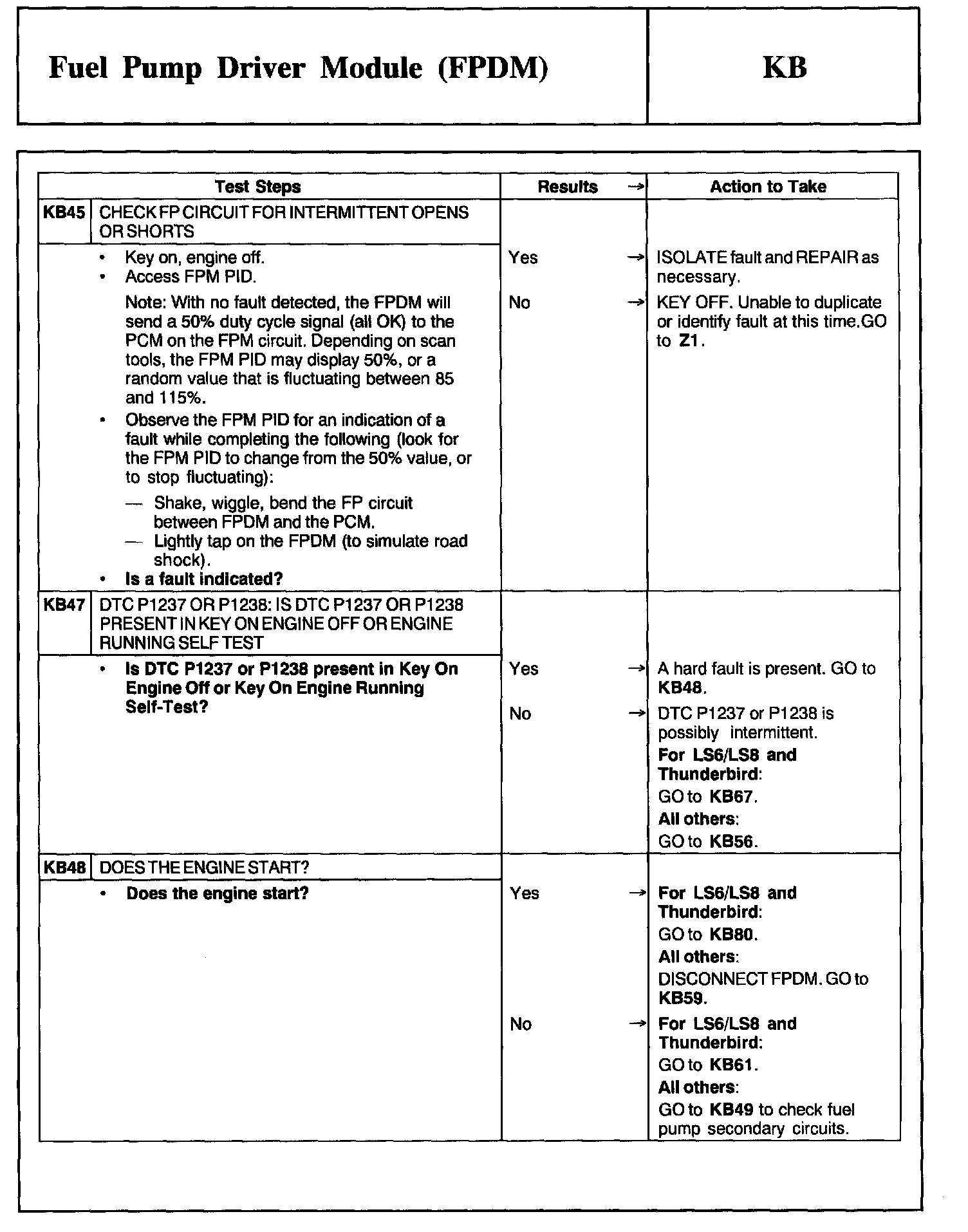

KB45 - KB48:

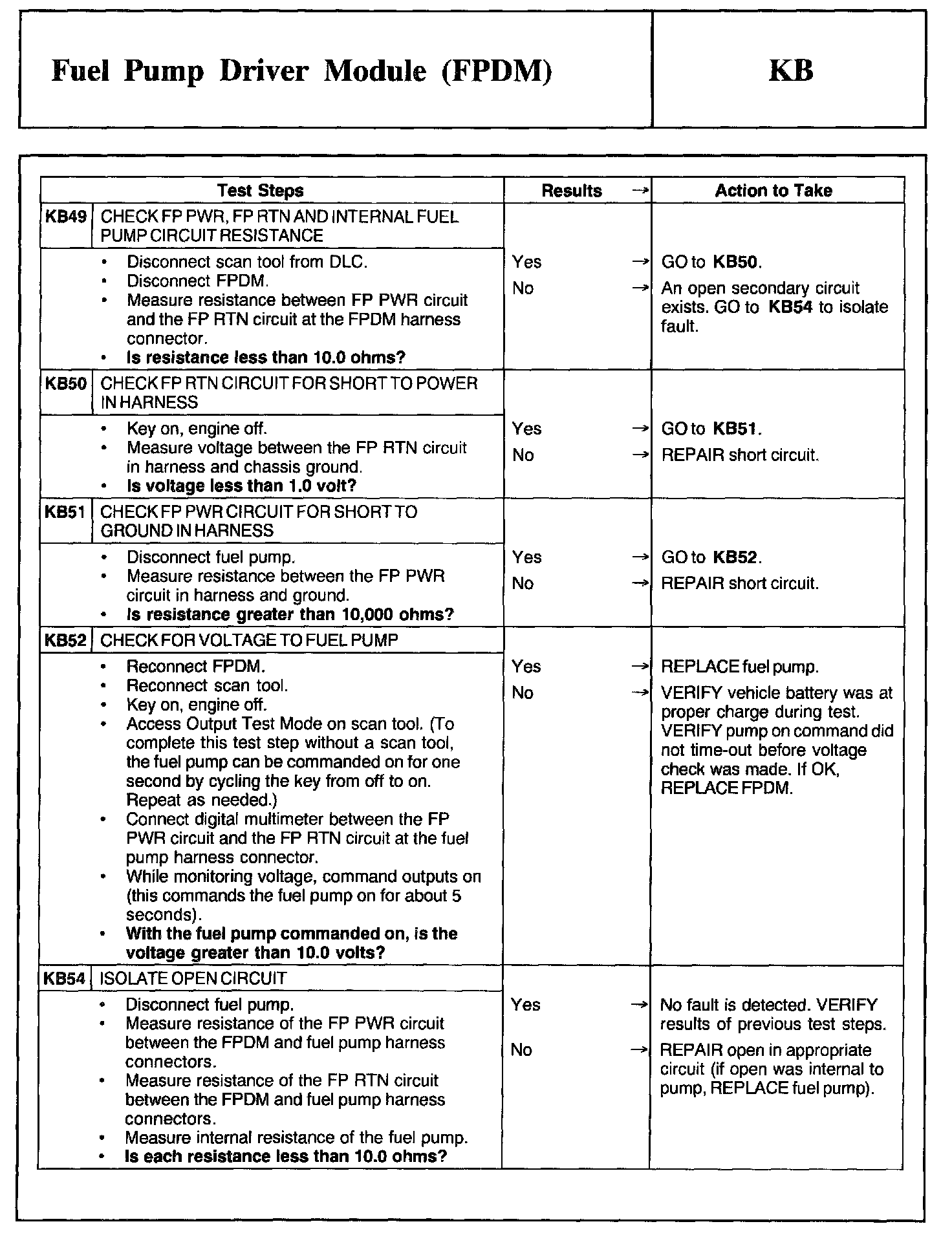

KB49 - KB54:

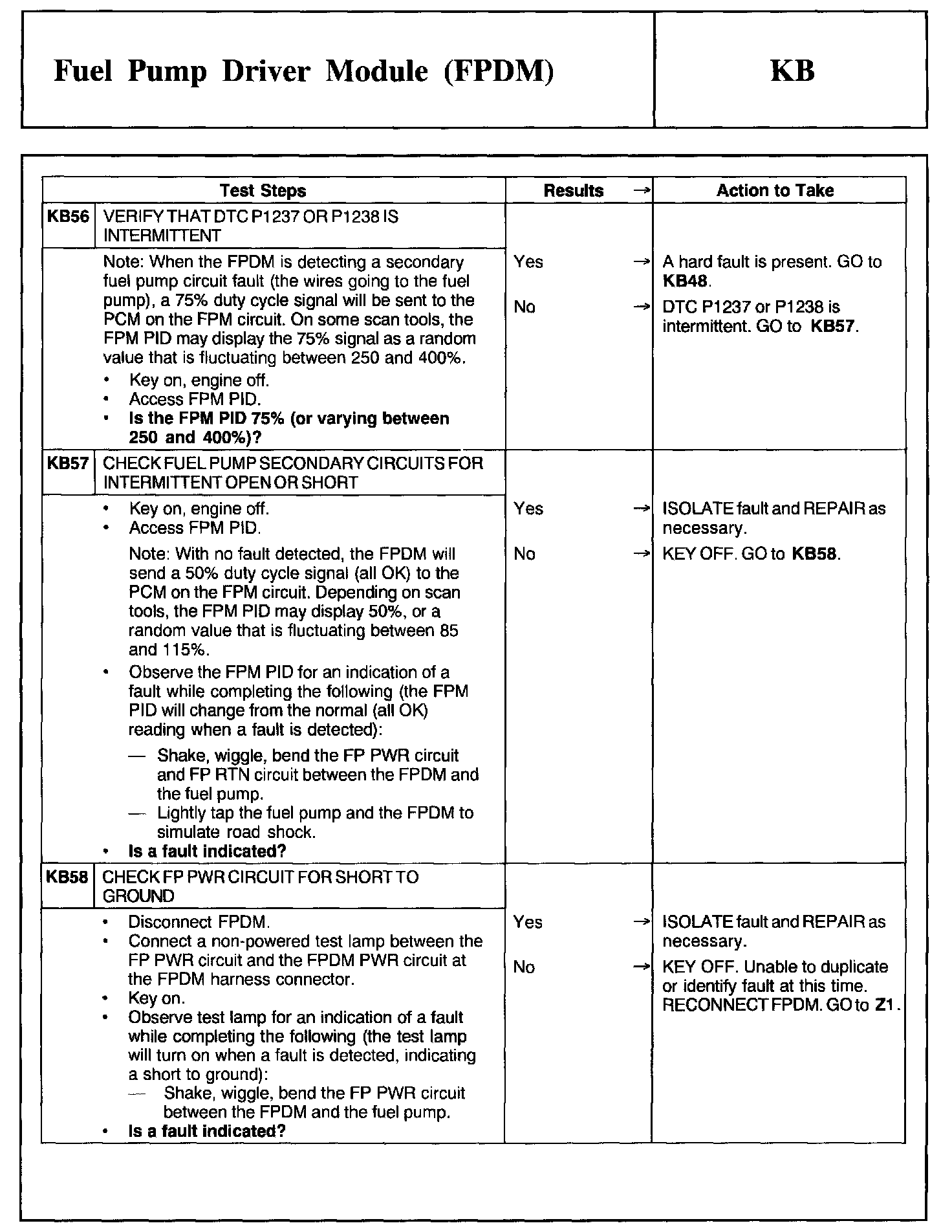

KB56 - KB58:

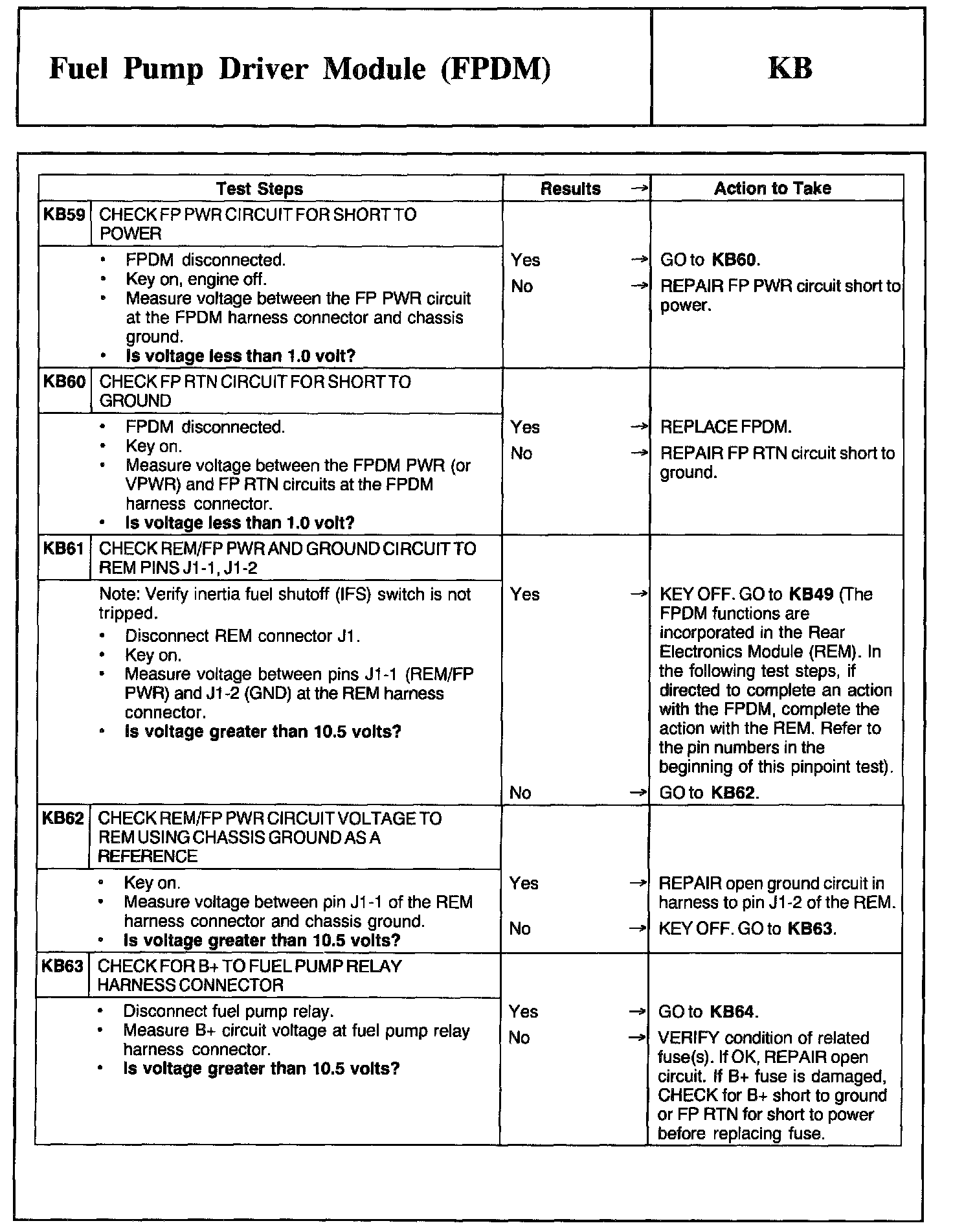

KB59 - KB63:

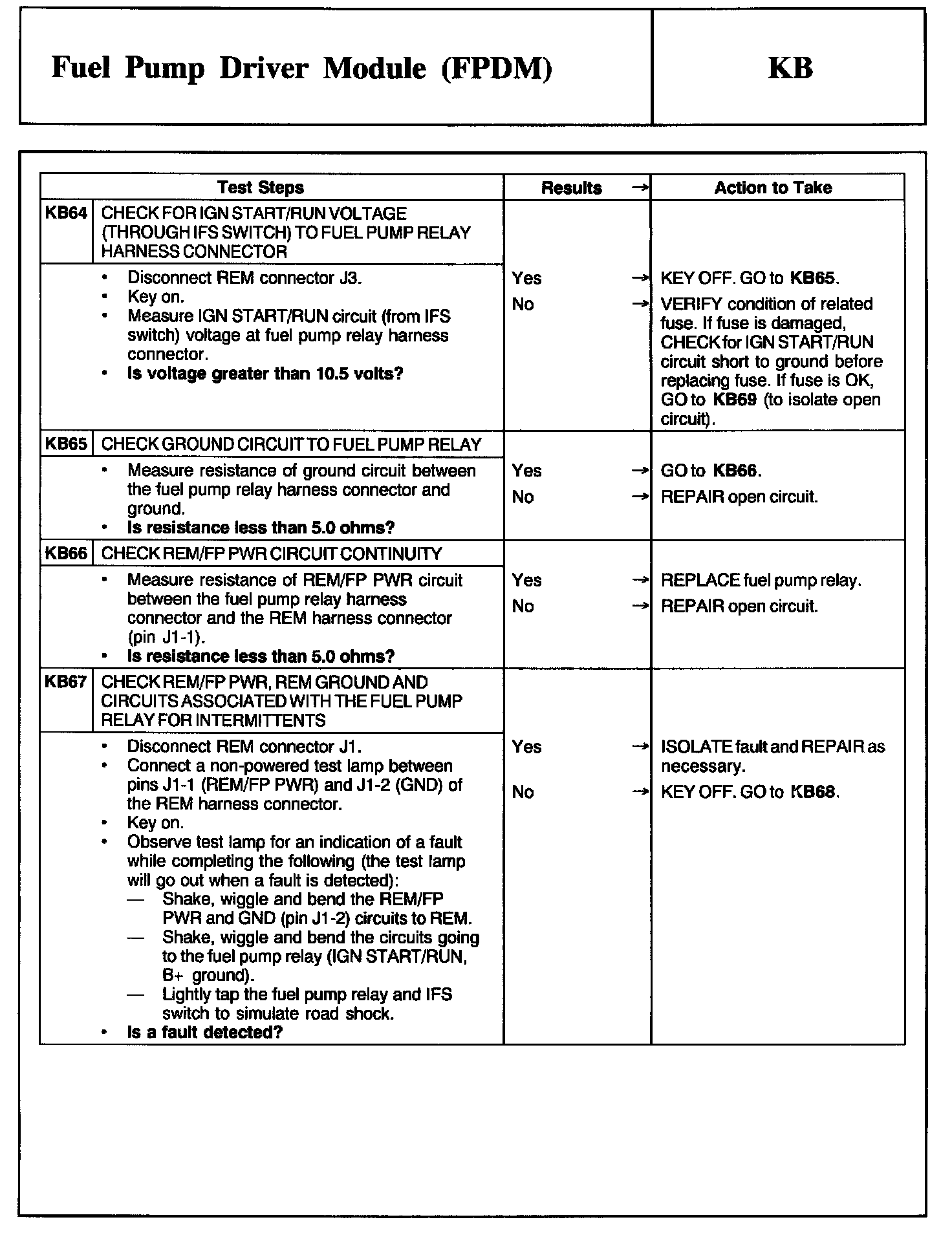

KB64 - KB67:

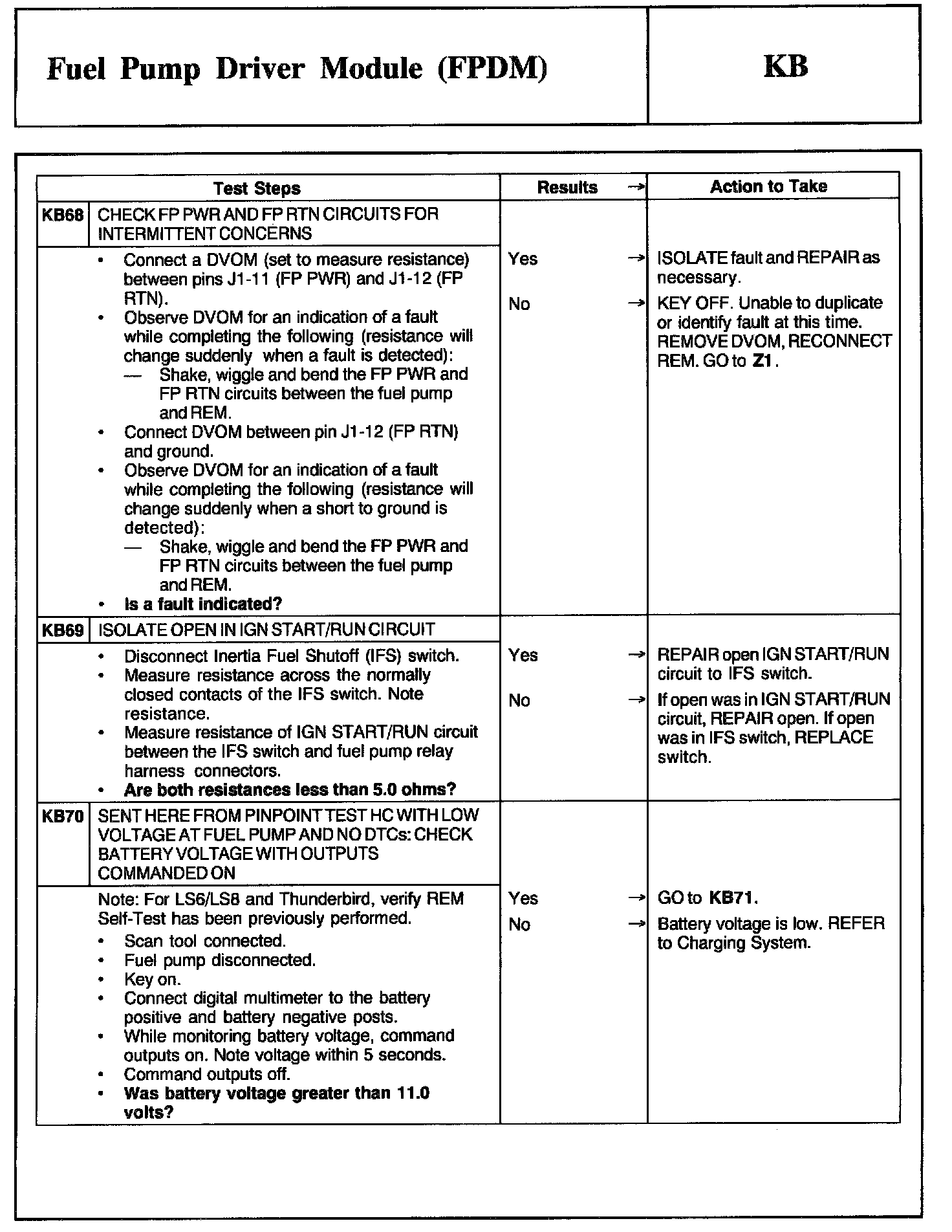

KB68 - KB70:

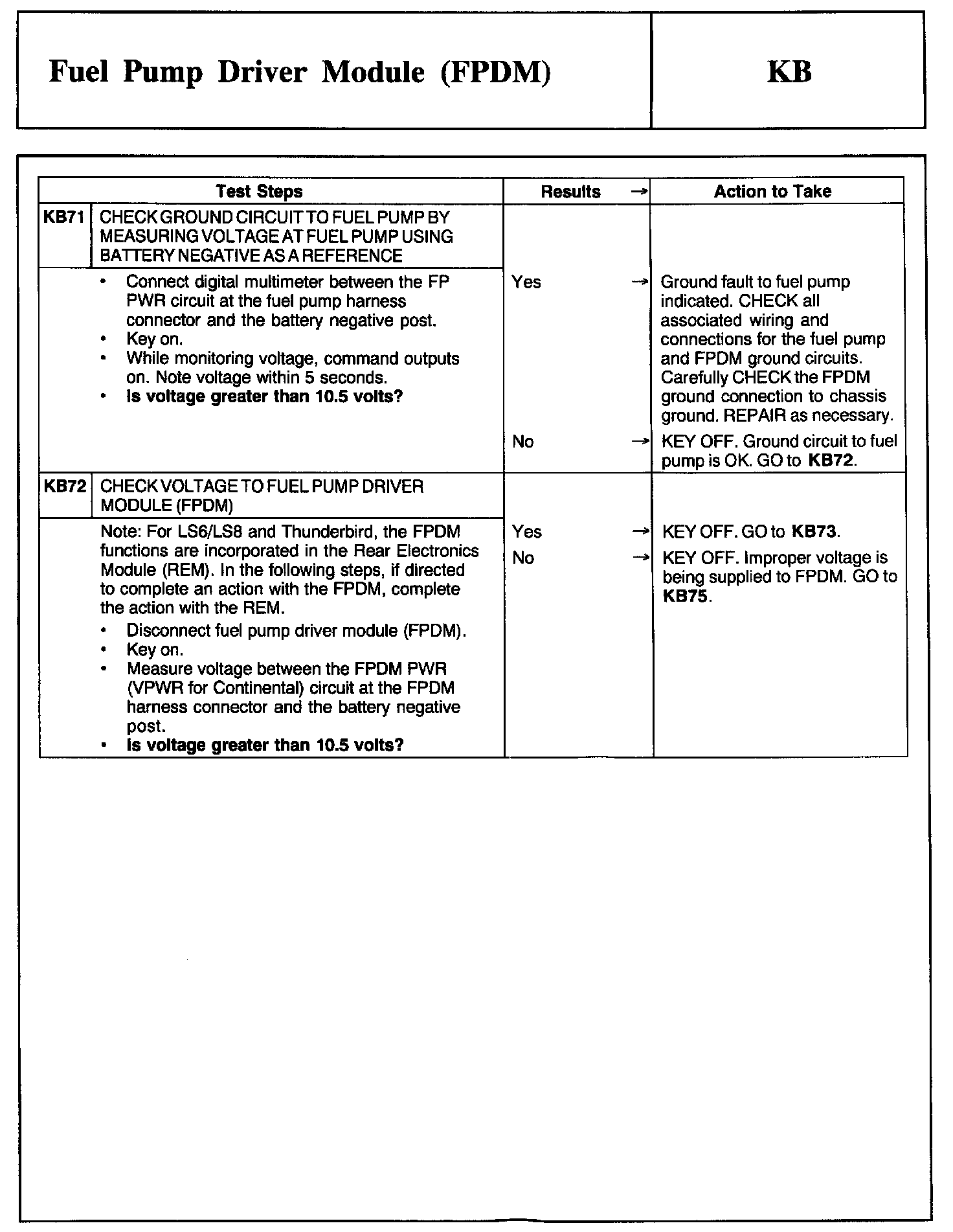

KB71 - KB72:

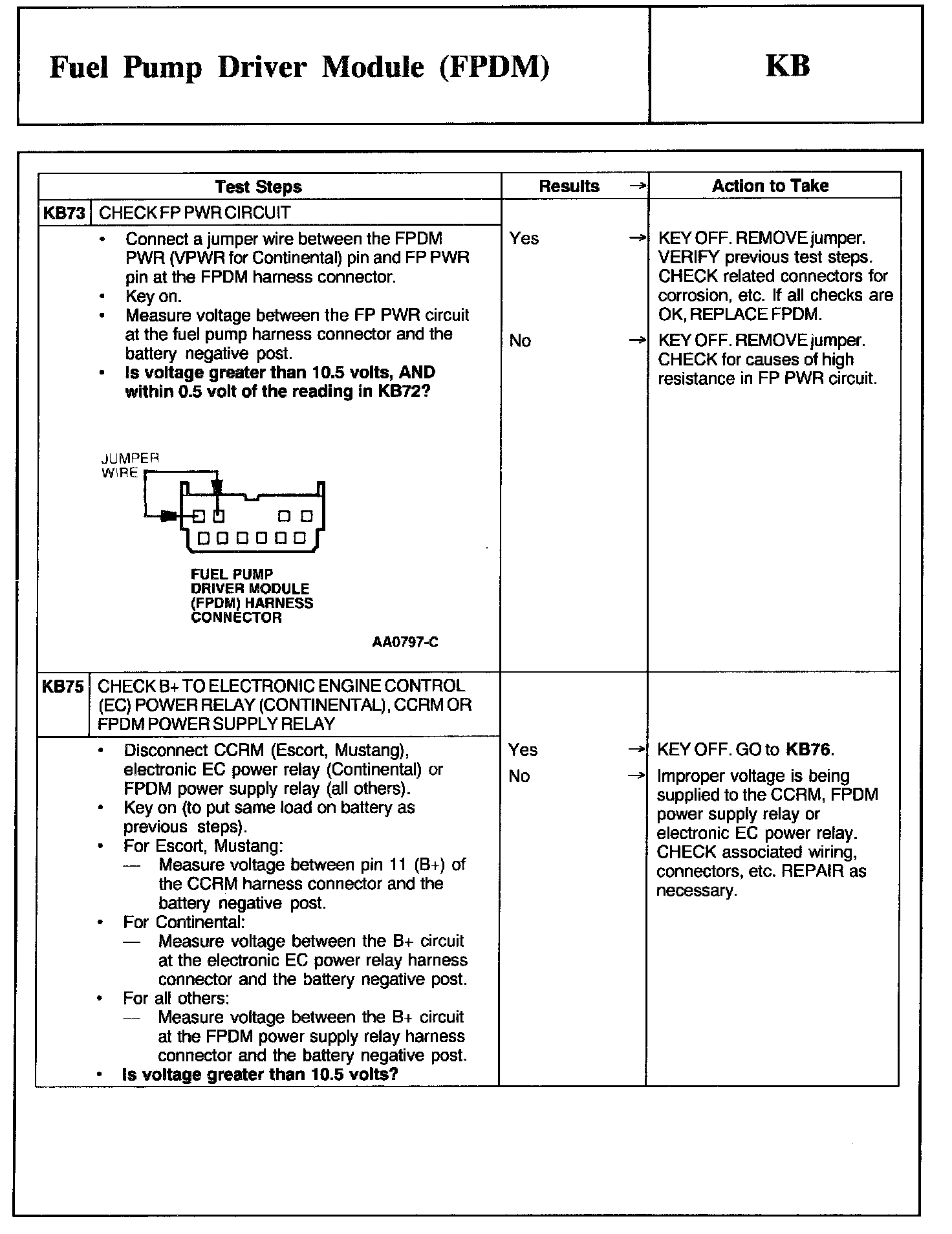

KB73 - KB75:
