Tests KD: Electric Exhaust Gas Recirculation (EEGR) System

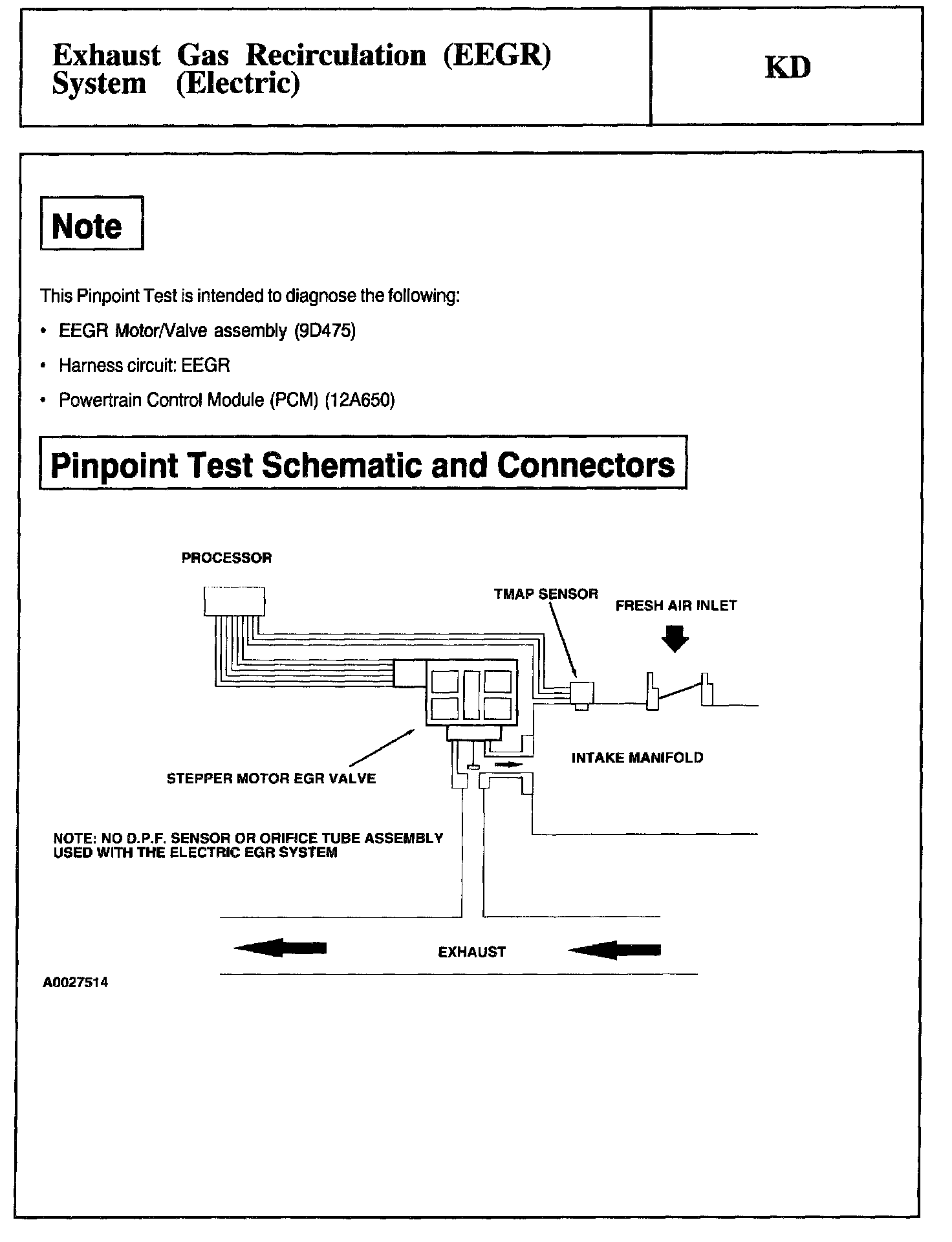

Note, Schematic and Connectors:

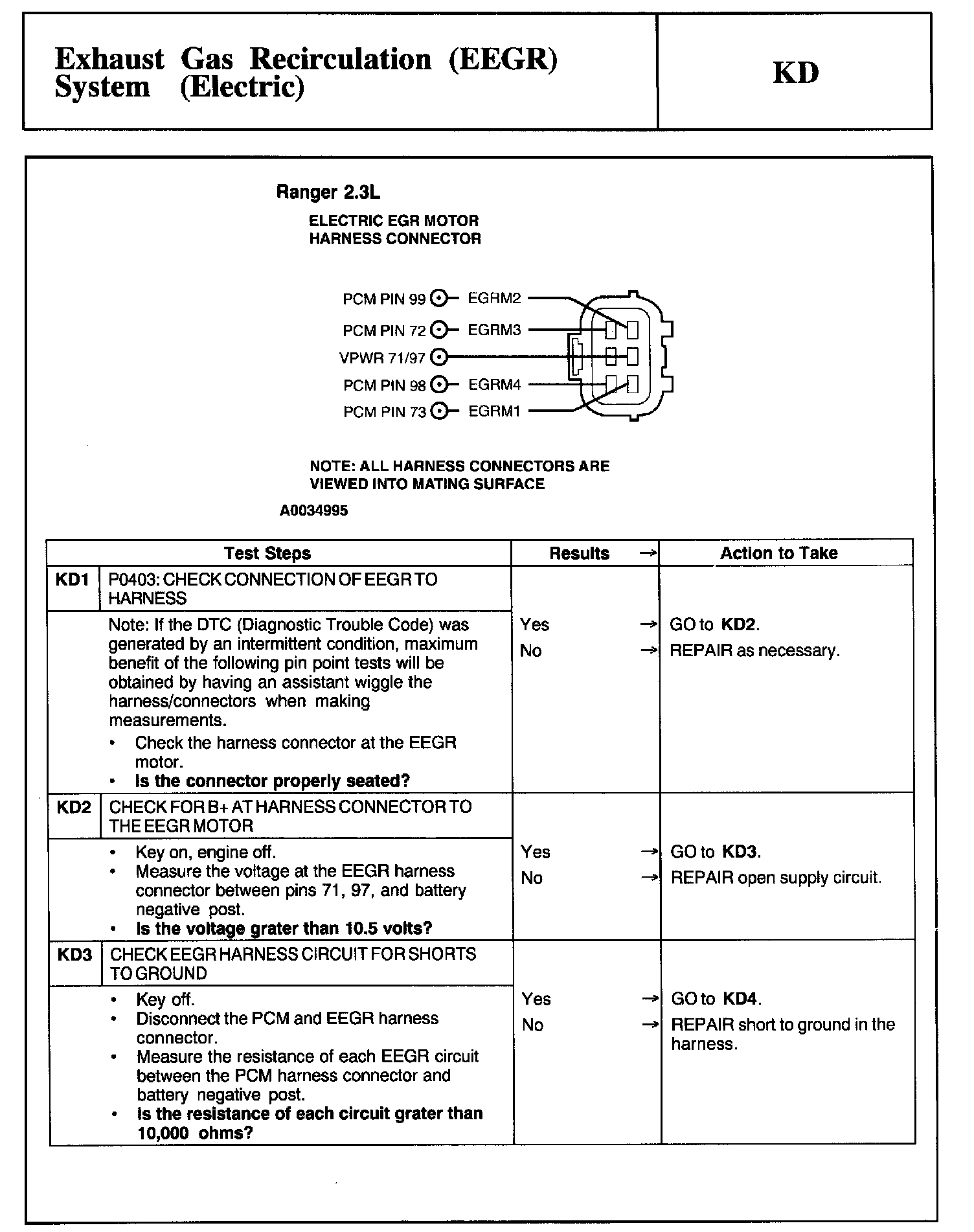

Schematic, Test KD1 - KD3:

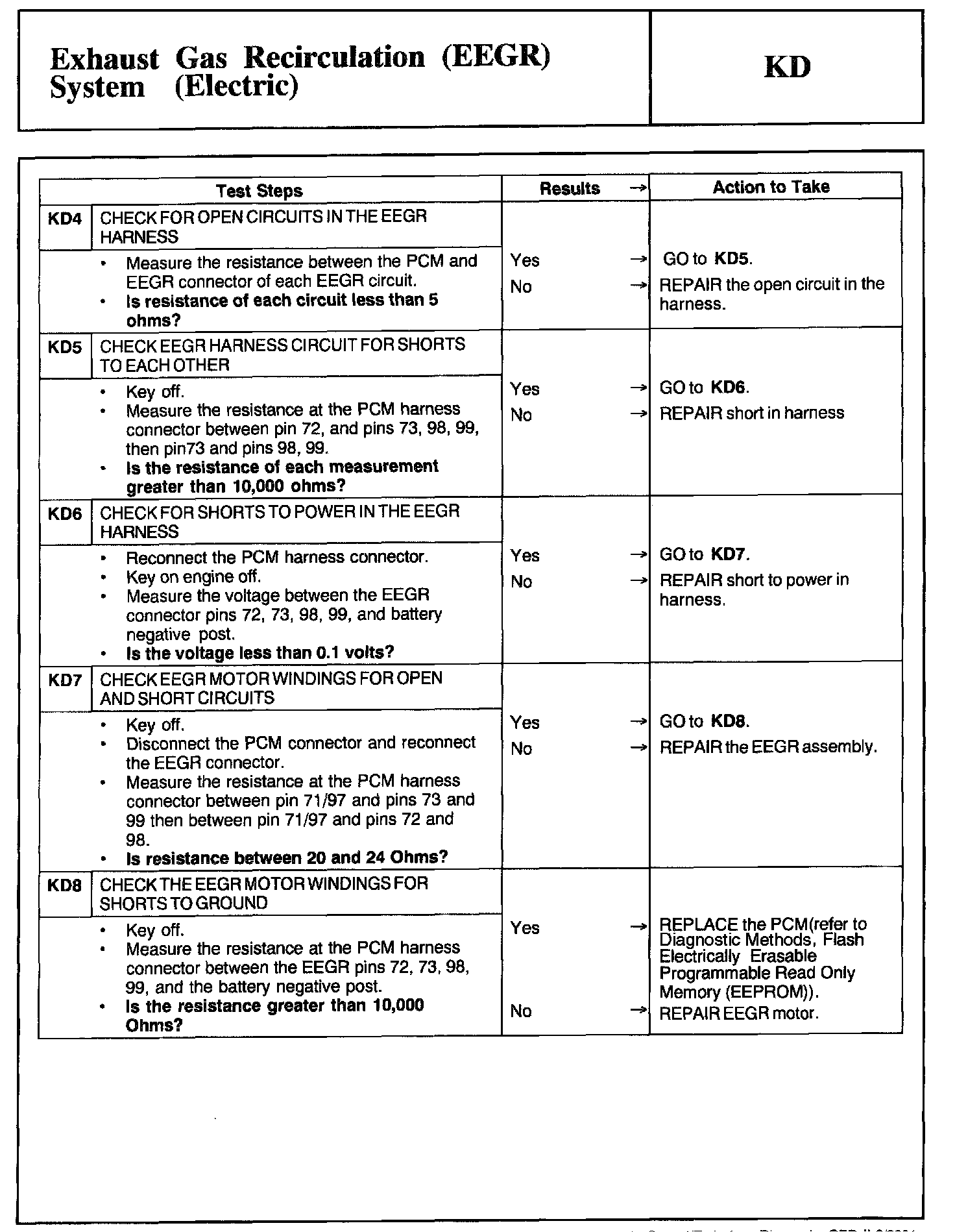

KD4 - KD8:

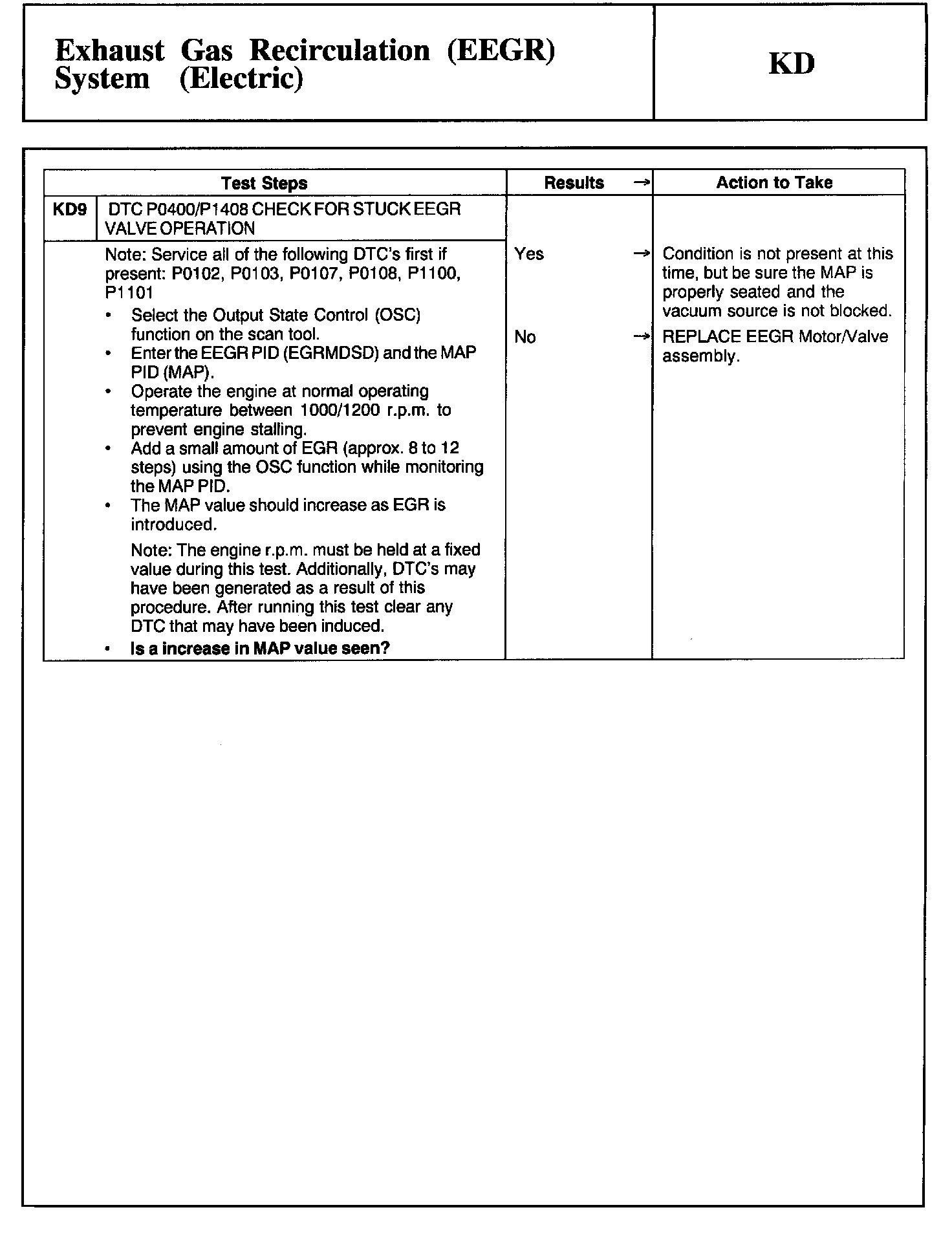

KD9:
