Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Tests KE: Idle Air Control (IAC) Valve
Tests KE: Idle Air Control (IAC) Valve

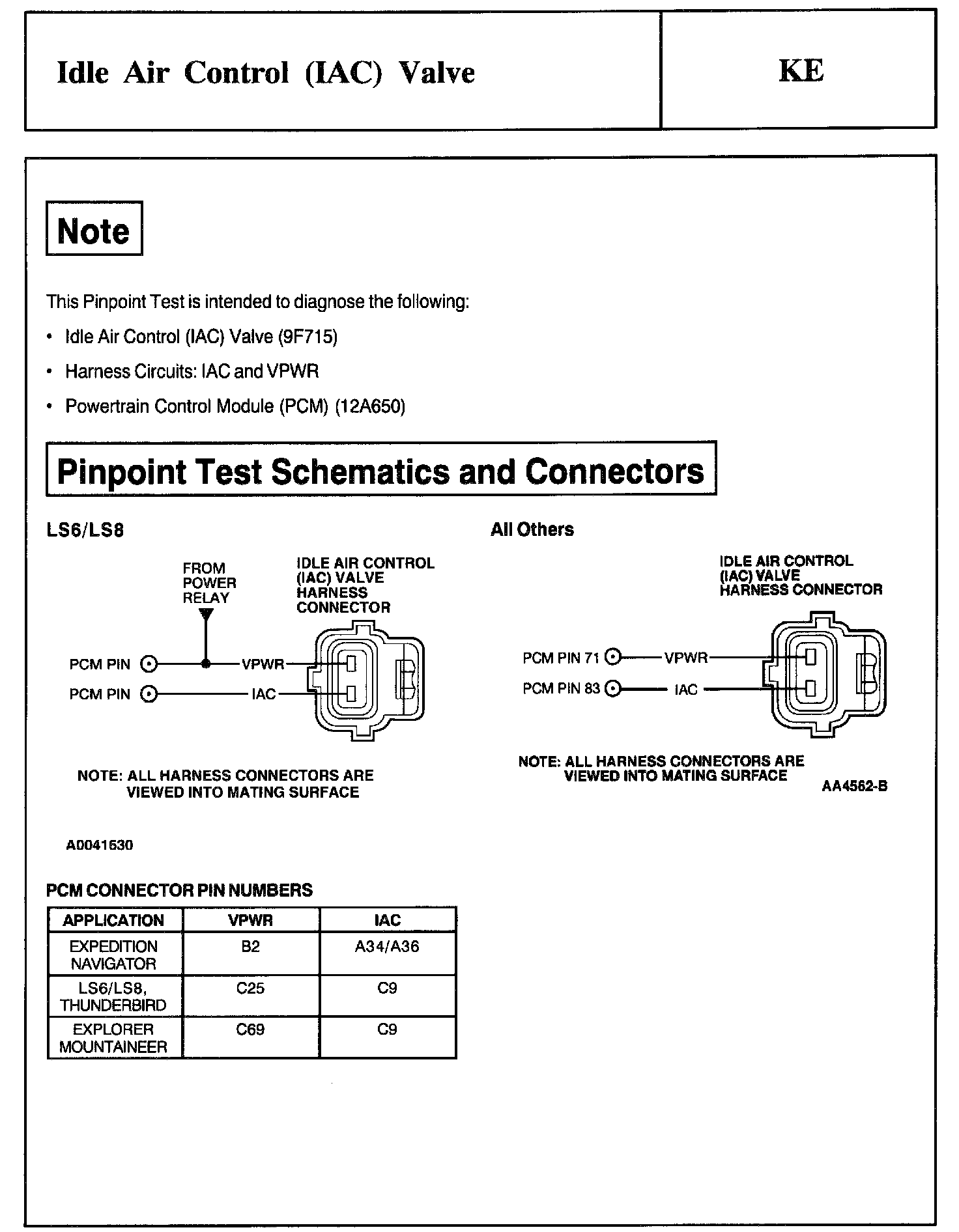

Note, Schematics and Connectors:

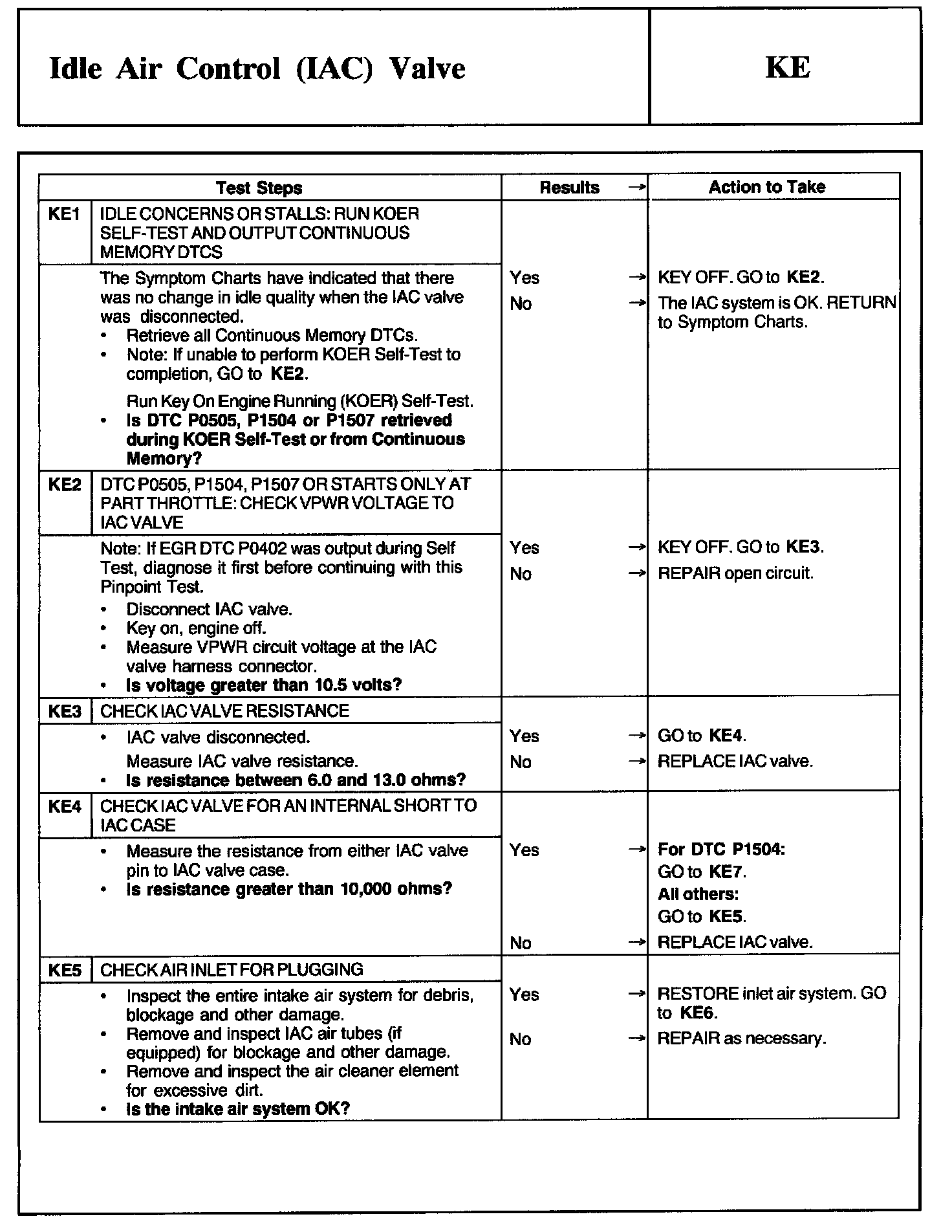

KE1 - KE5:

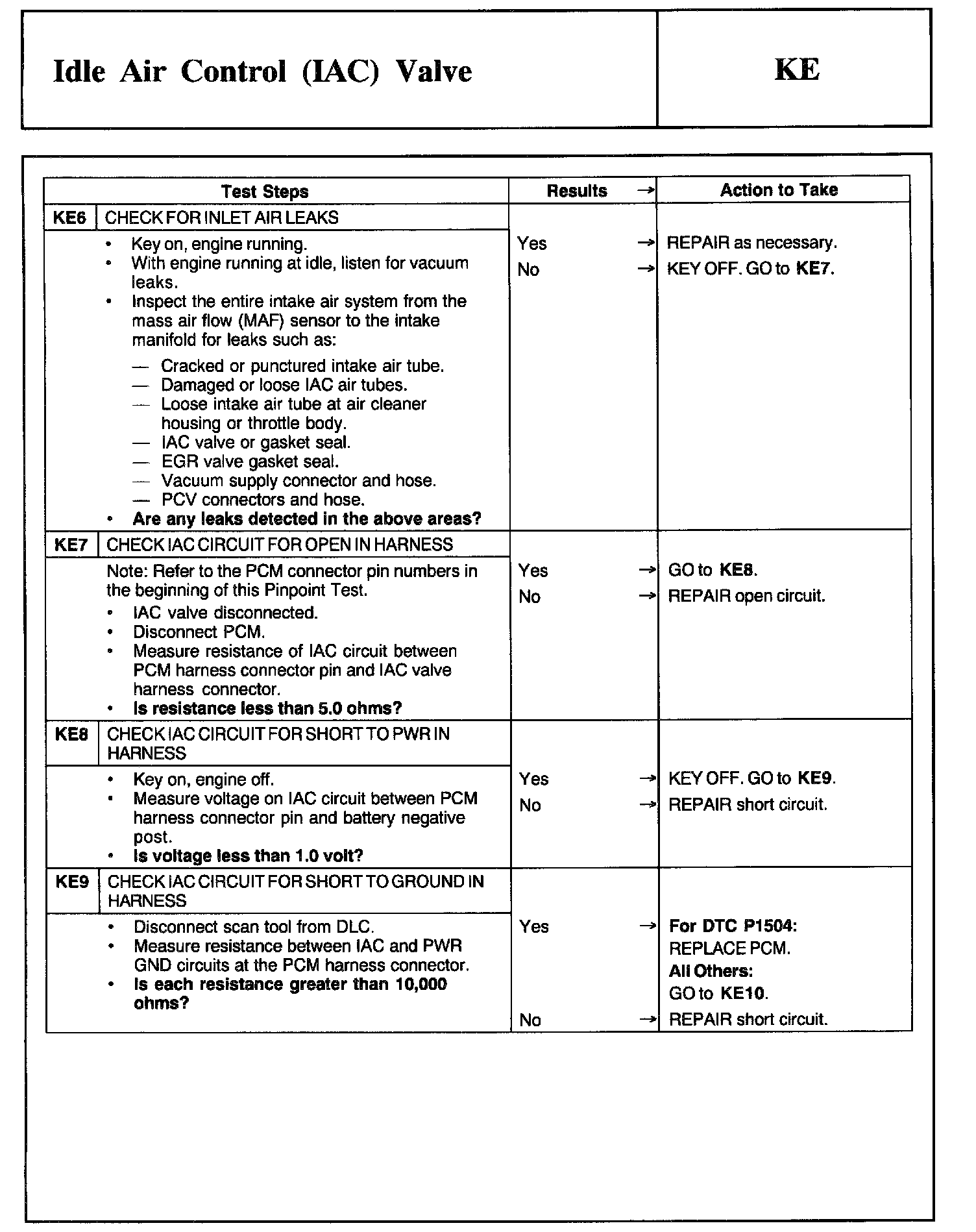

KE6 - KE9:

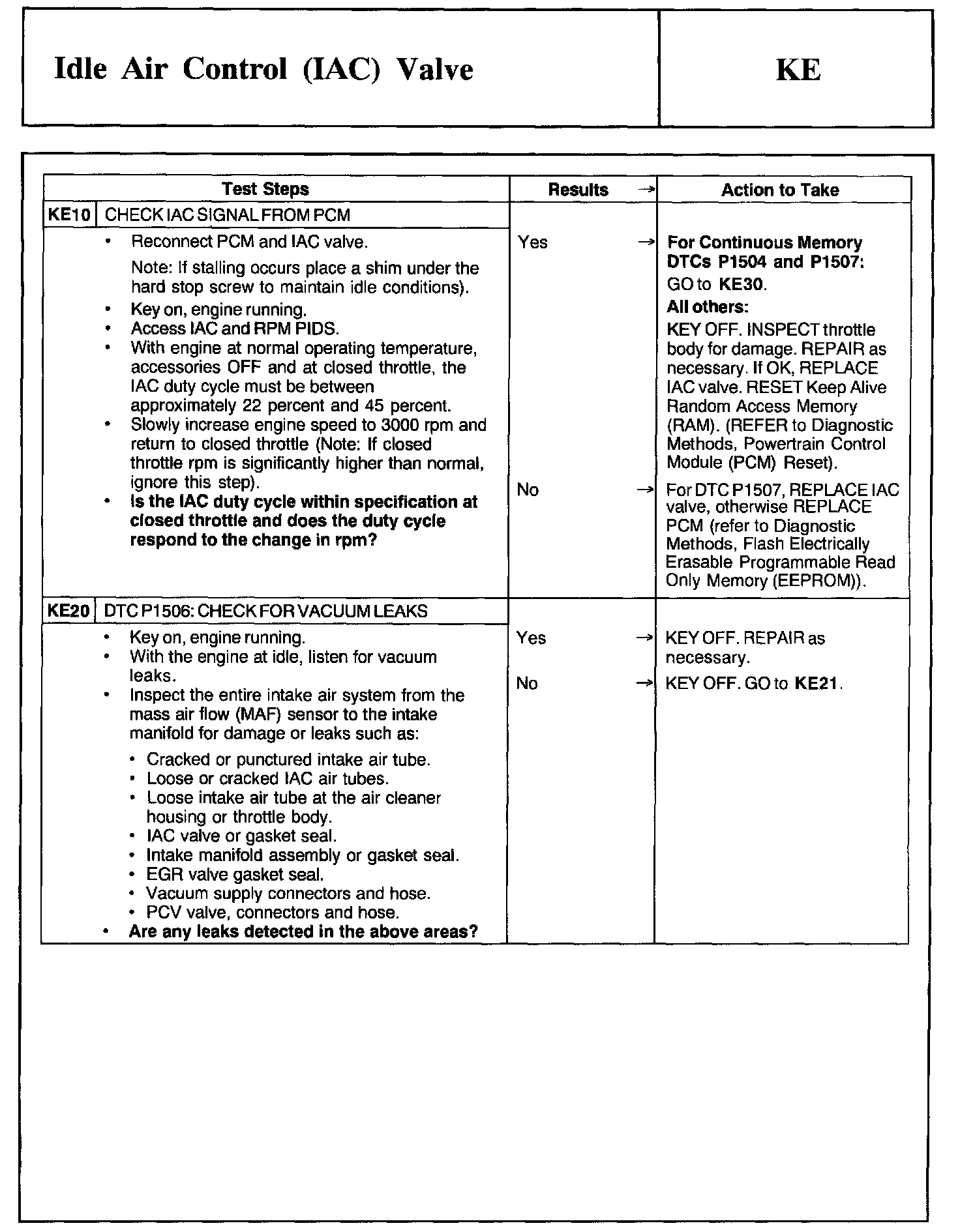

KE10 - KE20:

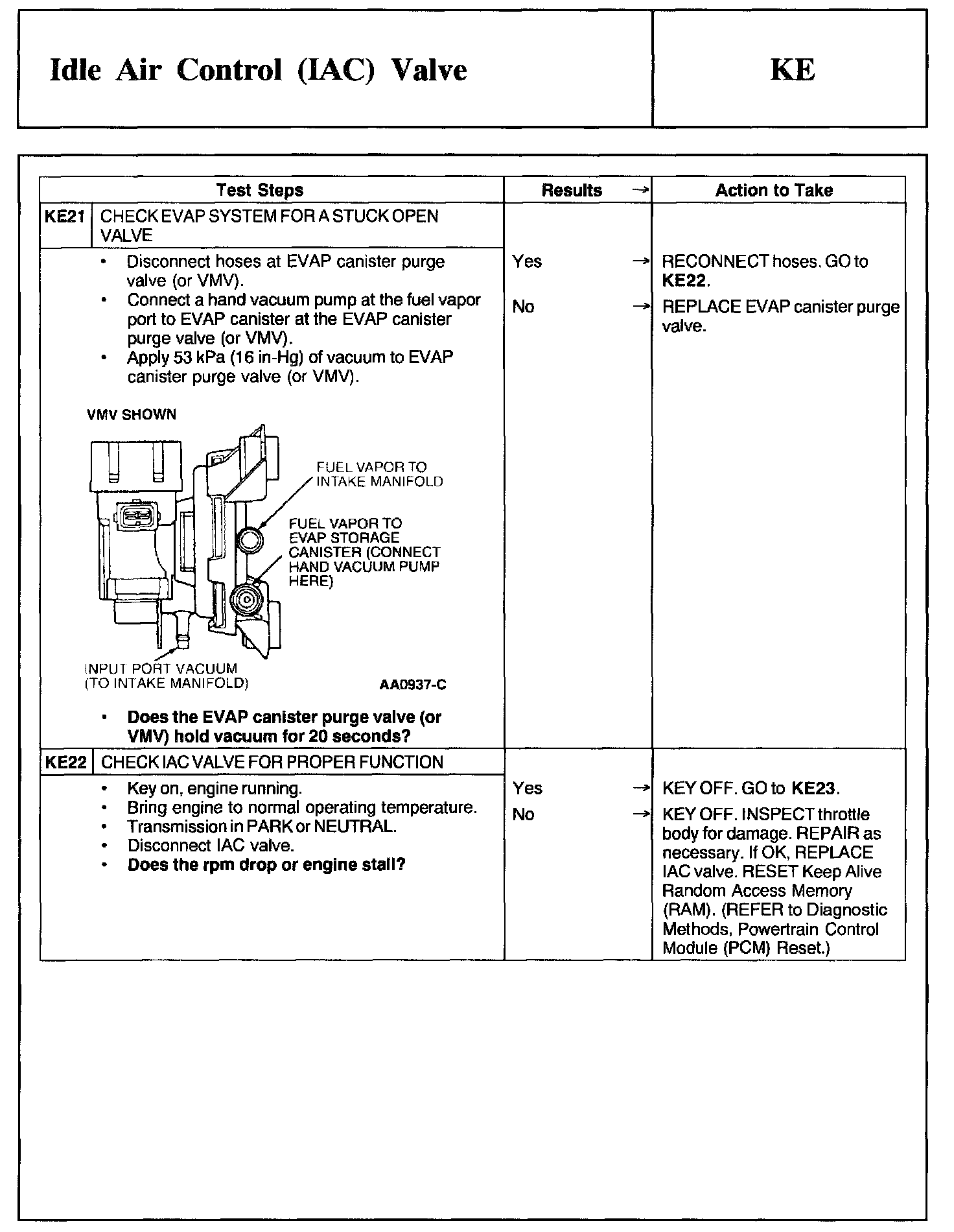

KE21 - KE22:

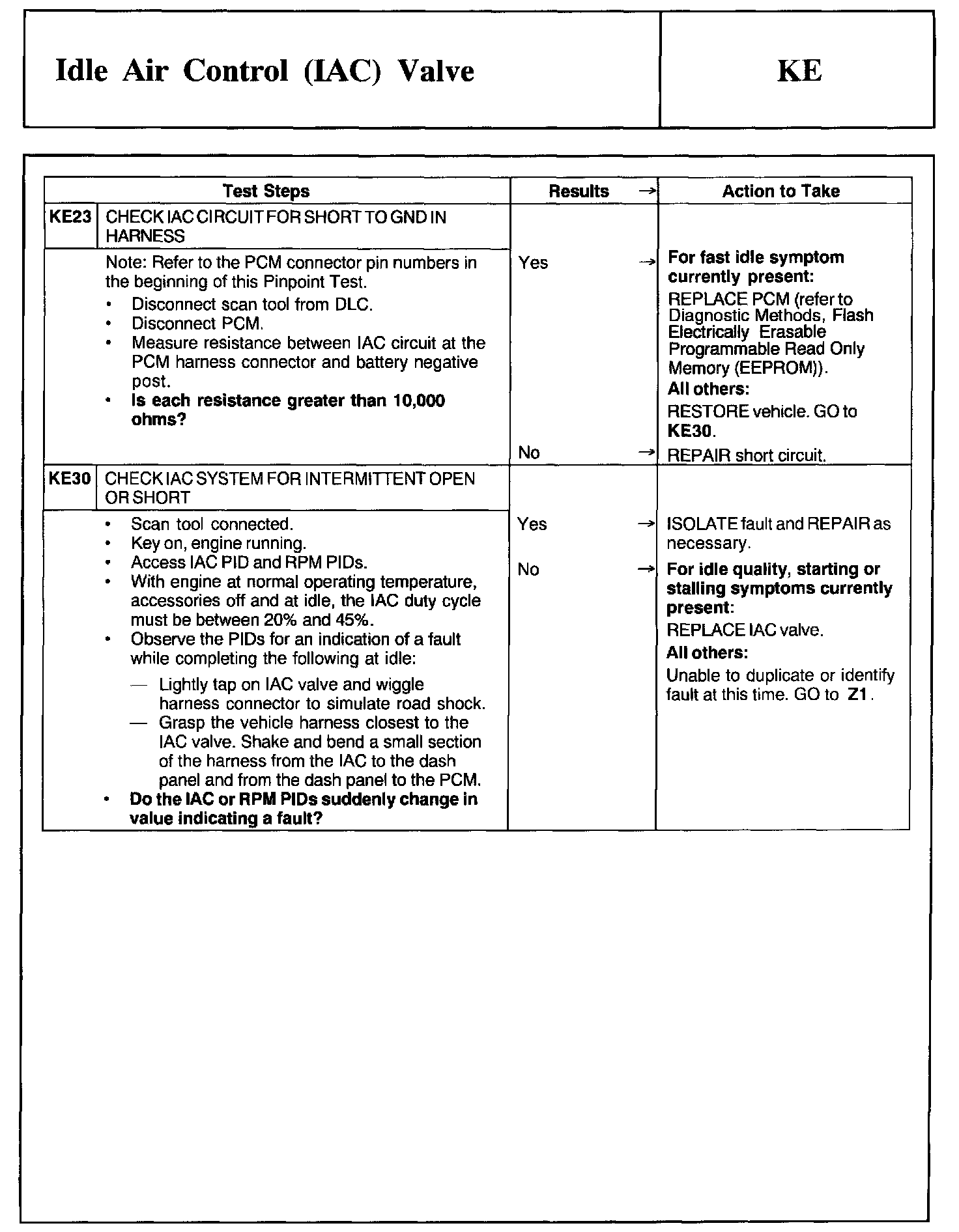

KE23 - KE30:
