Tests KF: Fan Control (FC) Relay
Note, Schematics and Connectors:

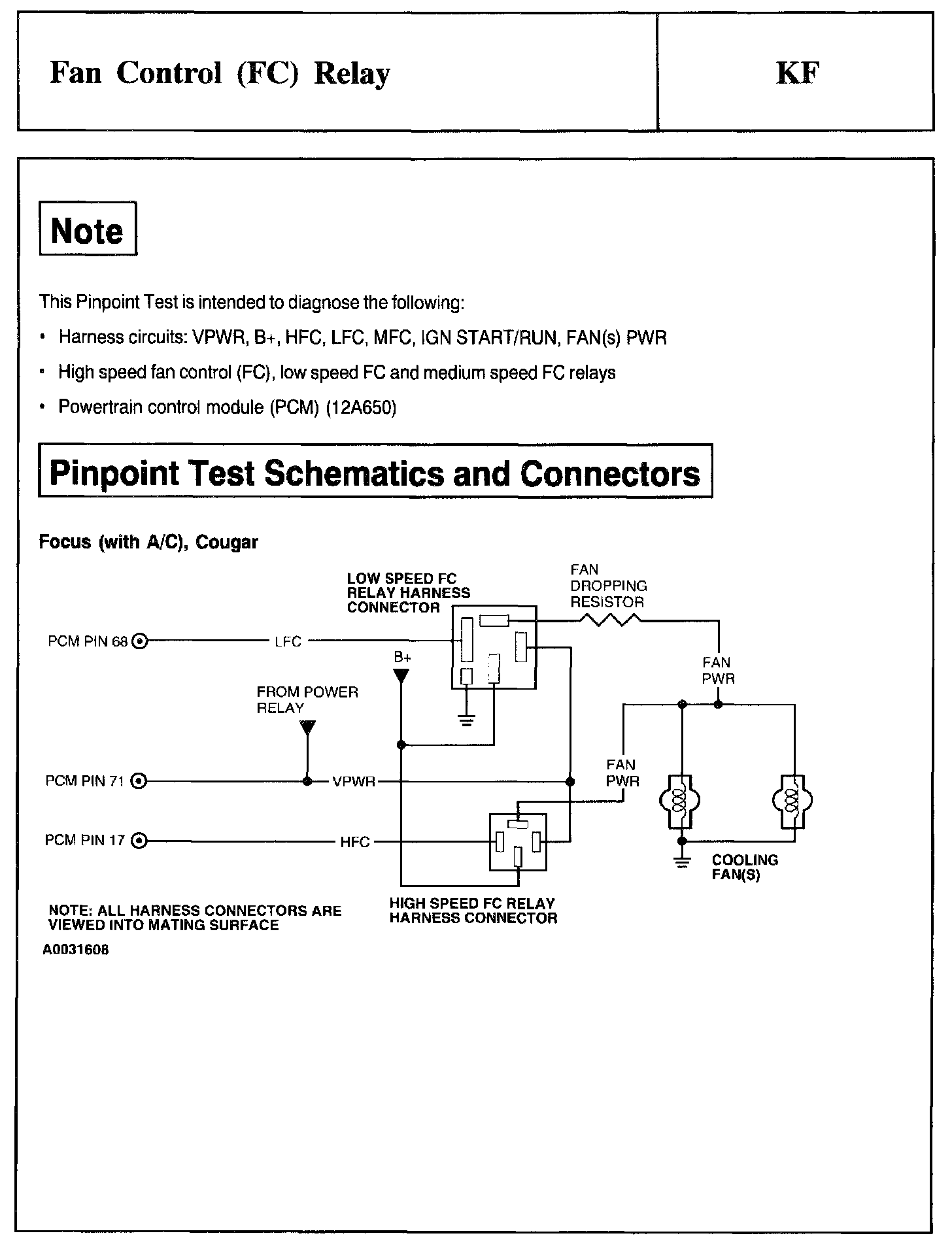

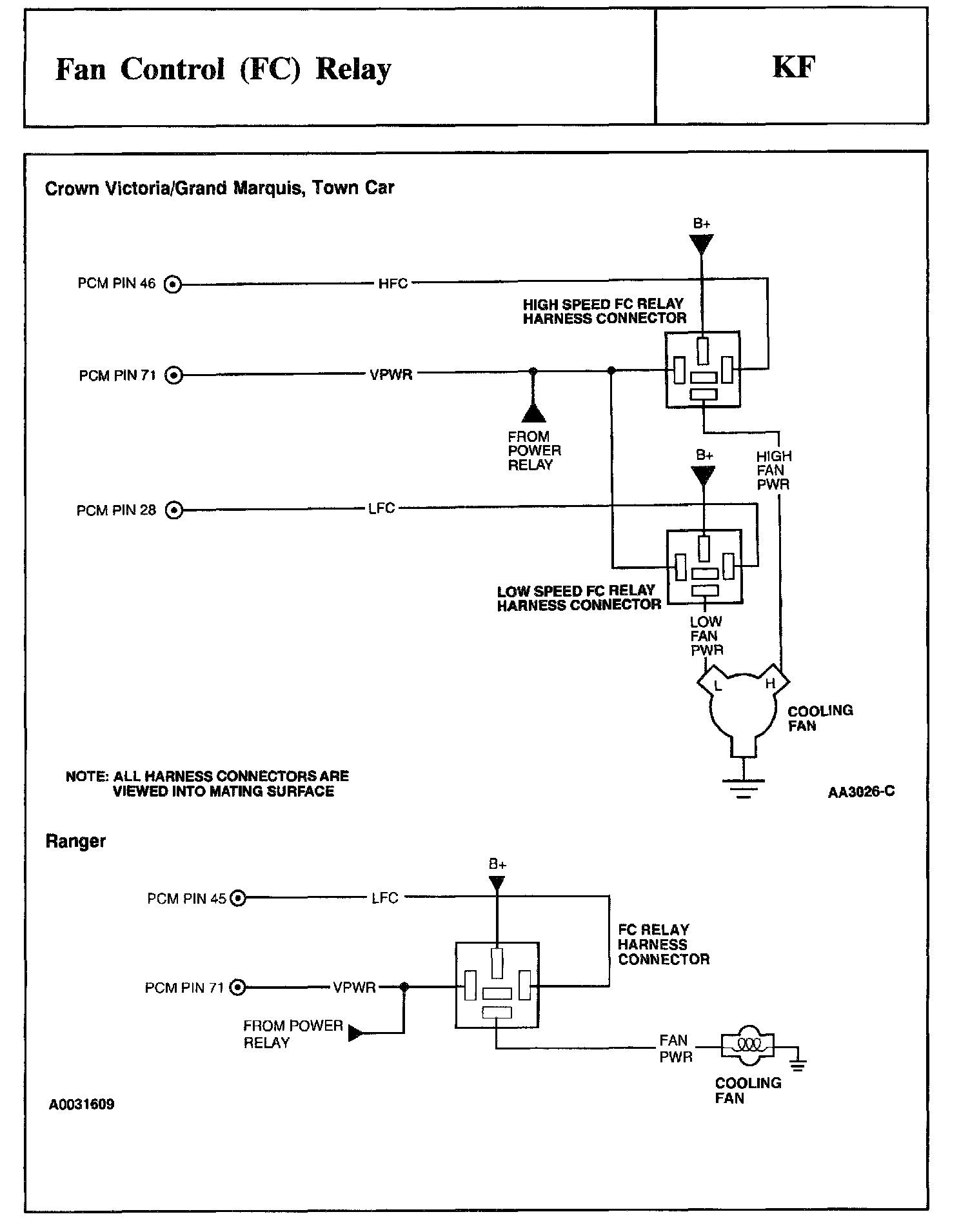

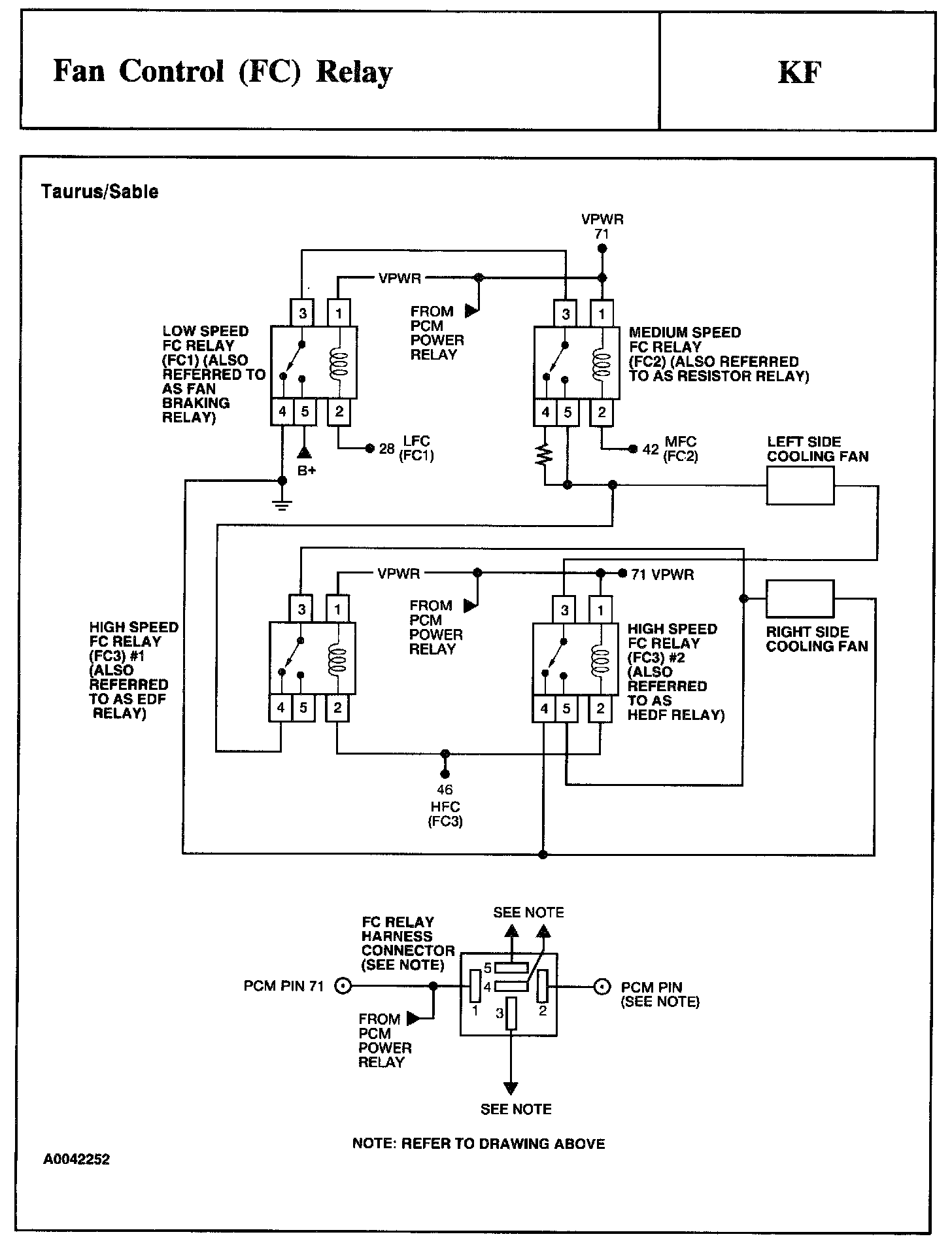

Test Schematic:
Test Schematic:

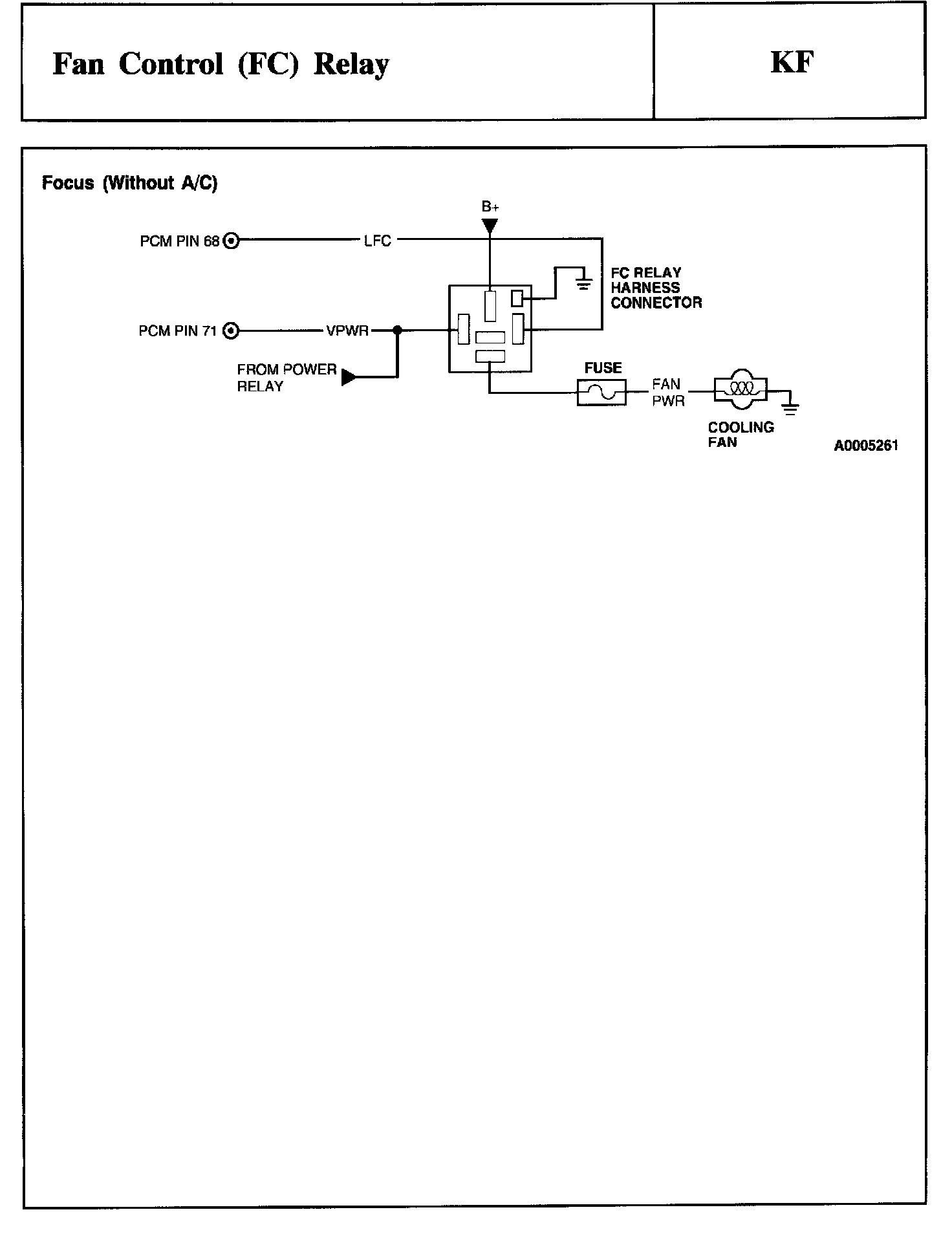

Test Schematic:

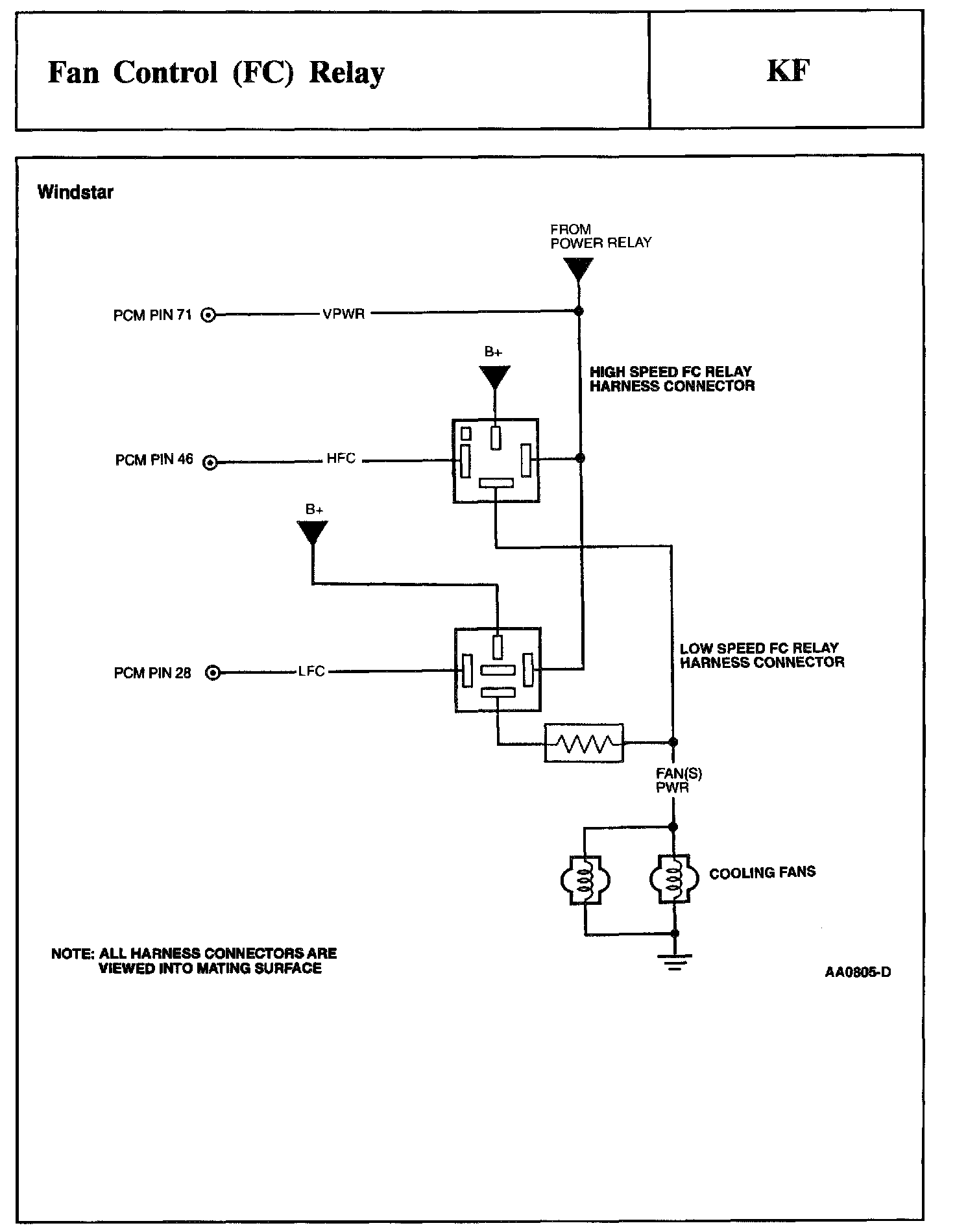

Test Schematic:

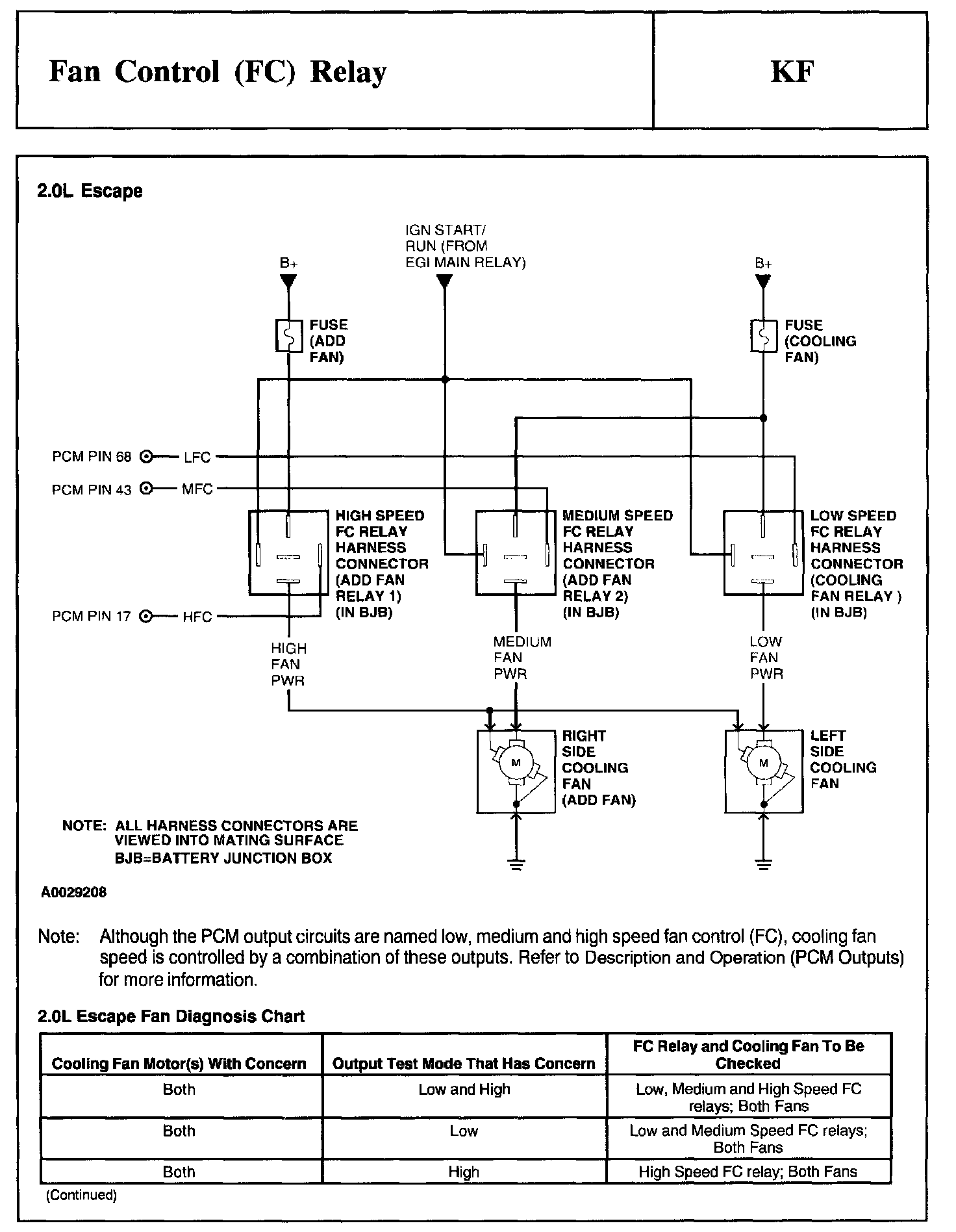

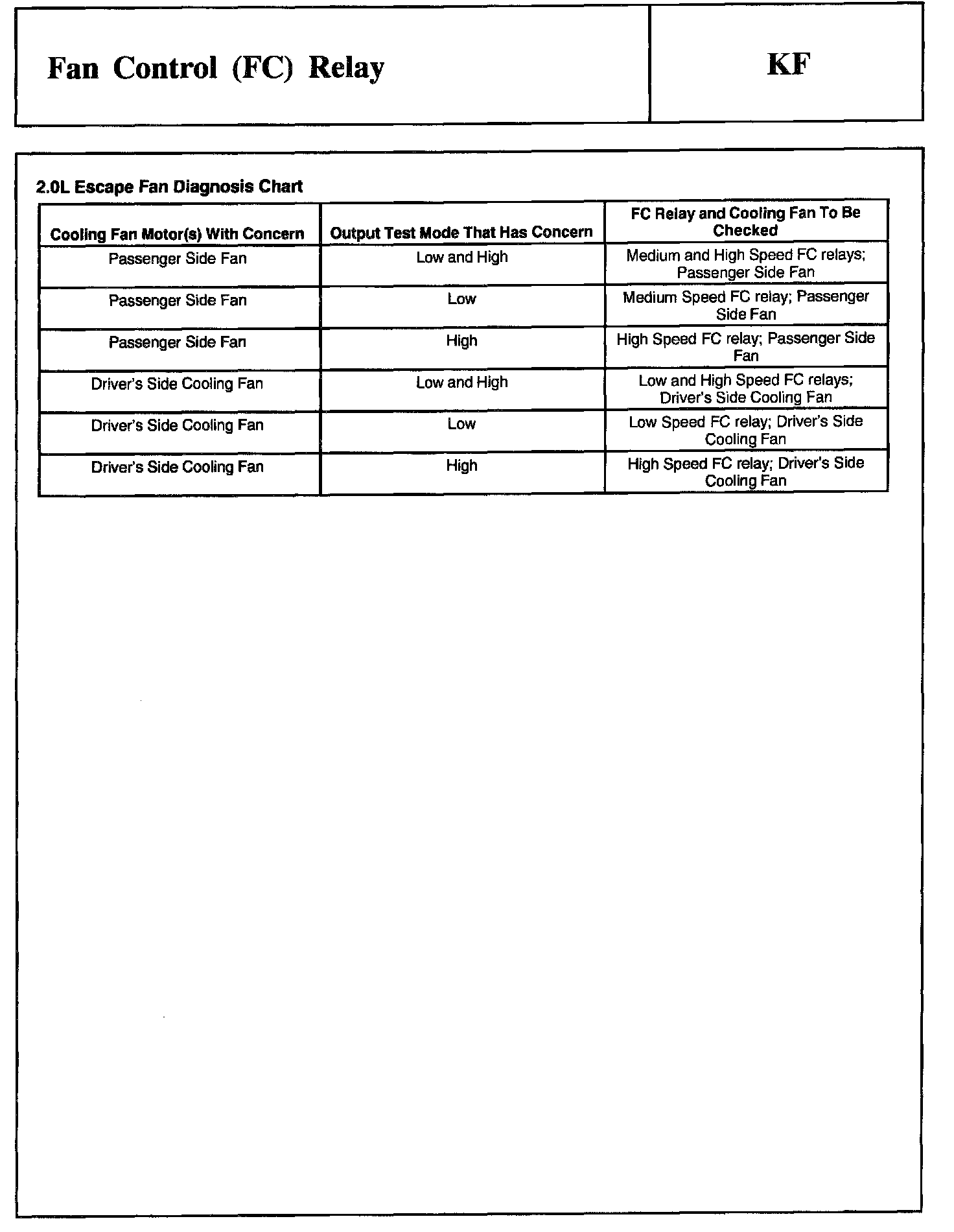

Schematic, Diagnosis Chart:
Diagnosis Chart:

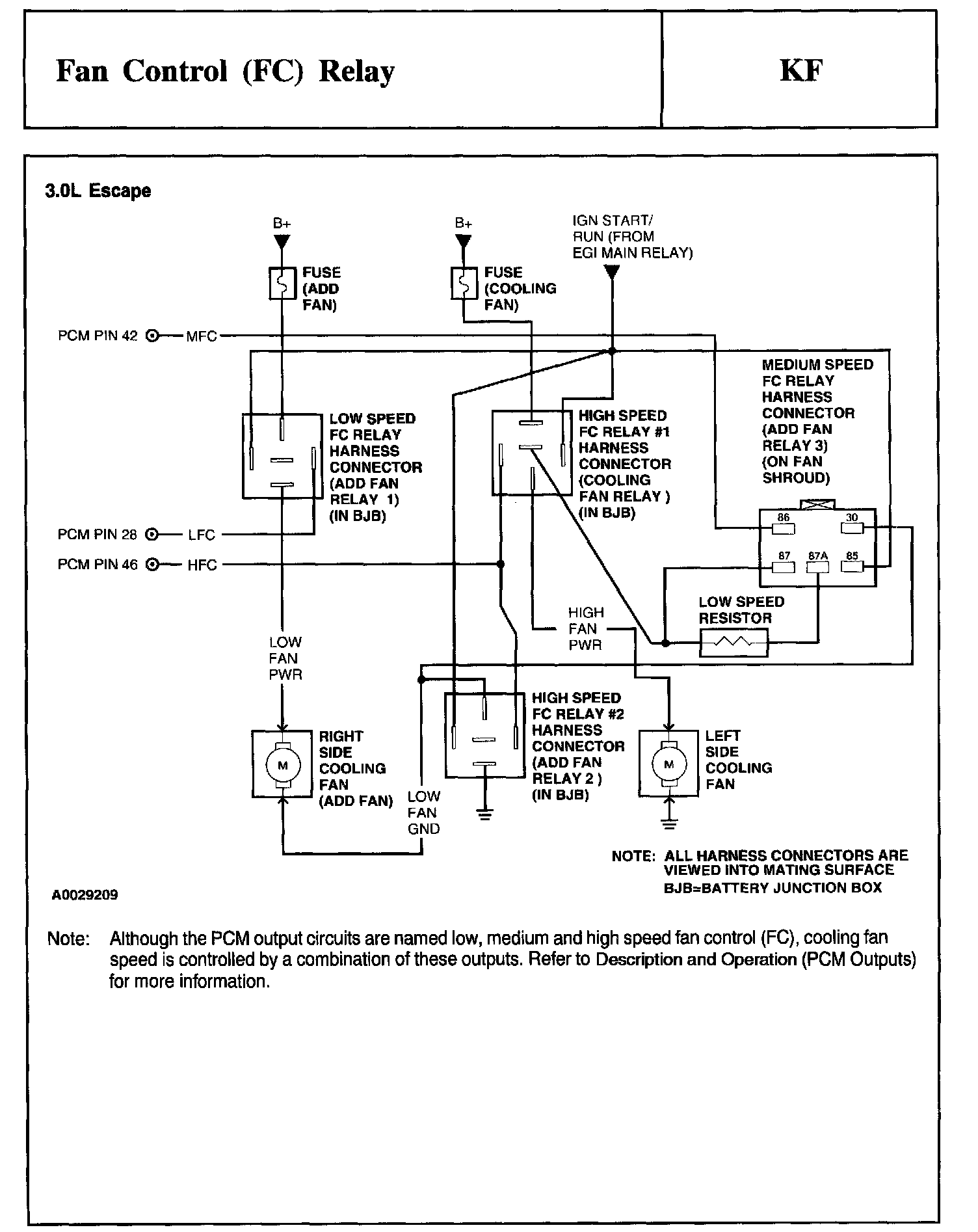

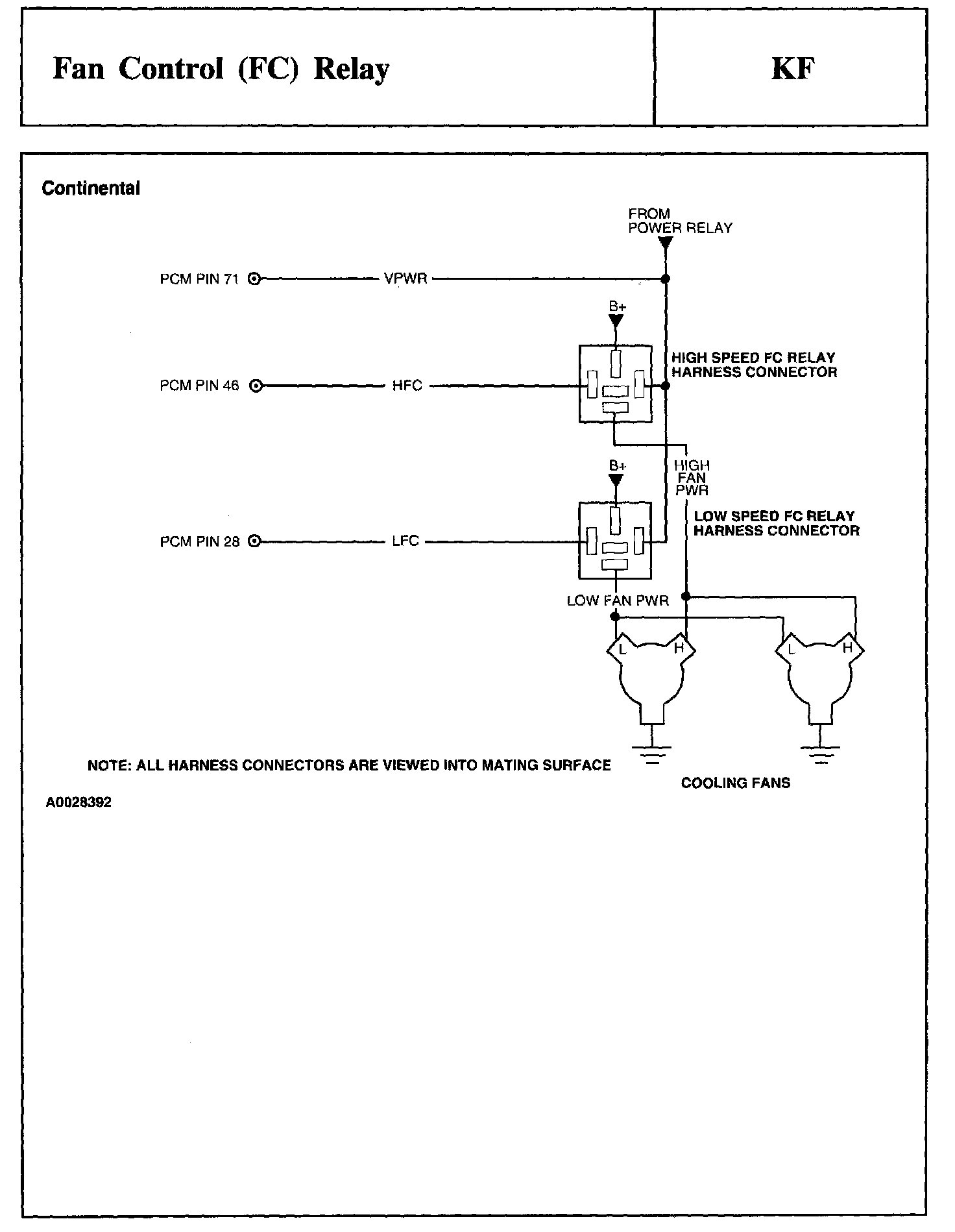

Test Schematic:
Test Schematic:

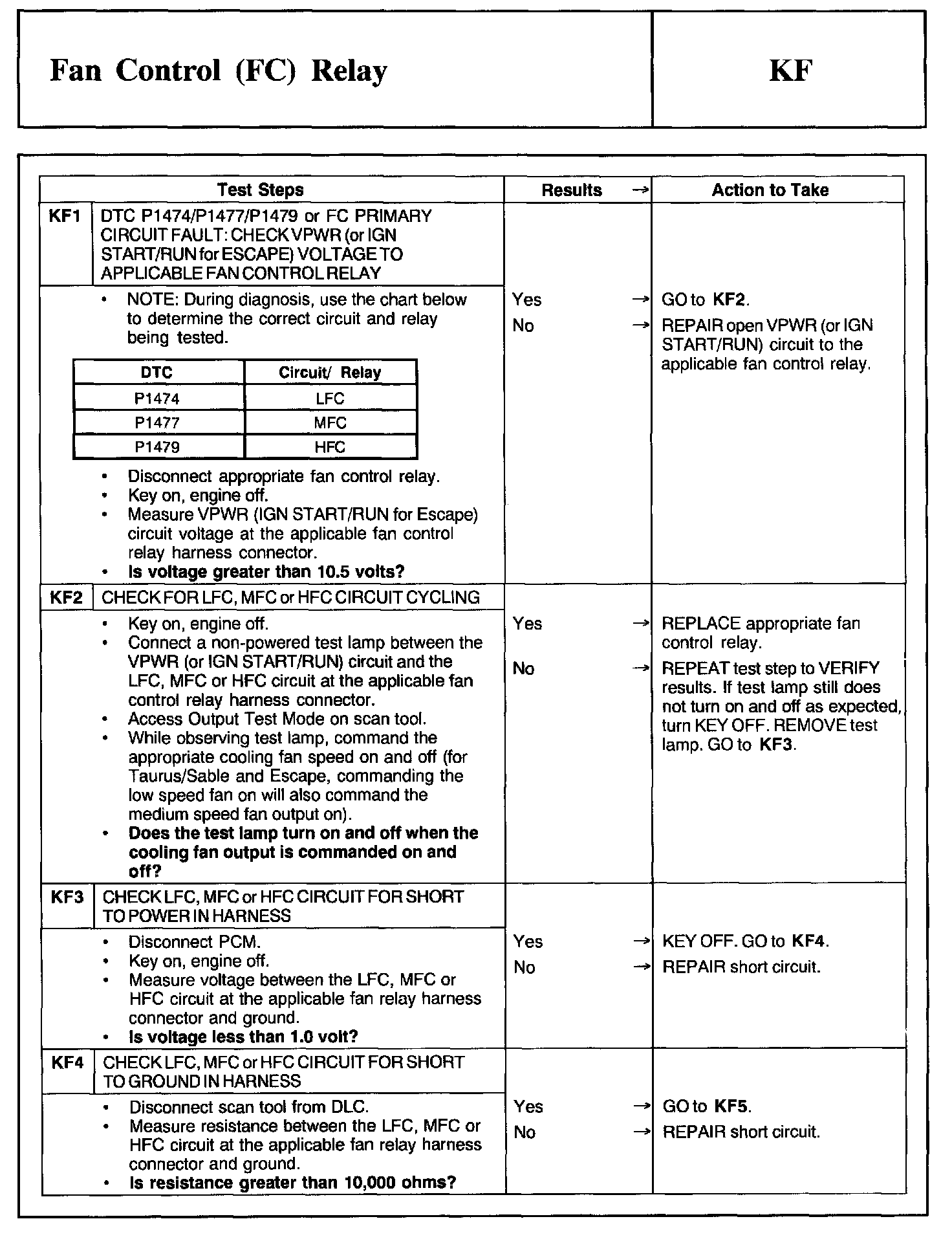

KF1 - KF4:

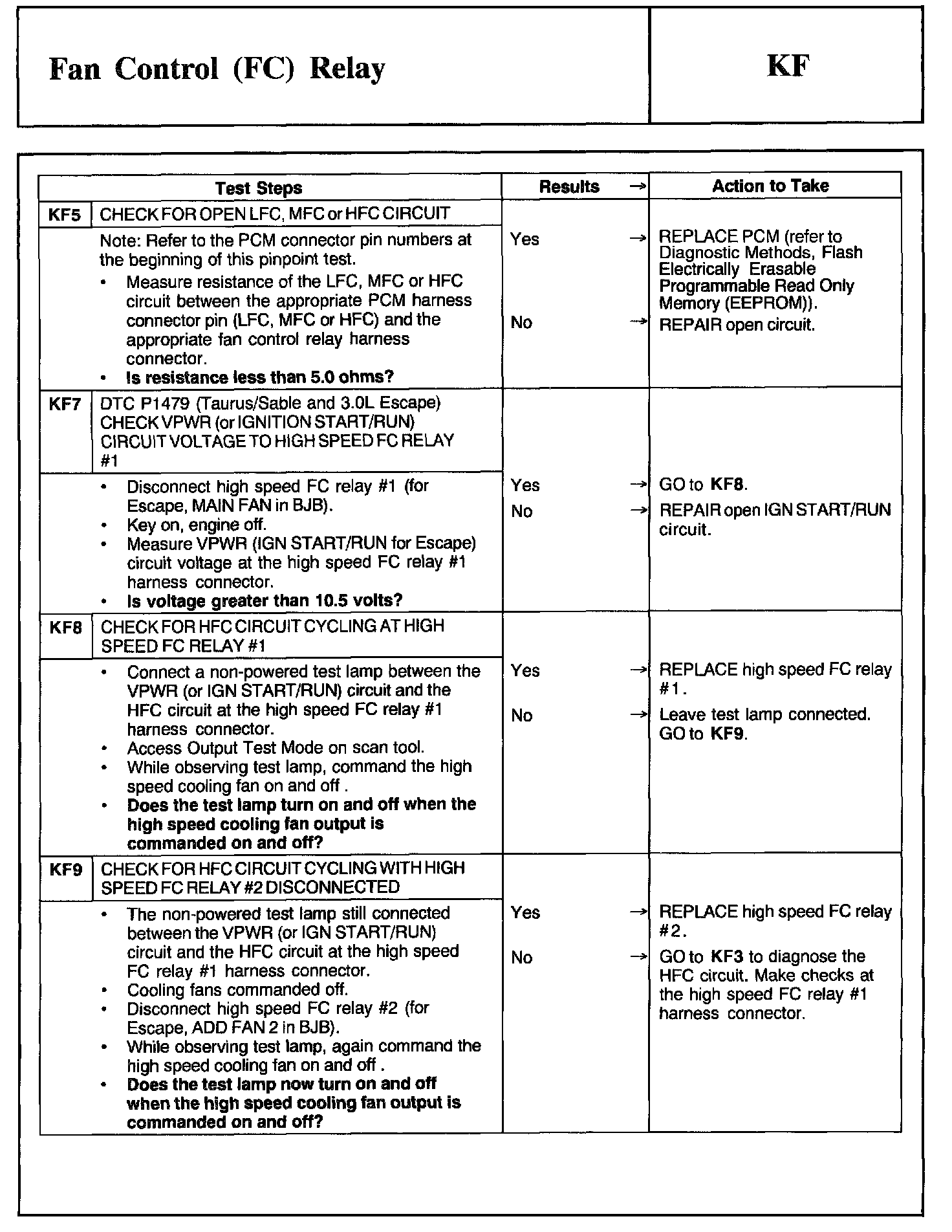

KF5 - KF9:

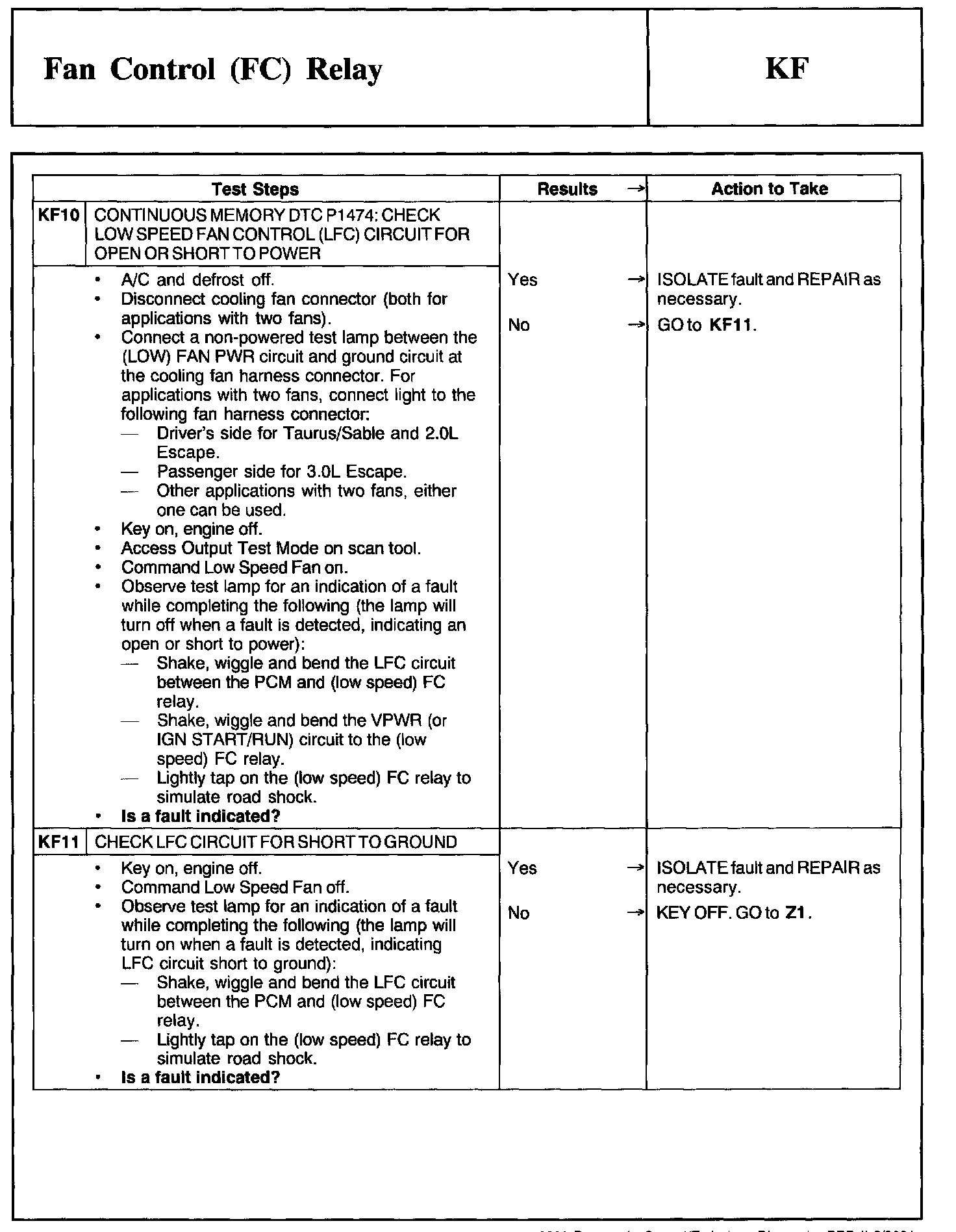

KF10 - KF11:

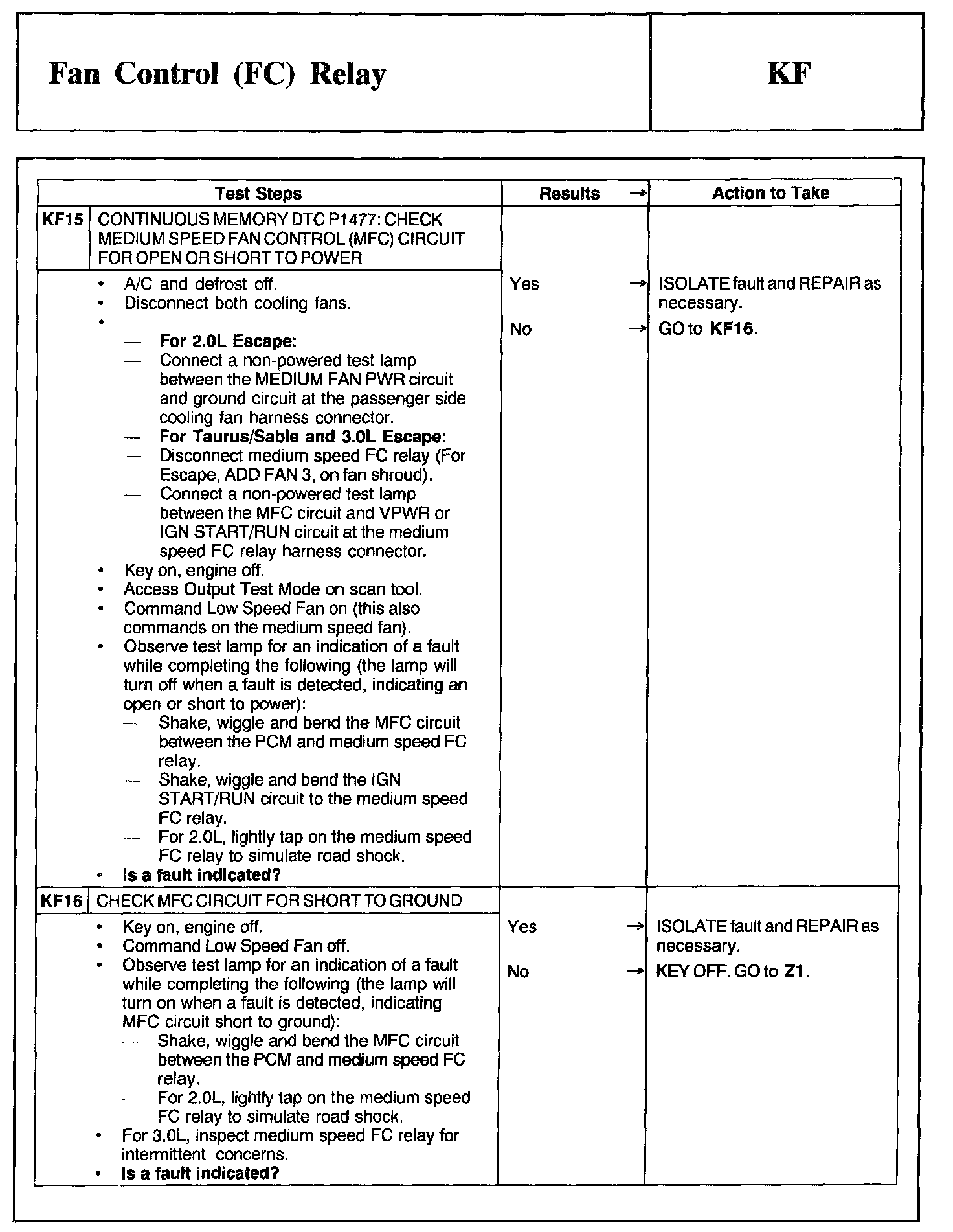

KF15 - KF16:

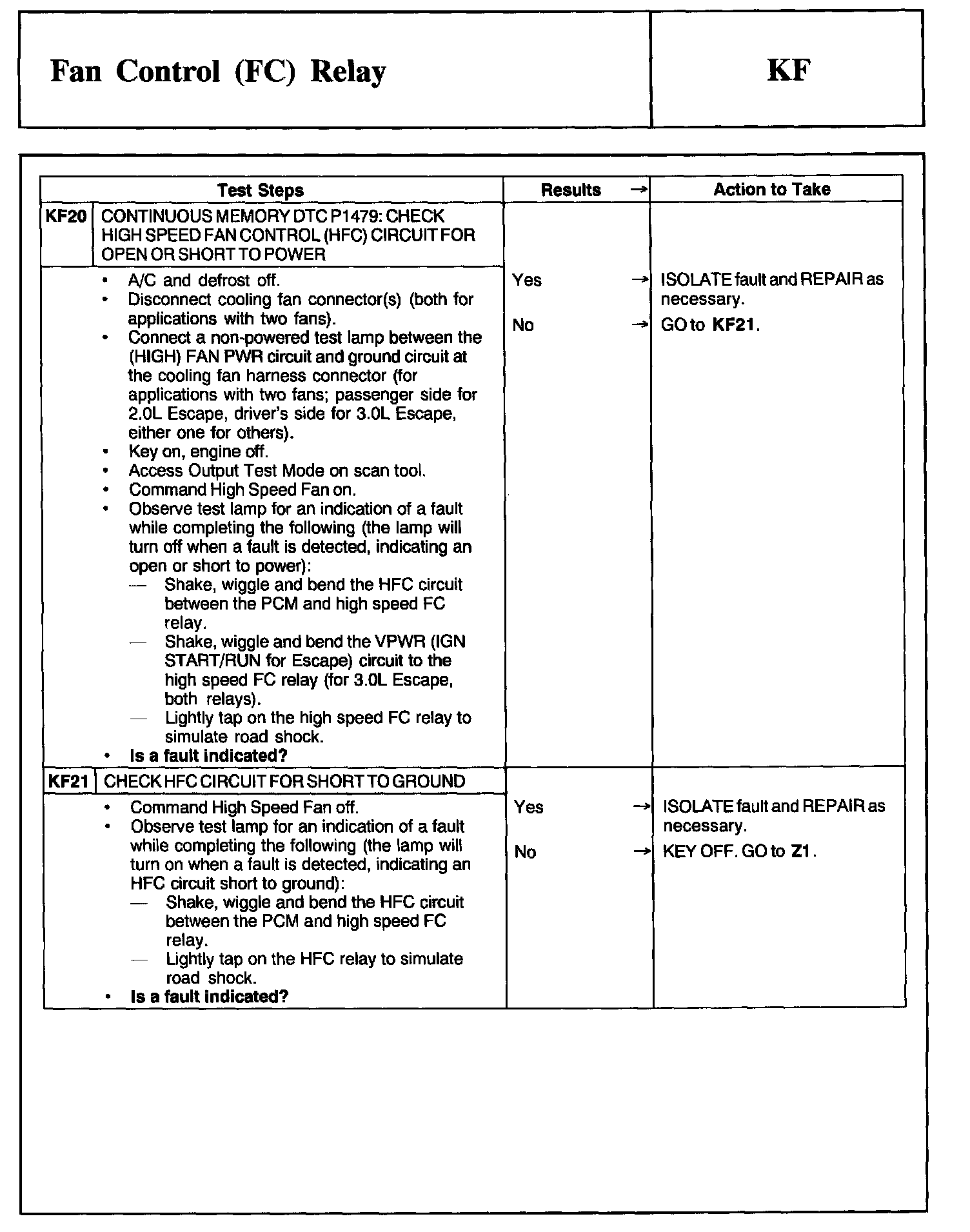

KF20 - KF21:

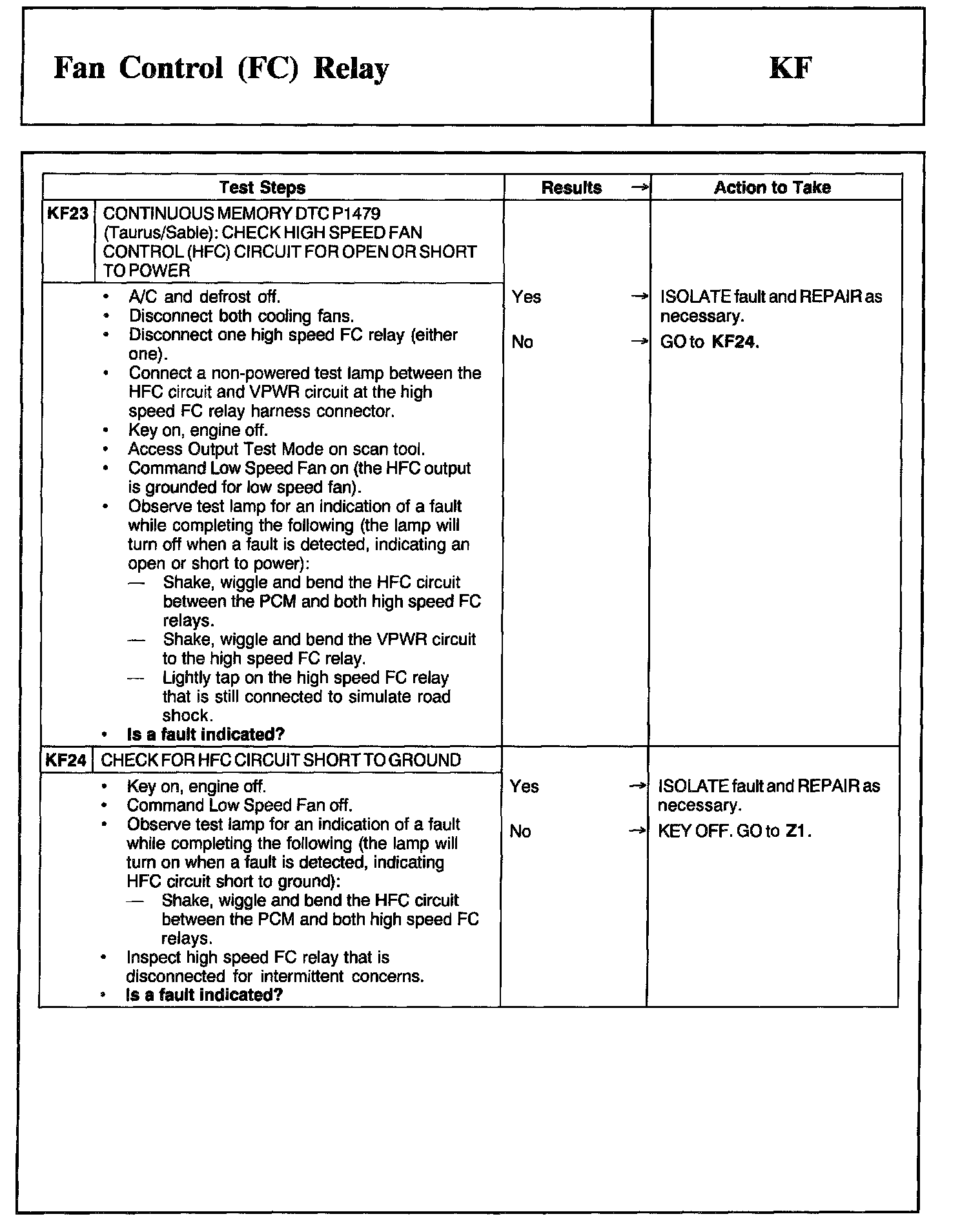

KF23 - KF24:

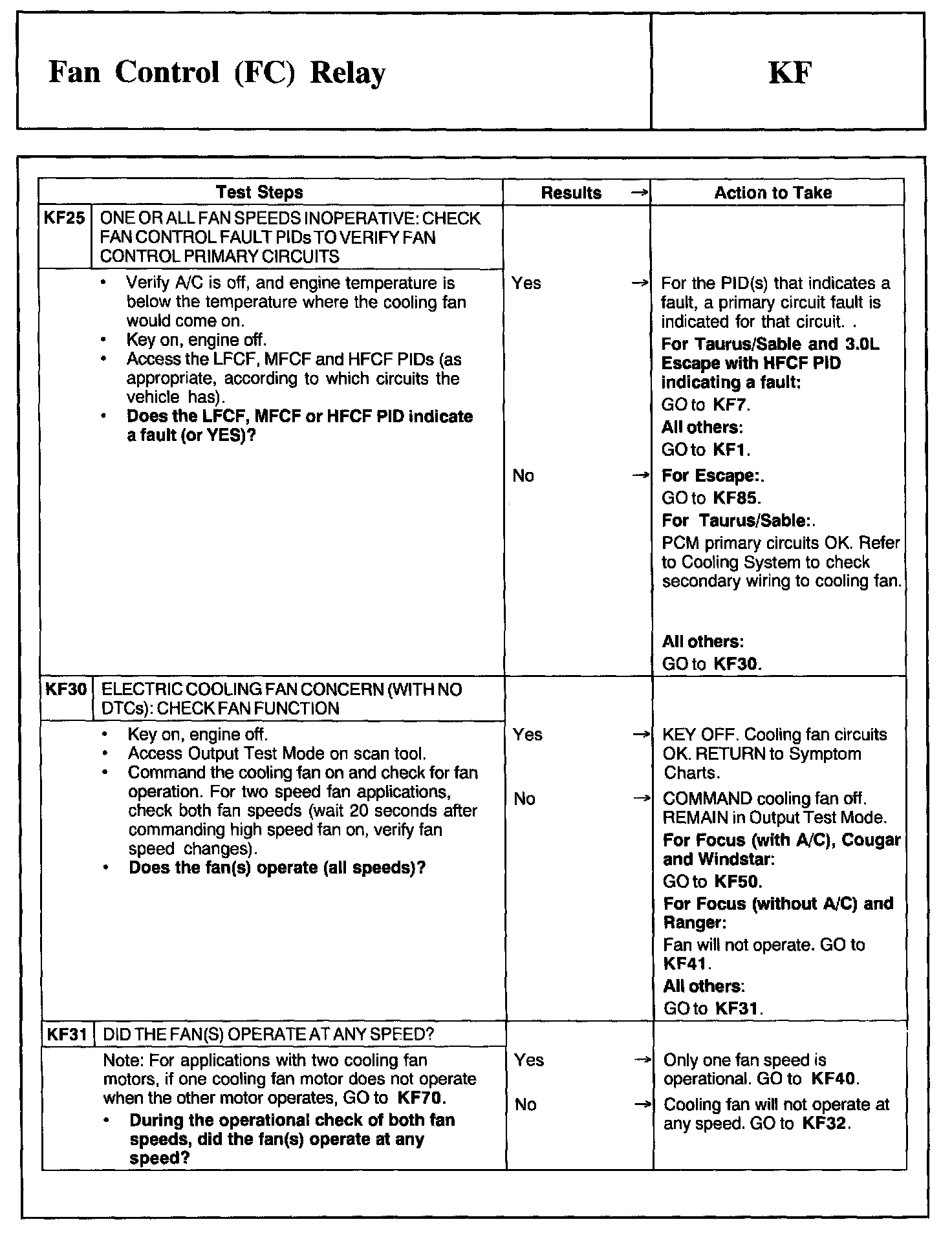

KF25 - KF31:

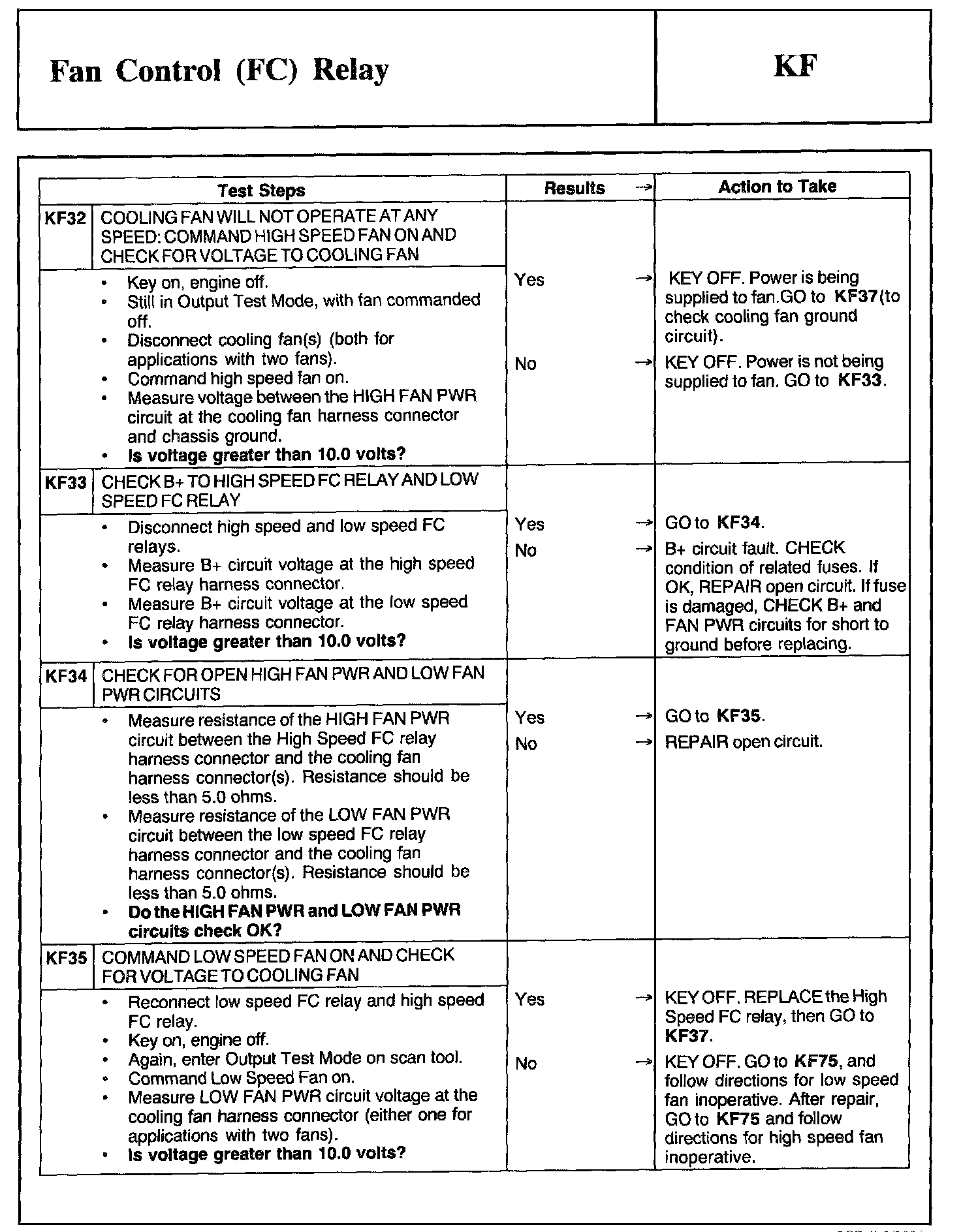

KF32 - KF35:

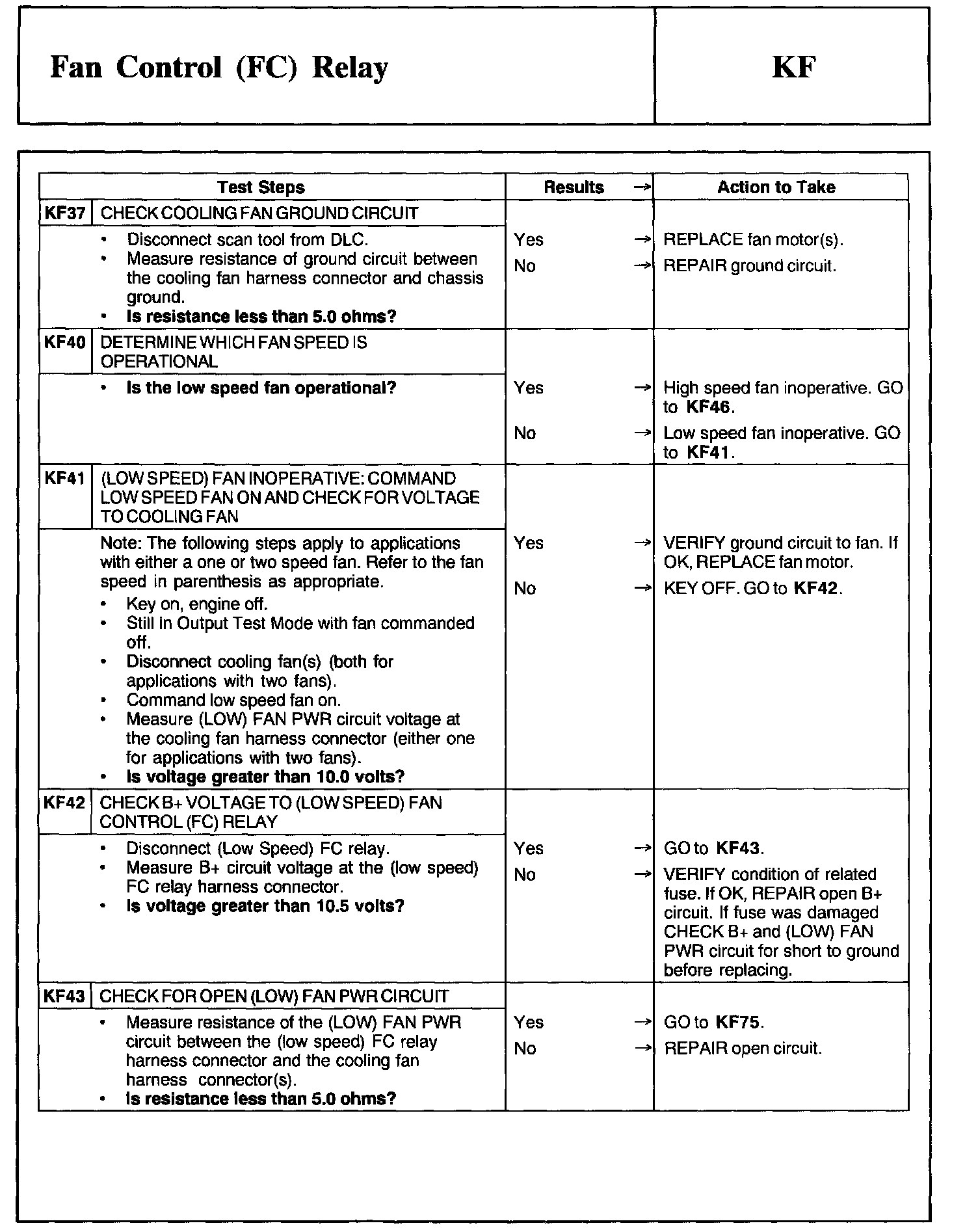

KF37 - KF43:

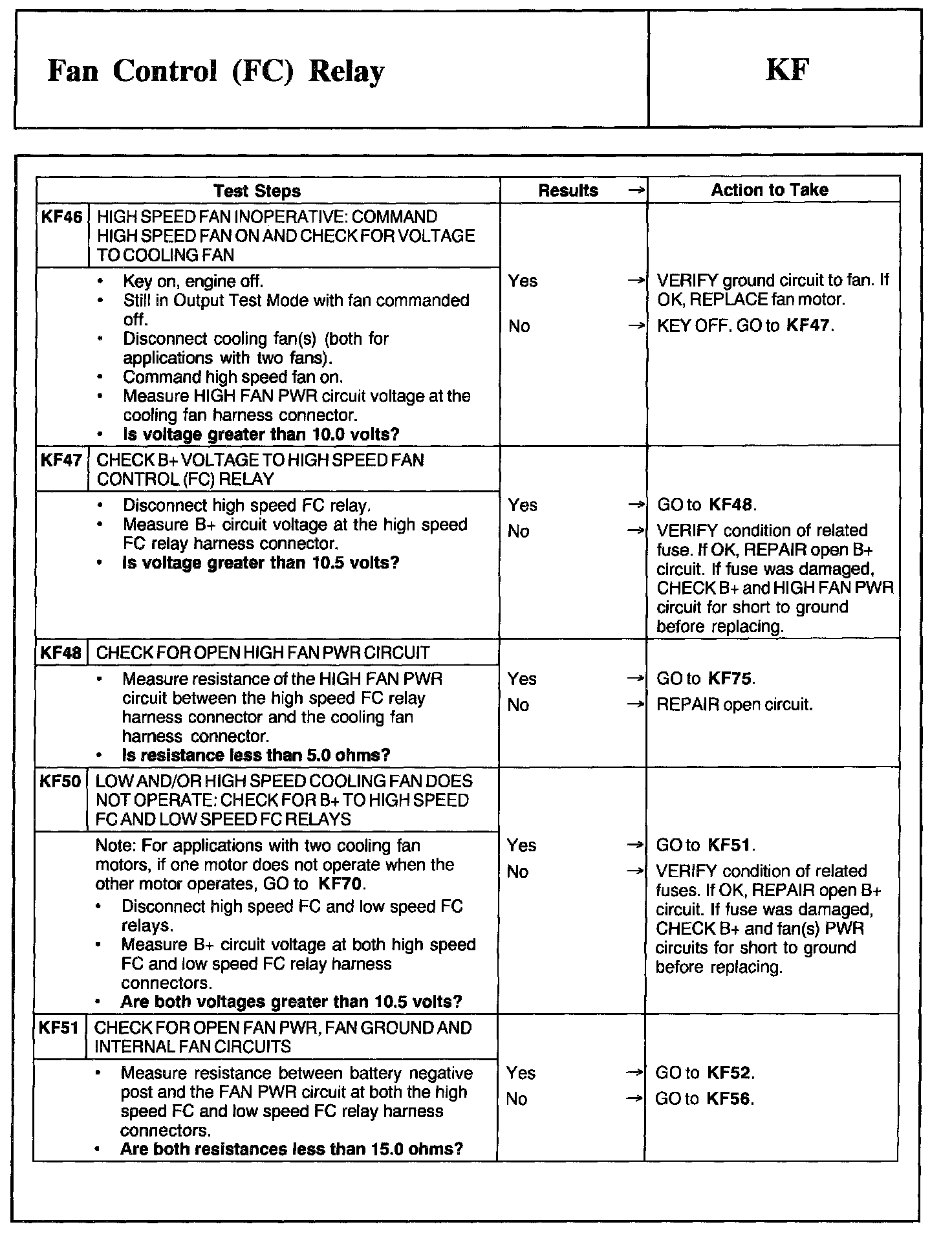

KF46 - KF51:

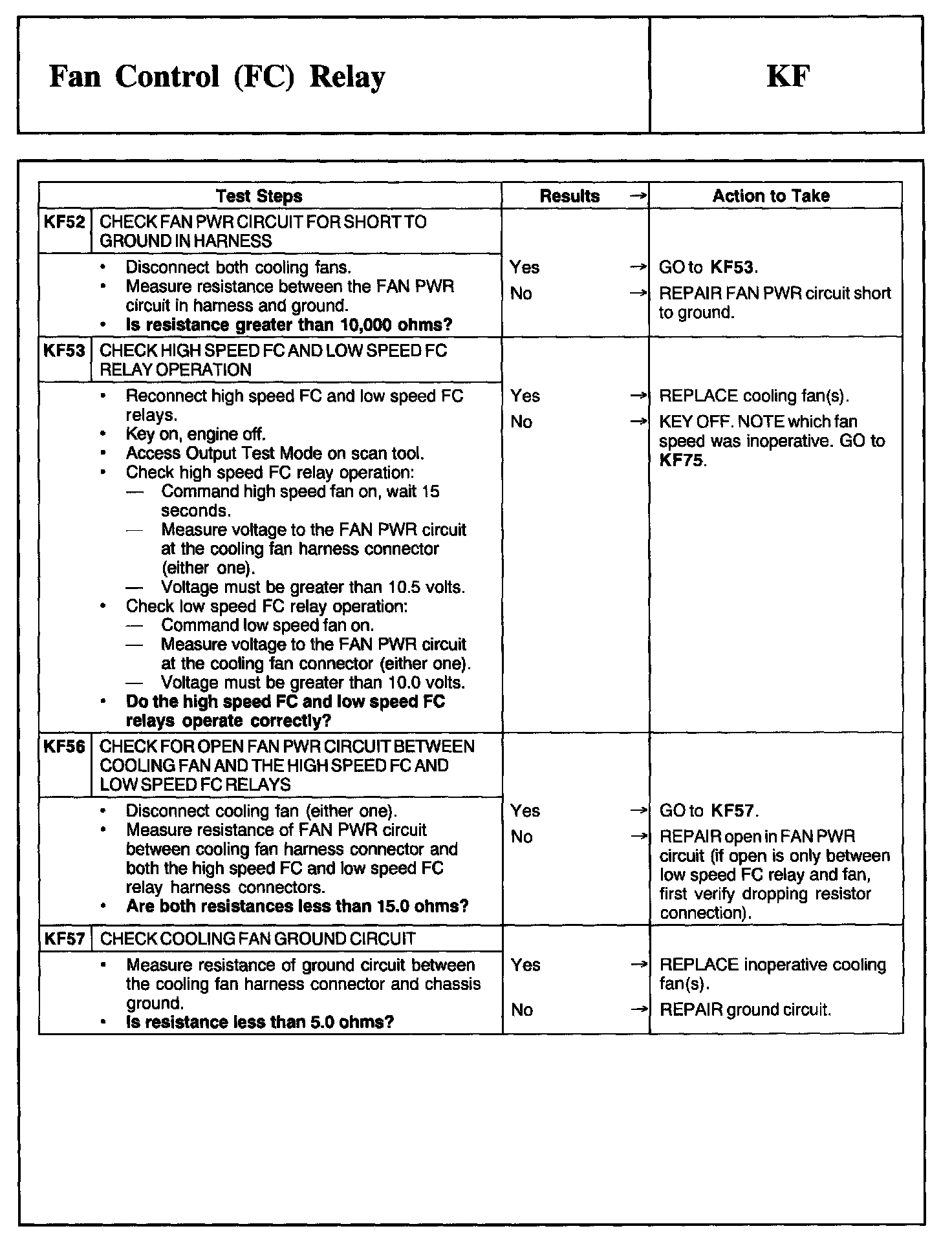

KF52 - KF57:

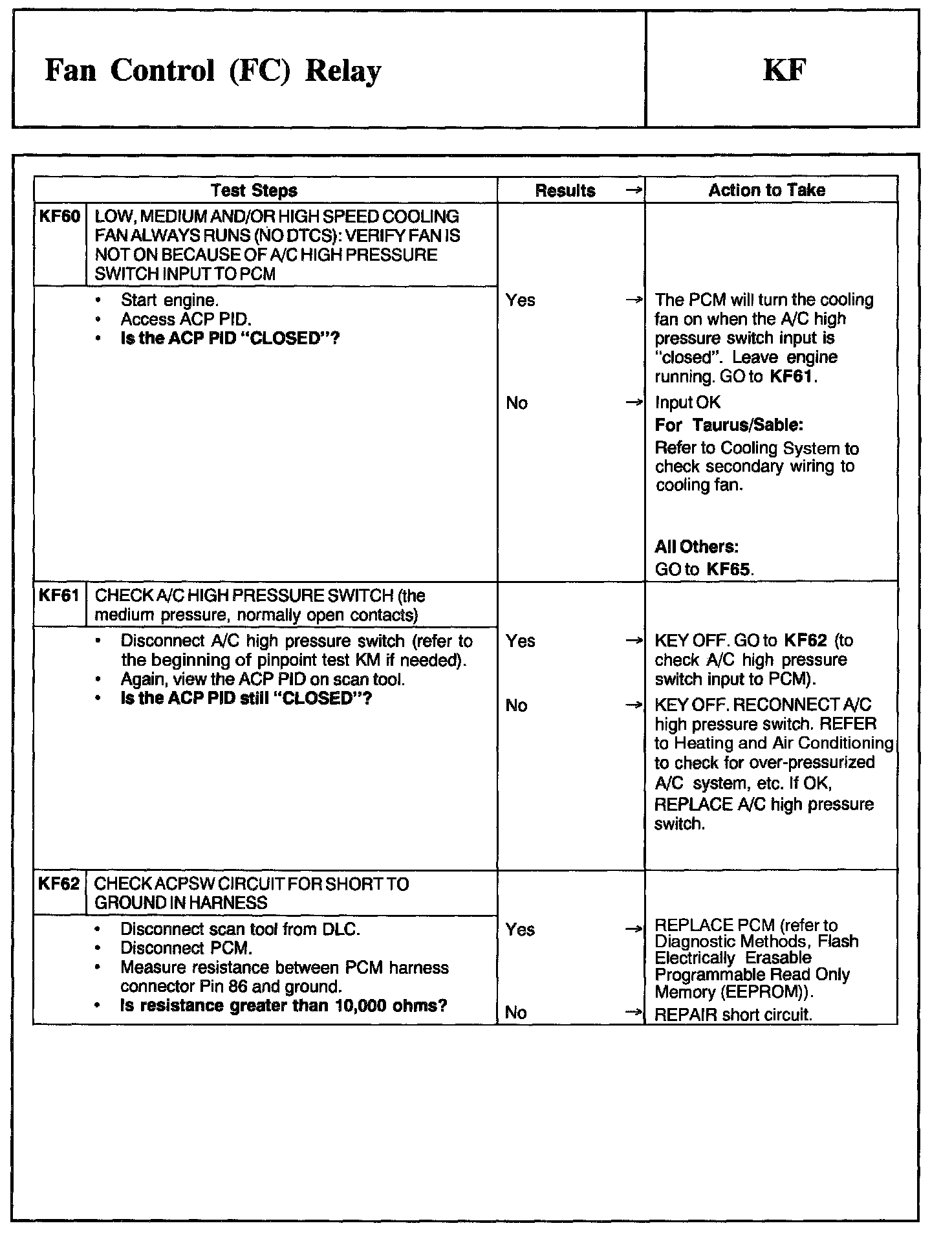

KF60 - KF62:

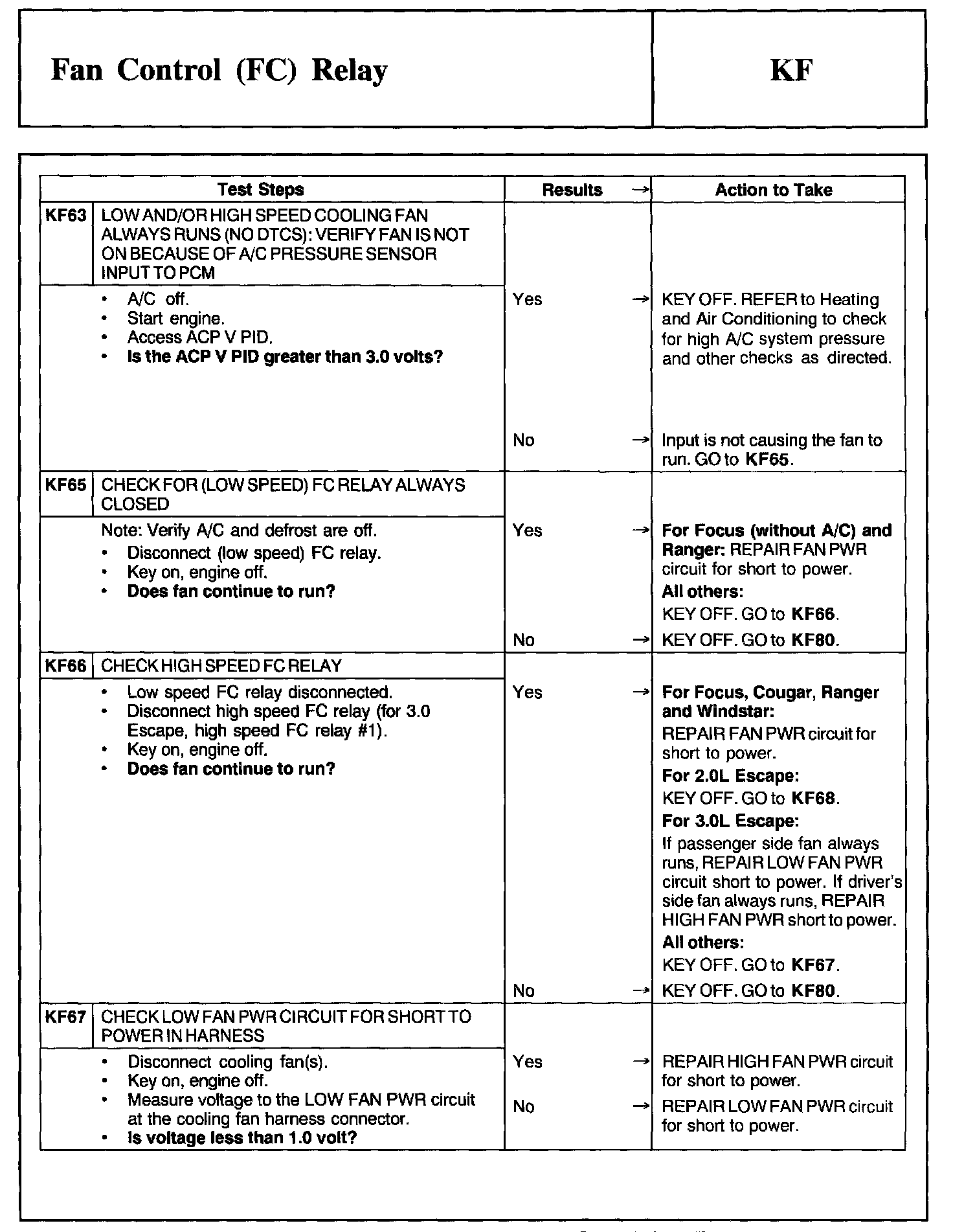

KF63 - KF67:

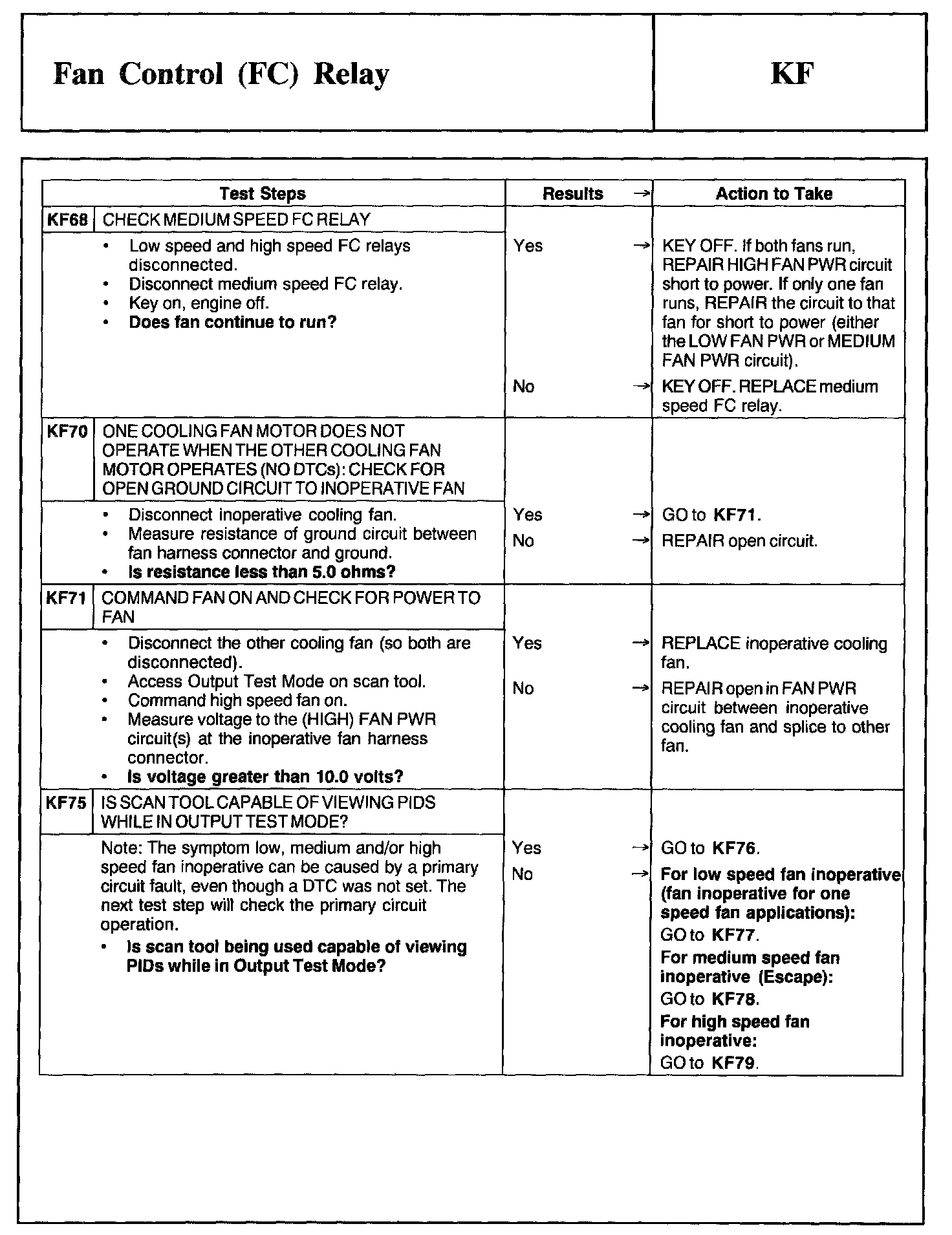

KF68 - KF75:

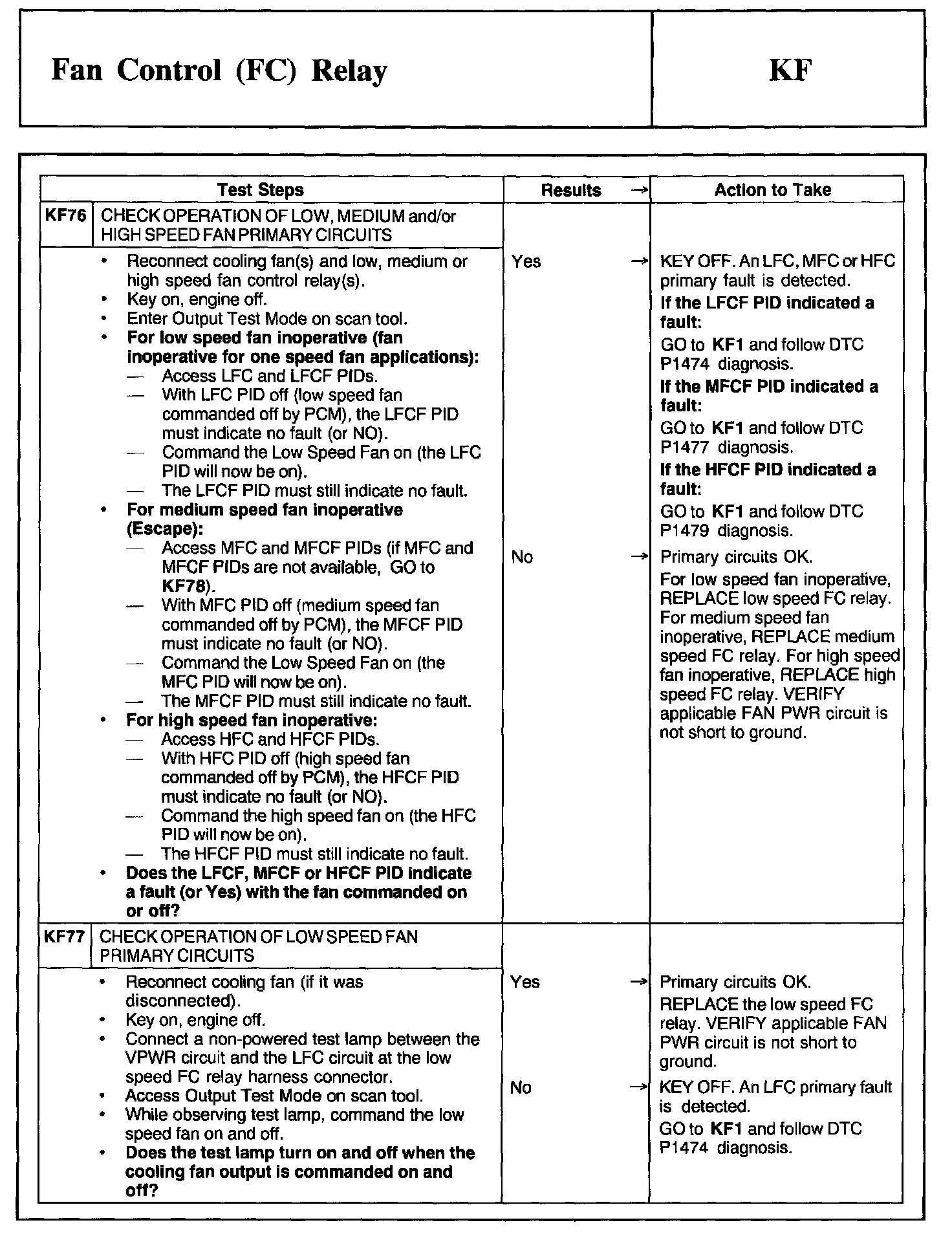

KF76 - KF77:

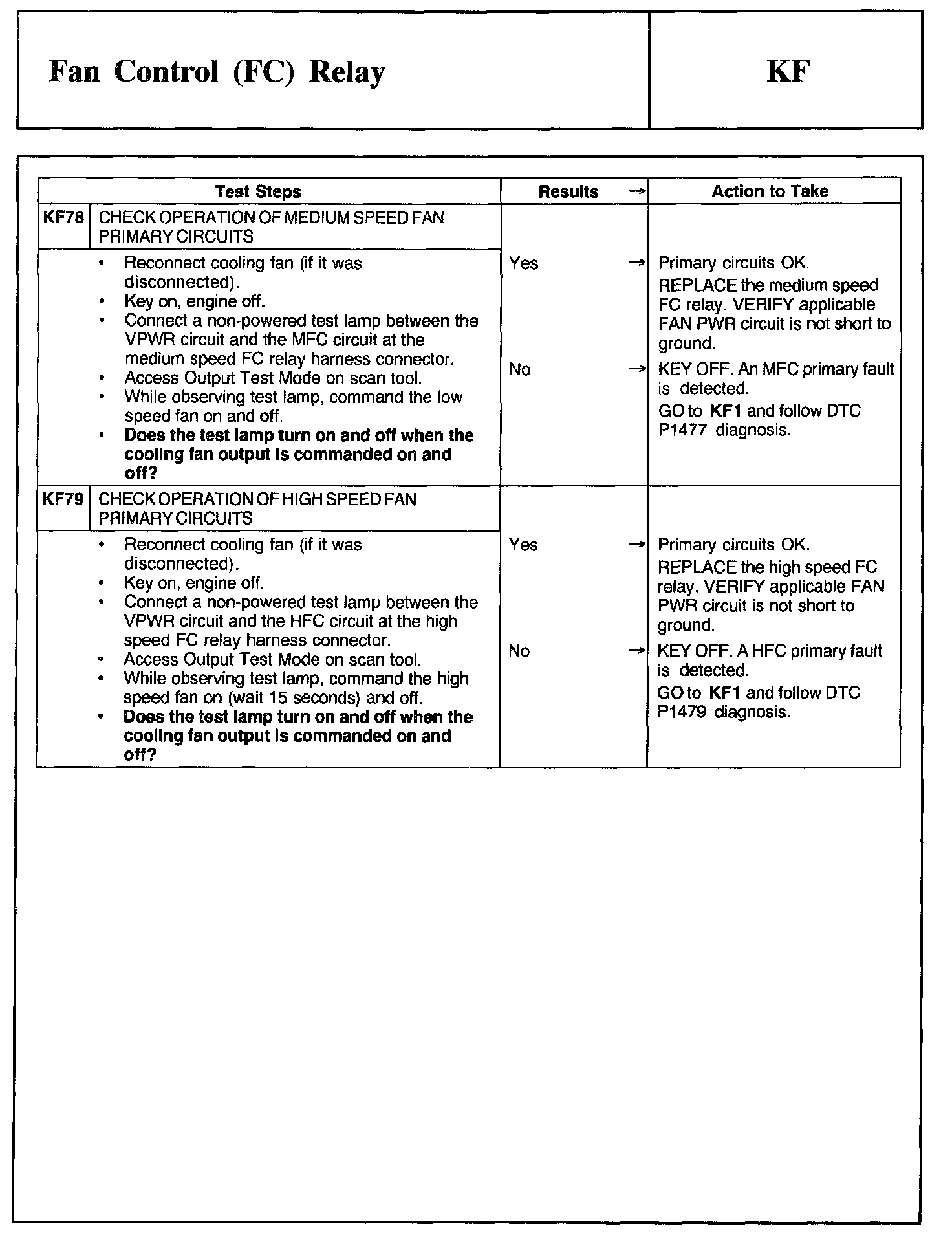

KF78 - KF79:

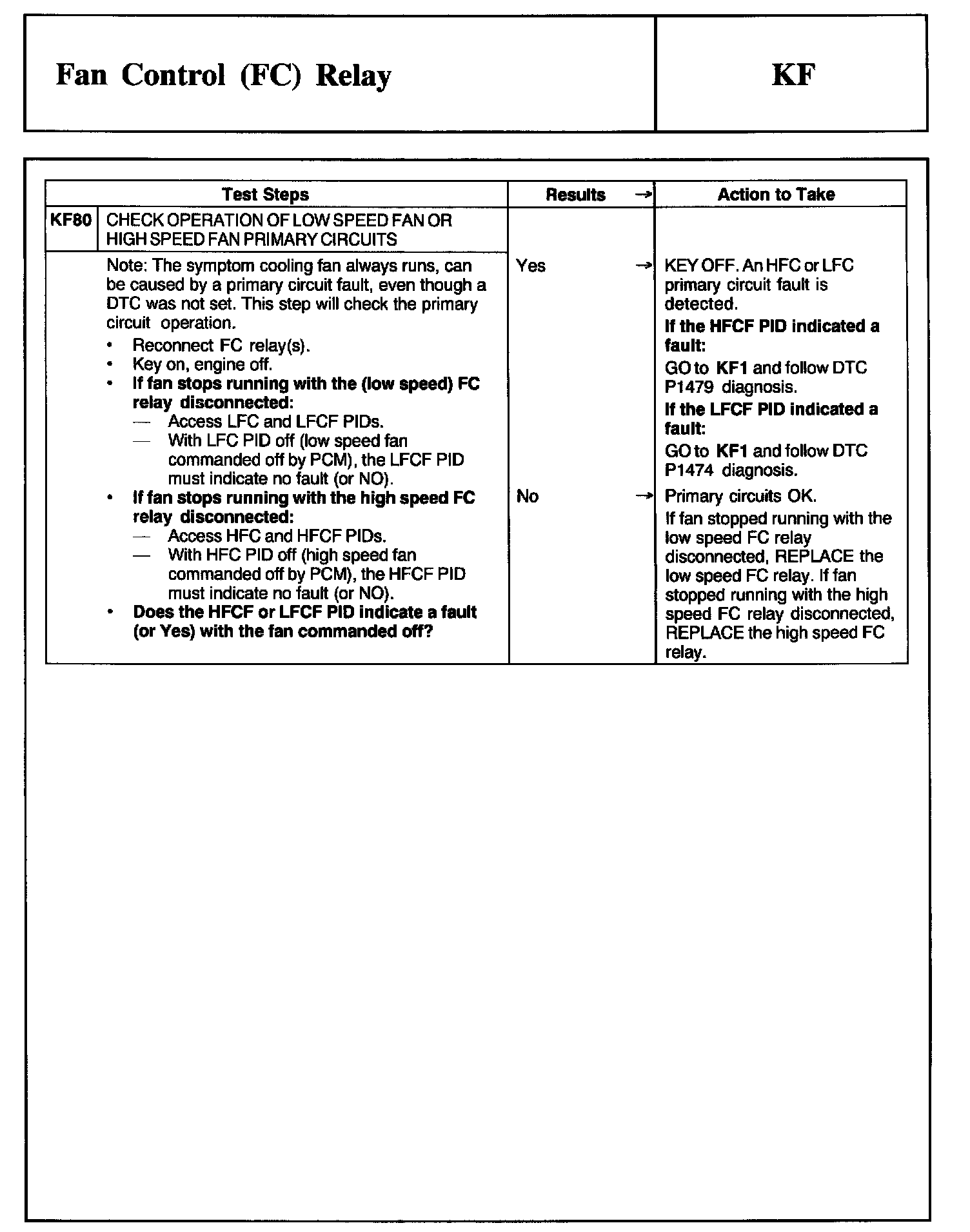

KF80:

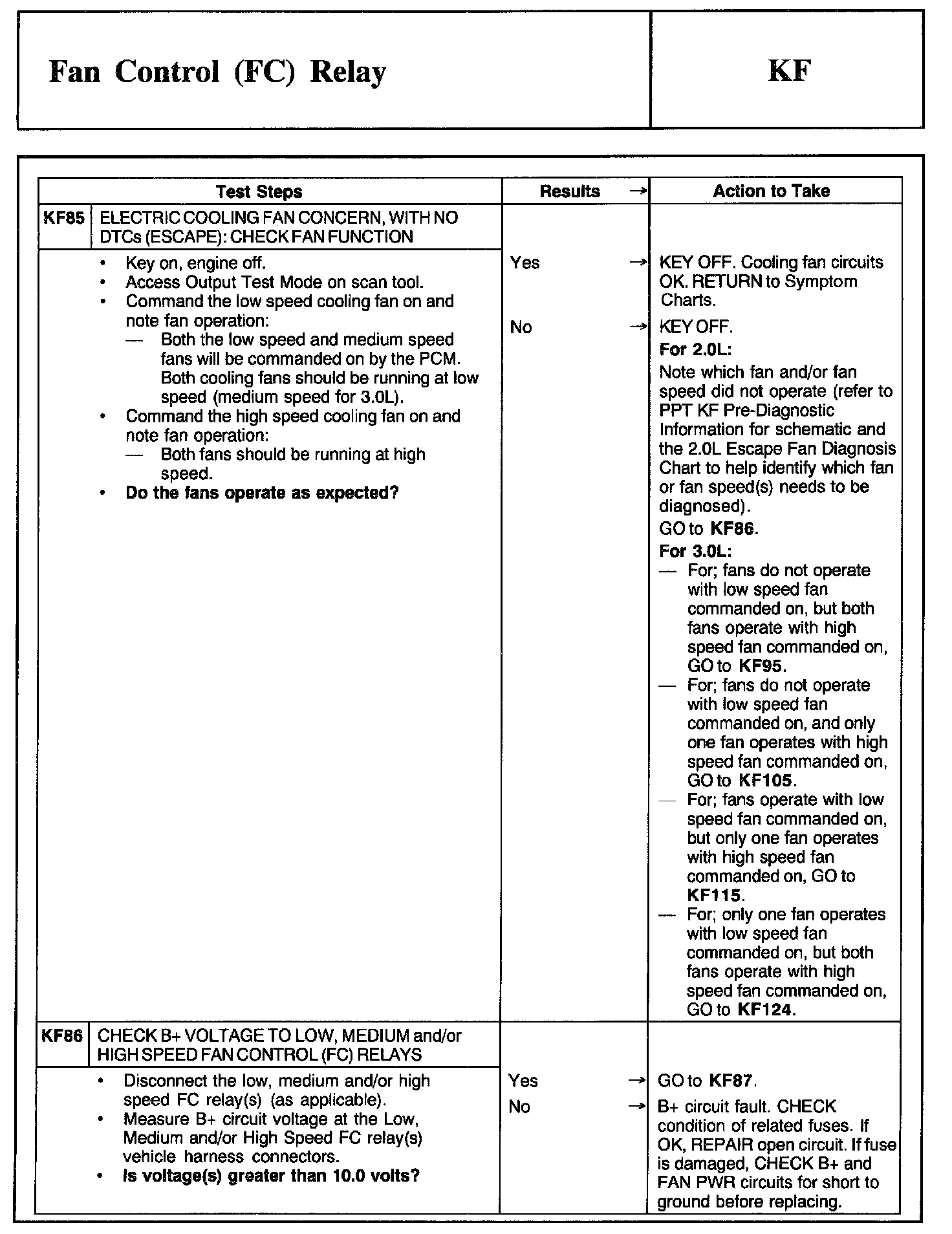

KF85 - KF86:

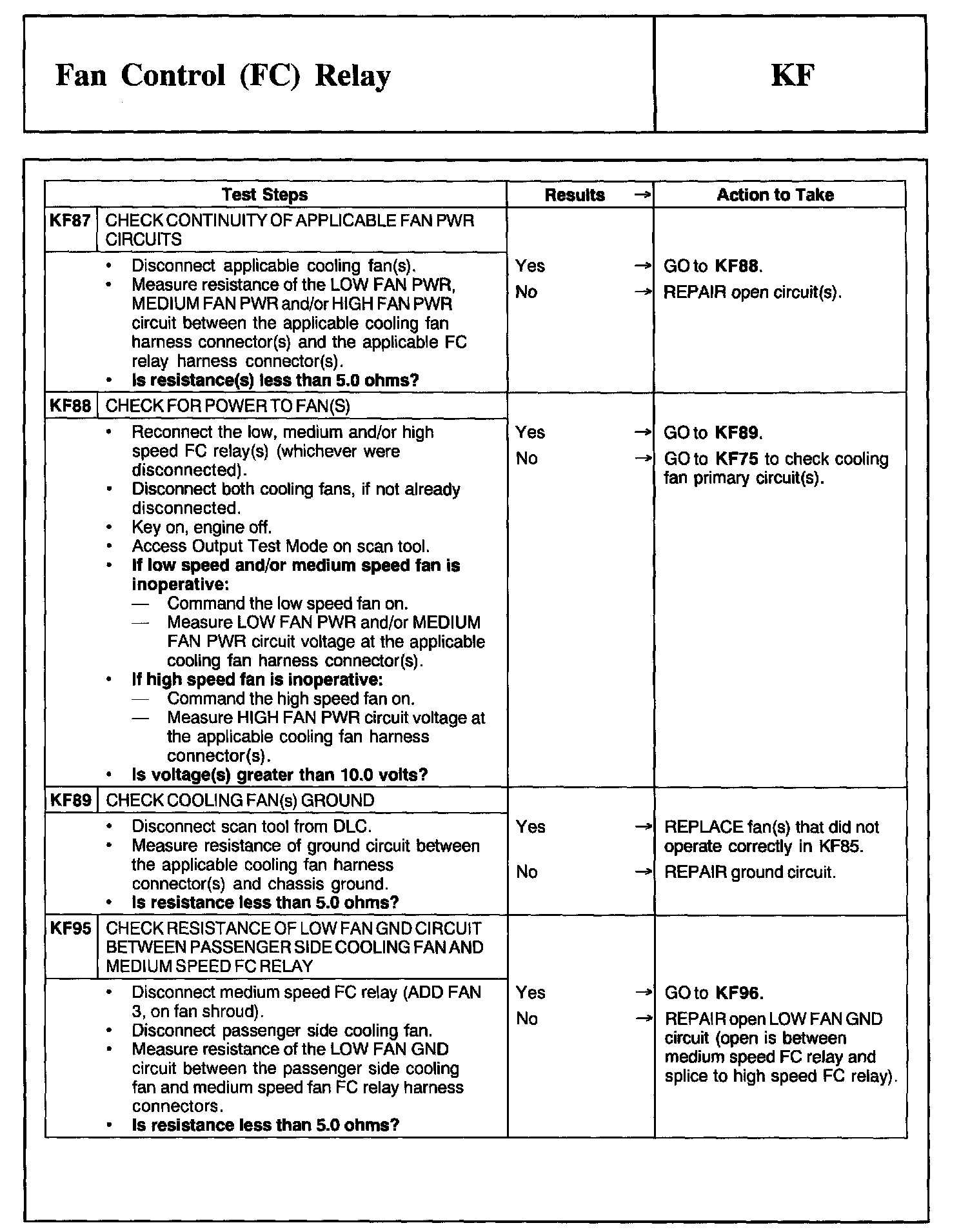

KF87 - KF95:

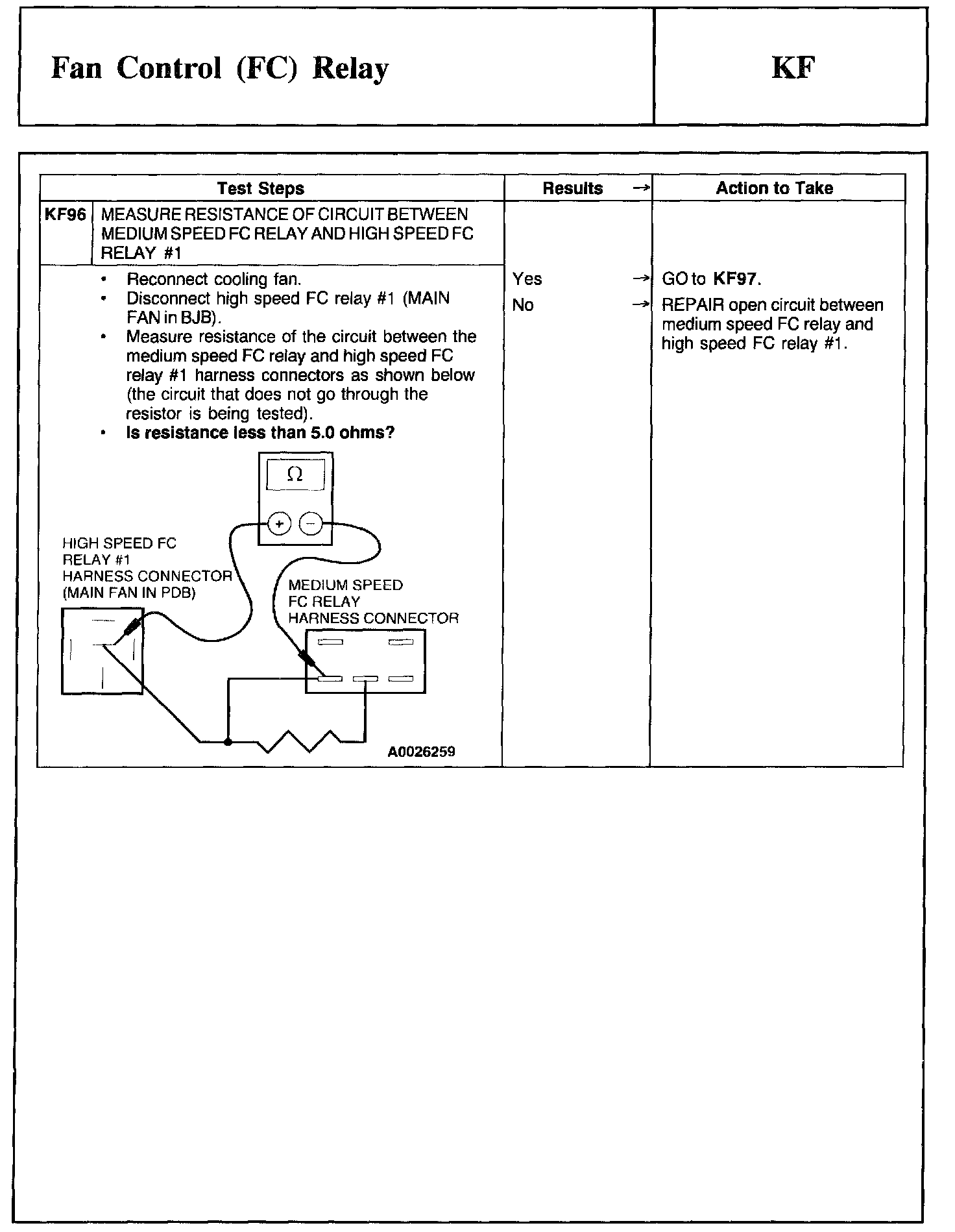

KF96:

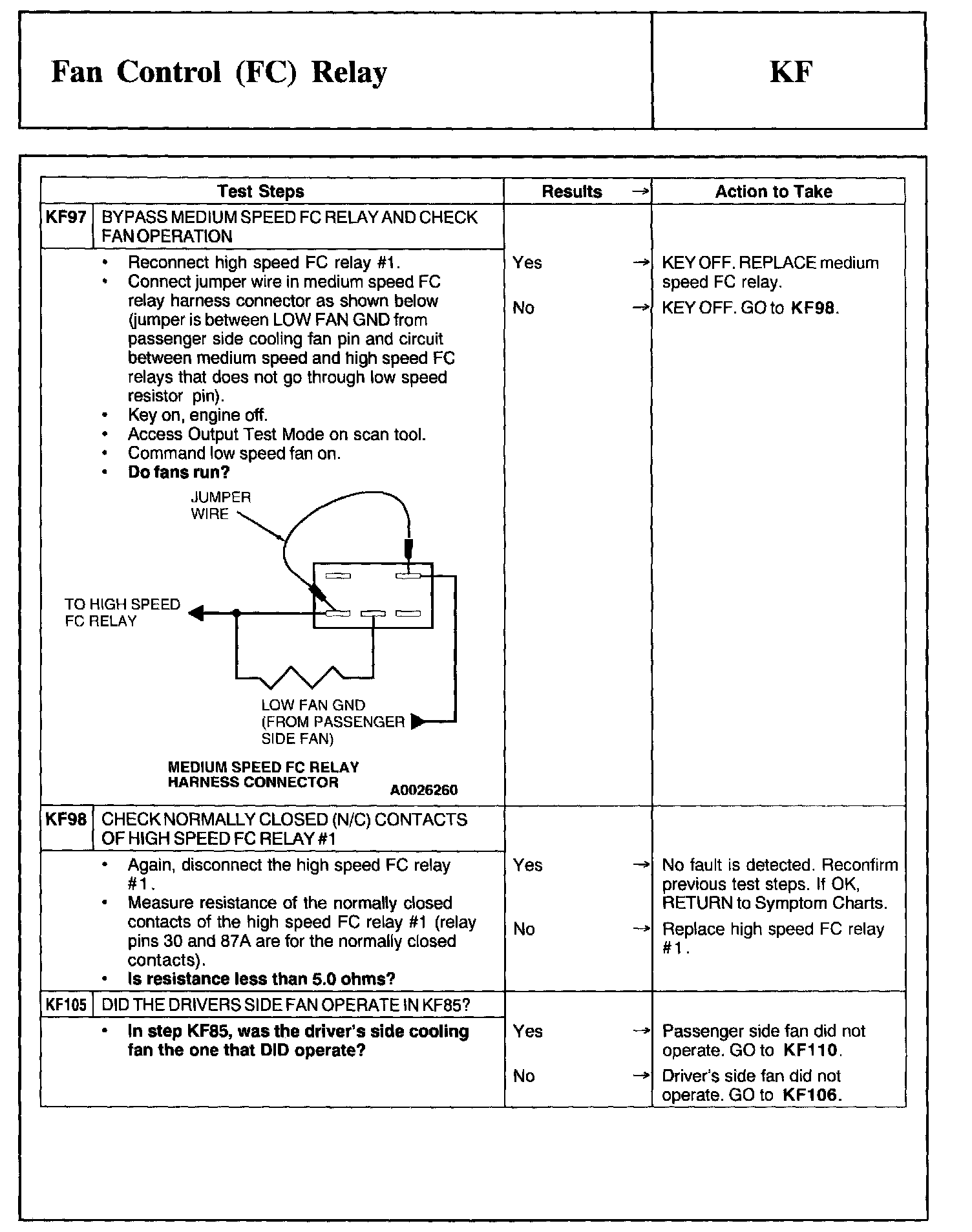

KF97 - KF105:

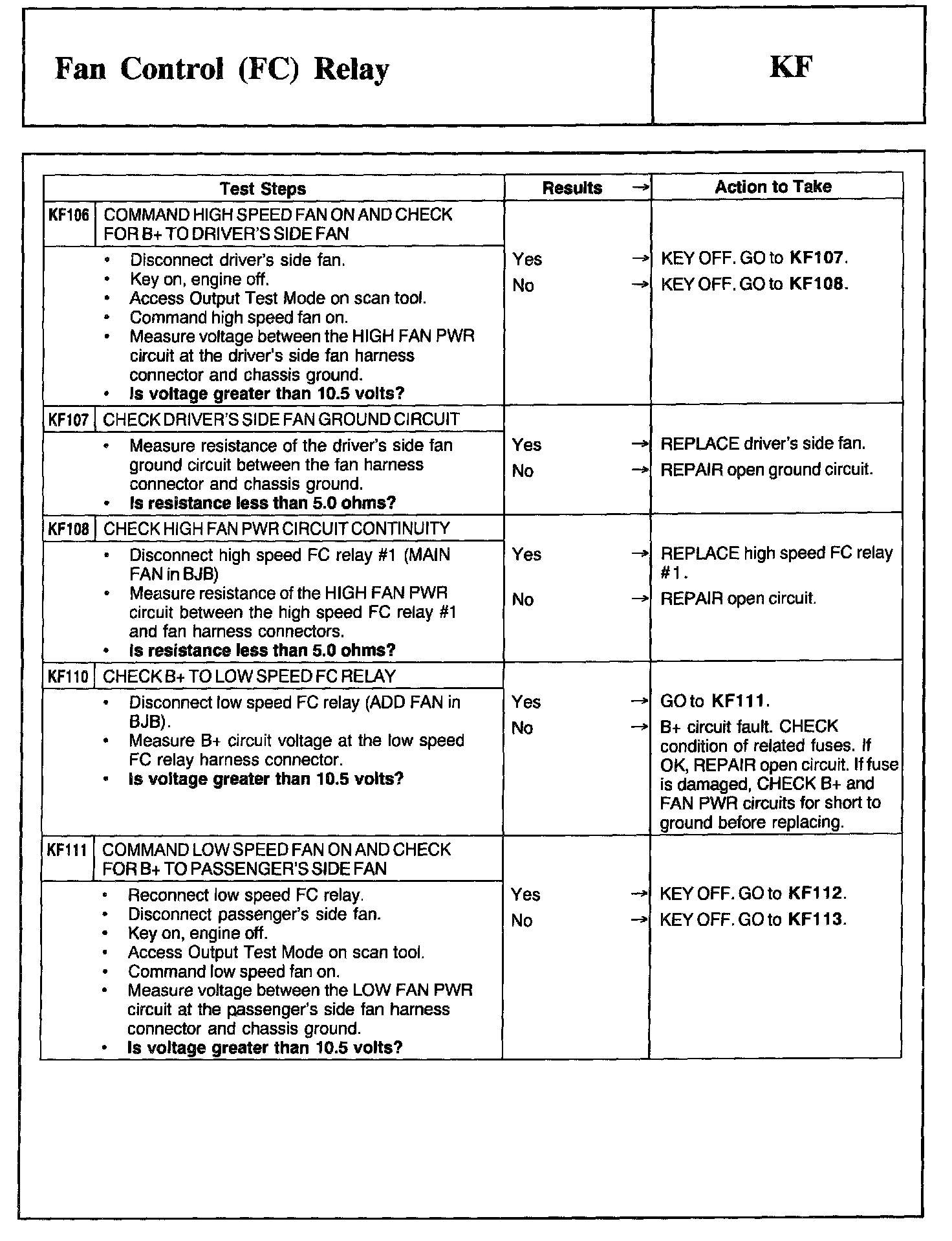

KF106 - KF111:

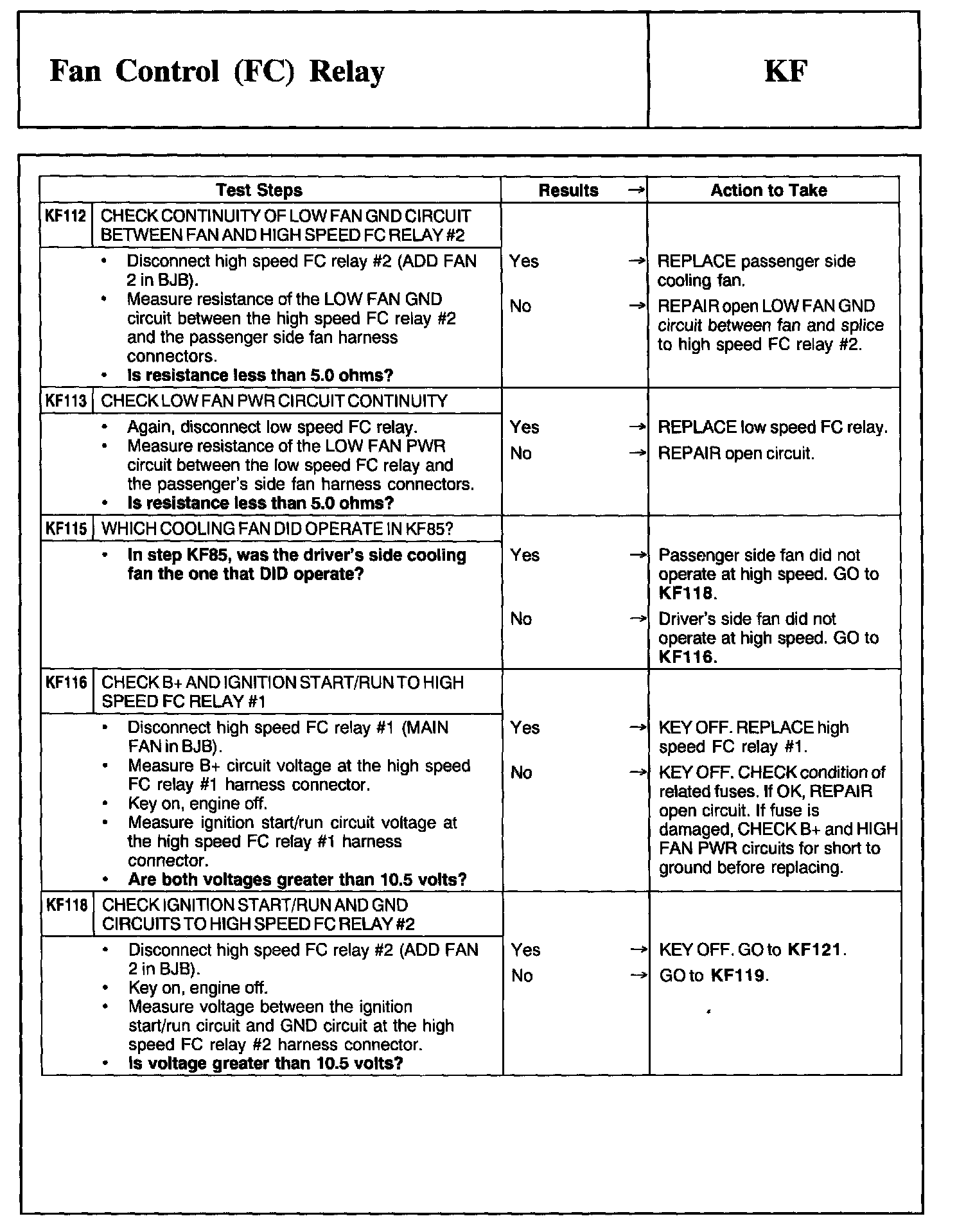

KF112 - KF118:
