Tests KQ: Thermostat Heater Control (THTRC)

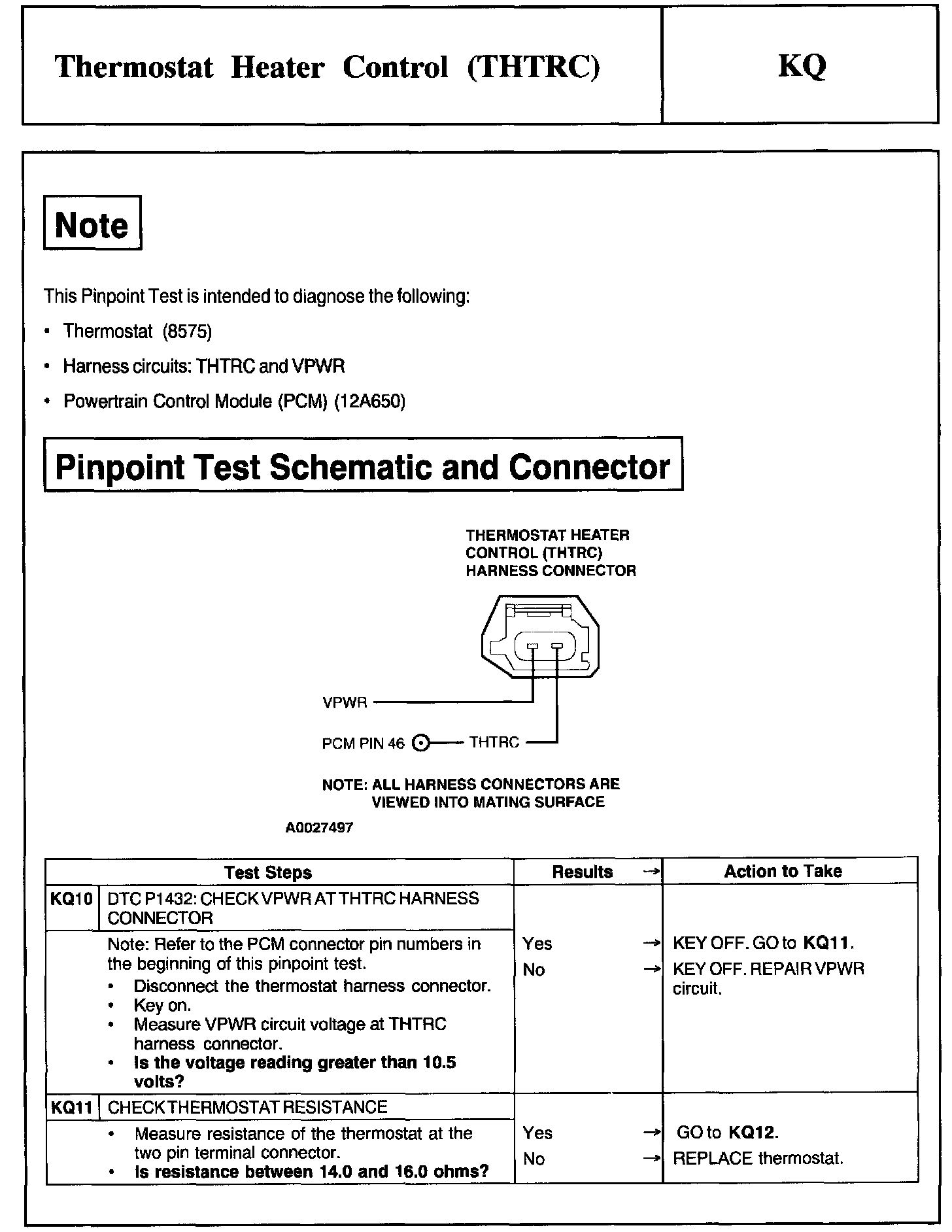

Note, Schematic and Connector and Test KQ10 - KQ11:

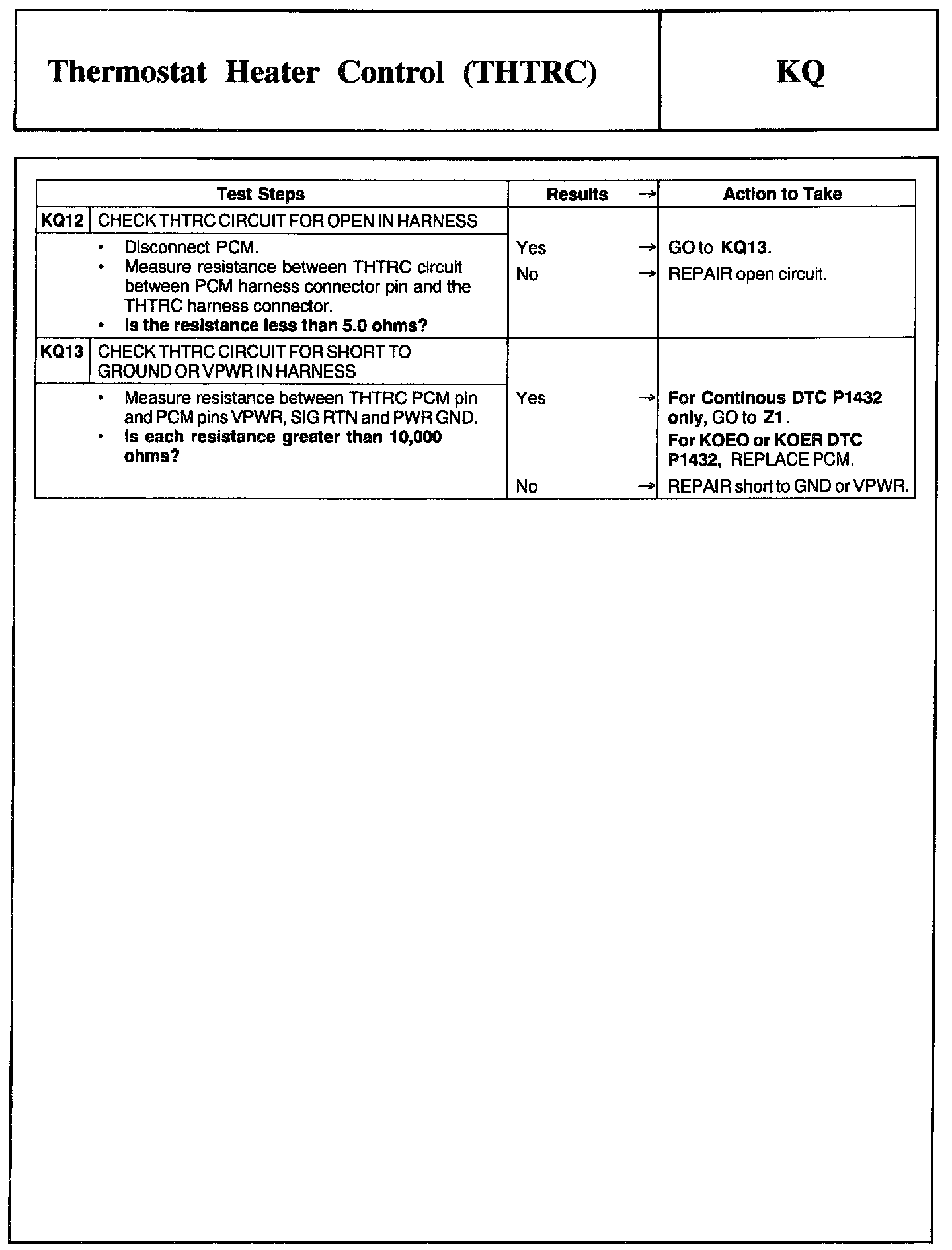

KQ12 - KQ13:
