Tests QA: Unable to Activate Self-Test/SCP Comm. Error/DTC Not Listed
Tests QA: Unable to Activate Self-Test/SCP Comm. Error/DTC Not Listed

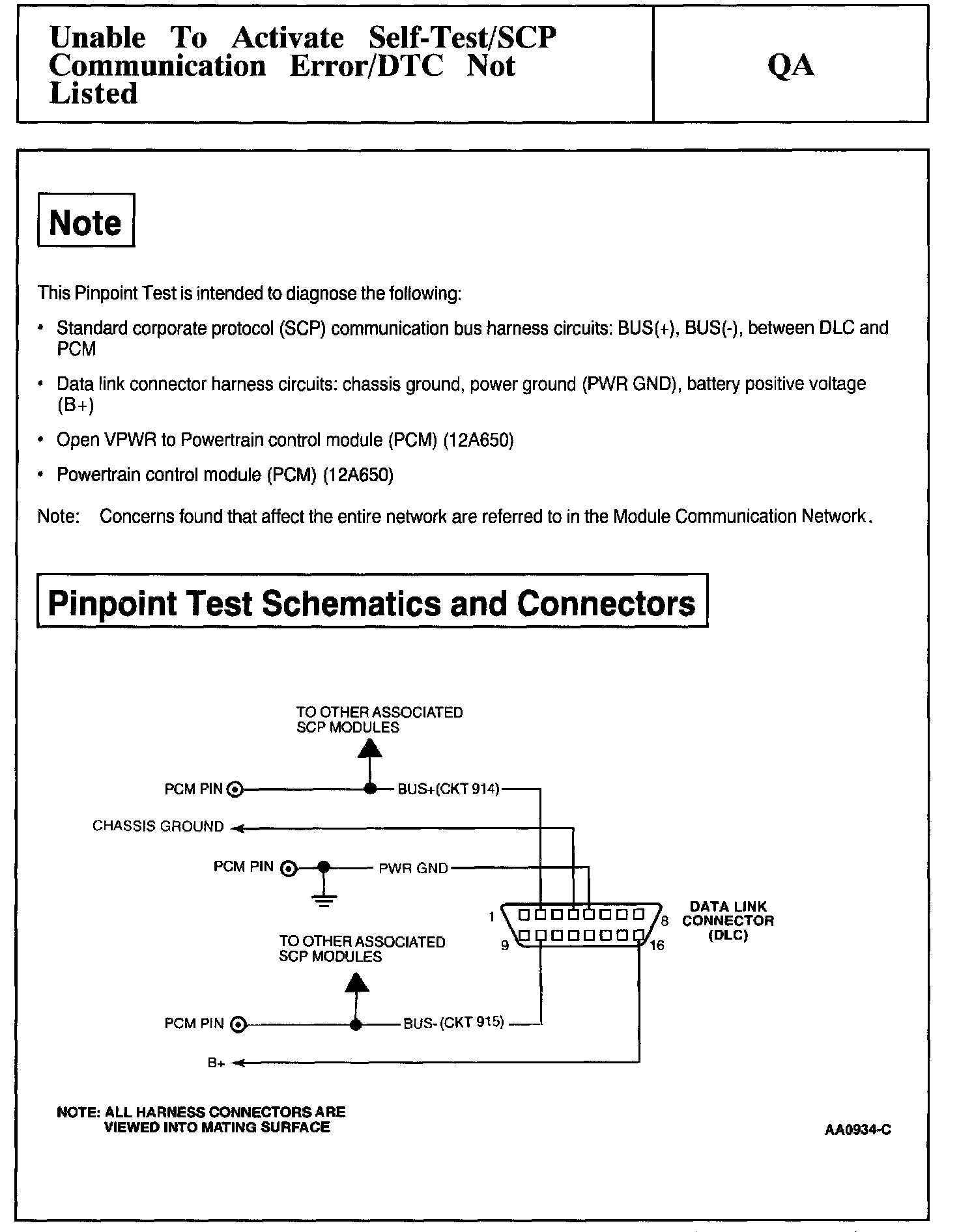

Note, Schematics and Connectors:

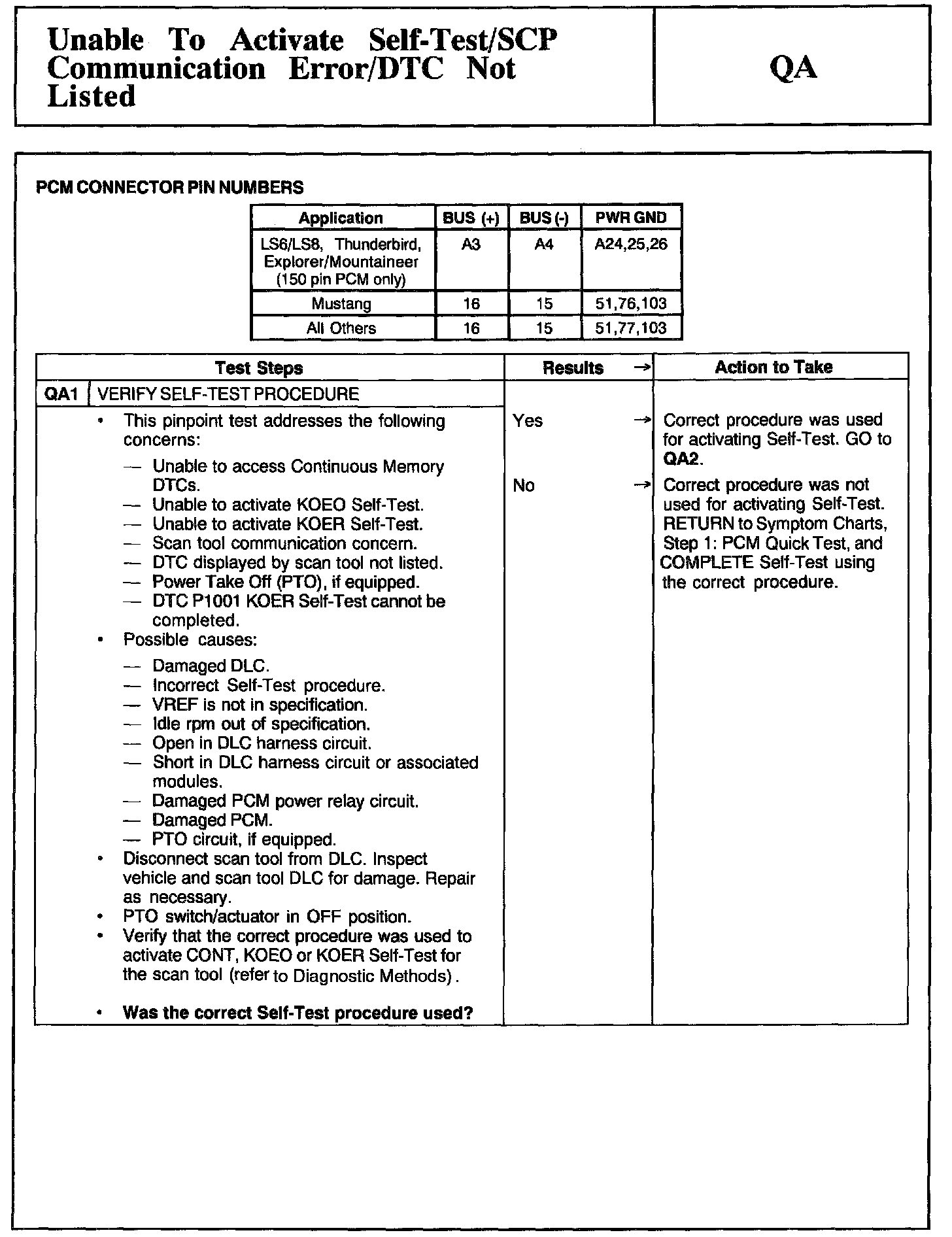

QA1:

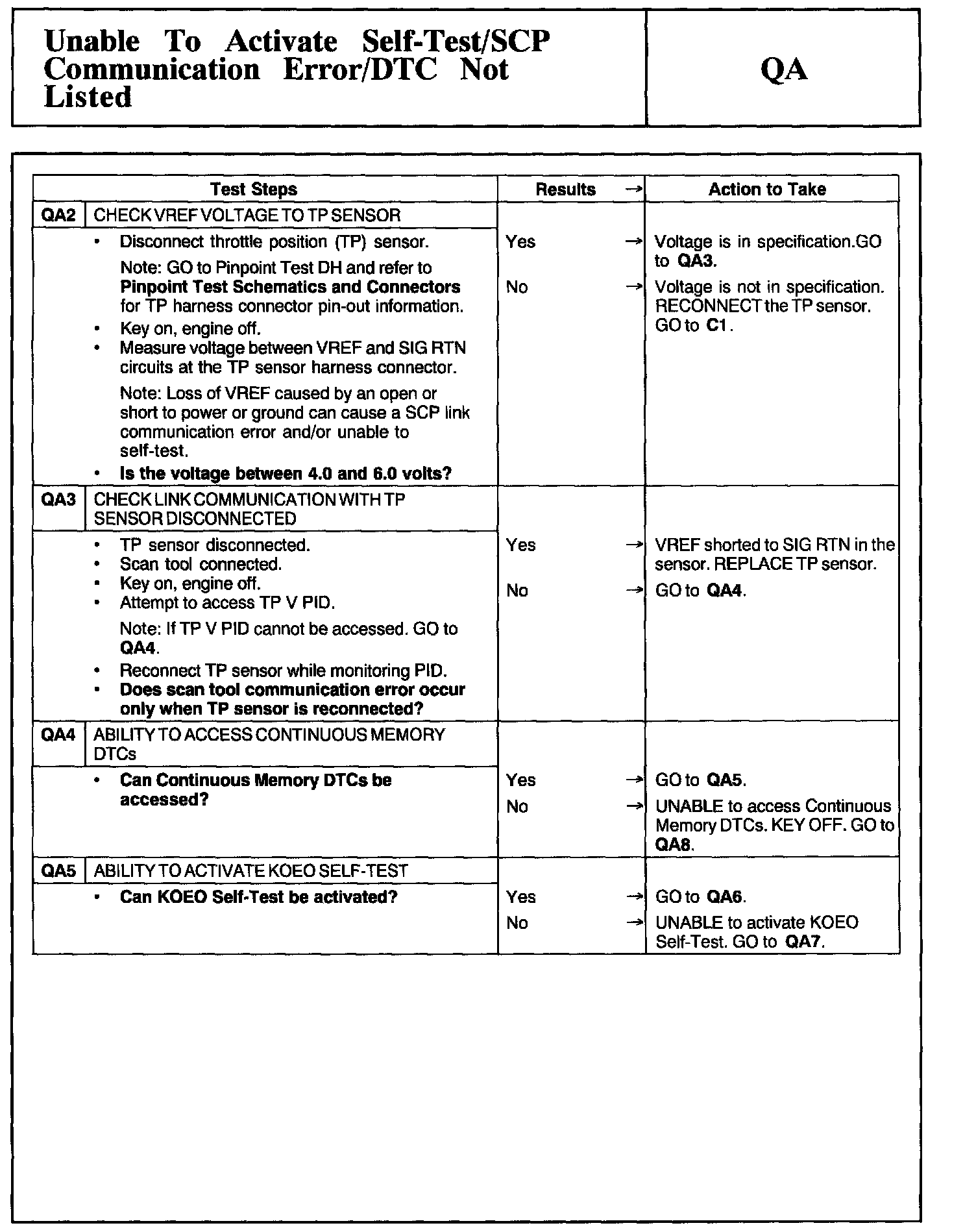

QA2 - QA5:

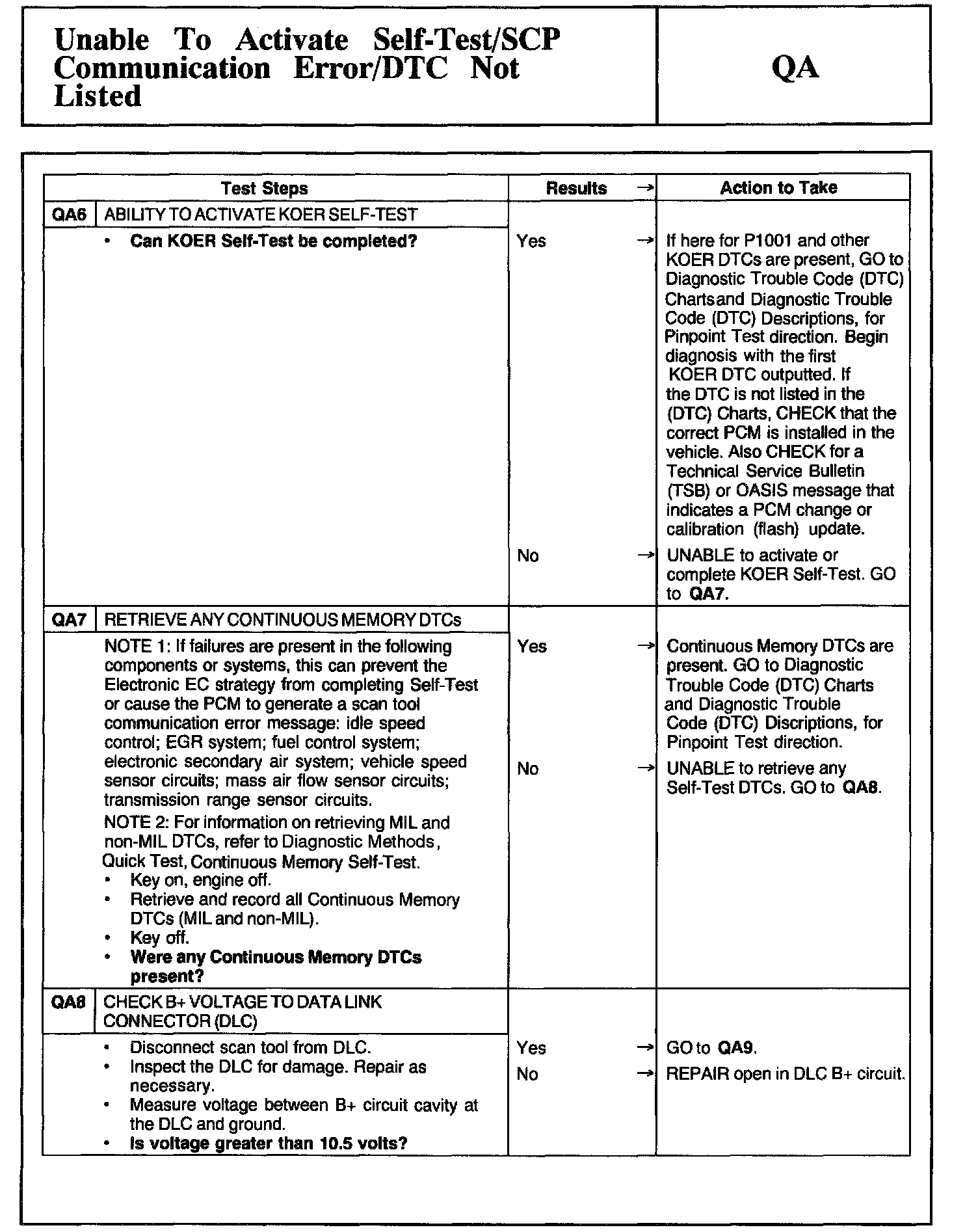

QA6 - QA8:

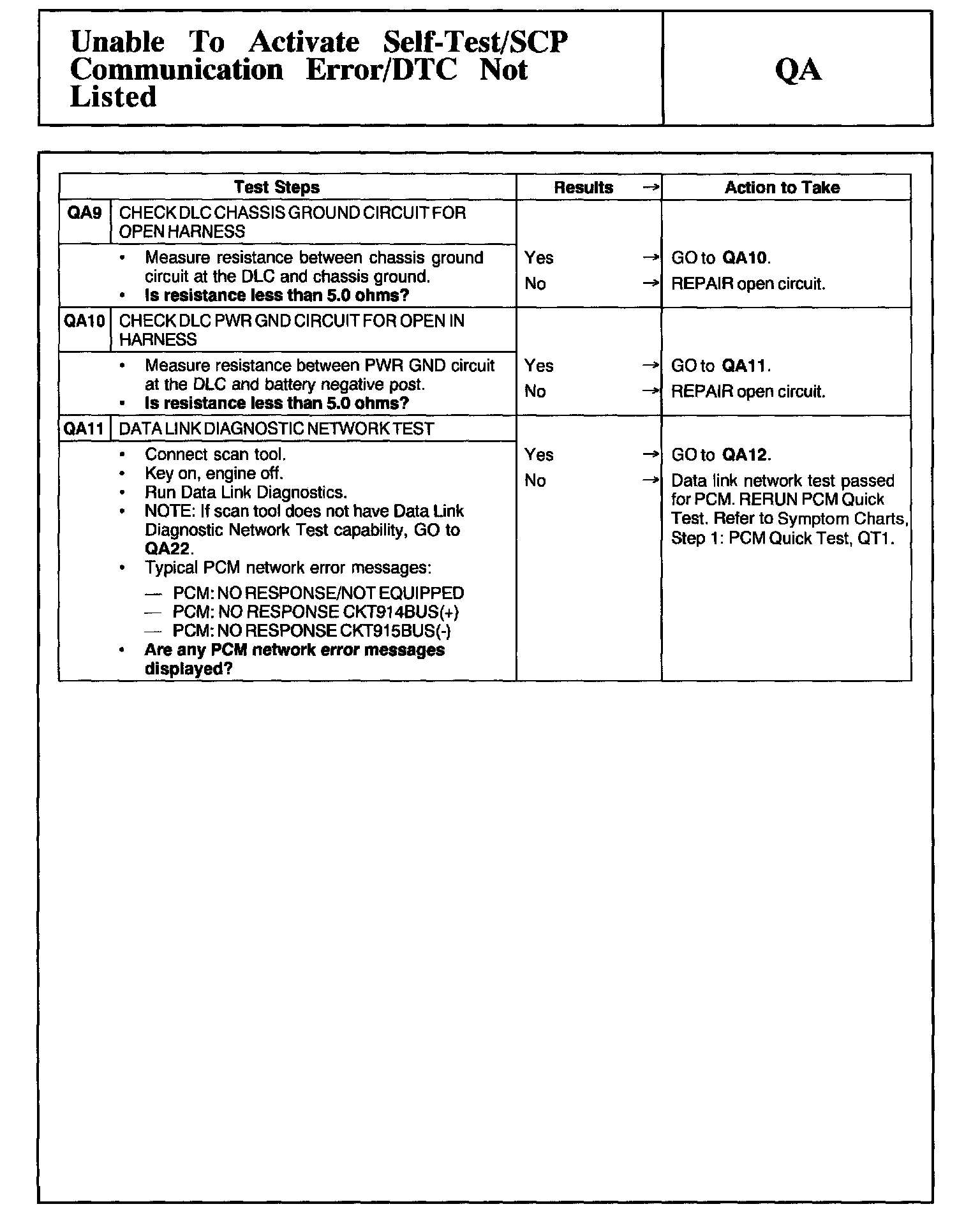

QA9 - QA11:

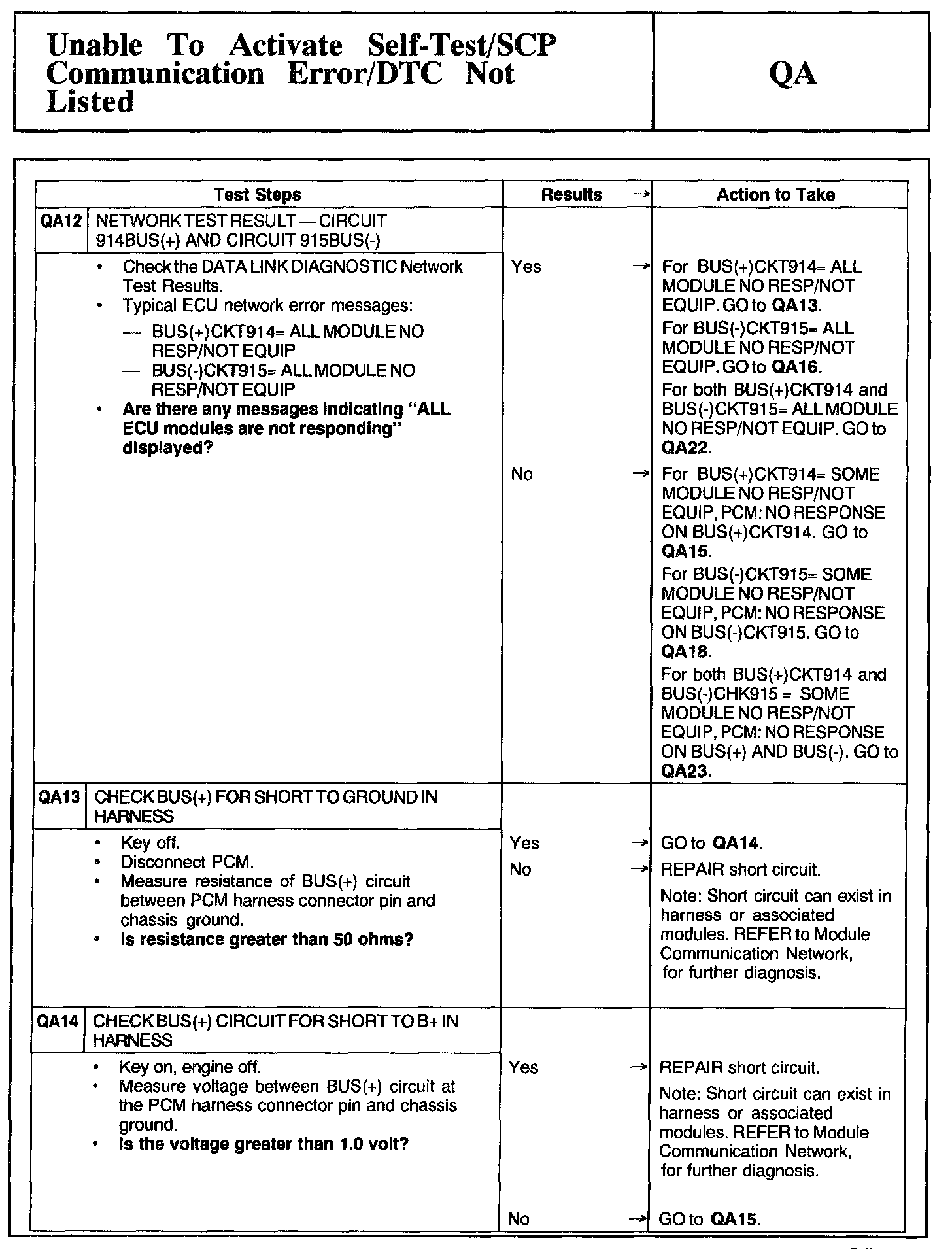

QA12 - QA14:

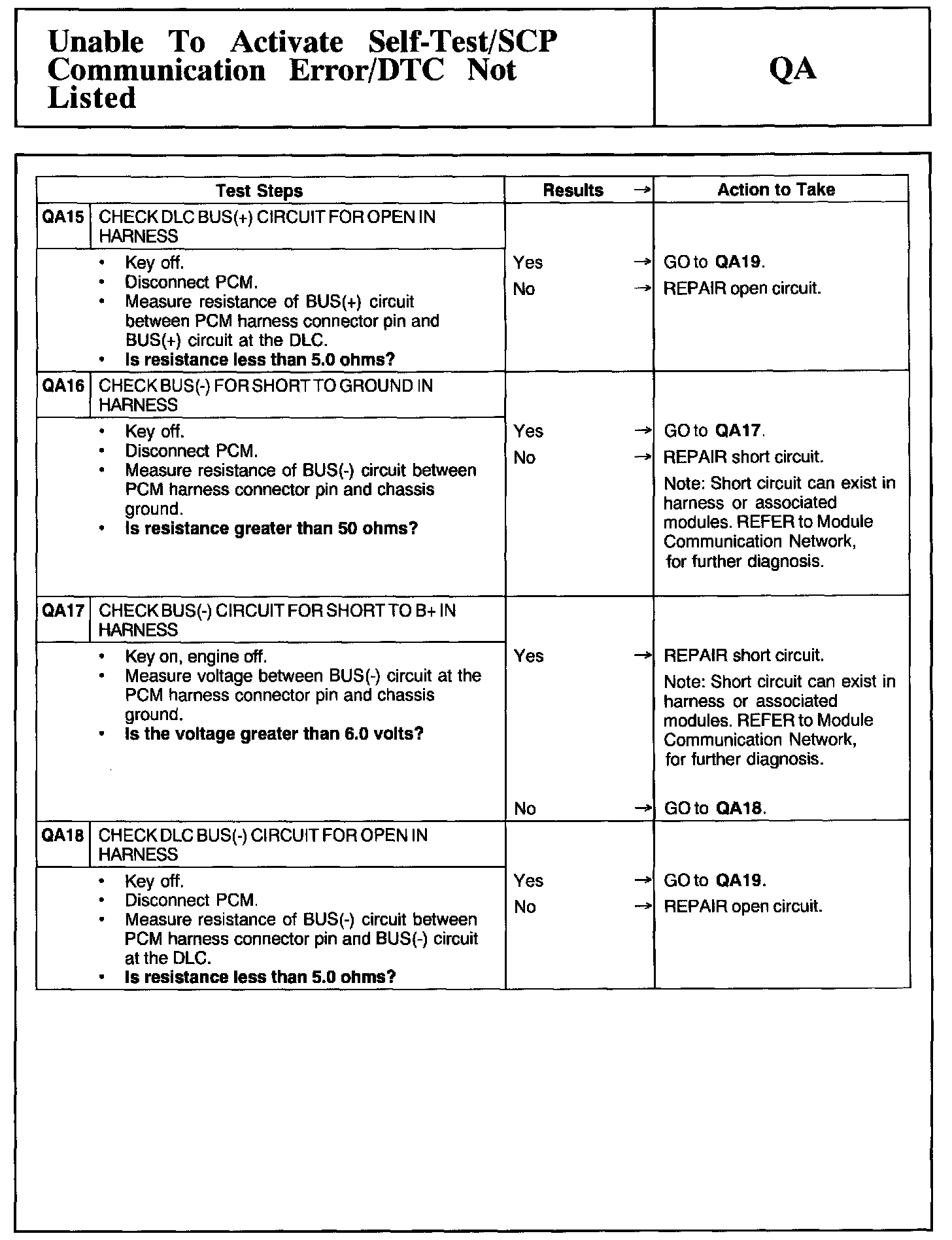

QA15 - QA18:

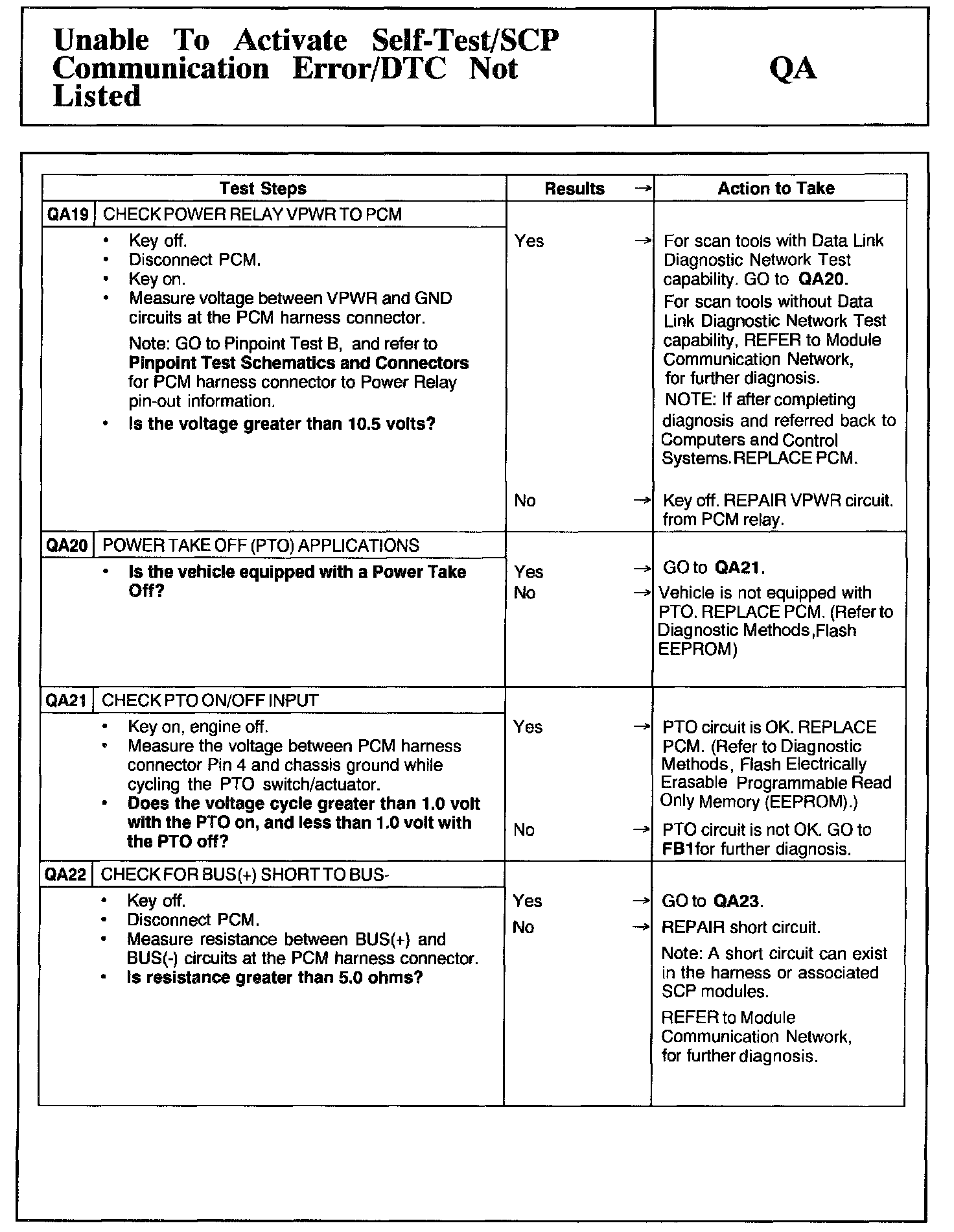

QA19 - QA22:

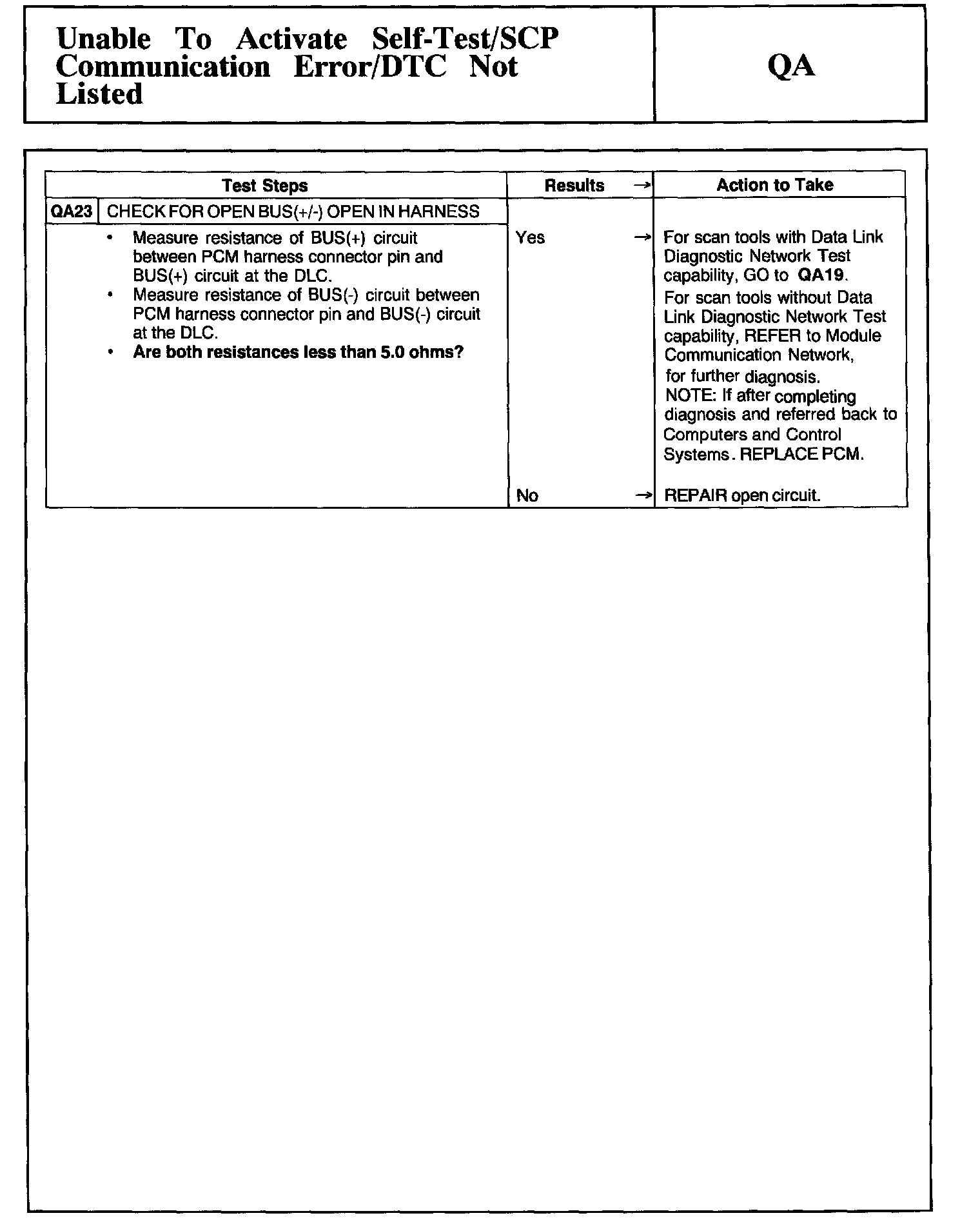

QA23:
