Tests TA: Park/Neutral Position/Clutch Pedal Position Switches

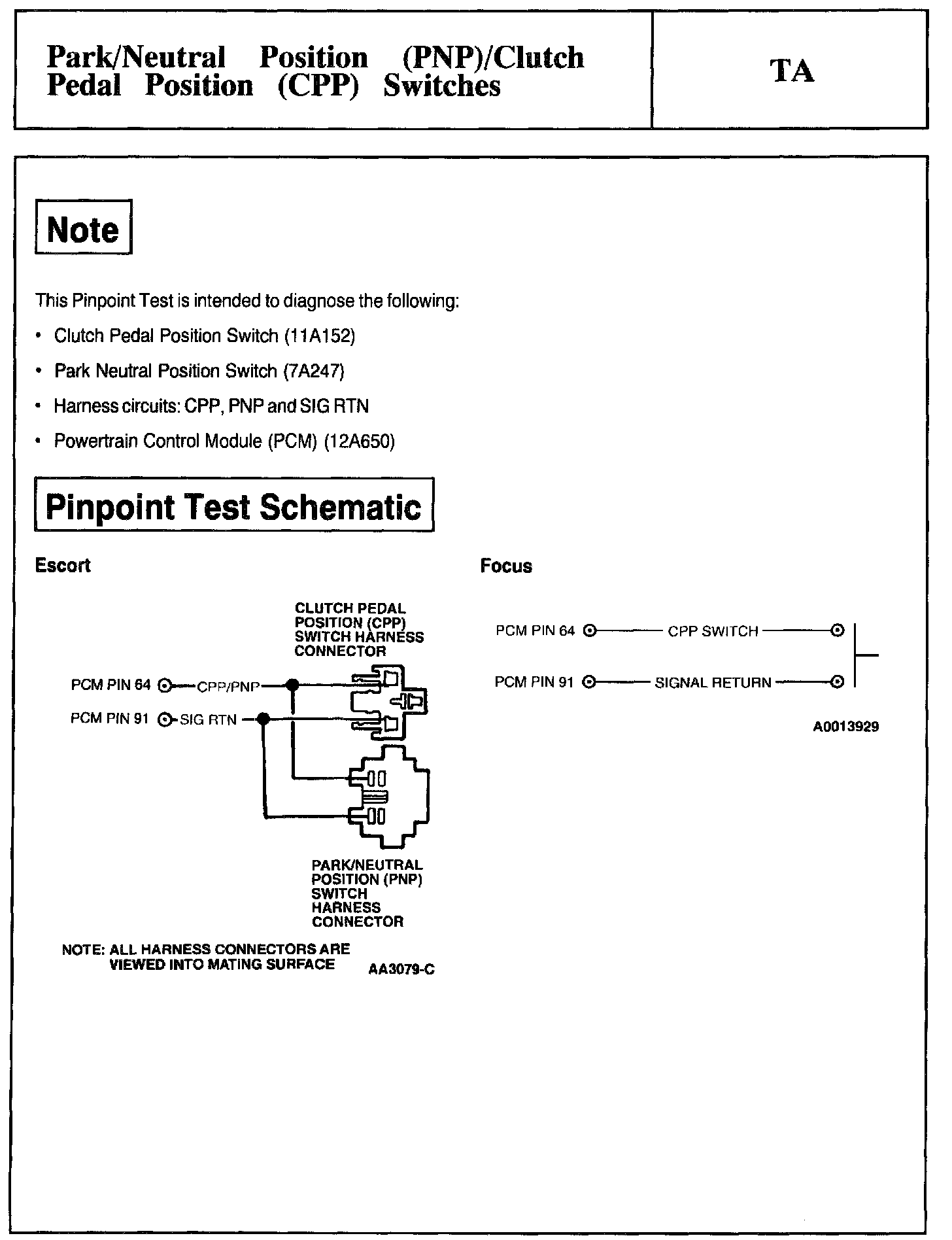

Note, Schematic:

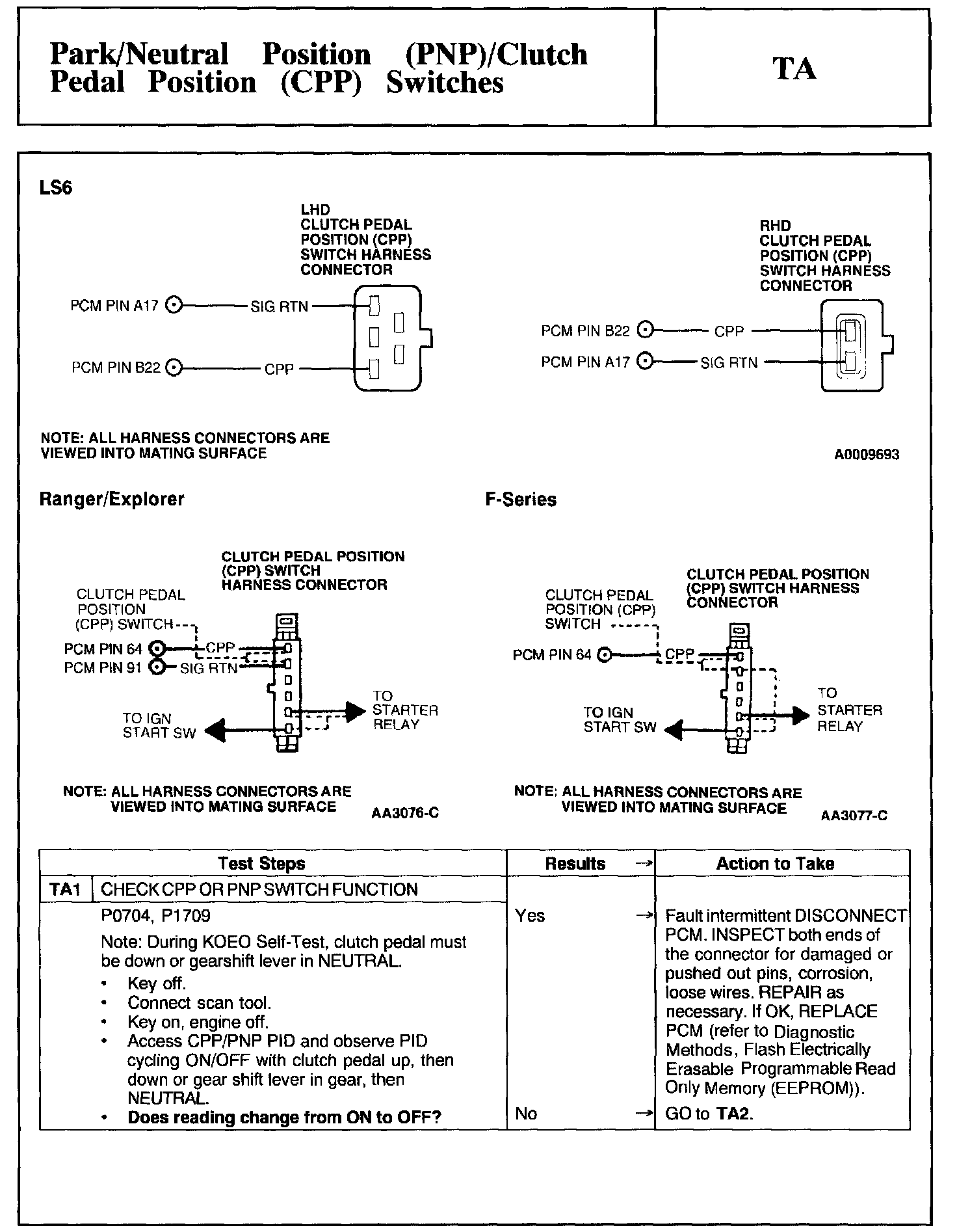

Schematic, Test TA1:

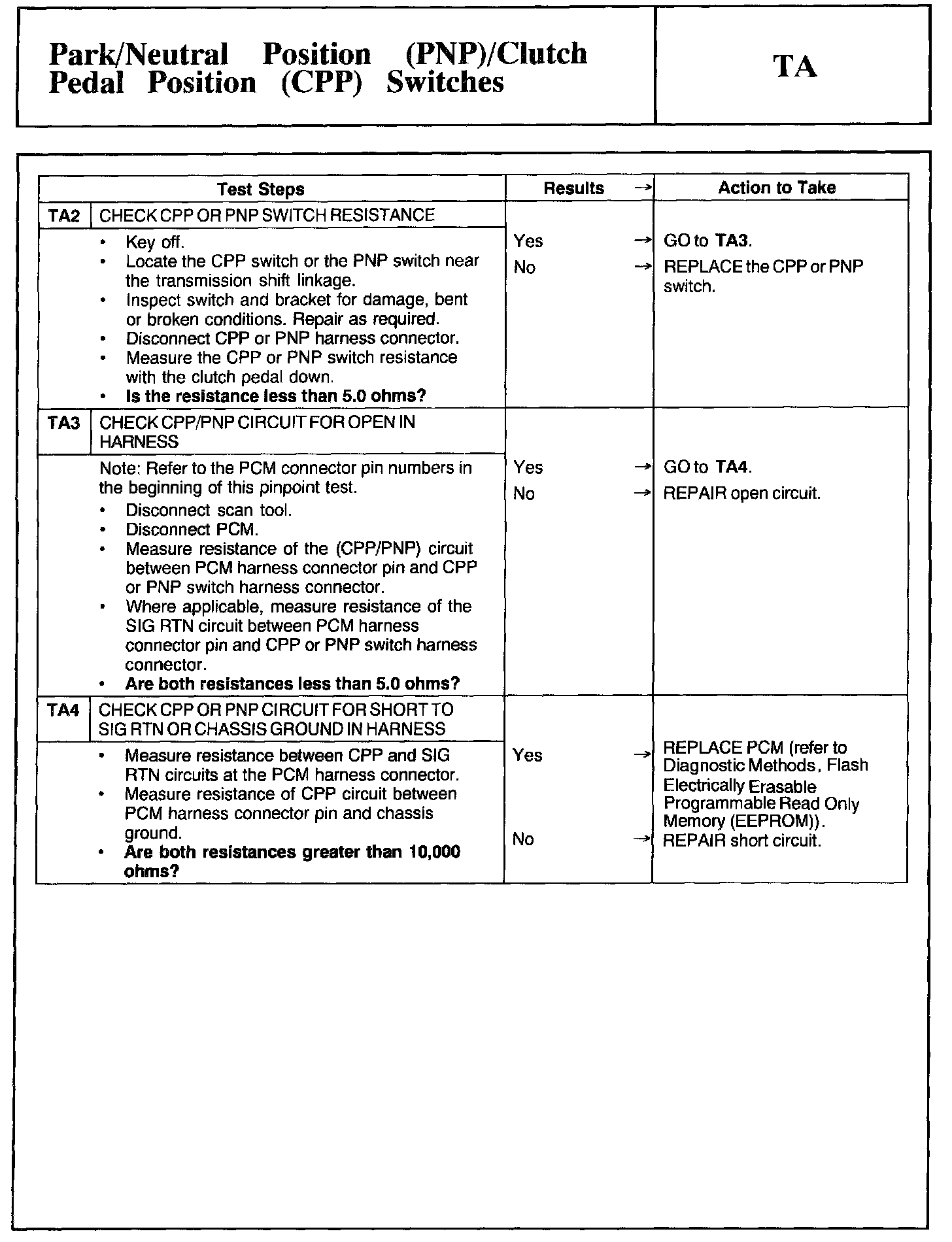

TA2 - TA4:

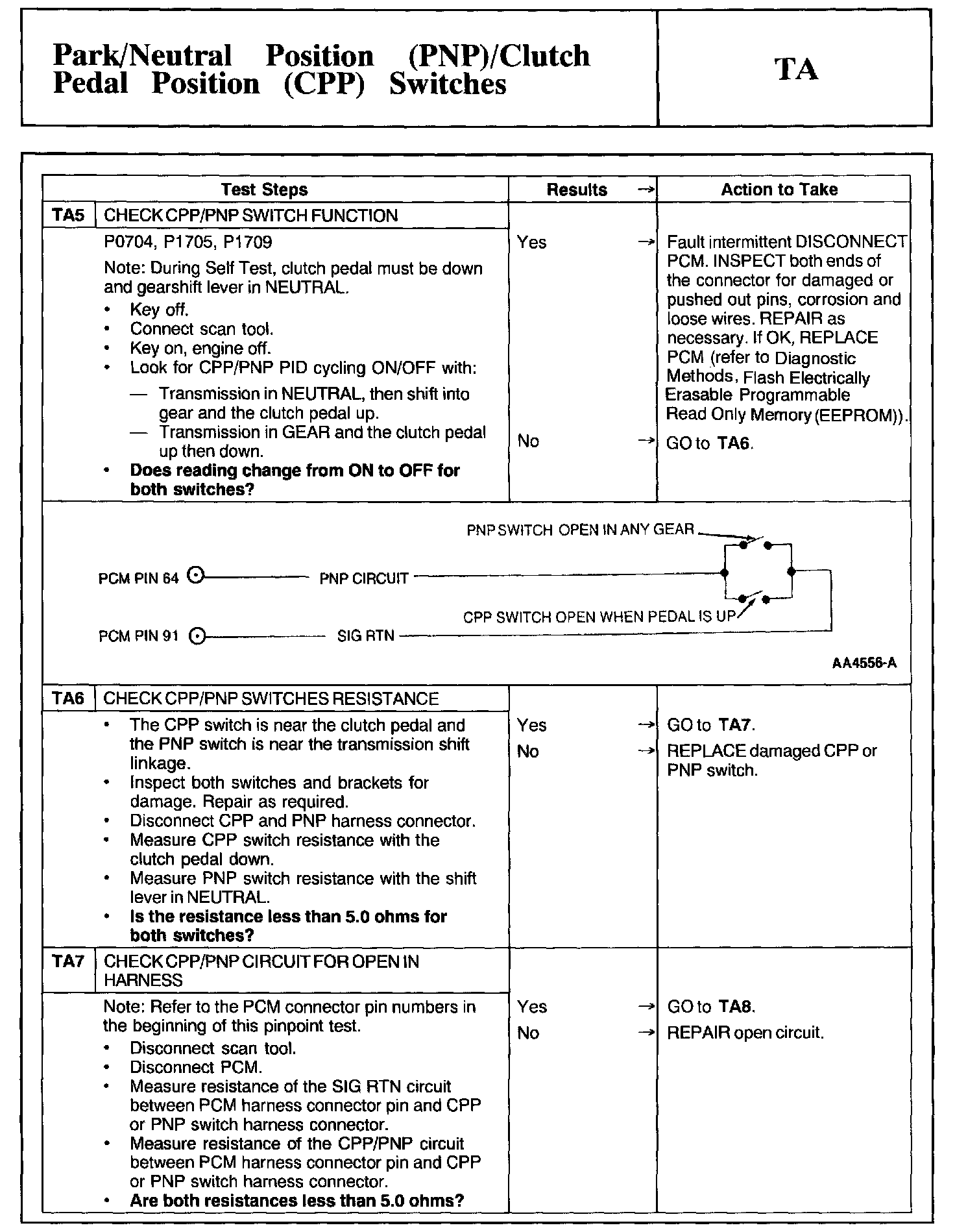

TA5 - TA7:

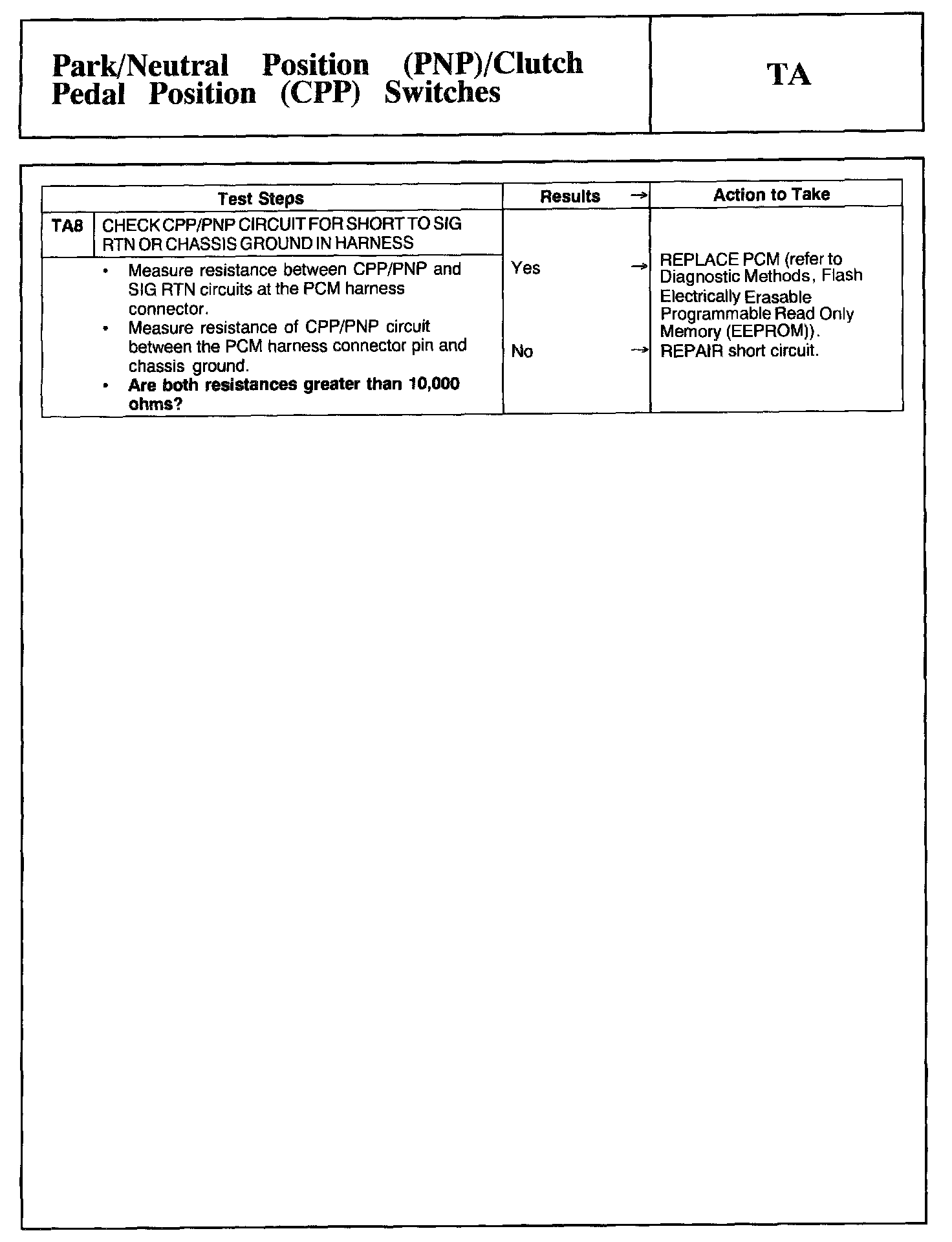

TA8:
