Fuel Tank Draining

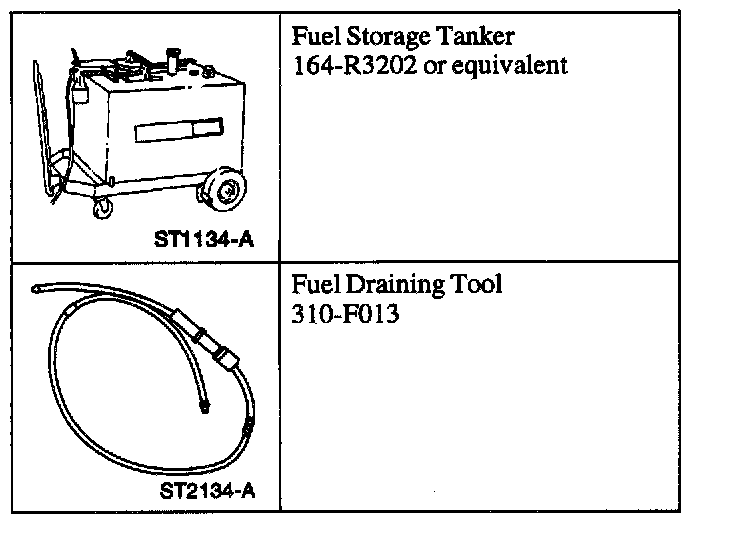

SPECIAL TOOL(S)

WARNING: DO NOT SMOKE OR CARRY LIGHTED TOBACCO OR OPEN FLAME OF ANY TYPE WHEN WORKING ON OR NEAR ANY FUEL RELATED COMPONENT. HIGHLY FLAMMABLE MIXTURES ARE ALWAYS PRESENT AND MAY BE IGNITED, RESULTING IN POSSIBLE PERSONAL INJURY.

1. Disconnect the battery.
2. Remove the fuel tank filler cap.

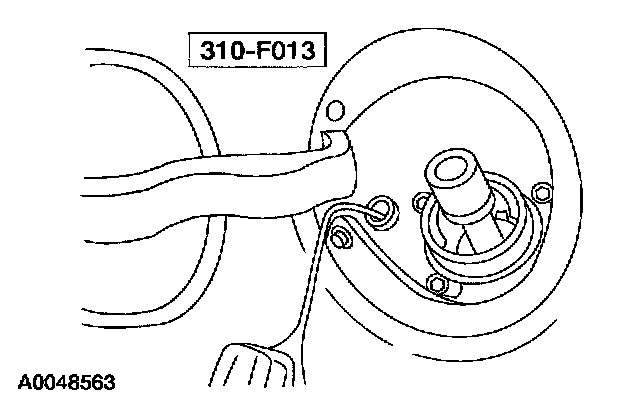

3. Insert the hose guide in the filler neck.

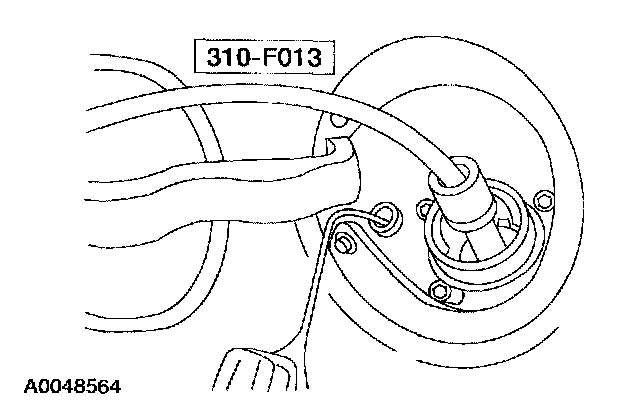

4. Insert the chamfered end of the hose into the filler neck through the guide tube. Insert the hose until the stop contacts the guide tube. If the stop does not contact the guide tube, remove the hose and repeat the procedure.
5. Attach the fuel storage tanker to the hose and remove the fuel.
6. Remove the hose and hose guide.
