Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
4R70W
>>
Diagnostic Strategies
>>

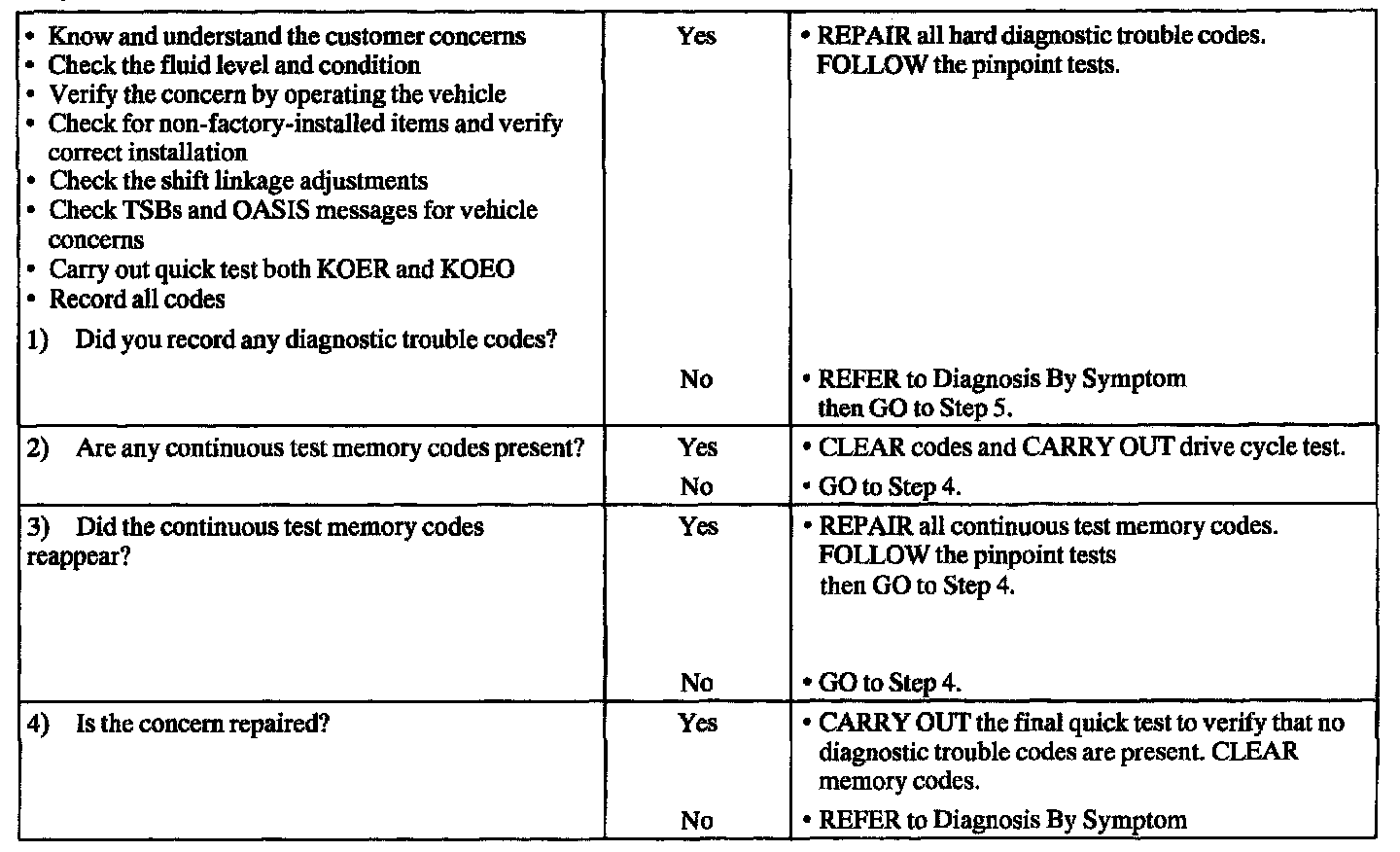

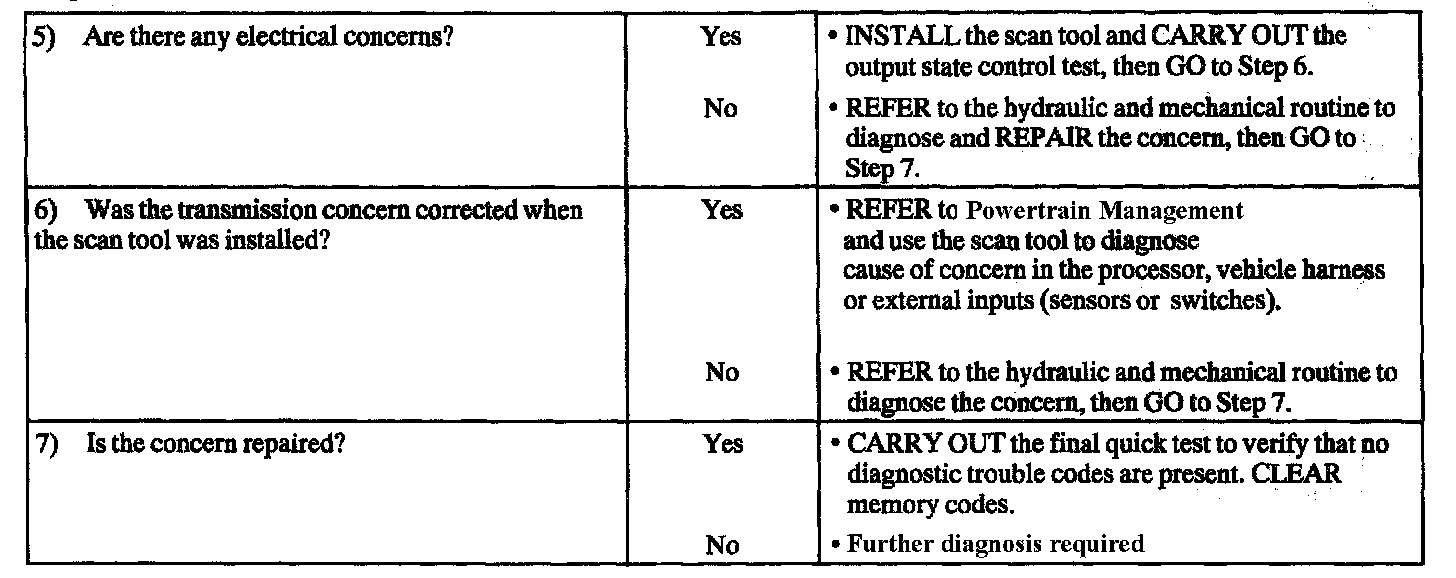

Diagnostic Flow Chart
Diagnostic Flow Chart
Diagnostic Flow Chart
1 of 2
2 of 2
