Diagnostic Trouble Code Tests and Associated Procedures

Diagnostic Trouble Code Charts

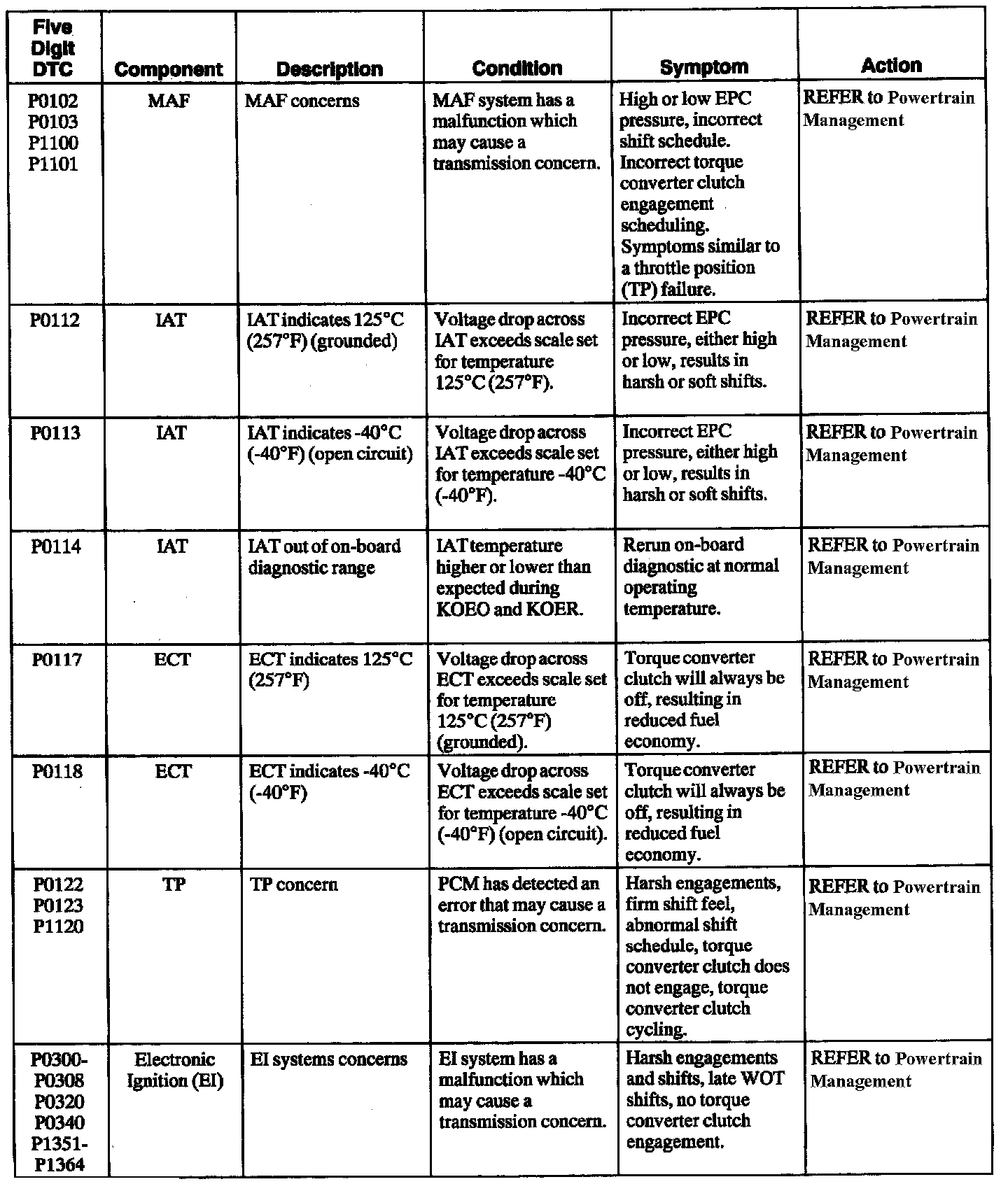

P0102-P1364:





1 of 7

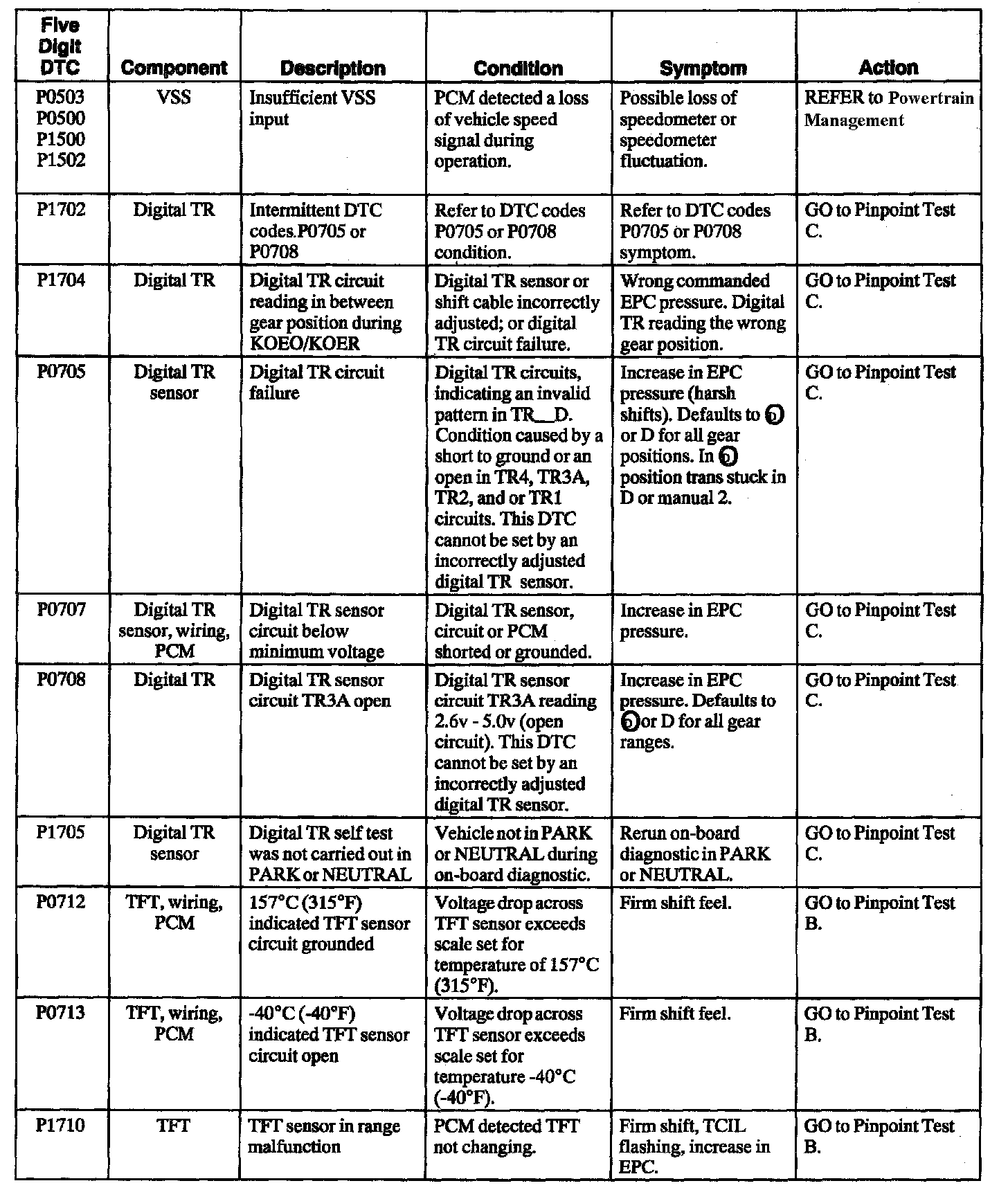

P0503-P1710:





2 of 7

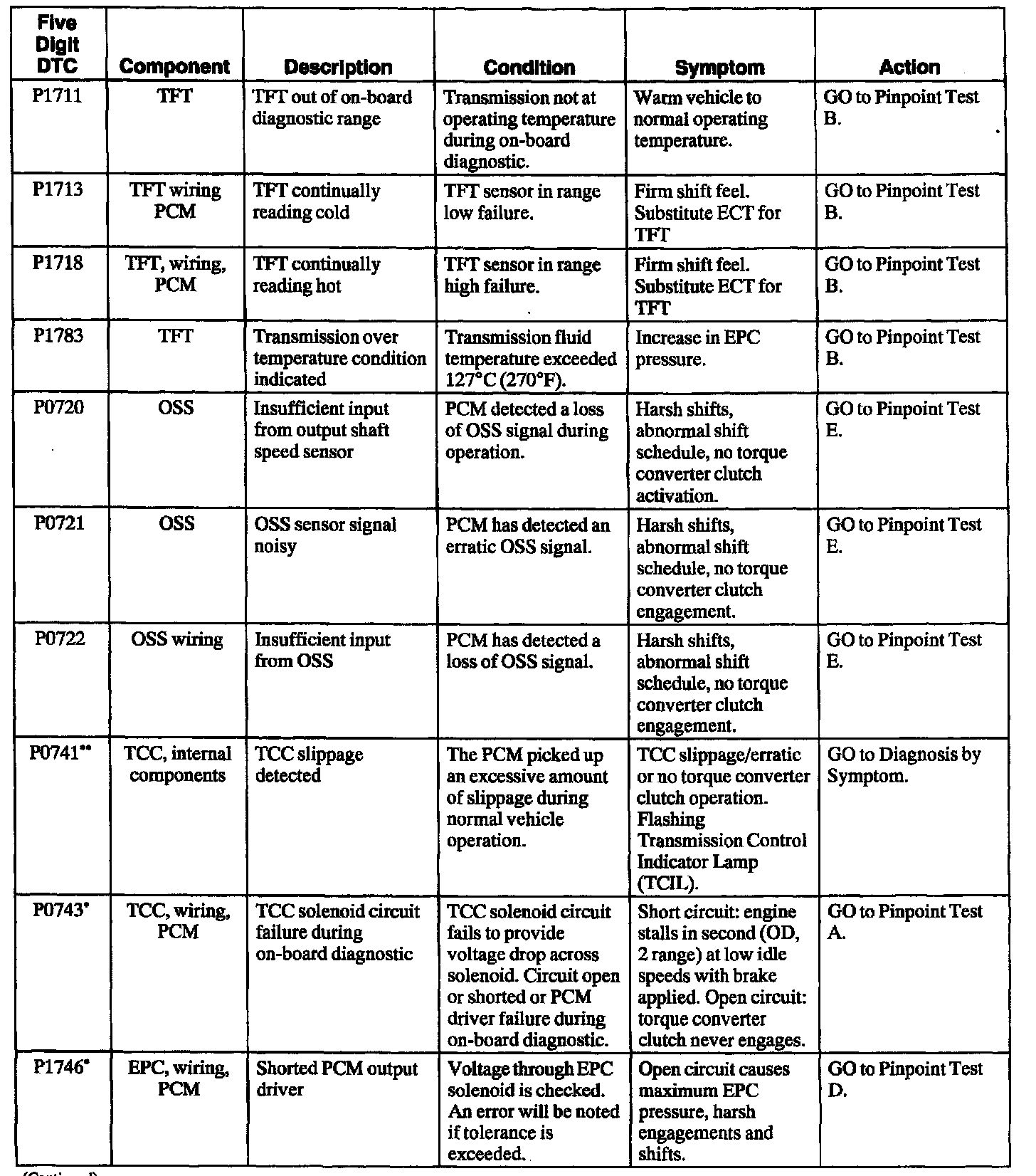

P0720-P1746:





3 of 7

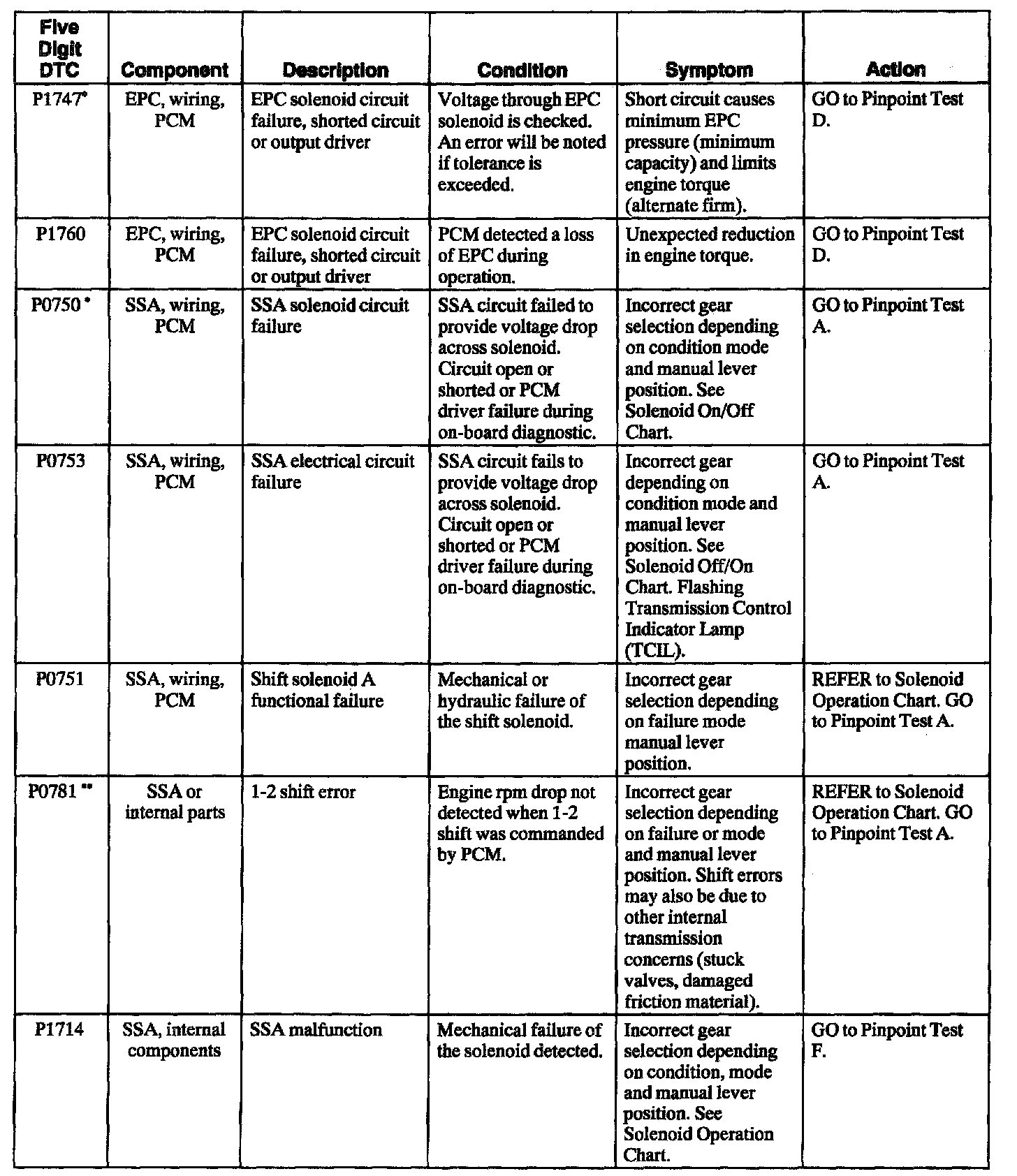

P0750-P1760:





4 of 7

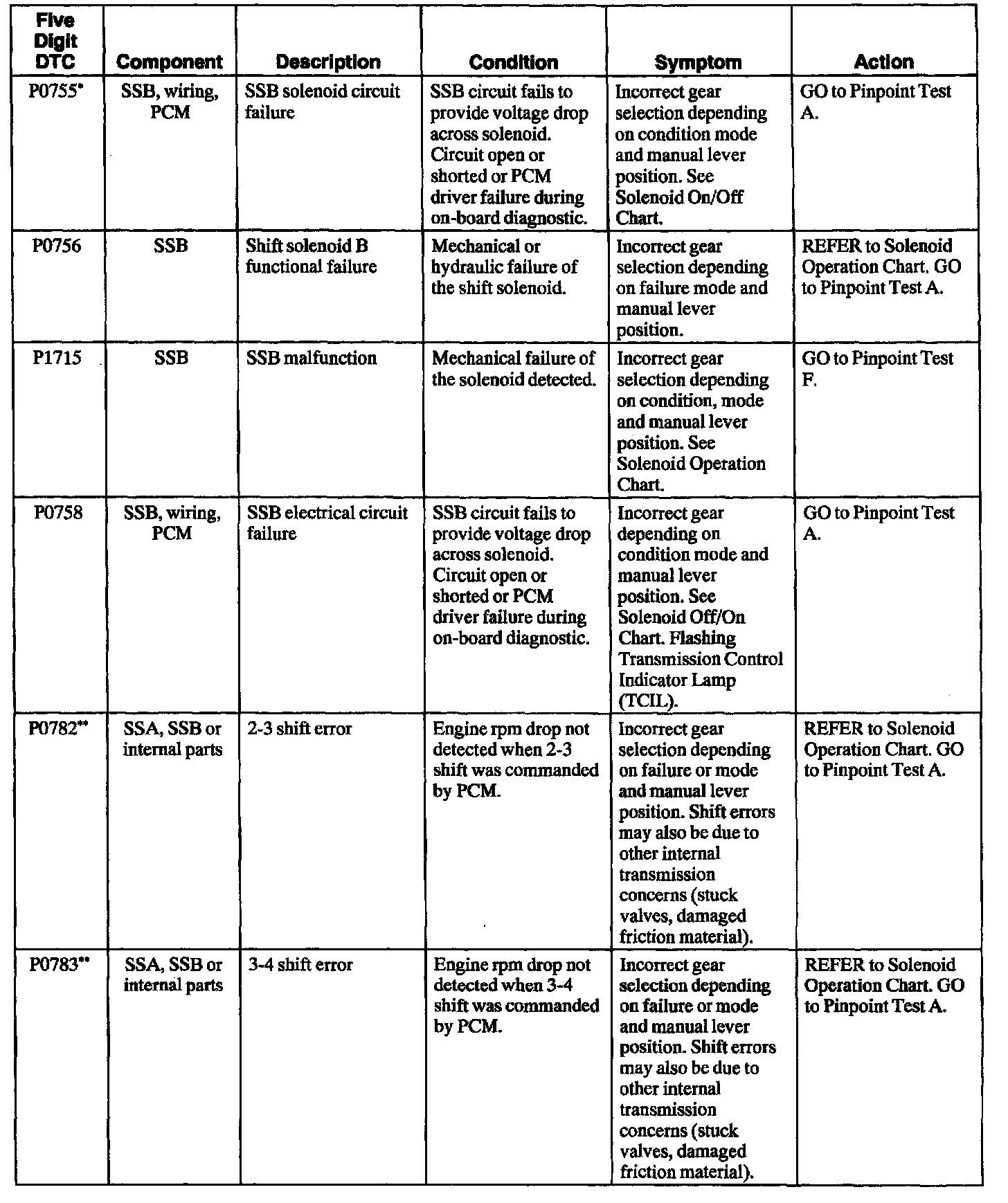

P0755-P1715:





5 of 7

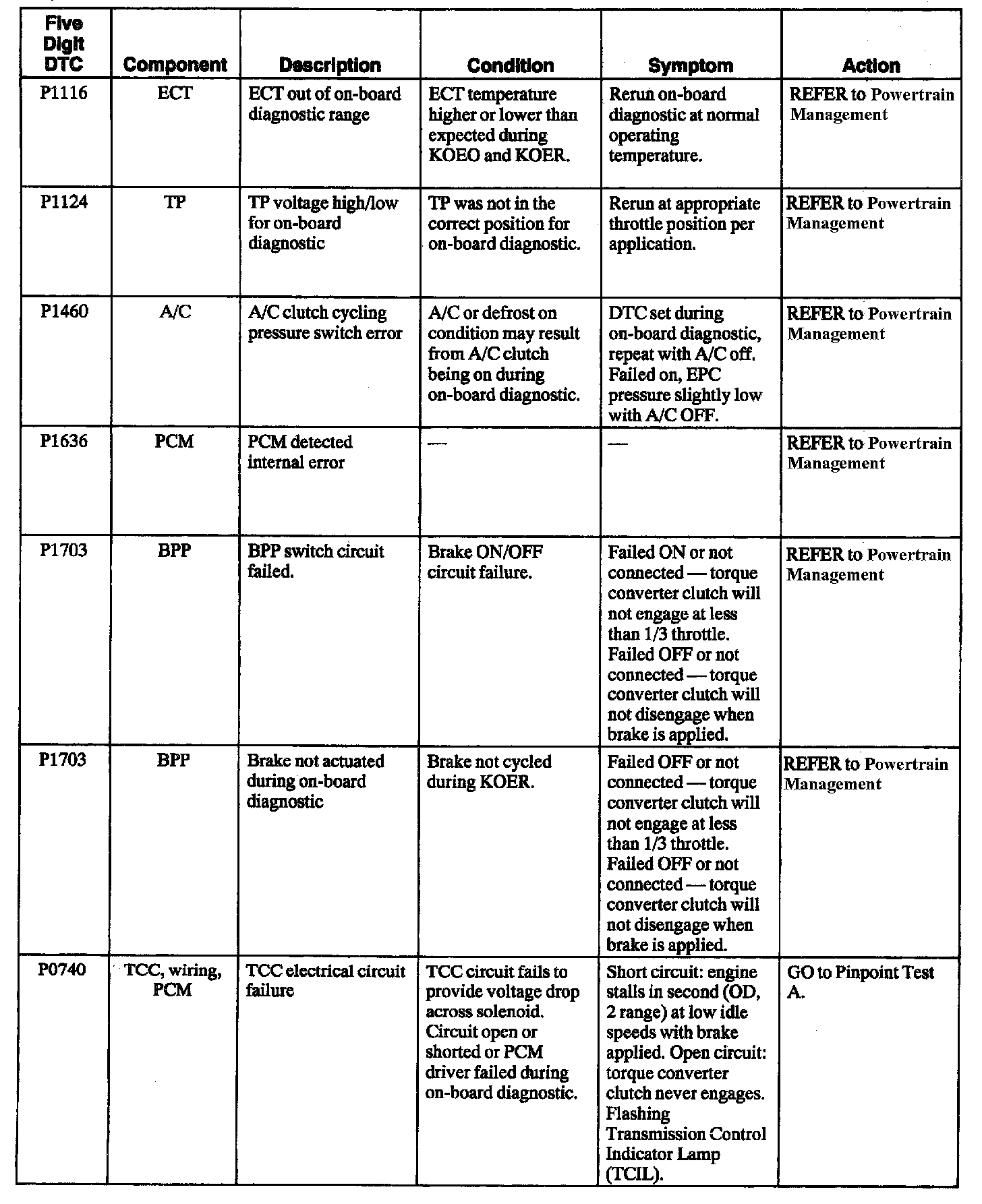

P1116-P1703:





6 of 7

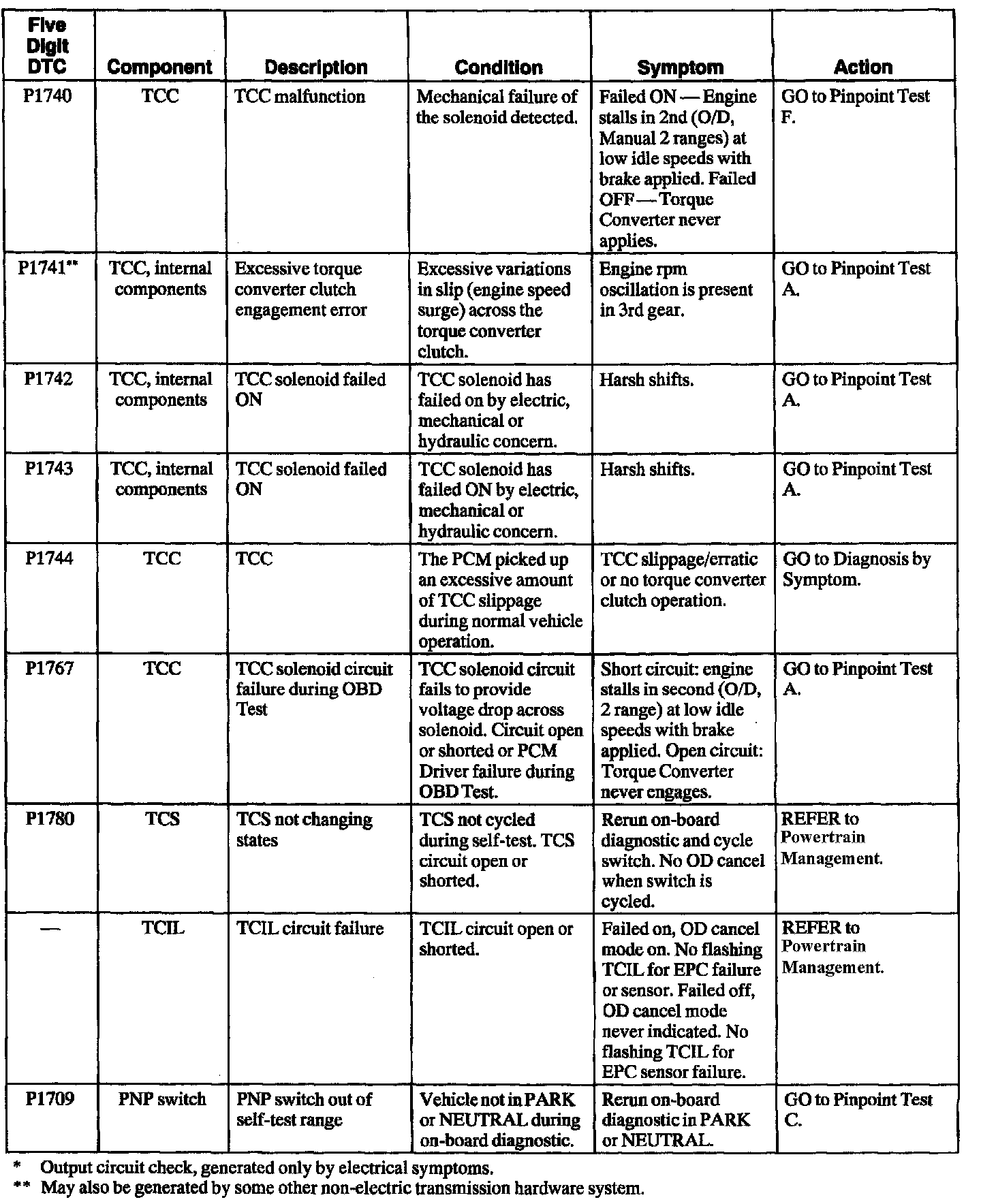

P1740-P1780:





7 of 7
