Test I: Transmission Control Switch (TCS) Doesn't Operate Correctly

PINPOINT TEST I: THE TRANSMISSION CONTROL SWITCH (TCS) DOES NOT OPERATE CORRECTLY - FLOOR SHIFT

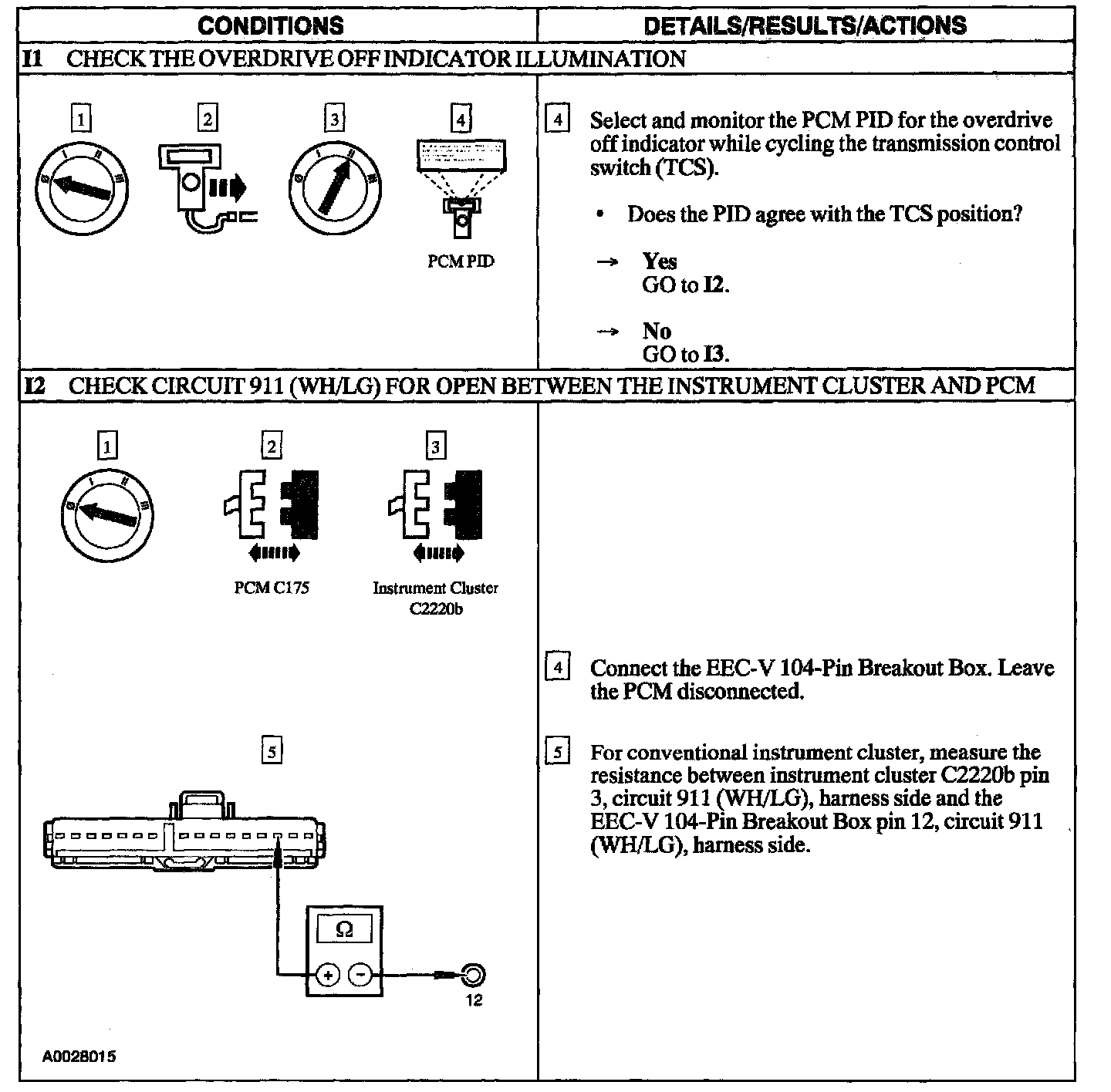

I1 - I2

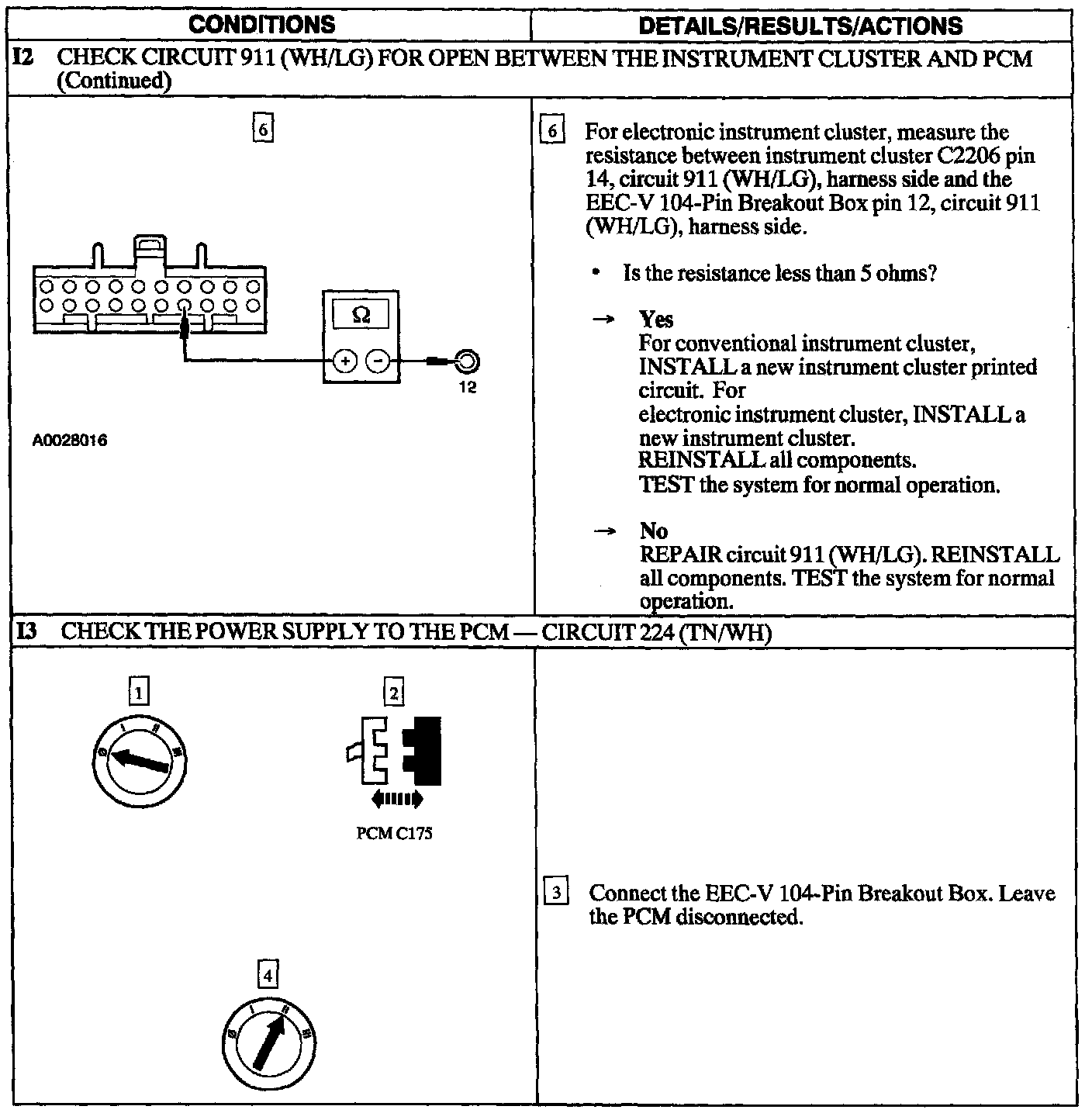

I2 - I3

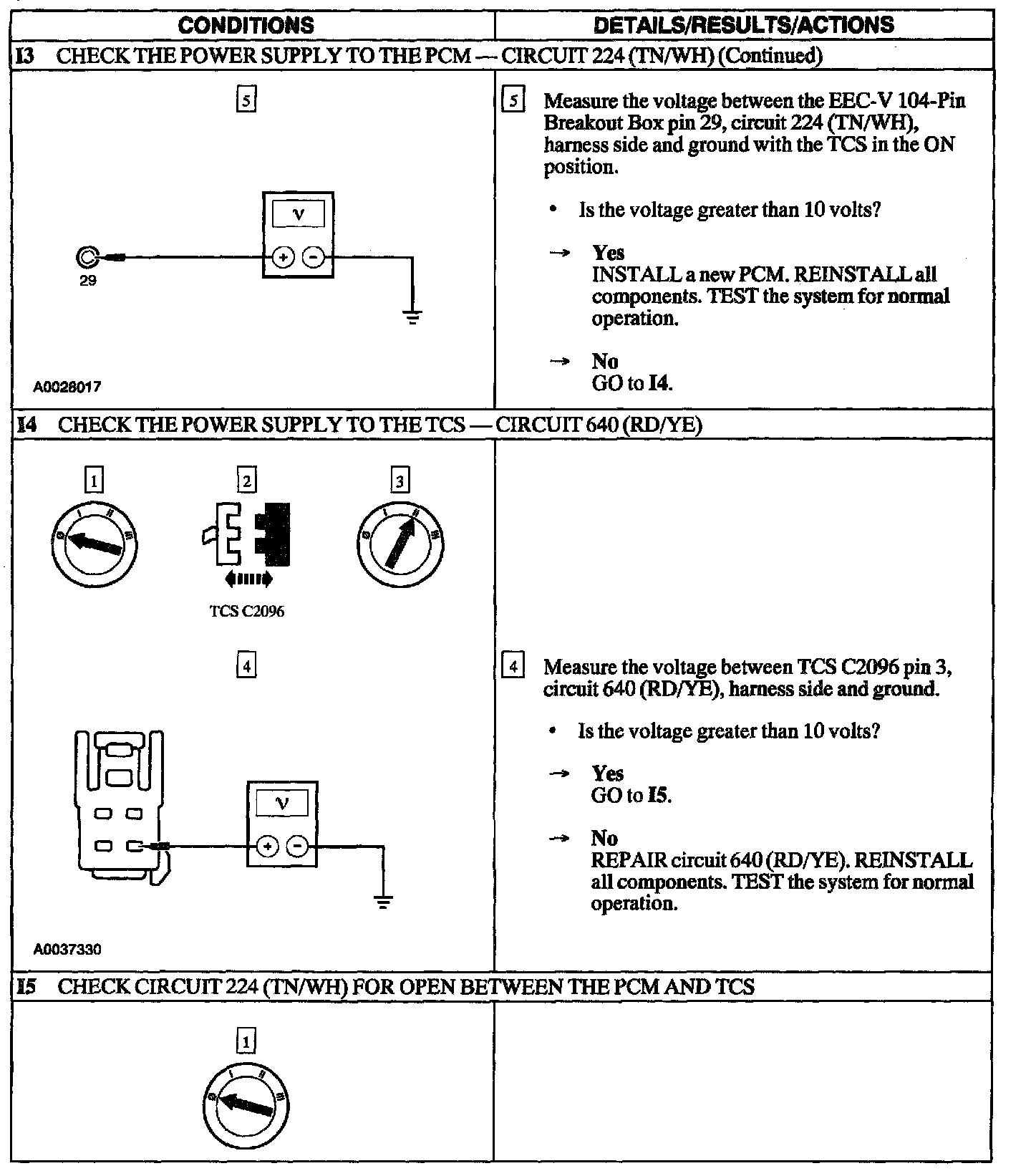

I3 - I5

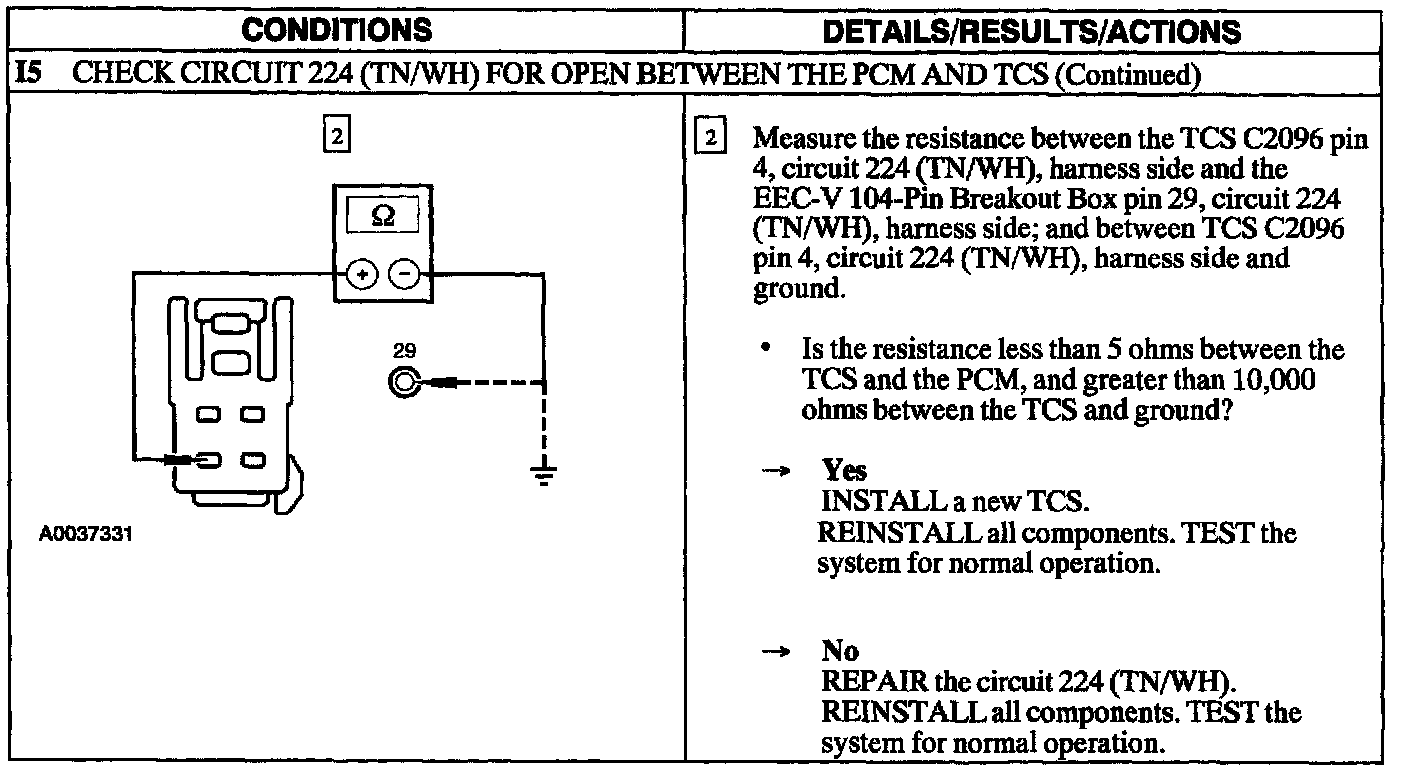

I5
