Test D: Transmission Control Switch (TCS) Doesn't Operate Correctly
Test D: Transmission Control Switch (TCS) Doesn't Operate Correctly
PINPOINT TEST D: THE TRANSMISSION CONTROL SWITCH (TCS) DOES NOT OPERATE CORRECTLY

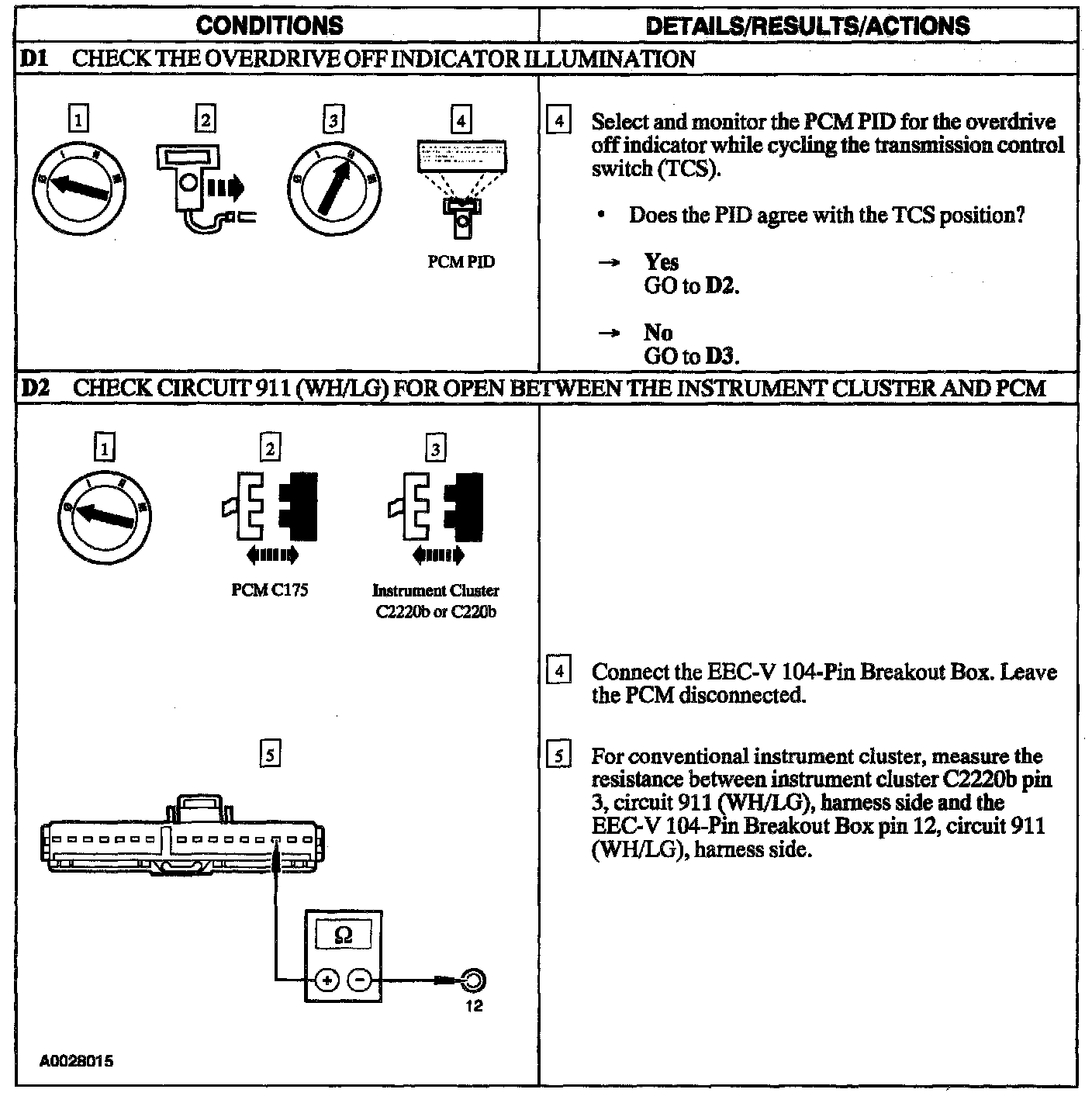

D1 - D3

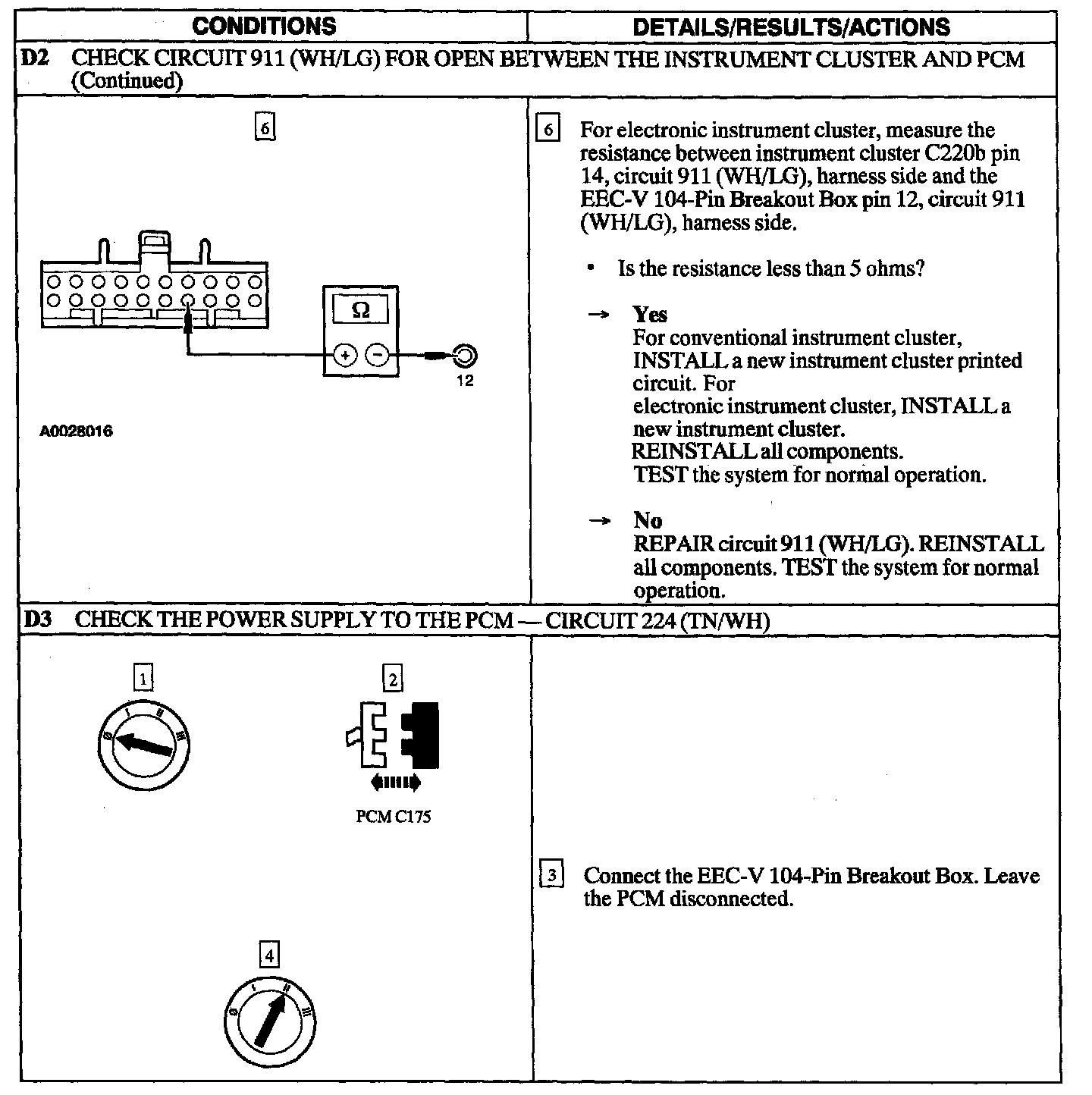

D2 - D3

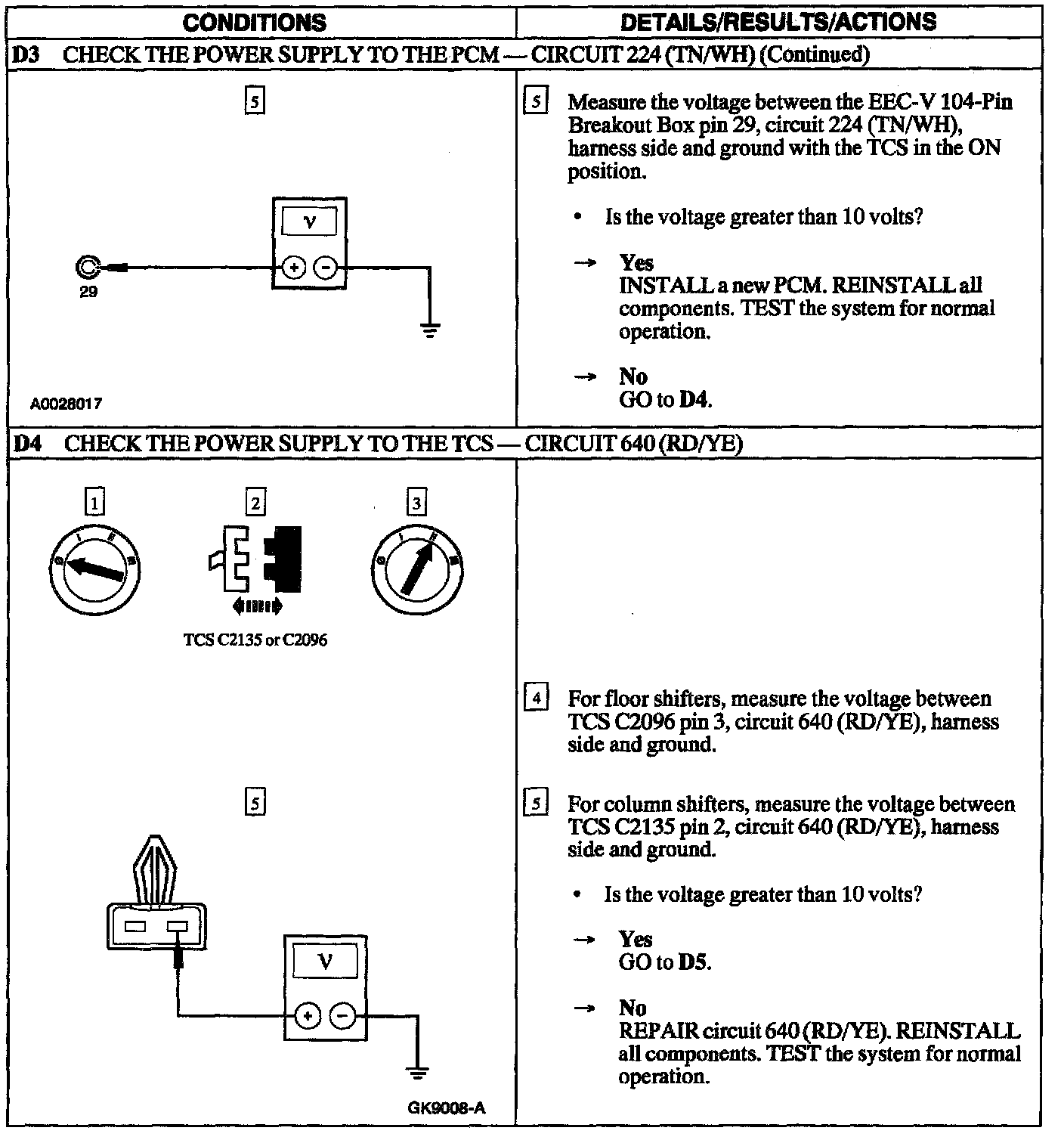

D3 - D4

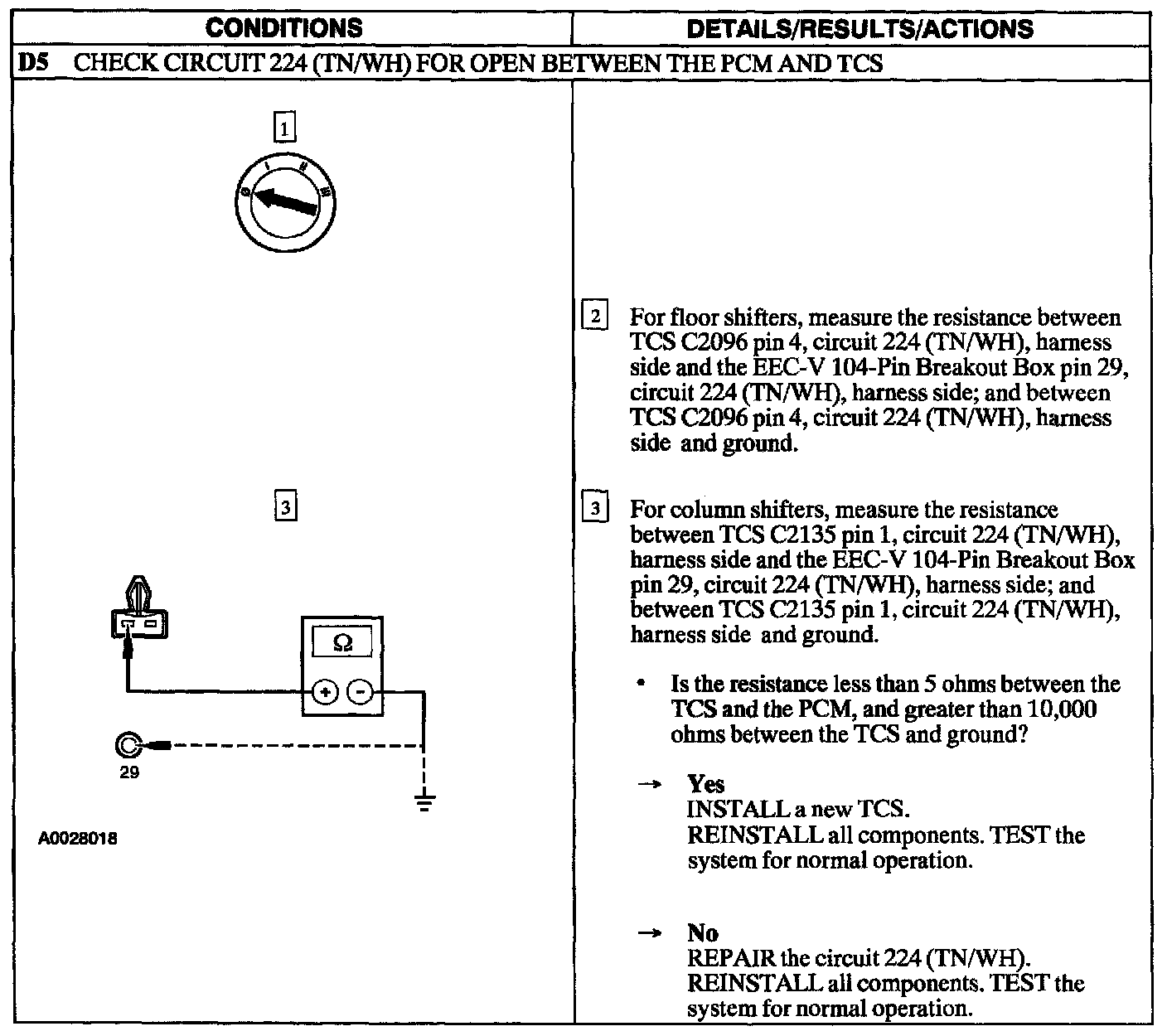

D5
