Shift Solenoids Pre-Diagnosis

Pinpoint Tests-OSC Equipped Vehicles

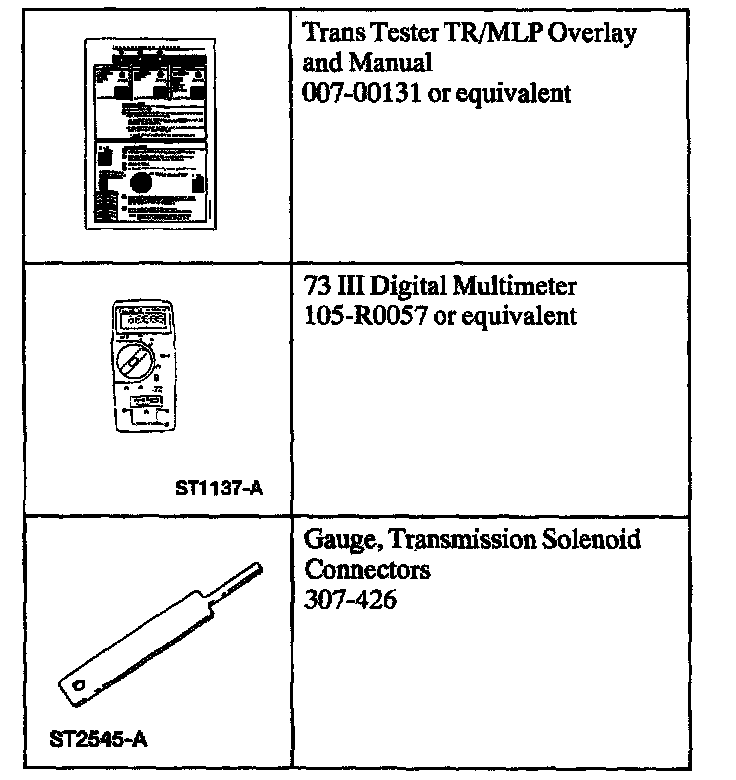

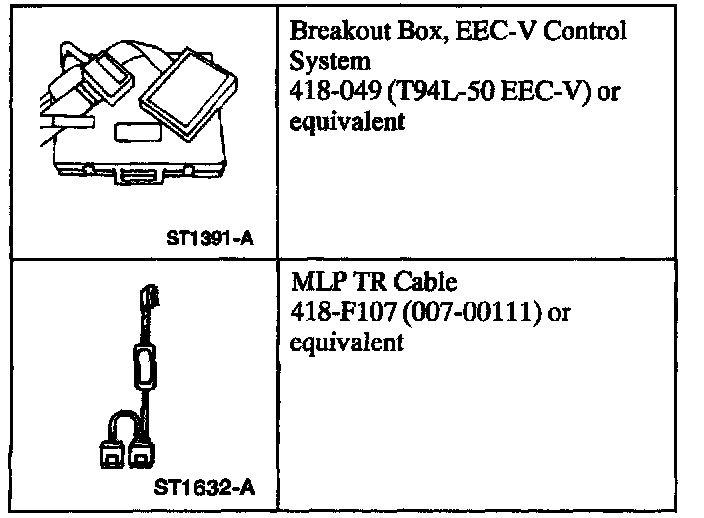

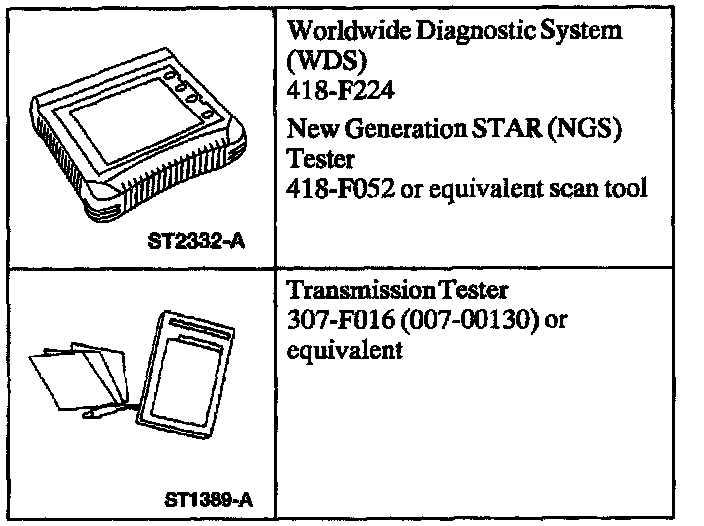

Special Tool(s)

Any time an electrical connector or solenoid body is disconnected, inspect the connector for pin condition, corrosion and contamination. Also inspect the connector seal for damage. Clean, repair or install a new component as required.

Shift Solenoids Pre-Diagnosis
Use the following shift solenoid operation information when carrying out Pinpoint Test A.

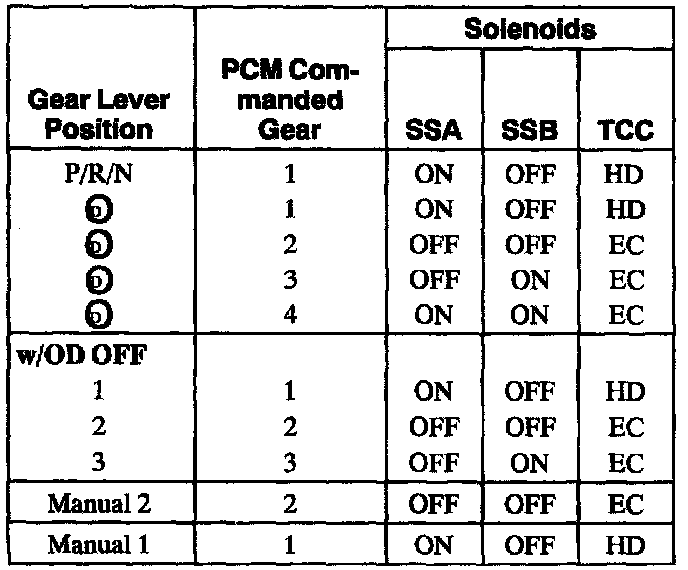

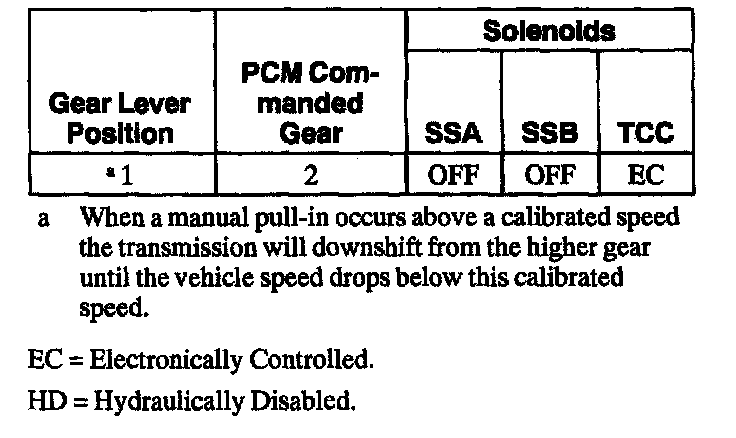

Solenoid Operation Chart
