Test A: Shift and Torque Converter Clutch Solenoids

PINPOINT TEST A: SHIFT AND TORQUE CONVERTER CLUTCH SOLENOIDS

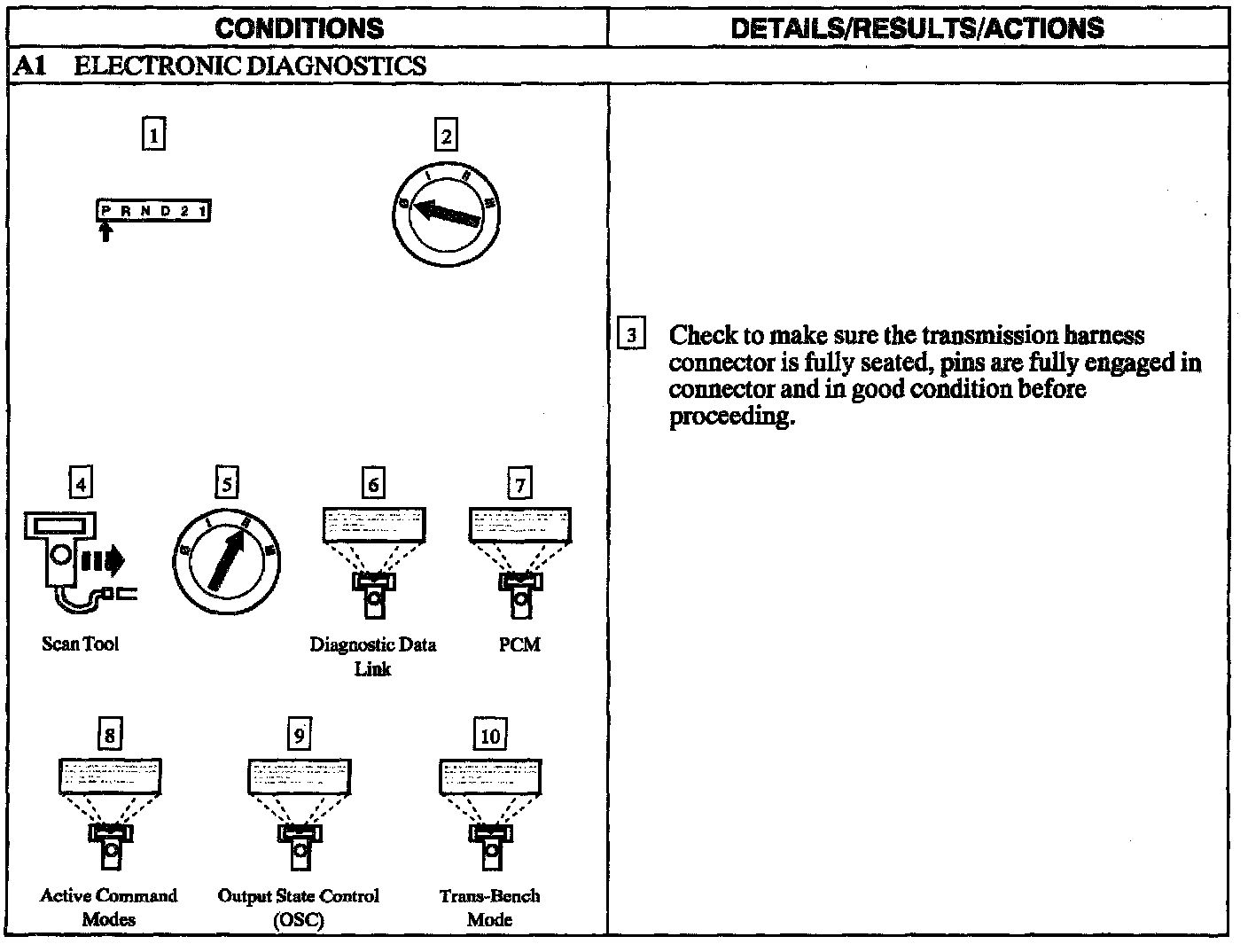

A1

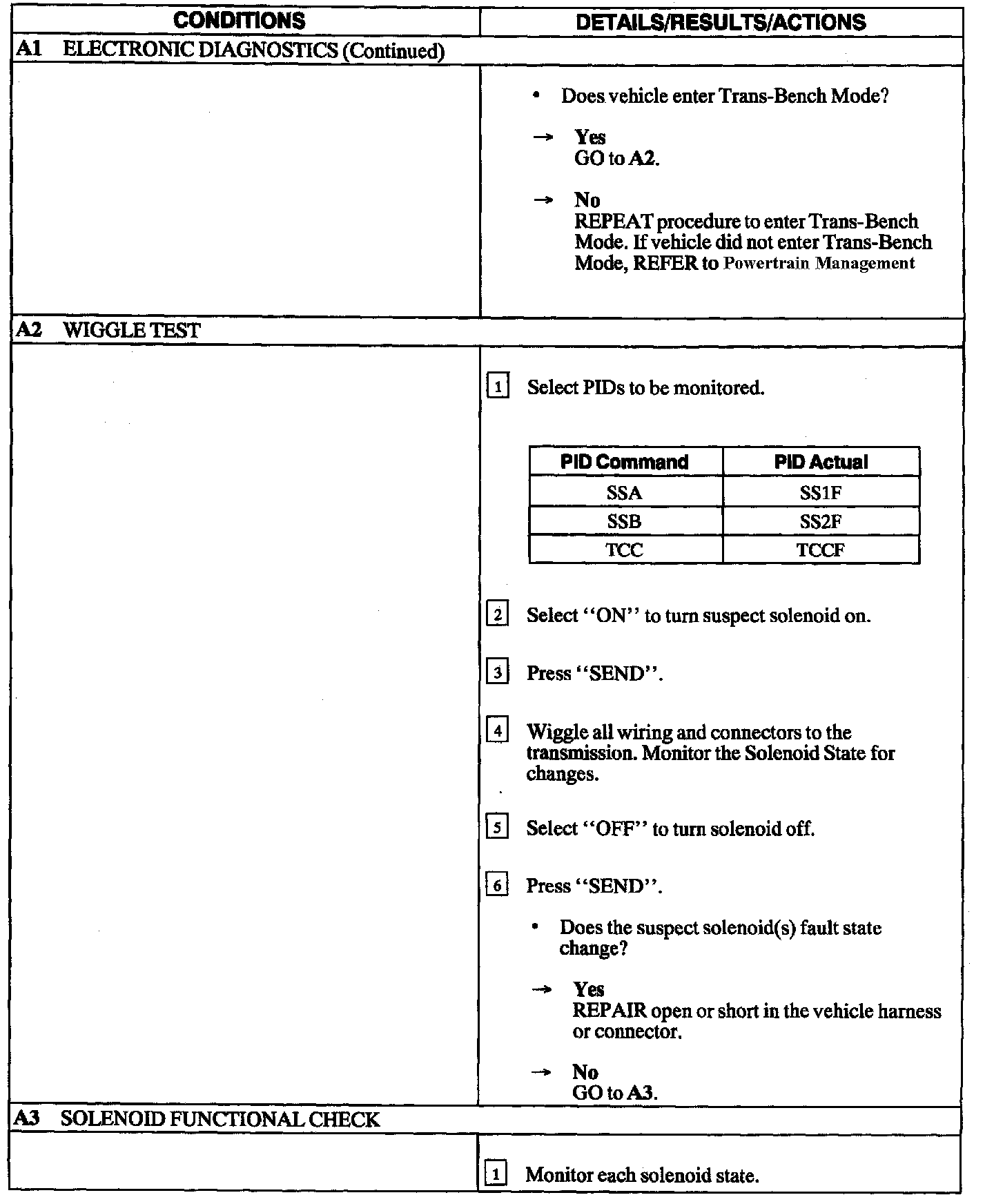

A1 - A3

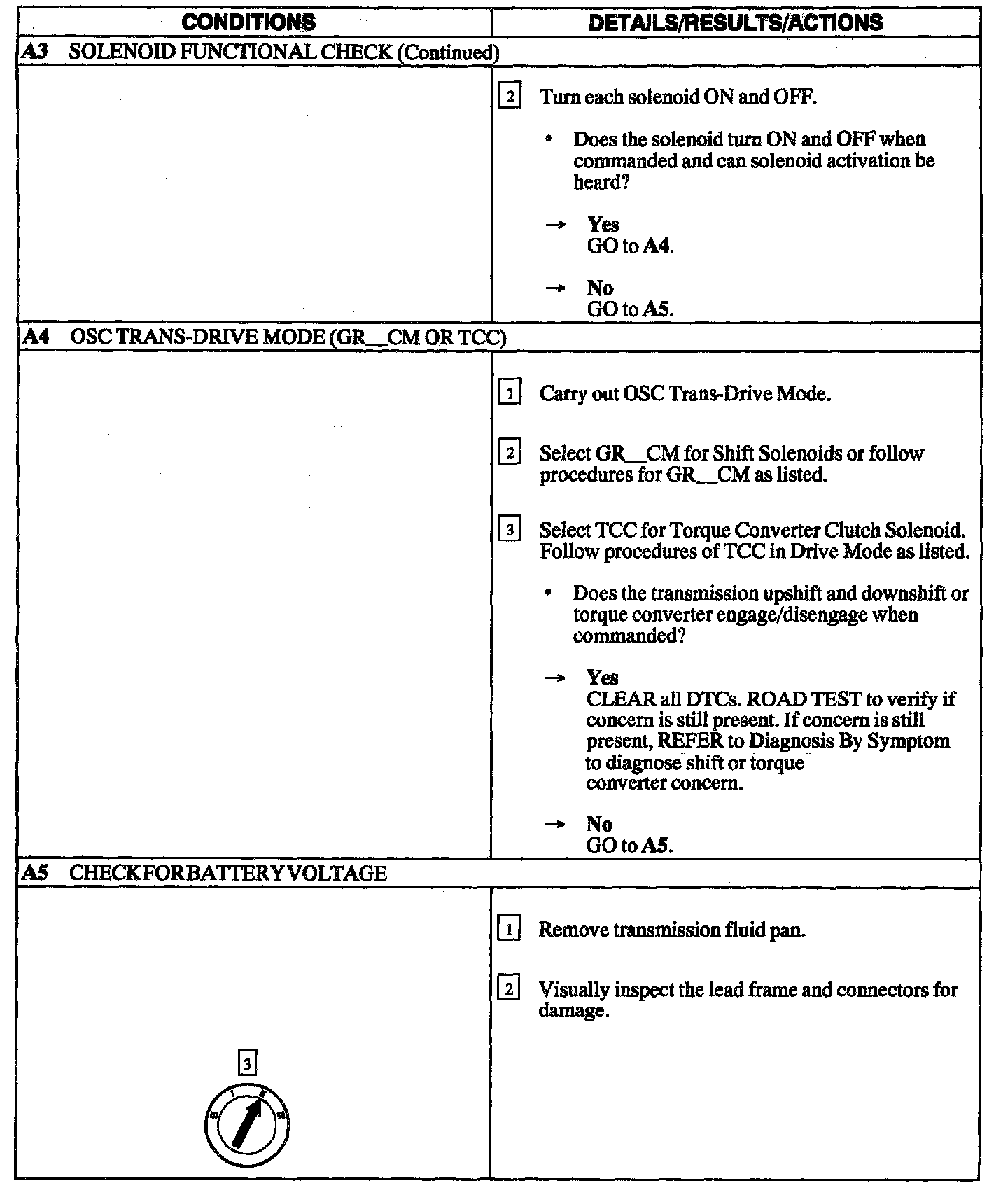

A3 - A5

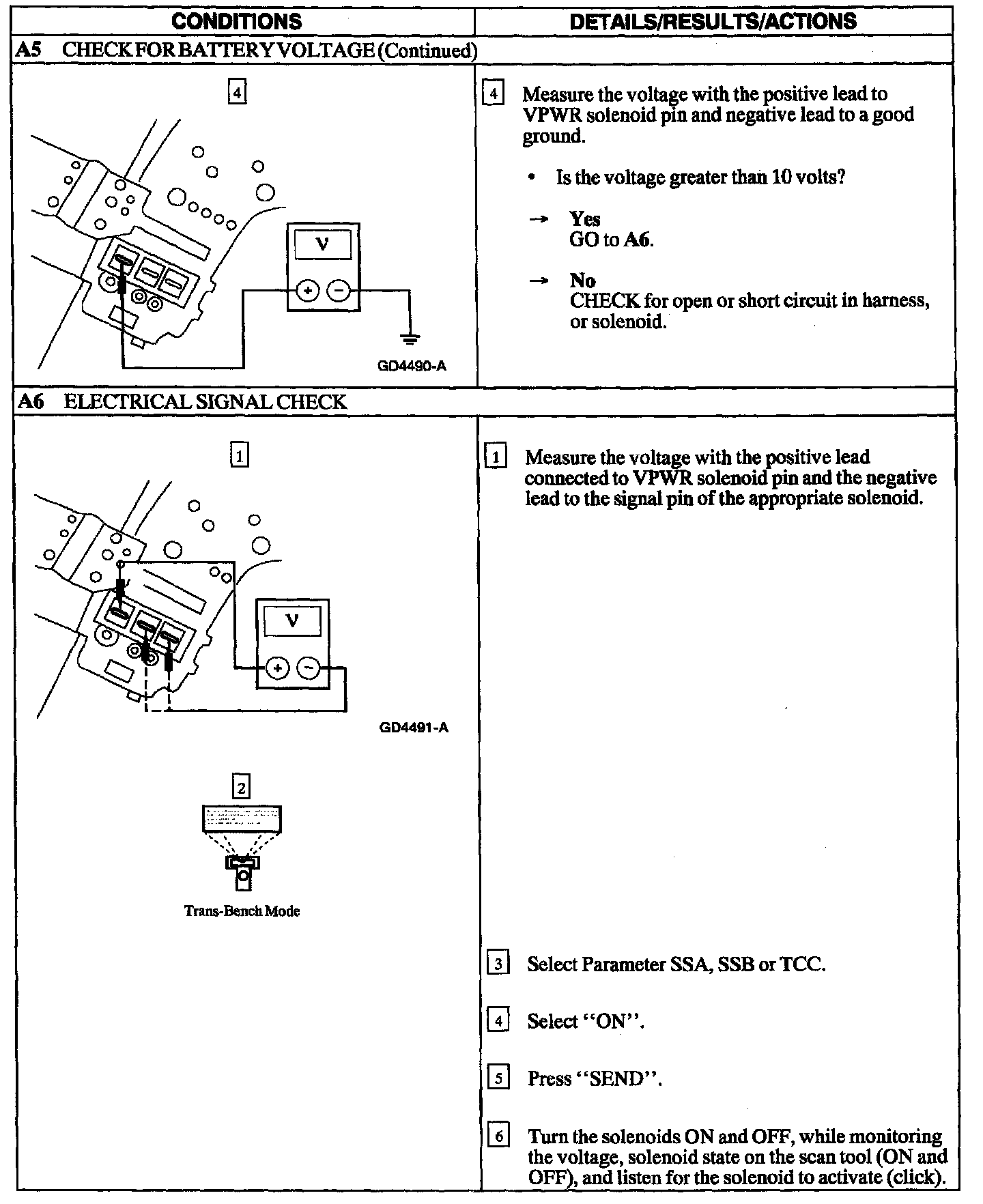

A5 - A6

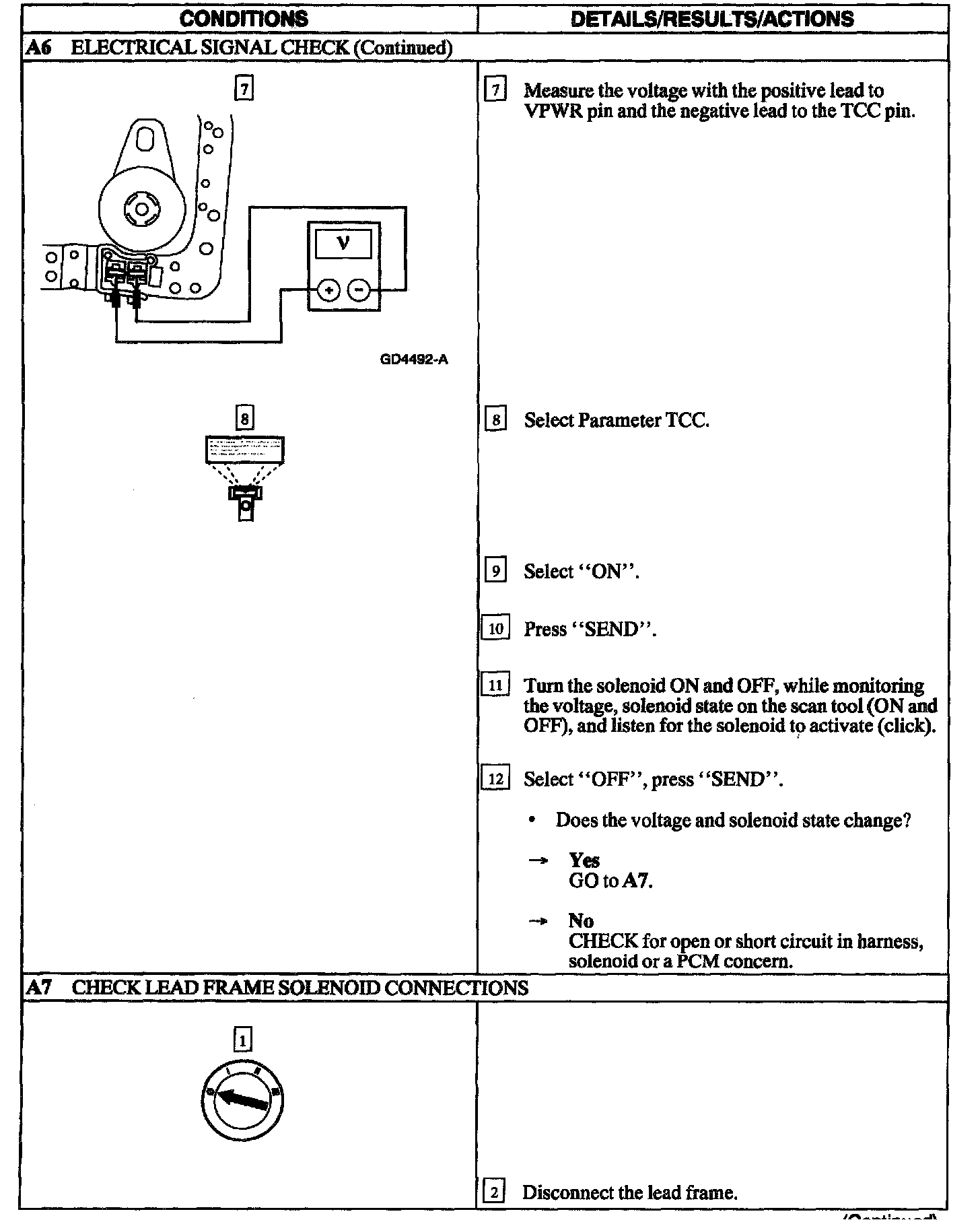

A6 - A7

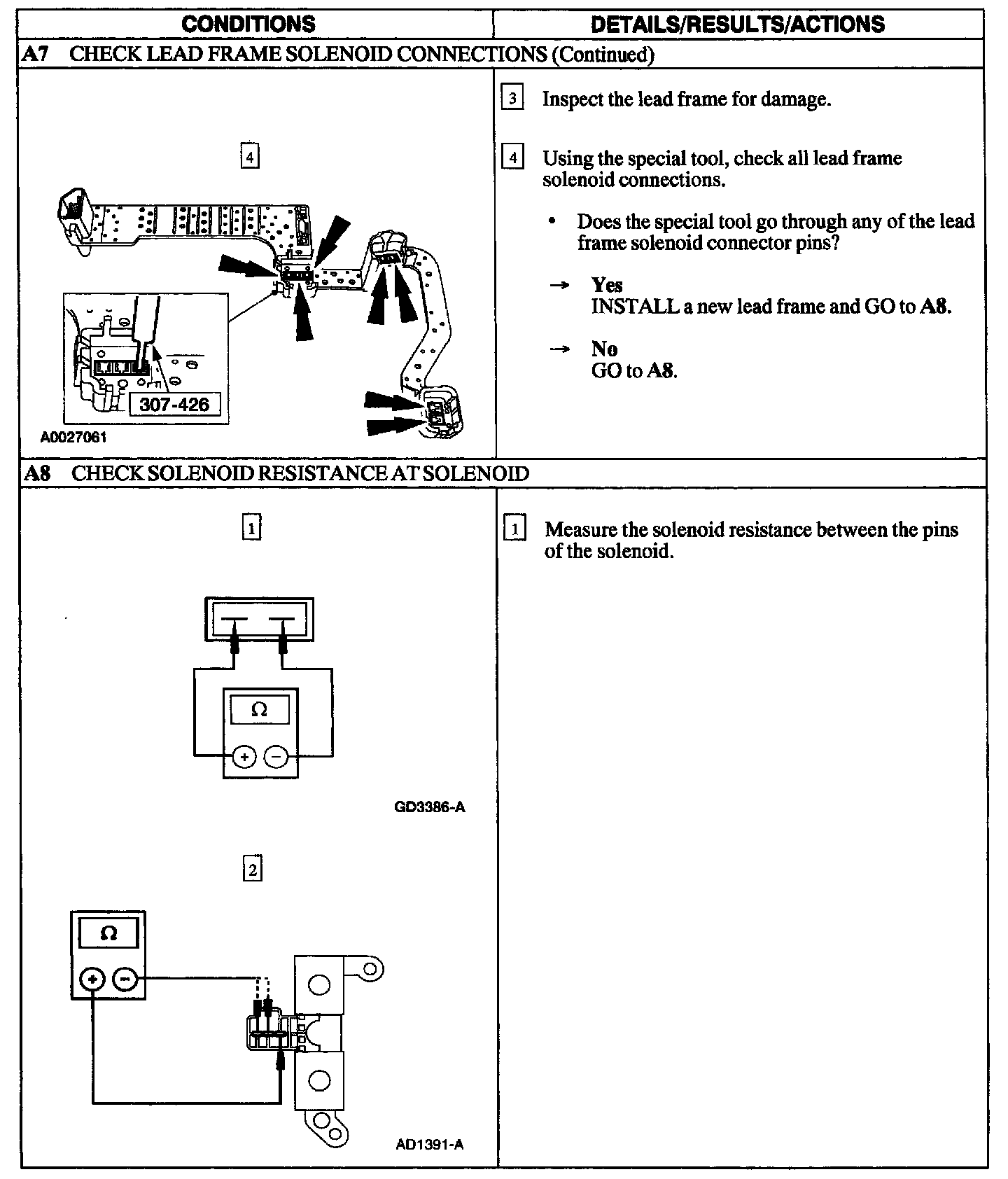

A7 - A8

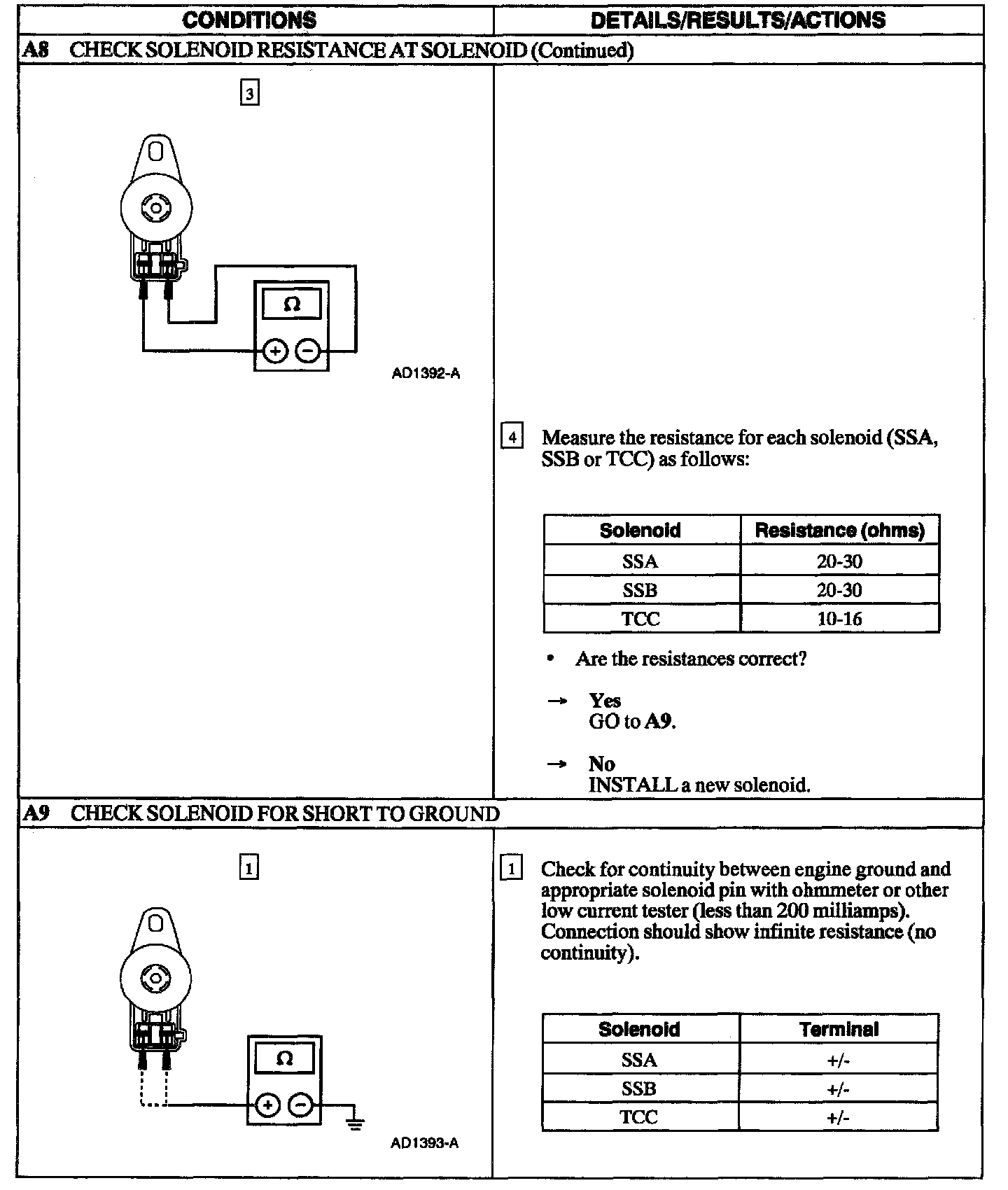

A8 - A9

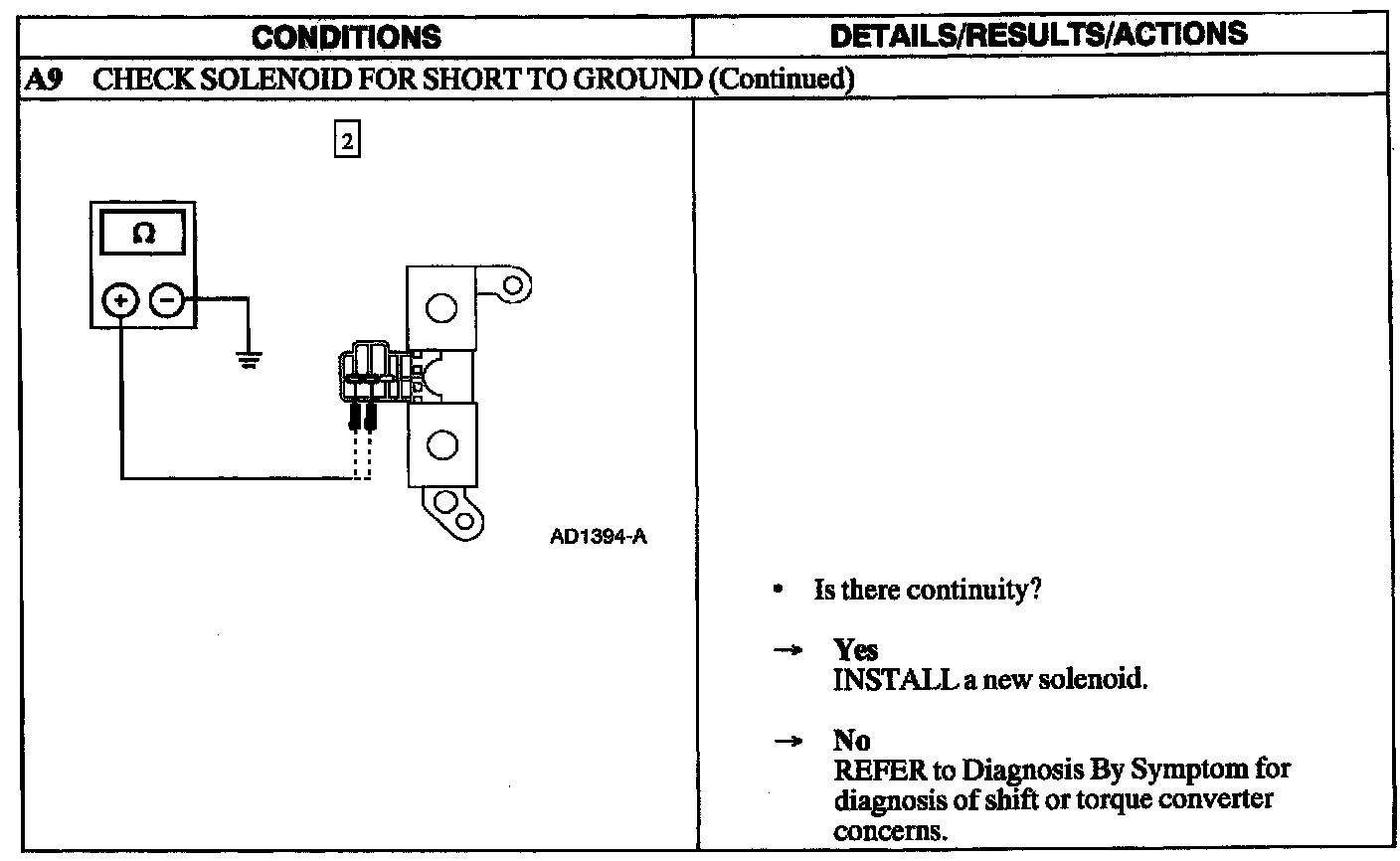

A9

NOTE: Read and record all DTCs. All Digital TR Sensor and VSS DTCs must be repaired before entering Output State Control (OSC).

NOTE: Refer to the Transmission Internal Harness illustration.

NOTE: Refer to the Transmission Vehicle Harness Connector illustration.
