Test B: Transmission Fluid Temperature (TFT) Sensor

PINPOINT TEST B: TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR

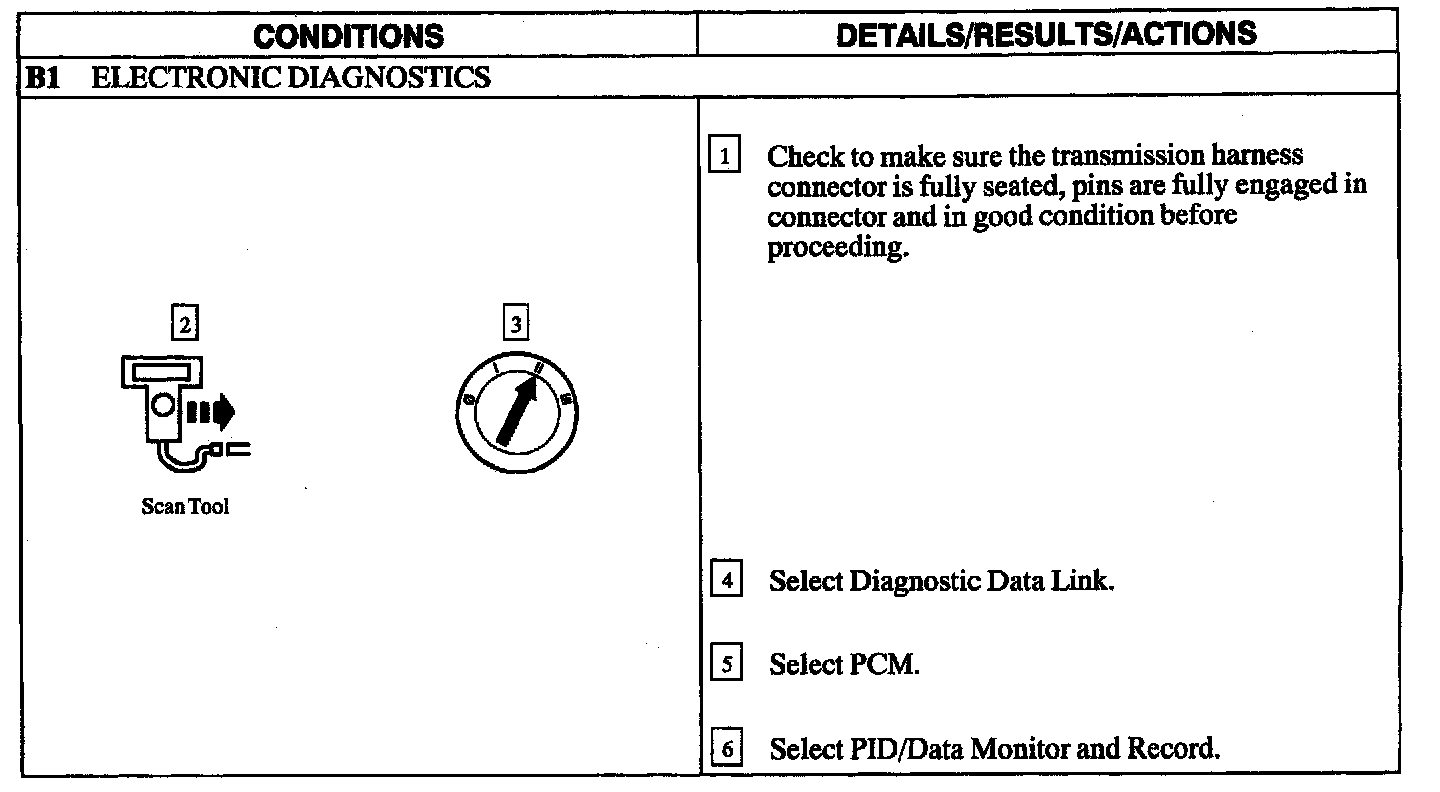

B1

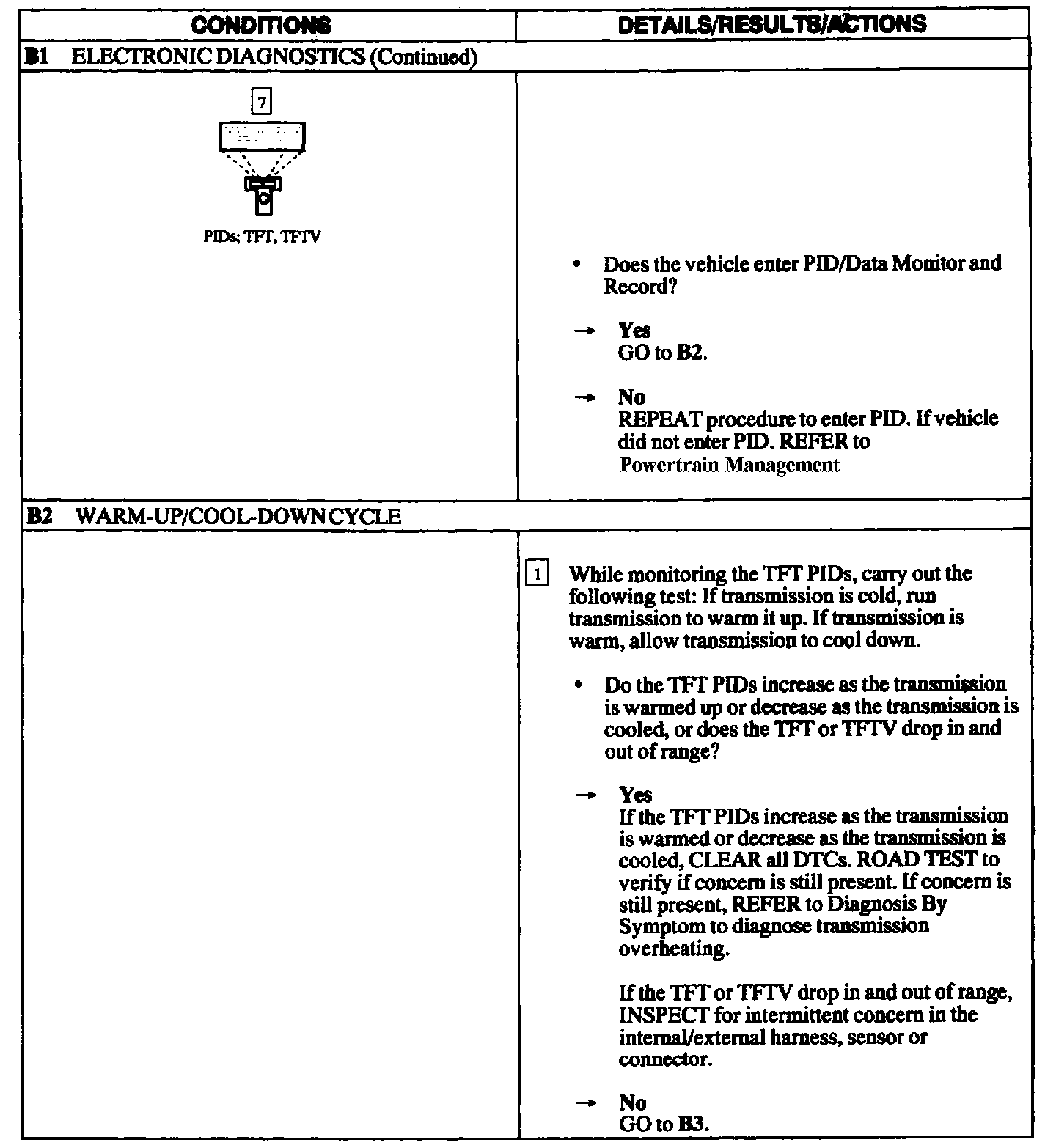

B1 - B2

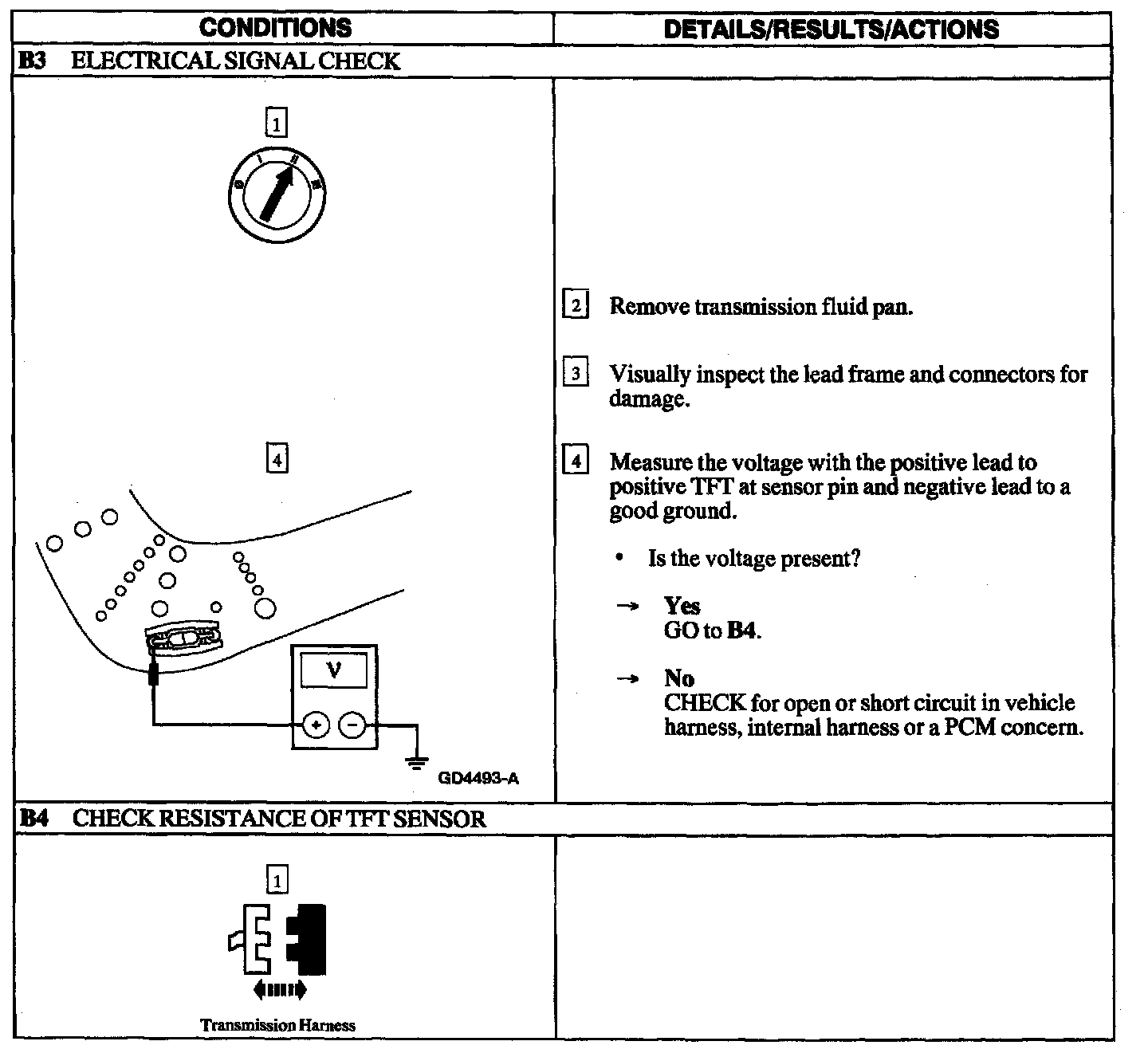

B3 - B4

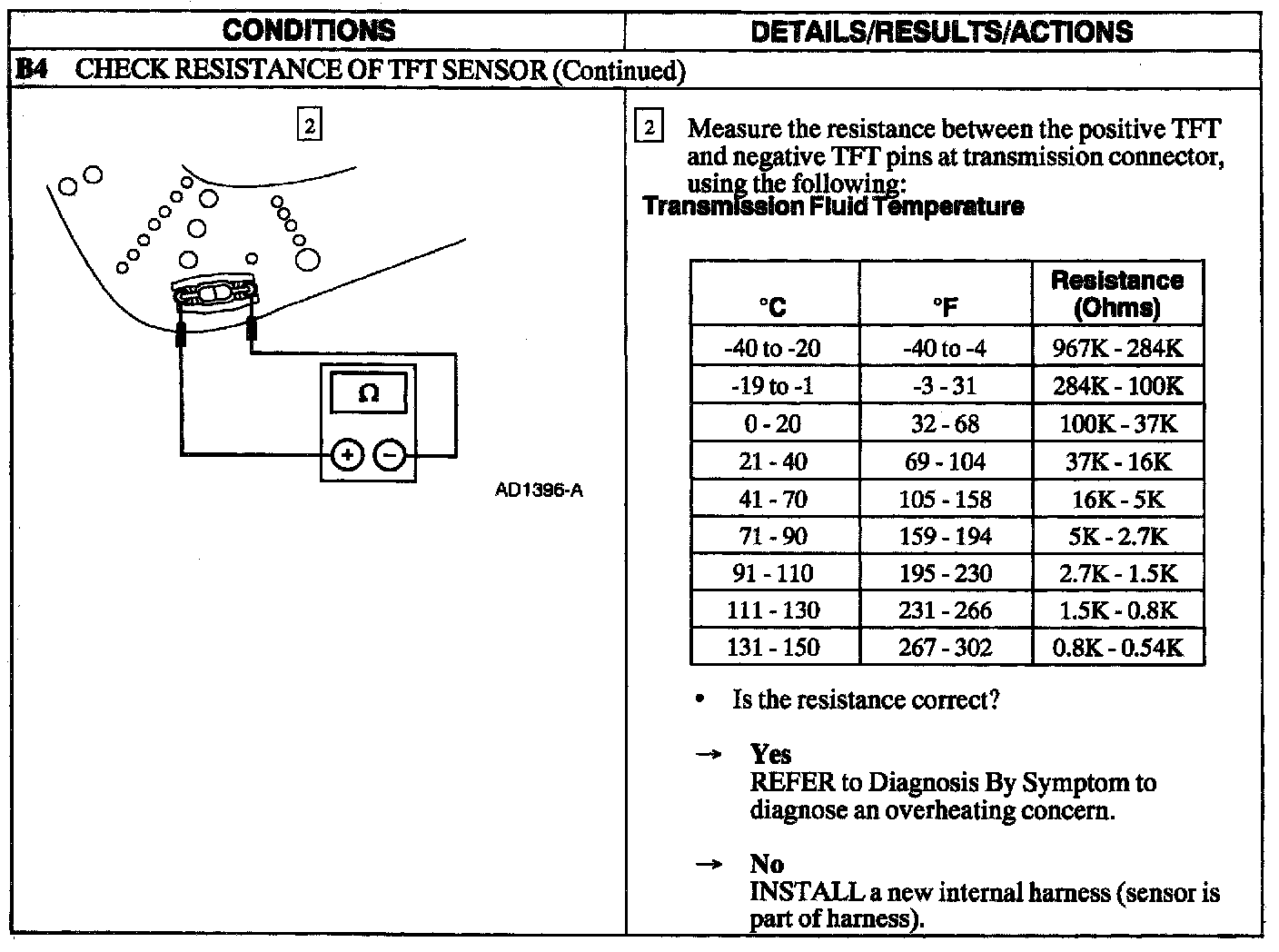

B4

NOTE: Refer to the Transmission Connector layouts.
