Test C: Digital Transmission Range (TR) Sensor

PINPOINT TEST C: DIGITAL TRANSMISSION RANGE (TR) SENSOR





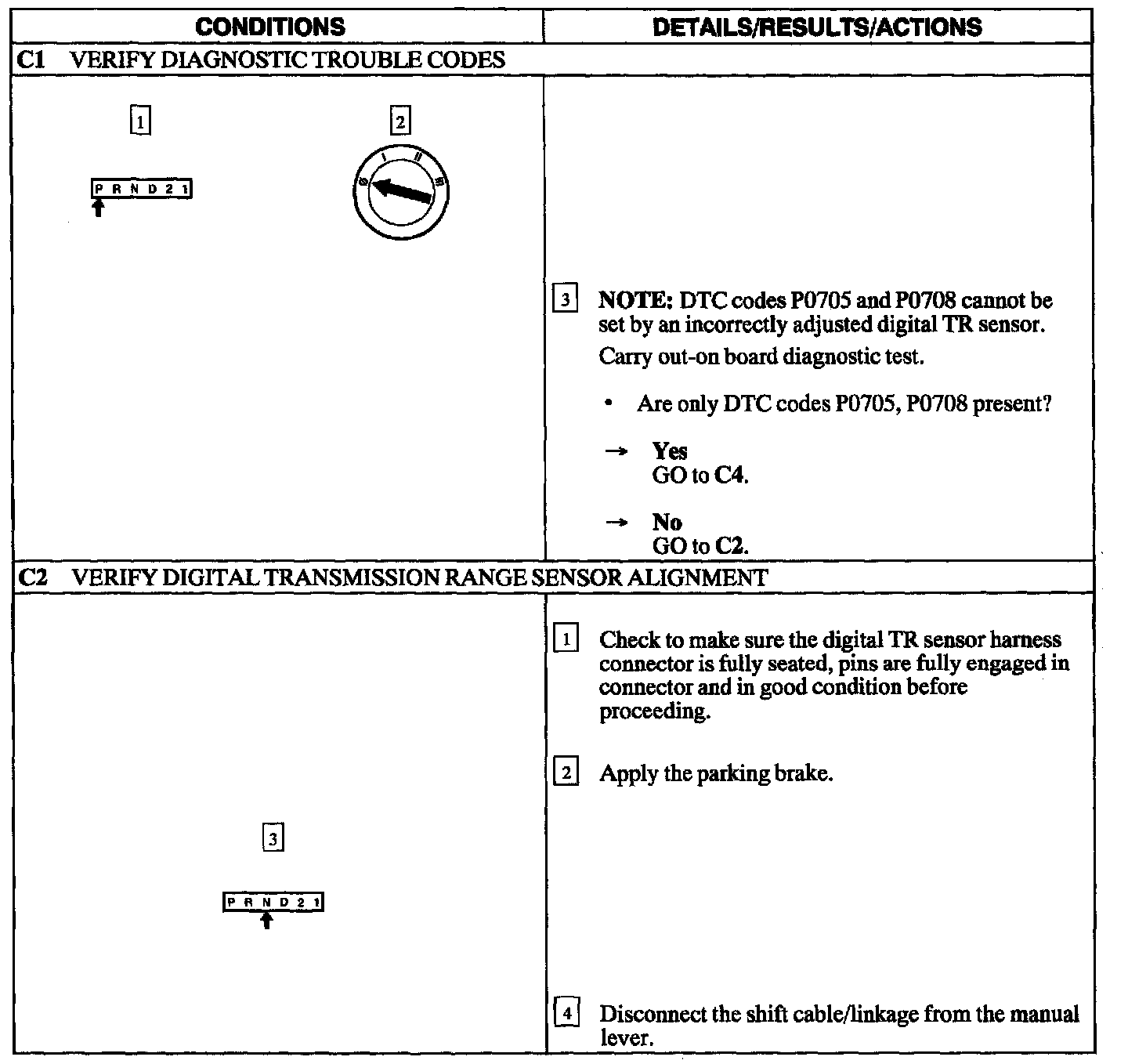

C1 - C2





C2 - C3





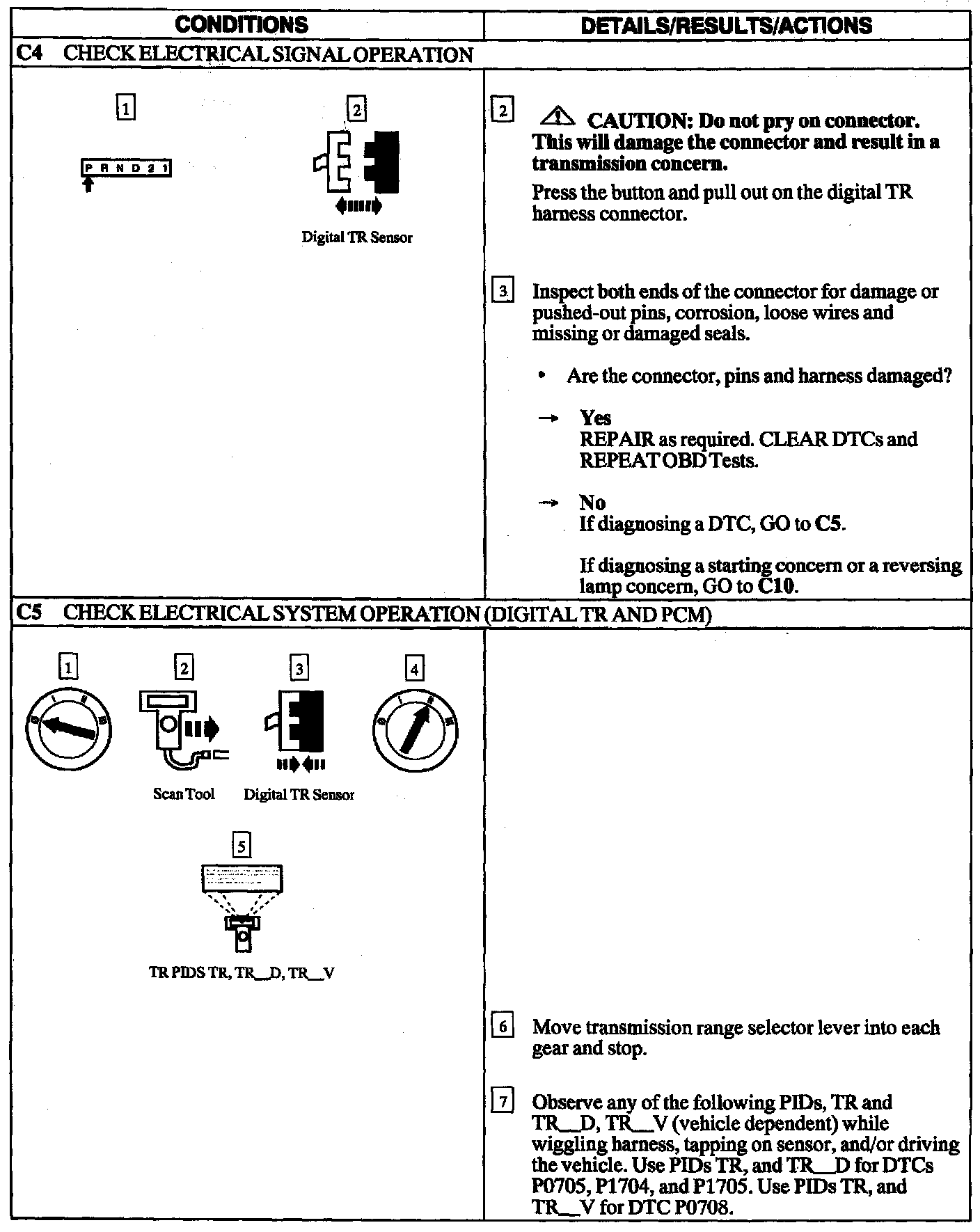

C4 - C5





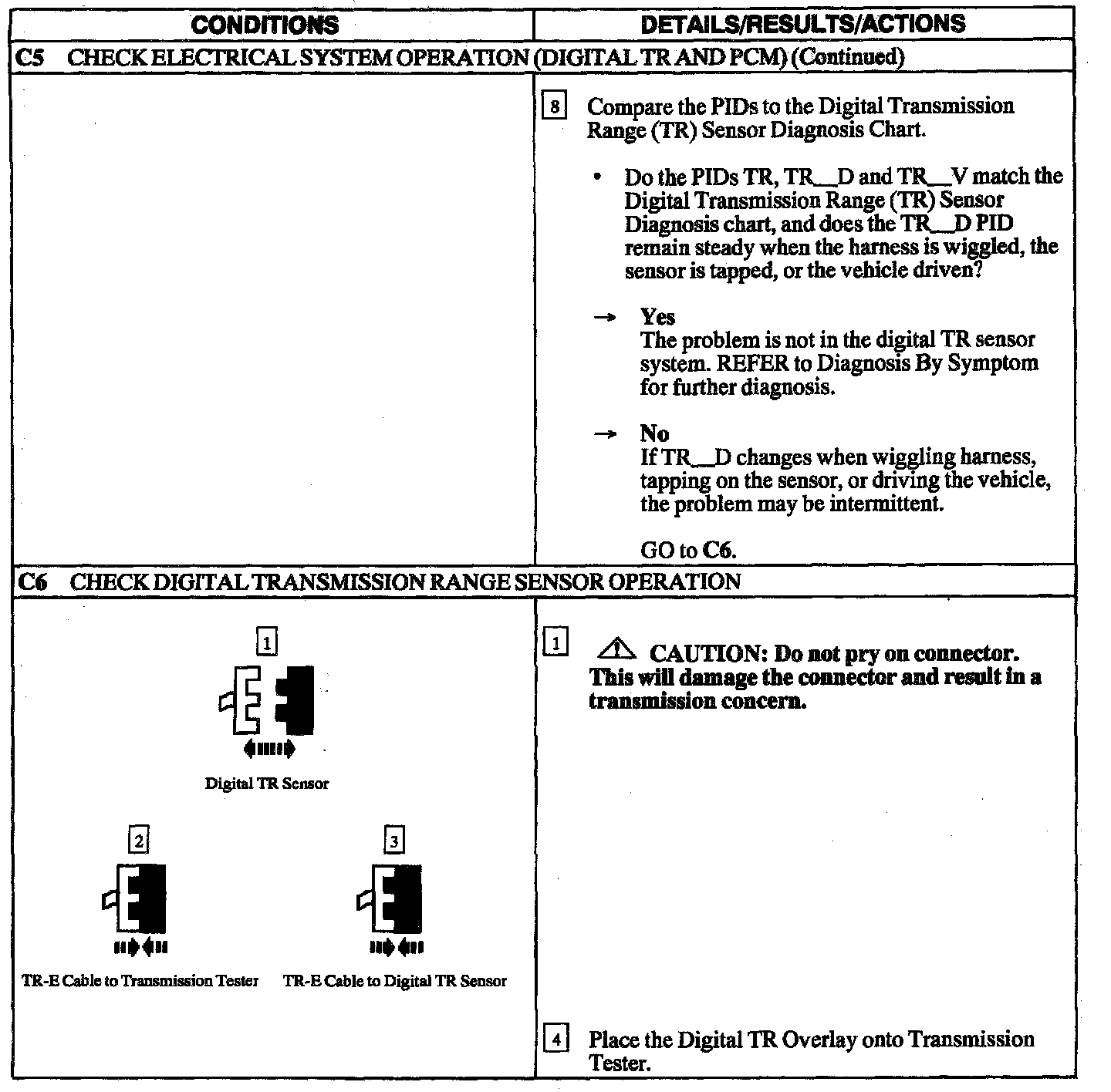

C5 - C6





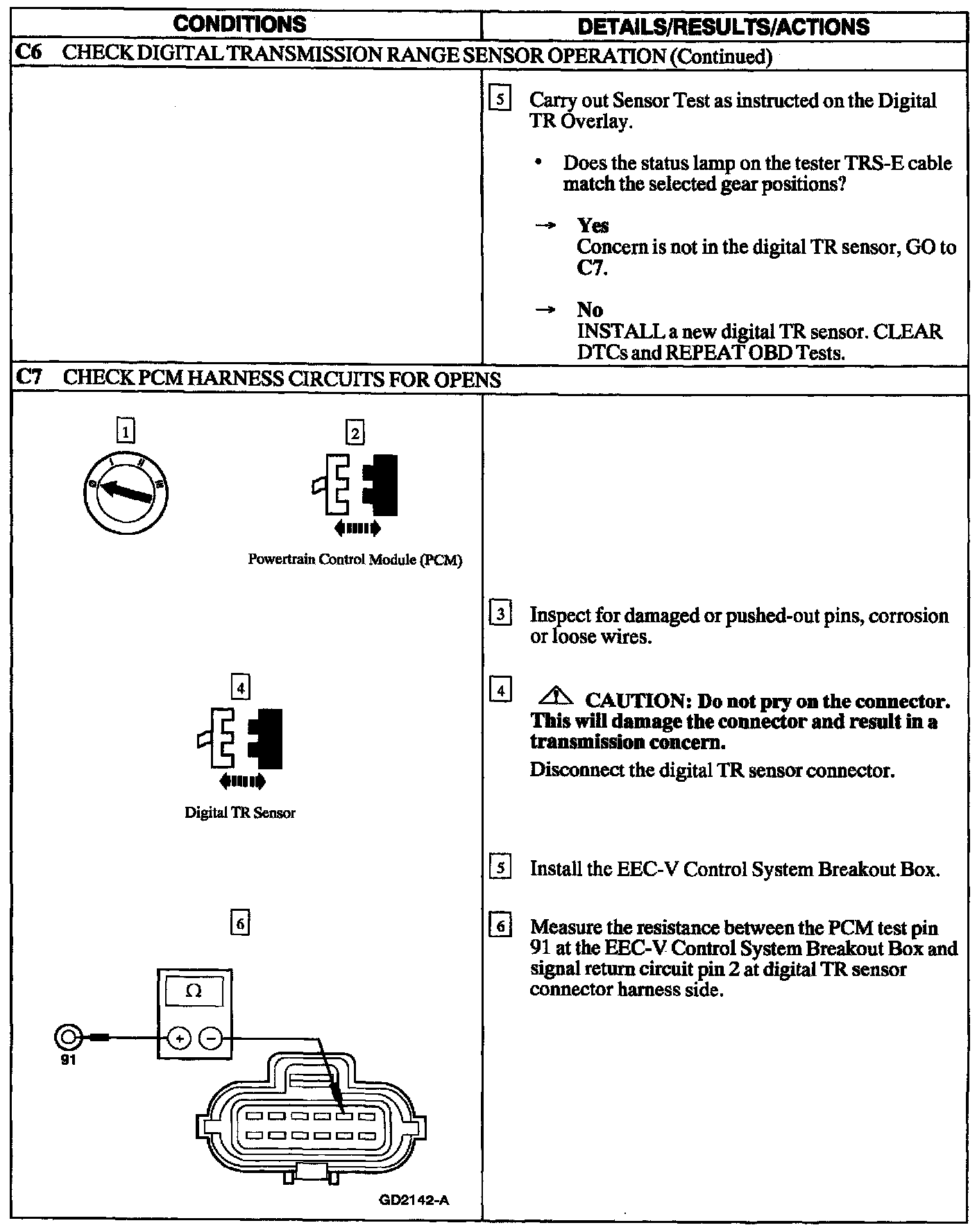

C6 - C7





C7





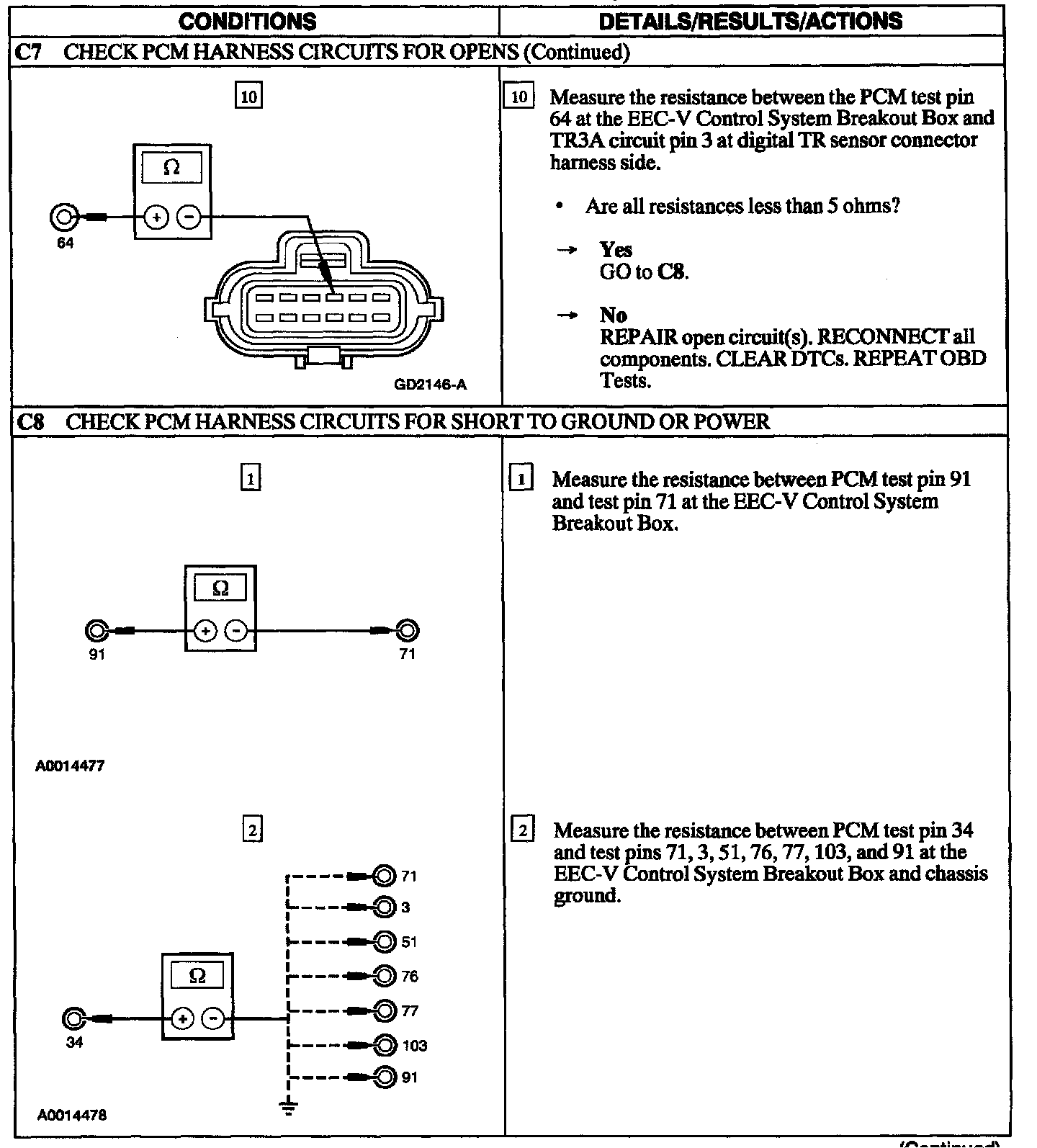

C7 - C8





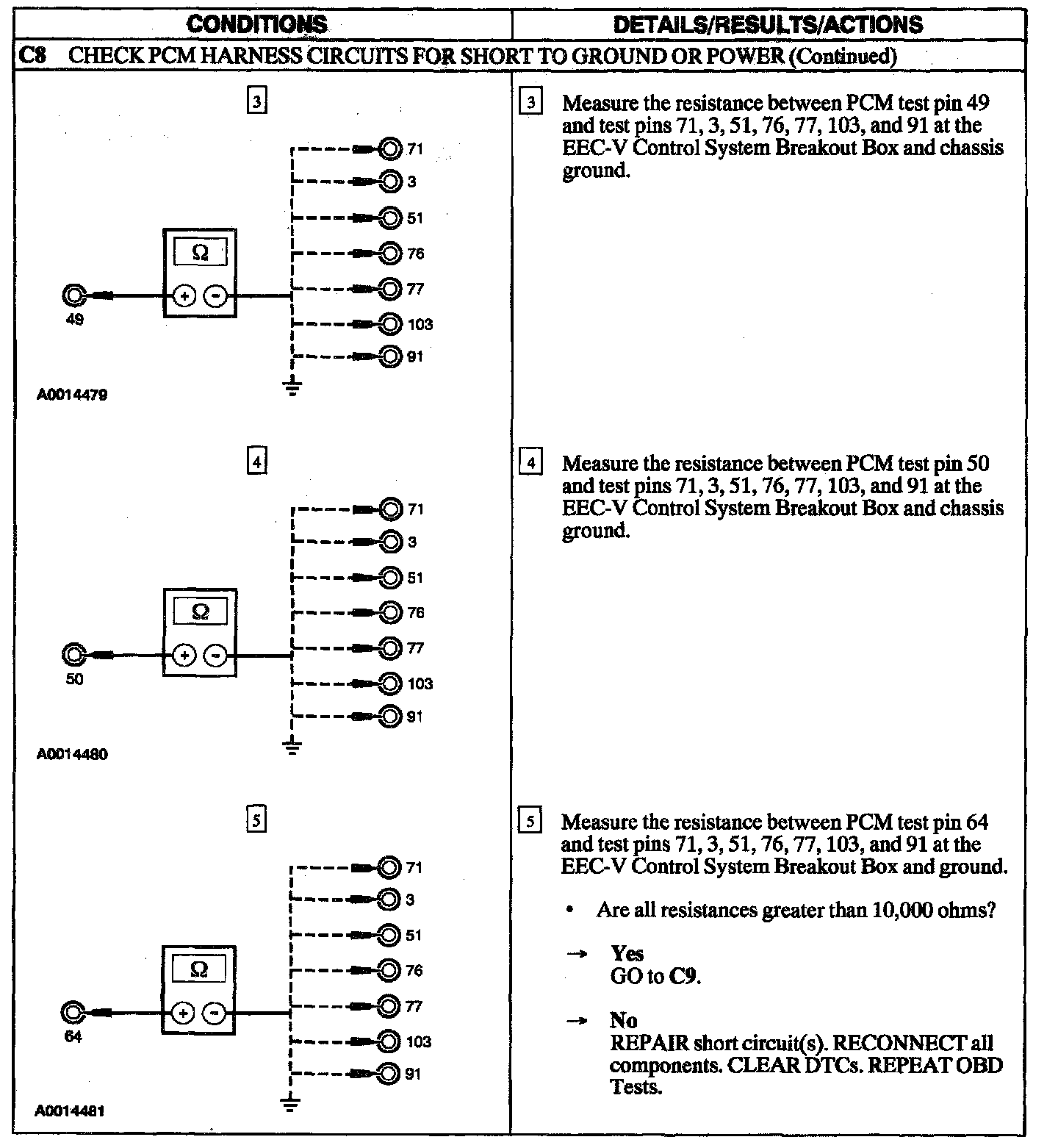

C8





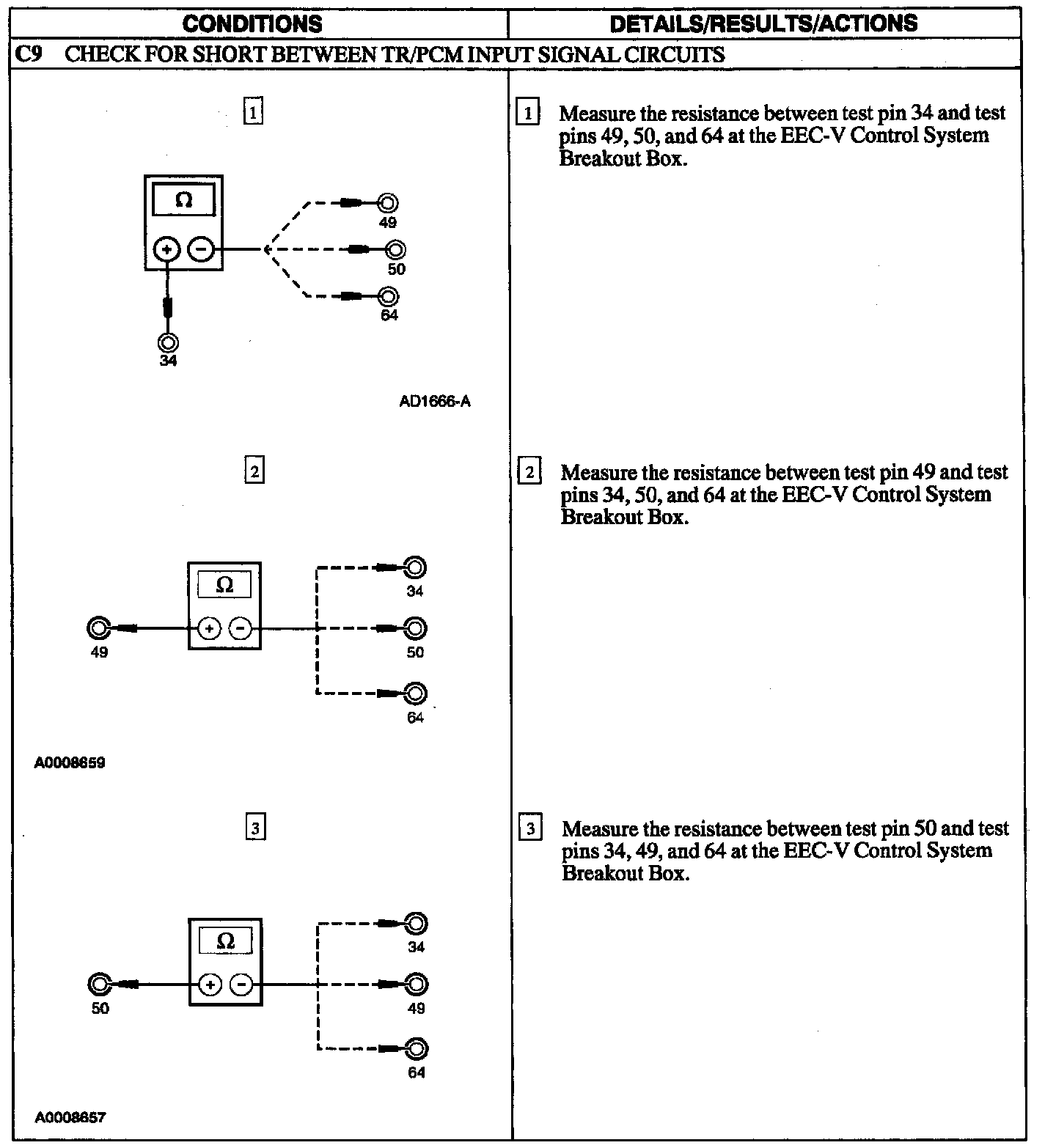

C9





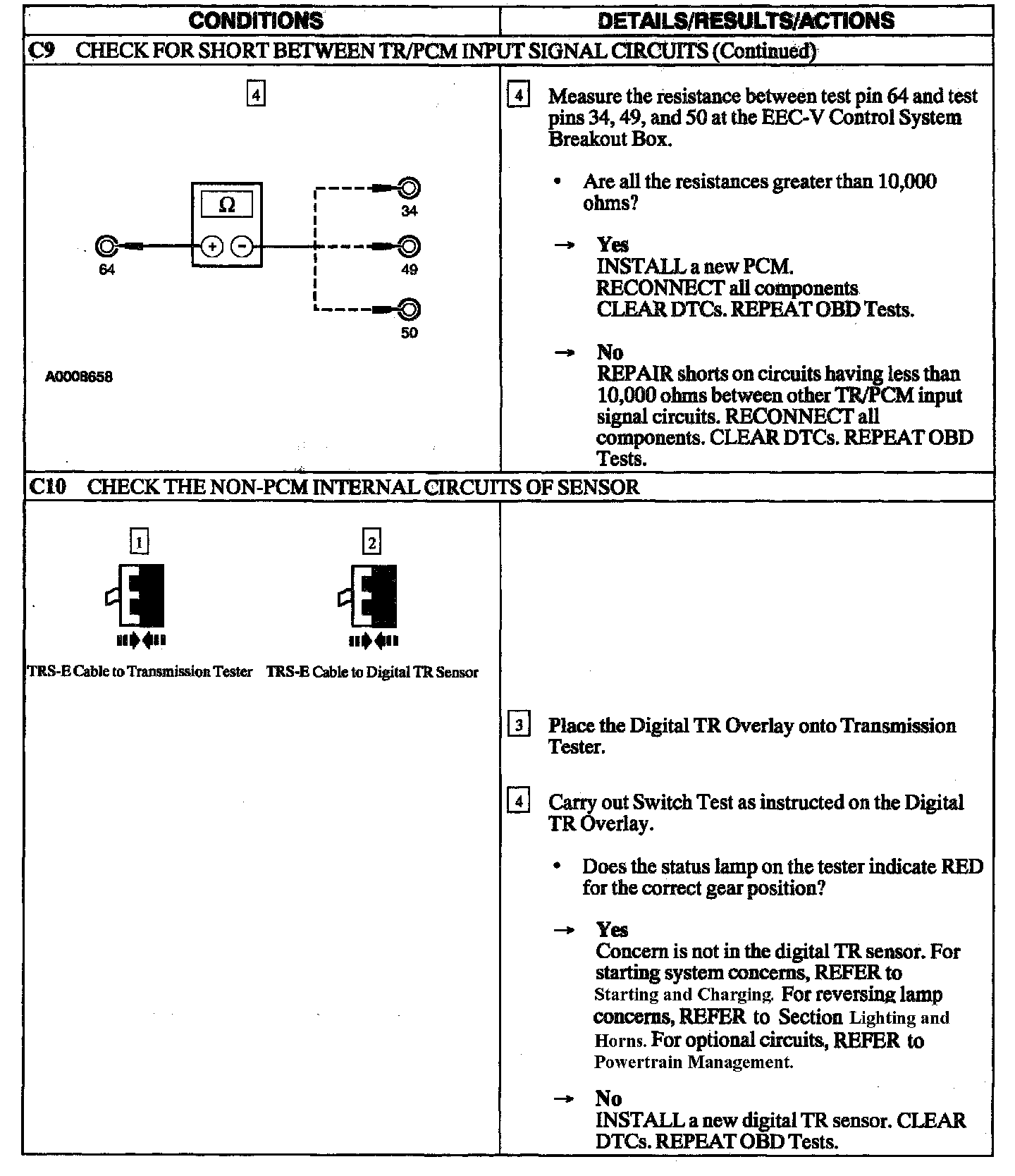

C9 - C10

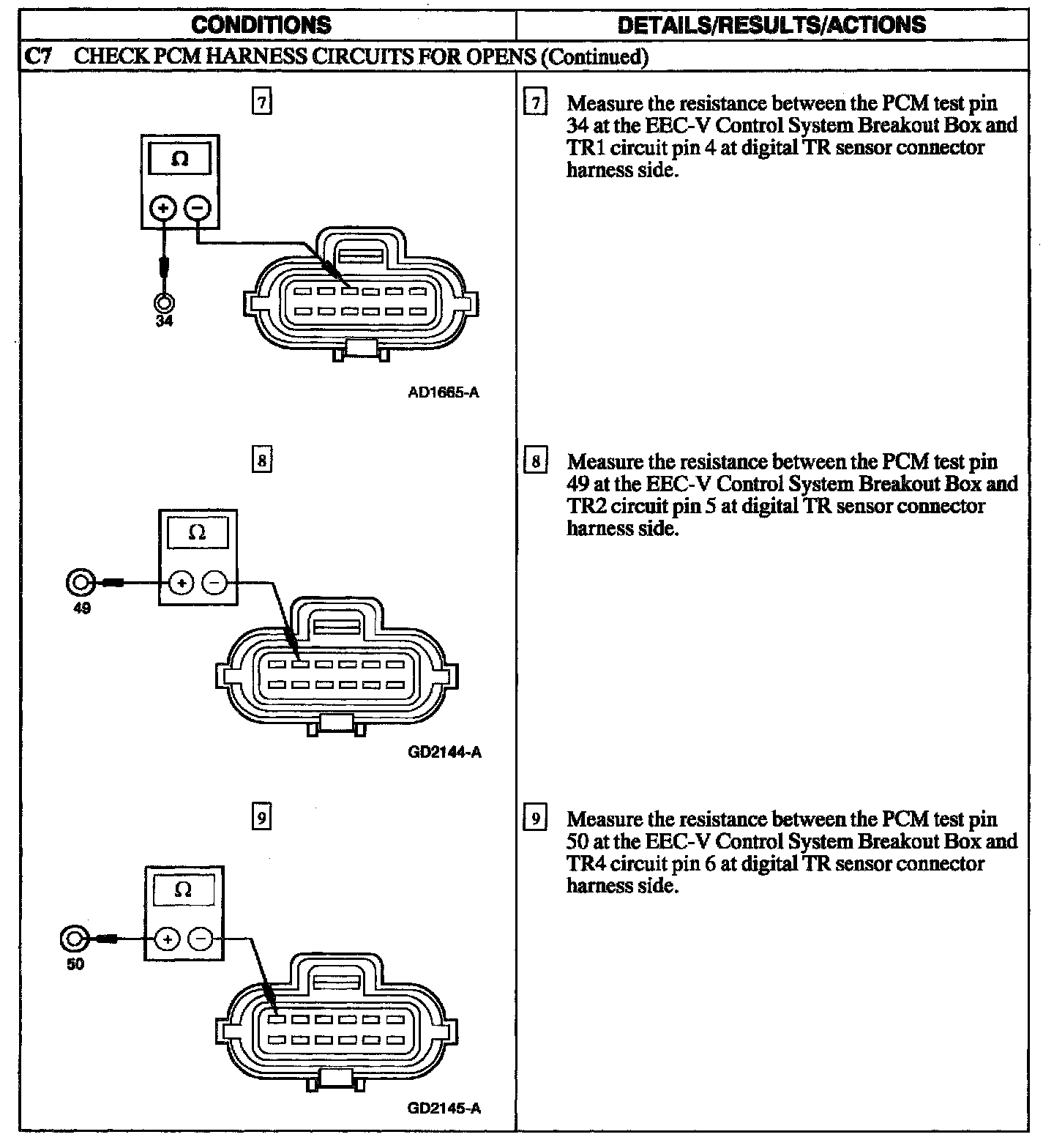

NOTE: Refer to the Digital Transmission Range (TR) Sensor Connector illustration.

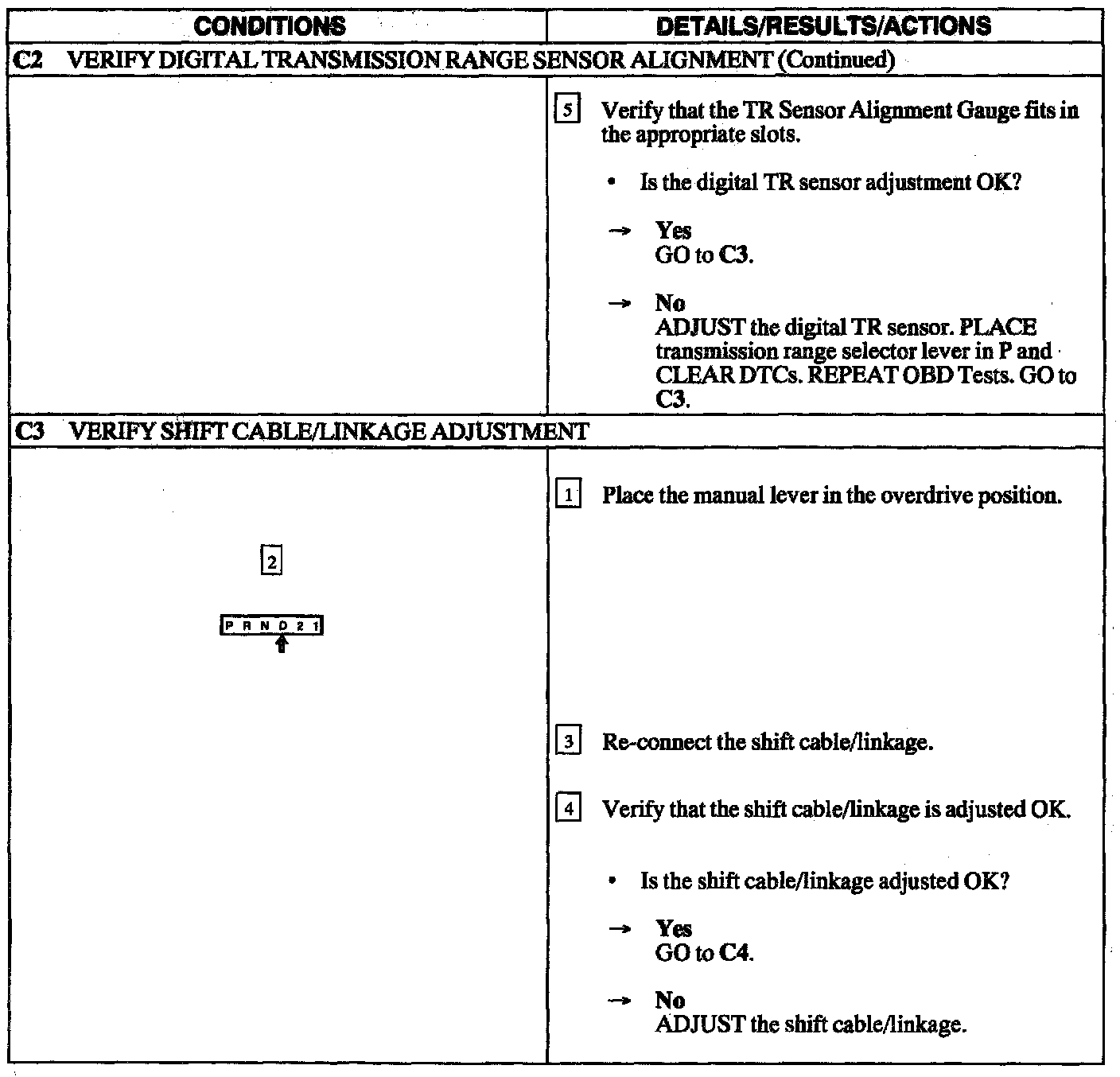

NOTE: Refer to the Digital Transmission Range (TR) Sensor Diagnosis chart
