Test D: Electronic Pressure Control (EPC) Solenoid

PINPOINT TEST D: ELECTRICAL PRESSURE CONTROL (EPC) SOLENOID

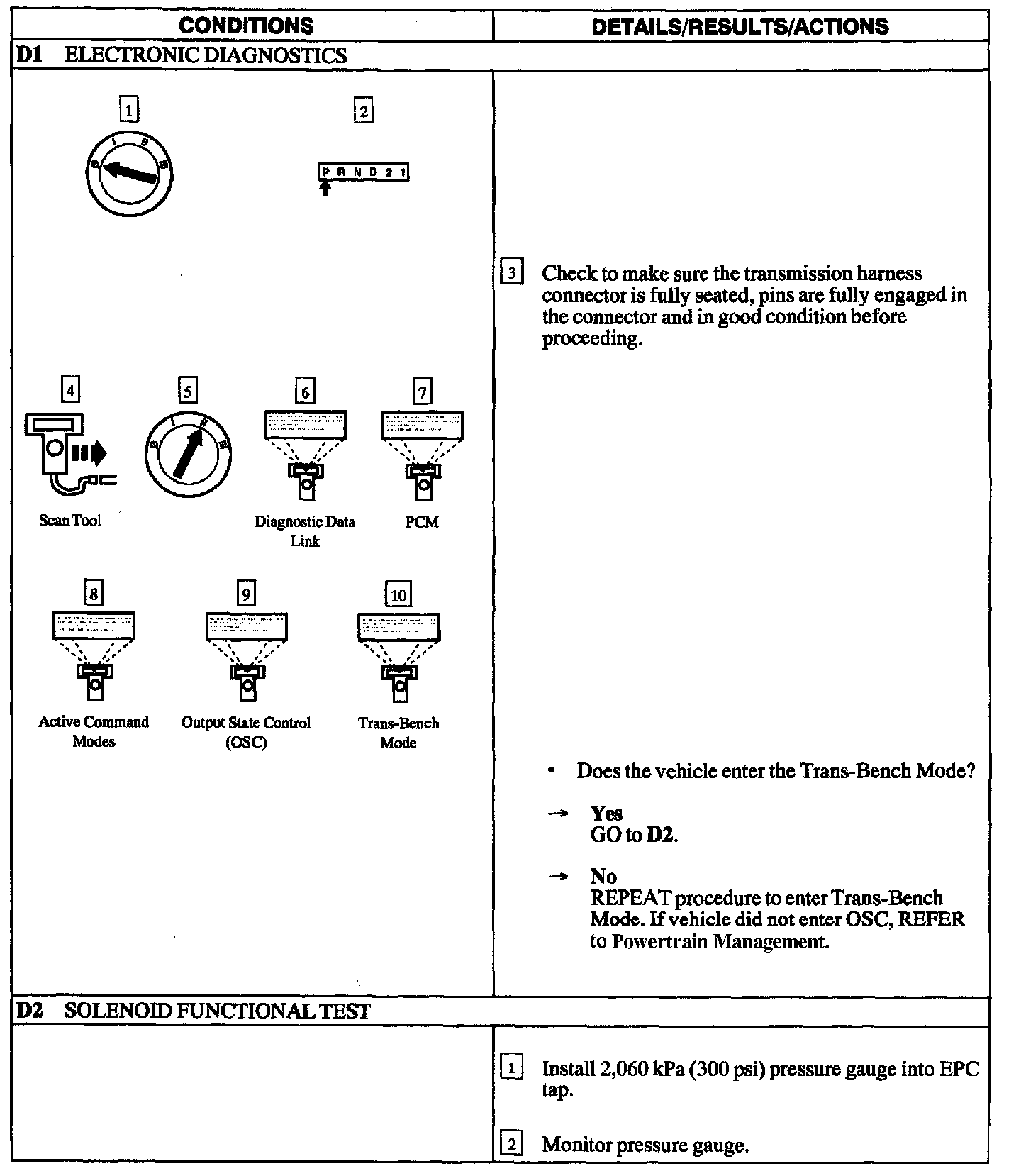

D1 - D2

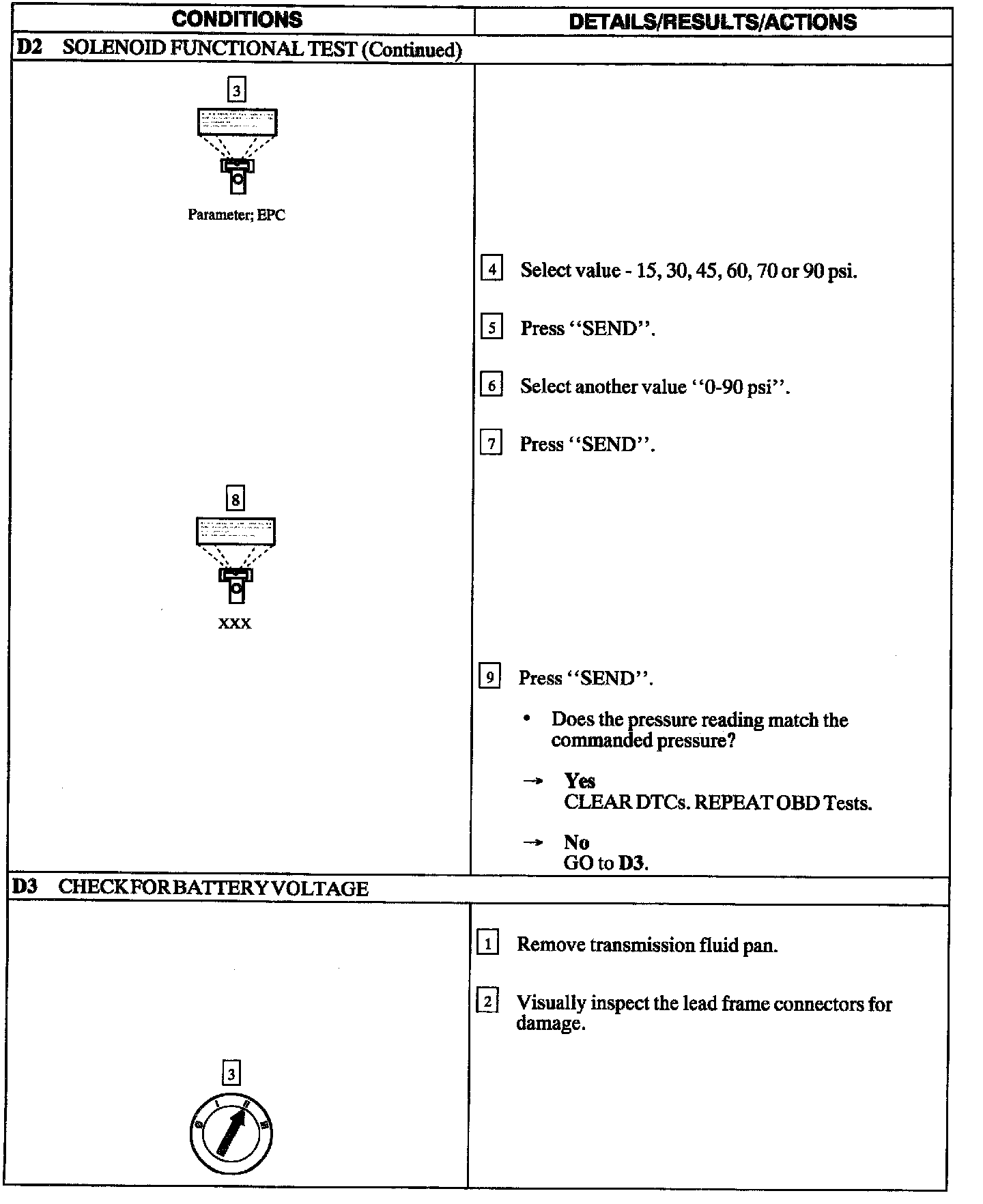

D2 - D3

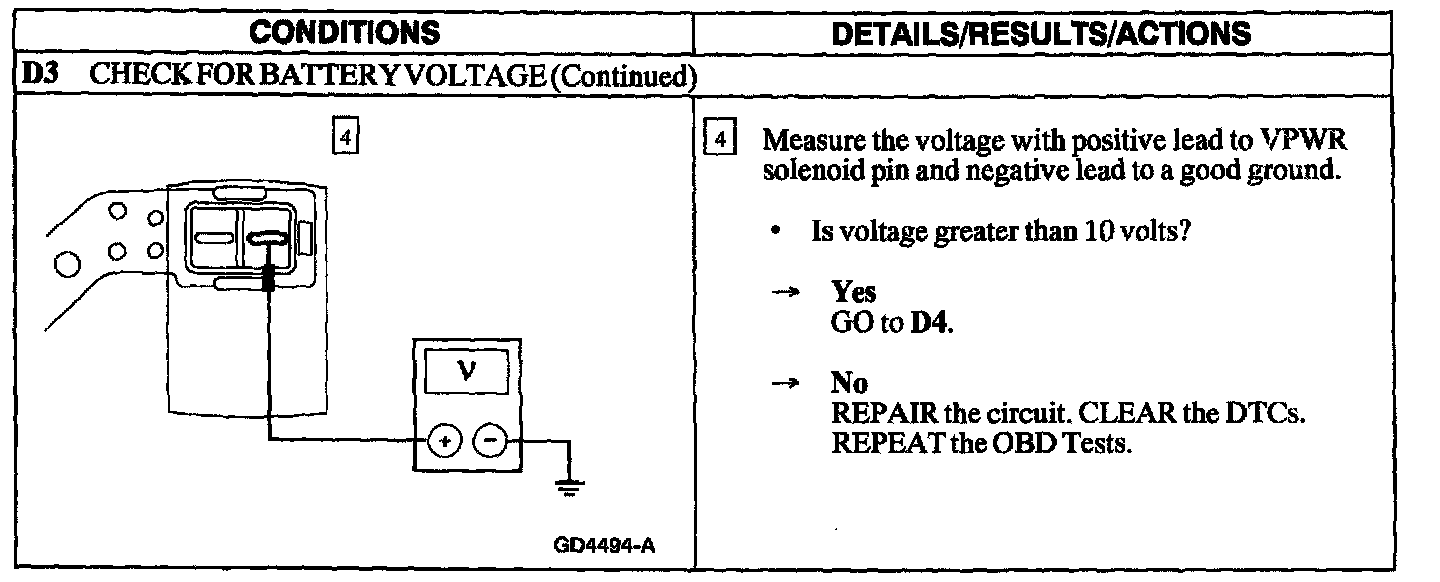

D3

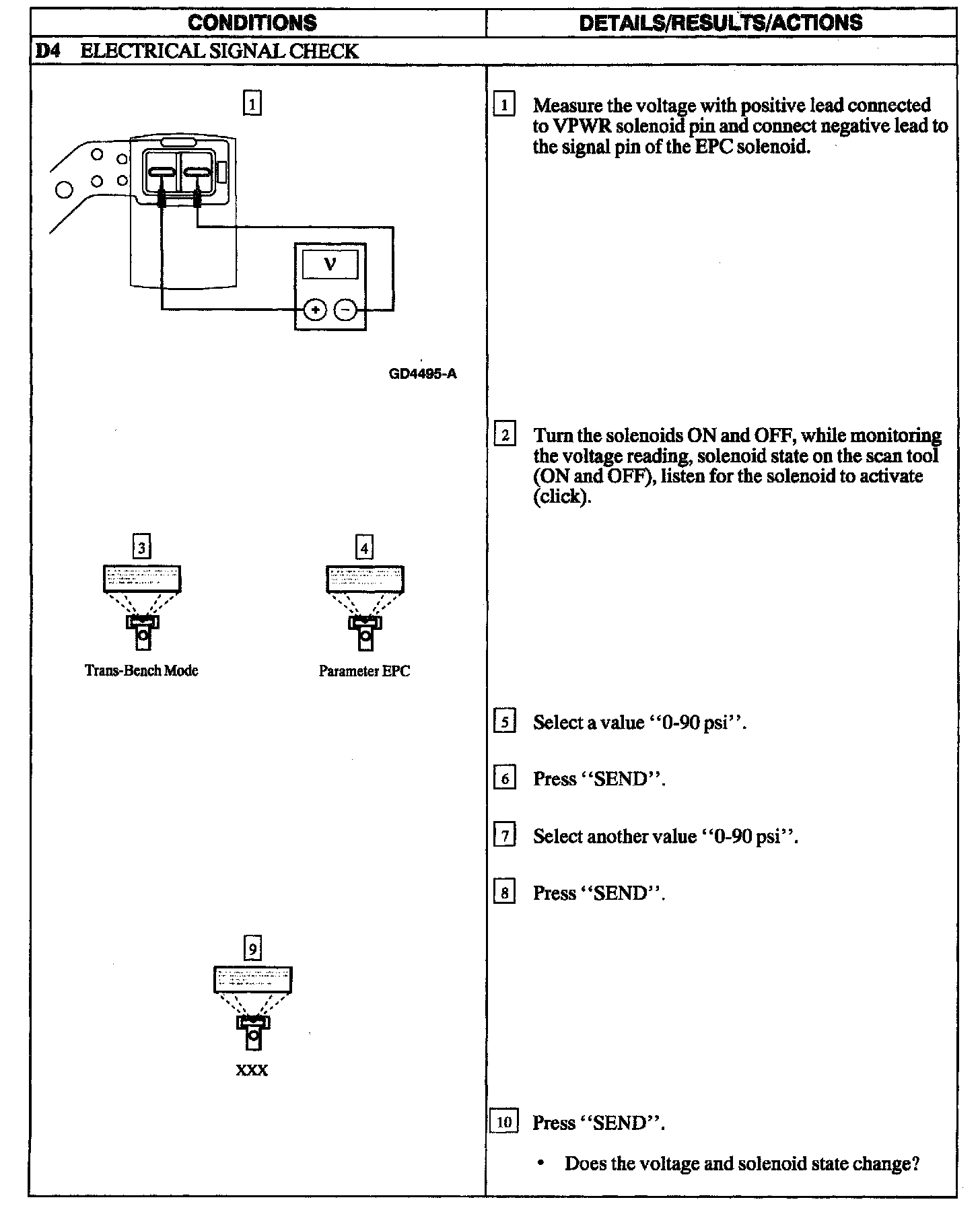

D4

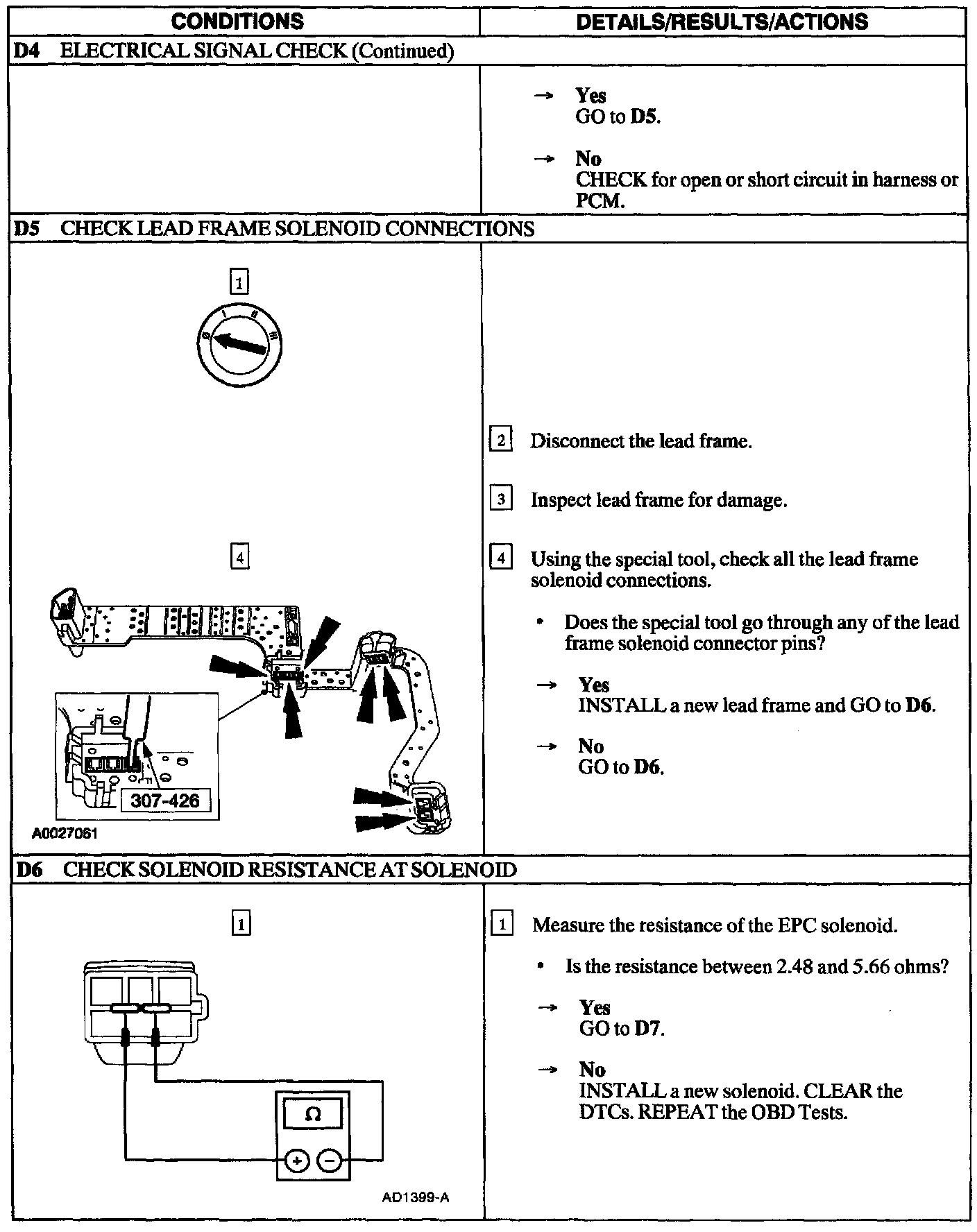

D4 - D6

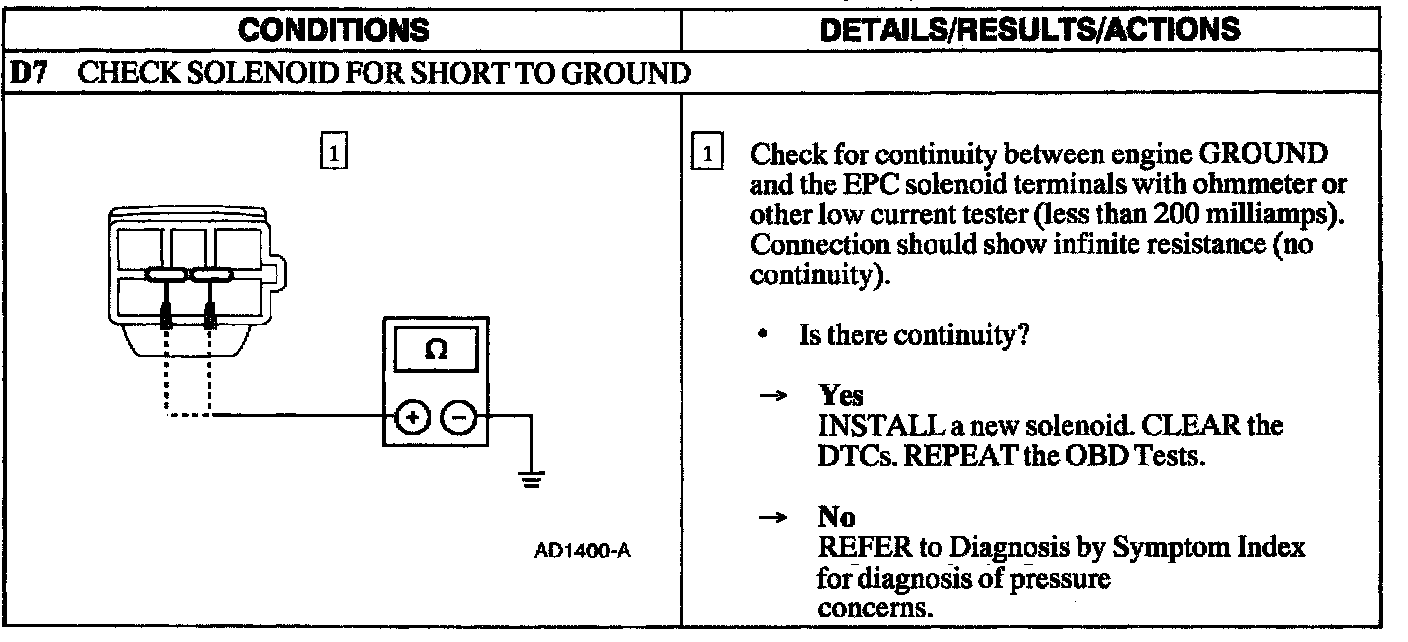

D7

NOTE: Refer to the Transmission Internal Harness illustration.

NOTE: Read and record all DTCs. All Digital TR Sensor and VSS DTCs must be repaired before entering Output State Control (OSC).
