Test E: Output Shaft Speed (OSS) Sensors

PINPOINT TEST E: OUTPUT SHAFT SPEED (OSS) SENSORS

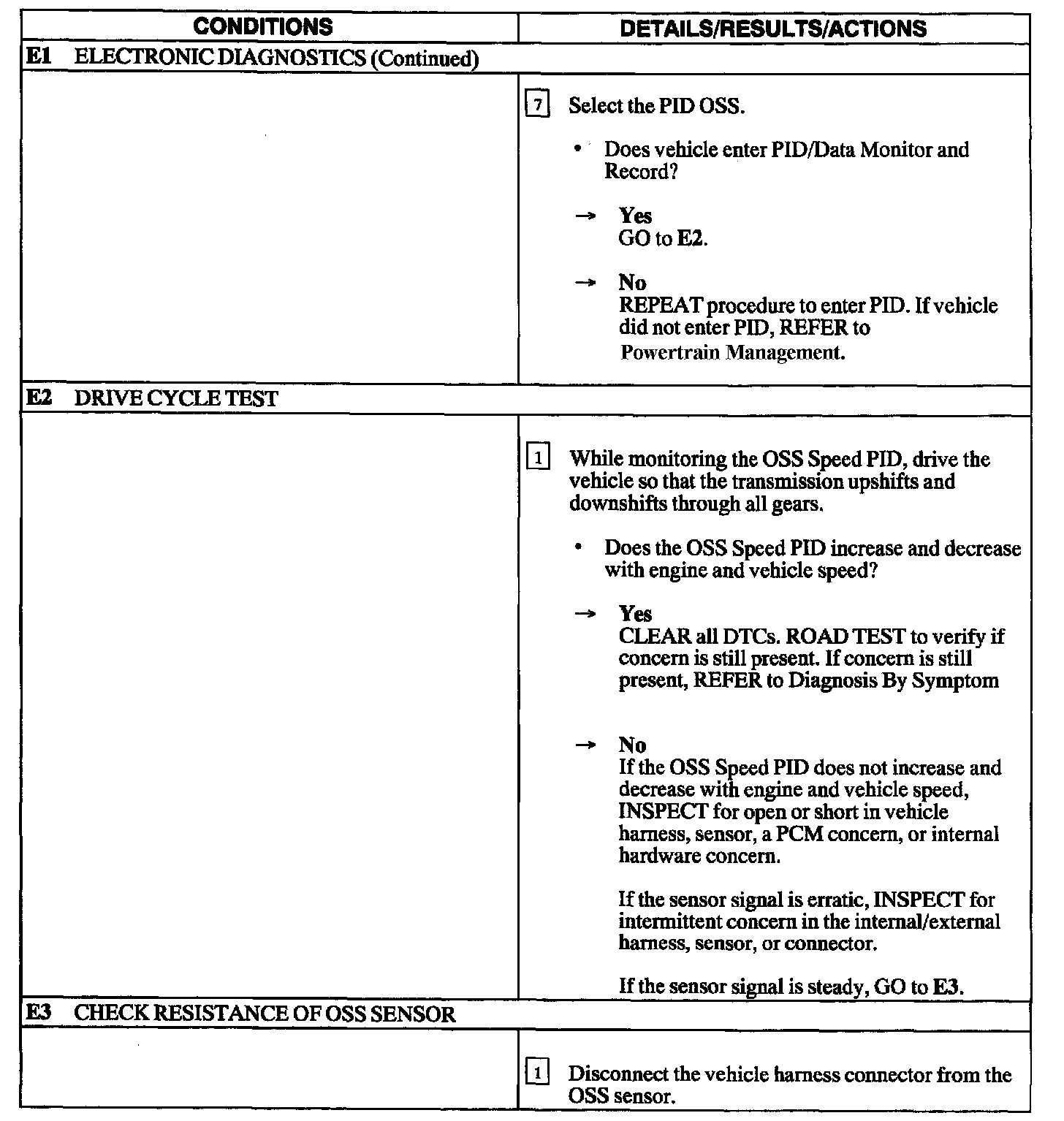

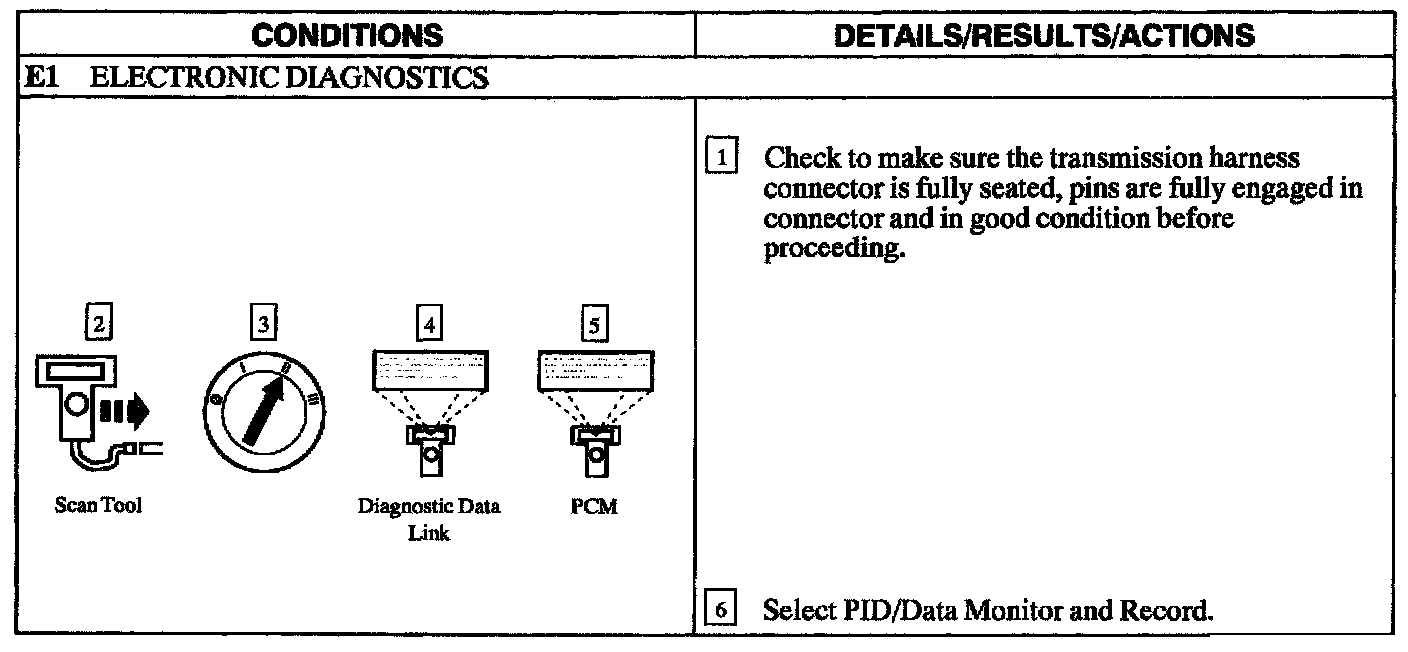

E1





E1 - E3

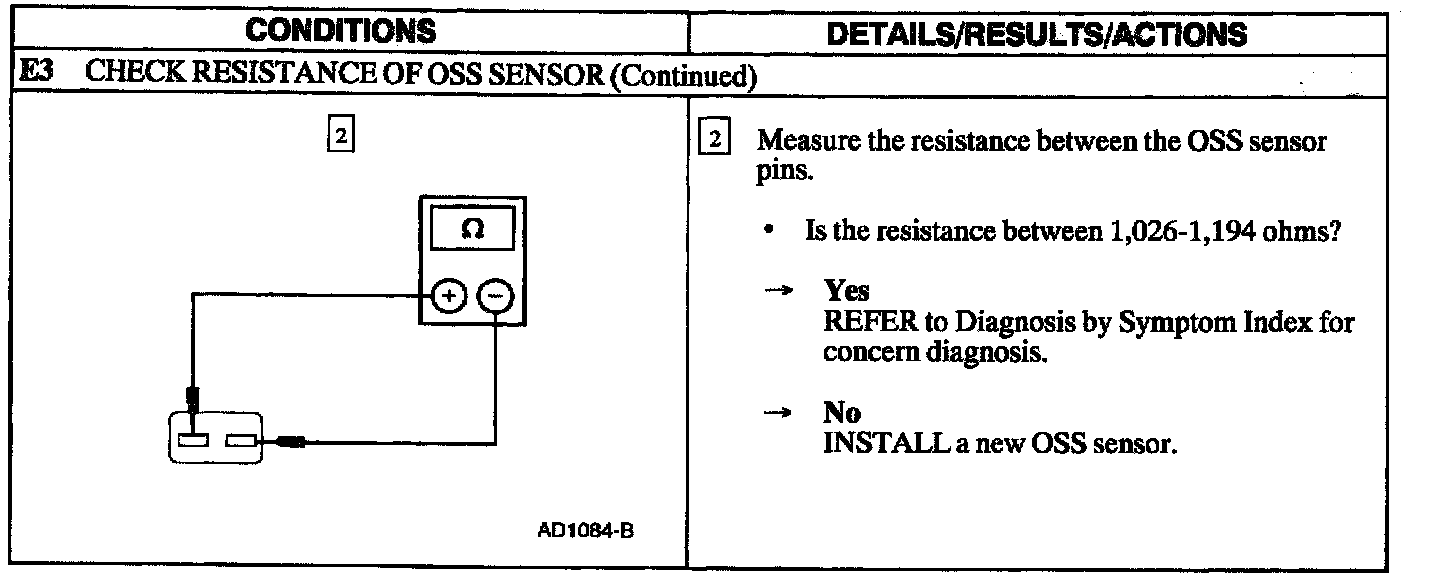

E3

NOTE: Refer to the Output Shaft Speed (OSS) Sensor Harness Connector illustration.
