Intermediate One-Way Clutch

Intermediate One-Way Clutch

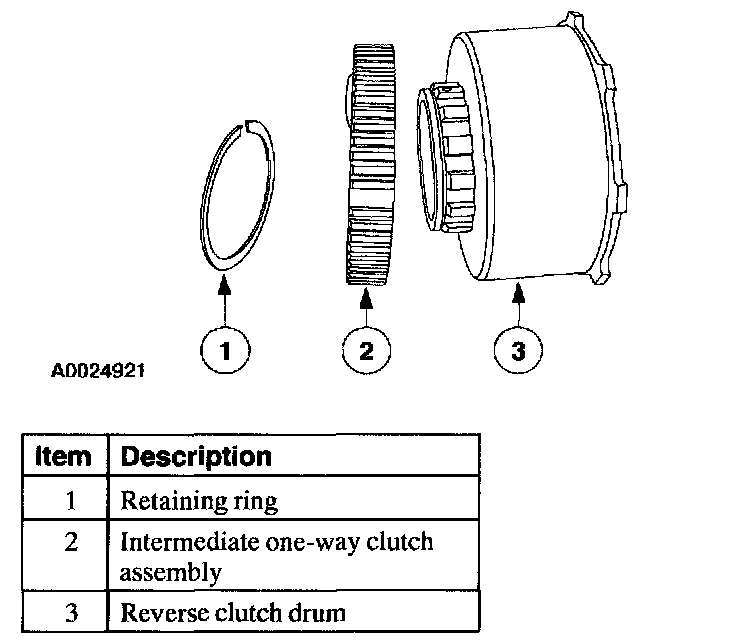

Intermediate Clutch Cylinder Disassembled View

Disassembly

1. NOTE: One tab that locks the reverse clutch drum into the reverse sun shell may be removed. This is done for balancing purposes.





Remove the intermediate one-way clutch.

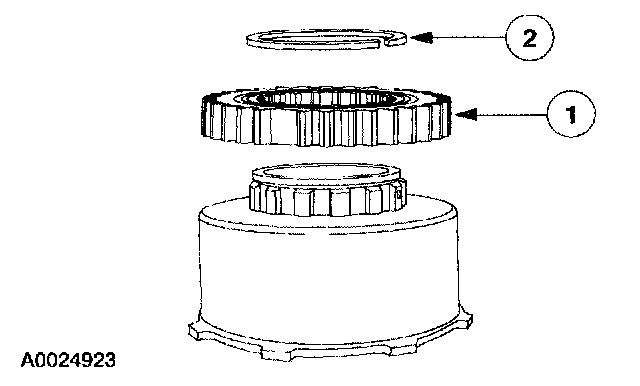

1 Remove the snap ring.
2 Remove the intermediate one-way clutch.

Assembly

1. NOTE: The intermediate one-way clutch must rotate counterclockwise when installed on the reverse clutch drum and will make a ratchet sound.





Install the intermediate one-way clutch.

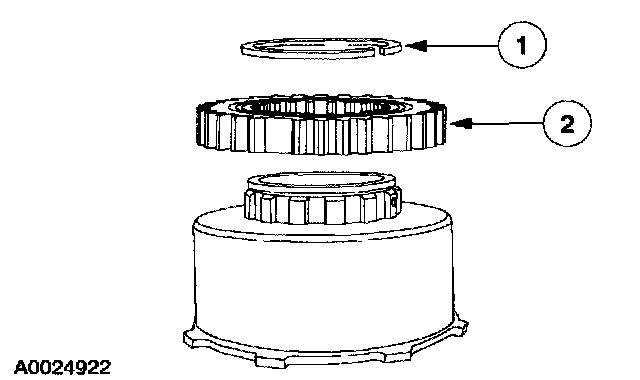

1 Install the intermediate one-way clutch.
2 Install the snap ring.
