Reverse Sun Gear

Reverse Sun Gear








Disassembly

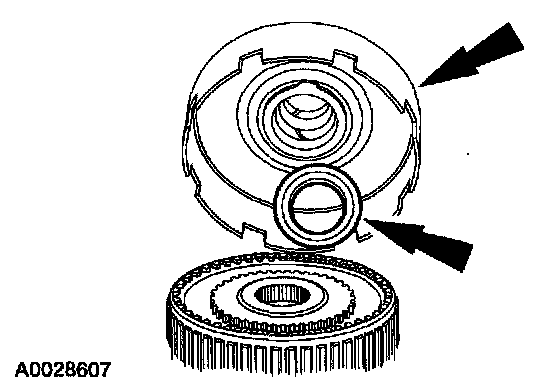

1. Remove the reverse clutch sun gear assembly and the No. 4 forward clutch hub bearing and race.

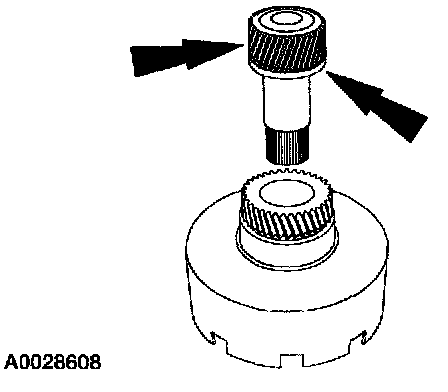

2. Remove the forward clutch sun gear assembly and the No. 5 forward clutch sun gear bearing and race.

Assembly

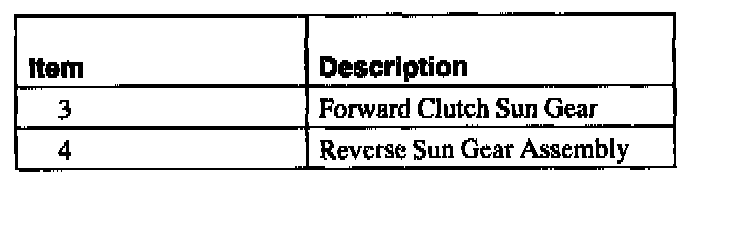

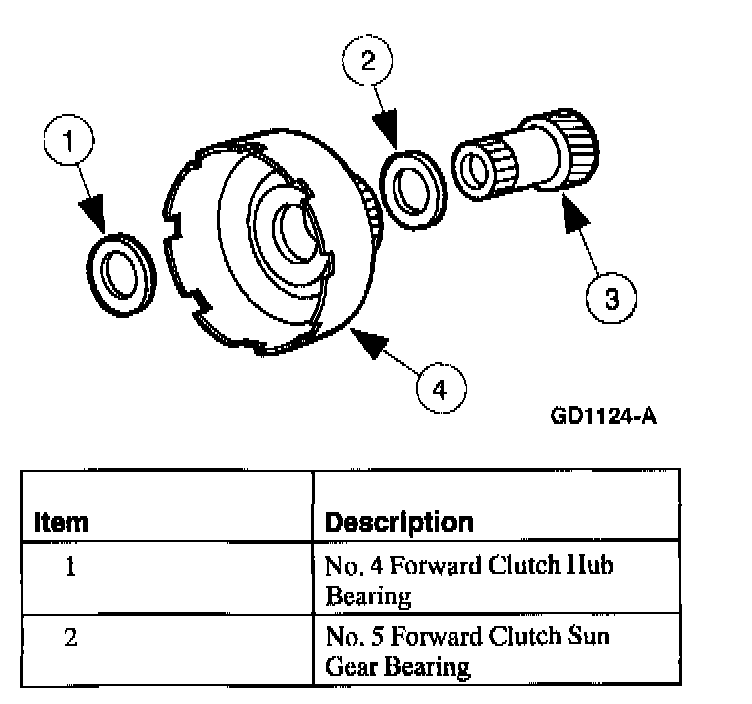

1. The forward clutch sun gear and reverse sun gear assembly are assembled as part of the transmission assembly procedure.
