Transmission Support Crossmember

Transmission Support Crossmember
Removal
1. Disconnect the battery ground cable.
2. Raise the vehicle on a hoist.
3. Remove the exhaust system.
4. Support the transmission with a suitable jack.





5. Remove the transmission support crossmember.

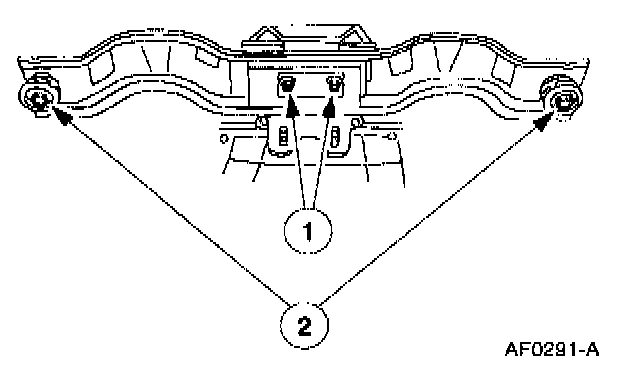

1 Remove the nuts retaining the transmission support insulator to the transmission support crossmember.
2 Remove the bolts retaining the transmission support crossmember to the body brackets. Remove the transmission support crossmember.

Installation

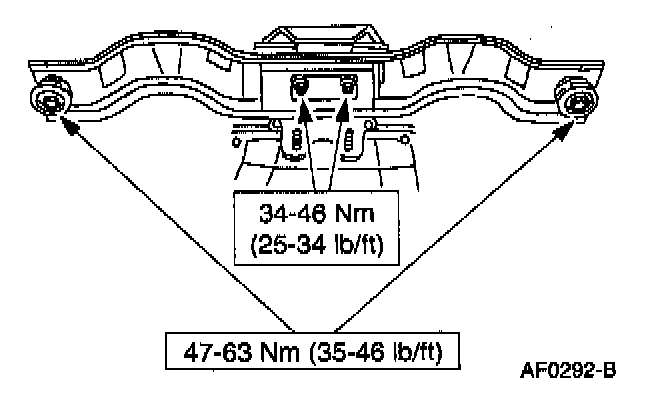

1. To install, reverse the removal procedure.
