PINPOINT TEST B: DTC C1145 (RF) DTC C1155(LF), DTC C1165(RR), DTC C1175 (LR) -ANTI-LOCK BRAKE SENSOR INPUT CIRCUIT FAILURE

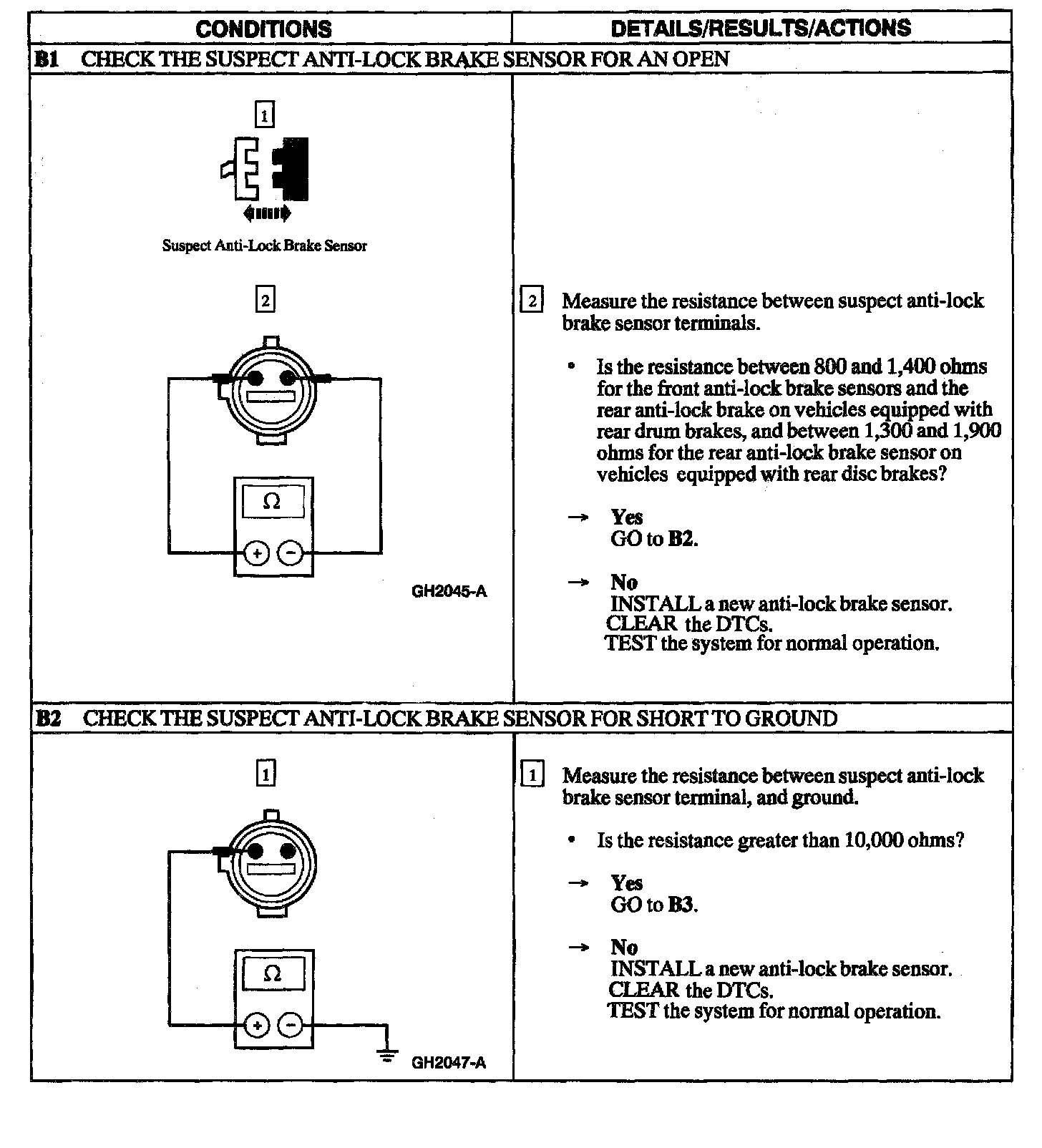

Test B1-B2:

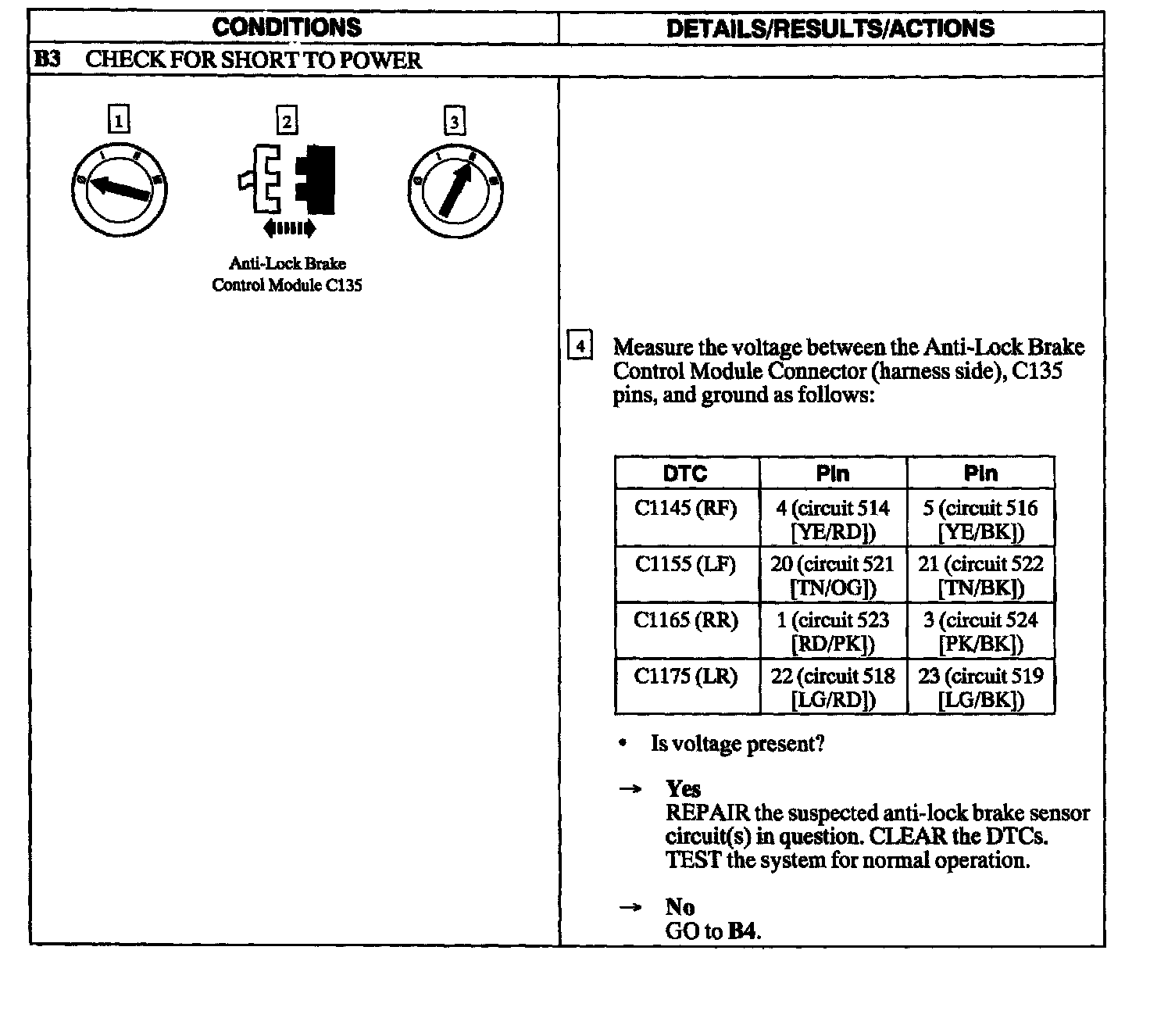

Test B3:

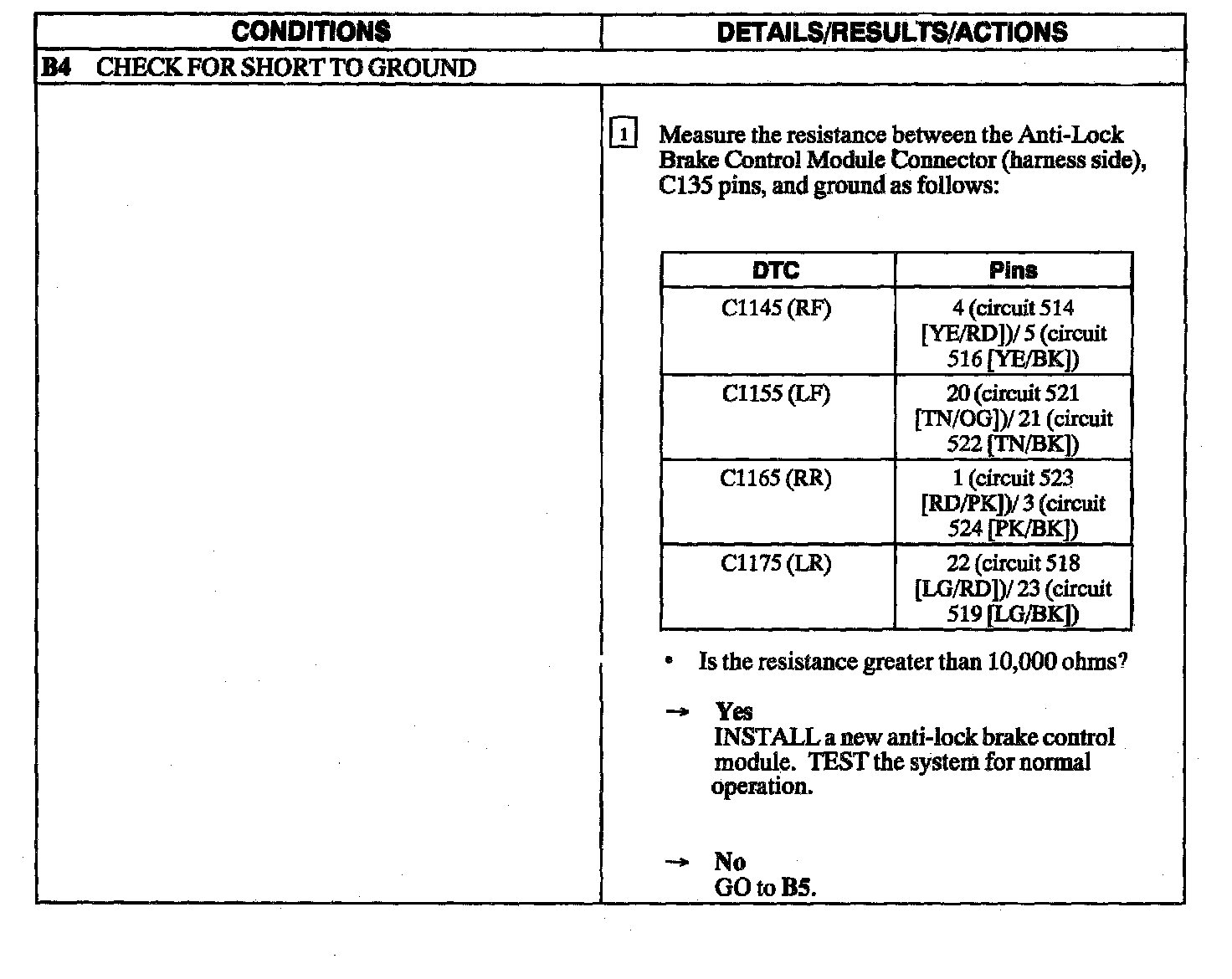

Test B4:

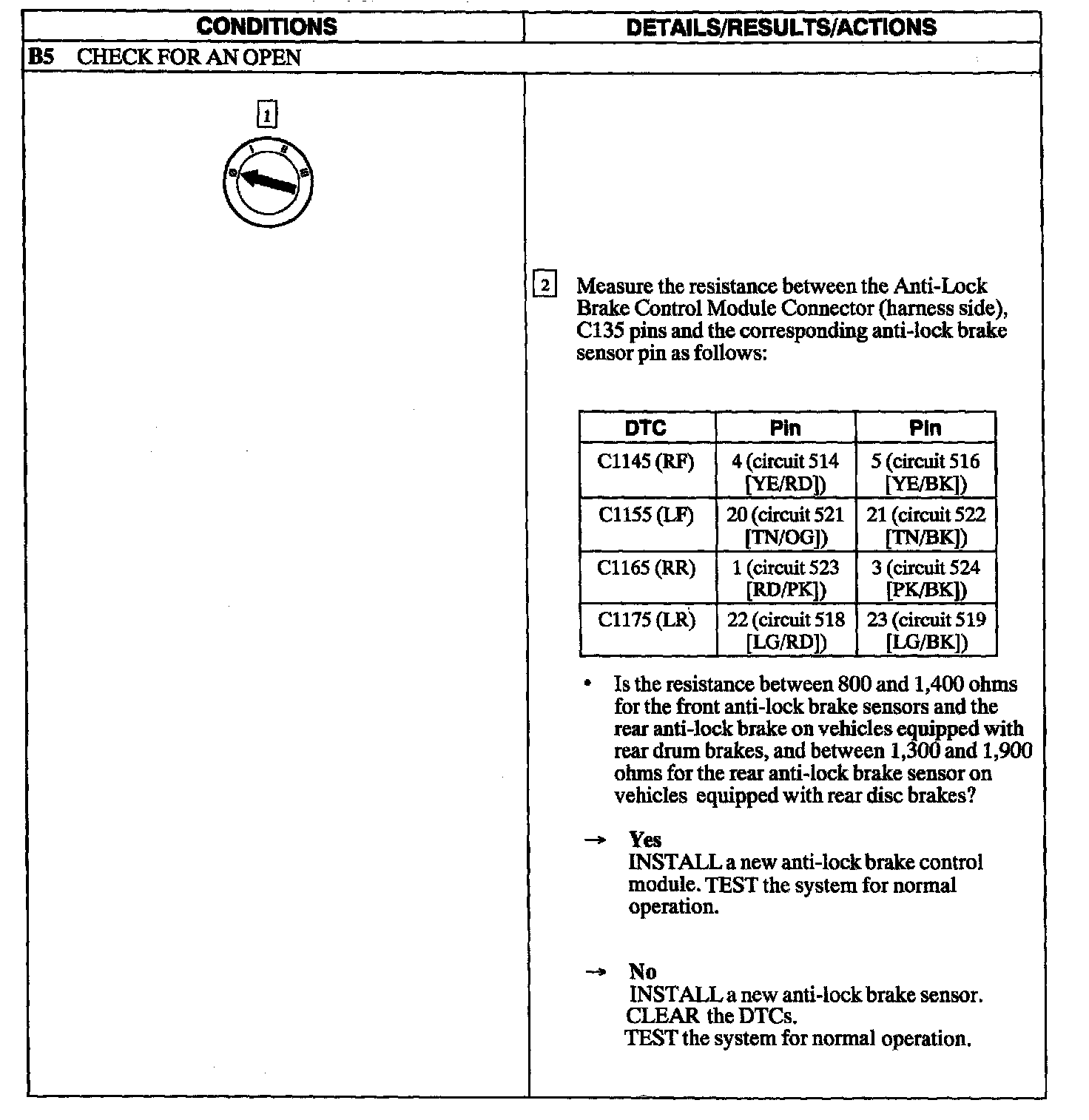

Test B5:

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.
