C

PINPOINT TEST C: DTC C1296 (LF), DTC C1297 (RF), DTC C1296 (RR) DTC C1299 (LR)-ANTI-LOCK BRAKE SENSOR INPUT SIGNAL MISSING

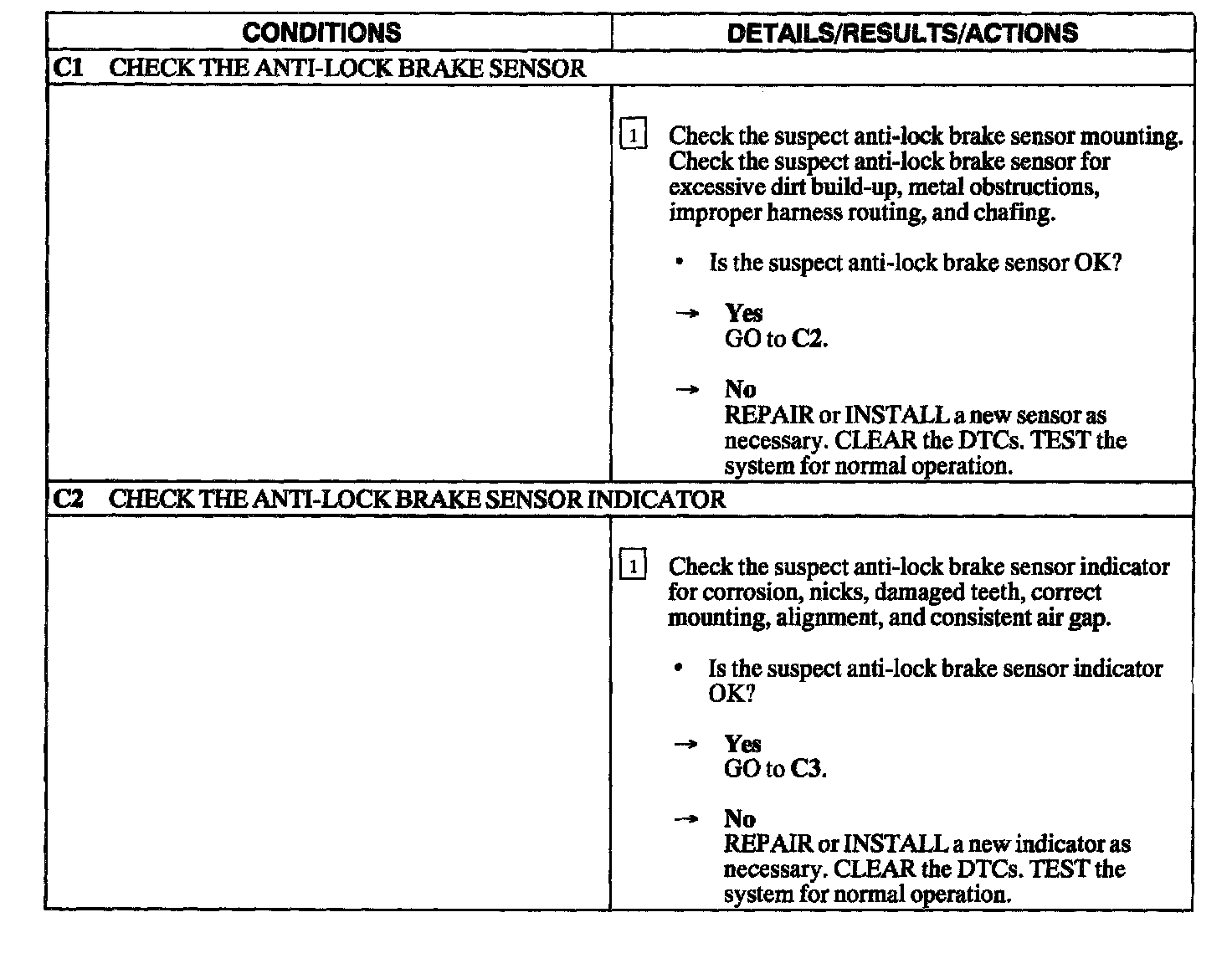

Test C1-C2:

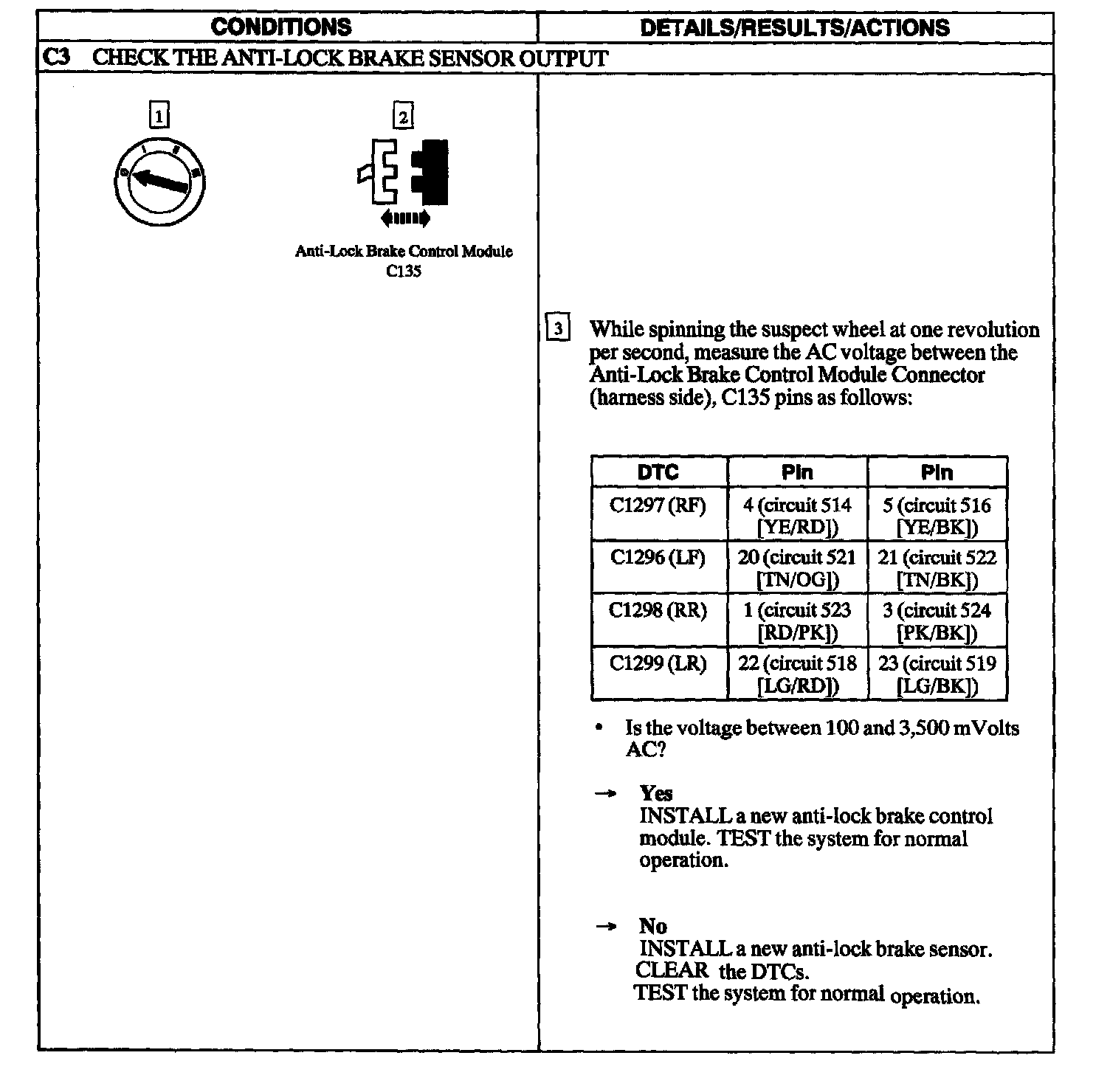

Test C3:

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.
