D

PINPOINT TEST D: DTC B1484-BRACE PEDAL INPUT OPEN CIRCUIT

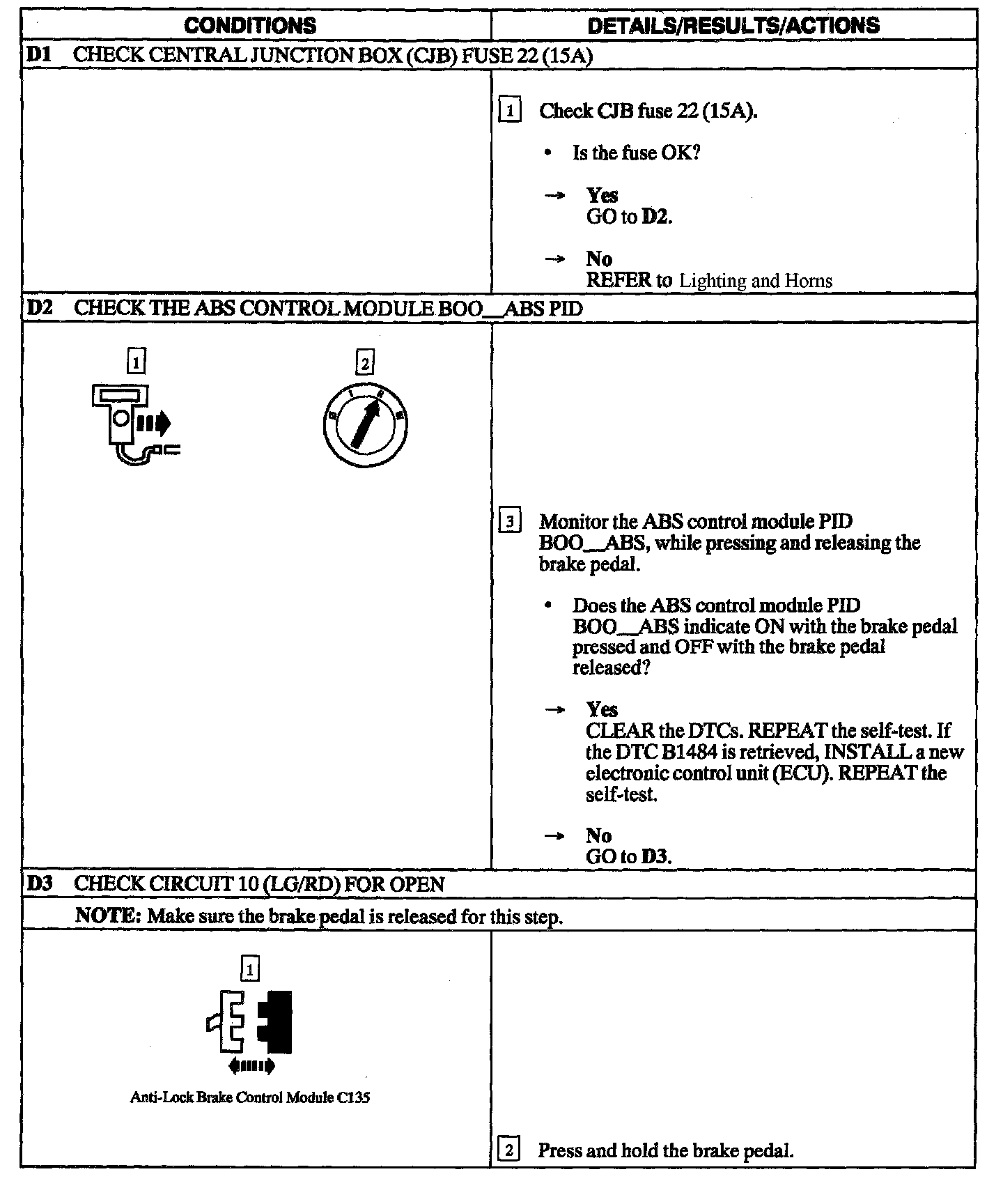

Test D1-D3:

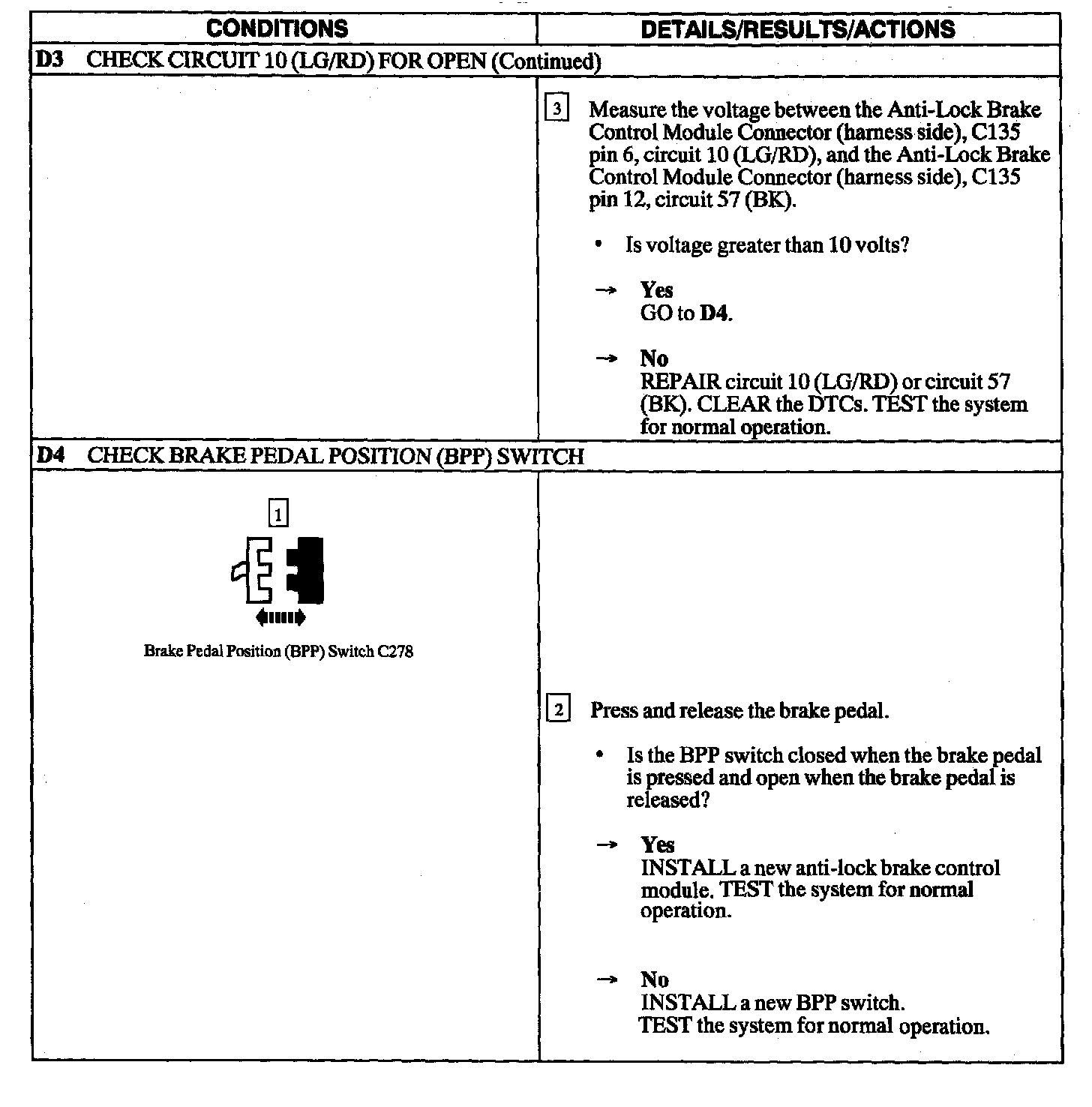

Test D3-D4:

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals
