E

PINPOINT TEST E: DTC B1676-BATTERY VOLTAGE OUT OF RANGE

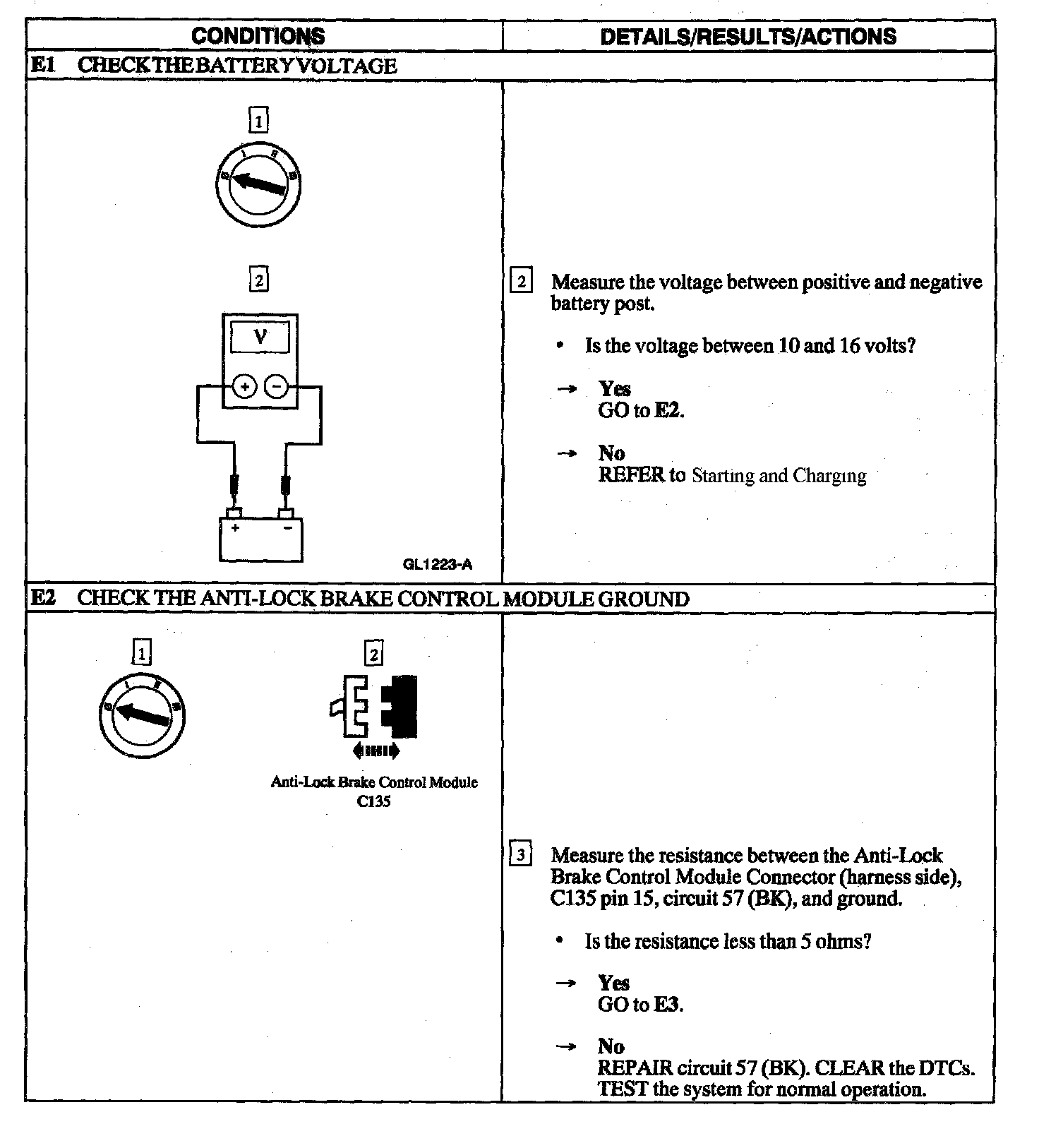

Test E1-E2:

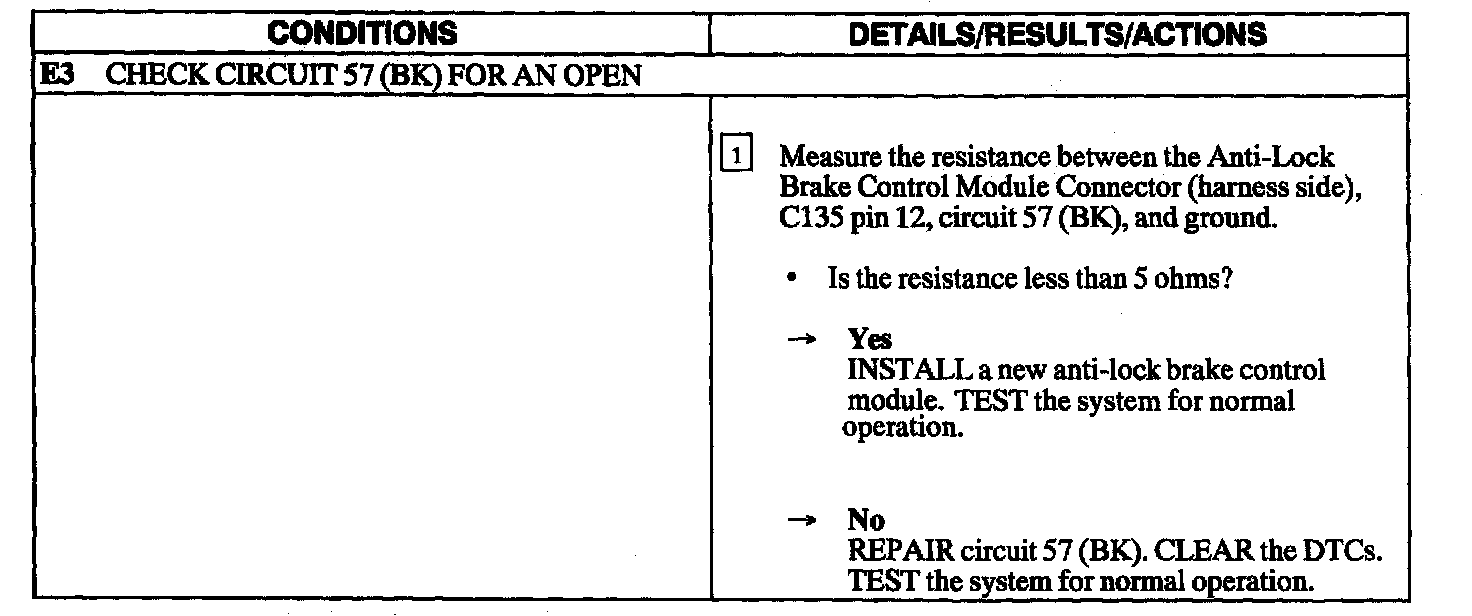

Test E3:

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.
