F

PINPOINT TEST F: NO COMMUNICATION WITH THE MODULE-ANTI-LOCK BRAKE CONTROL

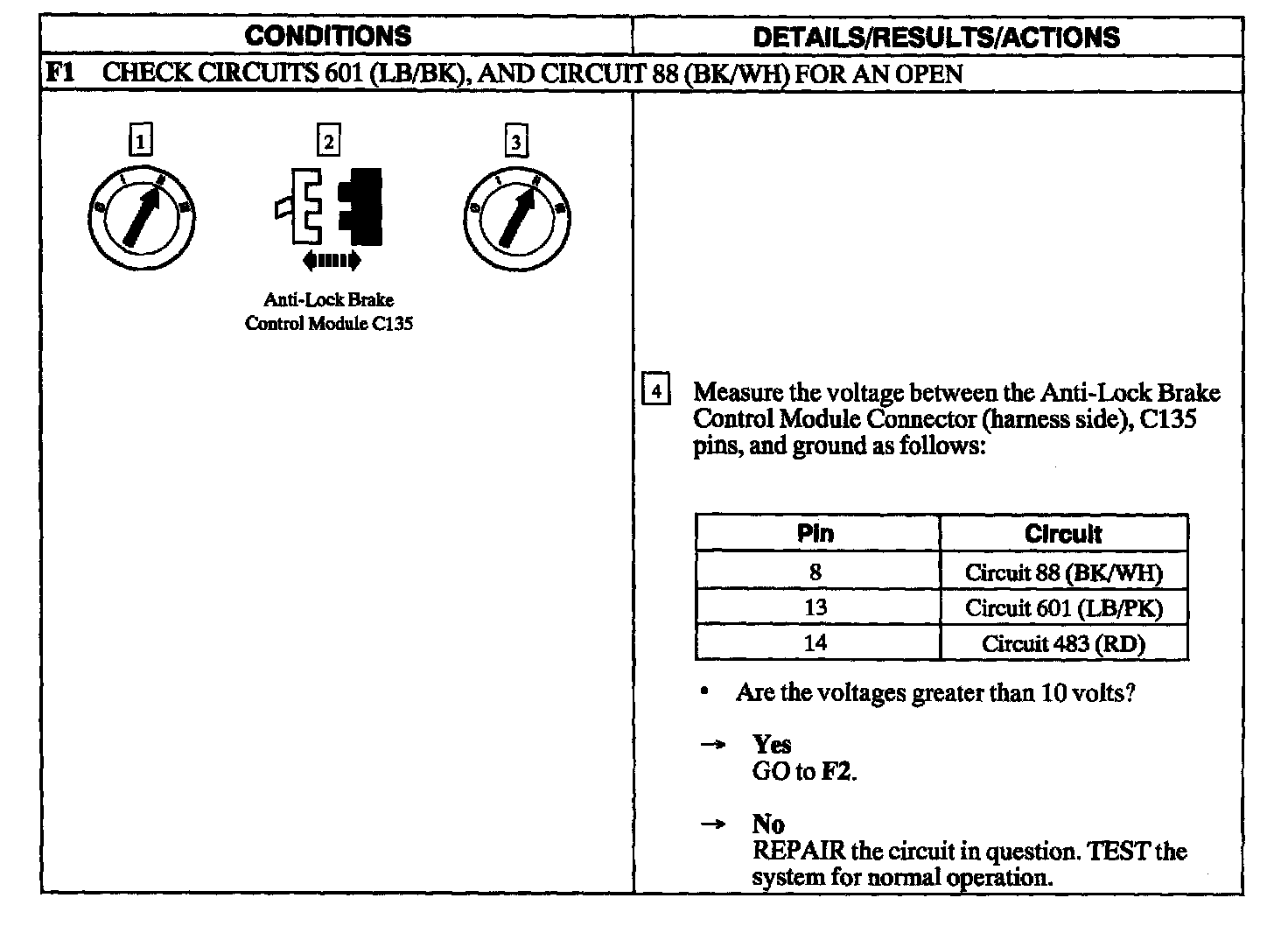

Test F1:

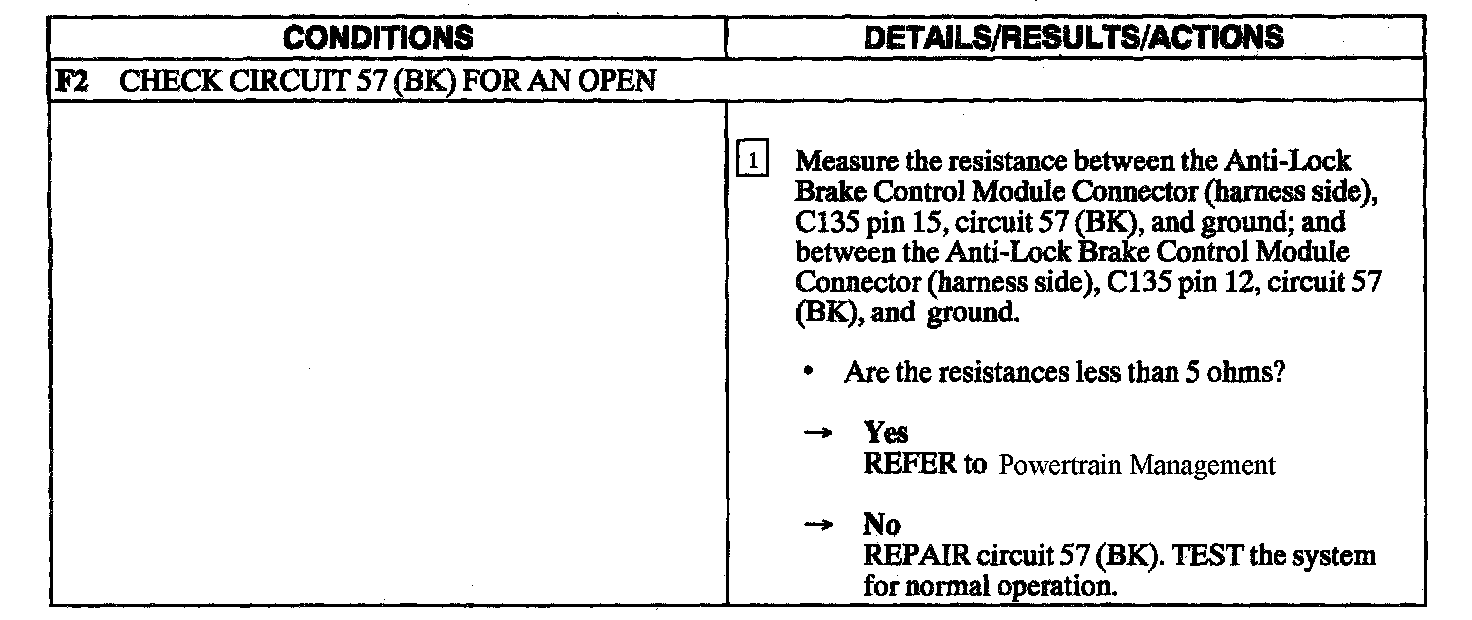

Test F2:

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.
