L

PINPOINT TEST L: NO COMMUNICATION WITH THE MODULE-HYBRID ELECTRONIC CLUSTER (HEC)

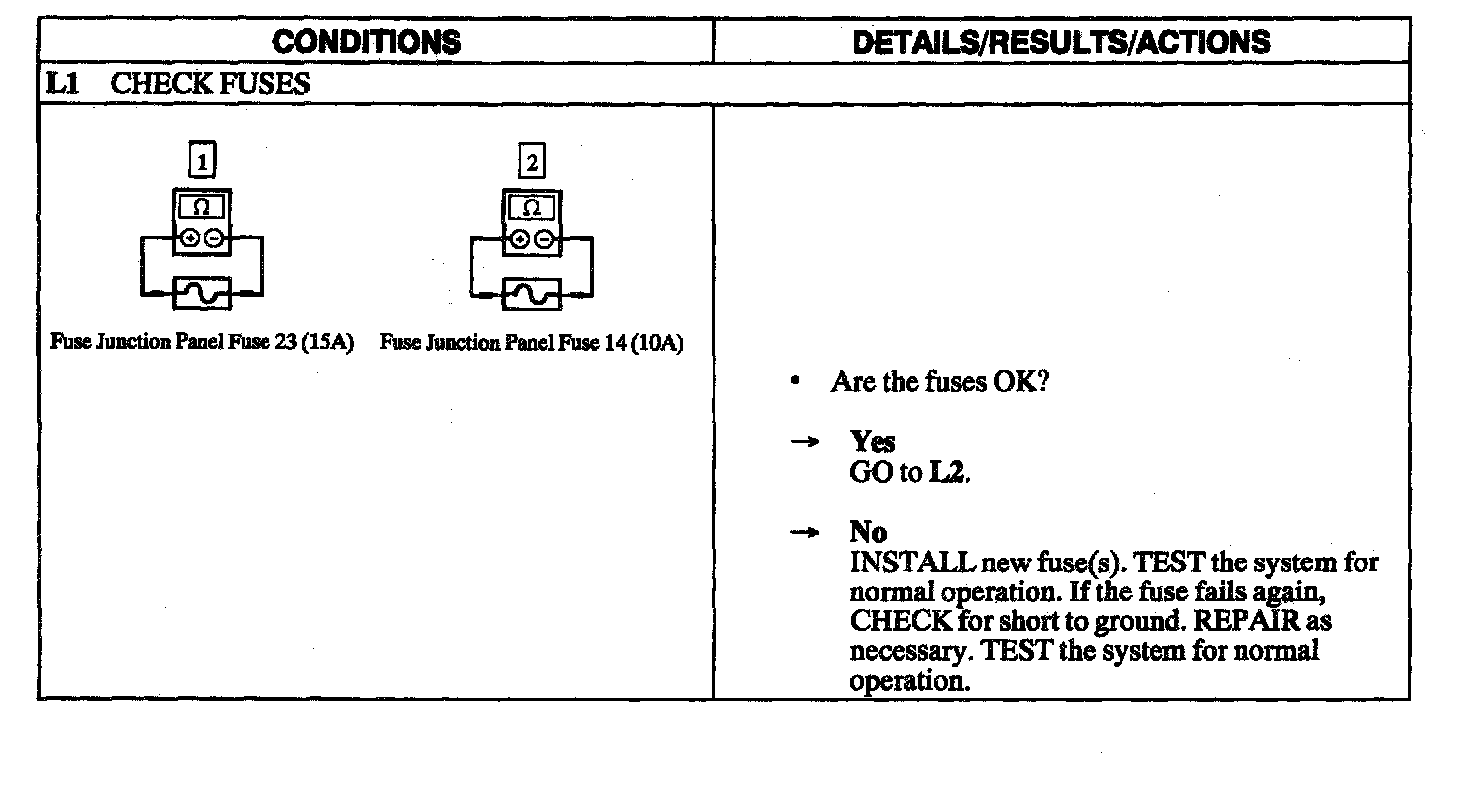

Test L1:

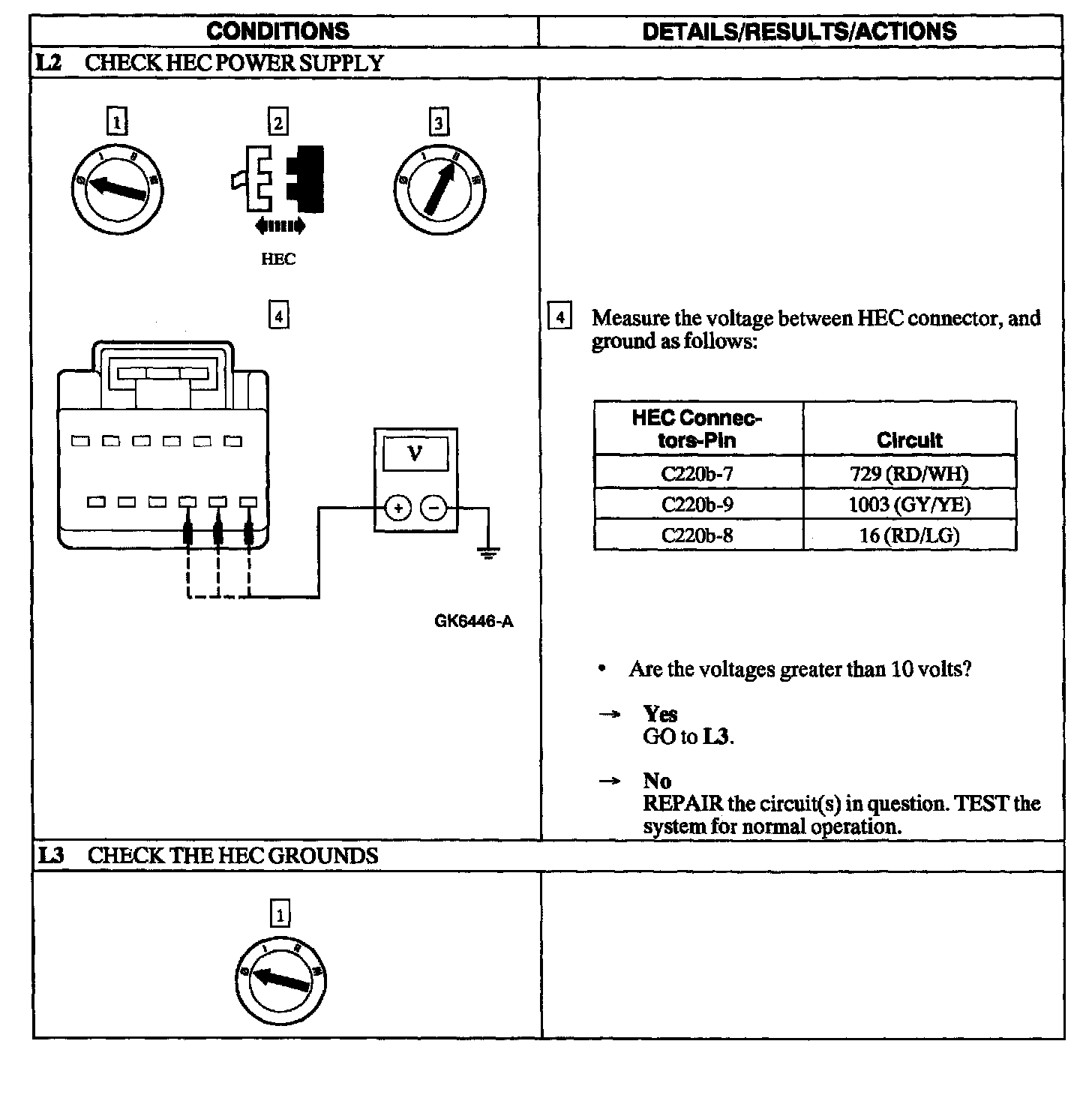

Test L2-L3:

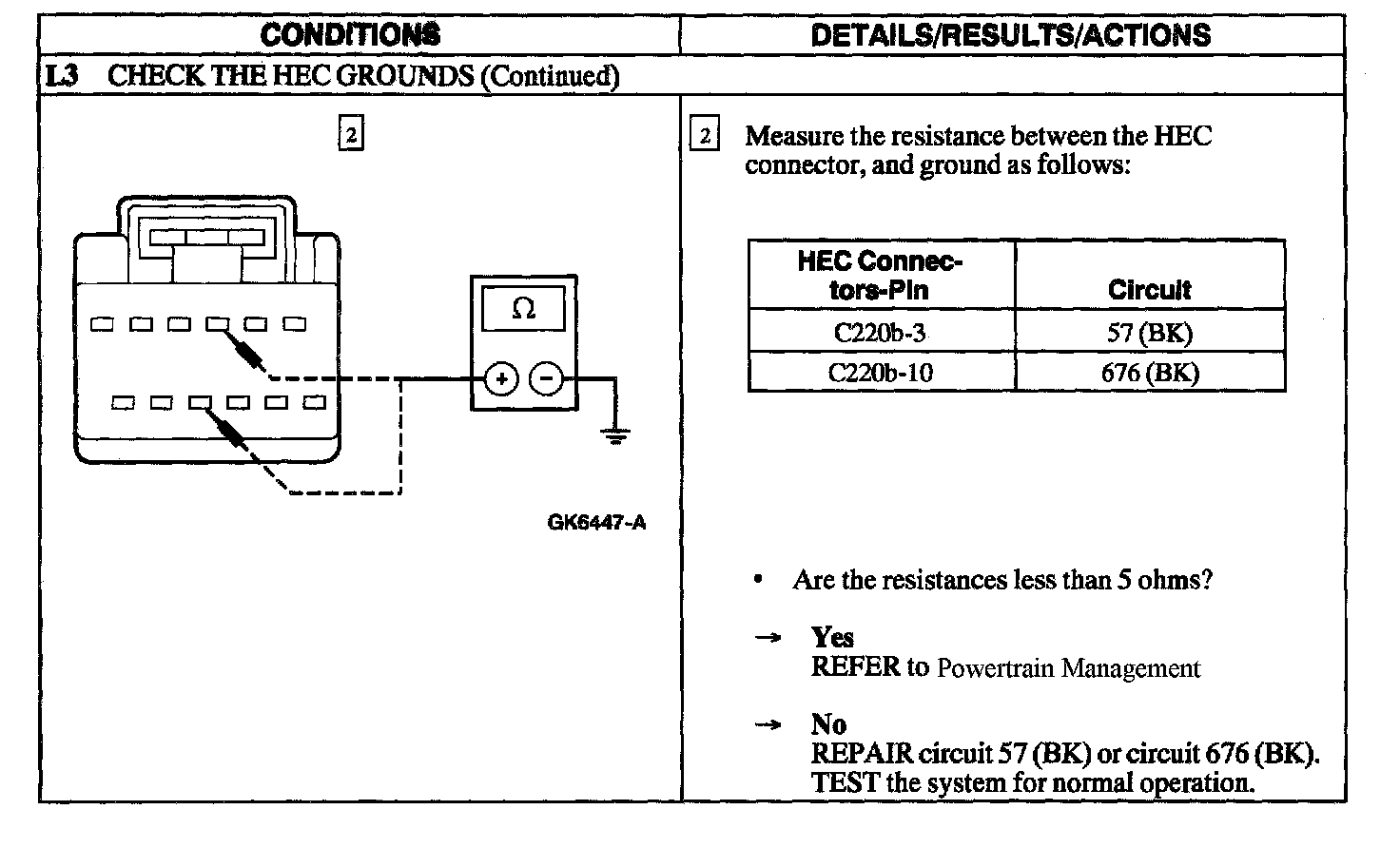

Test L3 Continued:

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter Probes man damage wiring terminals.
