Ignition Switch

Ignition Switch

Removal

1. Disconnect the battery ground cable.

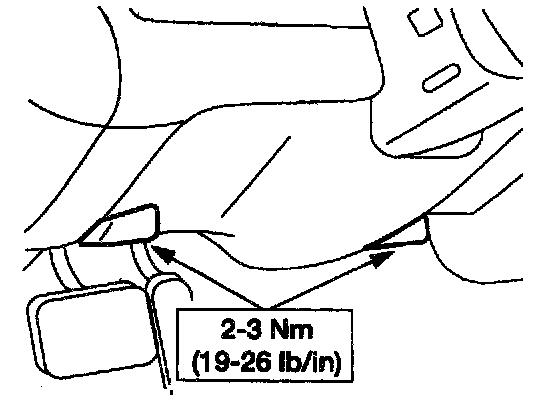

2. Position the LH instrument panel insulator aside.
1 Remove the pin-type retainers.
2 Position the insulator.

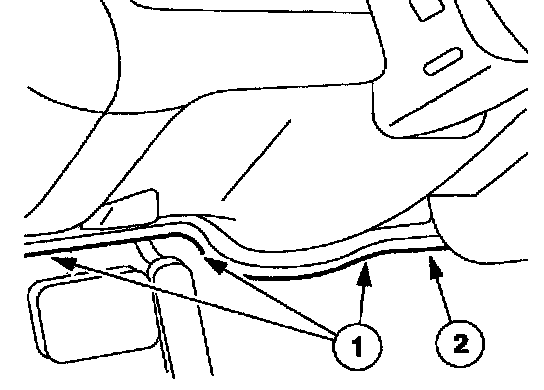

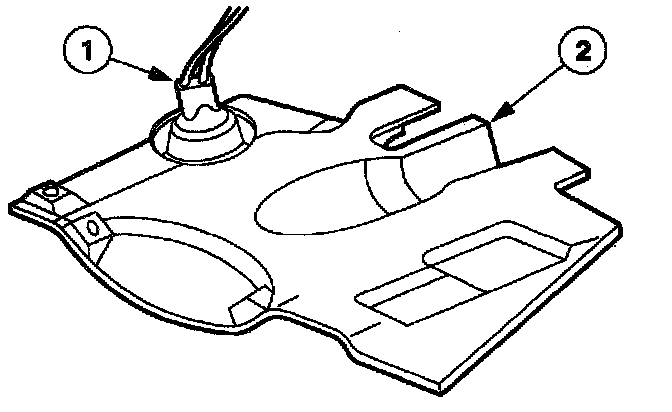

3. Remove the LH instrument panel insulator.
1 Disconnect the courtesy lamp.
2 Remove the insulator.

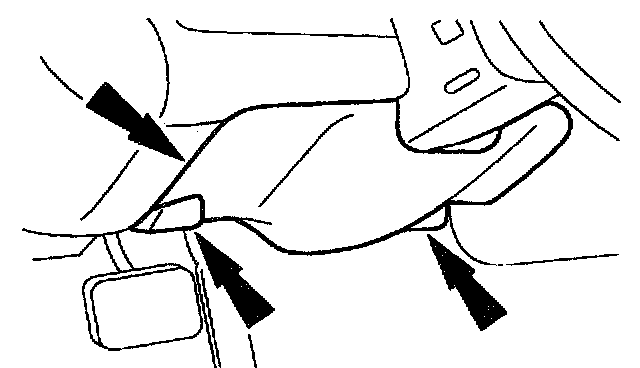

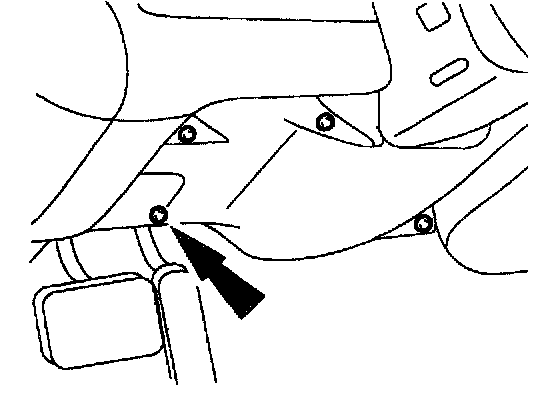

4. Remove the lower instrument panel steering column opening cover.
^ Remove the screws.
^ Unhook the parking brake release handle and position aside.
^ Remove the cover.

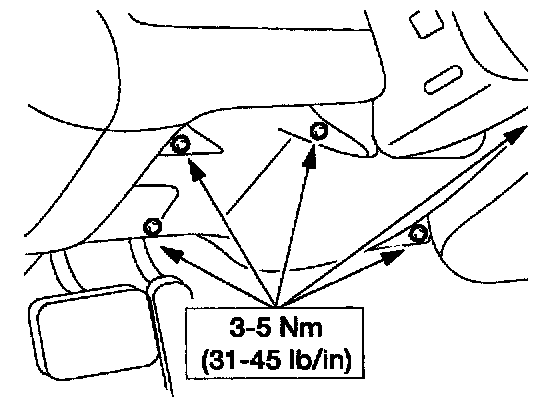

5. Remove the five bolts to remove the instrument panel steering column opening cover reinforcement.

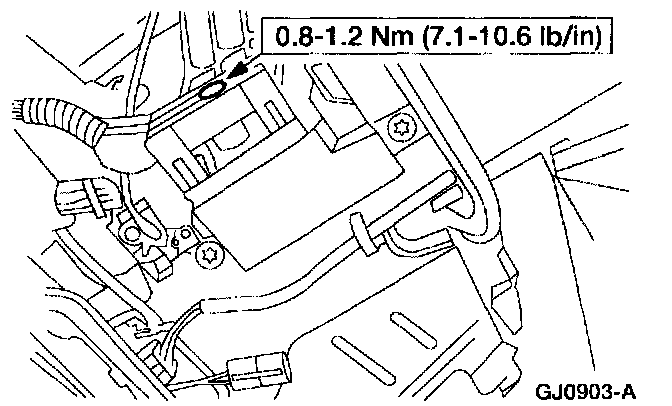

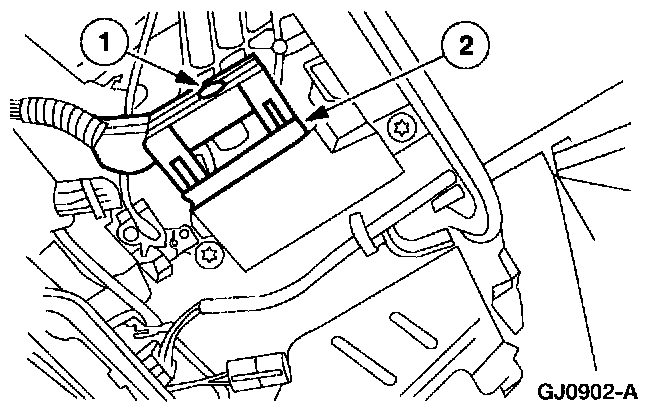

6. Disconnect the ignition switch electrical connector.
1 Loosen the bolt.
2 Disconnect the electrical connector.

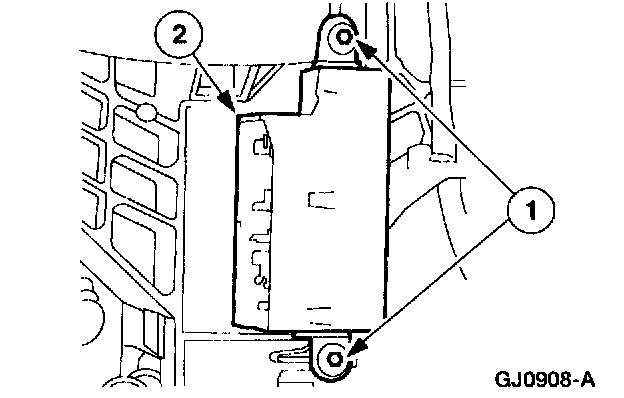

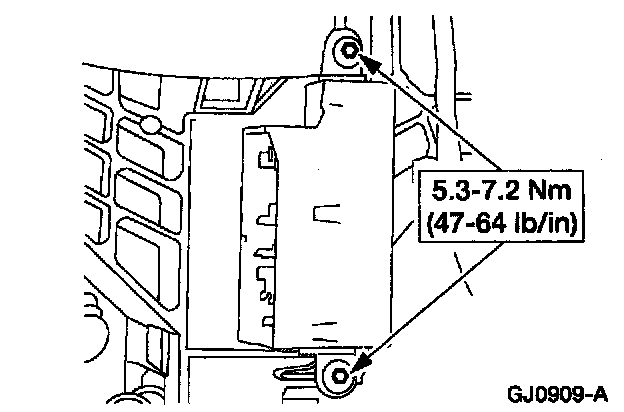

7. NOTE: The ignition key should be in the OFF position.

Remove the ignition switch.
1 Remove the bolts.
2 Remove the switch.

Installation














1. To install, reverse the removal procedure.
