Test E

PINPOINT TEST E: DTC 16-EVO ACTUATOR SHORTED, DTC 17-EVO ACTUATOR SHORTED OR OPEN, OR DTC 18-EVO ACTUATOR RESISTANCE OUT OF RANGE

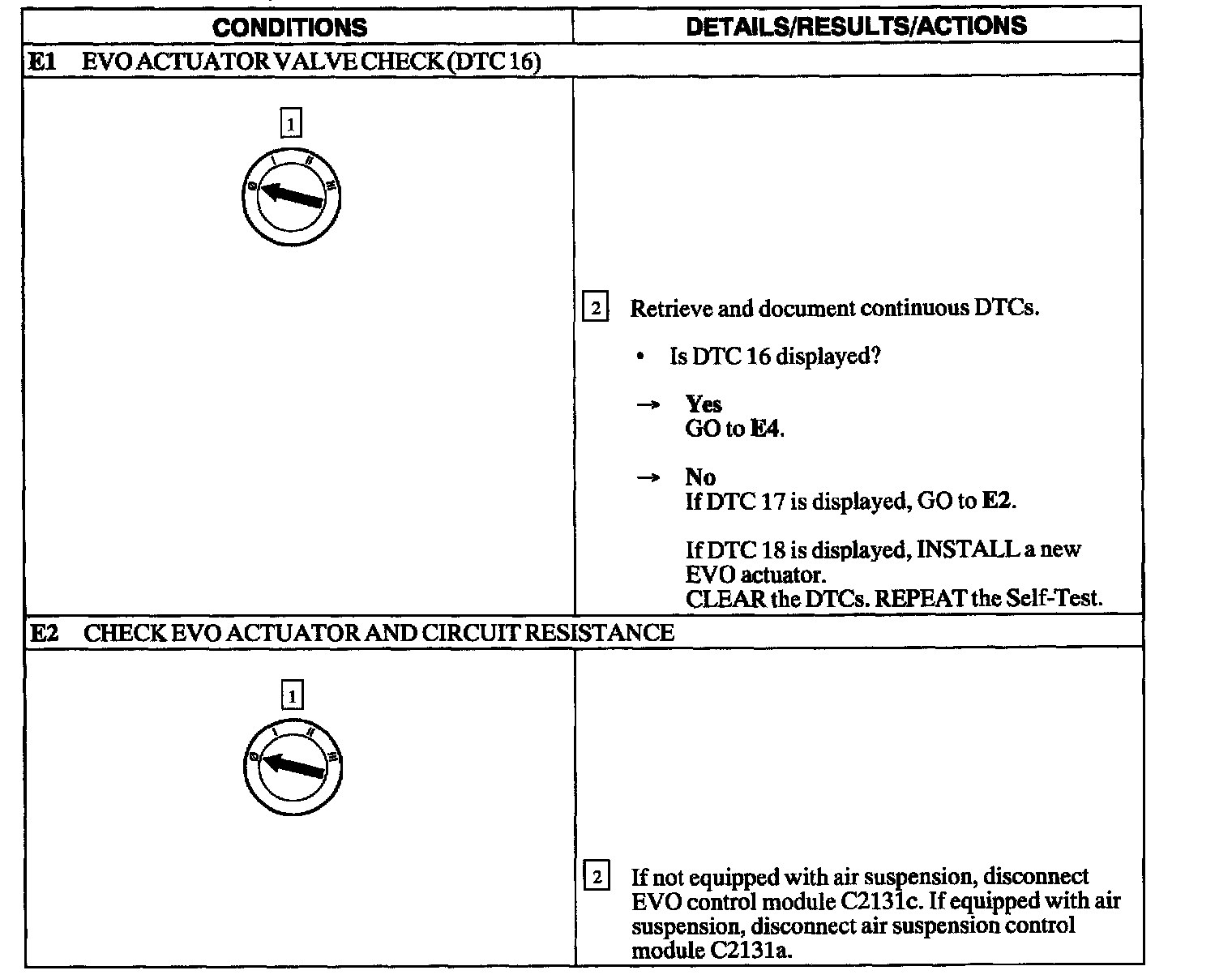

Test E1-E2

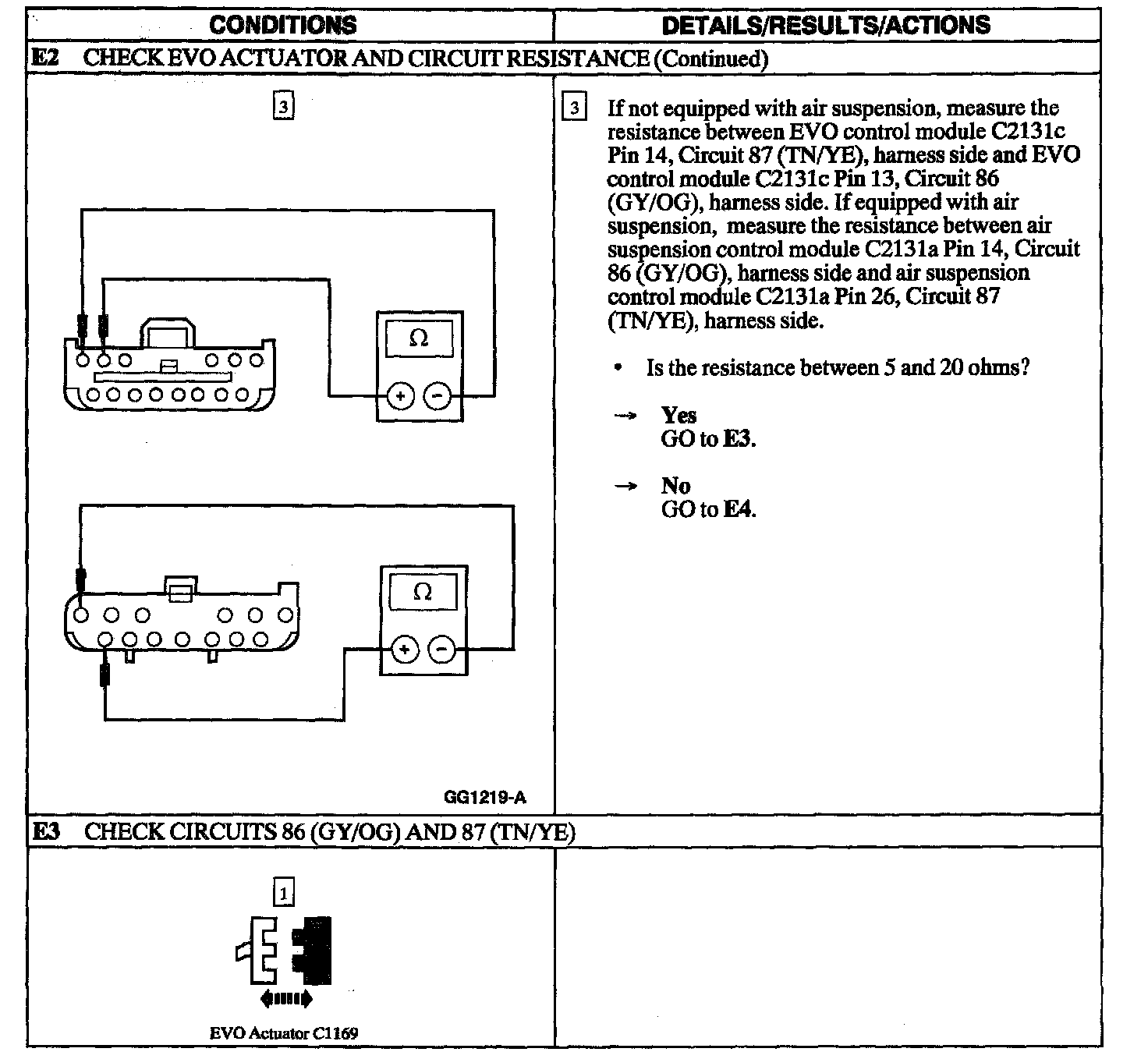

Test E2-E3

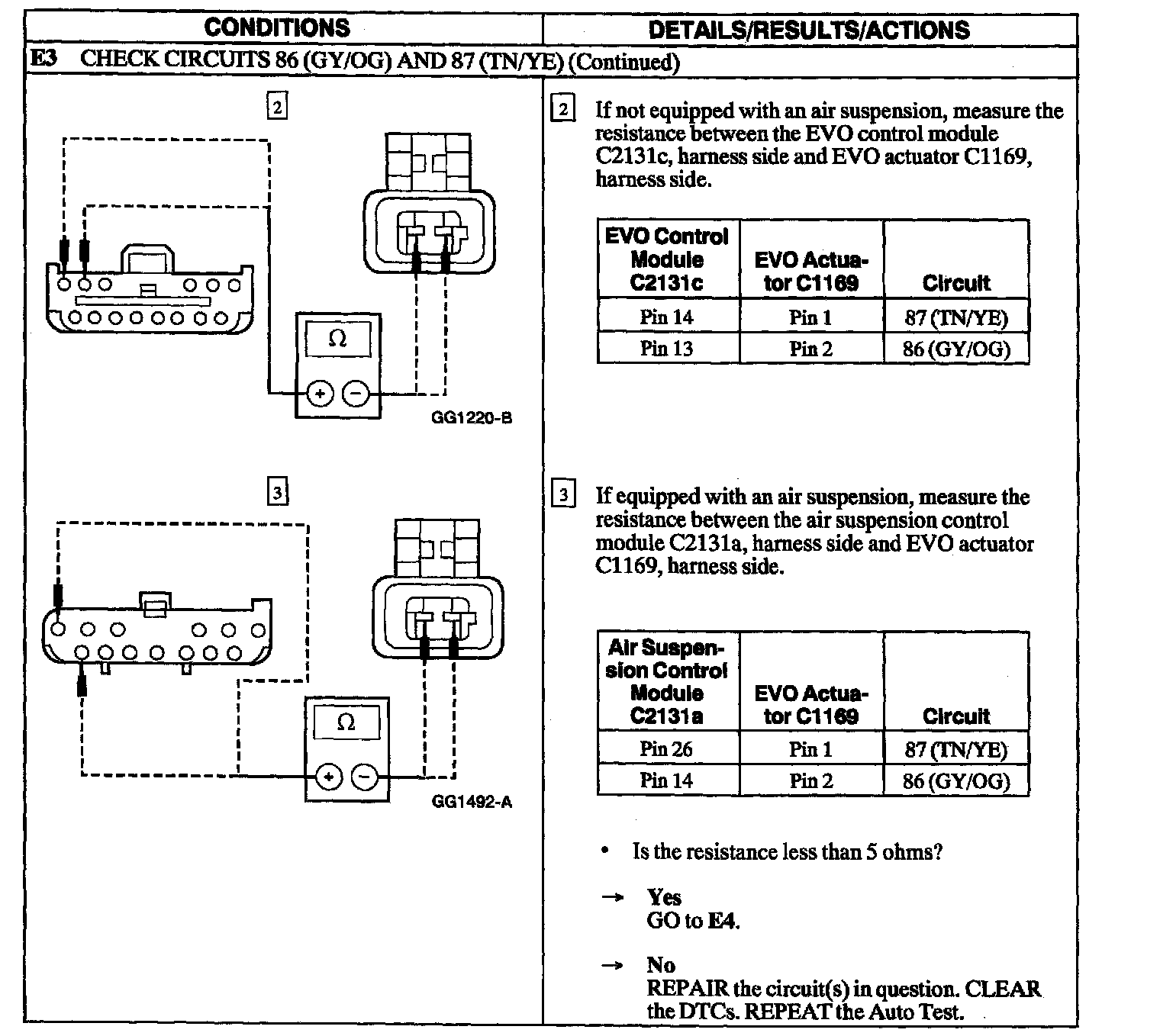

Test E3

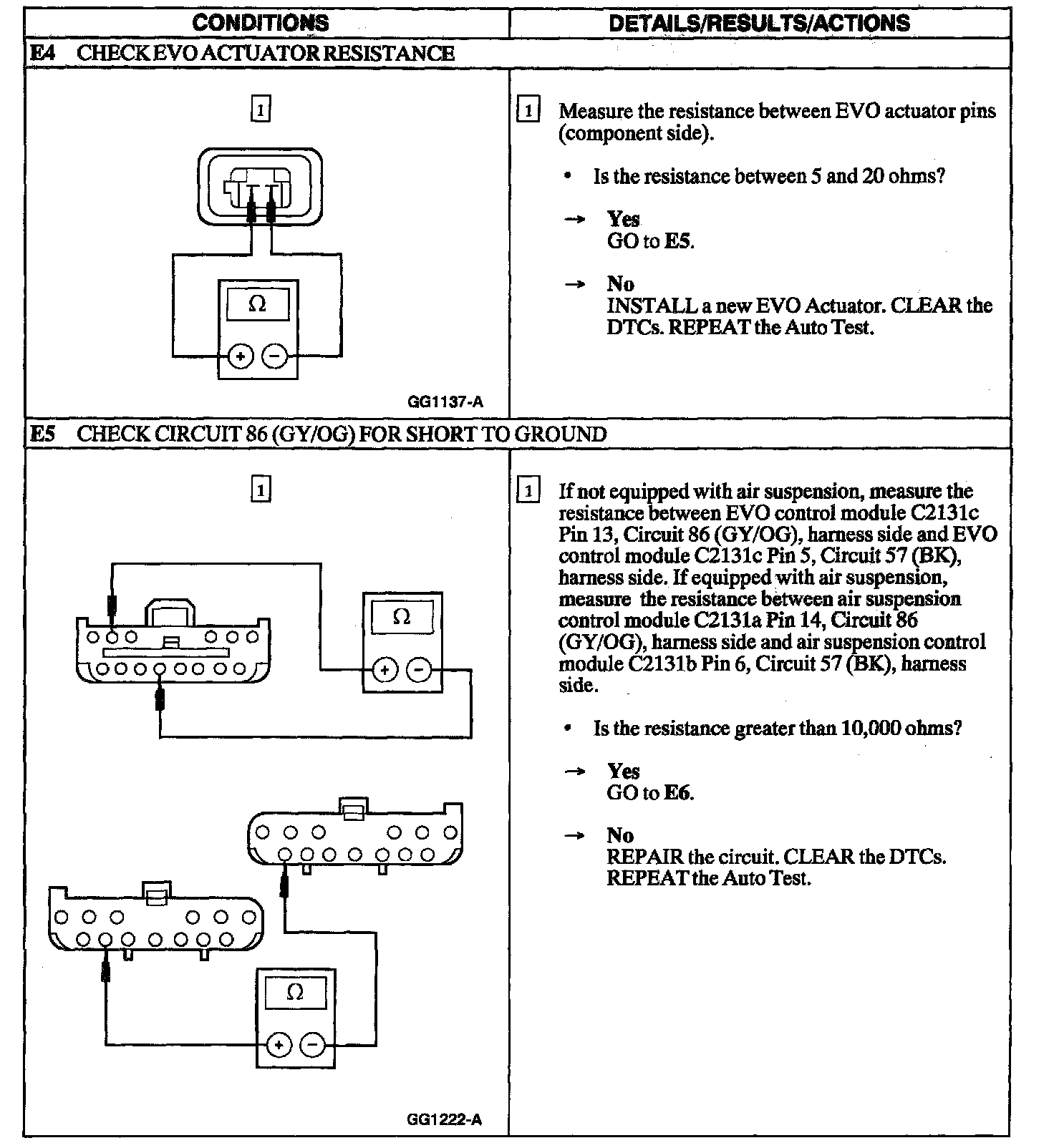

Test E4-E5

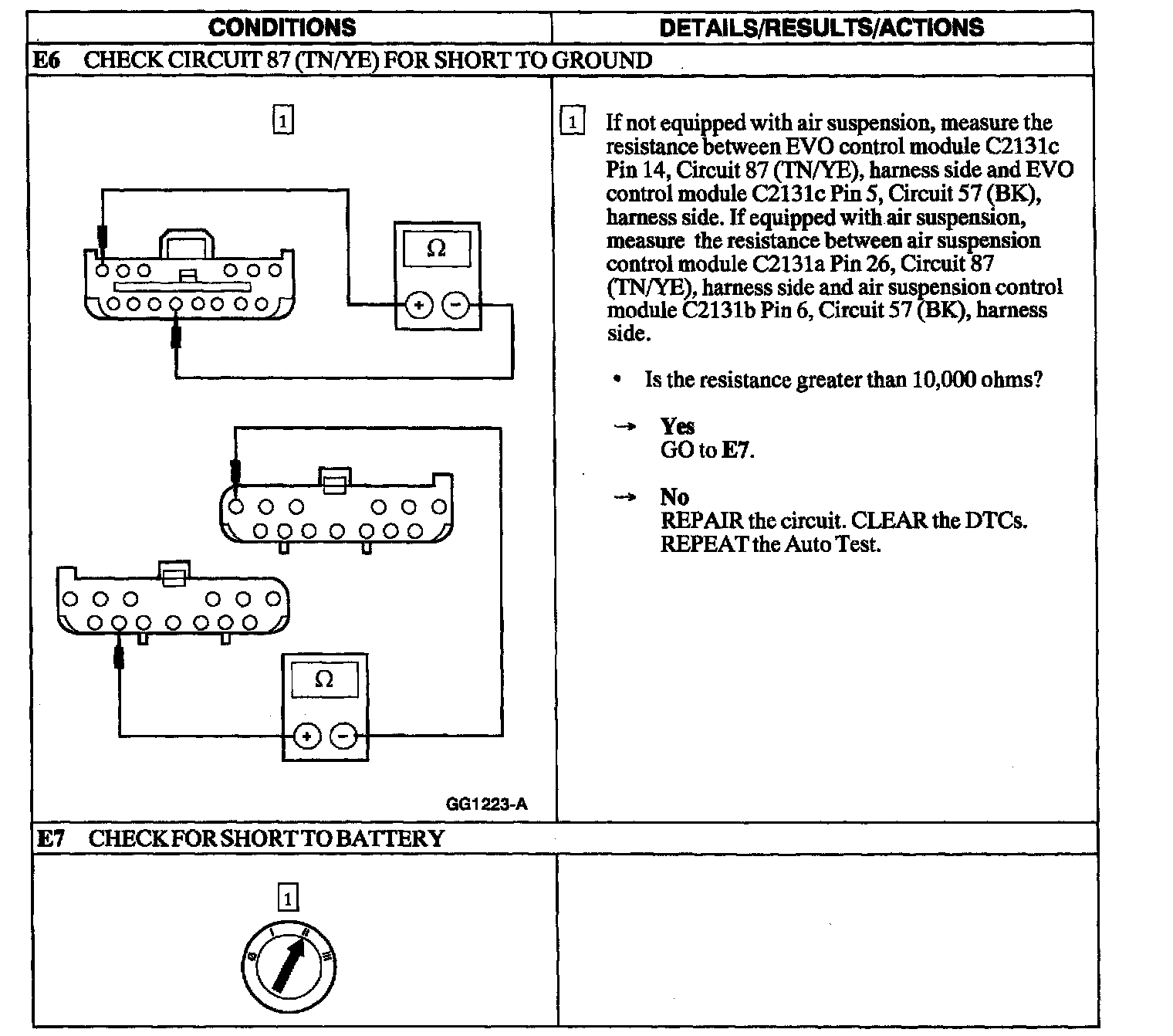

Test E6-E7

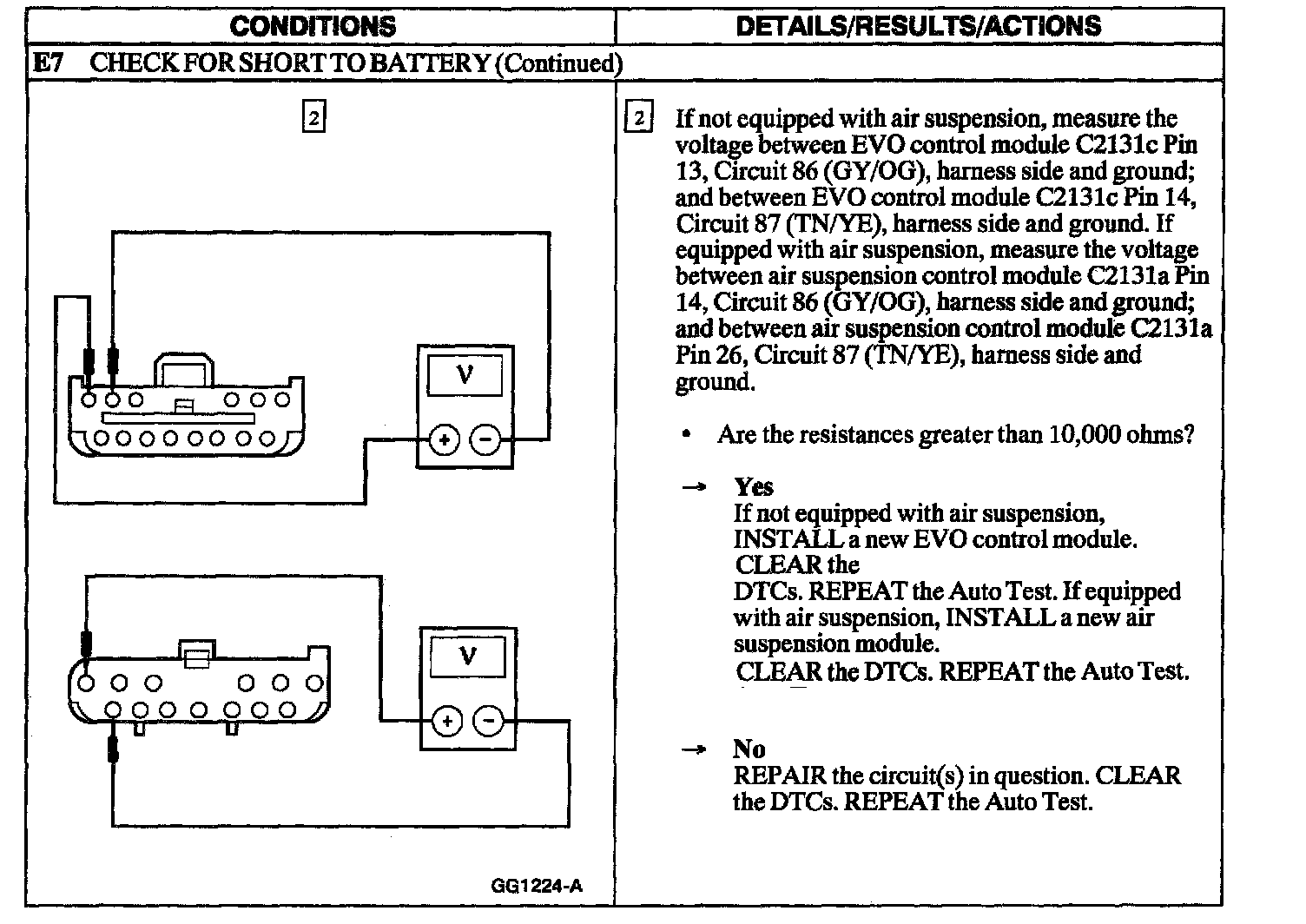

Test E7
