Test A

PINPOINT TEST A: NO COMMUNICATION WITH THE AIR SUSPENSION CONTROL MODULE

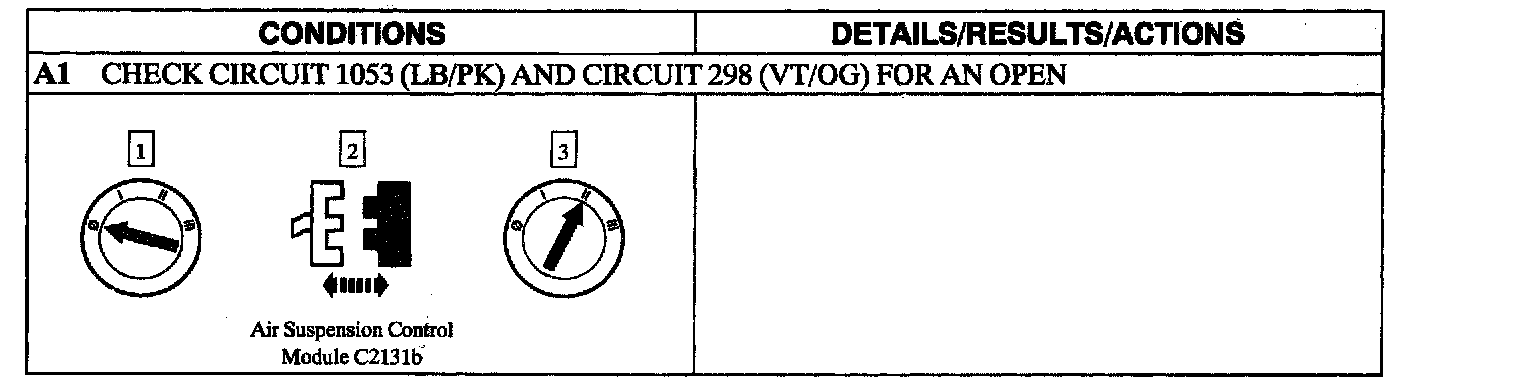

Test A1

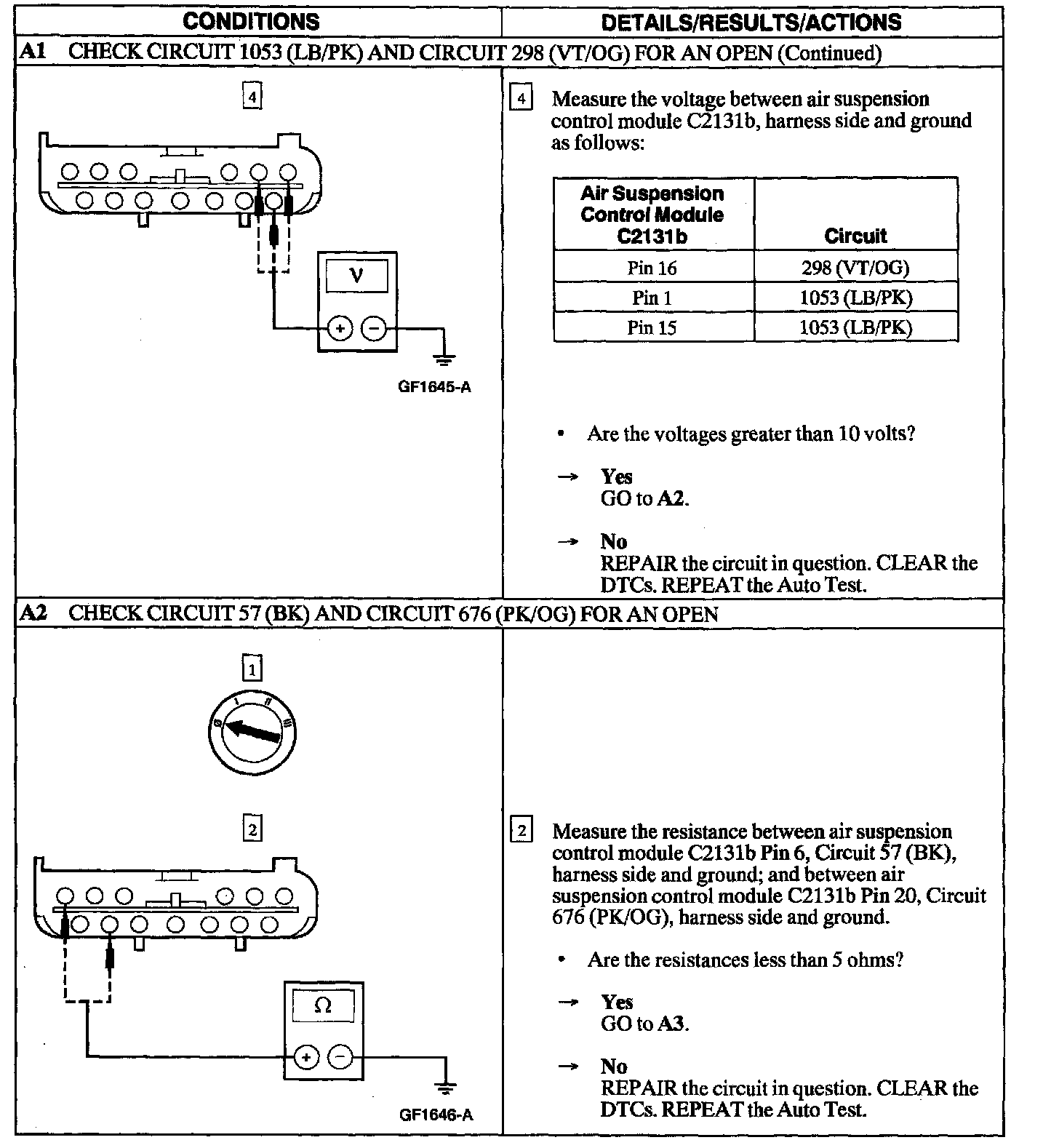

Test A1-A2

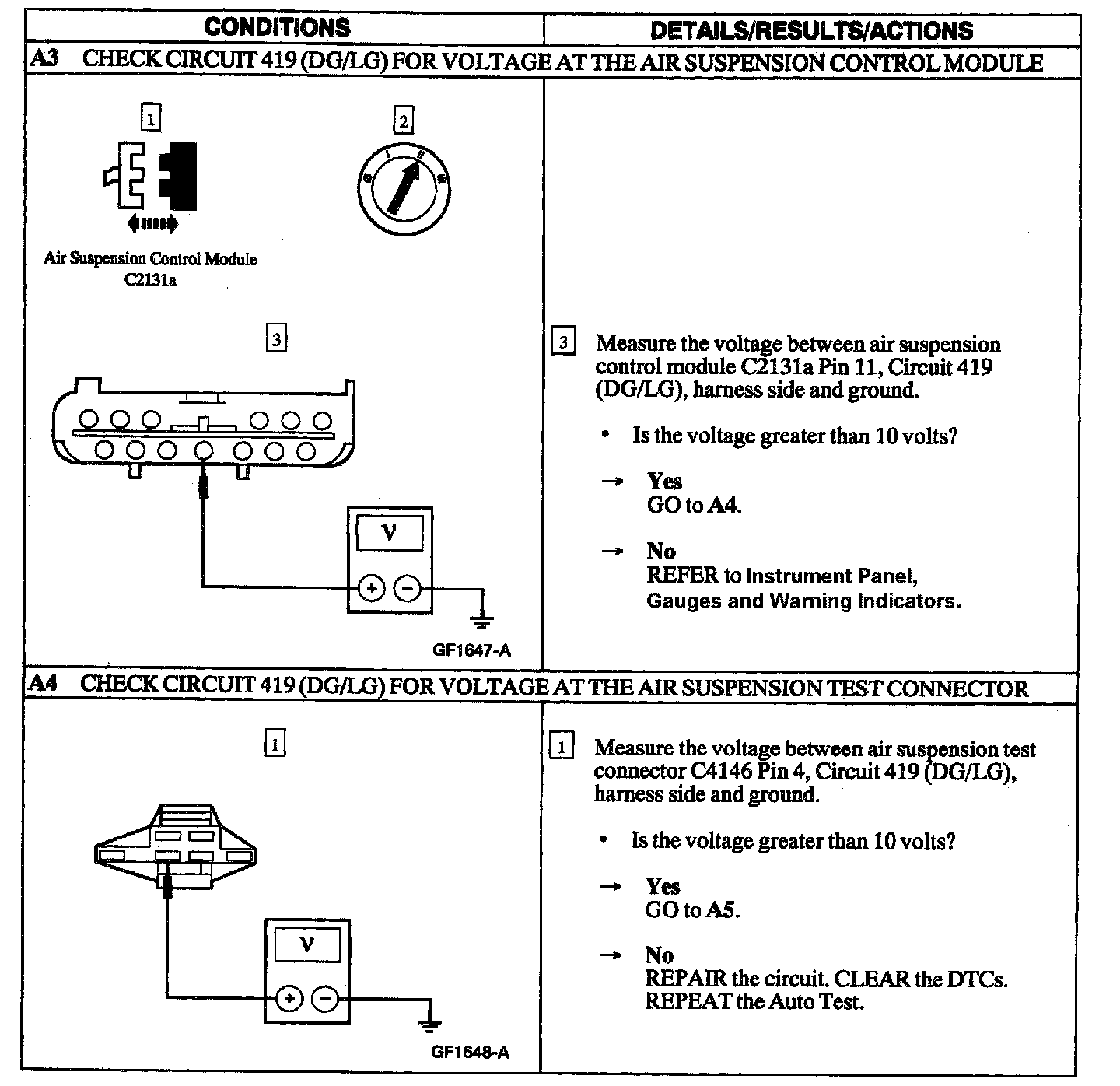

Test A3-A4

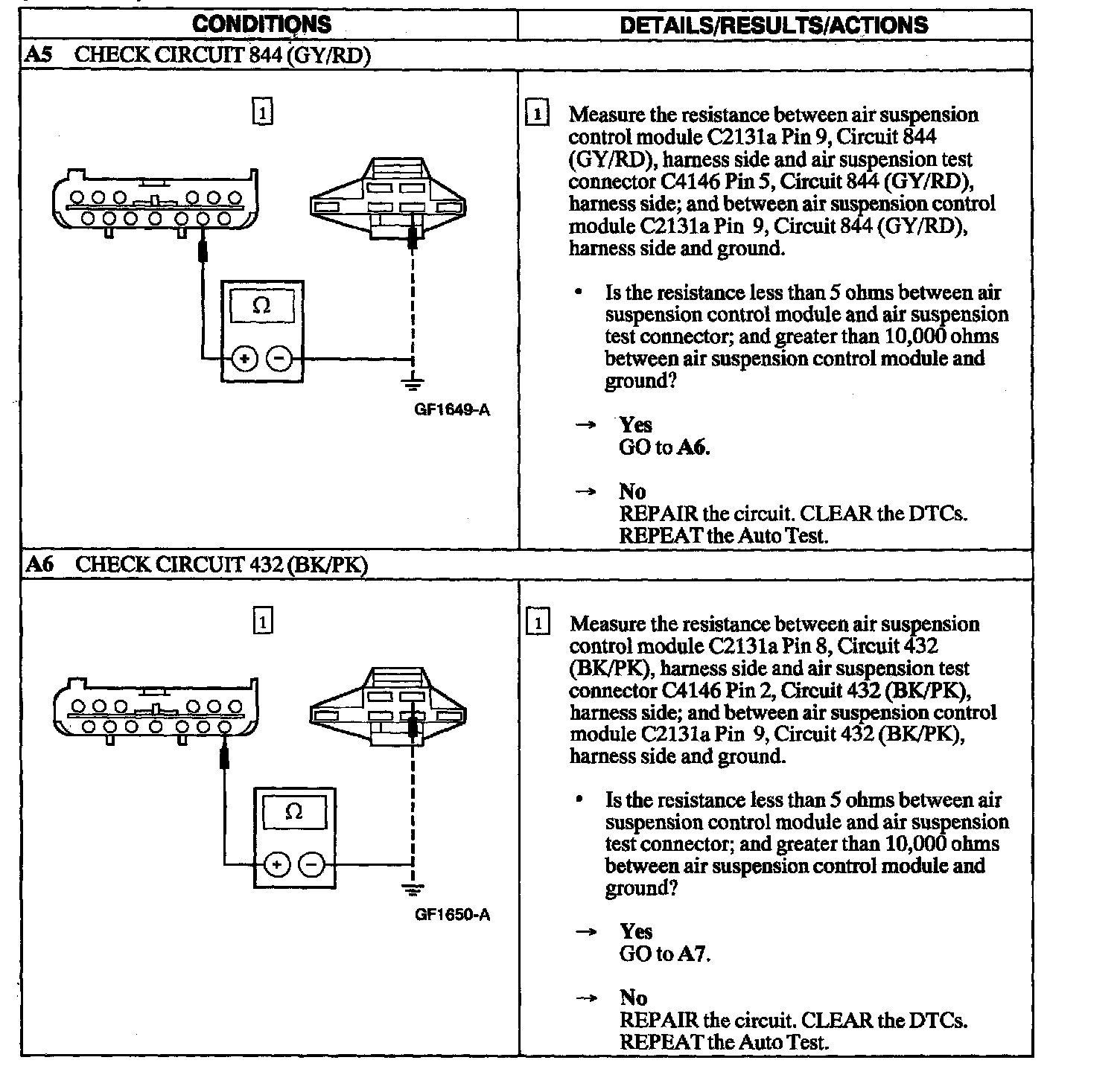

Test A5-A6

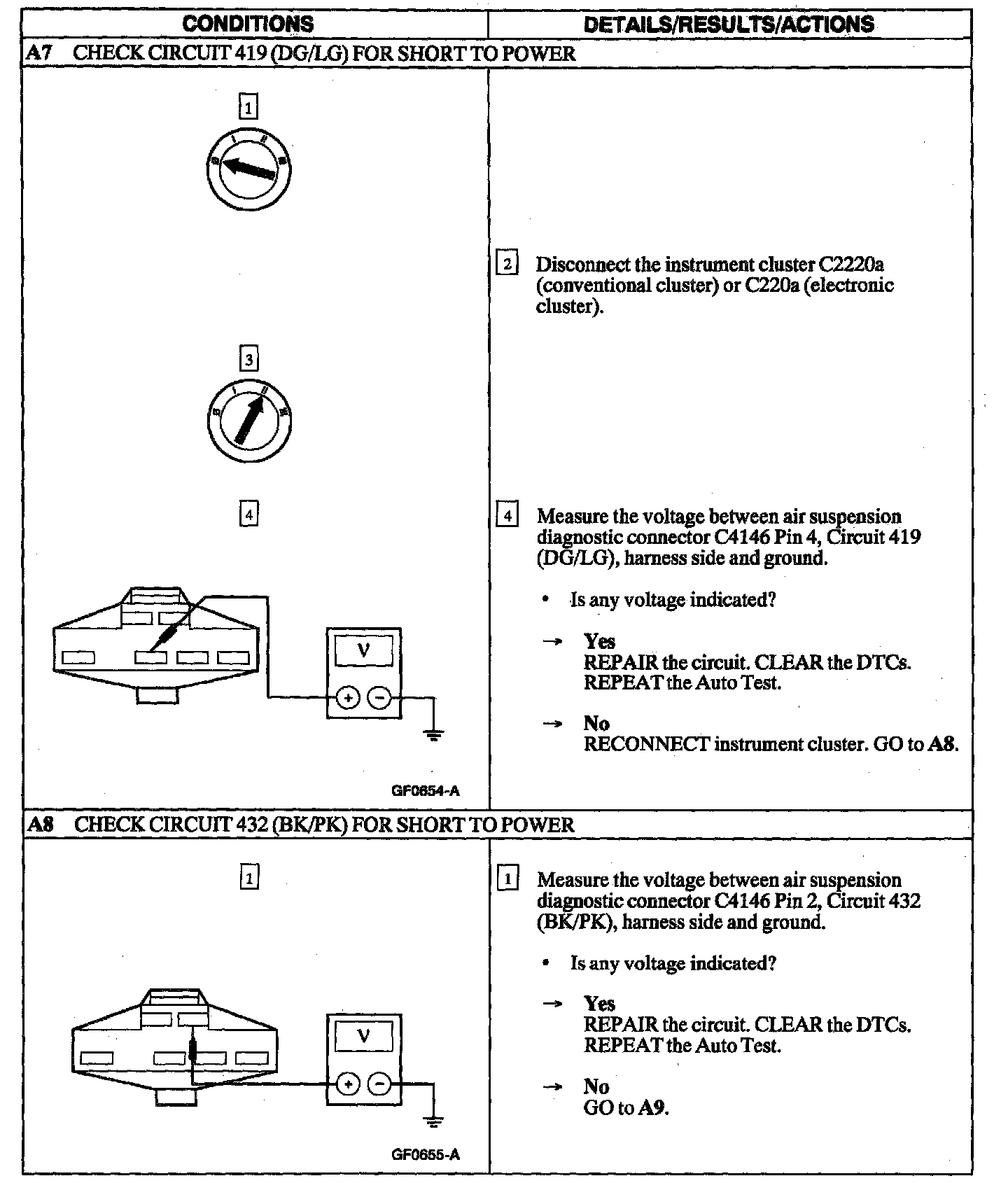

Test A7-A8

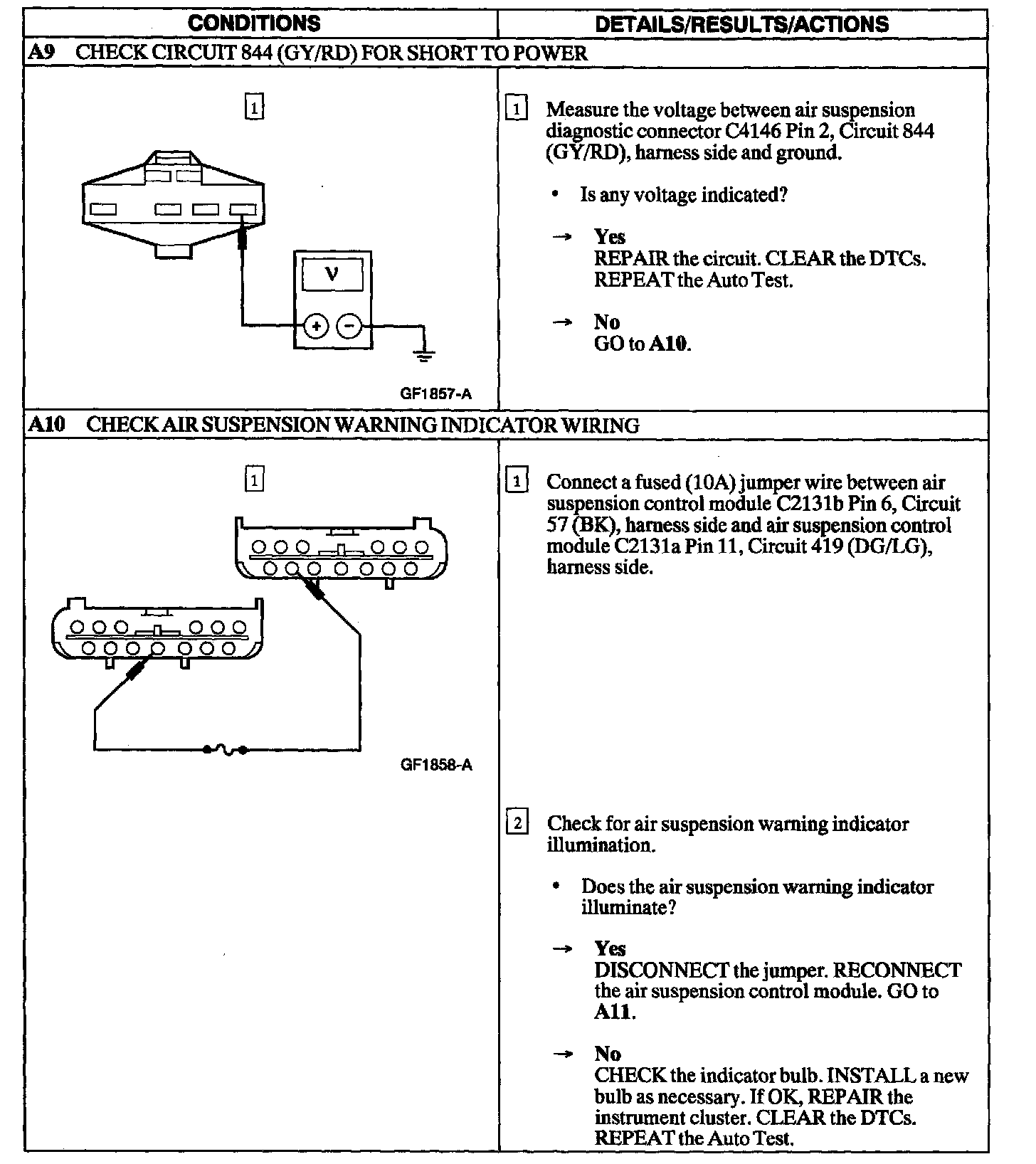

Test A9-A10

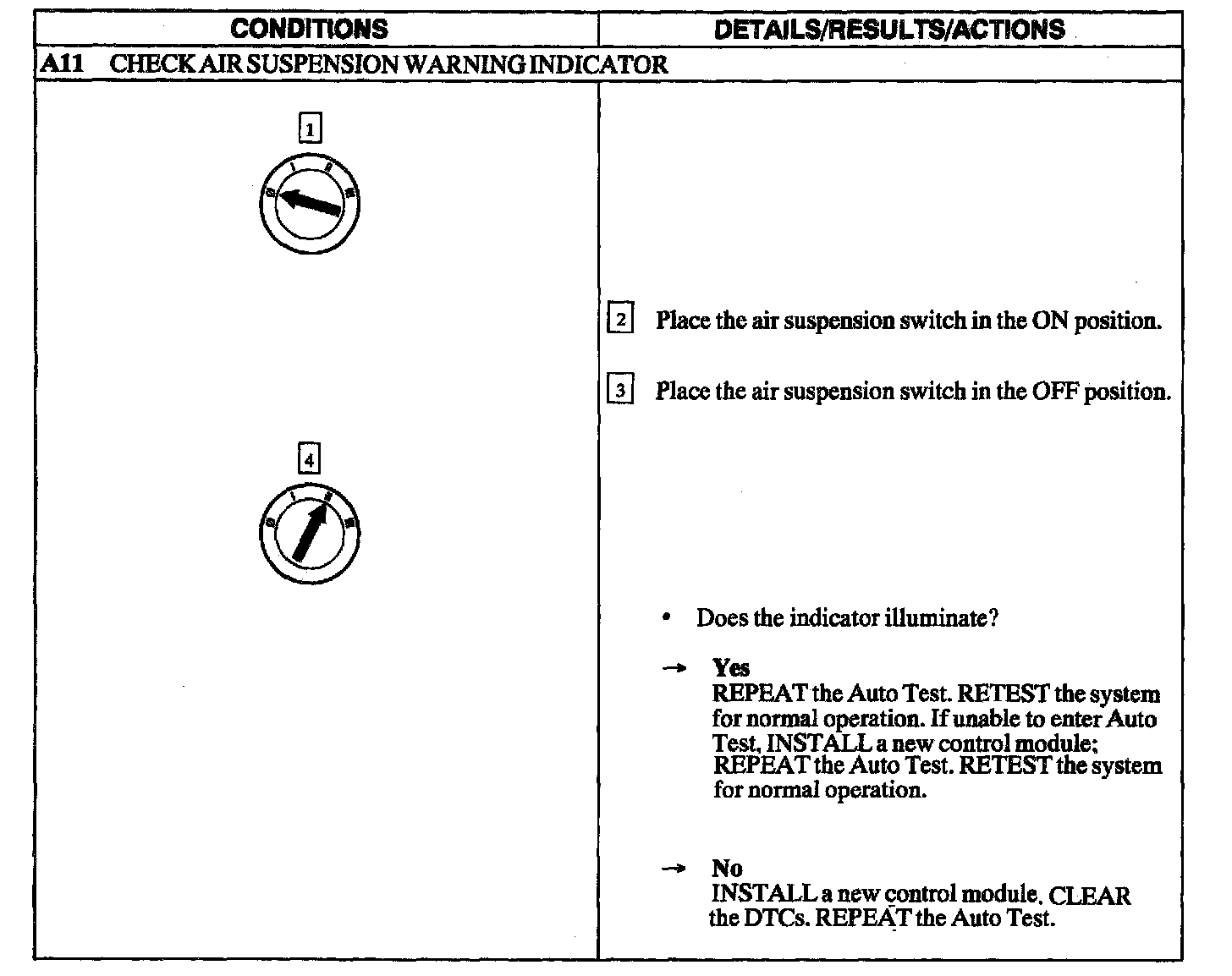

Test A11
