Test A: DTC B1249 - Blend Door Failure Or Short
Test A: DTC B1249 - Blend Door Failure Or Short

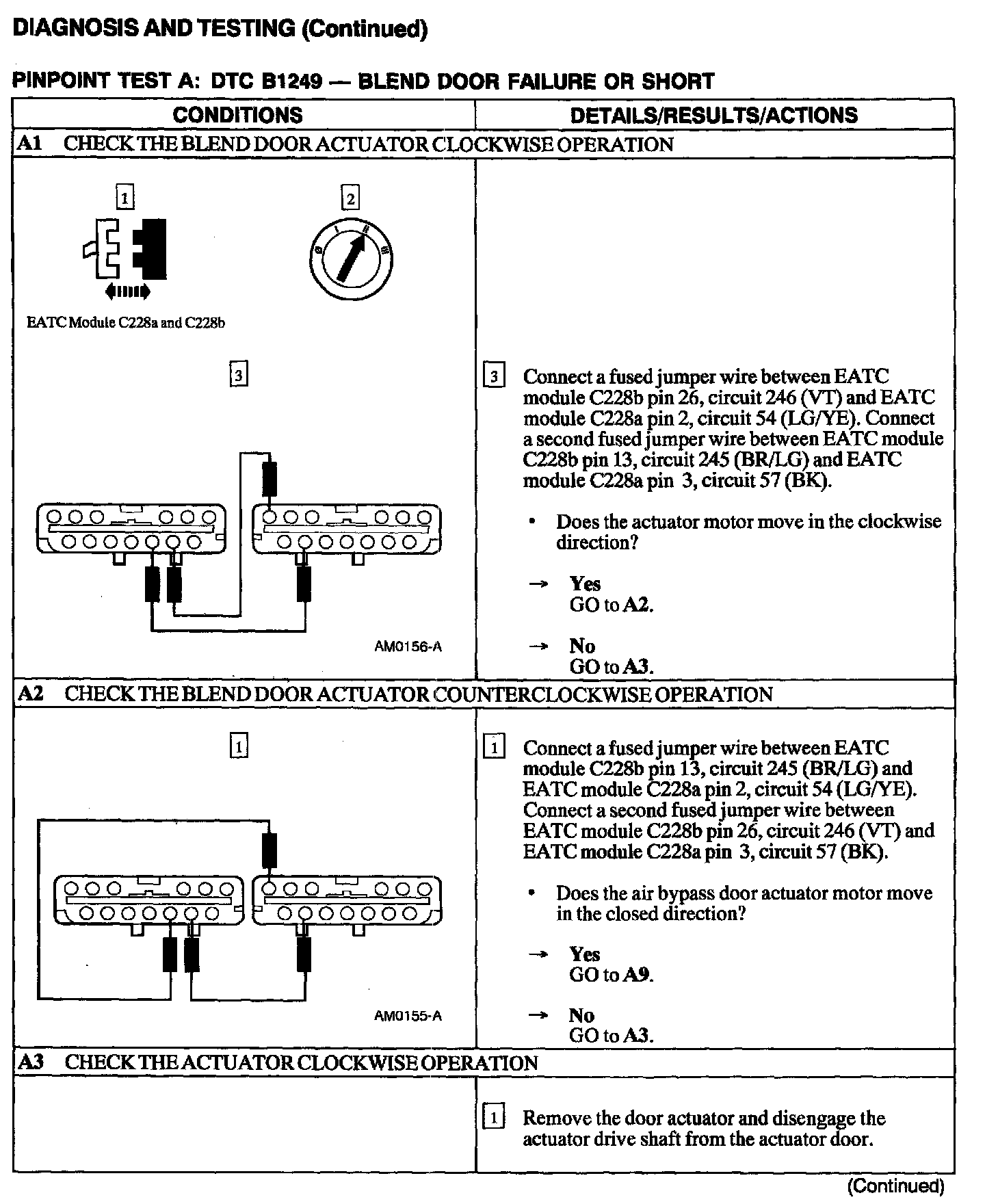

A1 - A3:

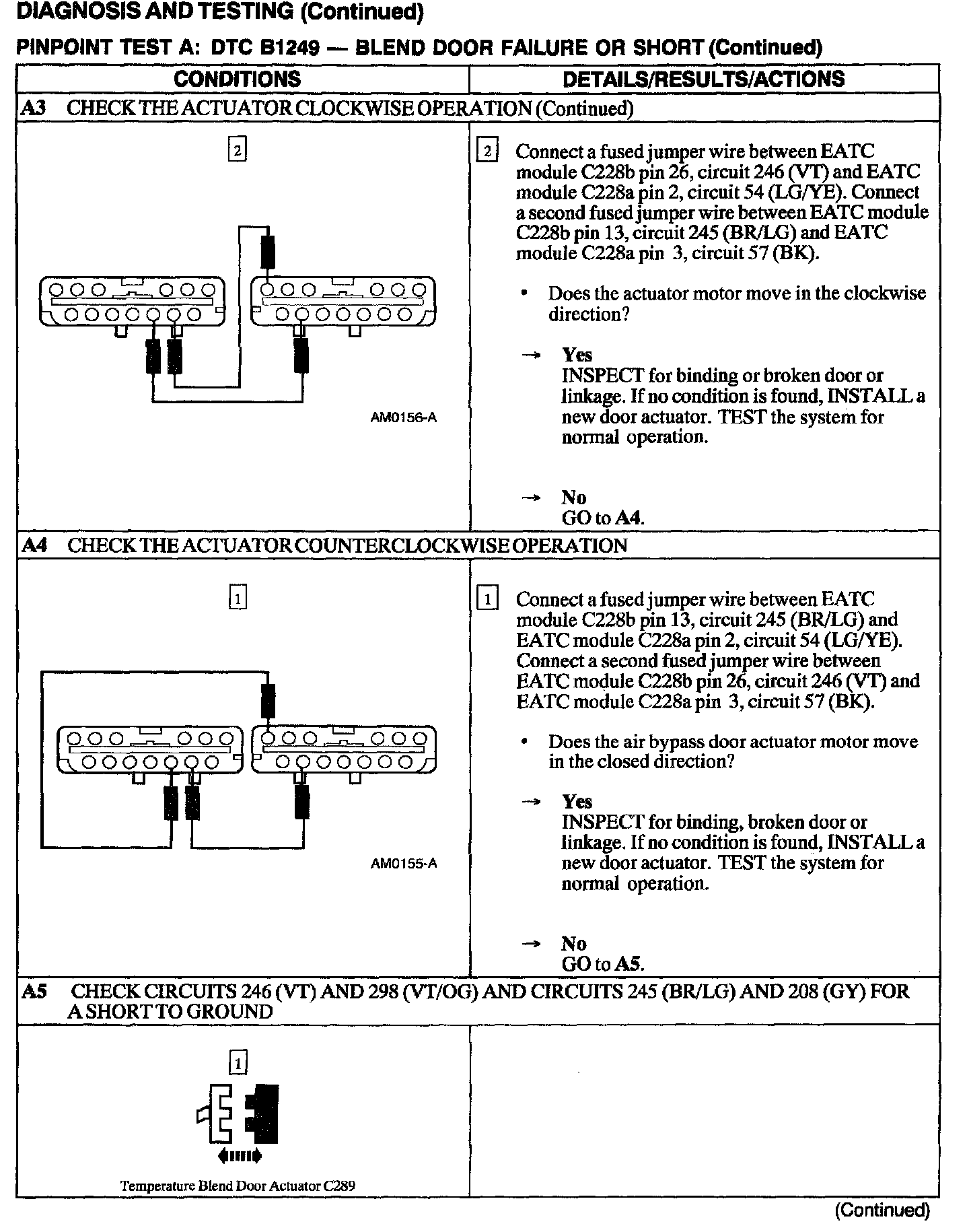

A3 - A5:

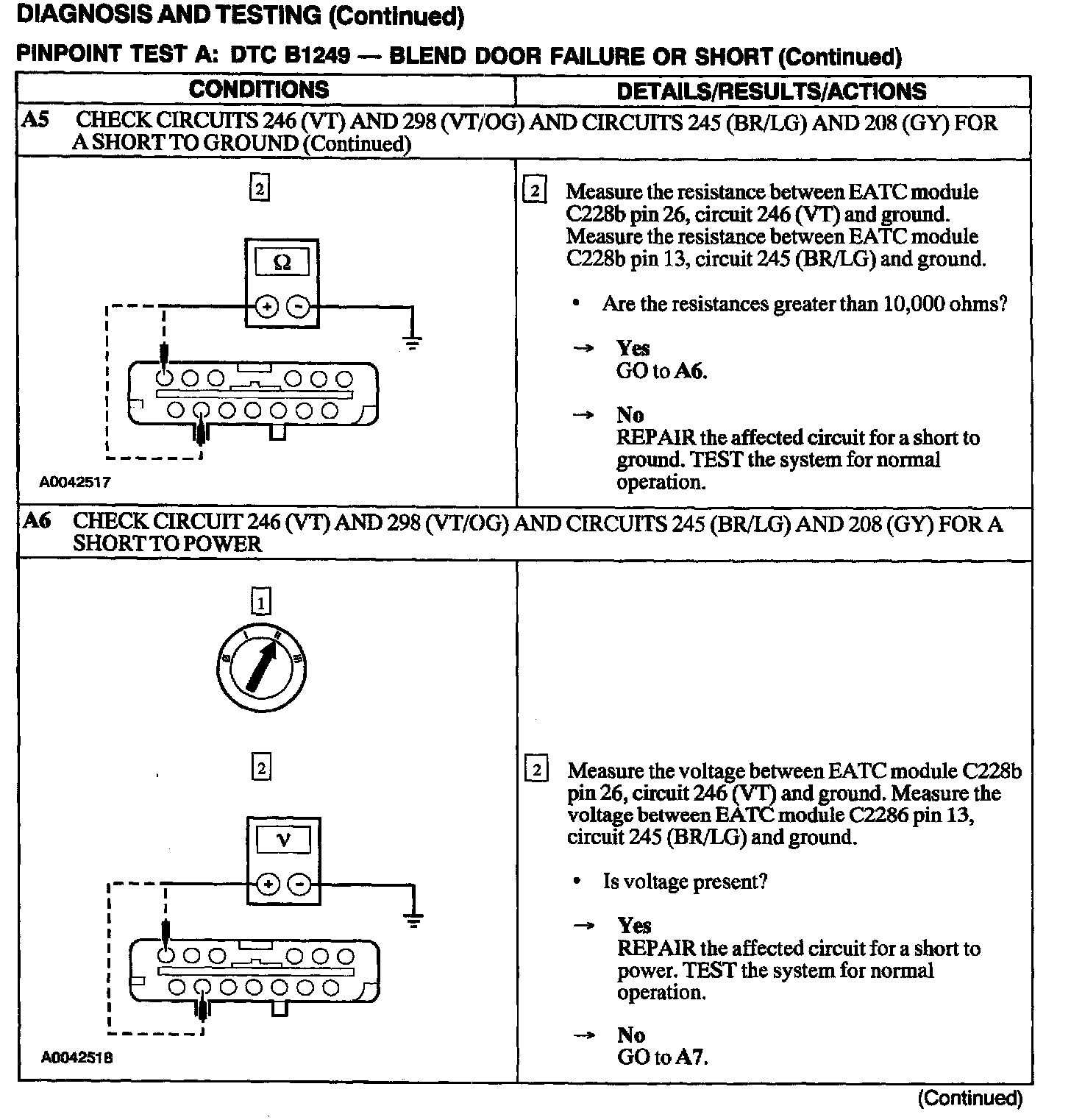

A5 - A6:

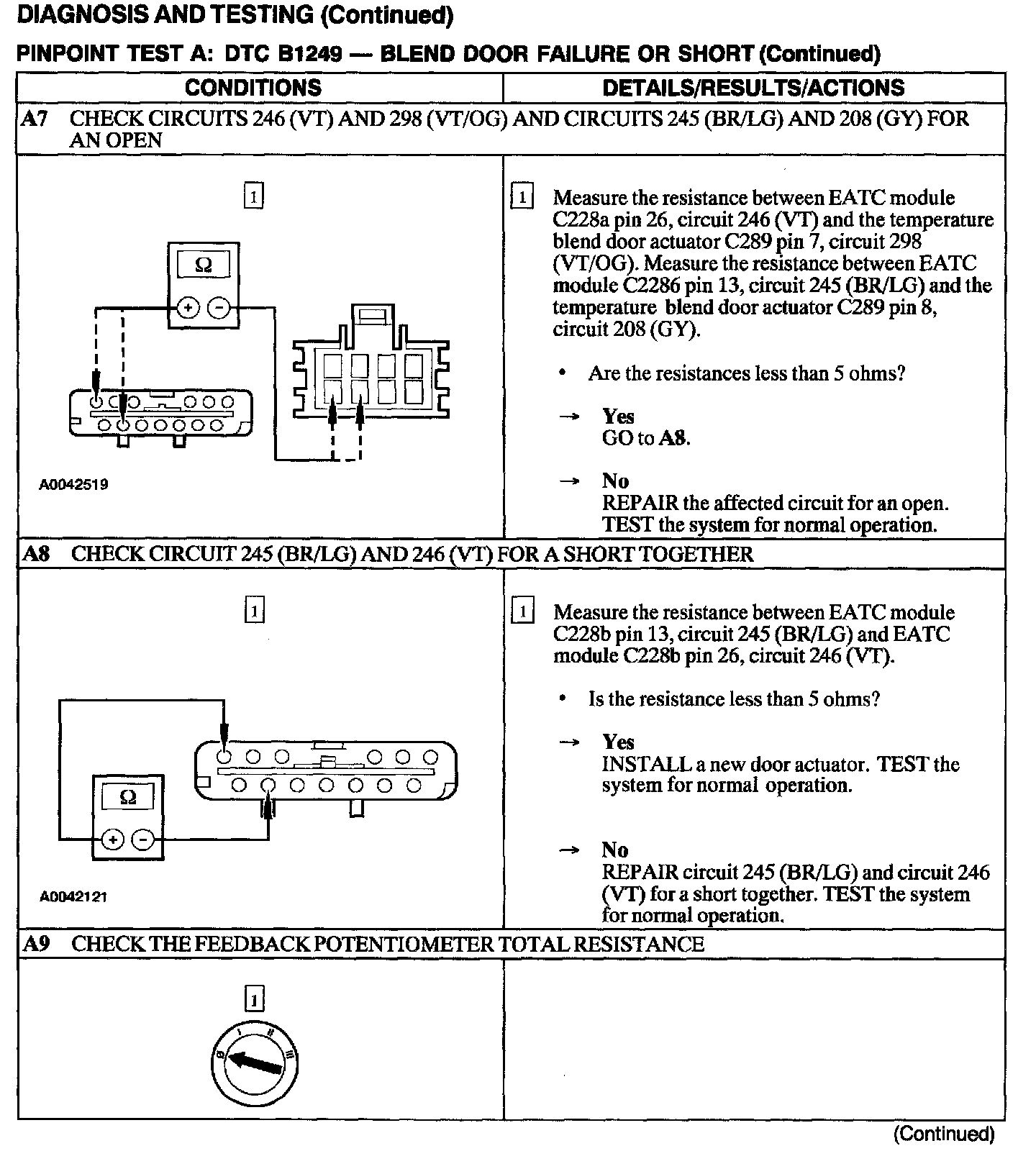

A7 - A9:

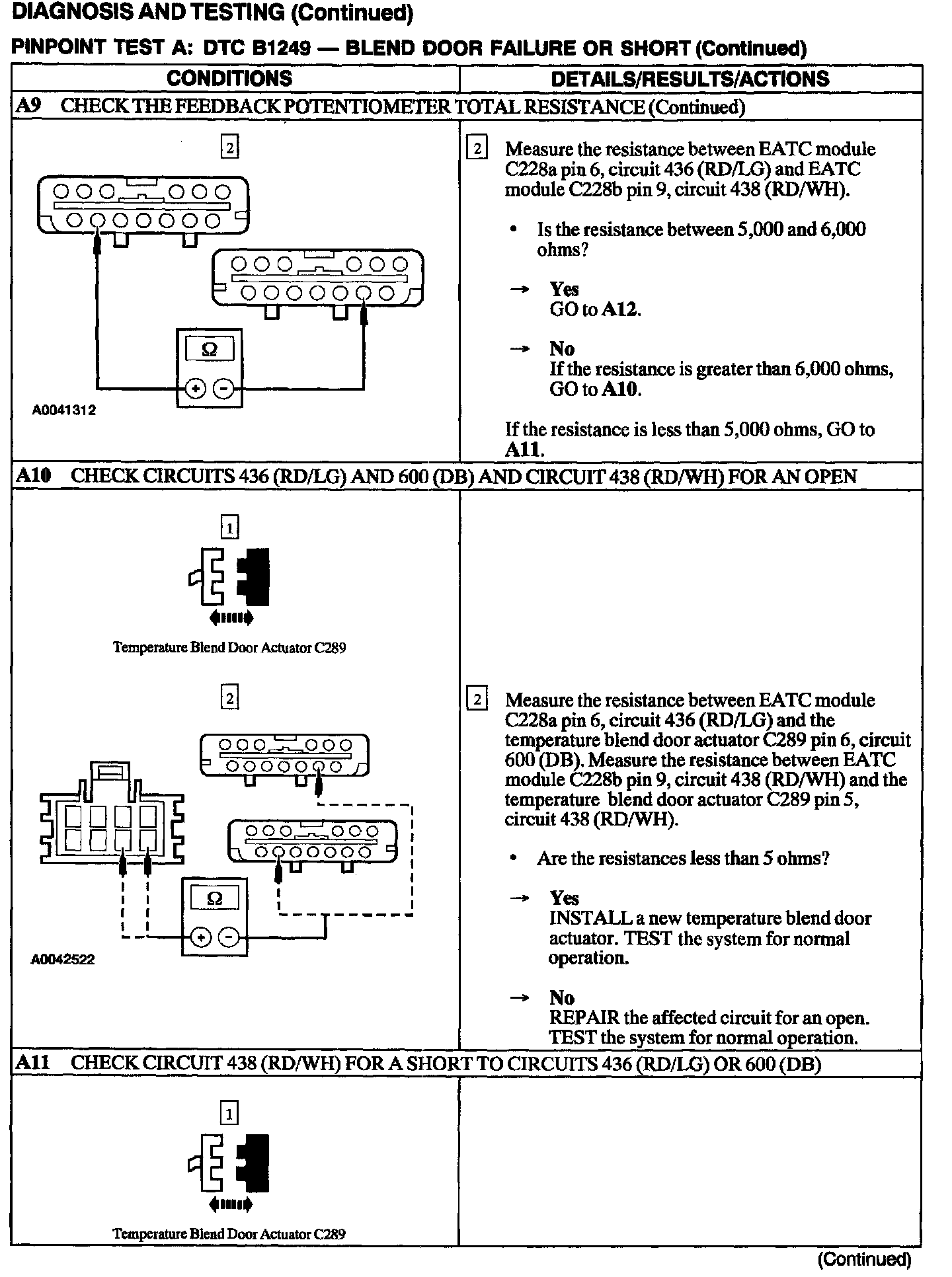

A9 - A11:

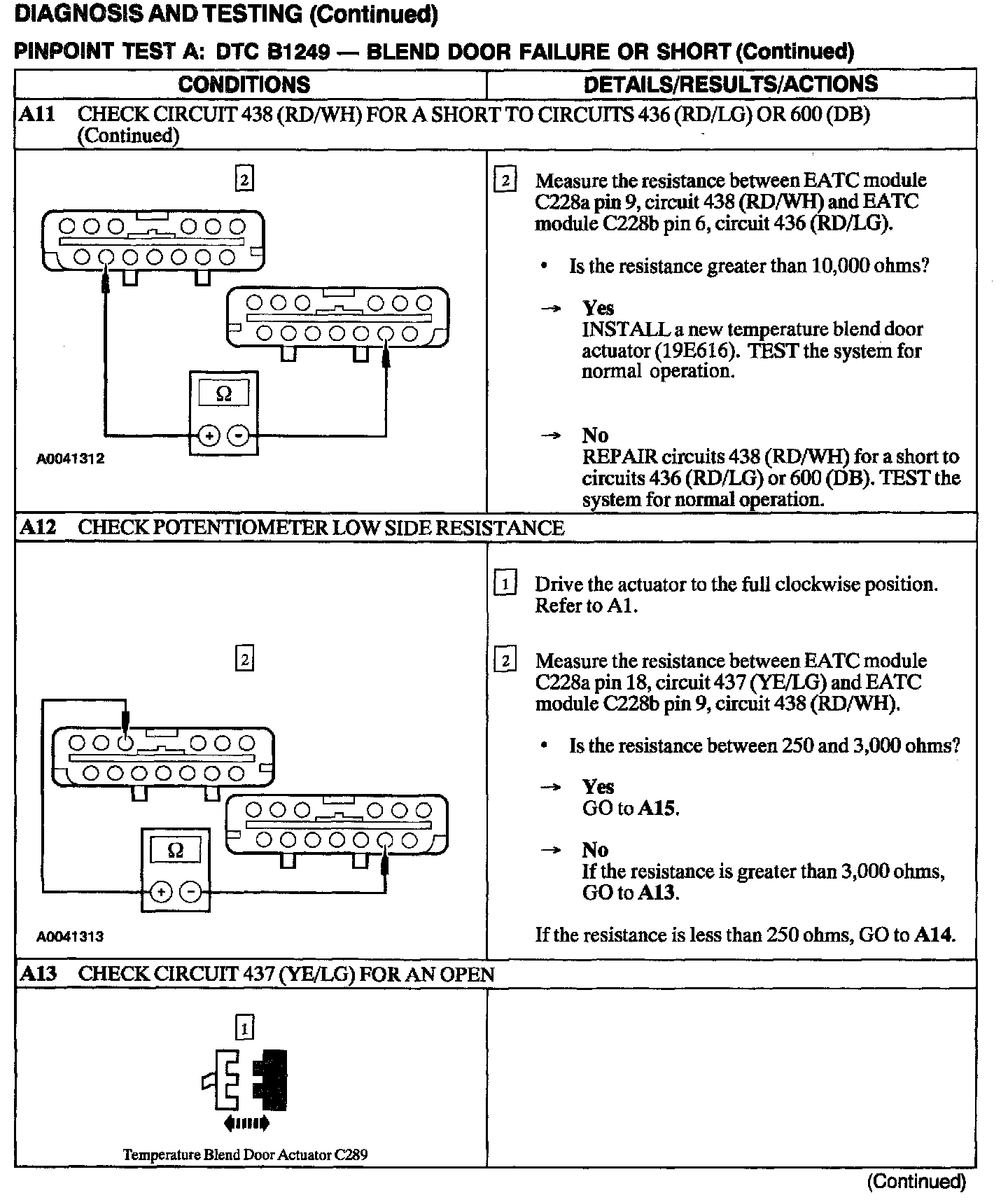

A11 - A13:

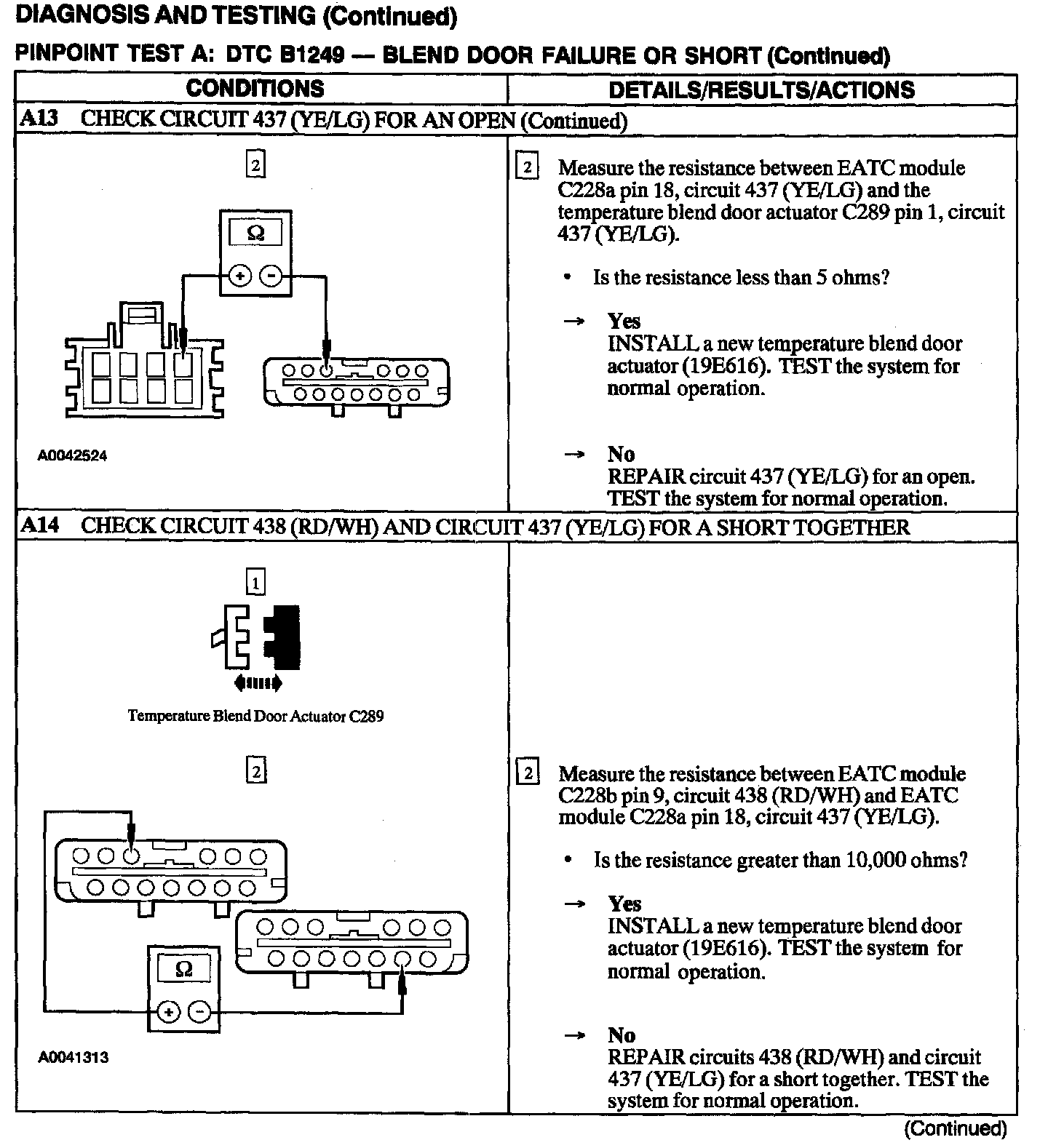

A13 - A14:

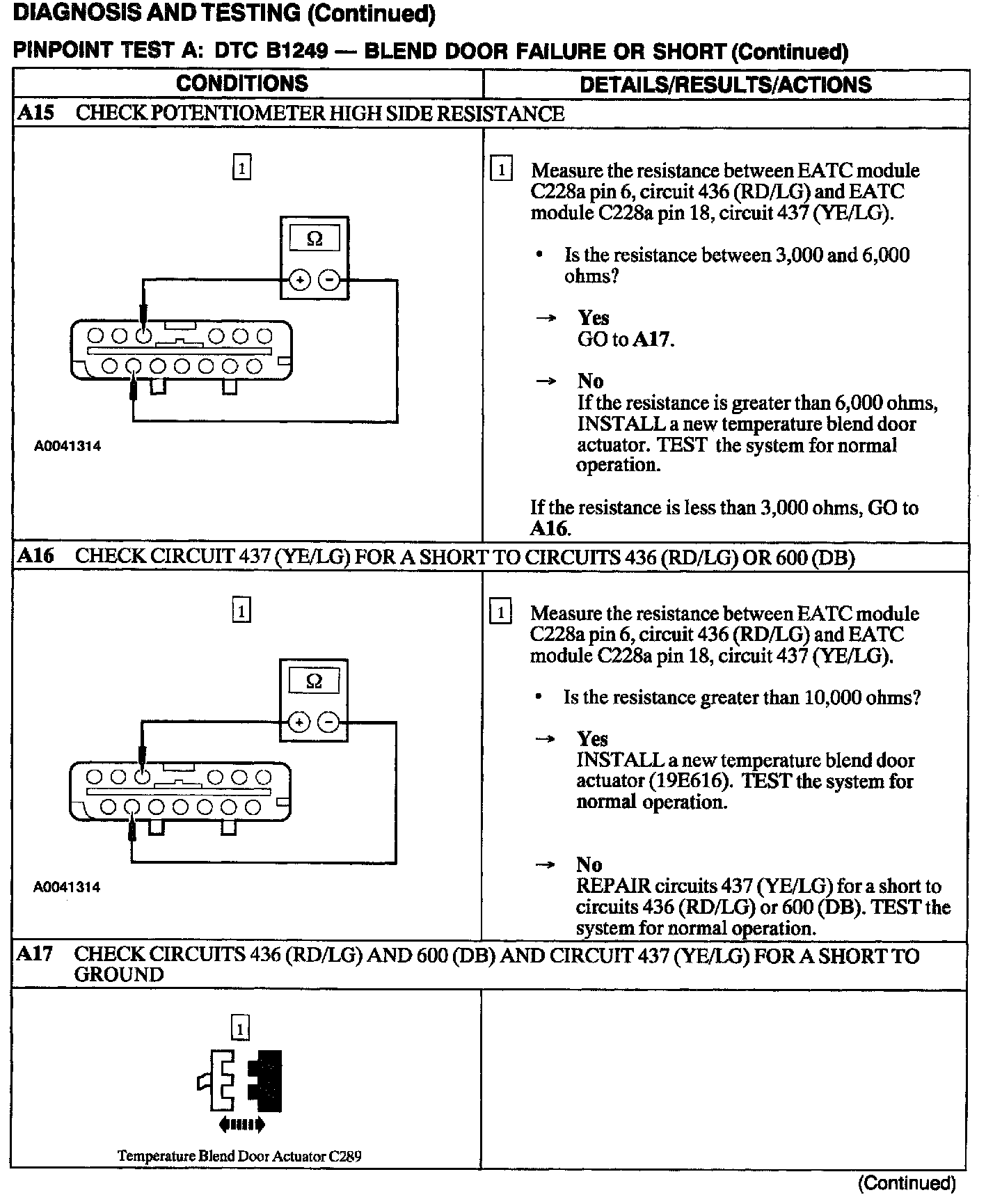

A15 - A17:

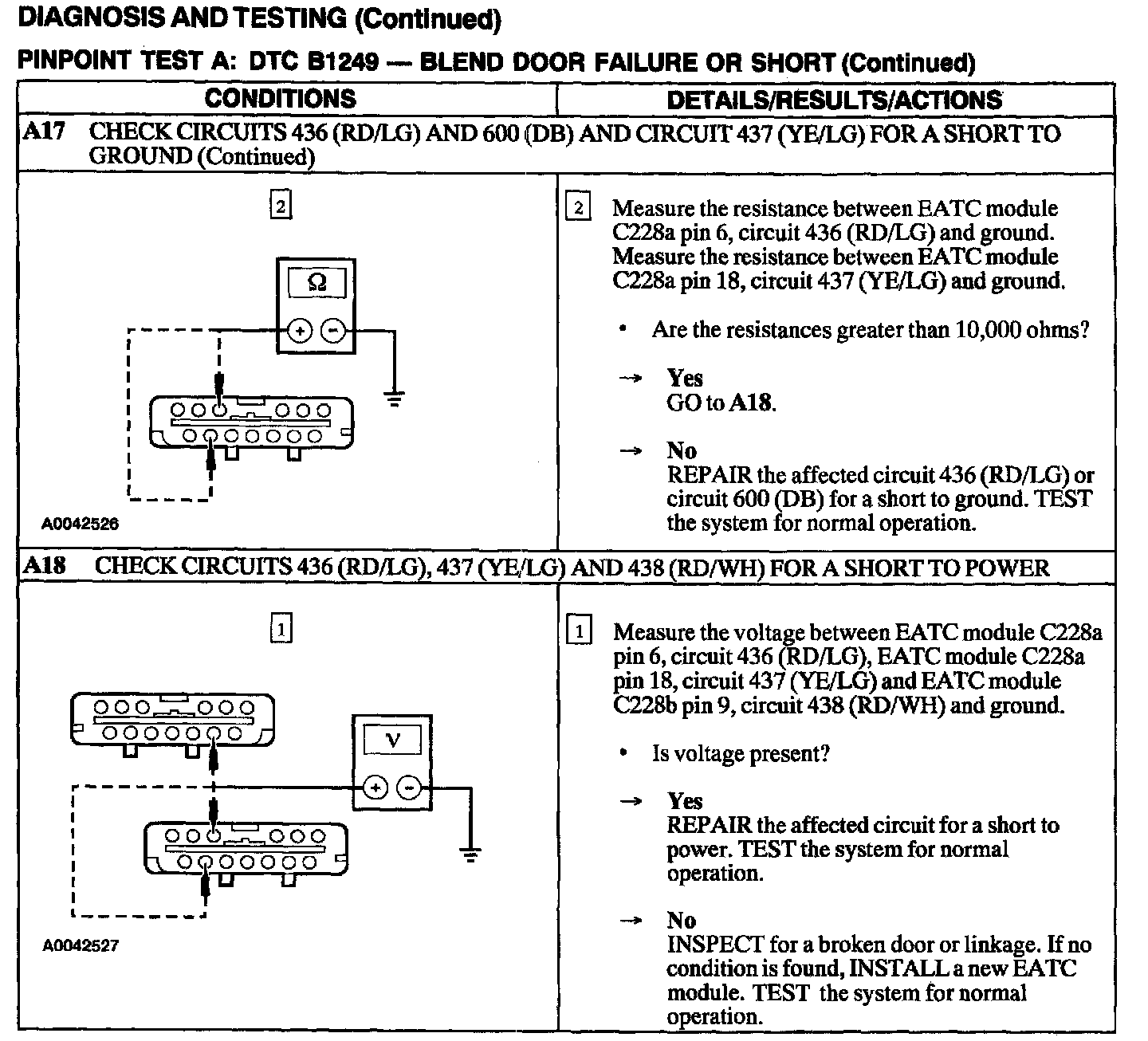

A17 - A18:
