Test T: Steering Wheel Control Switch Inop/Does Not Operate

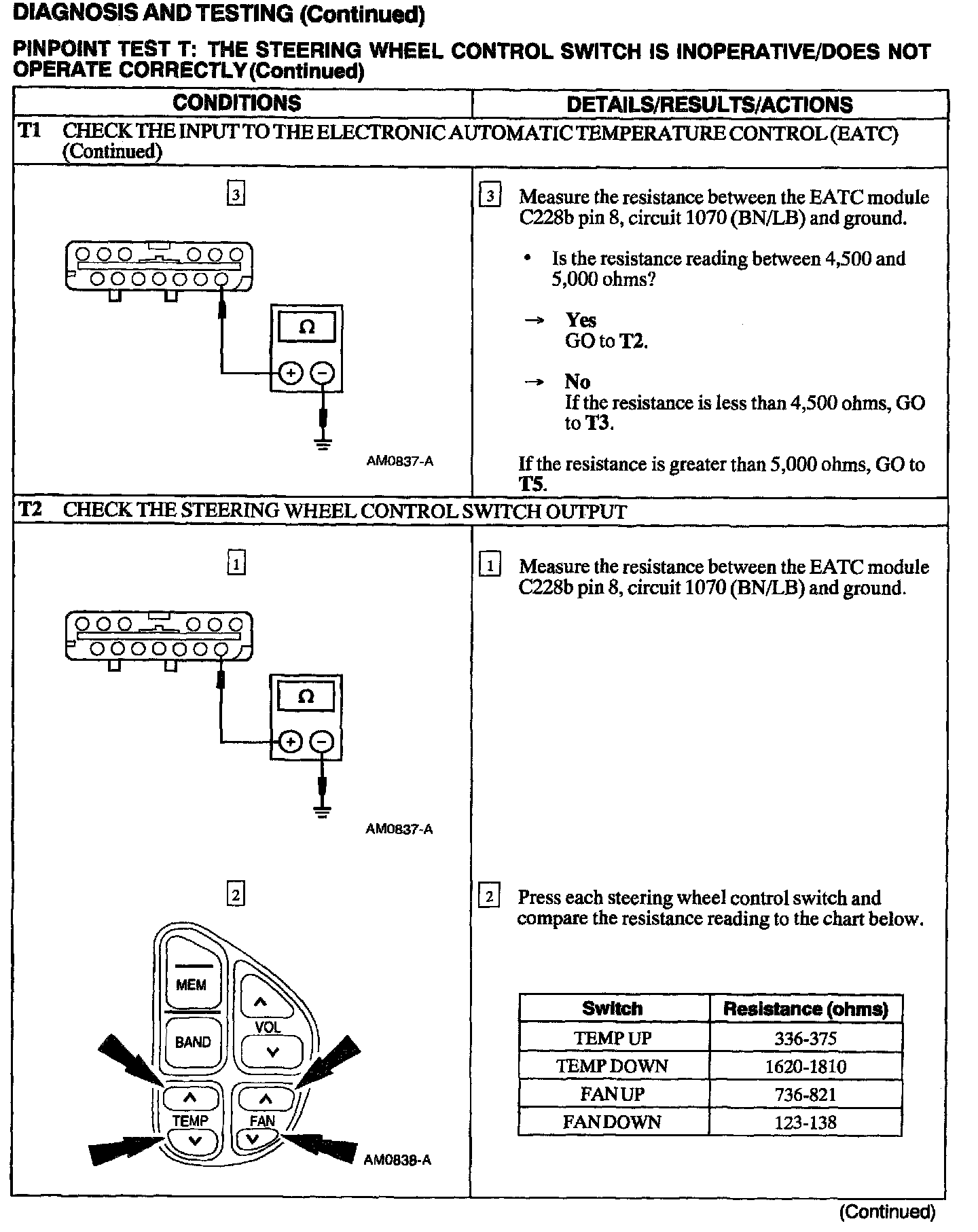

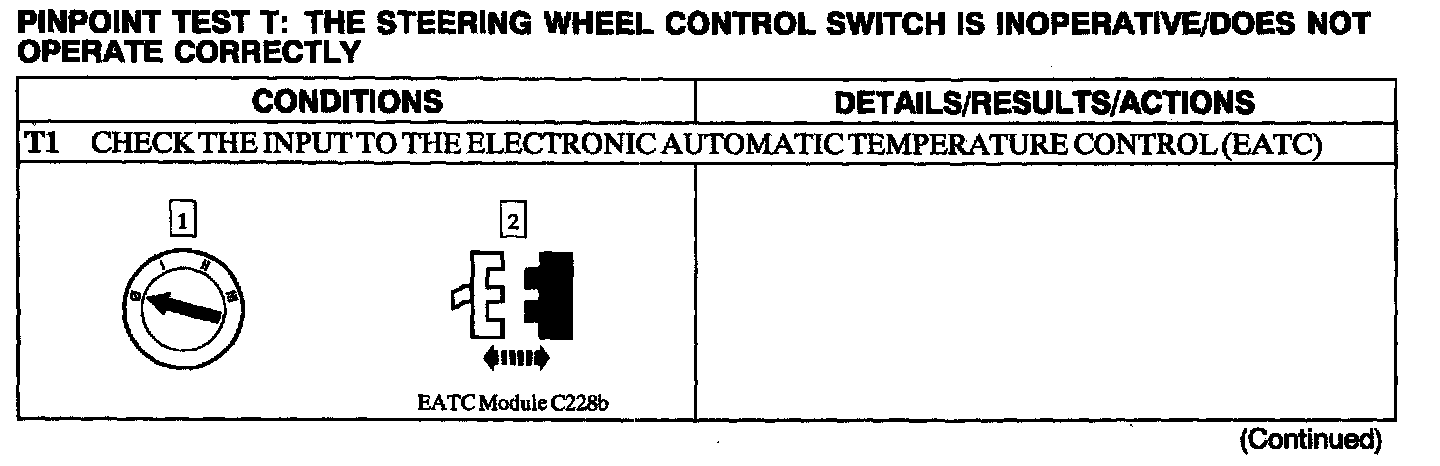

T1:






T1 - T2:

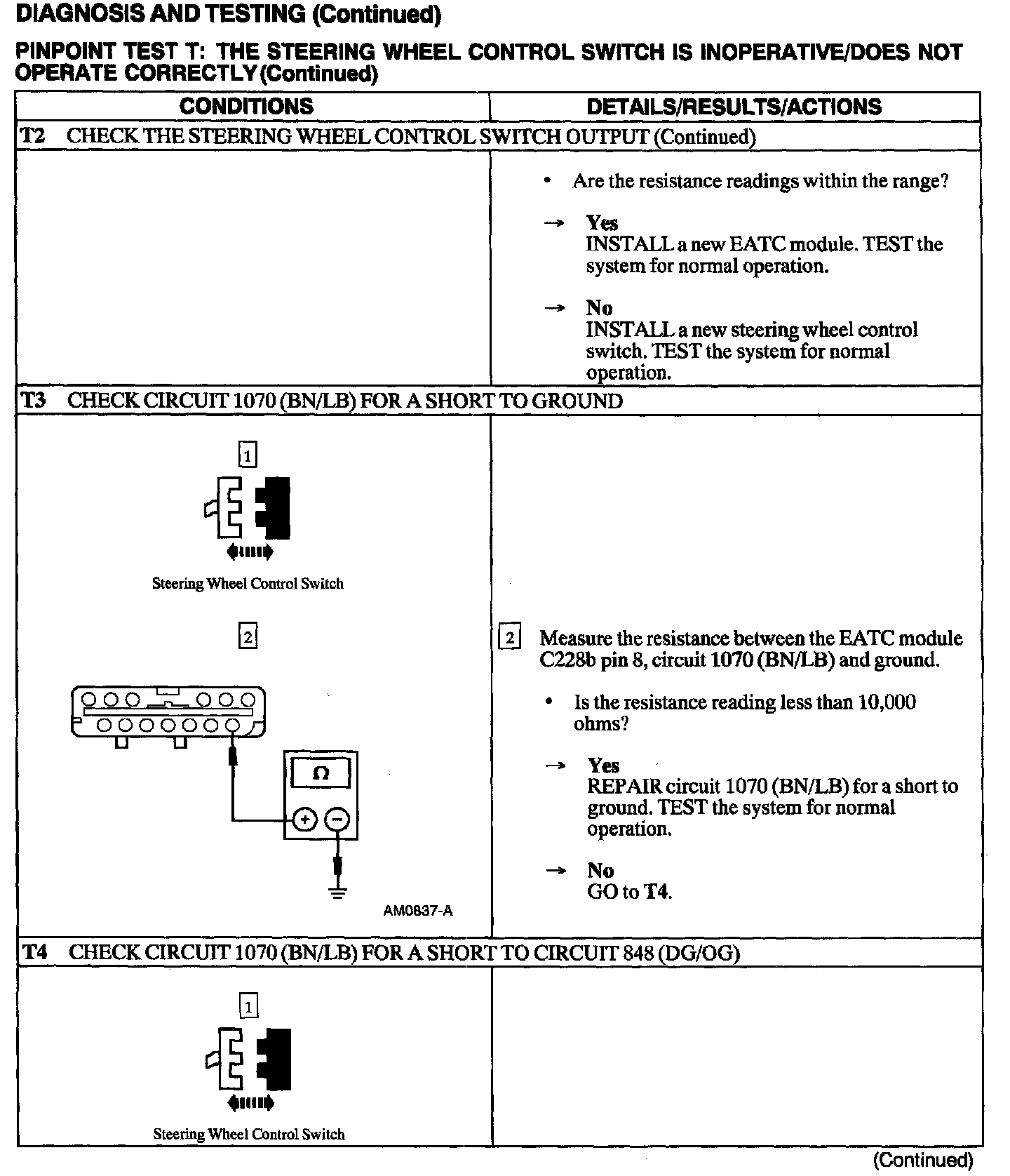

T2 - T4:

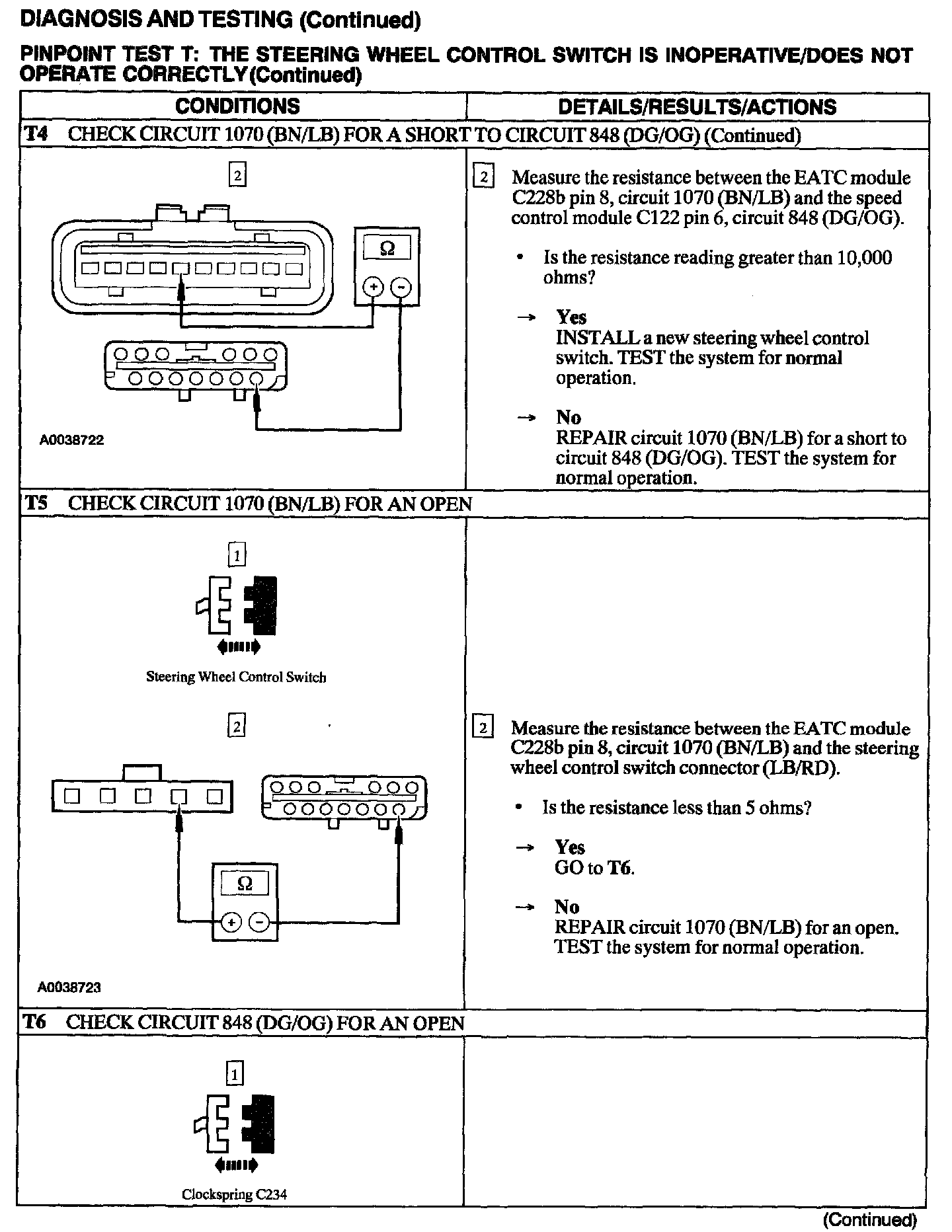

T4 - T6:

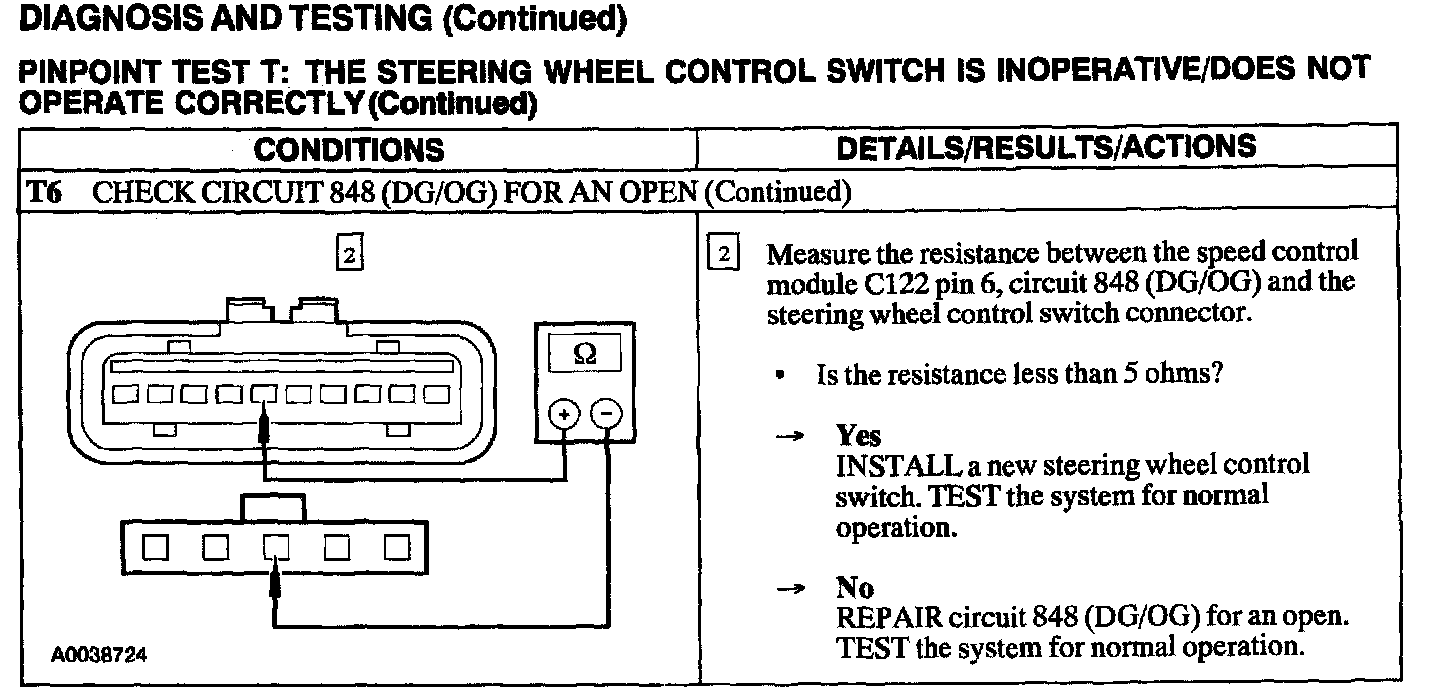

T6:
