Diagnostic Trouble Code Tests and Associated Procedures

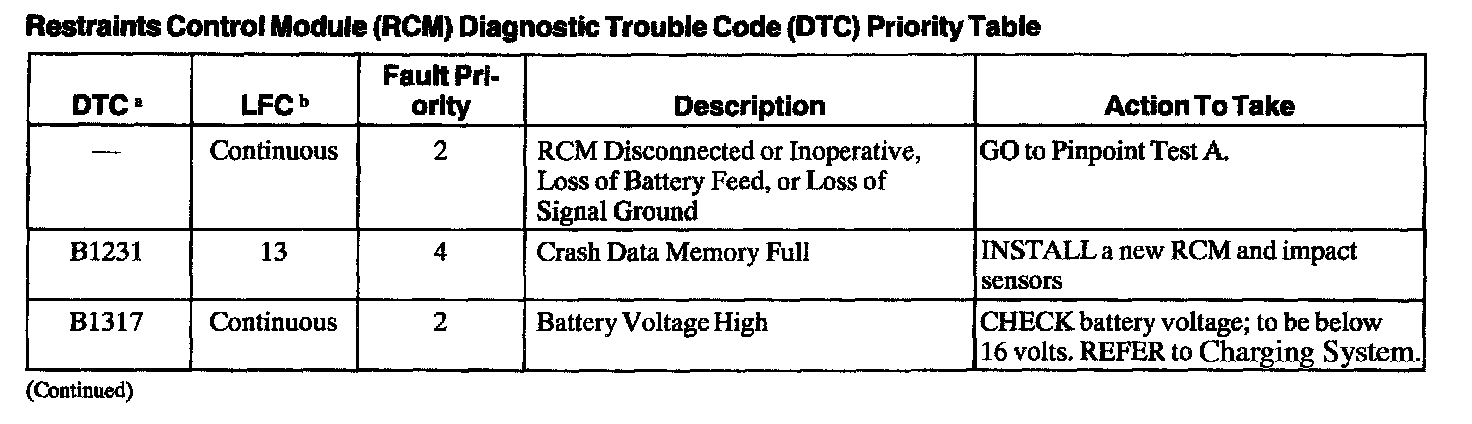

DTC Priority Table B1231 - B1317:

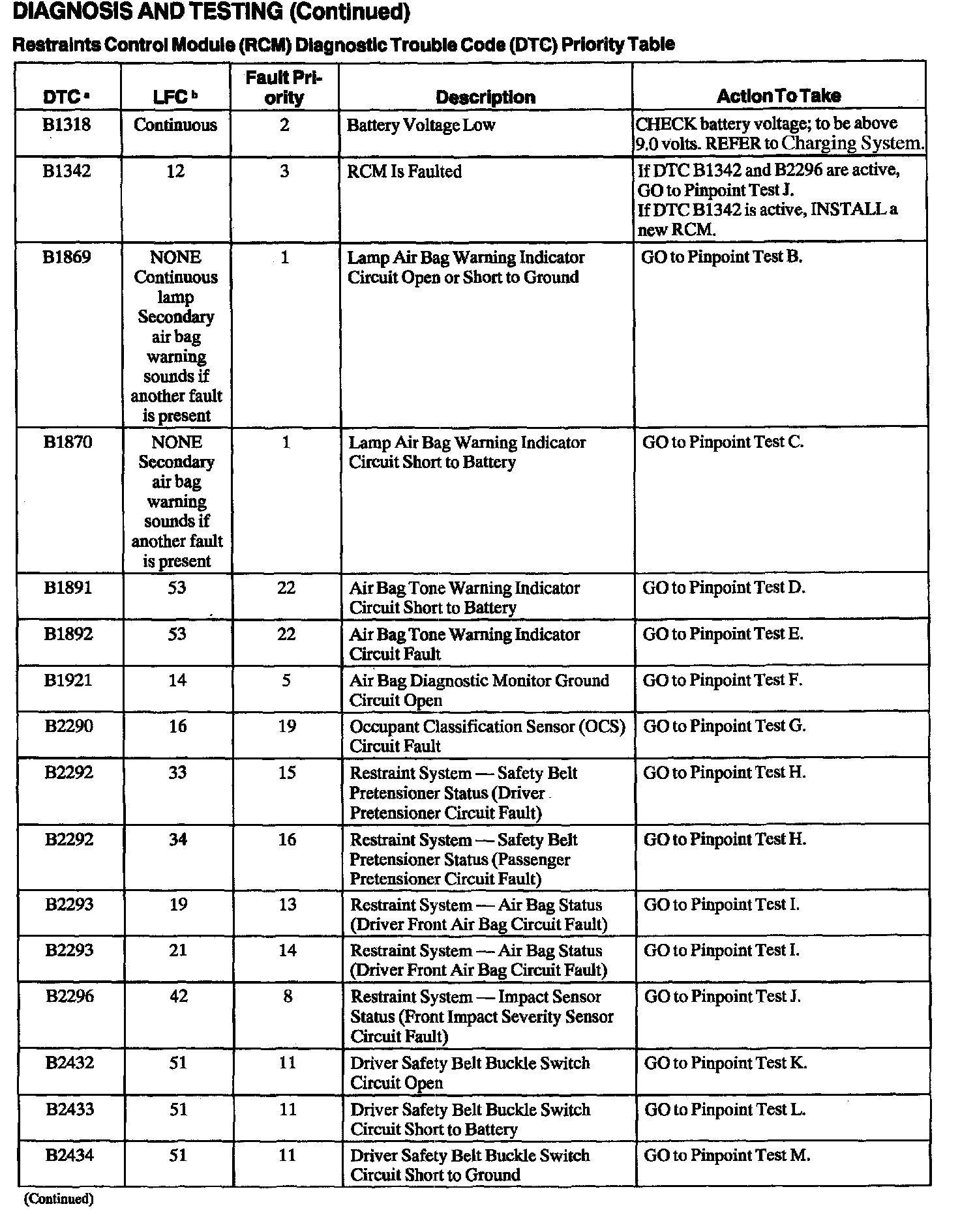

DTC Priority Table B1318 - B2434:

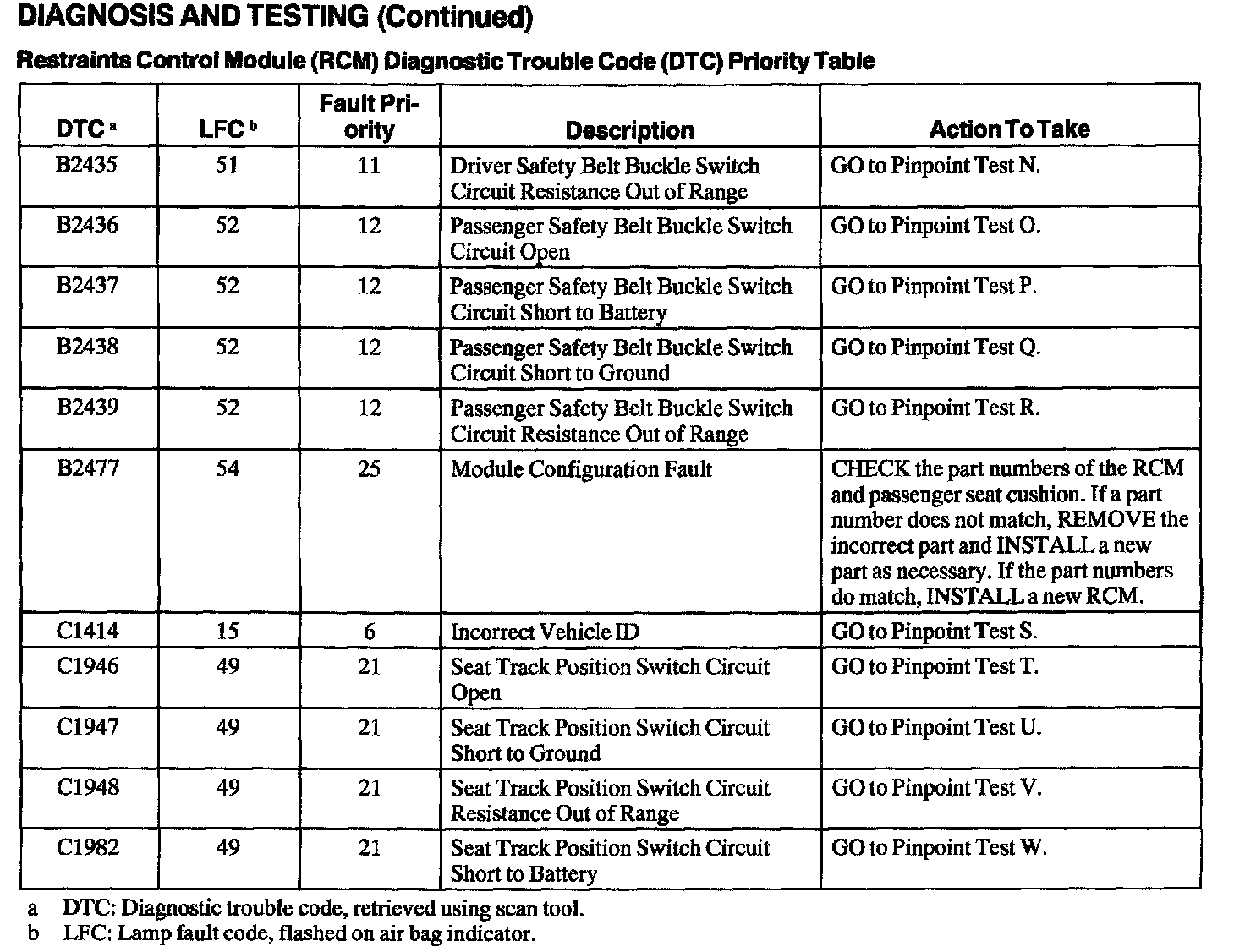

DTC Priority Table B2435 - C1982:

While the Lamp Fault Codes (LFCs) are an indication of a general concern in the passive restraints system, the Diagnostic Test Codes (DTCs) are more specific. The DTCs can be retrieved from the Restraints Control Module (RCM) with a scan tool via the Data Link Connector (DLC).
