Test T: LFC 49/DTC C1946 - Seat Track Position Switch Circuit Open

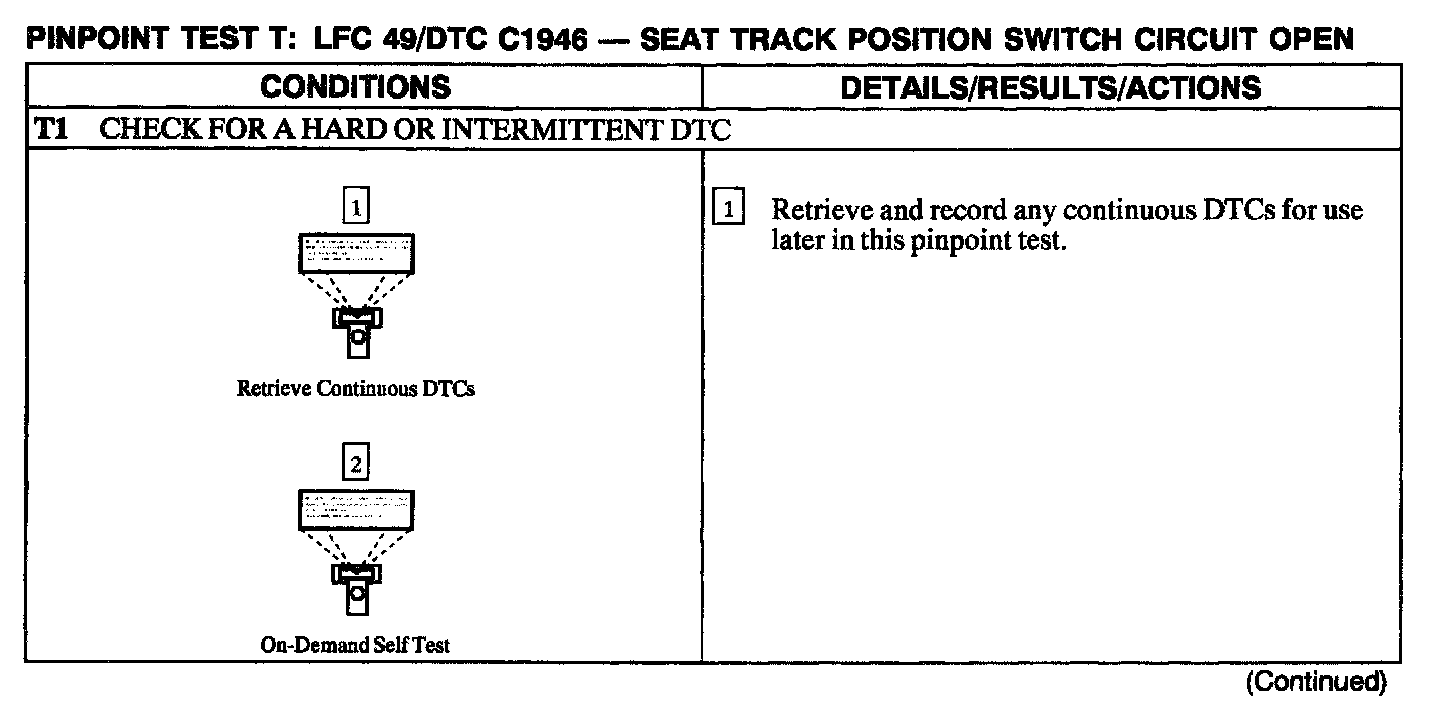

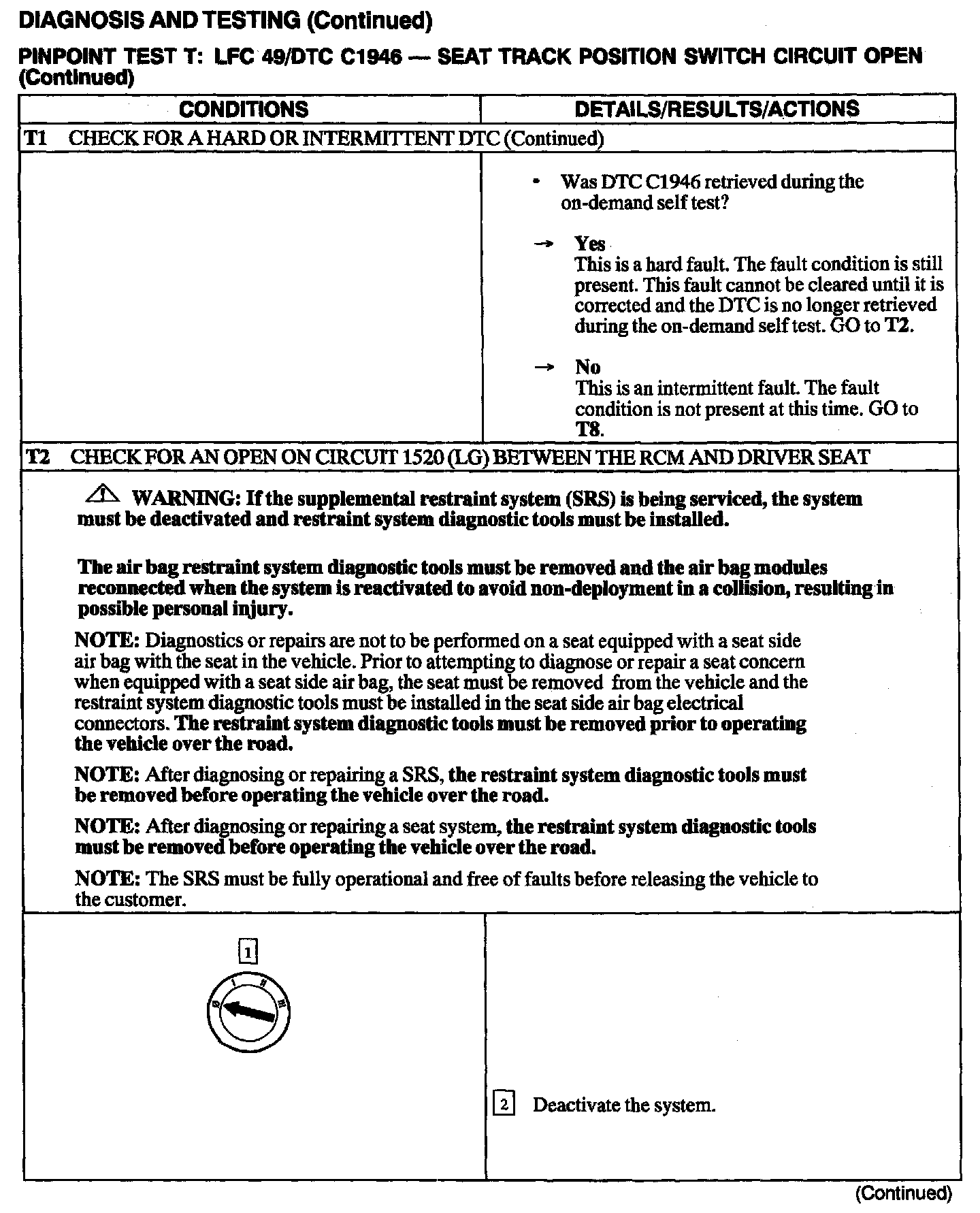

T1:

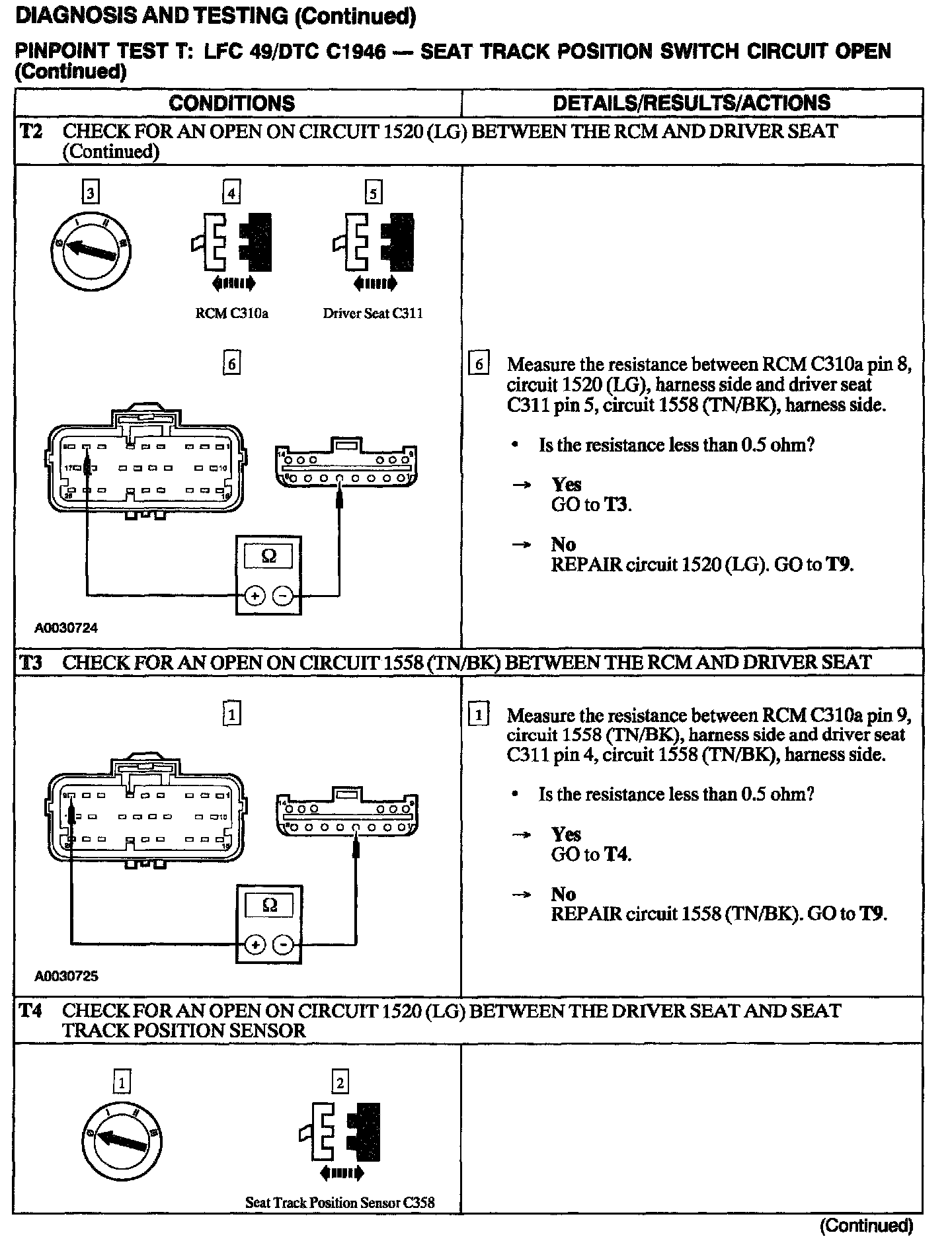

T1 - T2:

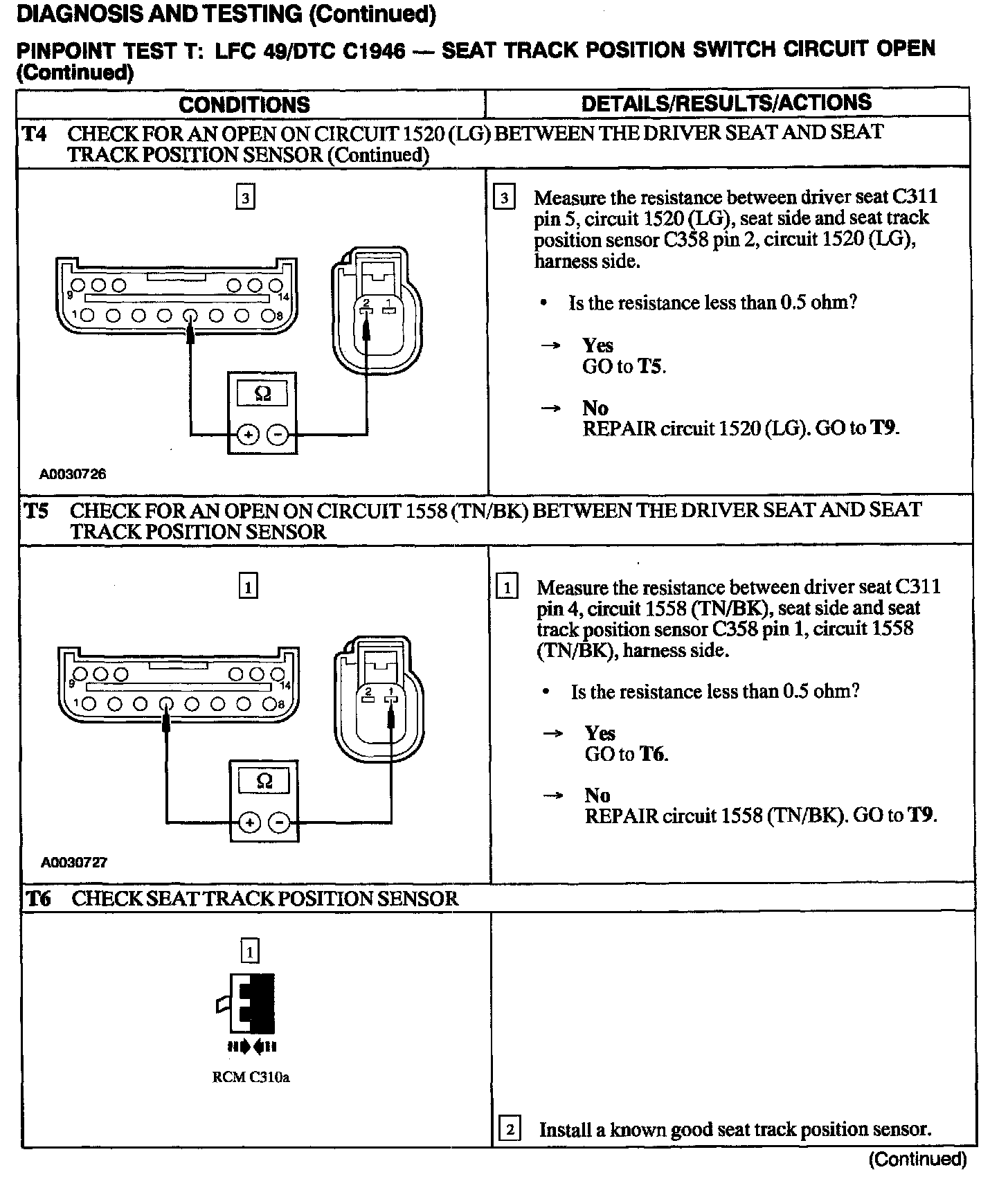

T2 - T4:

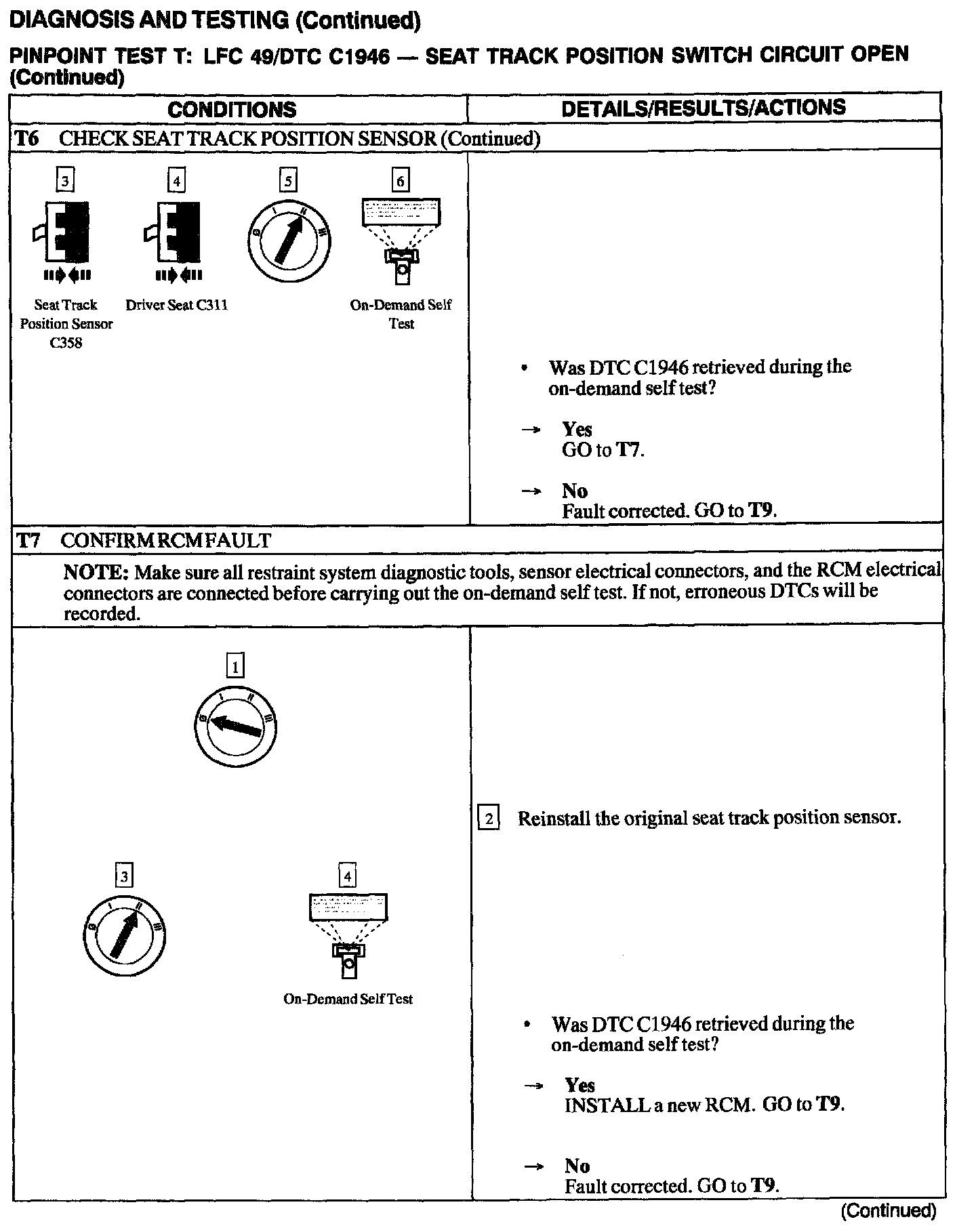

T4 - T6:

T6 - T7:

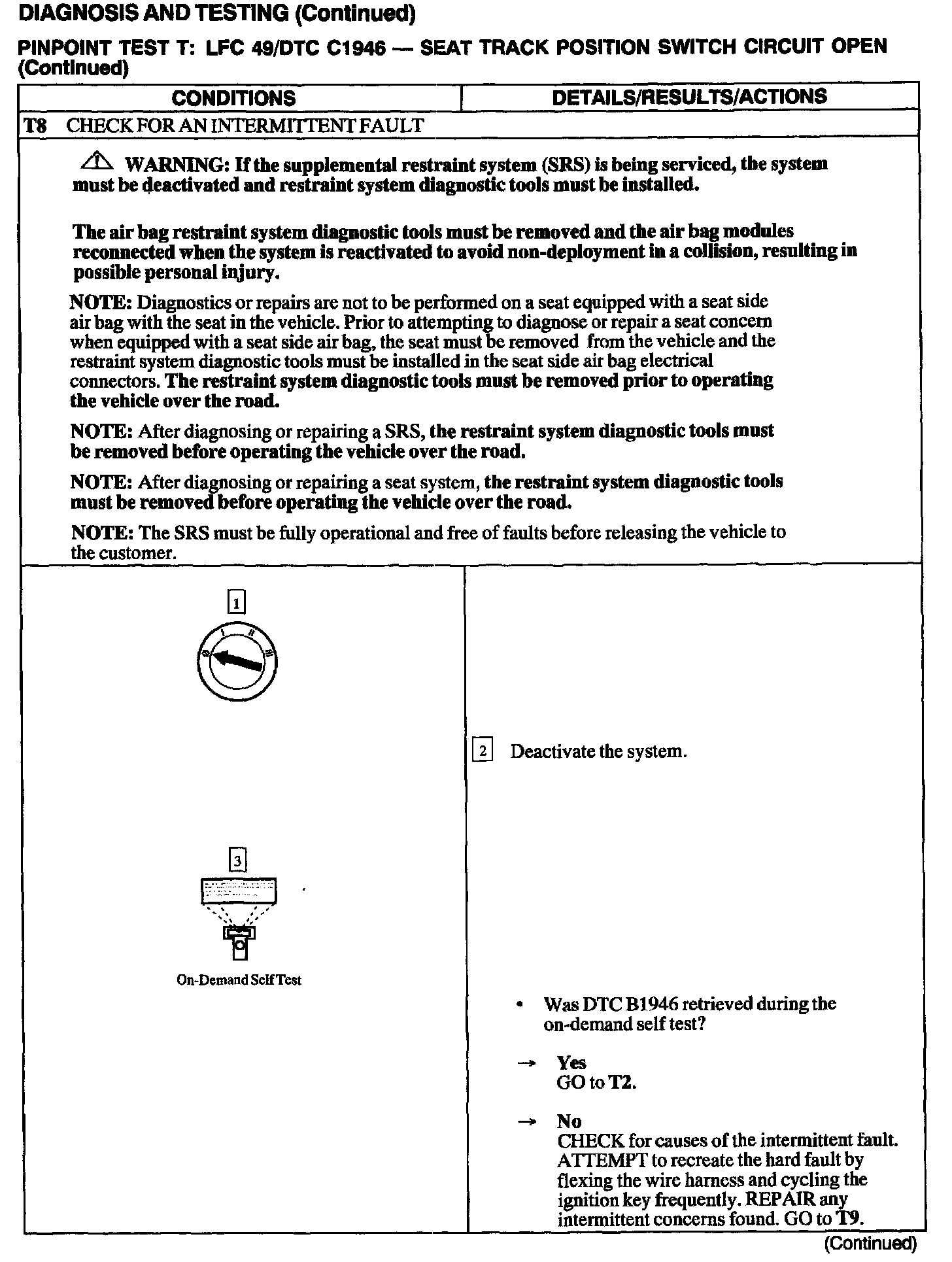

T8:

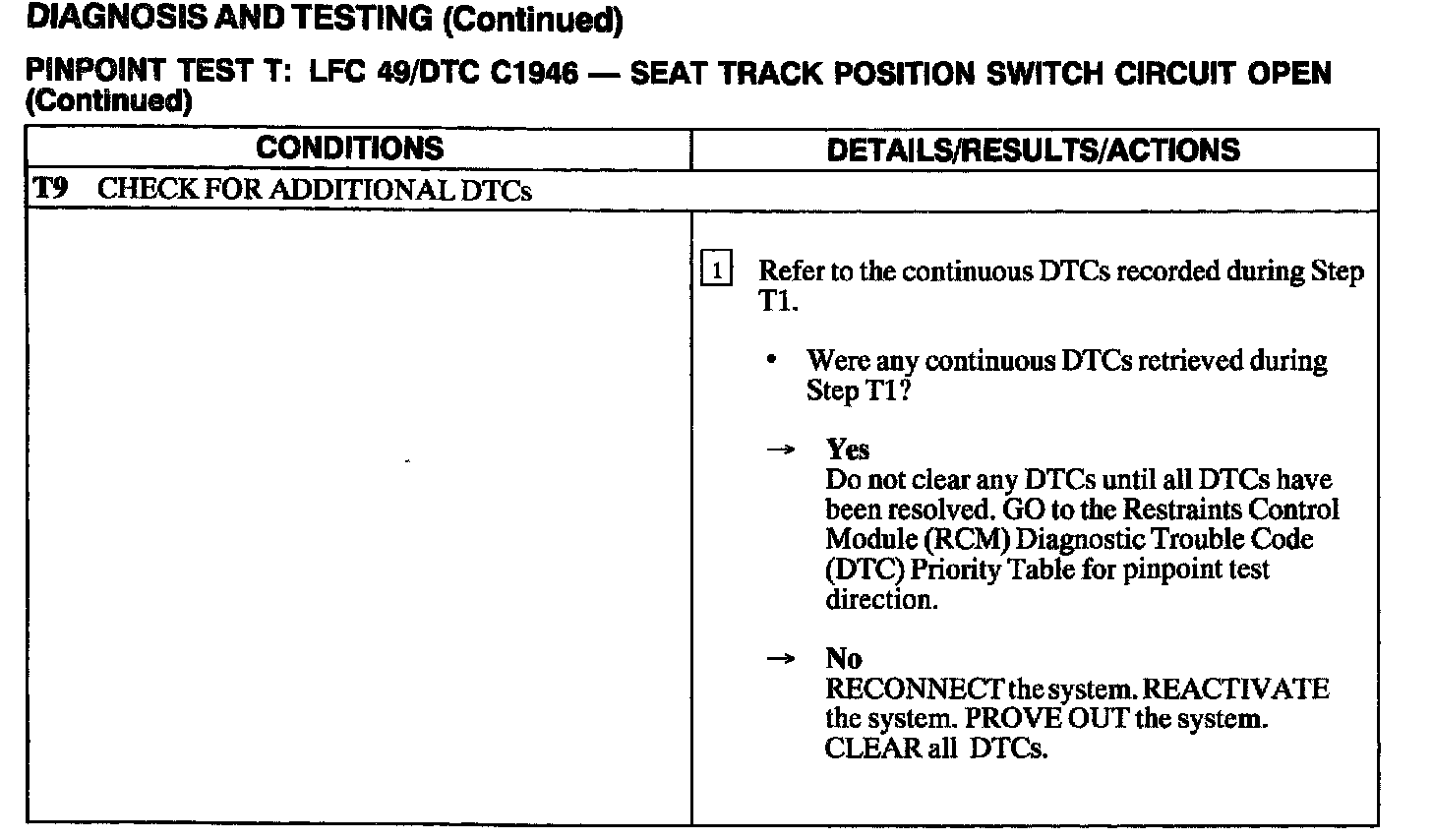

T9:

Normal Operation
The Restraints Control Module (RCM) monitors the driver seat track position sensor circuits. If the RCM detects an open circuit, it will store Diagnostic Trouble Code (DTC) C1946 in memory and flash Lamp Fault Code (LFC) 49 (or higher priority code if one exists) on the air bag indicator.

Possible Causes
A seat track position sensor open circuit fault can be caused by:
^ Wiring, terminals, or connectors.
^ A faulty seat track position sensor.
^ RCM is faulted.
