Air Bag Systems: Locations

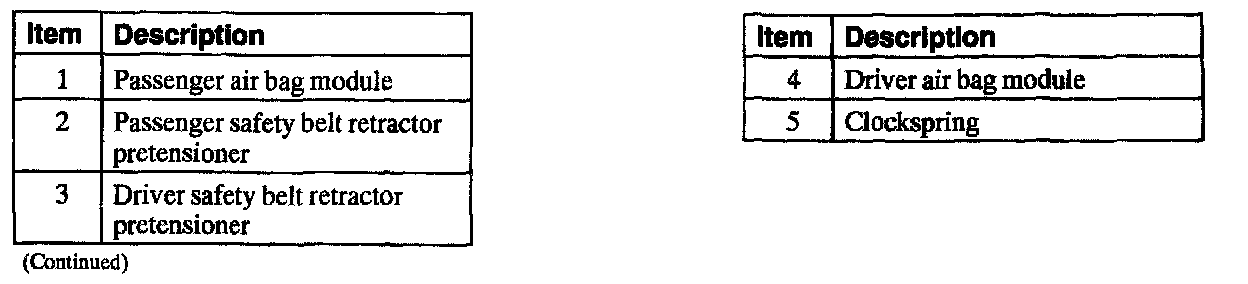

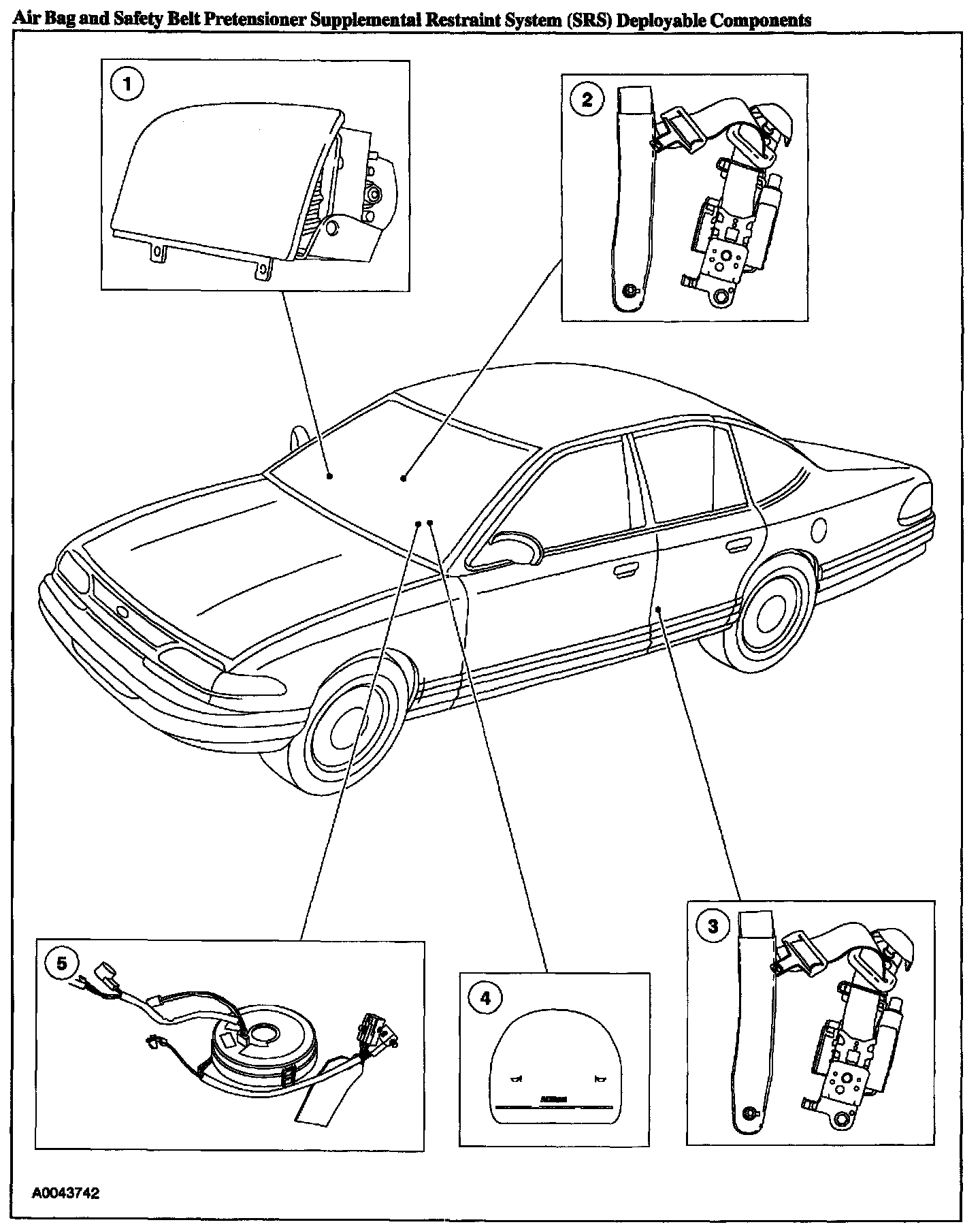

Air Bag And Safety Belt Pretensioner Supplemental Restraint System (SRS) Deployable Components, Part 1:






Air Bag And Safety Belt Pretensioner Supplemental Restraint System (SRS) Deployable Components, Part 2:

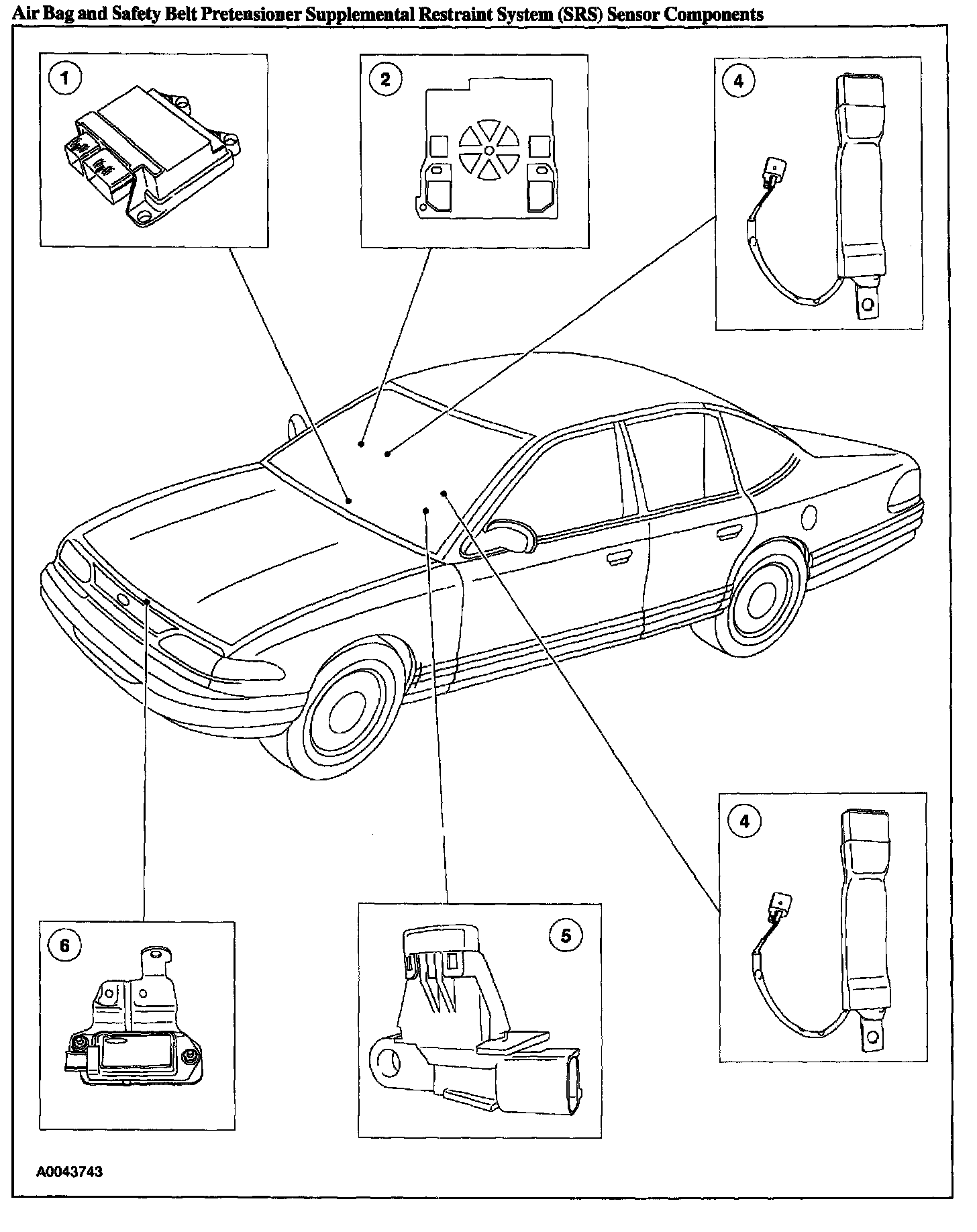

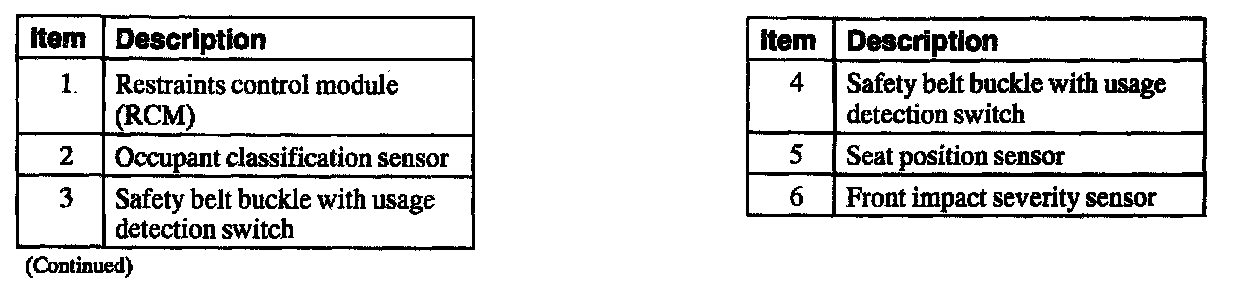

Air Bag And Safety Belt Pretensioner Supplemental Restraint System (SRS) Sensor Components, Part 1:






Air Bag And Safety Belt Pretensioner Supplemental Restraint System (SRS) Sensor Components, Part 2:
