Safety Belt Tongue Rotated On Belt

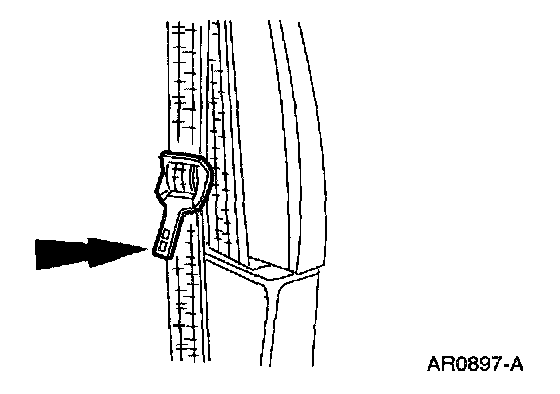

1. Grasp the belt tongue and pull the belt webbing down to form a loop through the slot in the tongue.

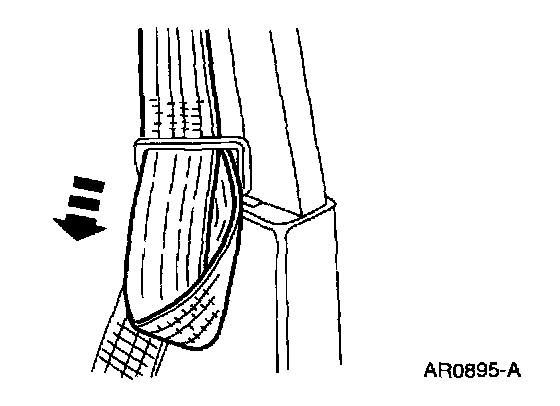

2. Rotate and fold the belt webbing over itself within the slot to remove the twist.
3. Pull the excess belt webbing back through the slot in the belt tongue.
4. Pull the excess belt webbing through the slot.







5. The safety belt tongue should face inward when completed.
