Isolator Module Antenna

REMOVAL
1. Remove the rear package tray trim.
2. Remove the roof side rear trim panels.

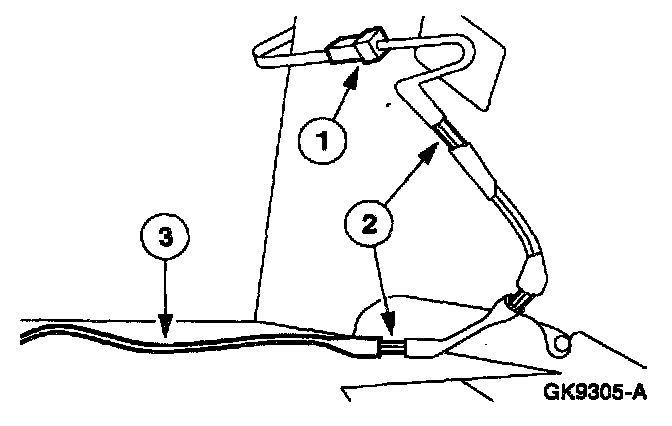

3. Position the AM antenna / rear window defroster cable aside.
1 Disconnect the electrical connectors.
2 Unclip the wire retainers.
3 Position the AM antenna / rear window defroster cable aside.







4. Remove the antenna isolator module nuts.

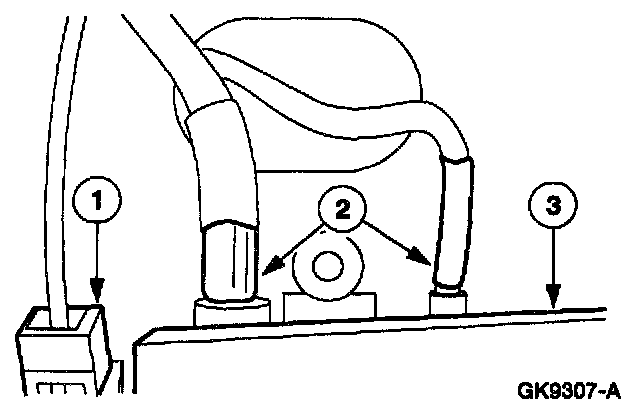

5. Remove the antenna isolator module.
1 Disconnect the electrical connector.
2 Disconnect the antenna cables.
3 Remove the antenna isolator module.

INSTALLATION







1. To install, reverse the removal procedure.
