B1681 - PATS Transceiver Signal Not Received

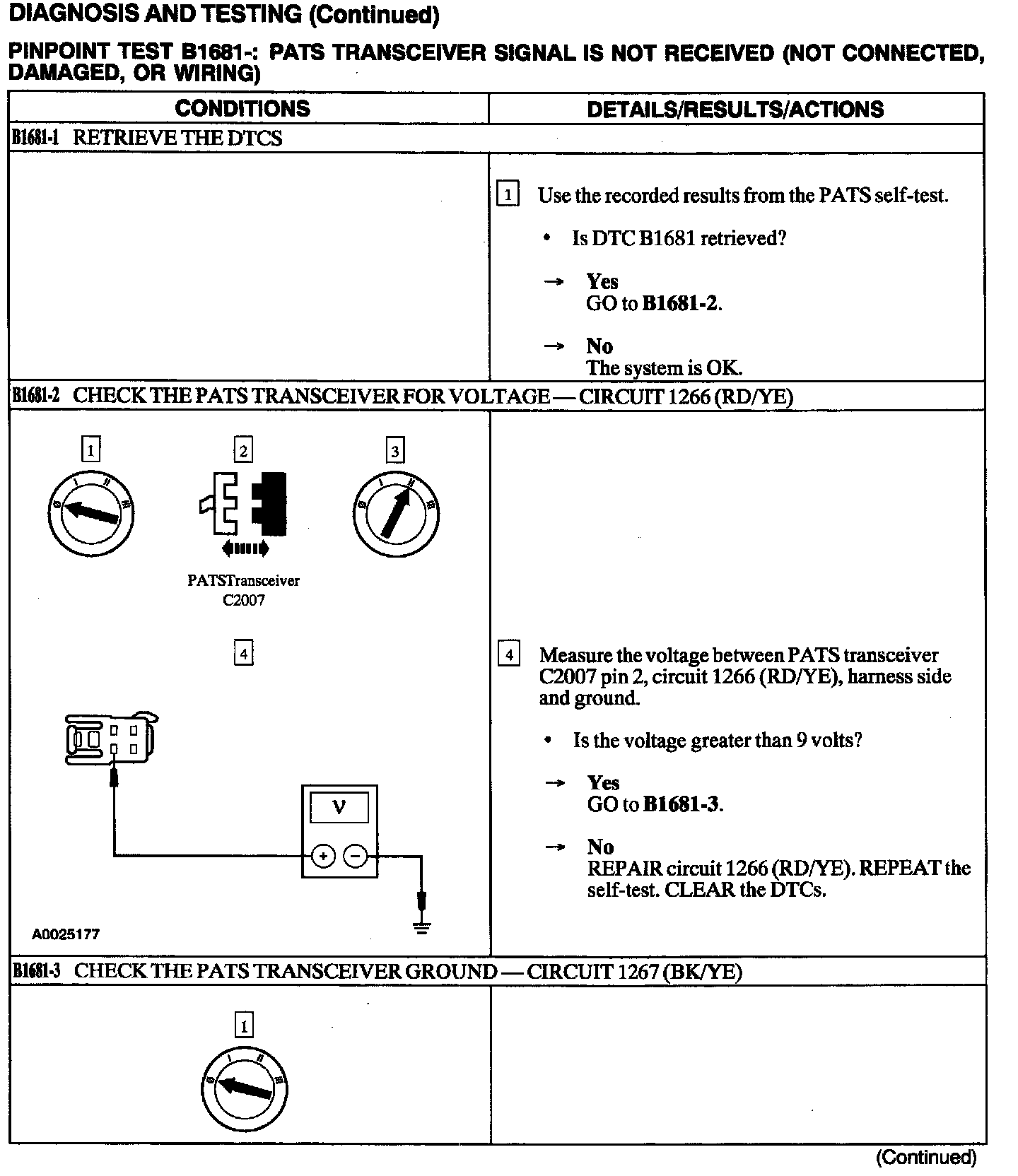

B1681-1 - B1681-3:

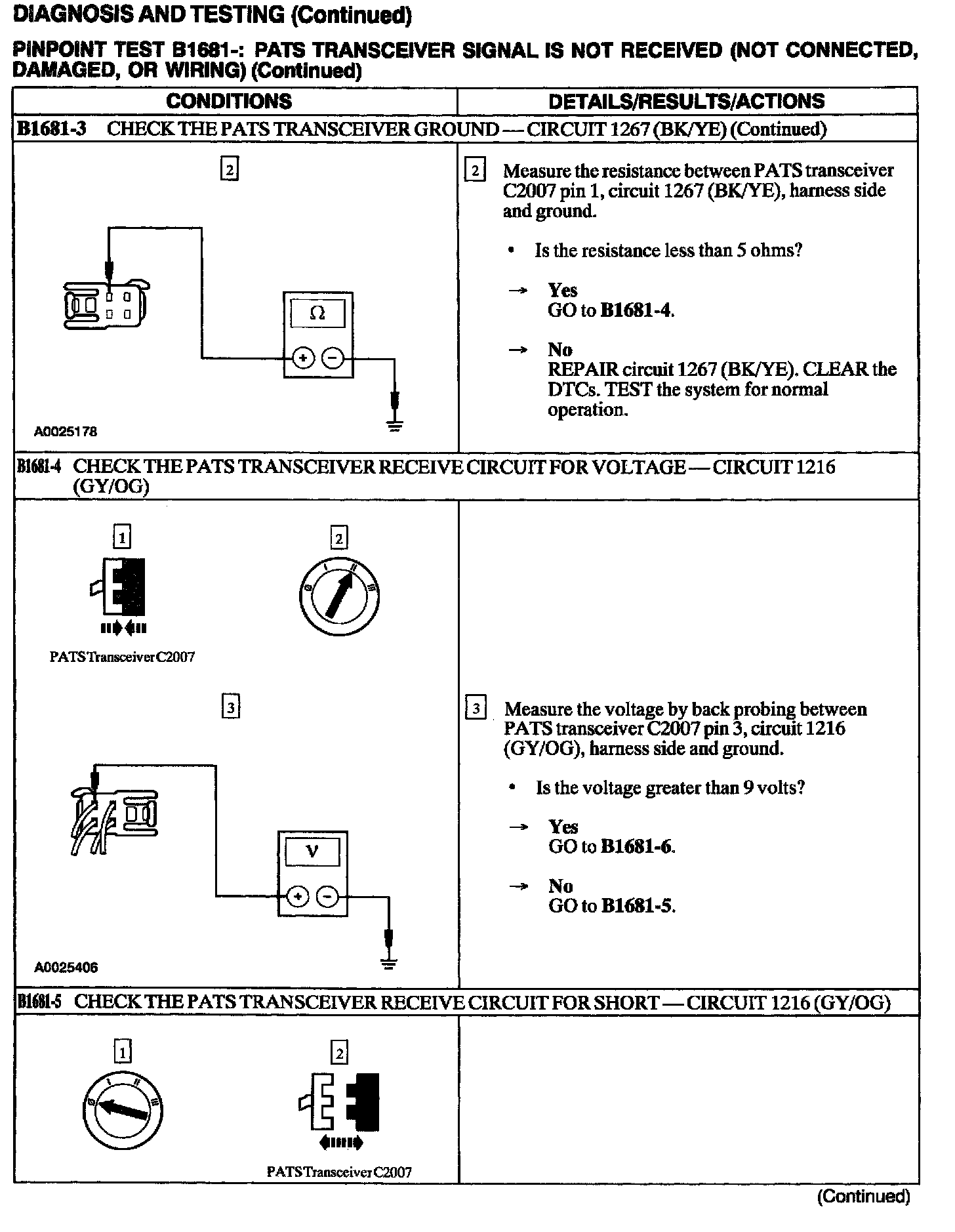

B1681-3 - B1681-5:

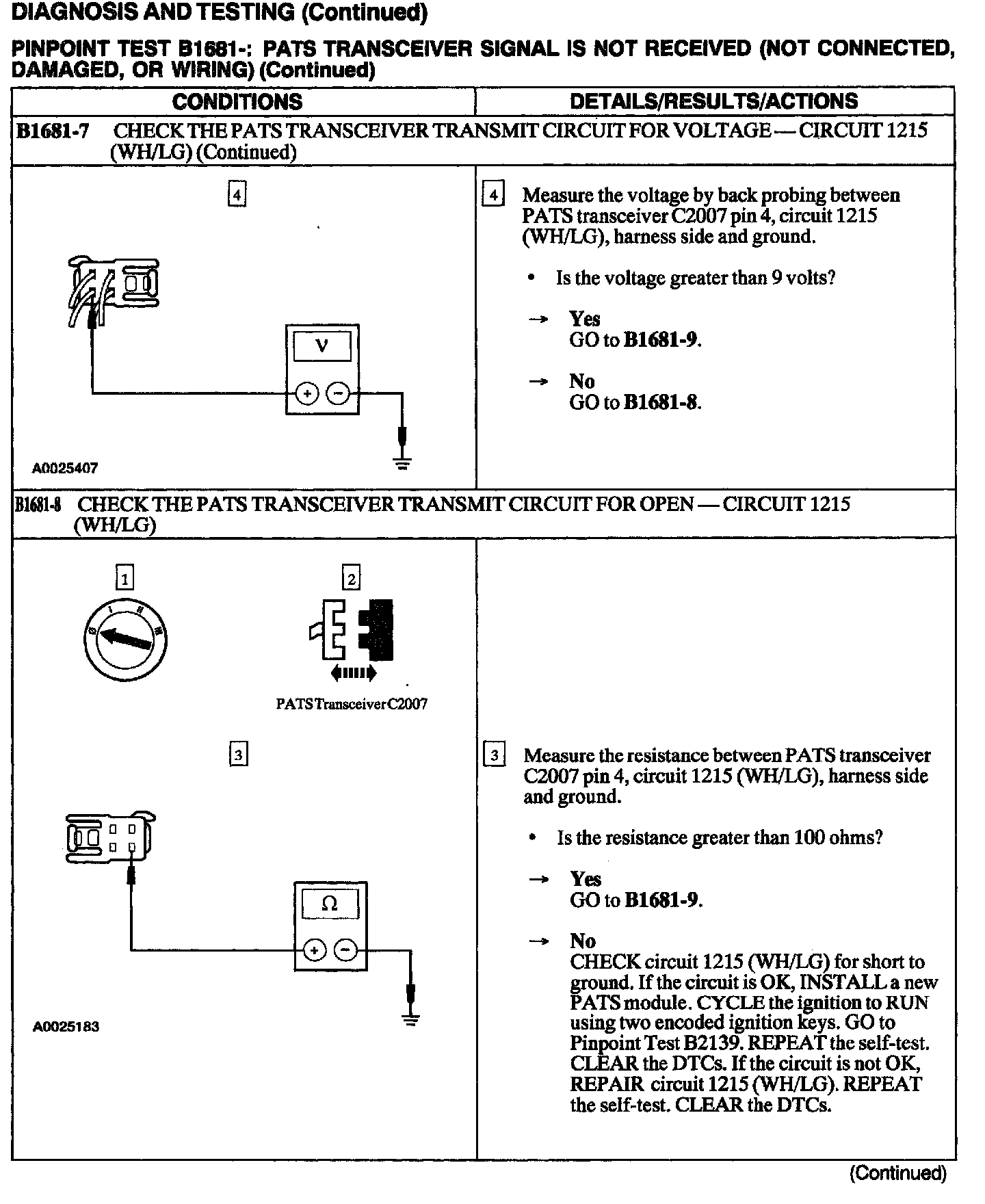

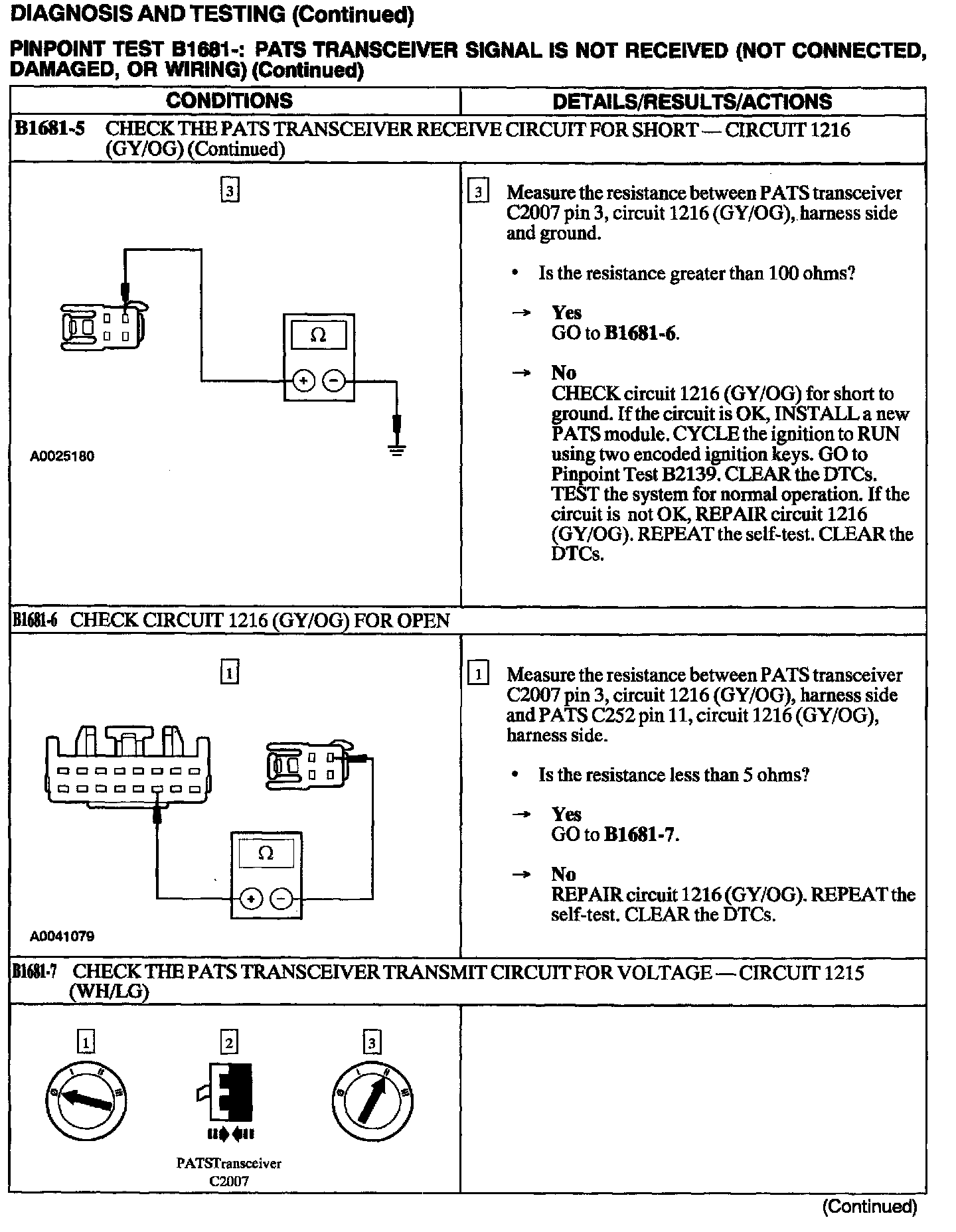

B1681-5 - B1681-7:






B1681-7 - B1681-8:

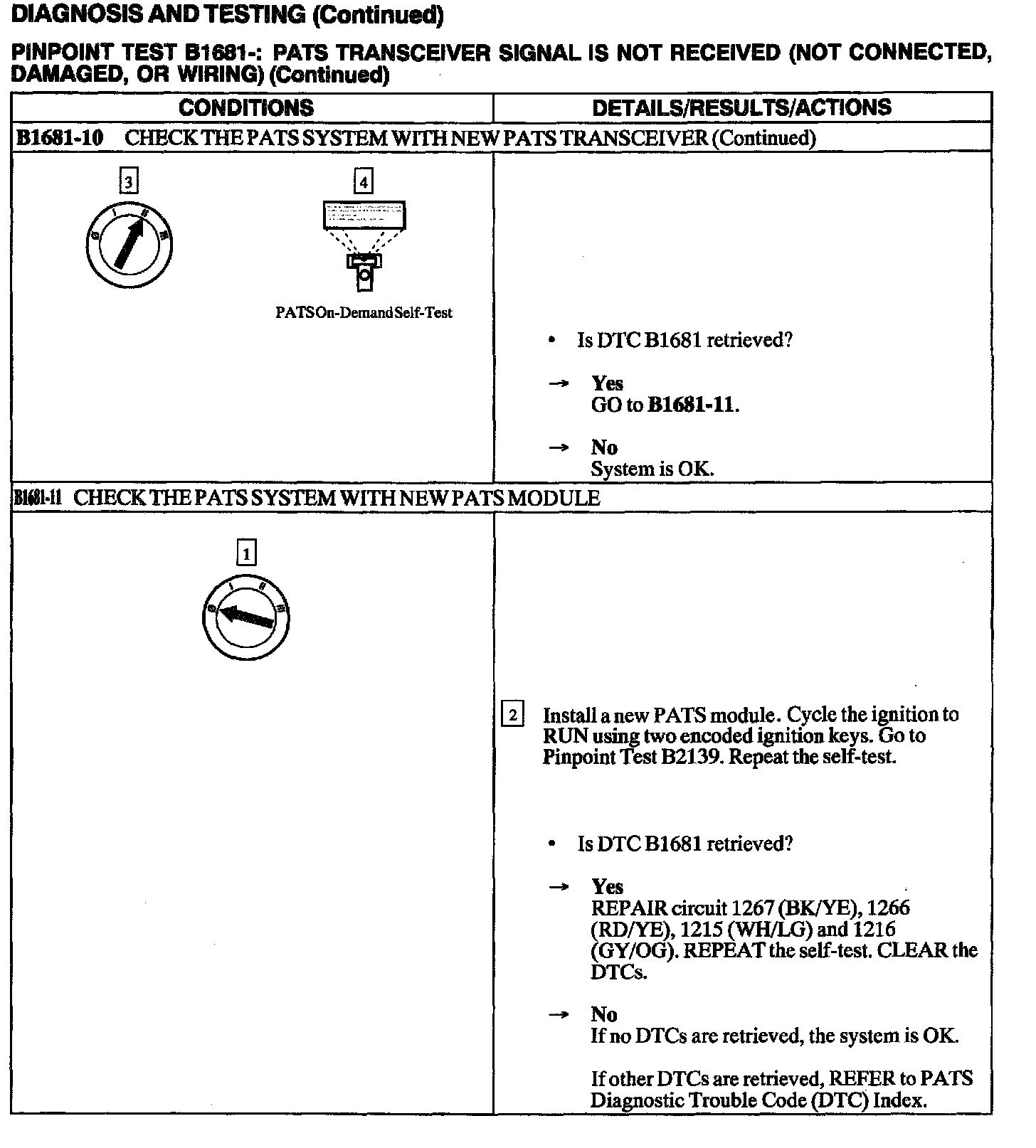

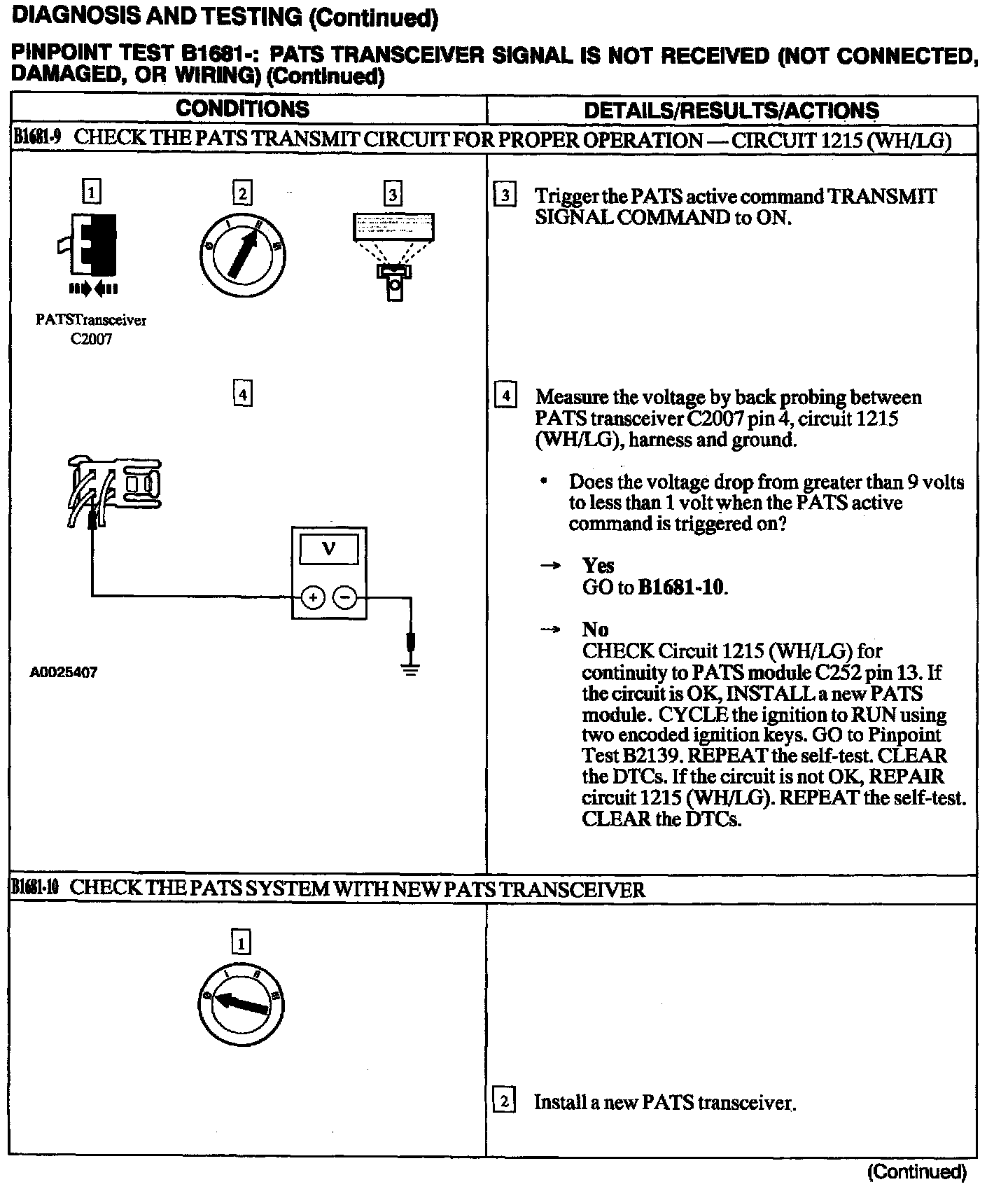

B1681-9 - B1681-10:






B1681-10 - B1681-11:






B1681 - PATS Transceiver Signal Is Not Received (Not Connected, Damaged, Or Wiring)
