Door - Luggage Compartment

REMOVAL

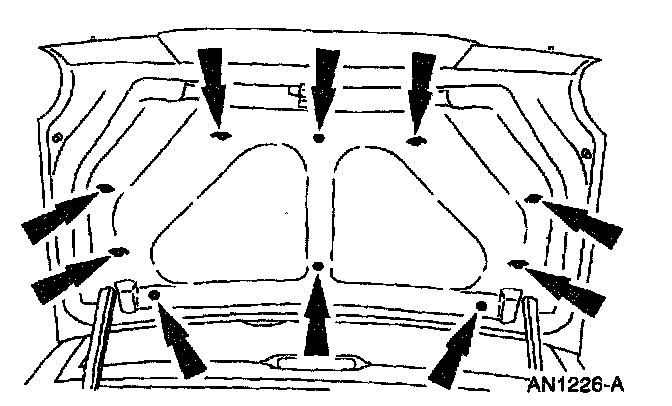

1. Remove the luggage compartment door trim.

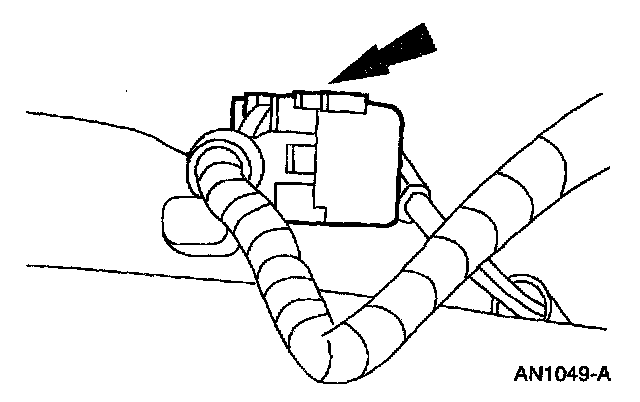

2. Disconnect the connector.

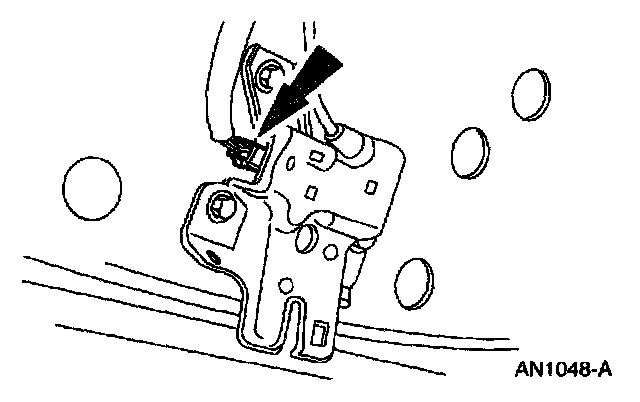

3. Disconnect the connector.

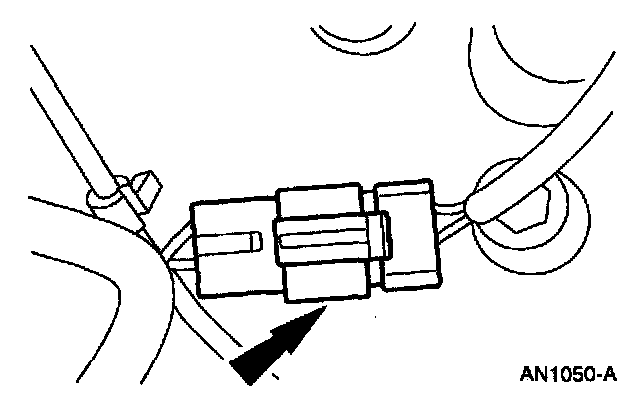

4. Disconnect the connector and remove the wiring harness.

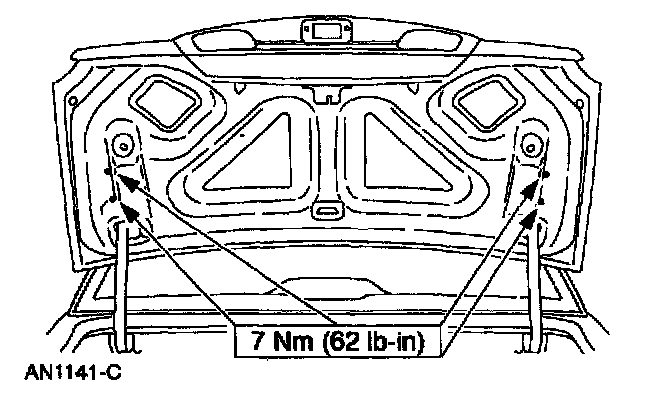

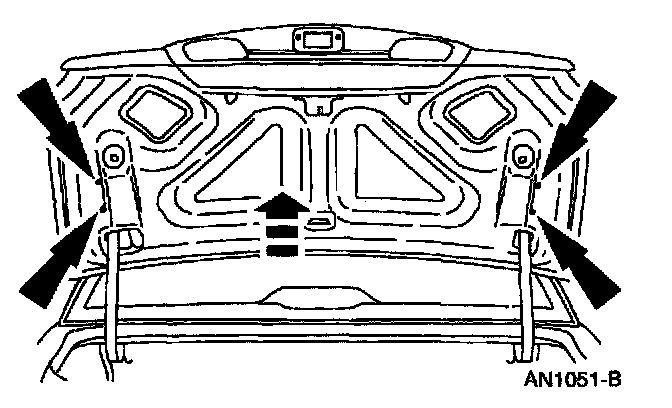

5. Remove the bolts and the luggage compartment door.

INSTALLATION







1. Follow the removal procedure in reverse order.
