Test K: DTC B1751 - Park/Neutral Switch Circuit Short To Battery (Driver Door Module [DDM])

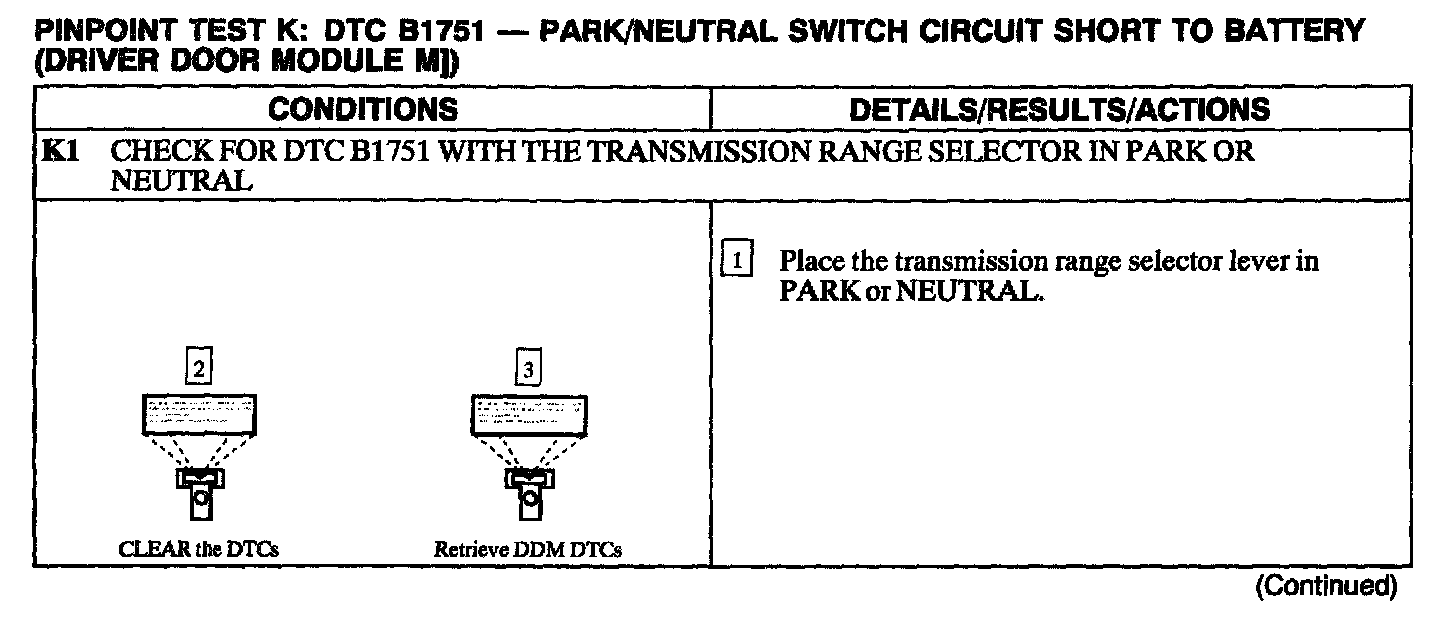

K1:

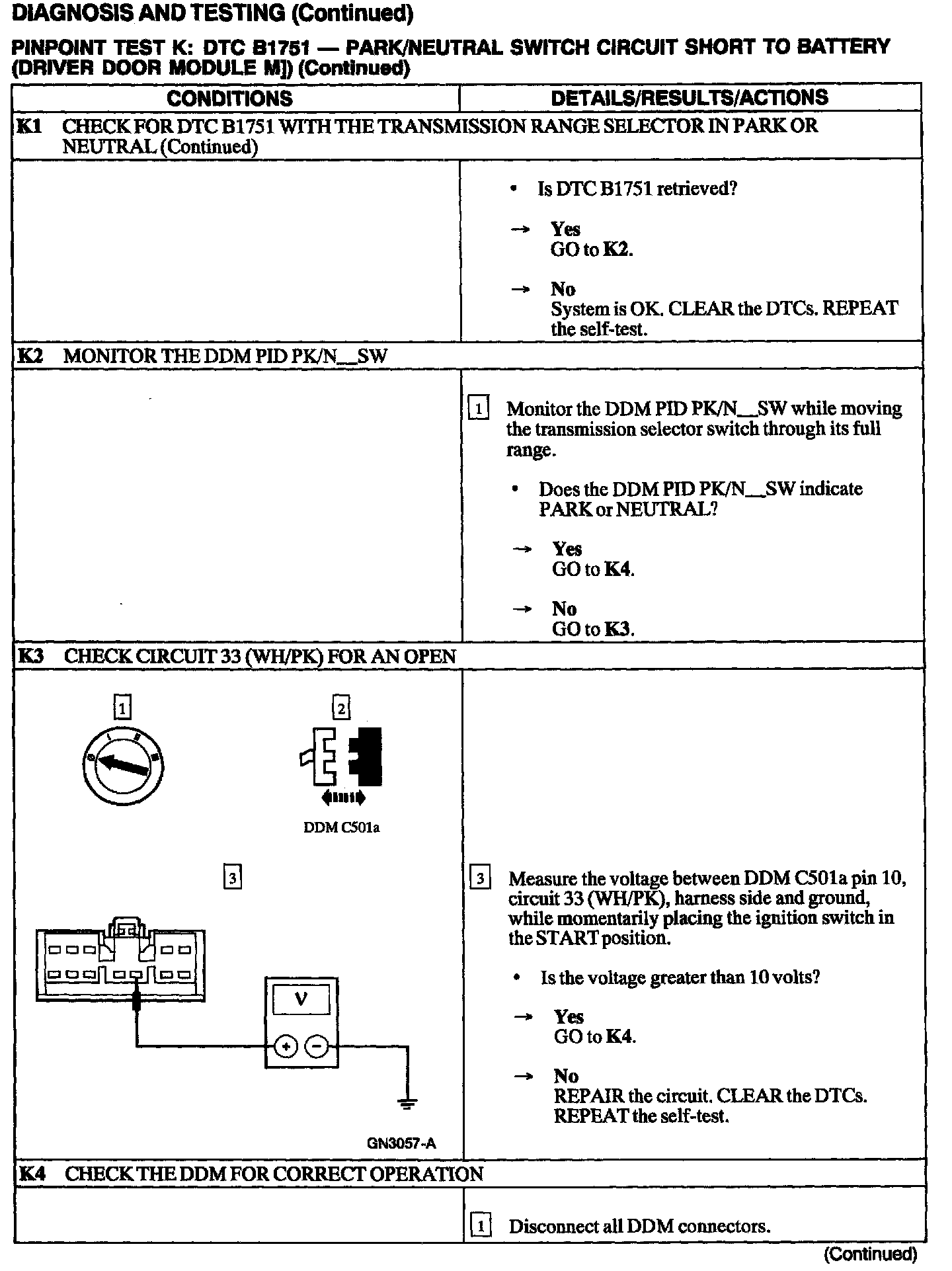

K1 - K4:

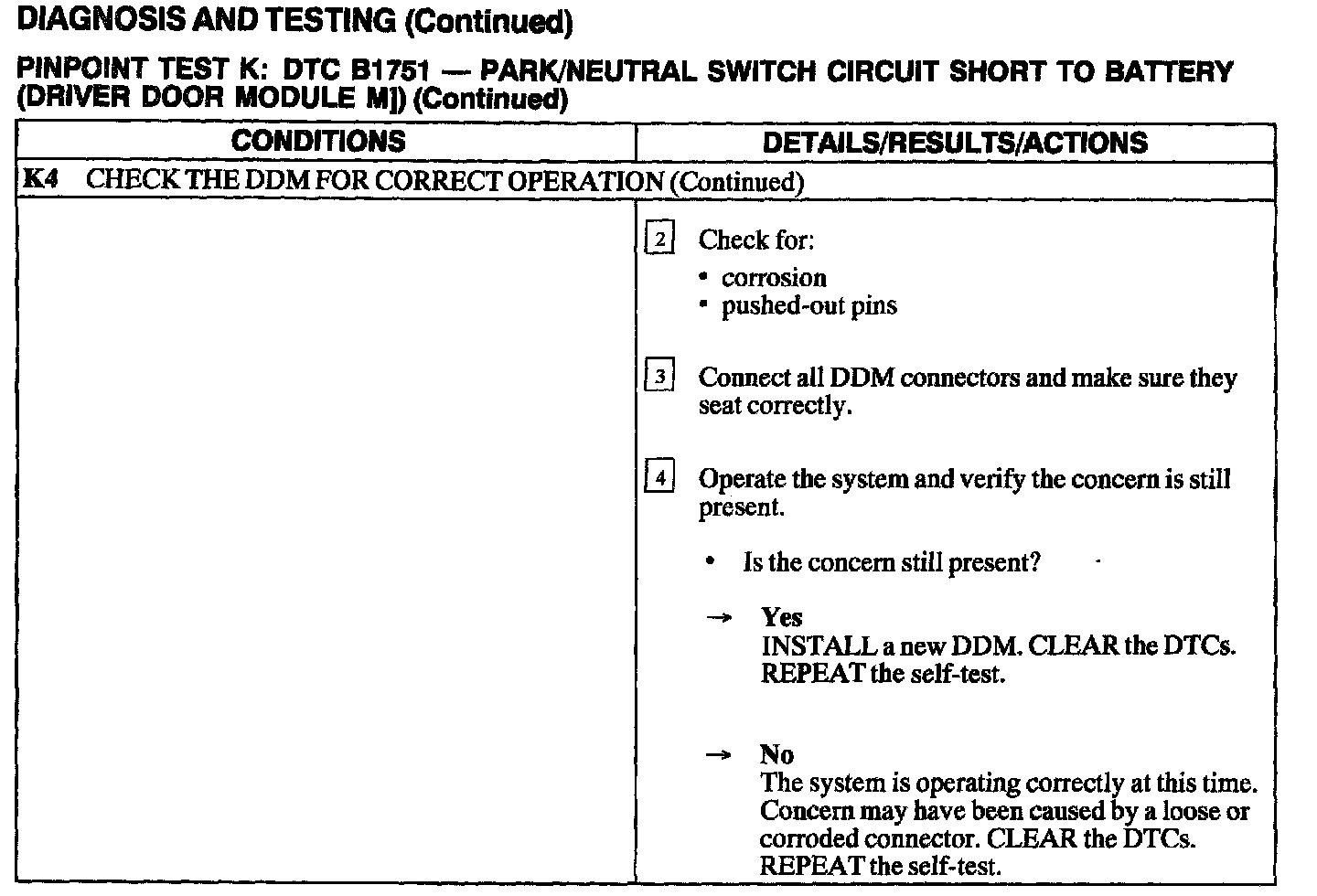

K4:
