Test H: Power Lumbar Is Inoperative - Passenger Seat

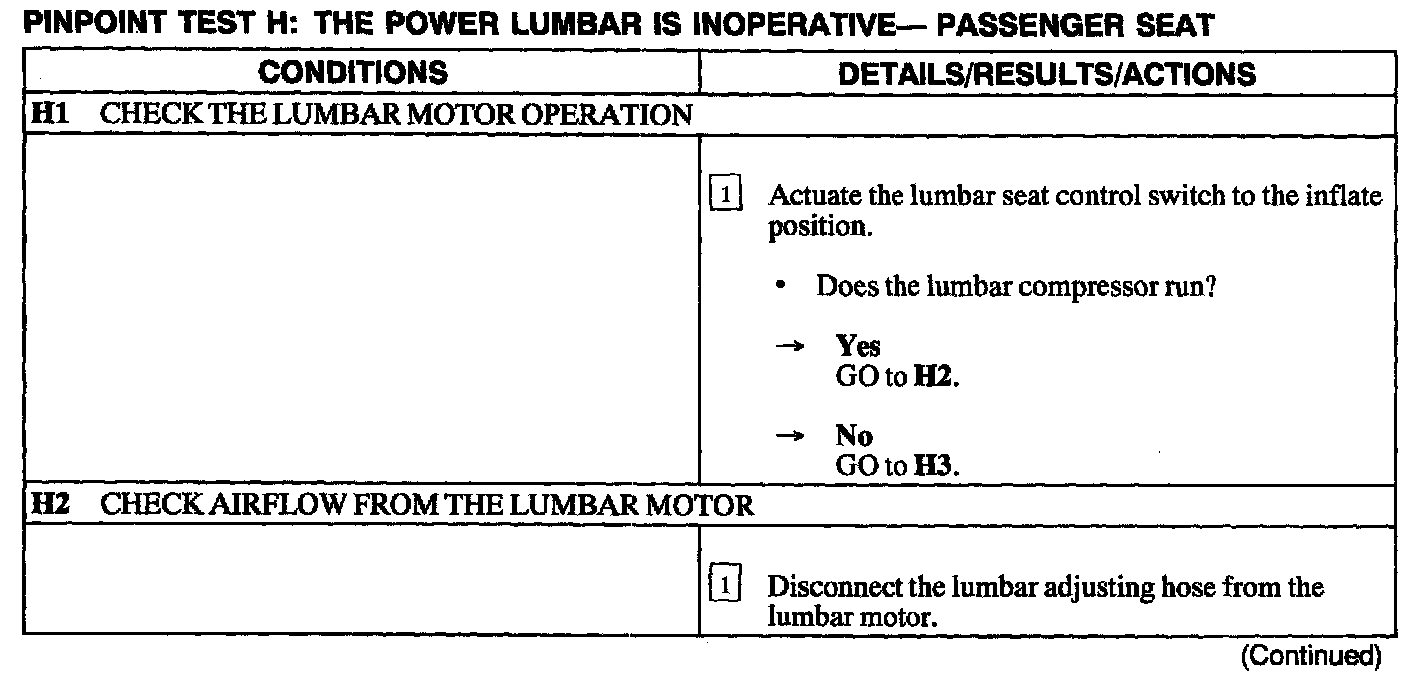

H1 - H2:

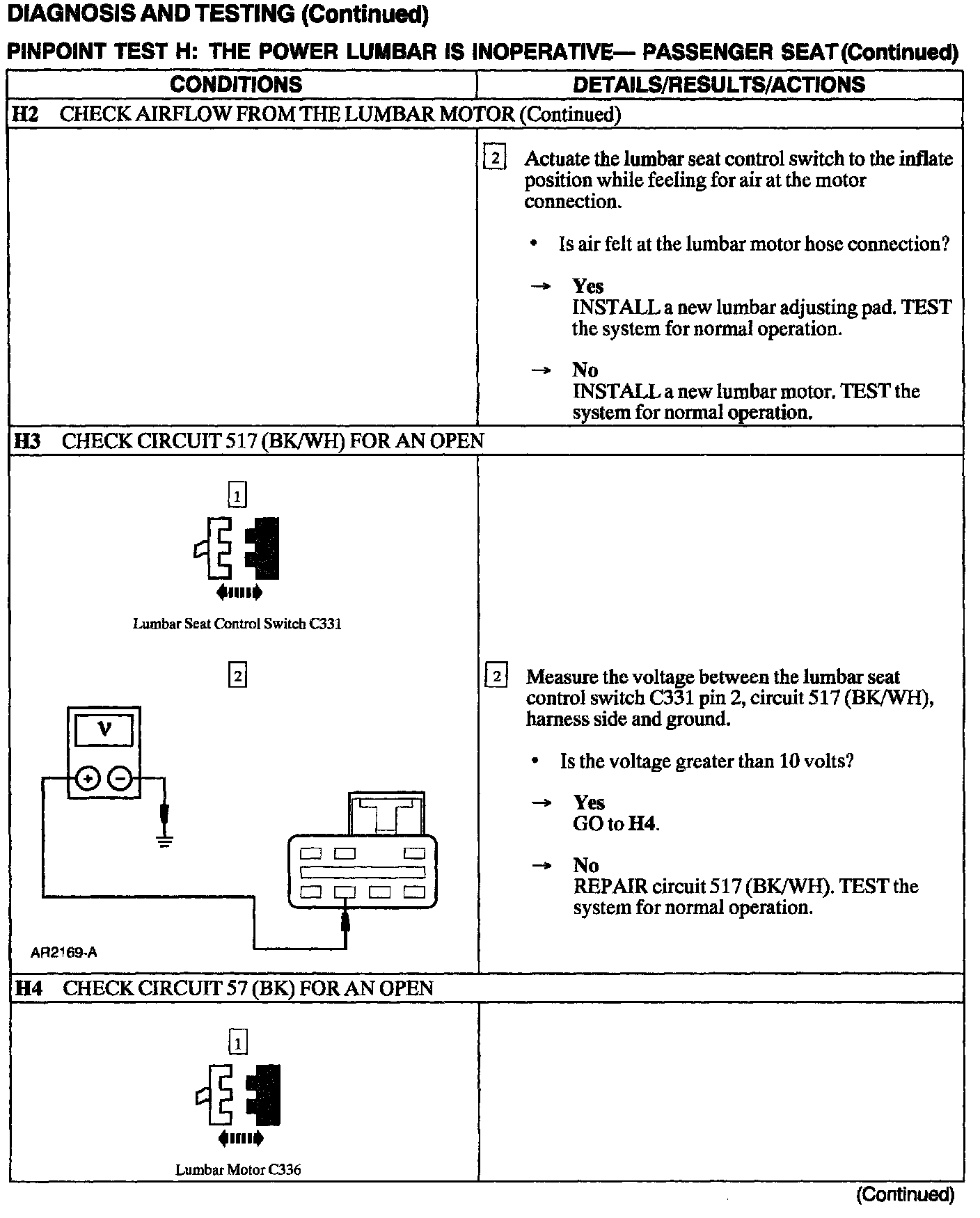

H2 - H4:

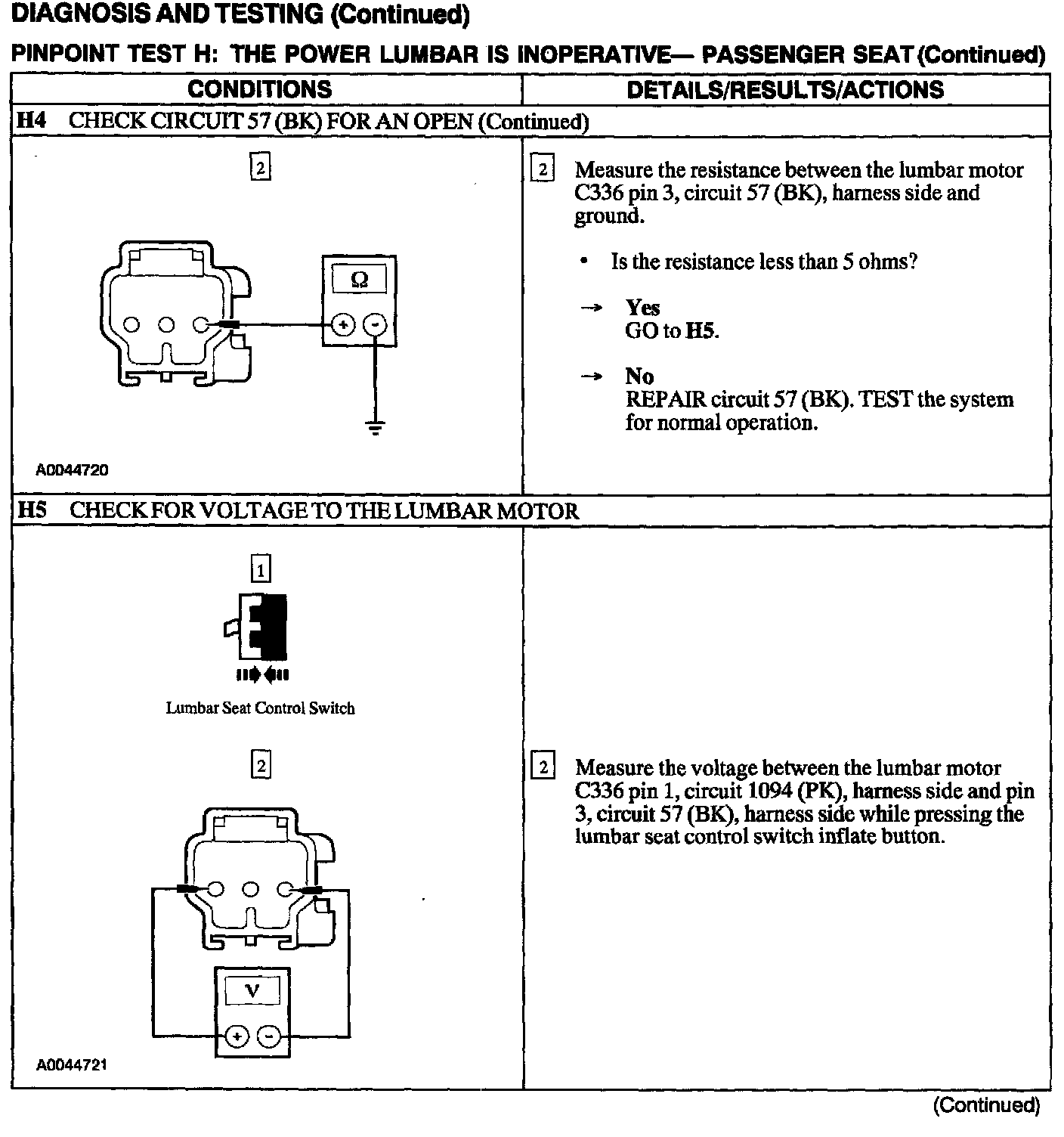

H4 - H5:

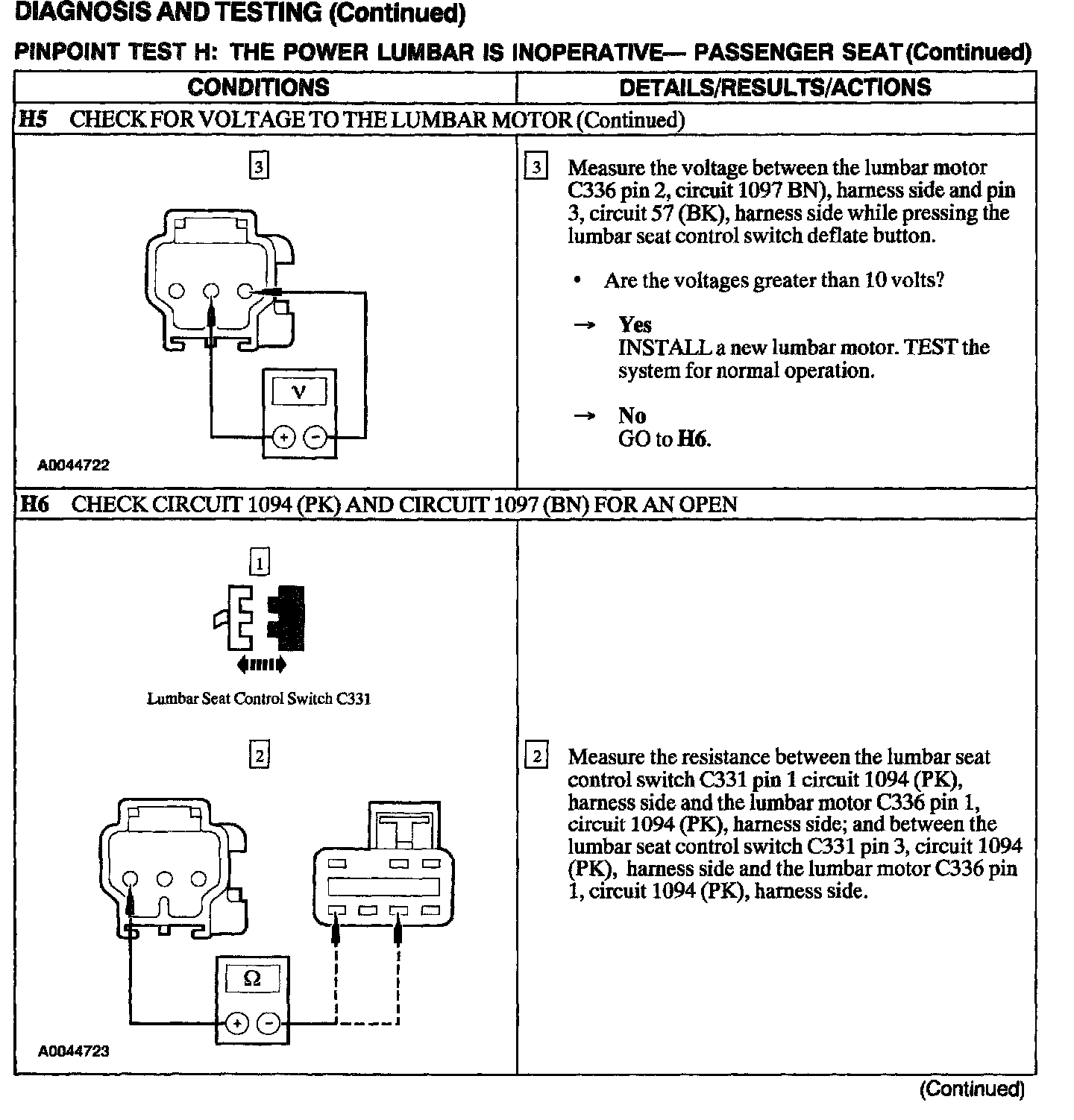

H5 - H6:

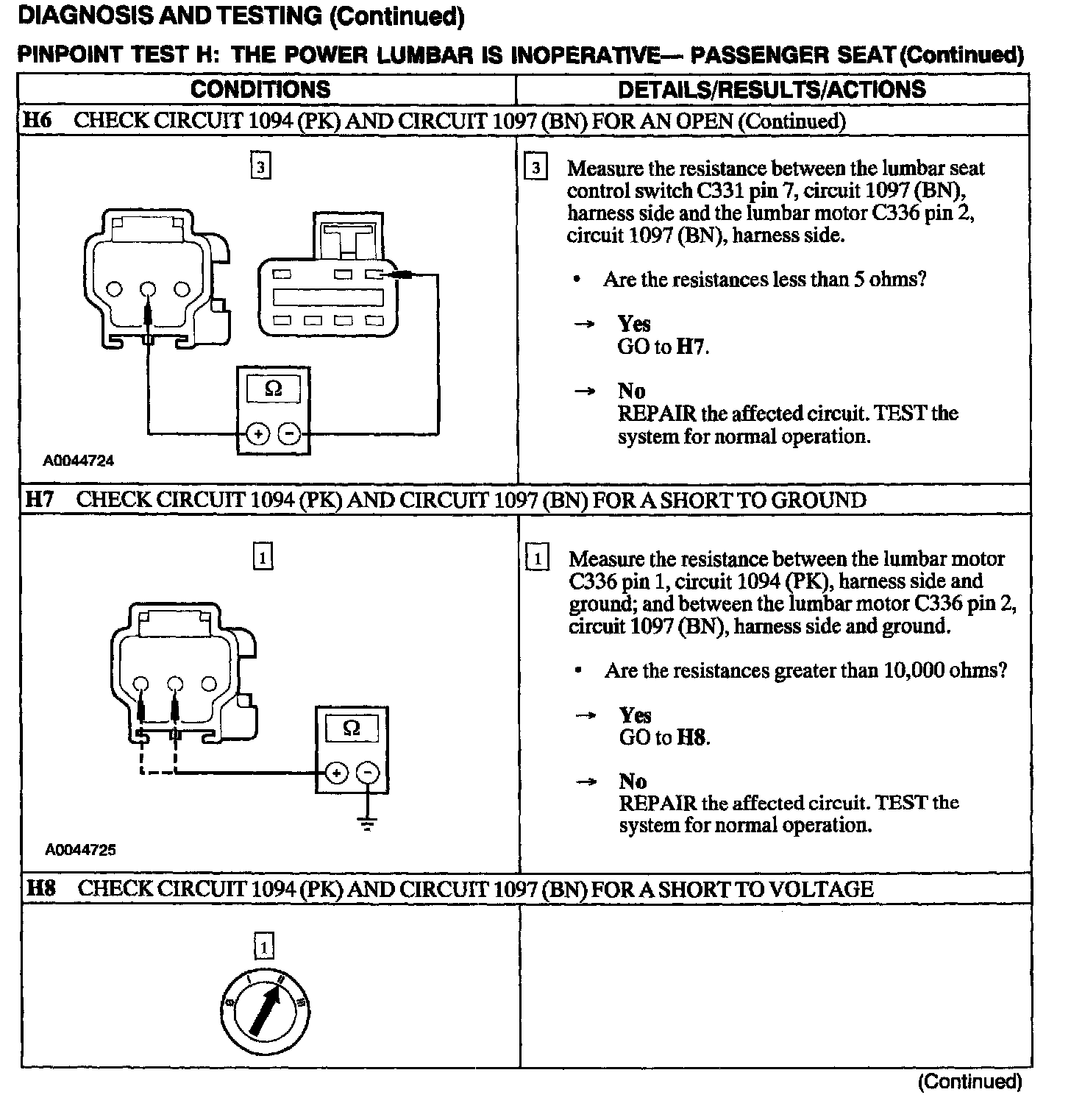

H6 - H8:

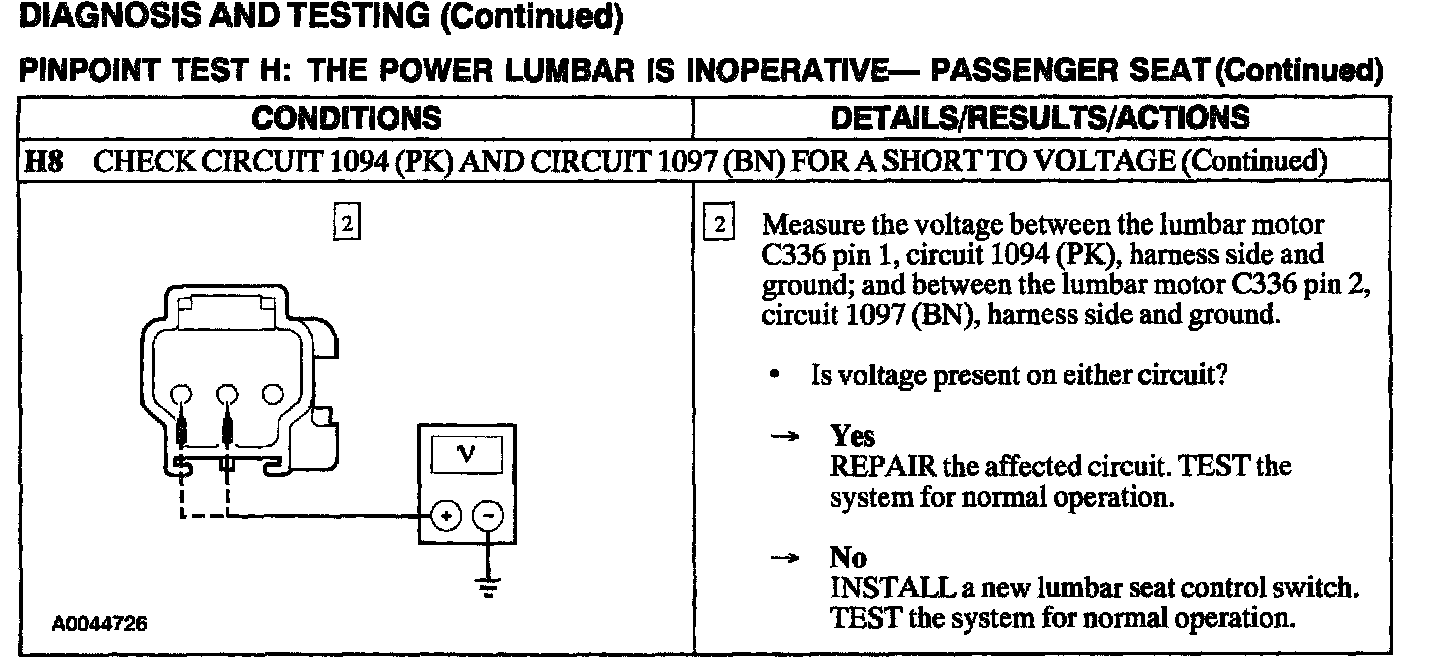

H8:
