Front Seat Backrest

REMOVAL
1. Remove the seat.

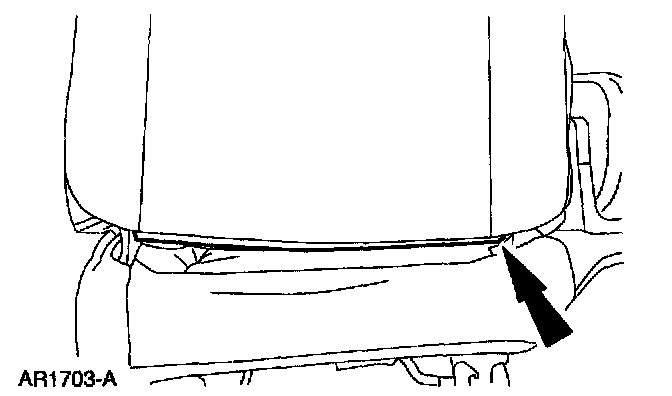

2. Release the J-clip.

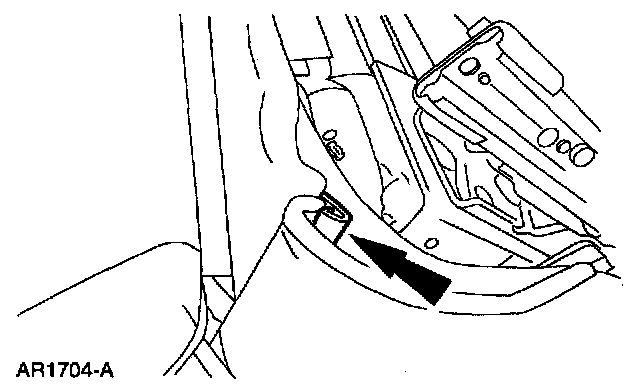

3. Release the J-clip.
4. Disconnect the connector.

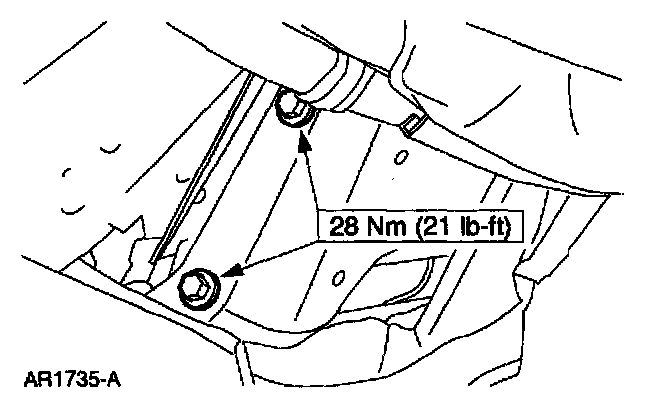

5. Remove the bolts.

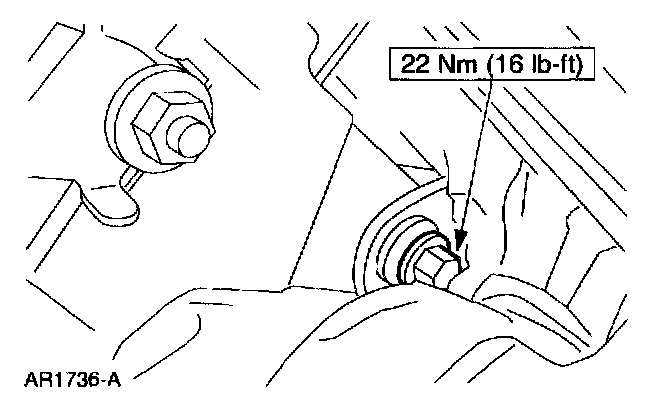

6. Remove the pivot bolt.
7. Remove the seat backrest.

INSTALLATION
1. To install, reverse the removal procedure.
2. Check the active restraint system for correct operation.
