Home >> Ford >> 2002 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams

Electrical Diagrams

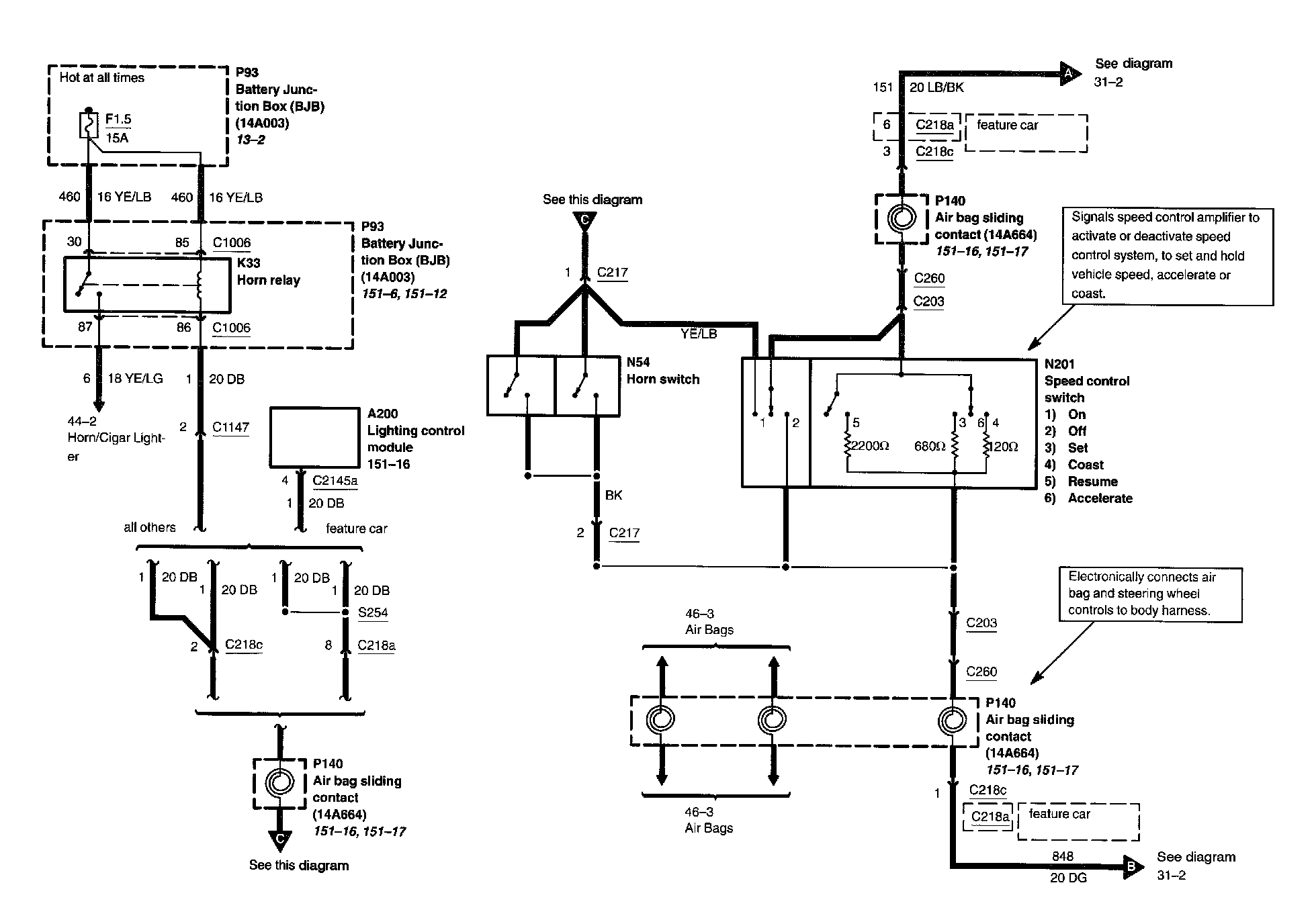

Diagram 31-1:

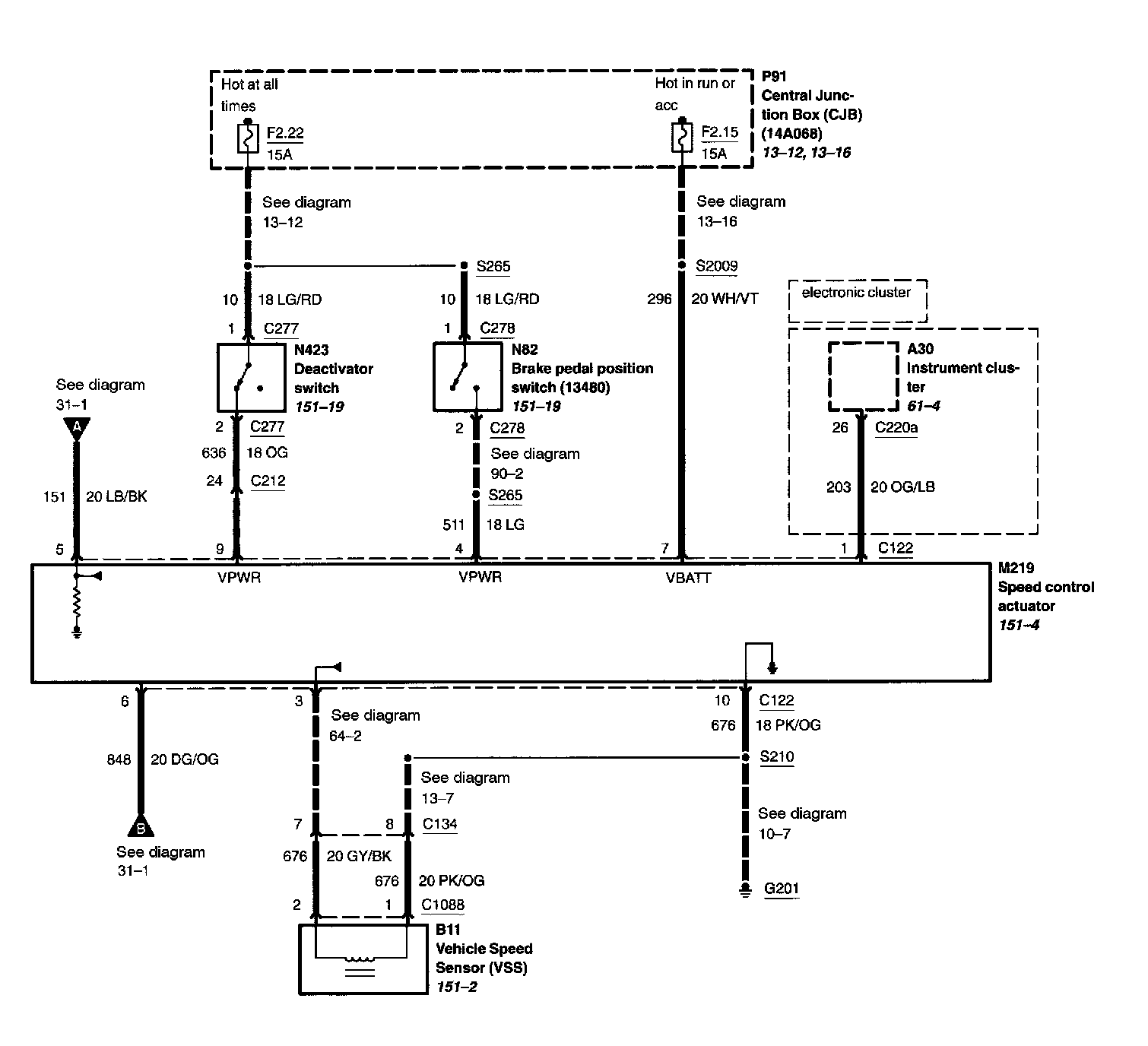

Diagram 31-2:
