Conventional

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the instrument cluster finish panel.







3. Remove the lower steering column cover.
1 Remove the two bolts.
2 Position the parking brake release aside.
3 Remove the lower steering column cover.

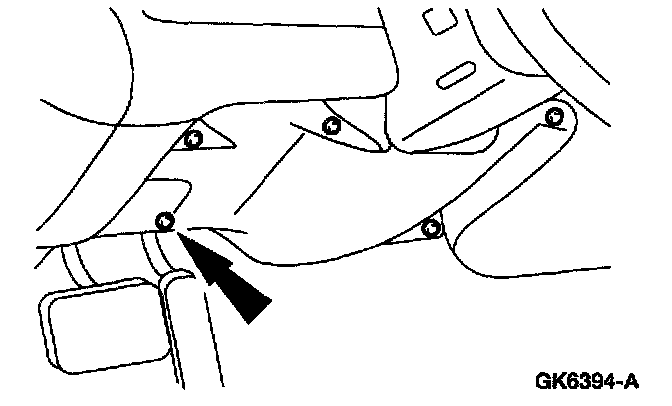

4. Remove the instrument panel steering column opening cover reinforcement.
- Remove the five screws.

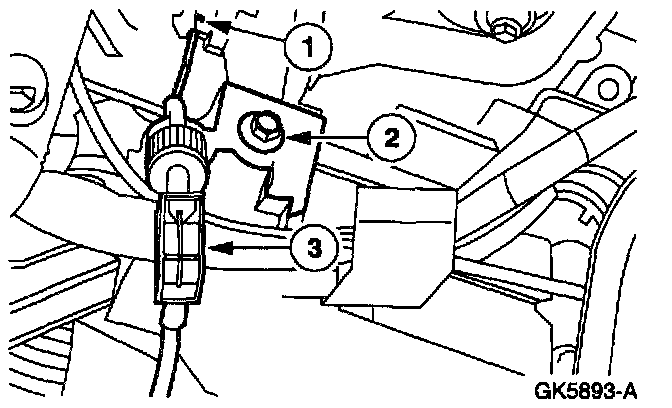

5. Position the transmission range indicator cable out of the way.
1 Disconnect the cable.
2 Remove the bolt.
3 Position the transmission range indicator cable out of the way.

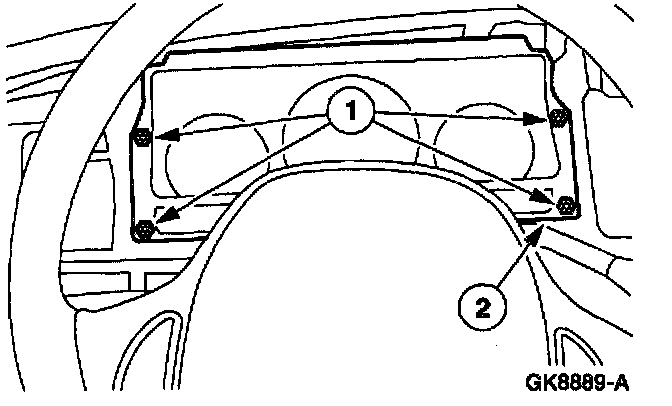

6. Remove the instrument cluster.
1 Remove the screws.
2 Position the instrument cluster aside.
- Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
