Instrument Cluster

REMOVAL
1. Remove the instrument cluster.

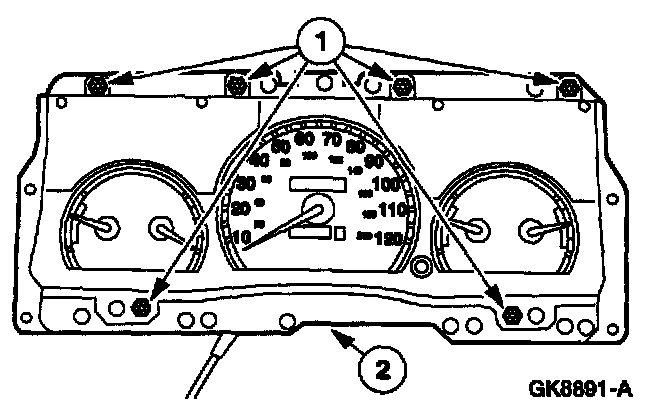

2. Remove the cluster lens.
1 Remove the screws.
2 Remove the cluster lens.

INSTALLATION
1. To install, reverse the removal procedure.
