Home >> Ford >> 2002 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Electronic Cluster >> Test B: Incorrect Fuel Gauge Indication

Test B: Incorrect Fuel Gauge Indication

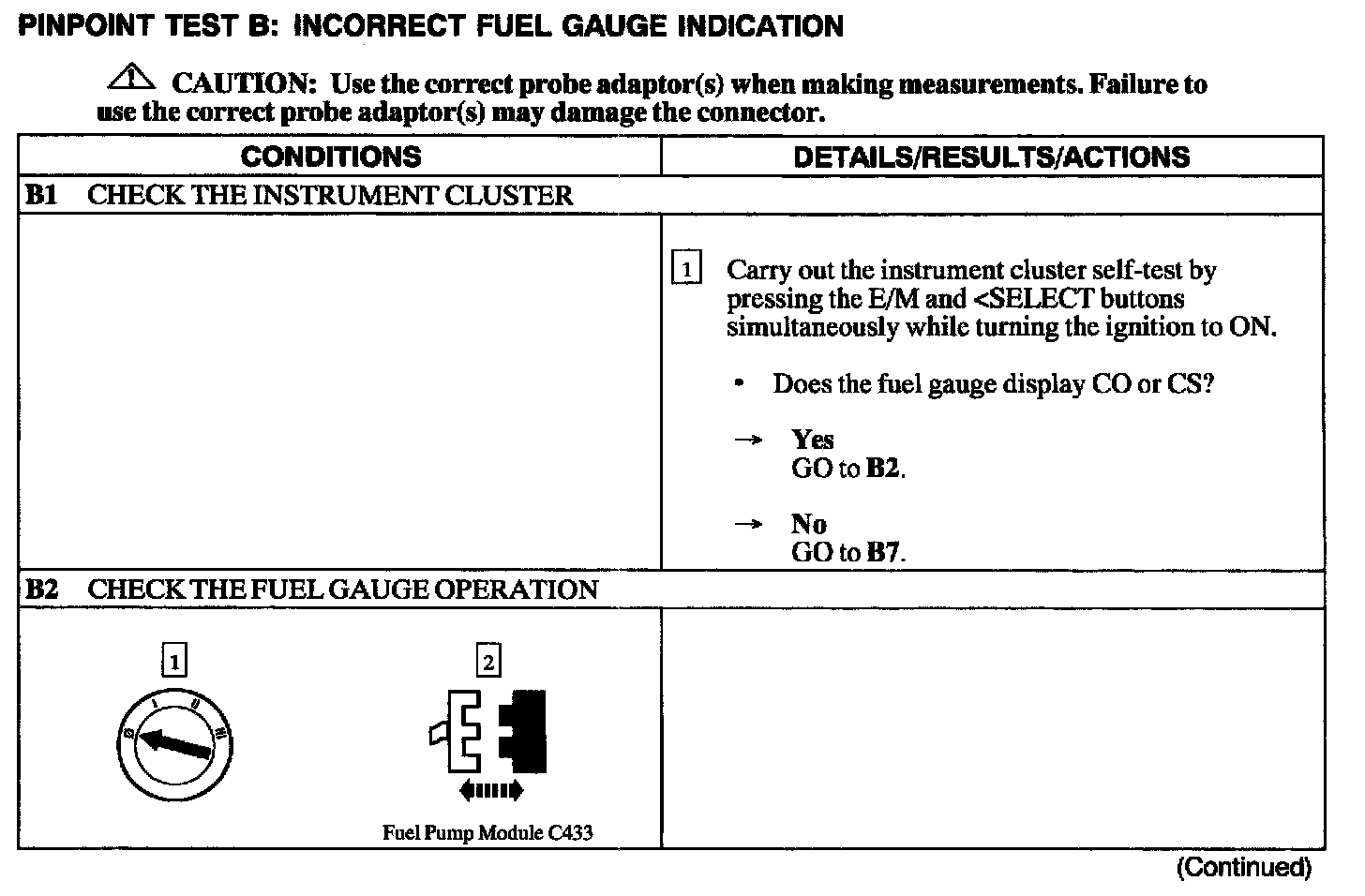

B1 - B2:

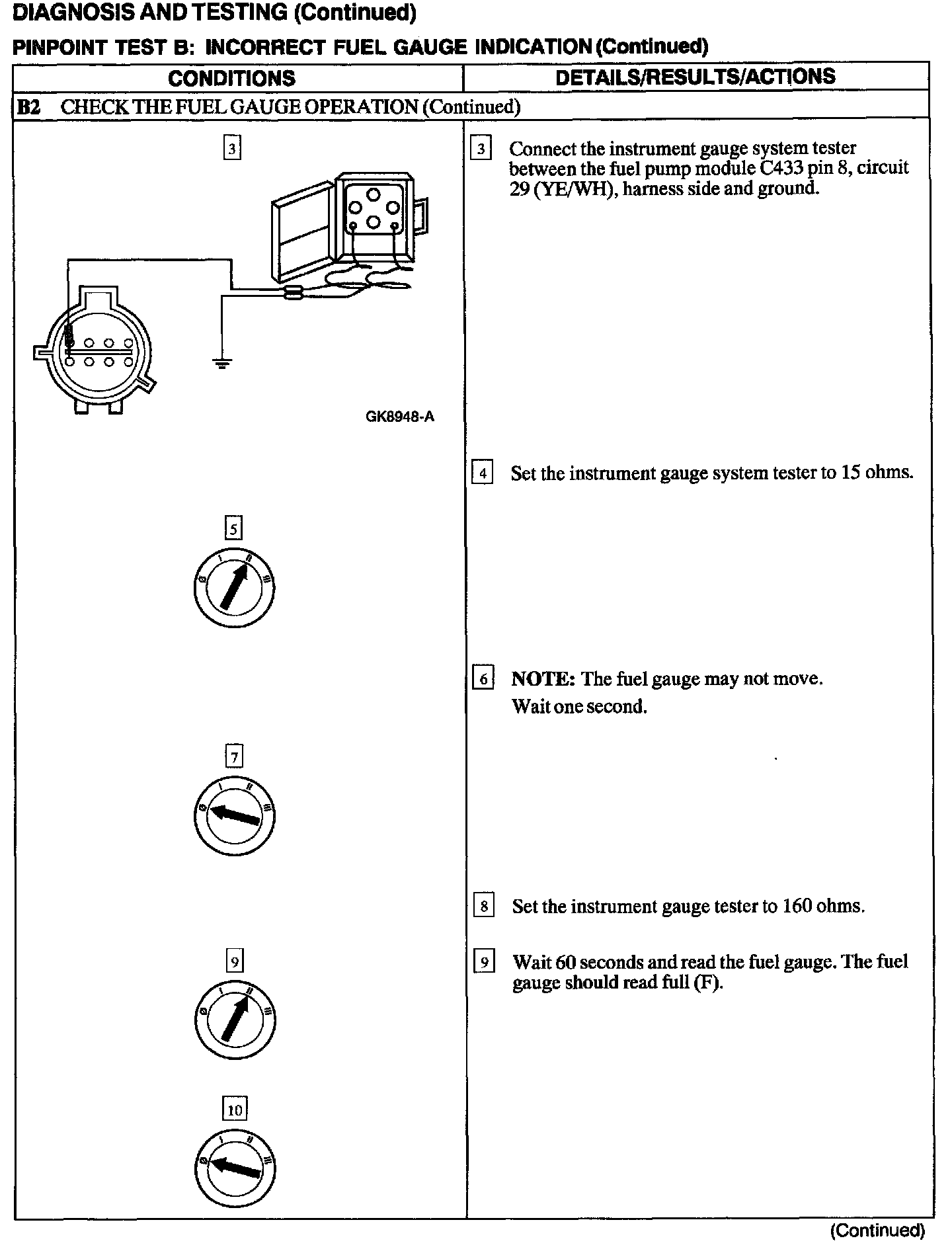

B2:

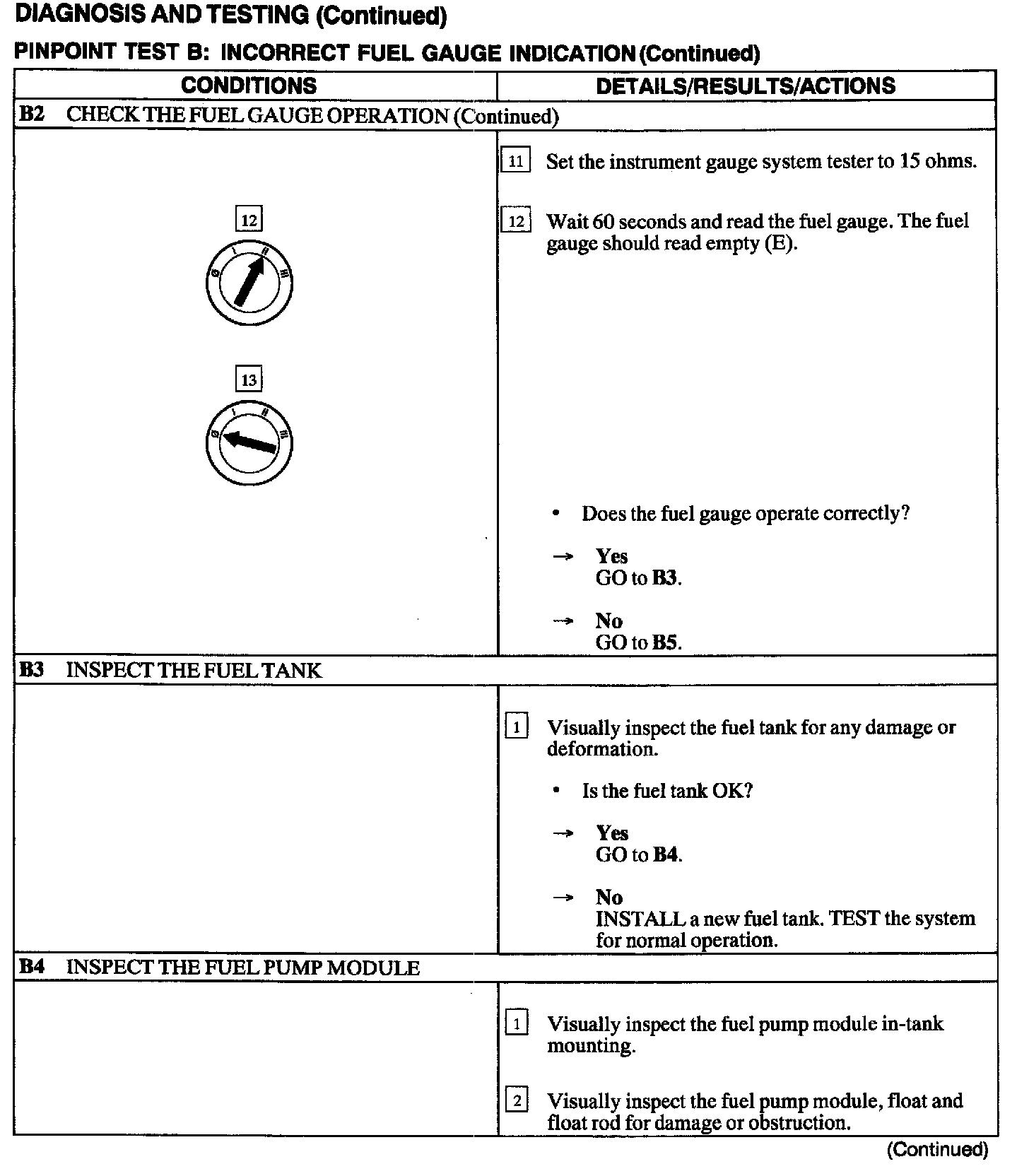

B2 - B4:

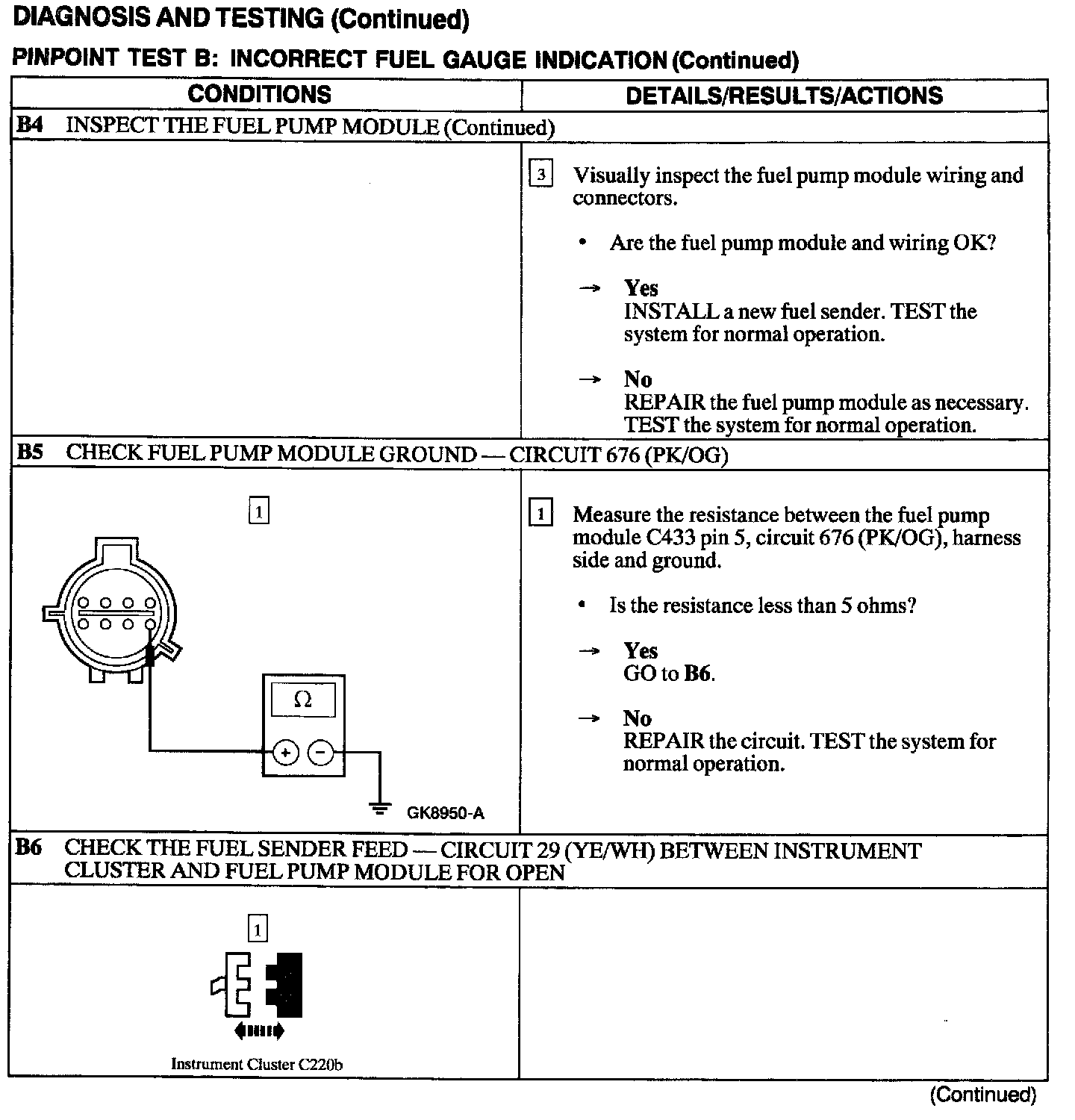

B4 - B6:

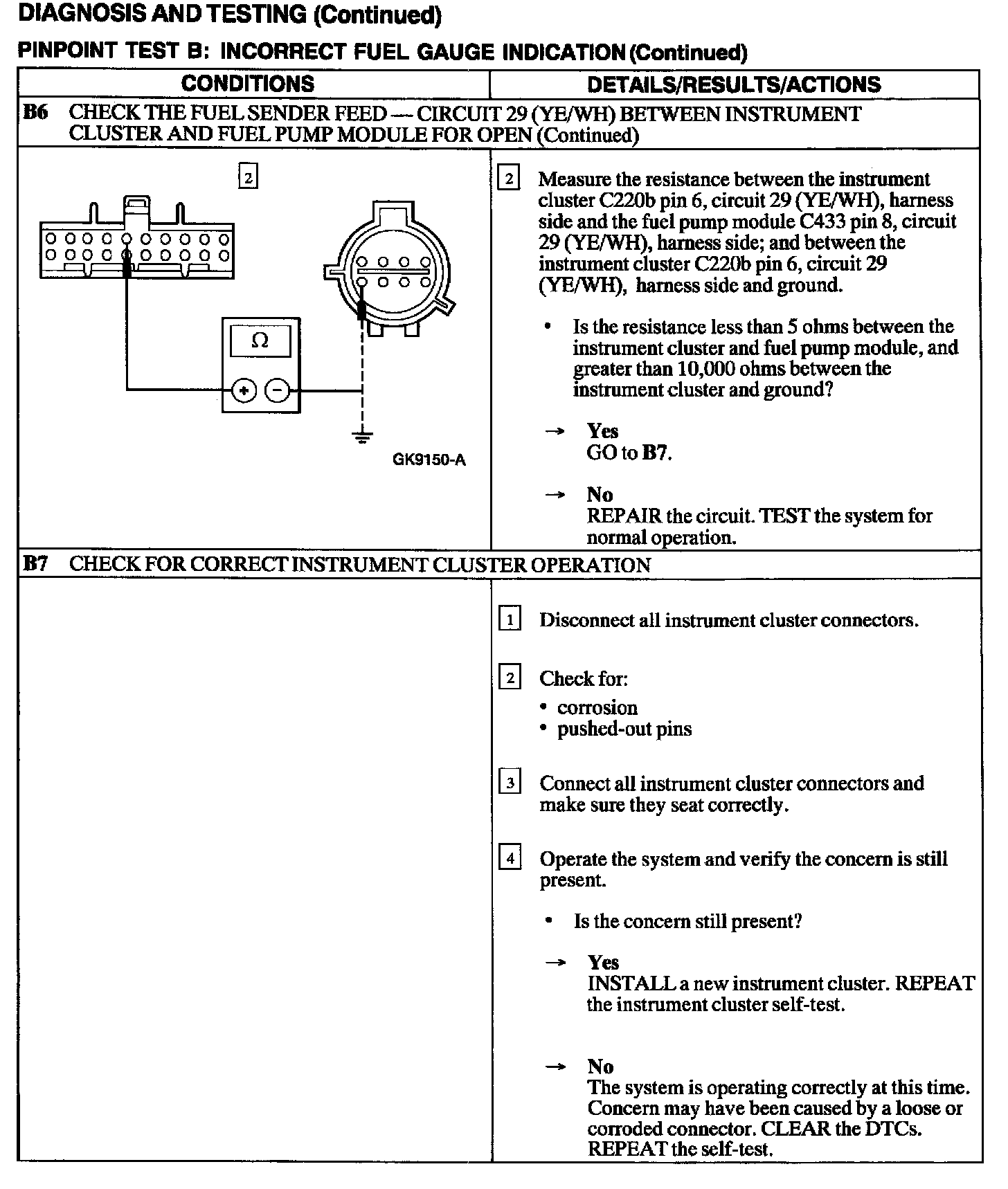

B6 - B7:
